1:10 1:8 Brush 80A Electronic Speed Controller Waterproof ESC w/ Program Box

Description:

Fully waterproof design for all conditions, suitable for different vehicles, tires and tracks.
Copper heat-conductive plates allows the internal heat to be quickly transferred to the aluminum heat sink for qreat heat dissipation.
Adiustable PWM frequency combined with advanced freewheeling technology quarantees great throttle linearity and driving feel
Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.

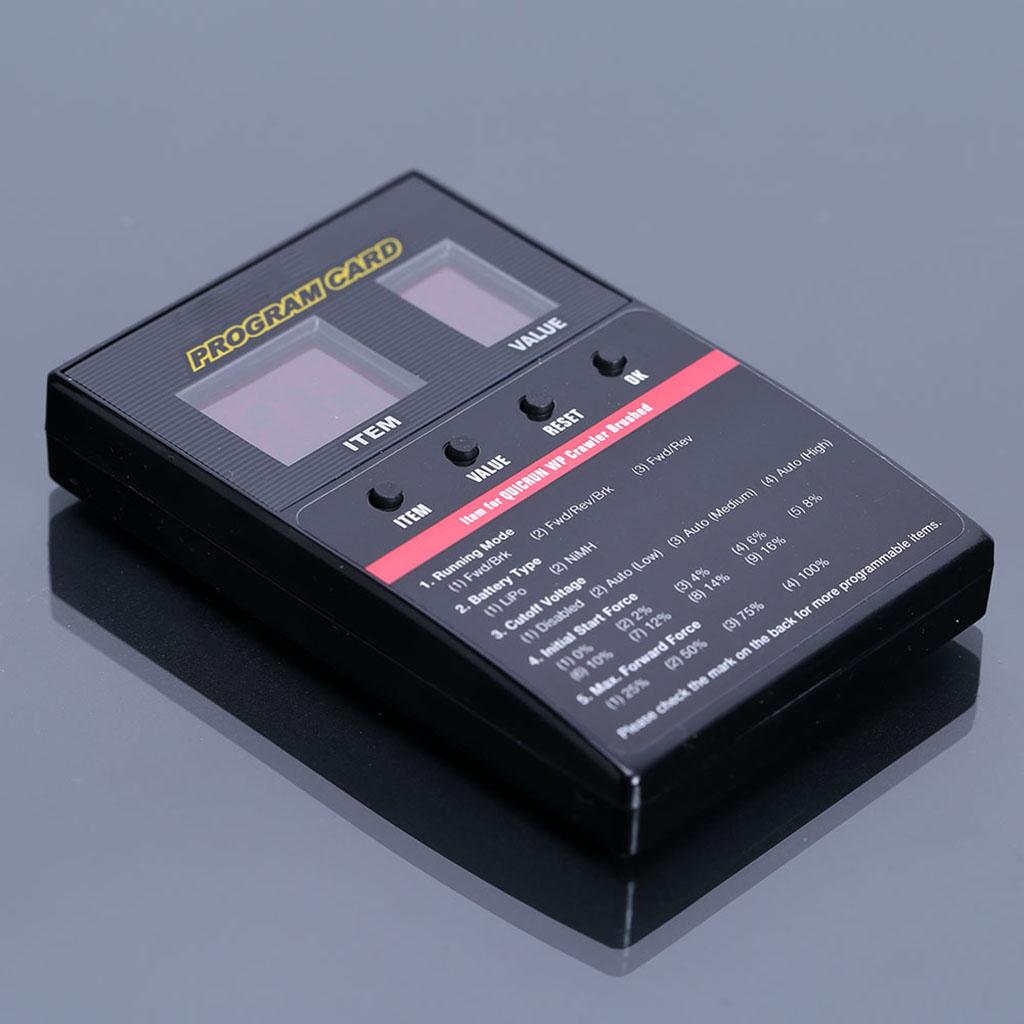

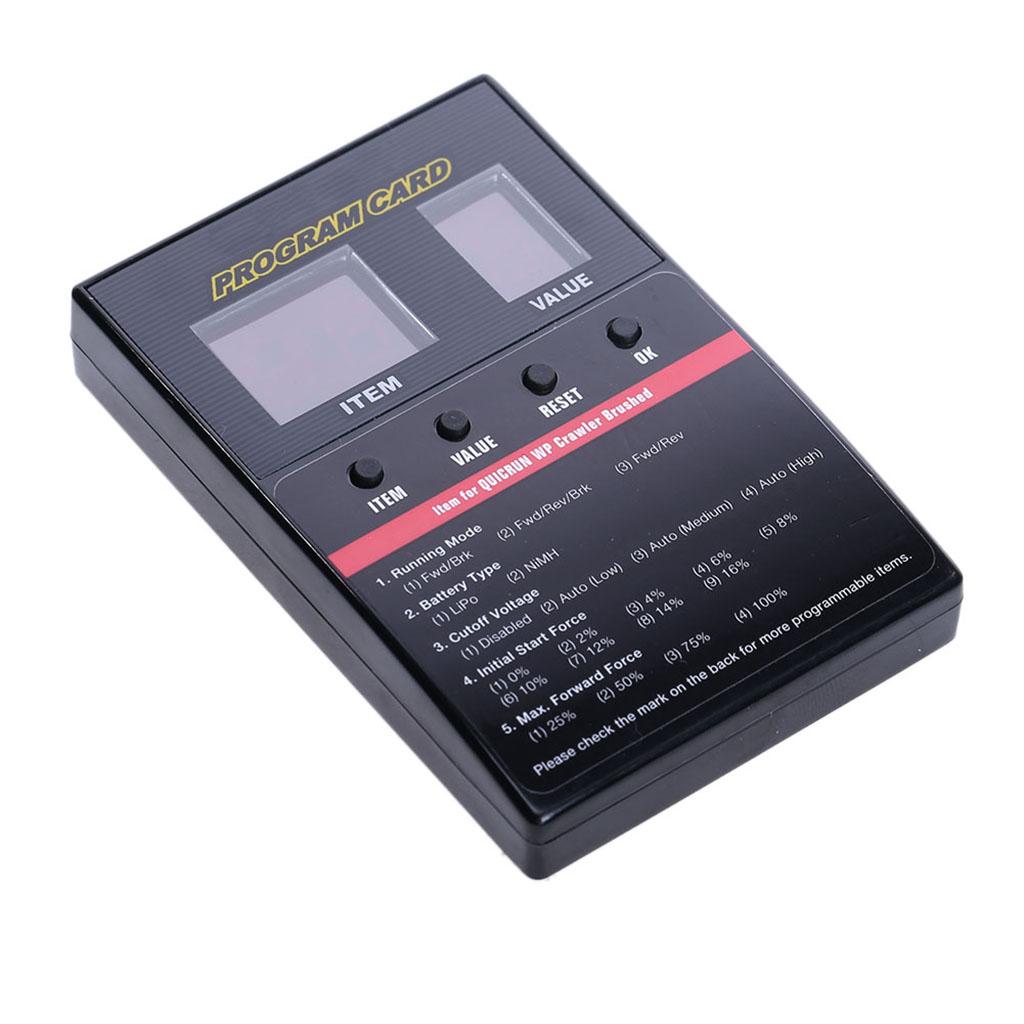

Separate programming port to easily connect the led program card to the ESC.

Specification:

Material: ABS+Metal
Suitable for 14+ years old
Cont./Peak Current : 80A/400A
Input Voltage : 2-3S Lipo/5-9 Cell NiMH
BEC Output : Switch Mode: 6V/7.4V 3A
Wires & Connectors :
Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
Input Connectors : XT60 /T PLUG Connectors
Output Connectors : No
ESC Programing via :
SET Button on ESC : Supported
LED Program Box : Supported
LCD Program Box : Not Supported
WiFi Module : Not Supported
Program Port : Separate Program Port
Firmware Upgrade : Not Supported

Size Chart:

Size: 36x32x17mm / 1.42x1.26x0.27inch

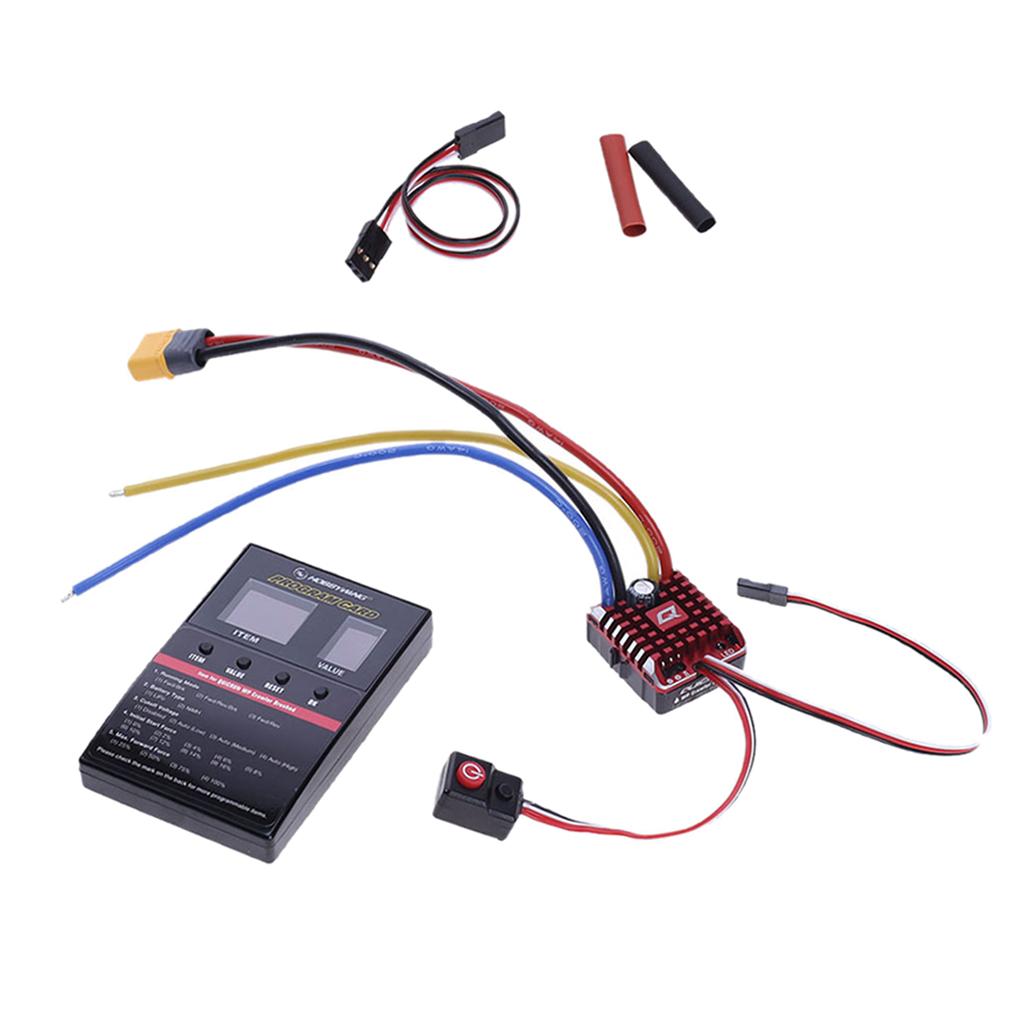

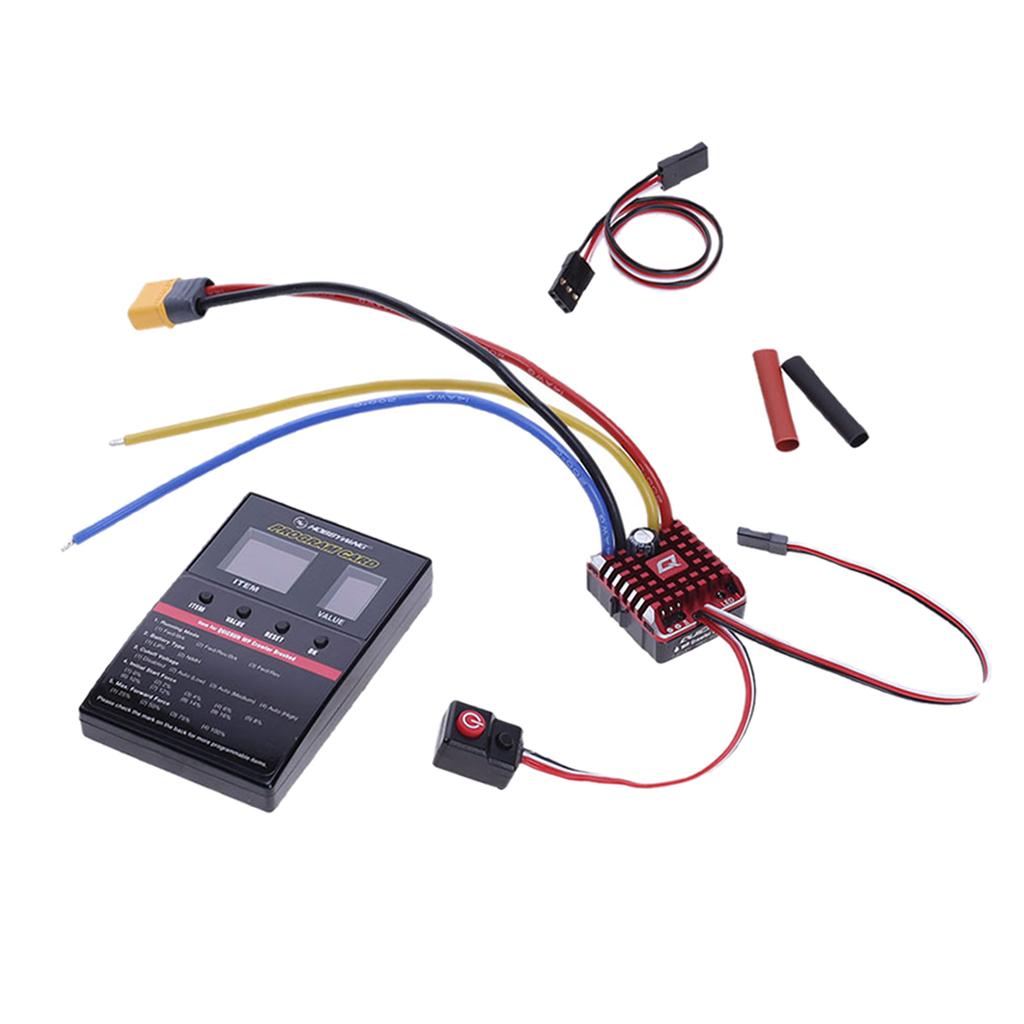

Package Includes:

1 Piece 80A 1080 ESC(XT60 or T Plug)
1 Piece English Manual
1 Piece Set Card

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
