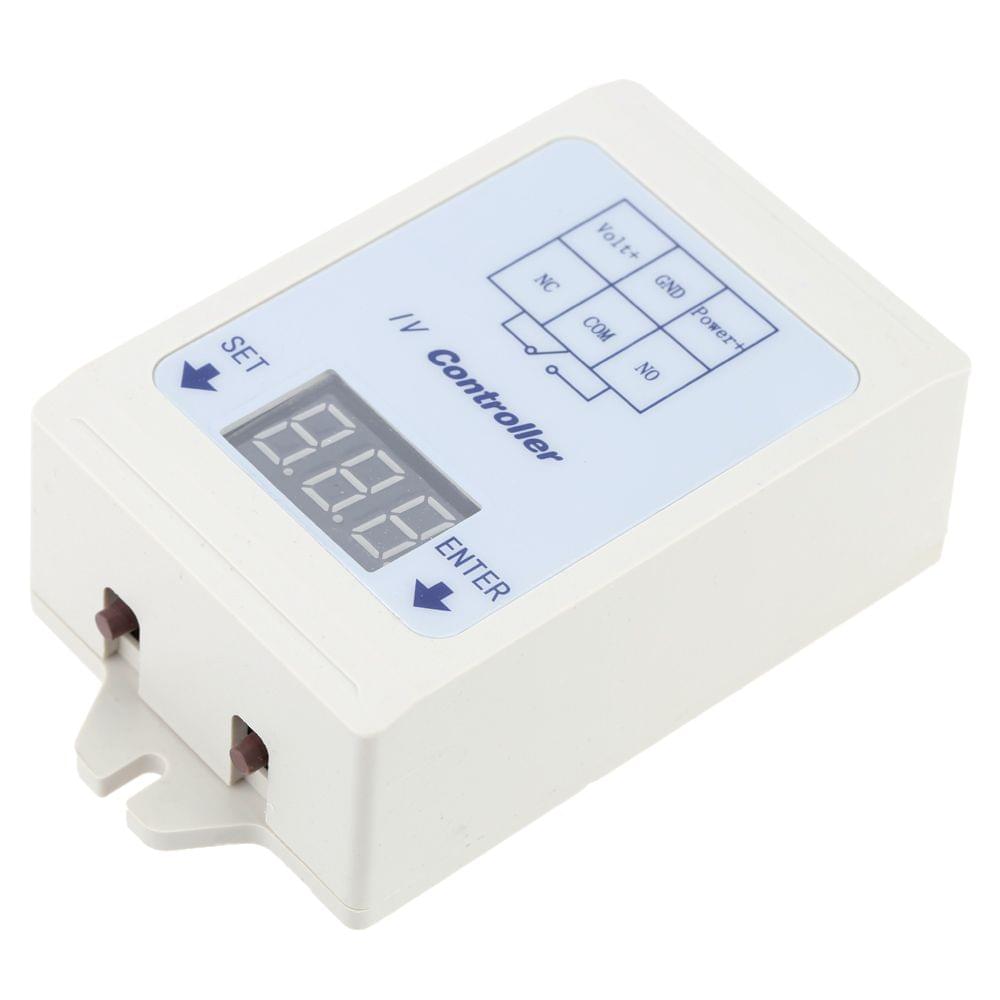

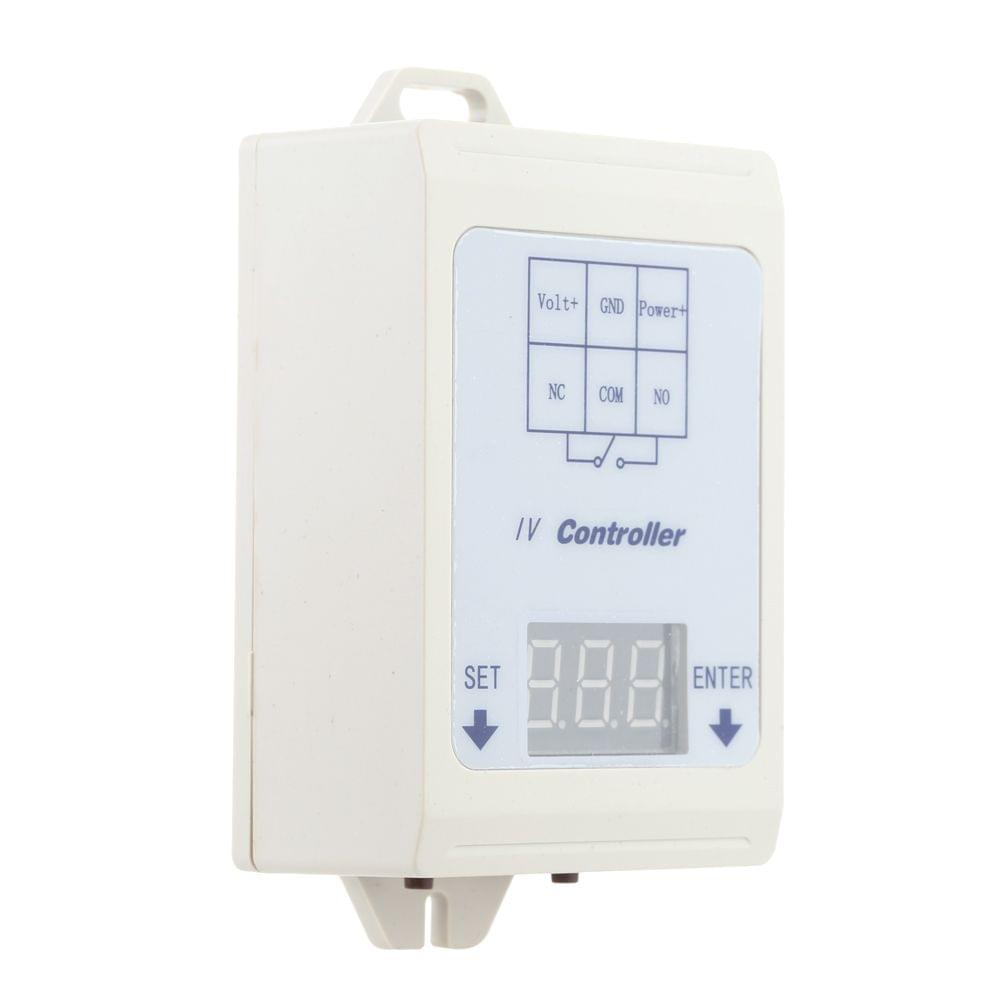

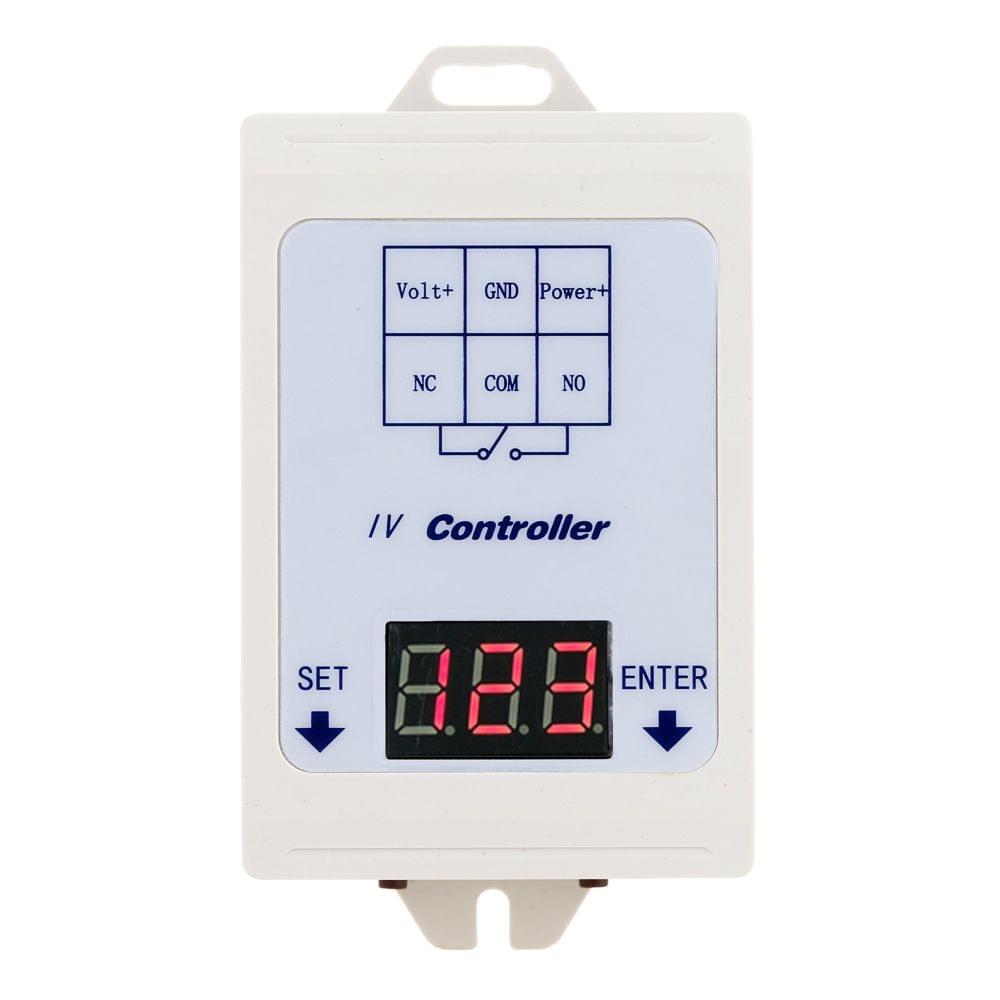

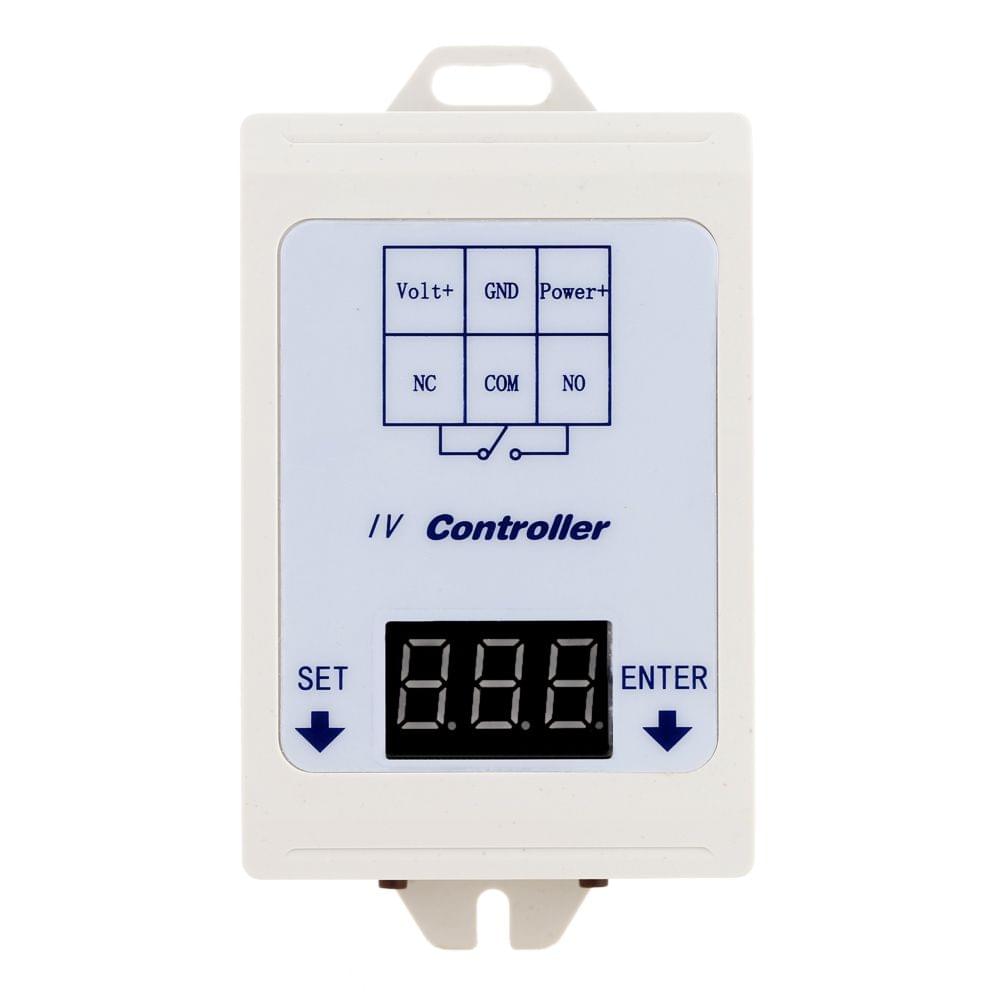

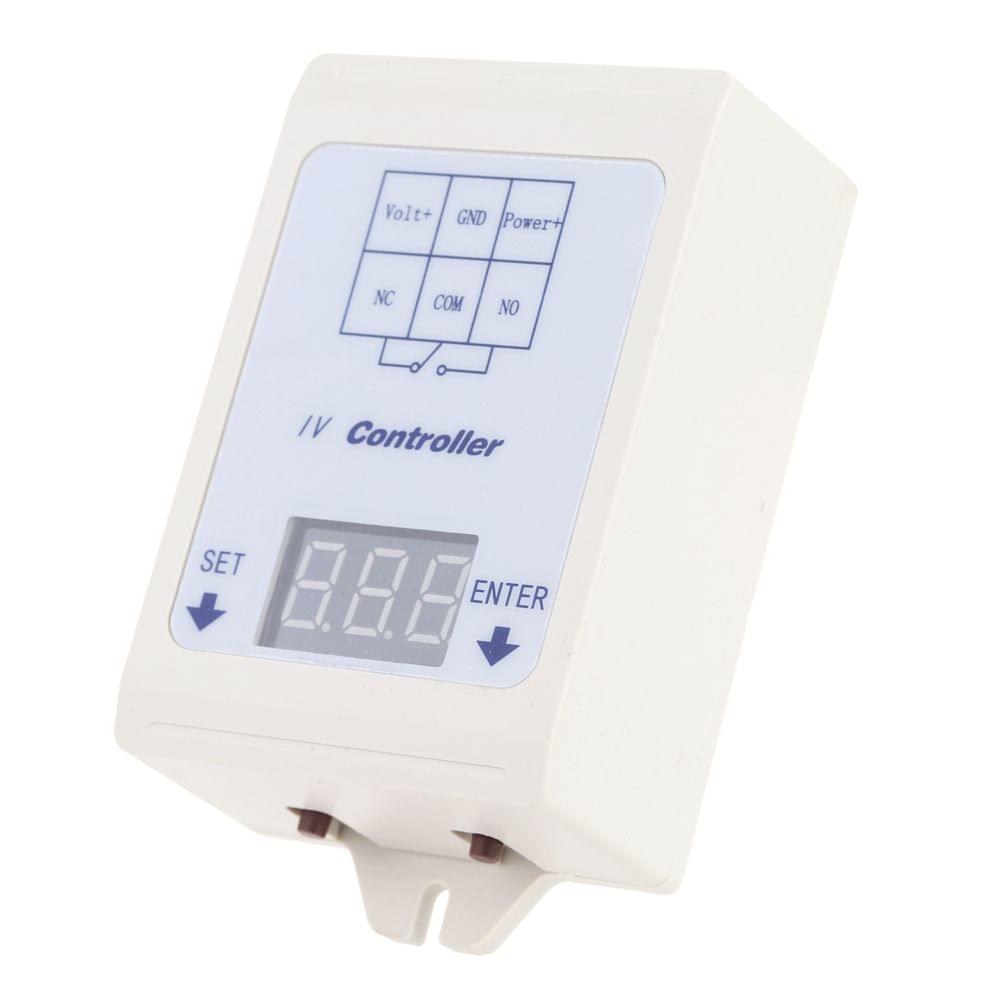

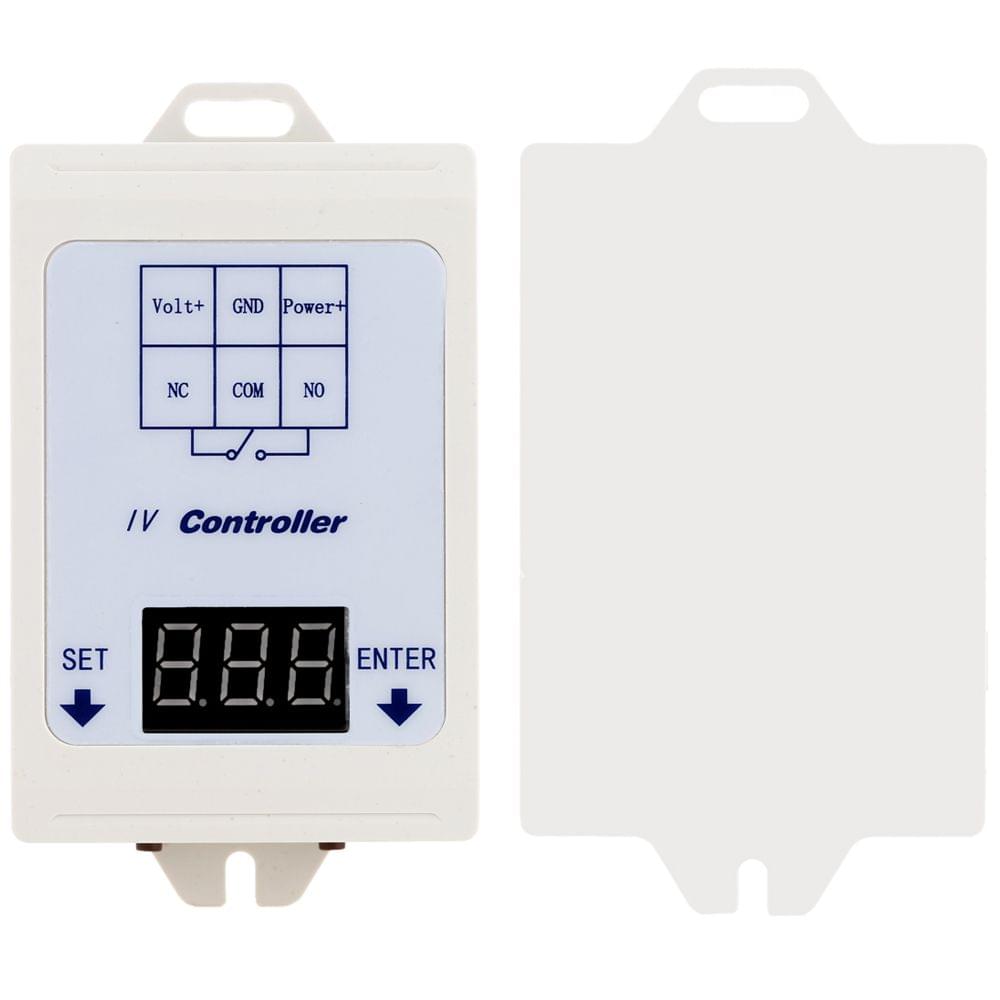

12V 24V DC LED Display Digital Voltage Meter Test Control

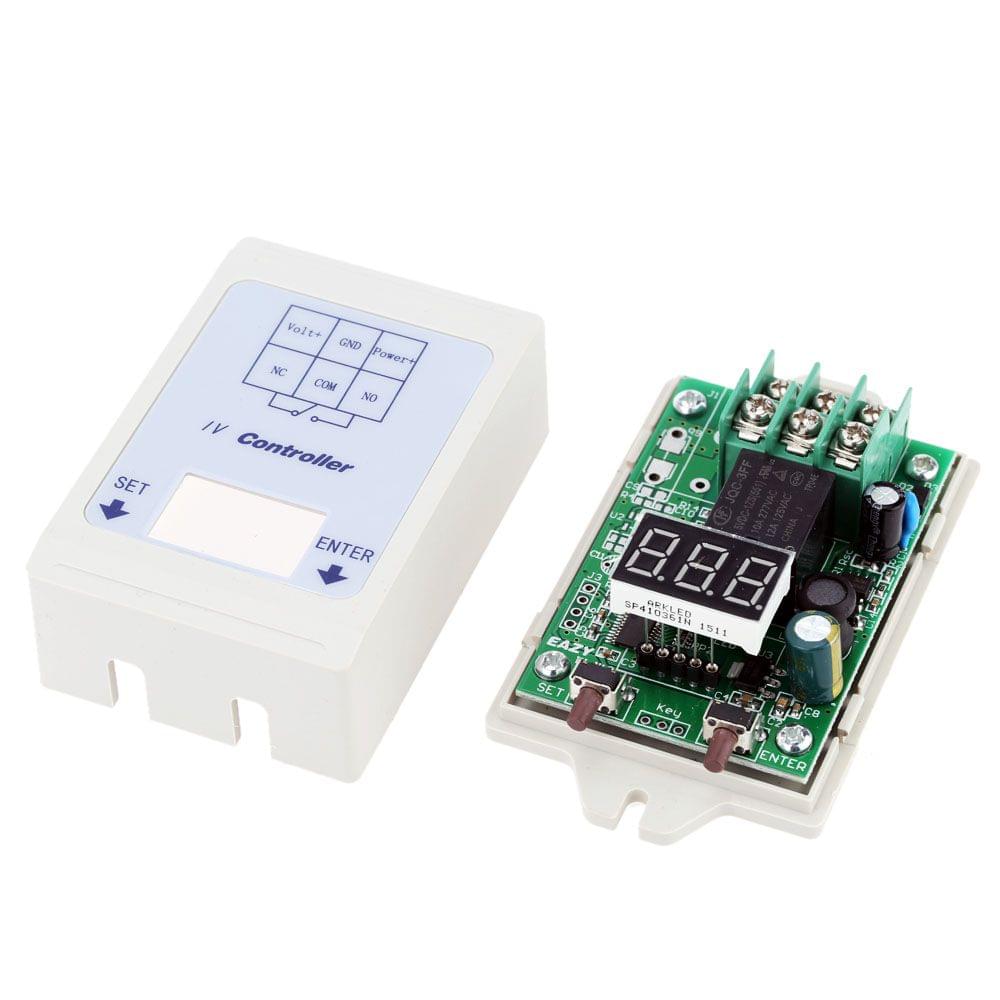

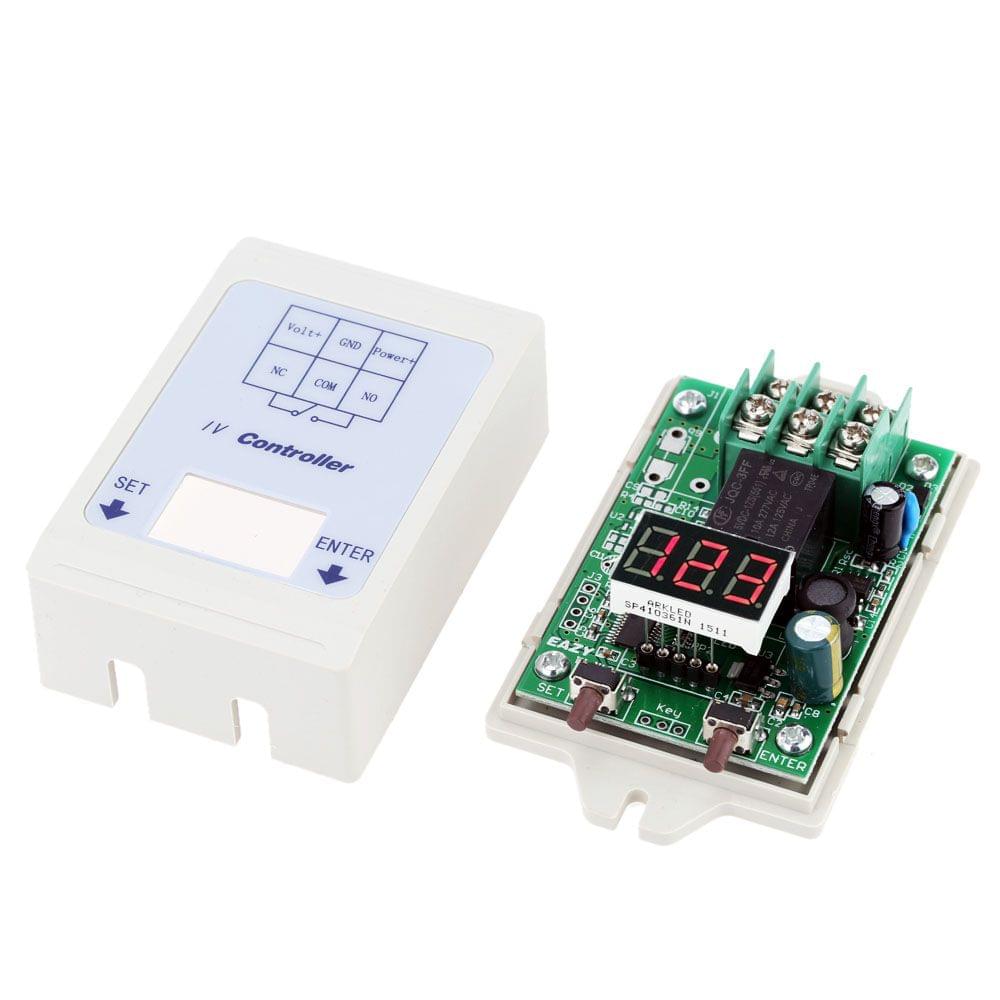

This controller with LED digital display adopts high-quality components and fully automatic SMT process for good performance. It has 1 voltage detection channel and a set of relay switch output(normally open and normally closed).Features:LED digital display mounting boss on the case convenient and simple for user's needs.Procedures for intelligent control realize over-voltage/under-voltage function.Wide range of working power: DC 8-35V; the voltage detection range is DC 0-99.9V.Adjustable input voltage detection sensitivity: 0.1-0.9s.The relay output timing range is 0-999s.To ensure stability use industrial grade PCB board.Working Modes Selection:P-1: Delay Setting(set the delay time and pull time);P-2: Voltage Detection Control(detect the voltage to control the relay operation initial release);P-3: Voltage Detection Control(detect the voltage to control the relay operation initial pull);P-4: Over-voltage/under-voltage Control(voltage limit alarm).Specifications:Operating Power: DC 8-35VVoltage Detection Range: 0-99.9V 0.1VDetection Sensitivity: 0.1-0.9sTiming Range: 0-999sContract Load: 10A/277V AC 10A/30V DCContract Resistance: 100m??1A 6V DC?Machanical Durability: 10 millionsElectricity Durability: 100 000 (10A-250V AC)Standby Current: 15mA/12VMin. Current(Close the Nixie Tube): 6mA/12VRelay Pull-in Current: 45mA/12VOperating Temperature: -40~85CDimension: 78 * 53 * 30mm / 3.07 * 2.08 * 1.18inWeight: 74g / 2.61ozPackage List:1 * Time Relay Module
