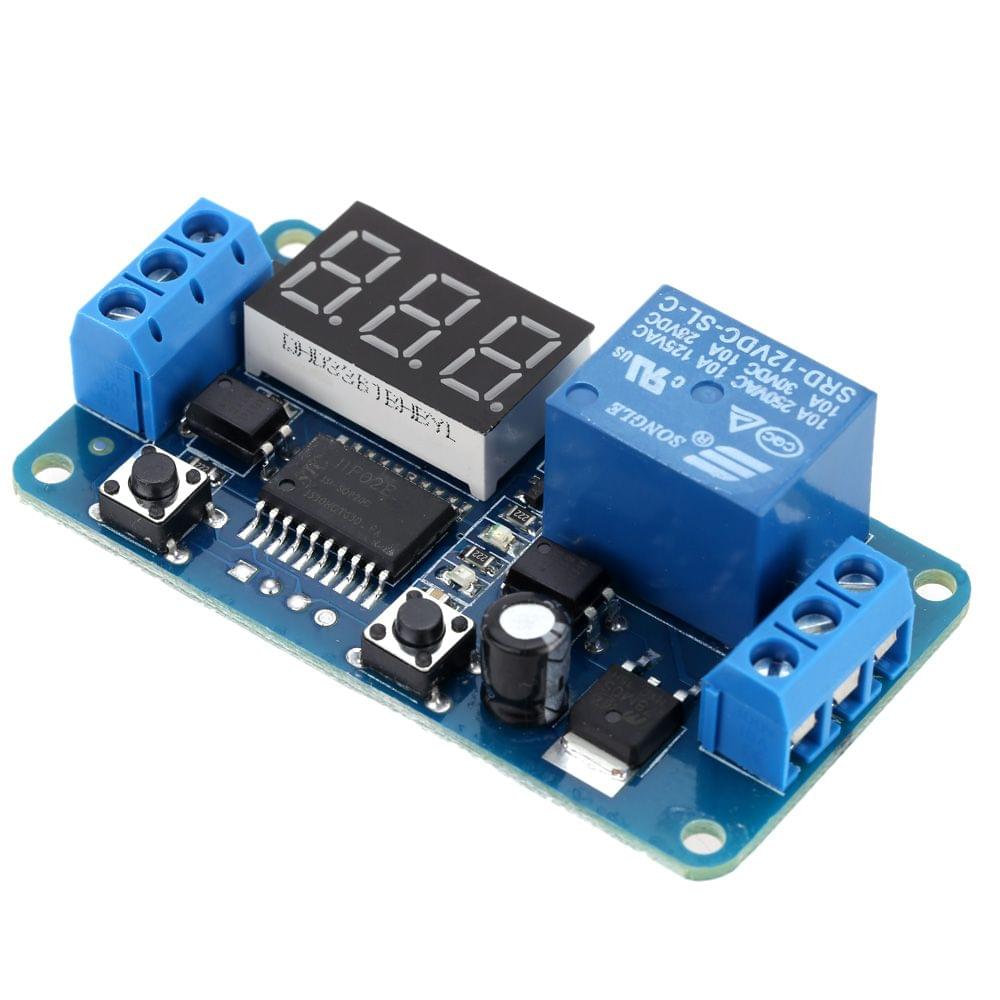

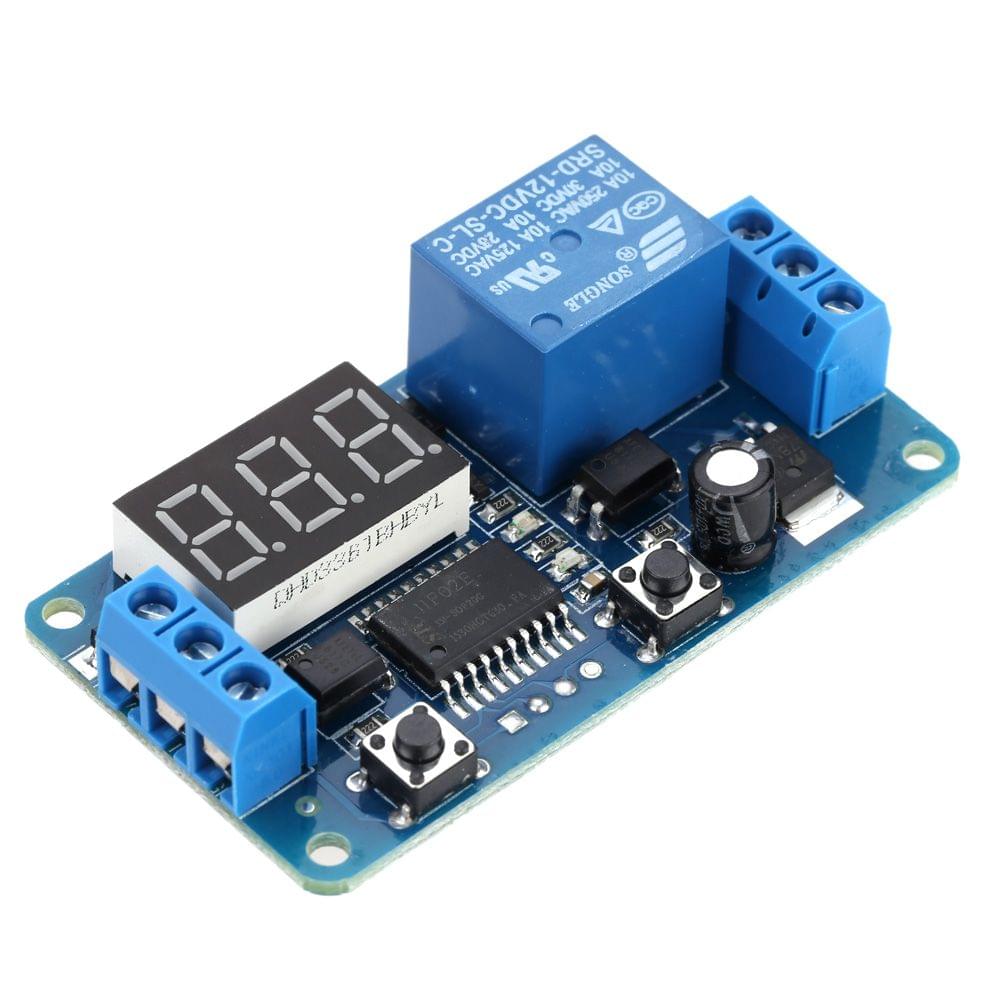

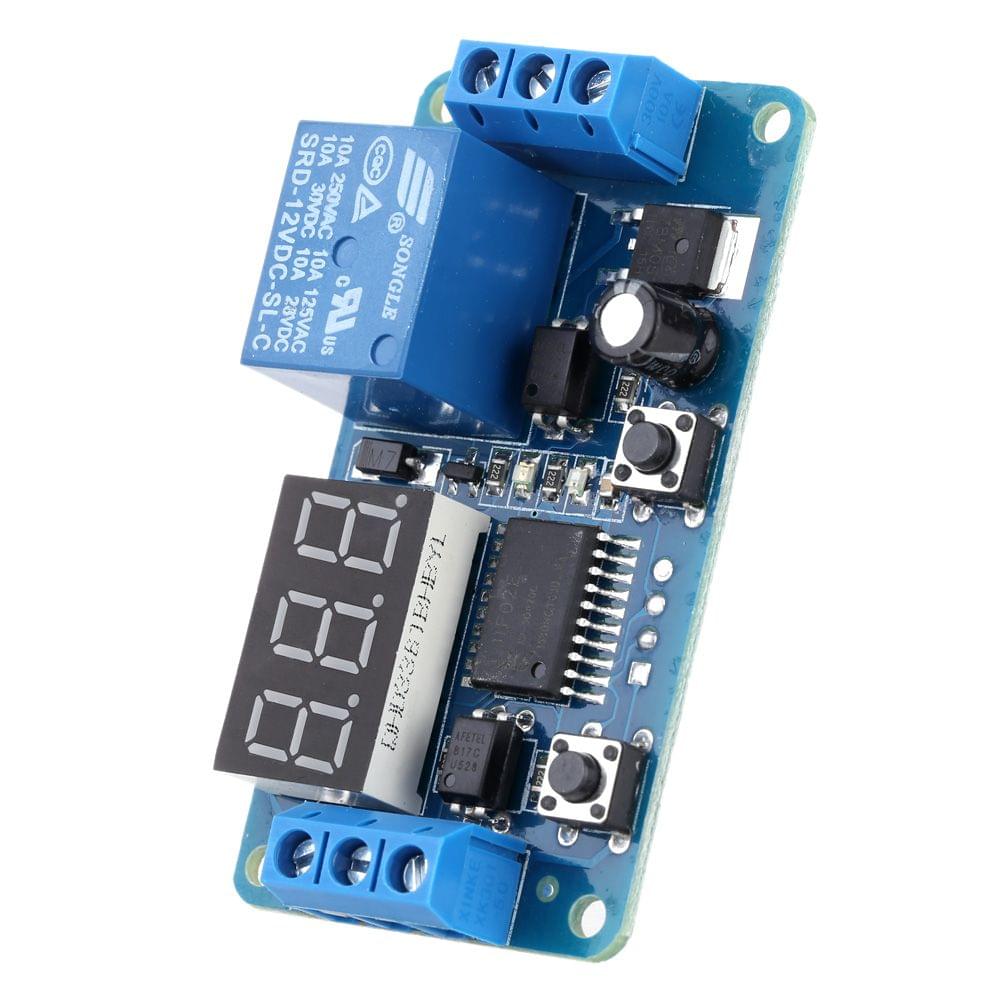

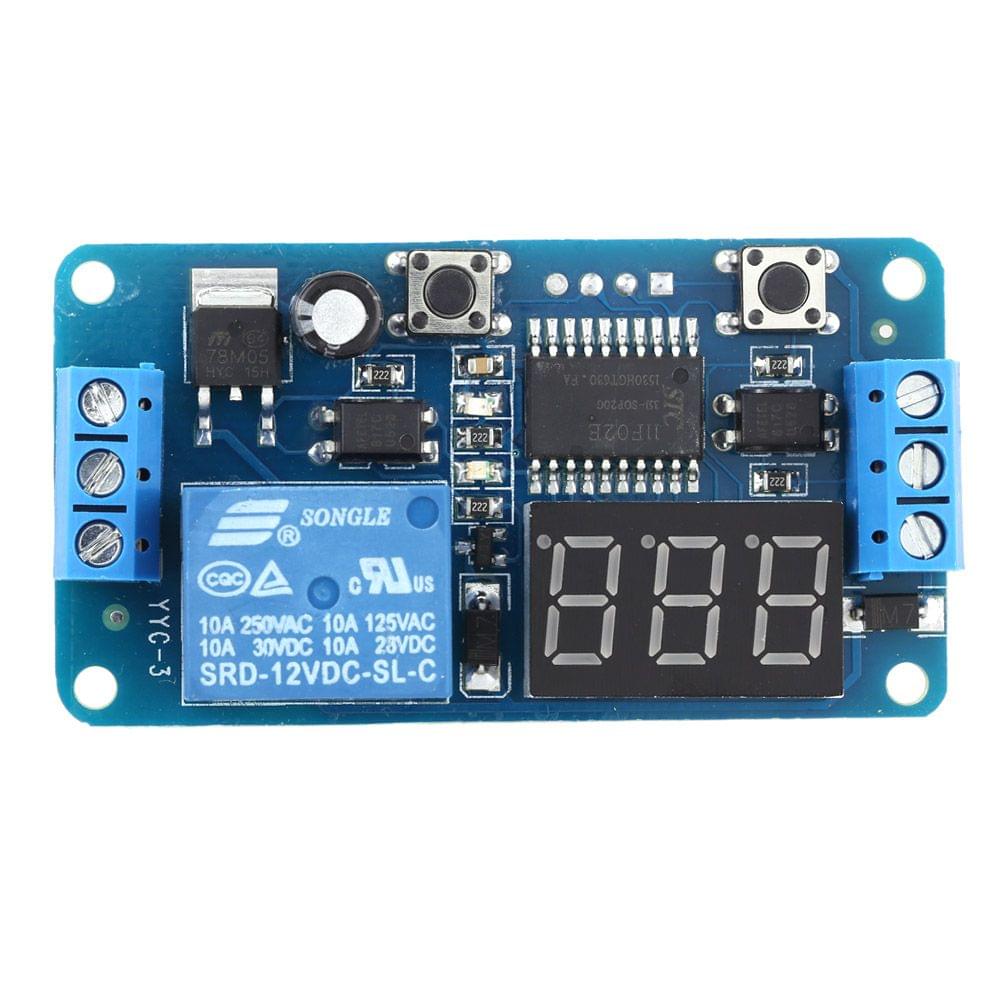

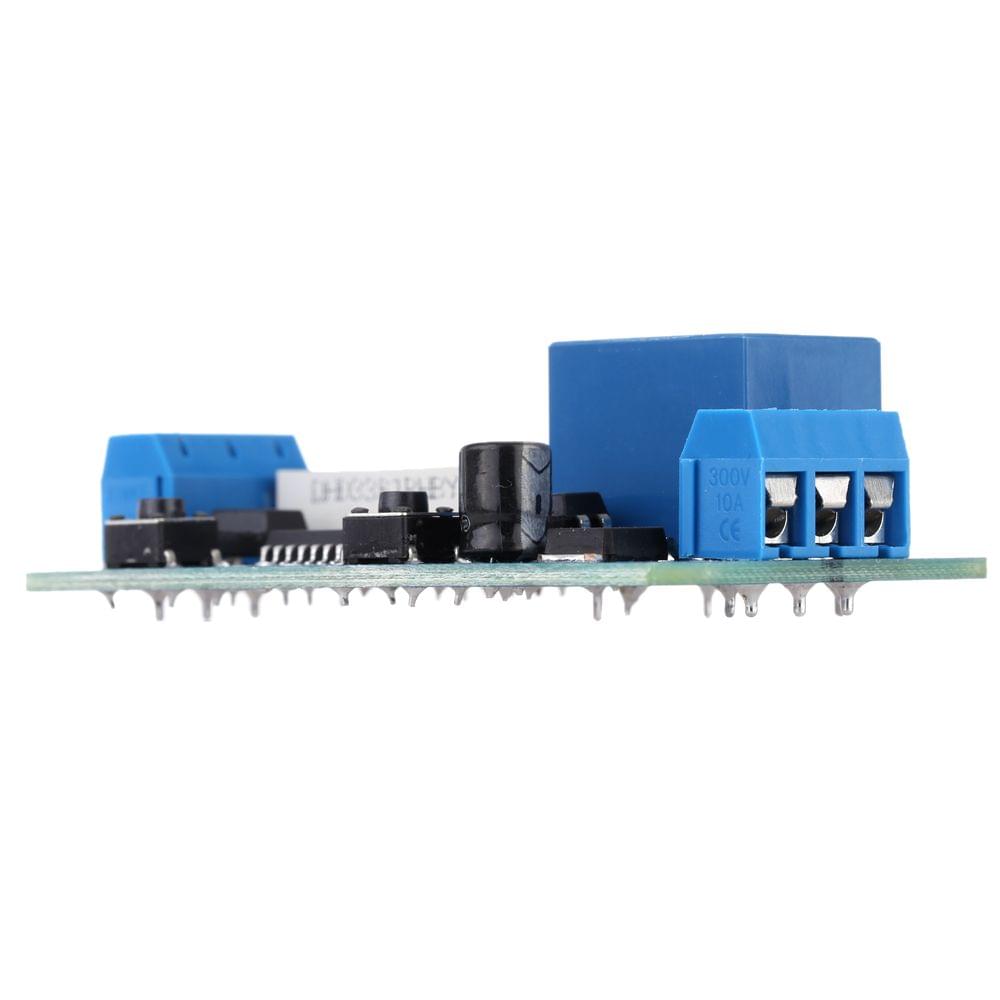

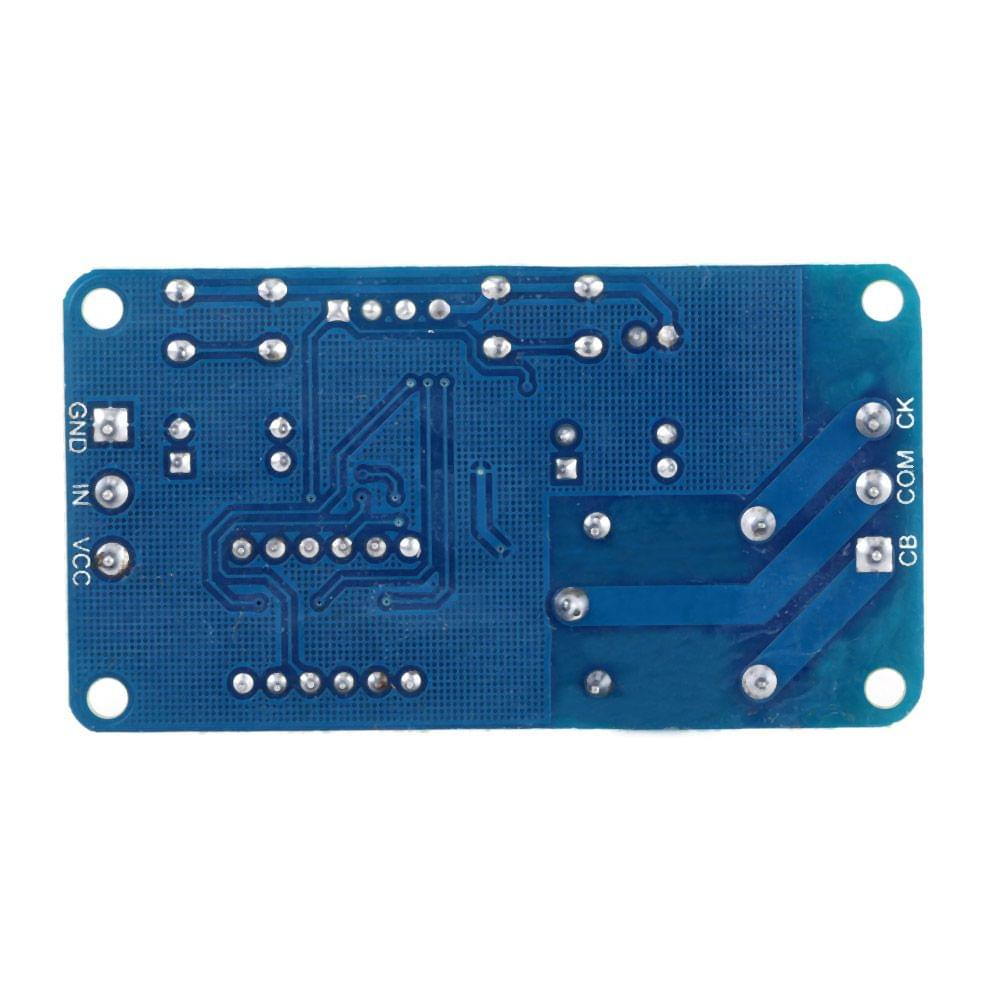

12V LED Digital Display External Trigger Delay Timer Control

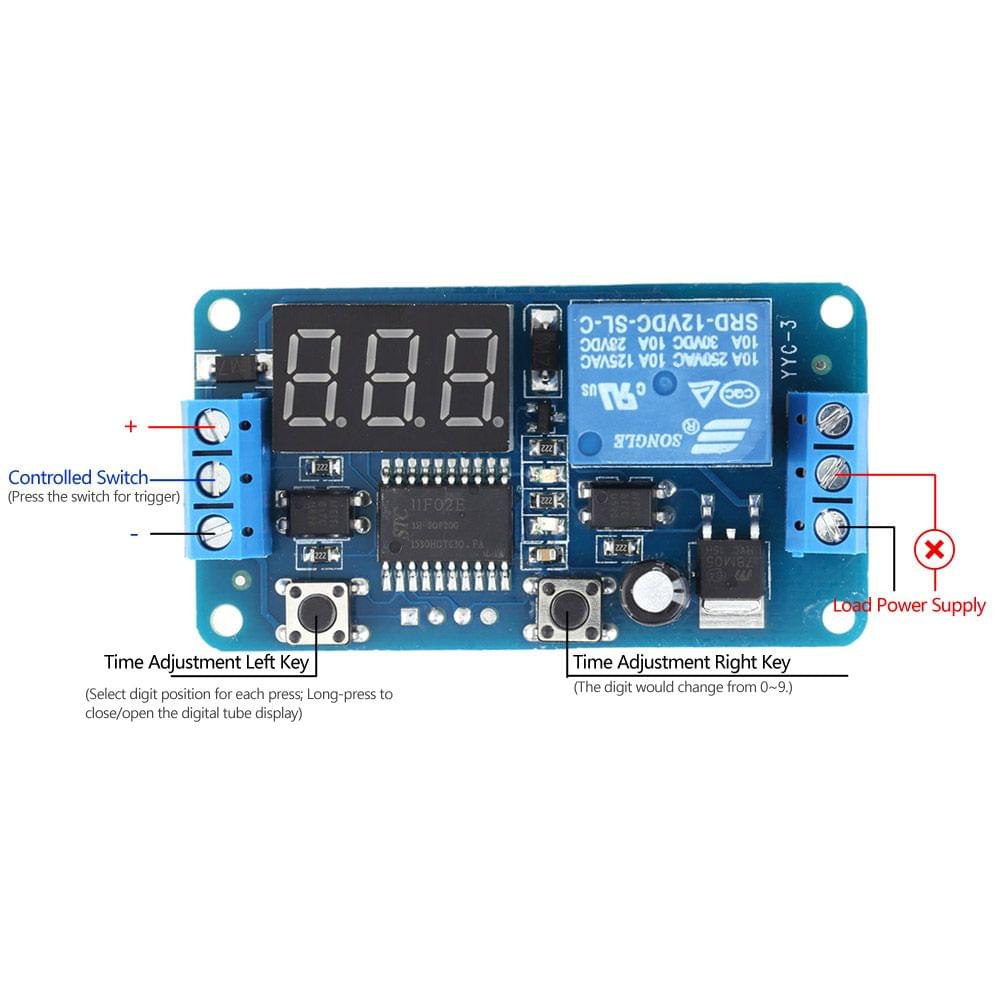

This is a delay timer module with high performance which is convenient and practical for users.Features:New upgrades to simplify meeting the users' needs.LED digital display normally open and trigger delay 12V relay can be triggered by external signals.This module is high-level trigger counting time range is 0-999s.The use of opto isolated input and output enhanced anti-jamming capability and consumption.The last setting parameters can be memorized after power off.With low consumption working mode long-press the lefy key can control the LED display.To ensure stability industrial grade PCB board.Working mode: when powered on relay doesn't work. Trigger point connects with keys or PNP-type sensor when high level triggers the relay begins to work countdown delay. The relay will switch off when the delay time is out. Specifications:Timing Range: 0~999 secondsWorking Voltage: DC 12VOutput Capacity: Can Control the Load within DC 30V 10A or AC 250V 10AStandby Current: 12mAWorking Current: 50mAWorking Temperature: -40~85CPCB Size: 65 * 35mm/ 2.56 * 1.4in (L * W)PCB Weight: 24g / 0.87ozPackage List:1 * Delay Timer Module
