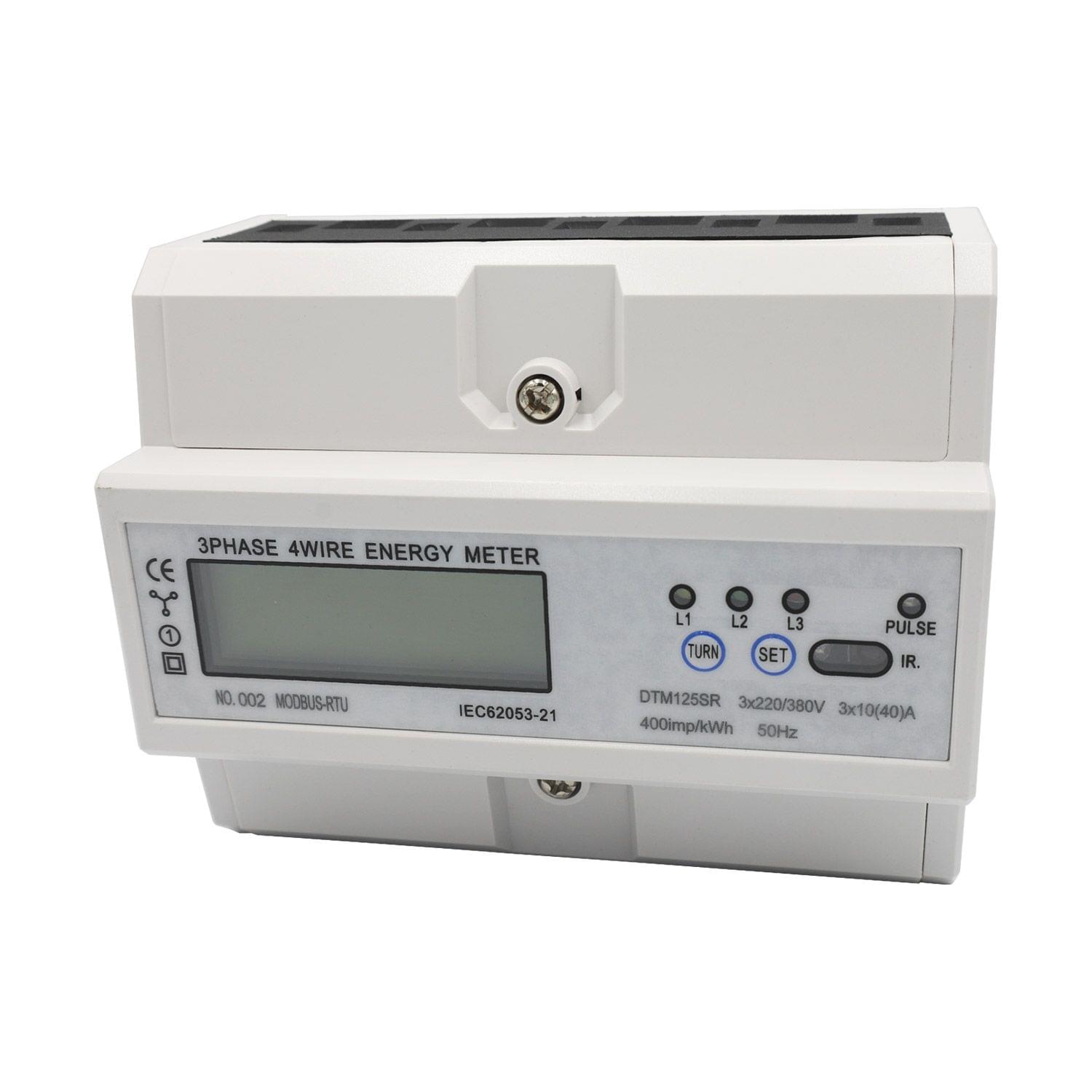

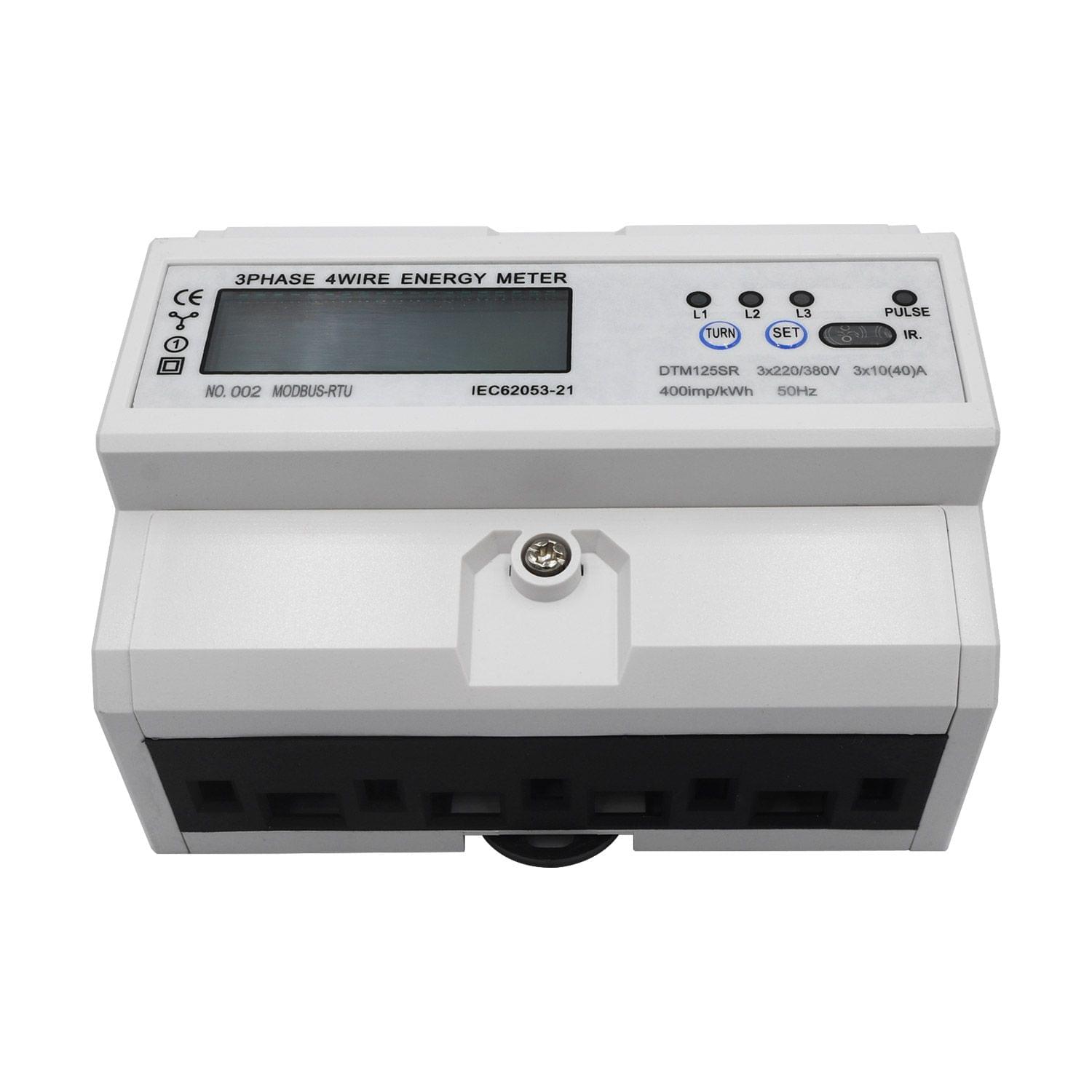

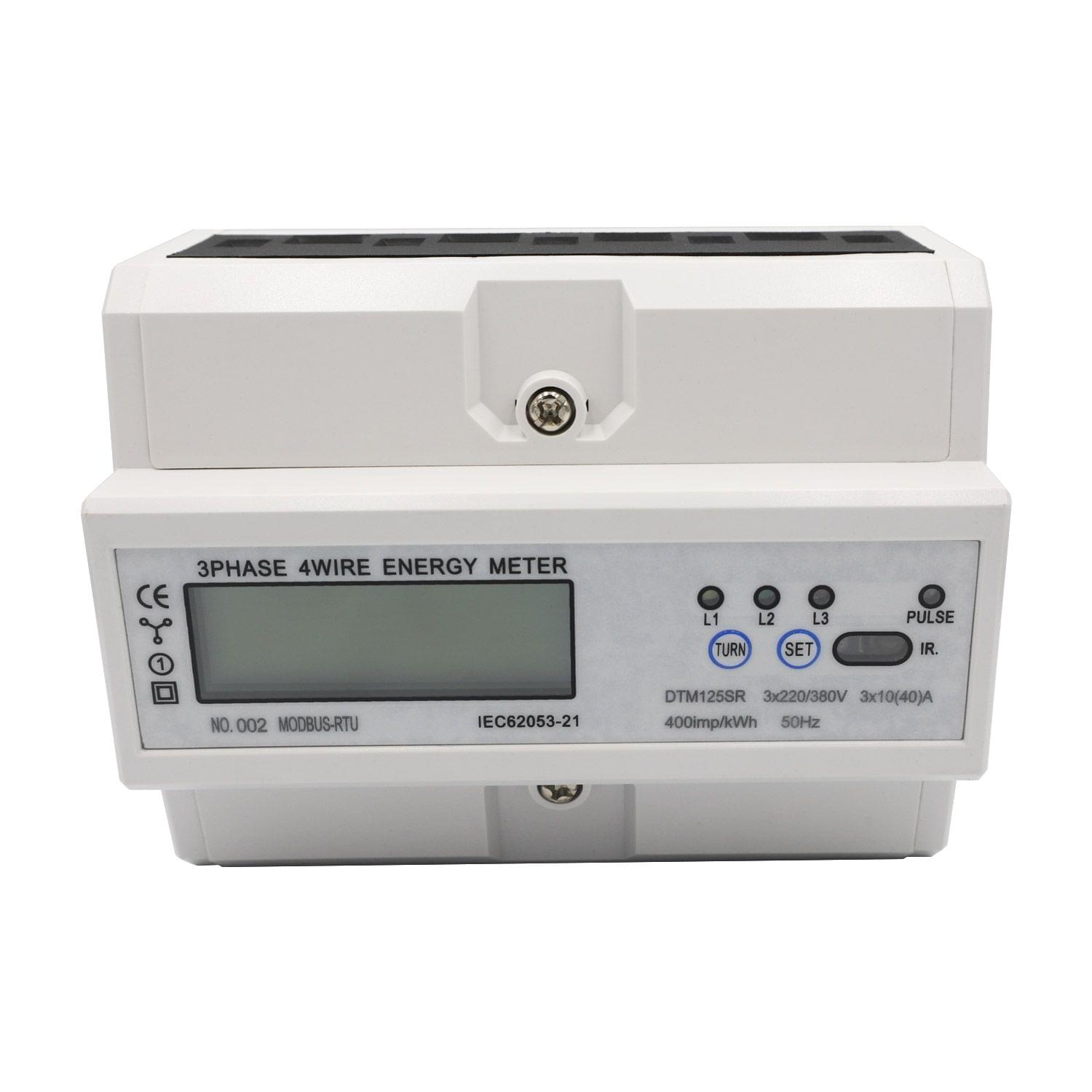

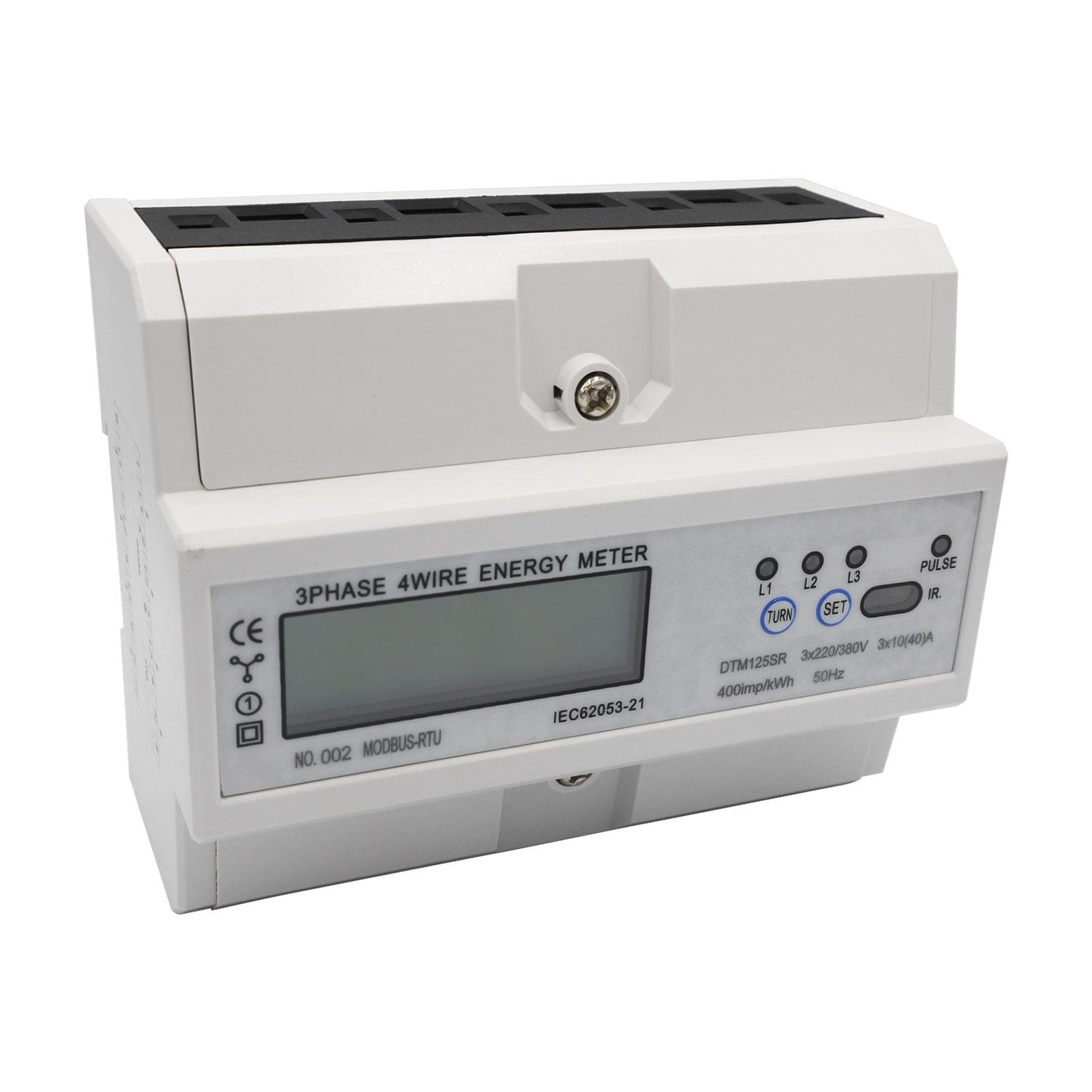

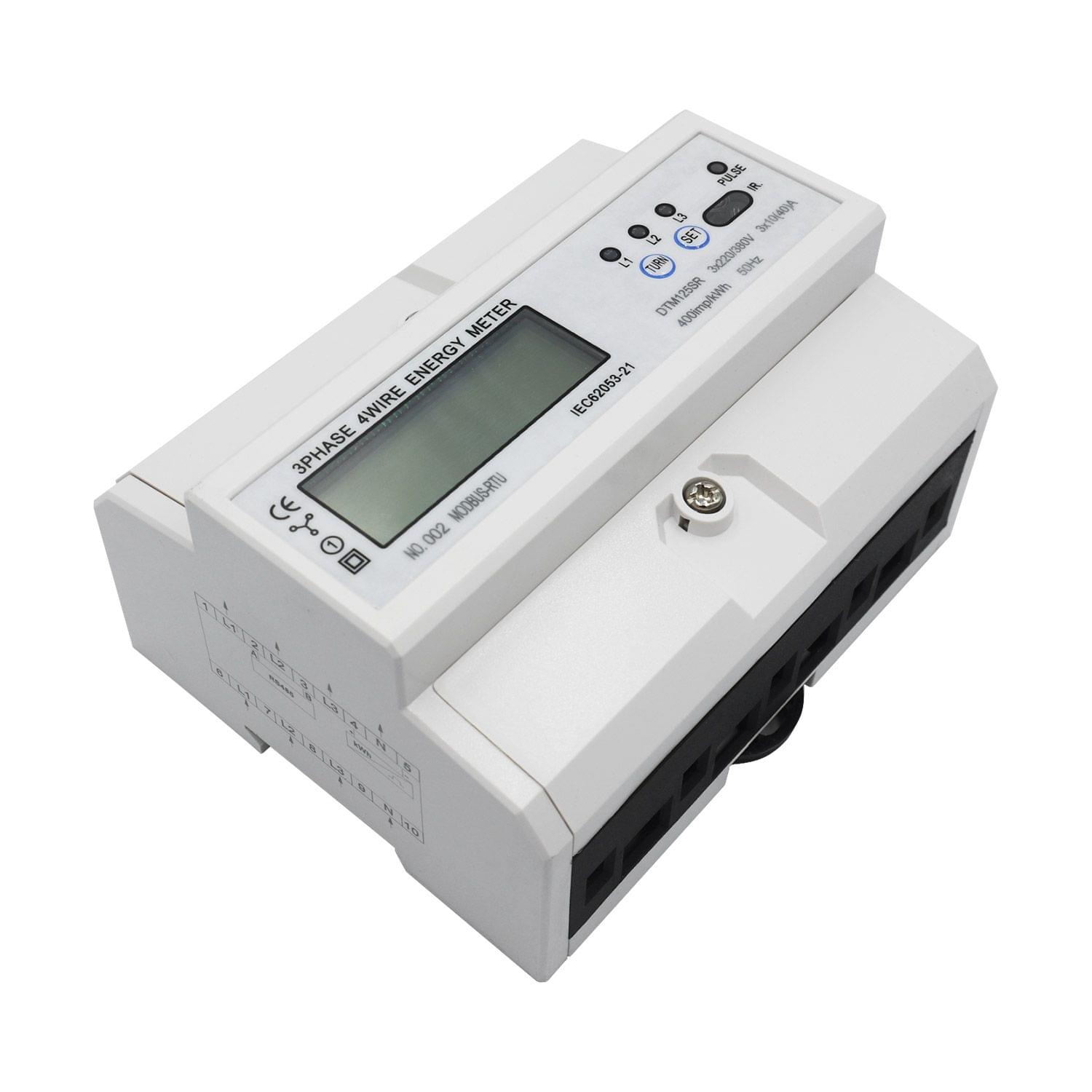

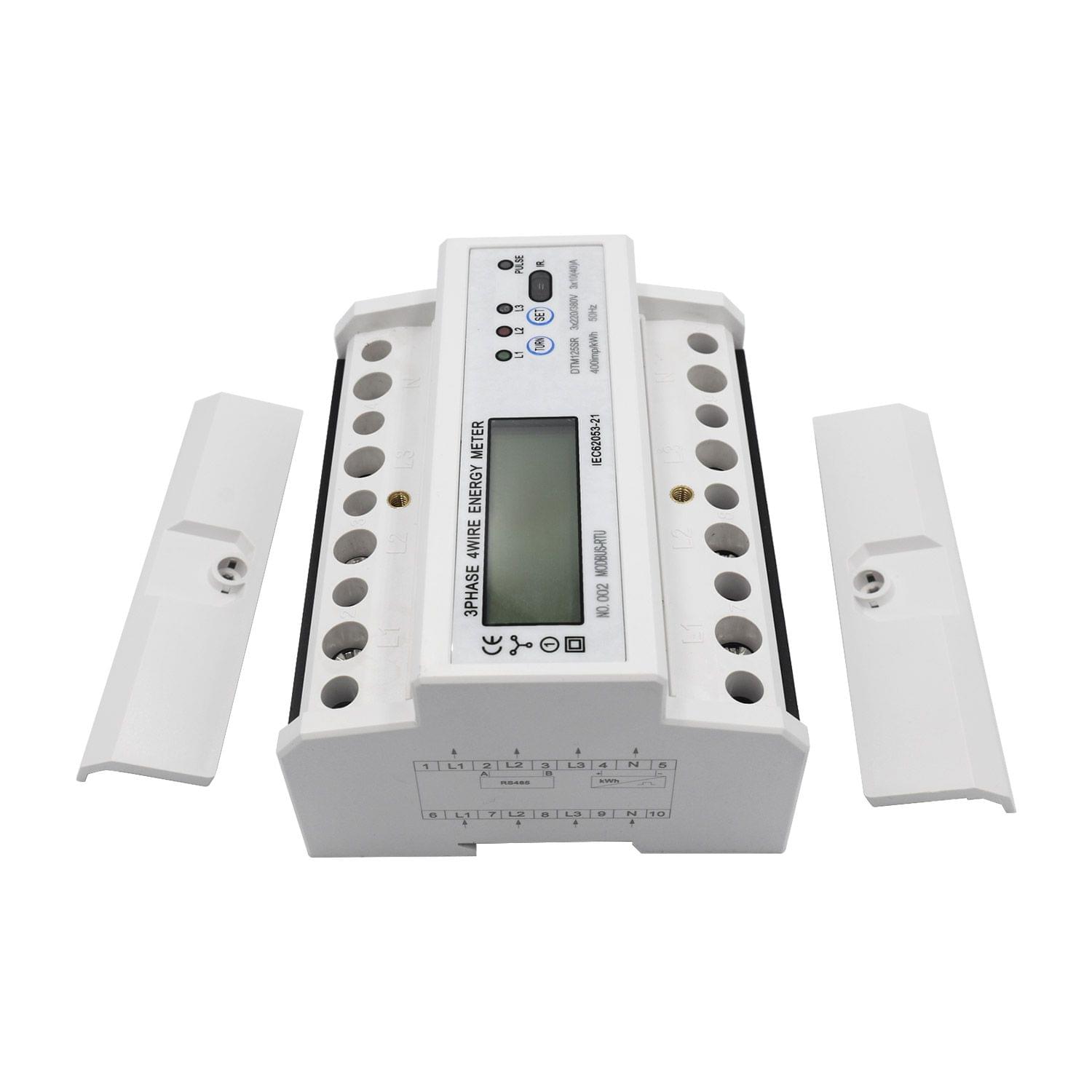

3 Phase 4 Wire DIN-Rail Energy Meter RS485 MODBUS Protocol

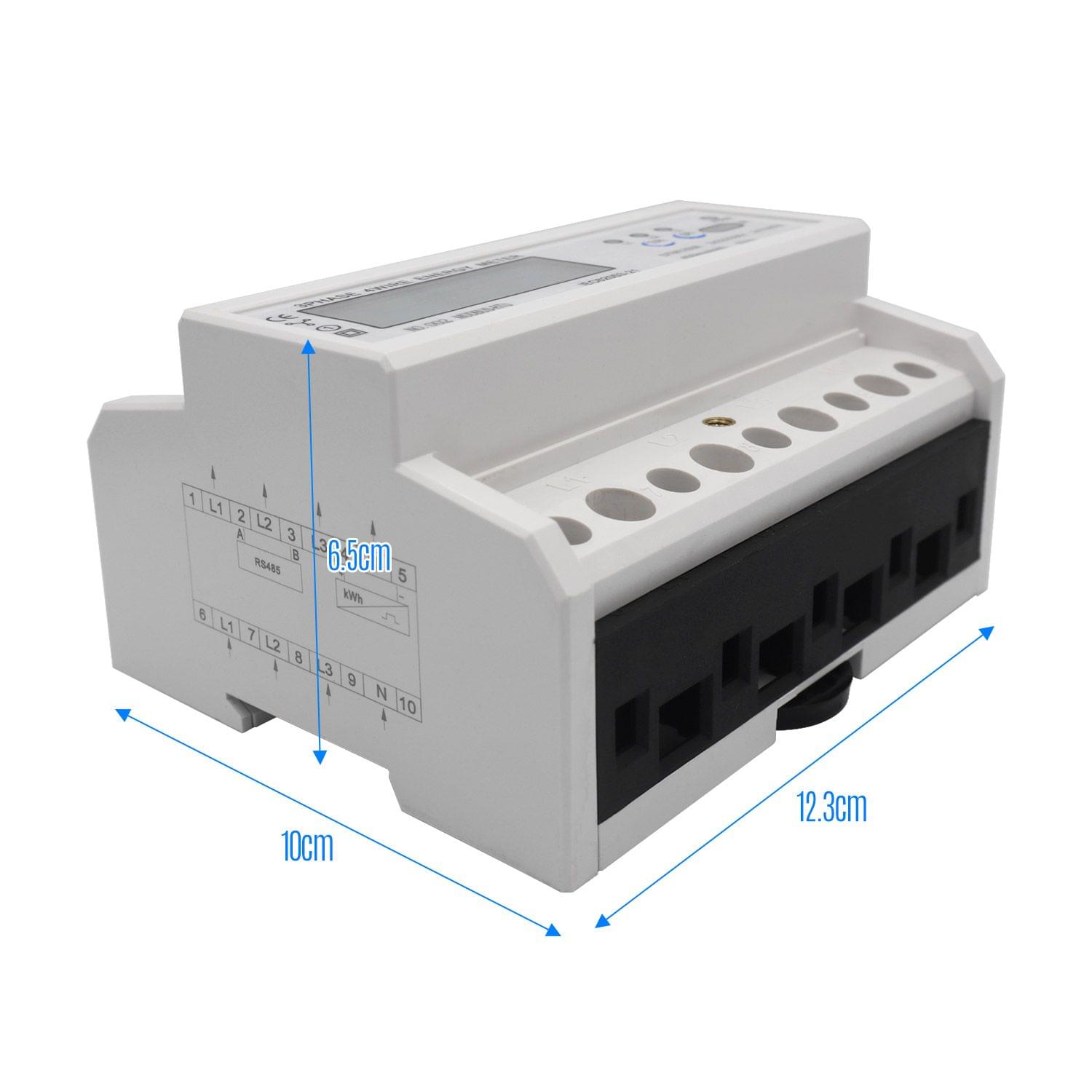

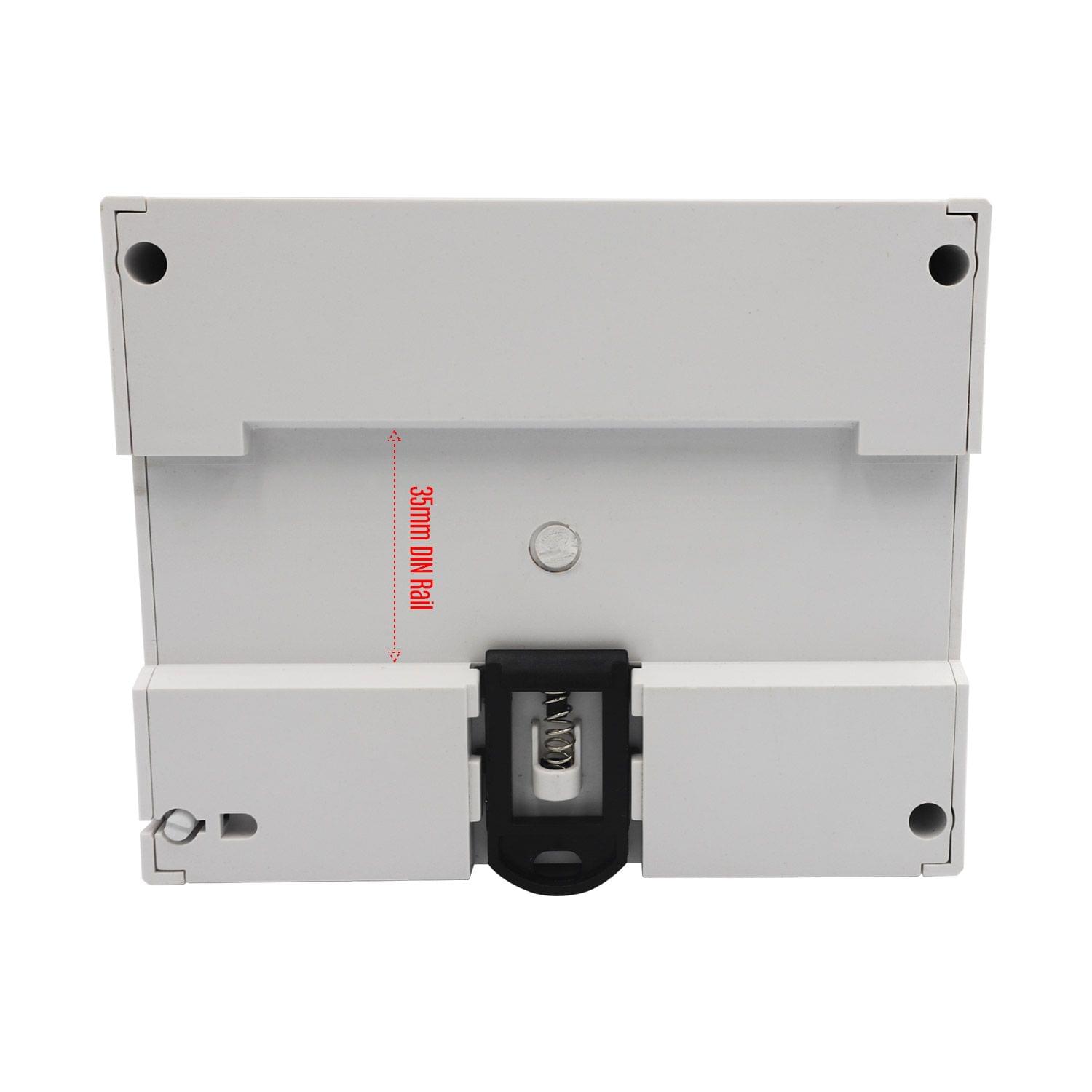

Features:3 phase 4 wire energy meter with standard configuration 5+1 LCD display(9999999.1KWh) showing electricity consumption; 3 * 220/380V 50Hz 3*10(40)ARS485 (communication protocol Modbus-RTU) remote meter reading function. Dual-color LED indicates power status (green) and energy pulse signal (red).35mm standard DIN-rail installation in line with the standard DIN EN50022; 6 pole width (modulus 12.5 mm) in line with DIN43880 standardAdopts large integrated circuit advanced digital technology and SMT technology; meets the requirements of Class 1 active watt-hour meter in the international standard IEC 62053-21 high security and reliability.Standard configuration pulse output passivity (polarity) can choose far pulse output passivity (non-polarity) and easy contact with various AMR systems in line with the standard IEC 62053-31 and DIN 43864.Specifications:Material: PlasticModel: DTM125SRAccuracy: First ClassReference Voltage: 3 * 220/380V 50HzReference Current: 3 * 10(40)ADisplay: LCD Digital DisplayInstallation: 35mm DIN RailItem Size: approx.12.3 * 10 * 6.5cm/ 4.8 * 3.9 * 2.6inItem Weight: 600g/ 21.2ozPackage Size: 13 * 10 * 7cm/ 5.1 * 3.9 * 2.8inPackage Weight: 700g/ 24.7ozPackage List:1 * Energy Meter
