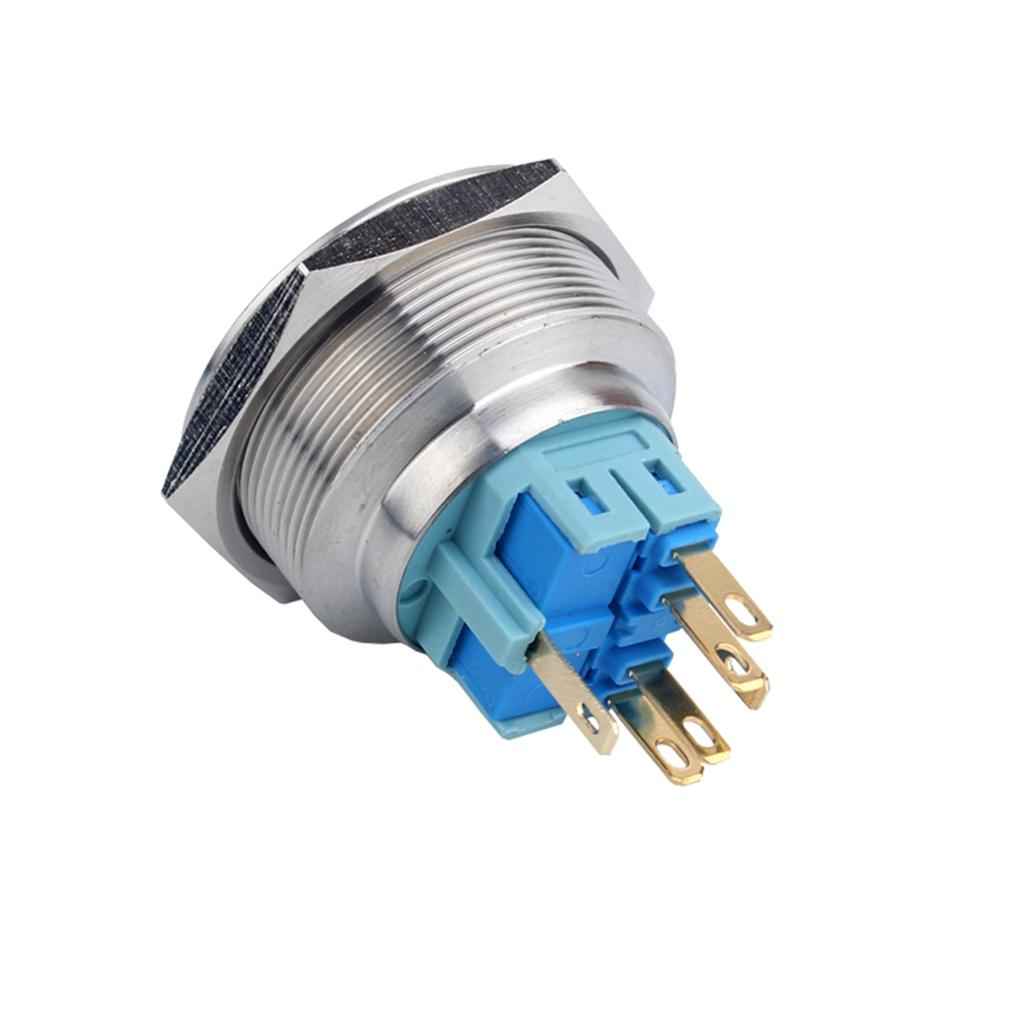

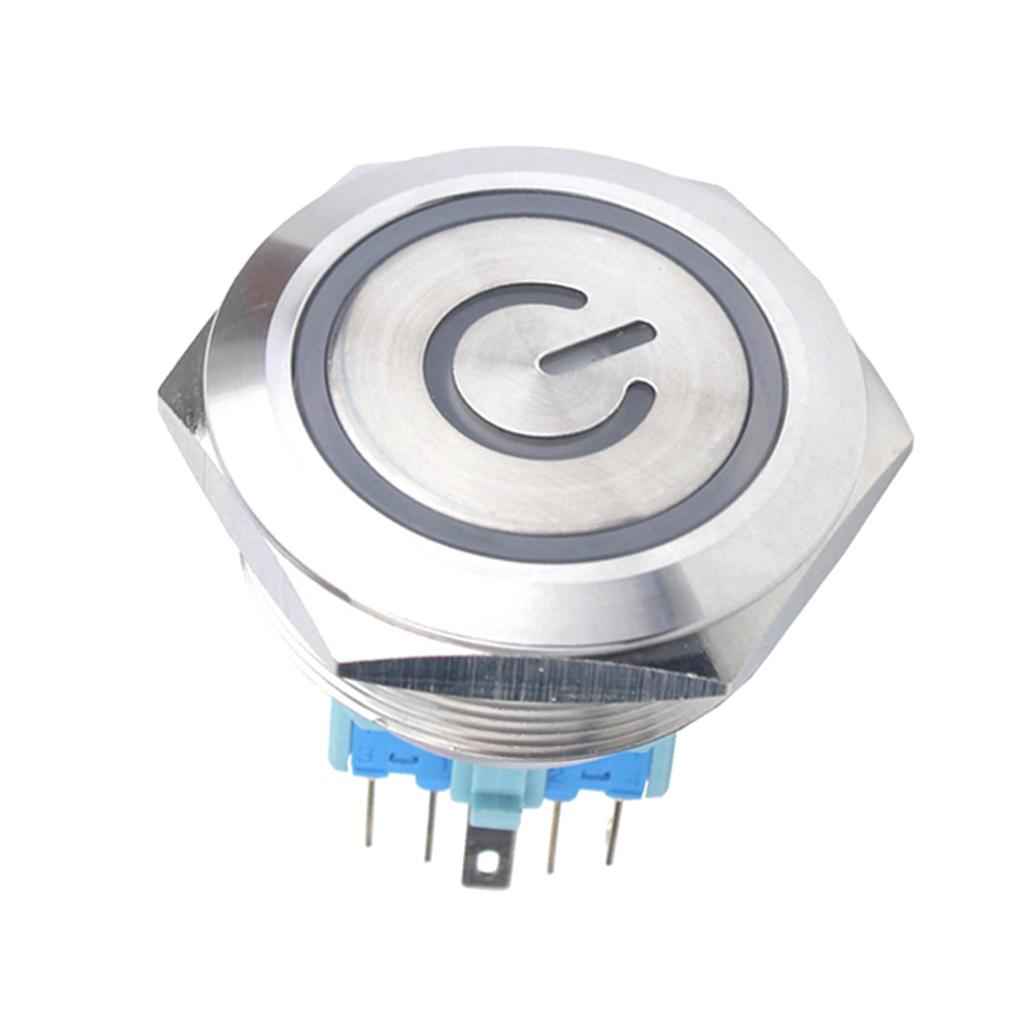

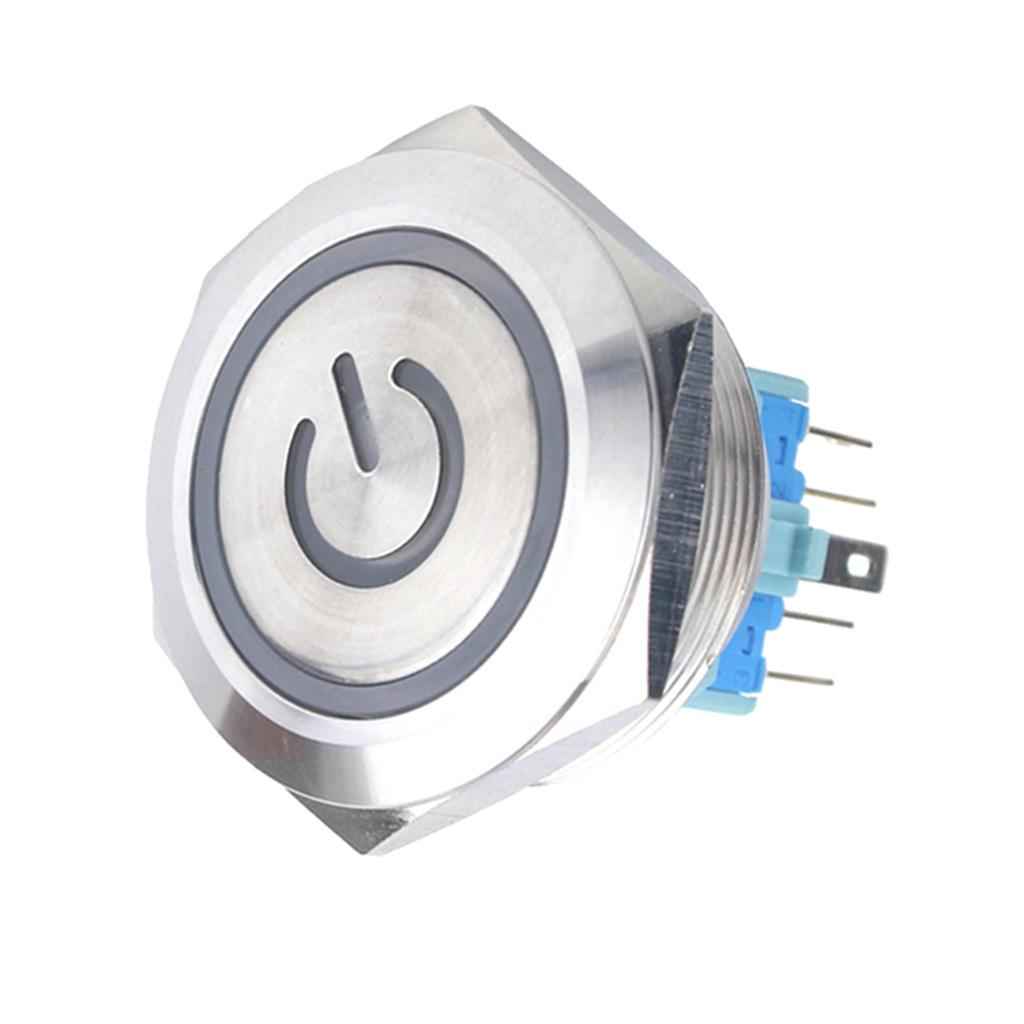

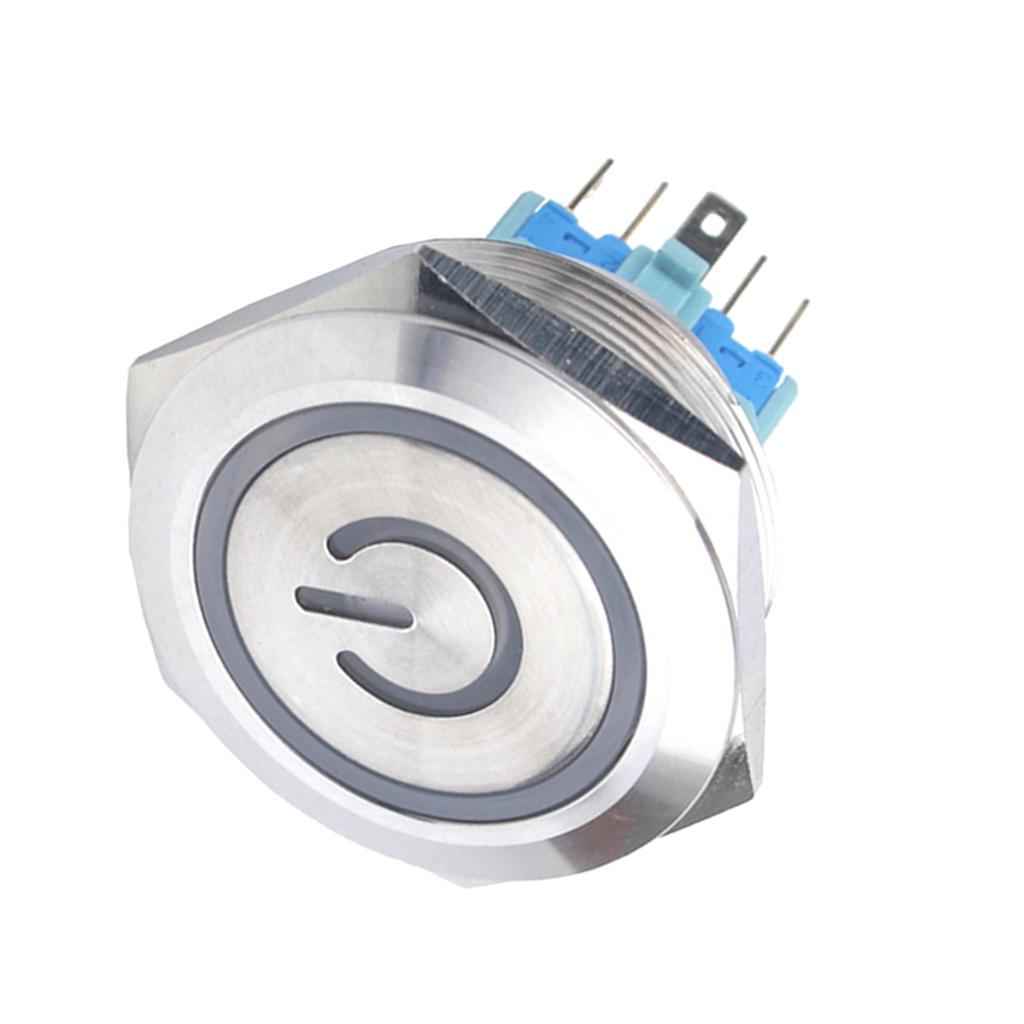

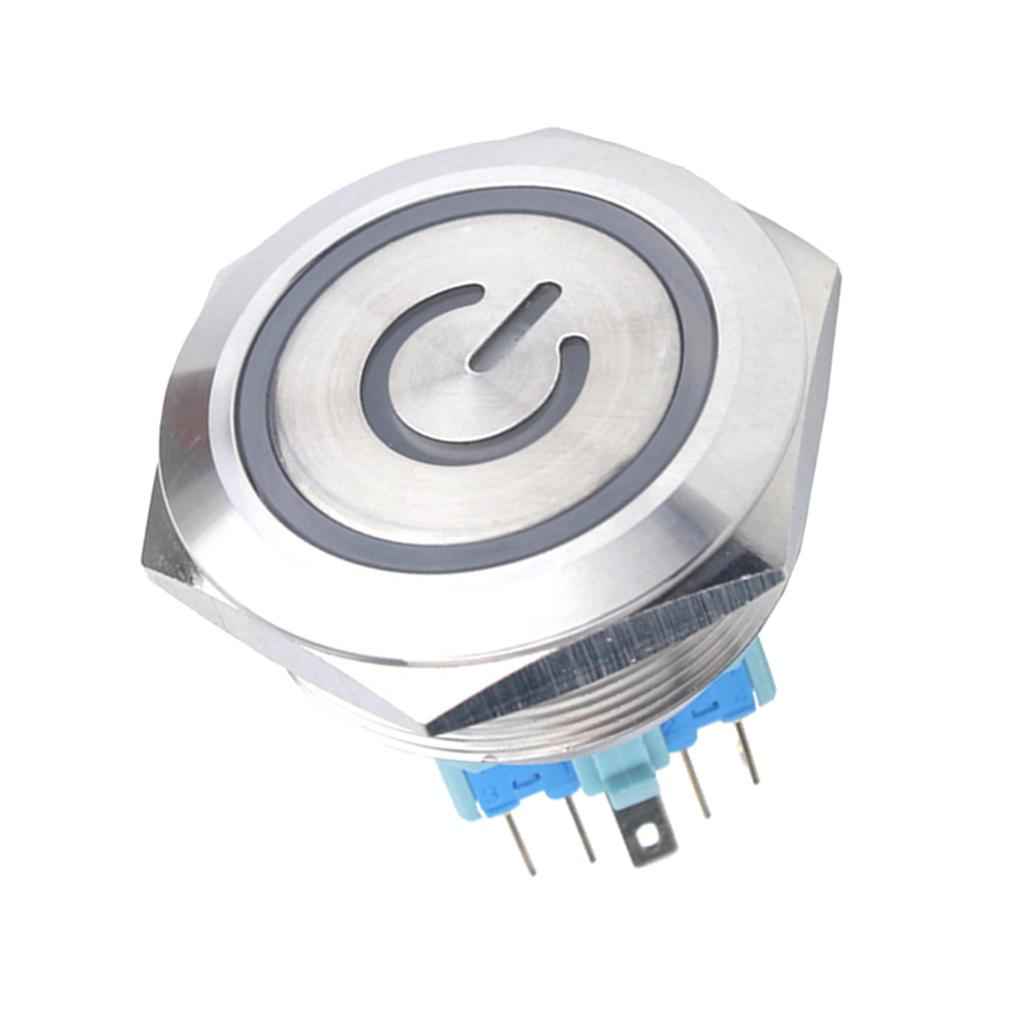

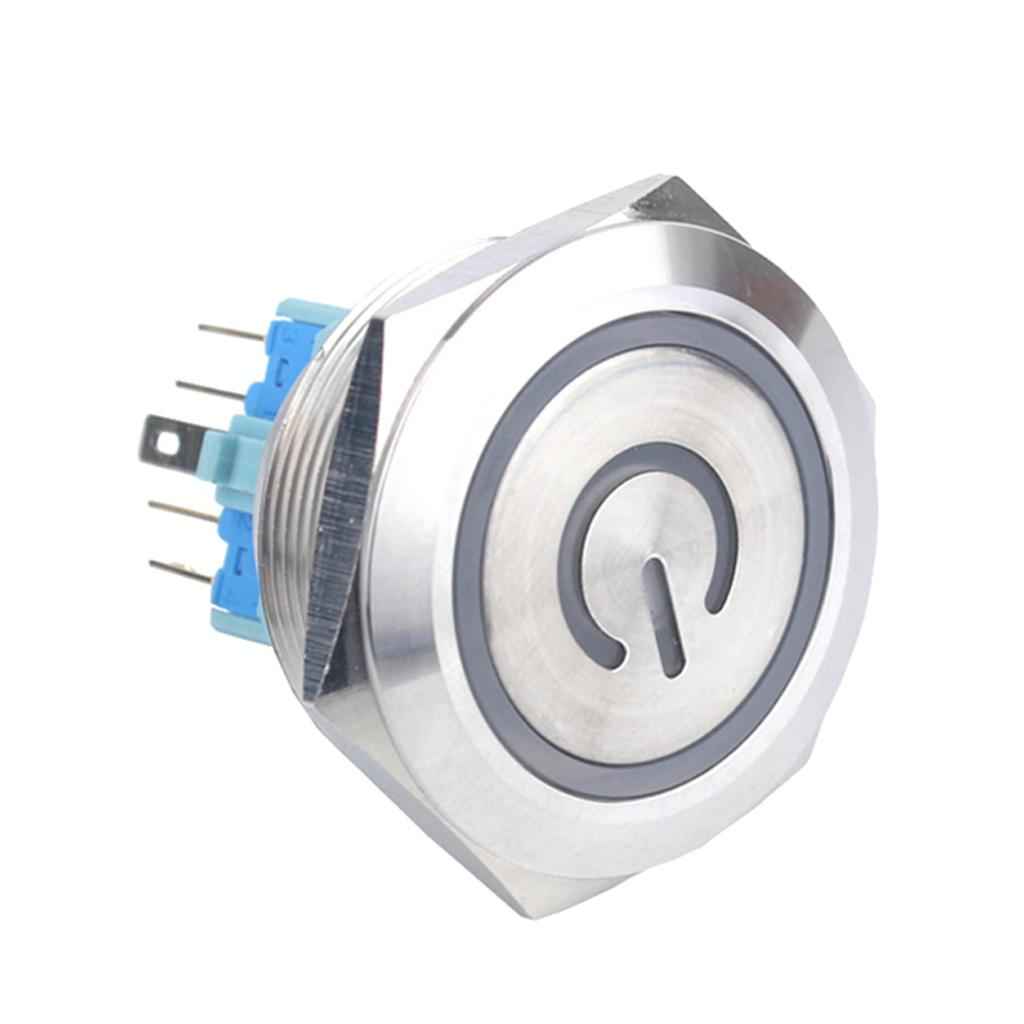

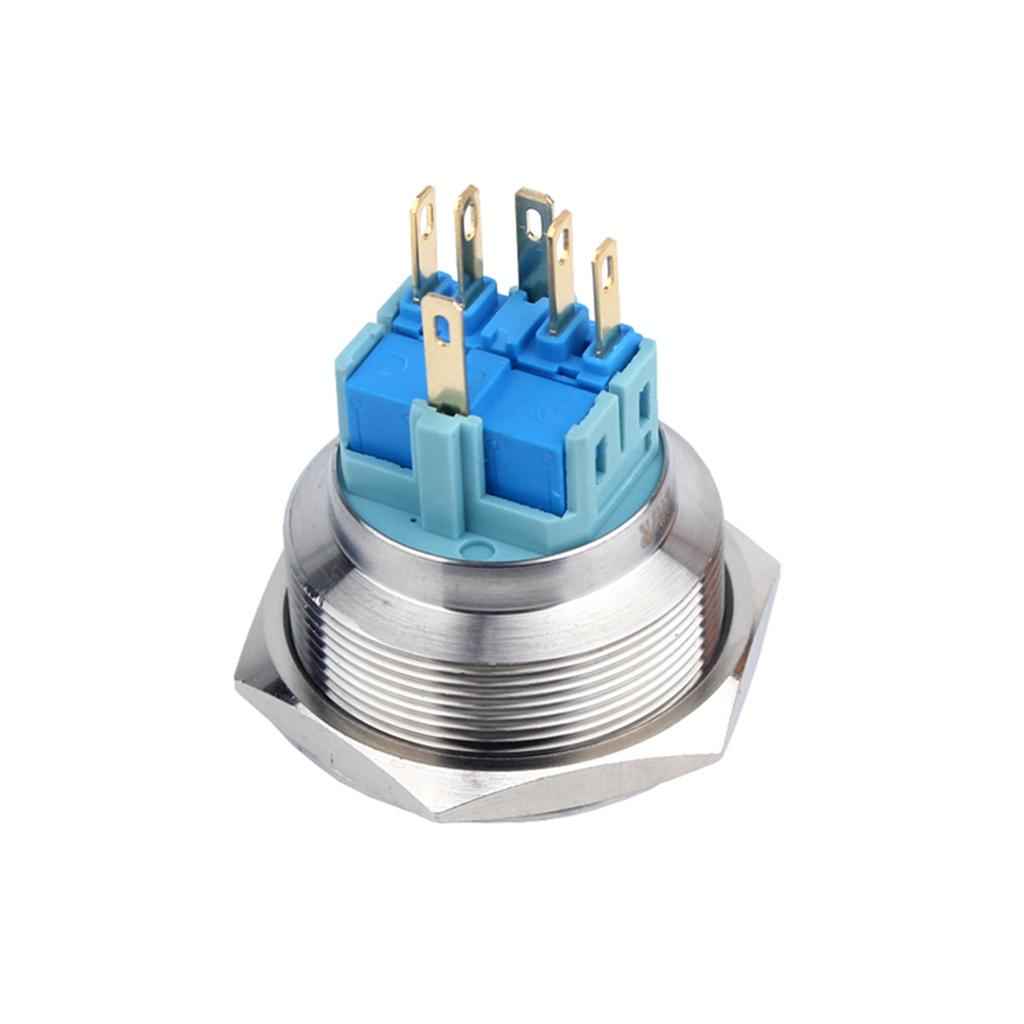

30mm Blue LED Metal Push Button Switch,12V Flat Head,1NO 1NC Self-reset

Description:

Material: Stainless Steel; Switch Combination: 1NO 1 NC.
Configurable Connector--can be used with patch cord.Stable and reliable performance,long service life.
Stainless Steel shell,with CD grain effect.Harder,waterproof and rust resistant.Better than nickel plated brass.
Hard and small button switch,simple operation,easy to install and disassemble.
Widely applied for all kinds of modifications such as car, motorcycle,computer,access control; home appliance;industrial control instrument,etc.

Specification:

Shell Material: Stainless Steel
Contact Material: Silver Alloy
Overall Size:
12V Self-reset: 38.5mm/1.52inch
12V Self-latching: 41.5mm/1.63inch
Mounting Hole Diameter: 30mm/1.18inch
Nut Torque: 5~14Nm
Switch Combination: 1NO 1NC
Terminal Type: Connection Terminal
Rating: 5A/250V AC
LED Rated Voltage: 12V
Head Shape: Flat
Contact Resistance: ≤50MΩ
Insulation Resistance: ≥1000MΩ
Dielectric Intensity: 2000V AC
Ambient Temperature: -20~55℃
Mechanical Life: ≥500,000(cycles)
Electrical Life: ≥50,000(cycles)

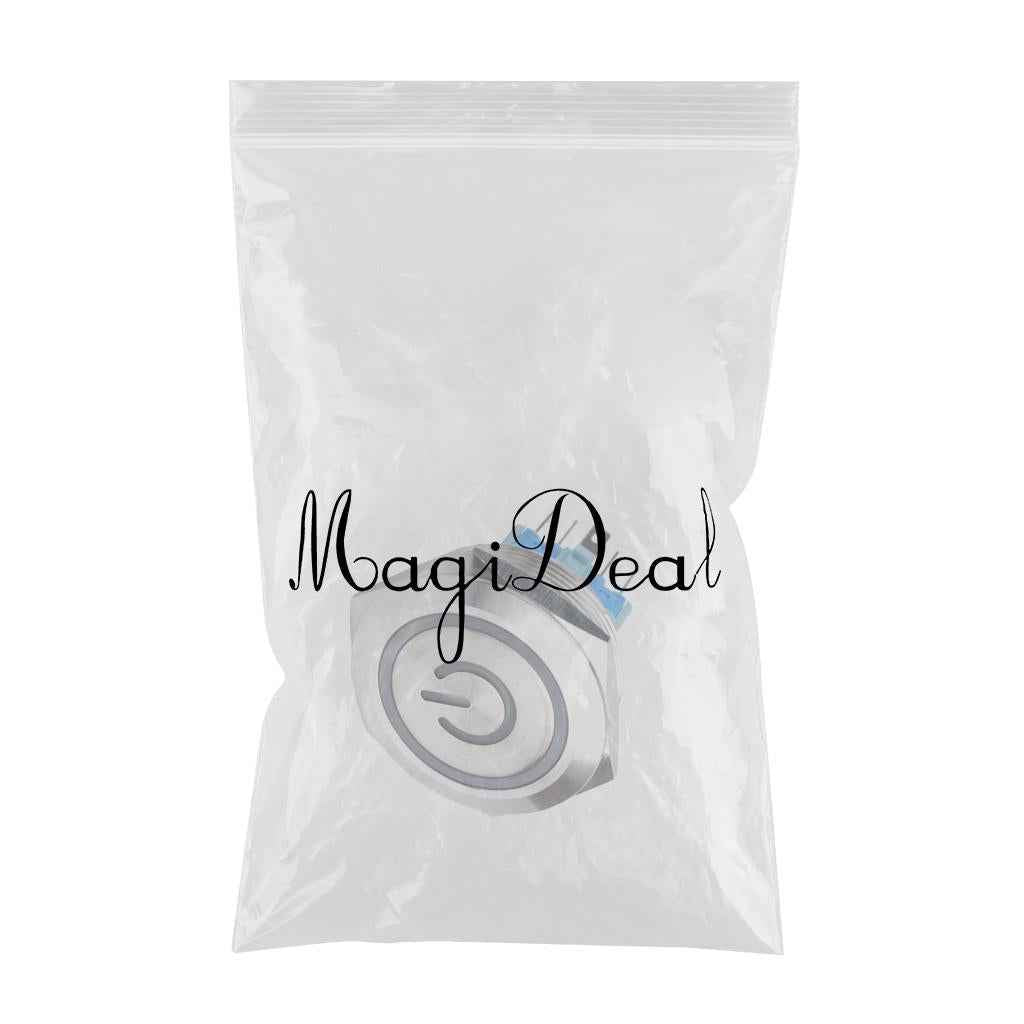

Package Includes:

1 Piece Light Push Button Switch

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
