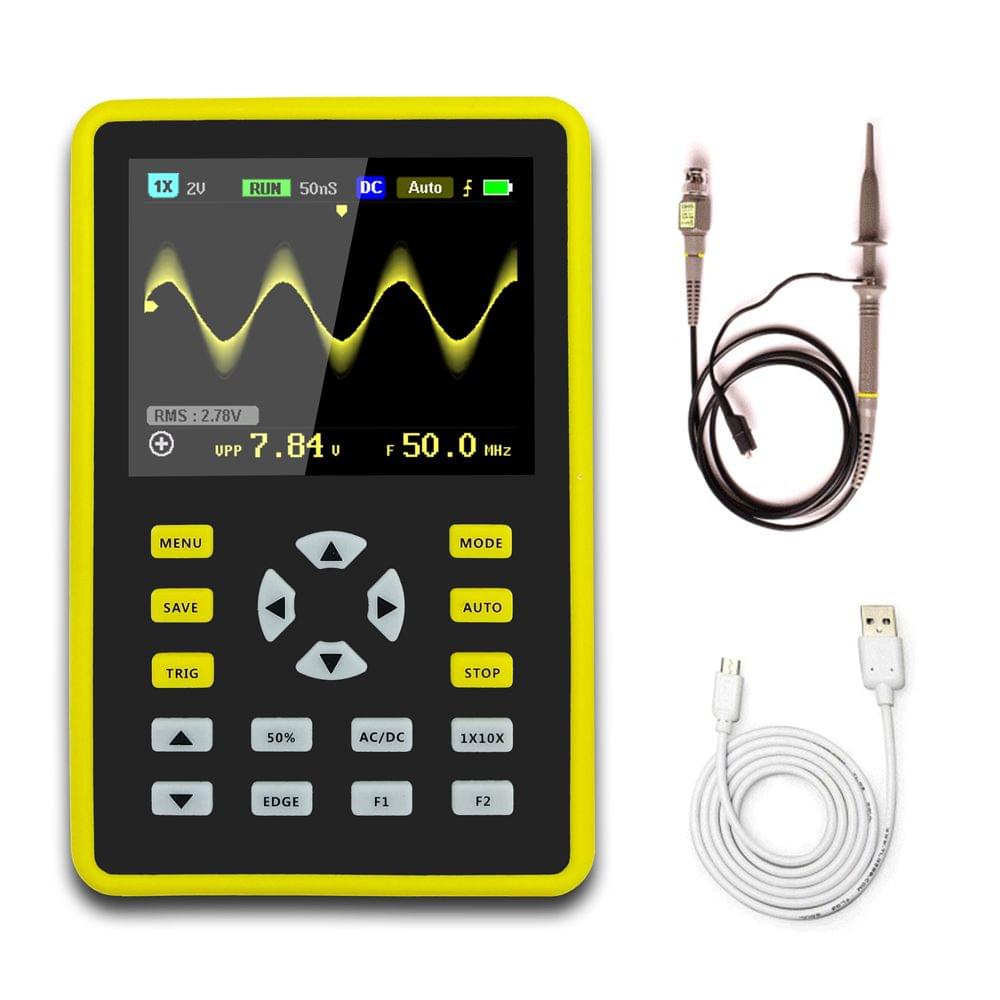

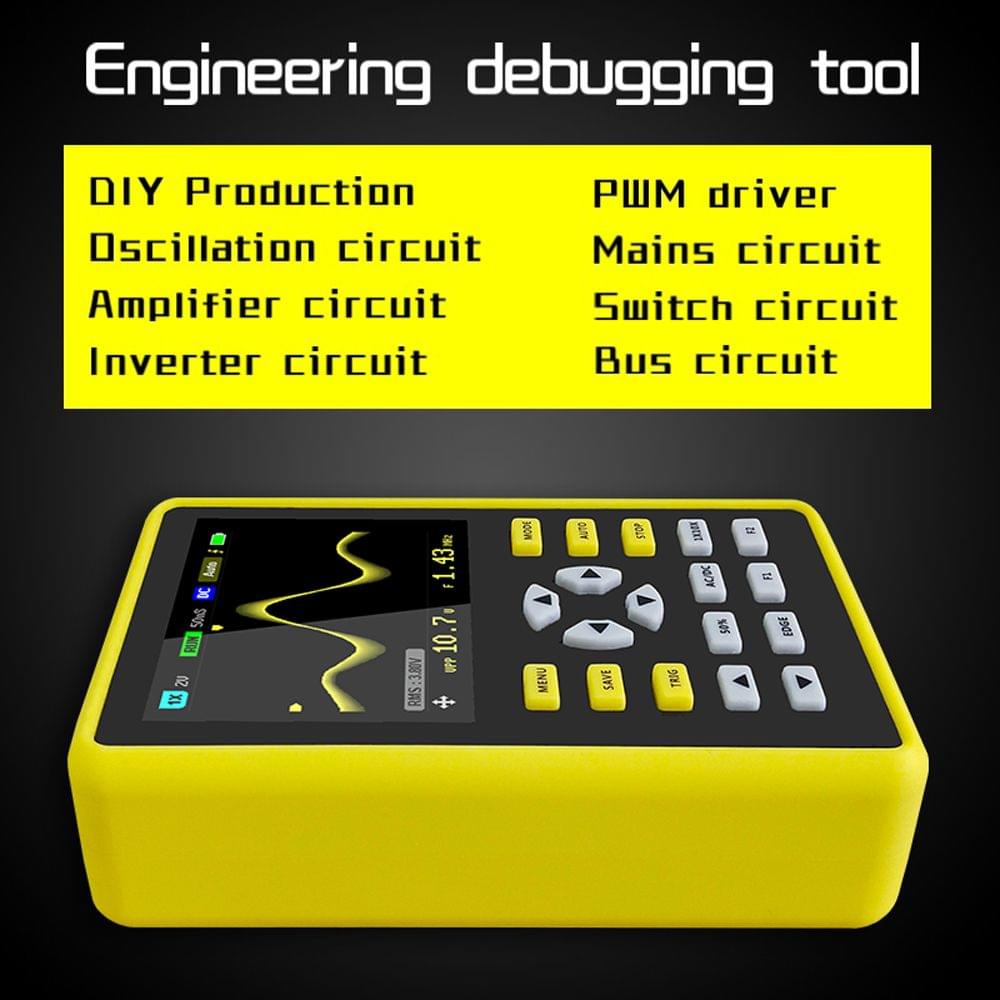

5012H 2.4" LCD Display Screen Handheld Portable Digital Mini

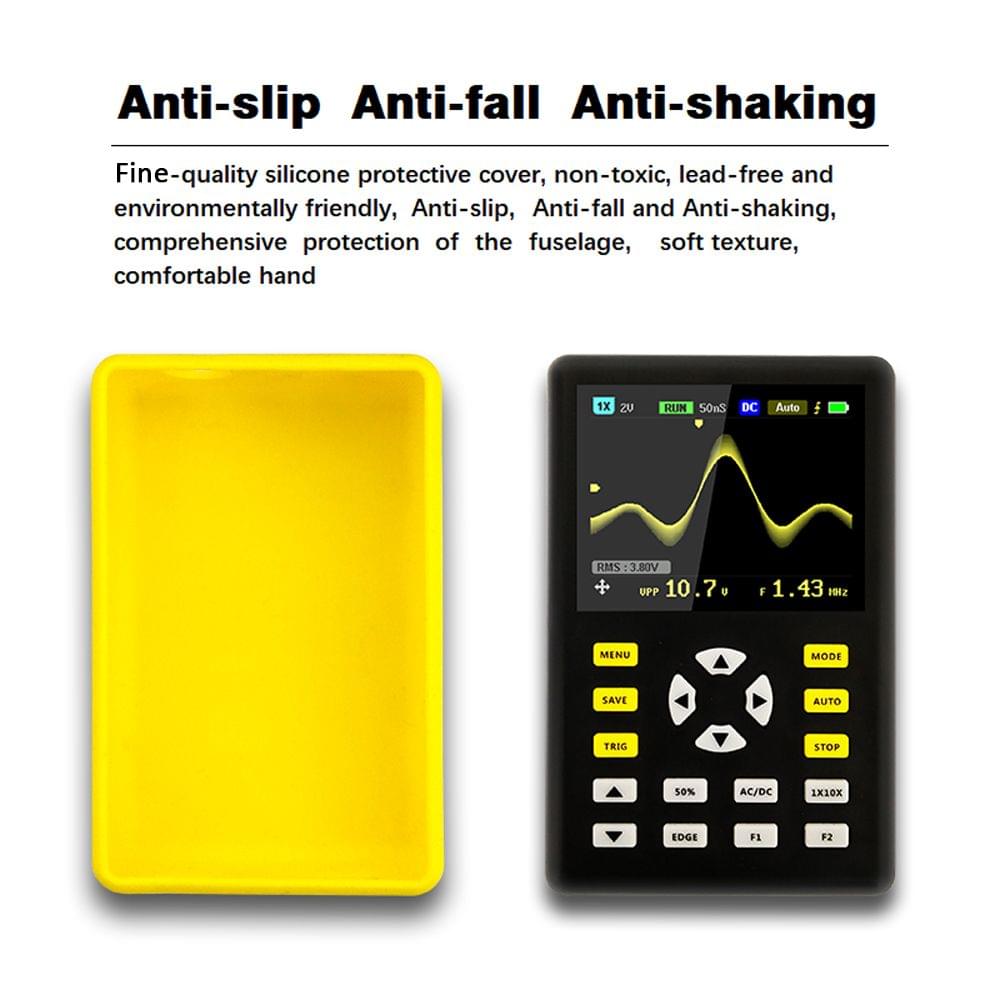

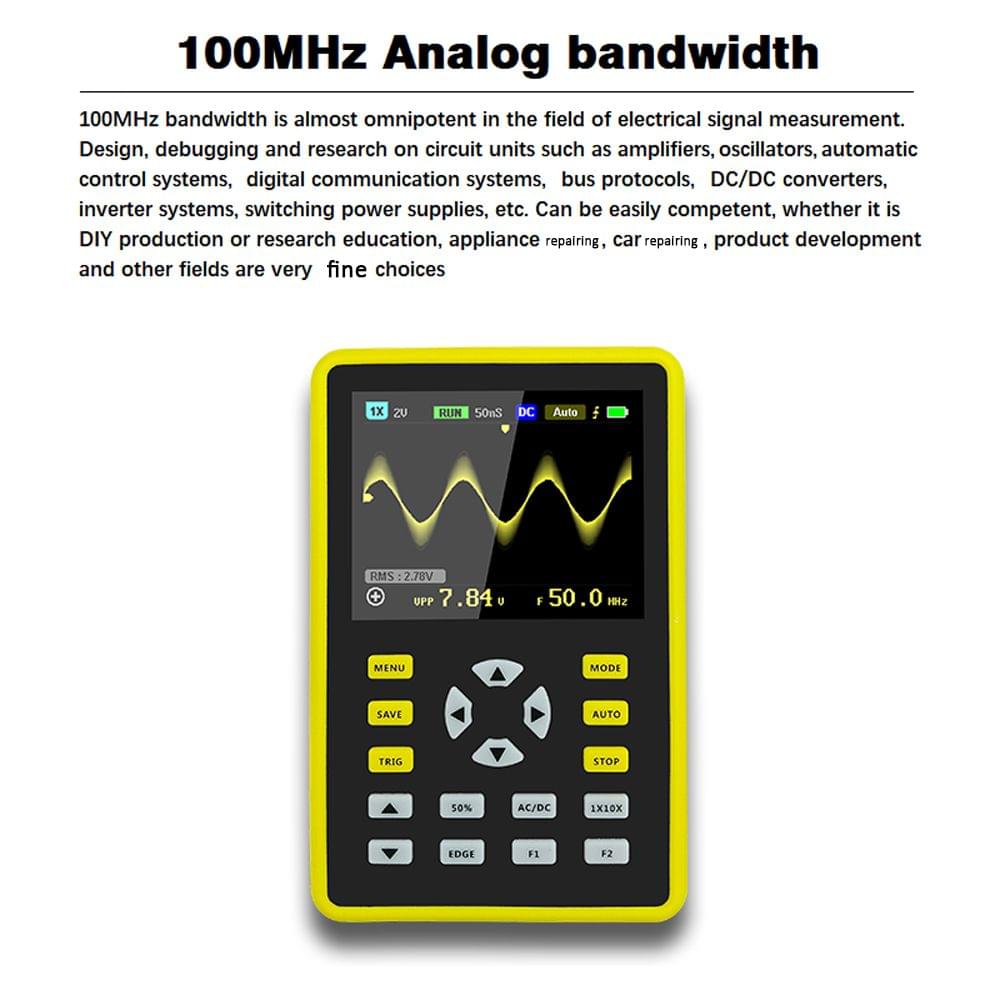

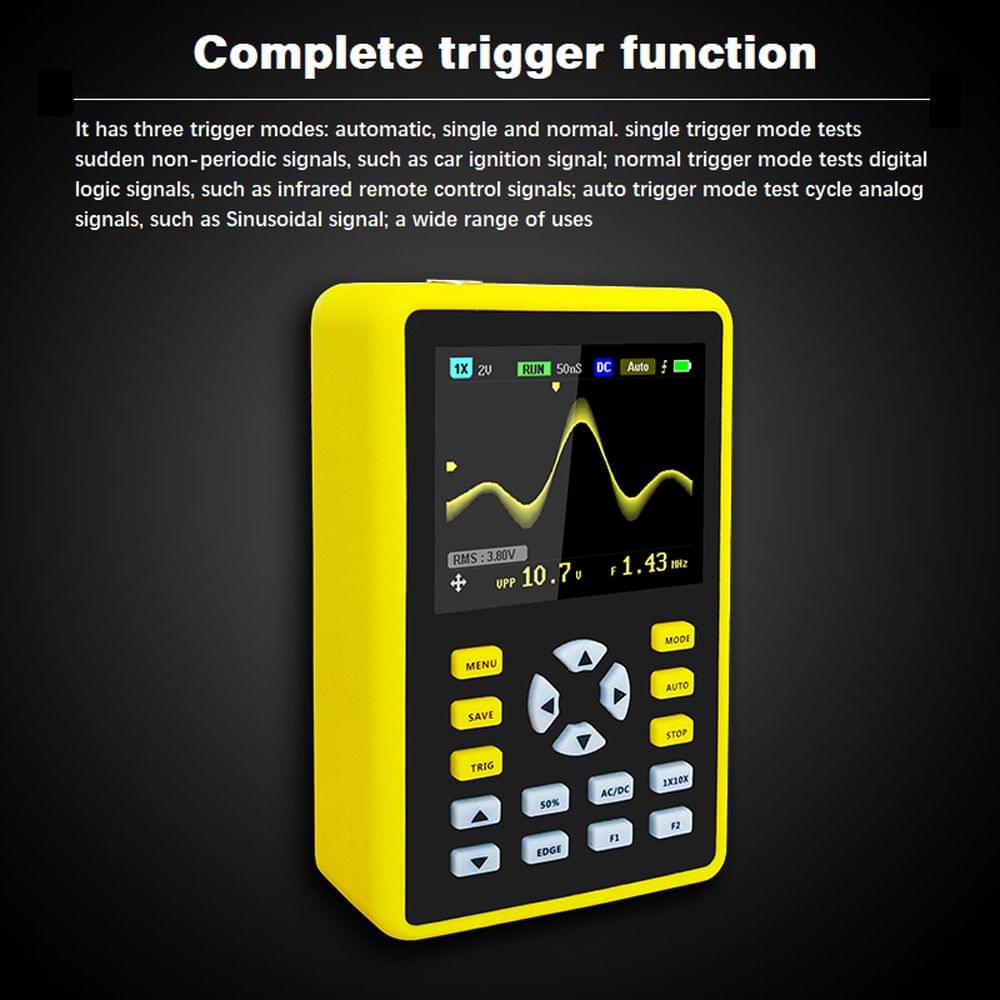

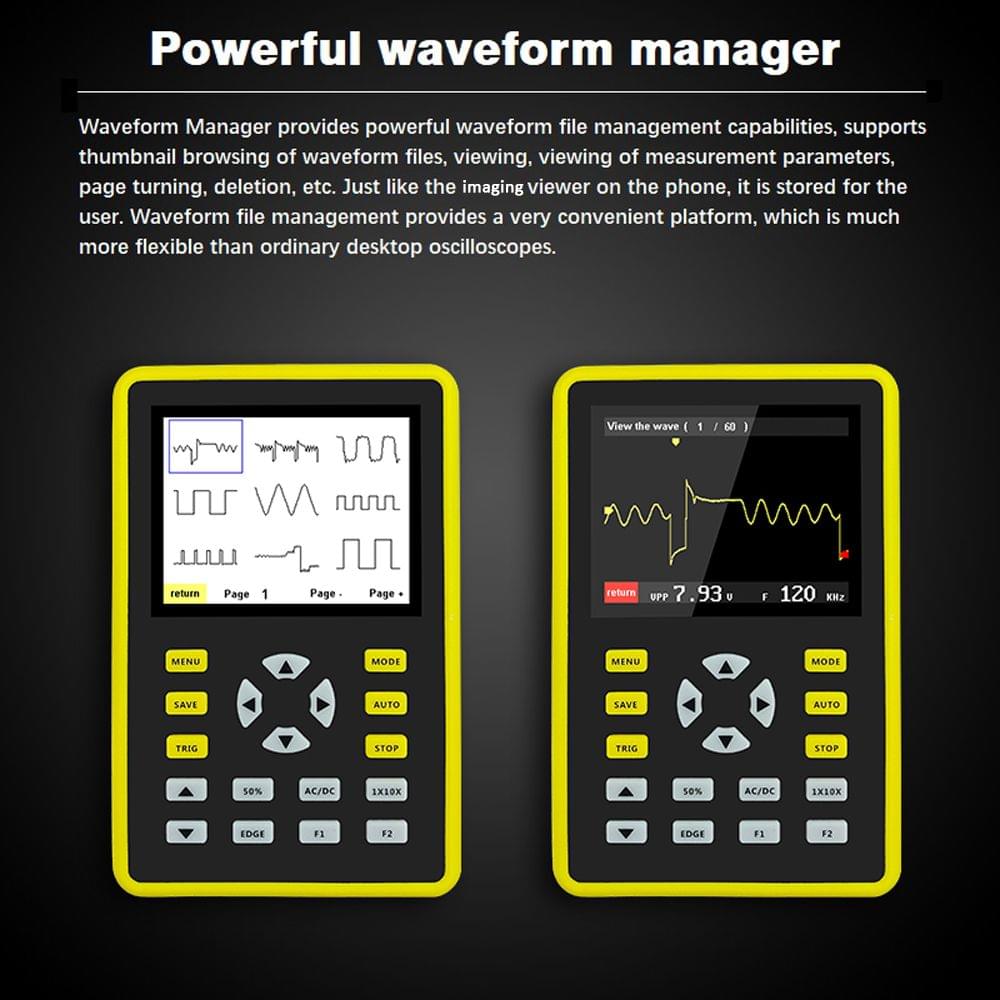

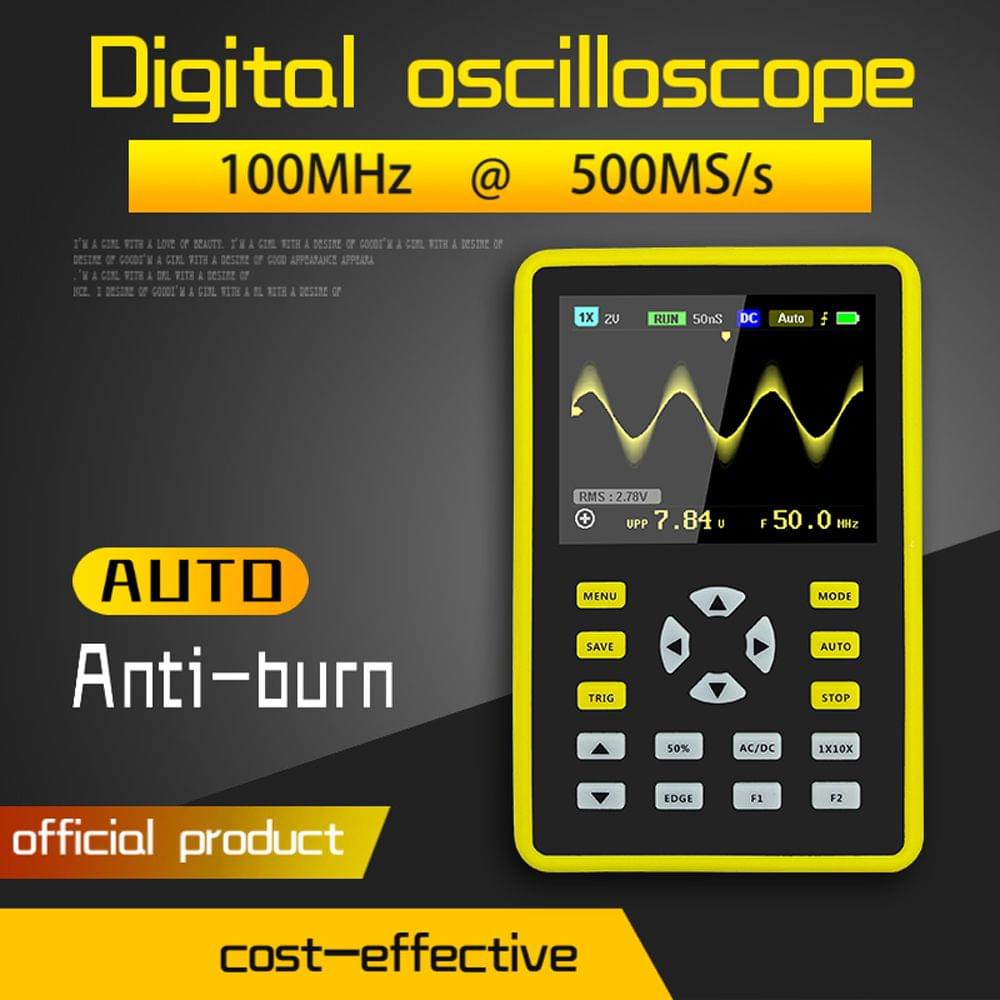

The 5012H is a versatile highly practical and efficient handheld oscilloscope for the maintenance industry and the RD industry. FNIRSI has a real-time sampling rate of up to 500MS/s and an analog bandwidth of 100MHz.Features:Intelligent anti-burn 1X can withstand up to 600V withstand voltage.Afterglow display technology.2.4 inch color display screen with TFT technology.With 100MHz analog bandwidth and 500MS/s sampling rate. (1X=5MHz 10X=100MHz)One-button waveform storage.Built-in 64M storage space maximum storage of 2000 waveform pictures.Powerful waveform file manager support for thumbnail browsing viewing details viewing flipping deleting and other functions.High measurement voltage range 1X can measure 0~80V 10X can measure 0~800V.Up to 12 parameters measurement: VPP VP Vmax Vmin Vavg Vrms Frequency Duty Duty- Time+ Time- Time.At any time the waveform display (pause function) is frozen.Equipped with high-efficiency one-button AUTO.Complete triggering function (single normal automatic).Built-in 3000mAh rechargeable lithium battery.The screen brightness can be adjusted.Memory compression technology waveform refresh screen does not flicker.Ultra-small size easy to carry with anti-slip and anti-drop silicone sleeve.Specifications:Main material: ABSMain color: black+yellowDigital channel: 1Analog bandwidth: 100MHzMaximum real time sampling rate: 500MS/sVertical sensitivity: 50mV/div ~ 100V/divHorizontal time base range: 50S/div ~ 6nS/divMaximum test voltage: 80V (1X probe) 800V (10X probe)Storage depth: 128KBInput resistance: 1M?ADC accuracy: 8 bitsCoupling mode: AC/DCTrigger mode: single normal automaticTrigger edge: ascending/descending edgeExternal trigger voltage: 0~80VDisplay: 2.4 inch 320*240 TFT processPower supply: 1 * lithium battery 3000mAh (included)Item size: 114 * 74 * 33mm / 4.5 * 2.9 * 1.3inItem weight: 300g / 10.6ouncePackage size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2inPackage weight: 437g / 1.0lbPackage list:1 * Oscilloscope Host1 * Matching 100MHz Probe (1X and 10X)1 * Micro USB Cable1 * User Manual
