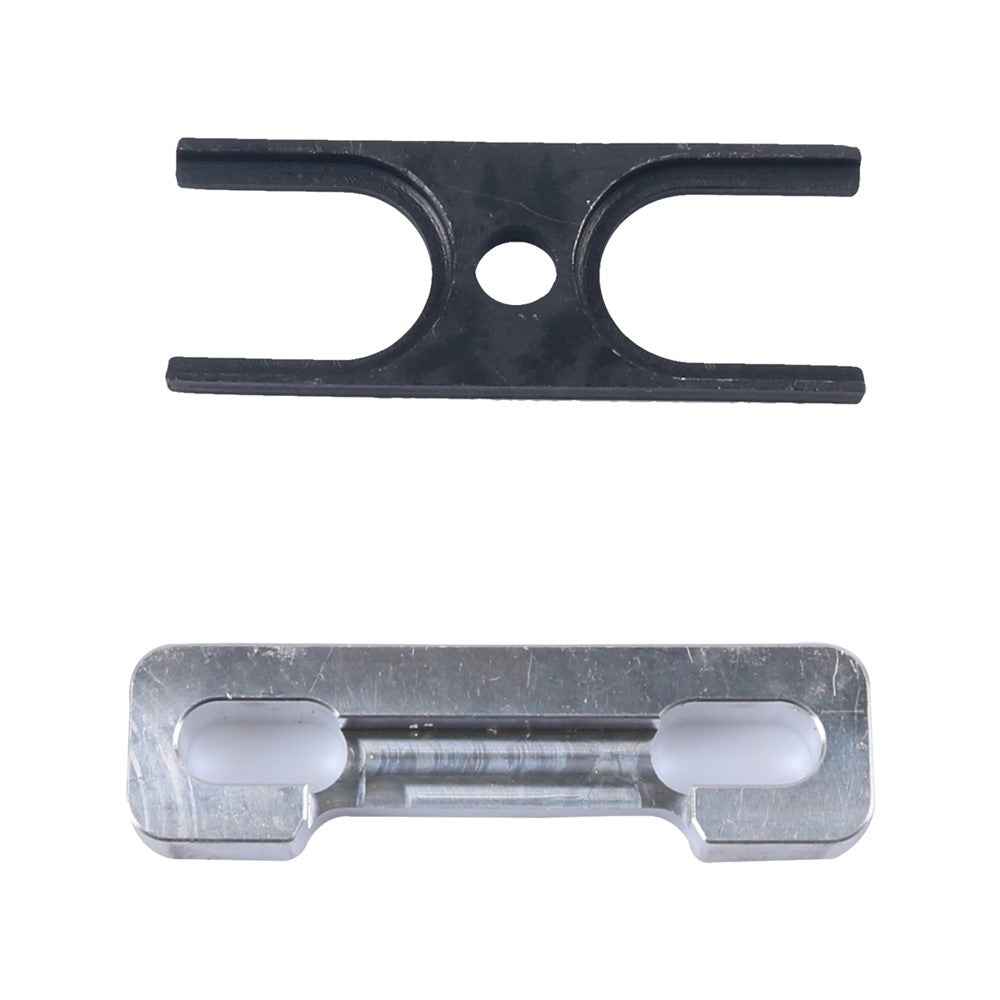

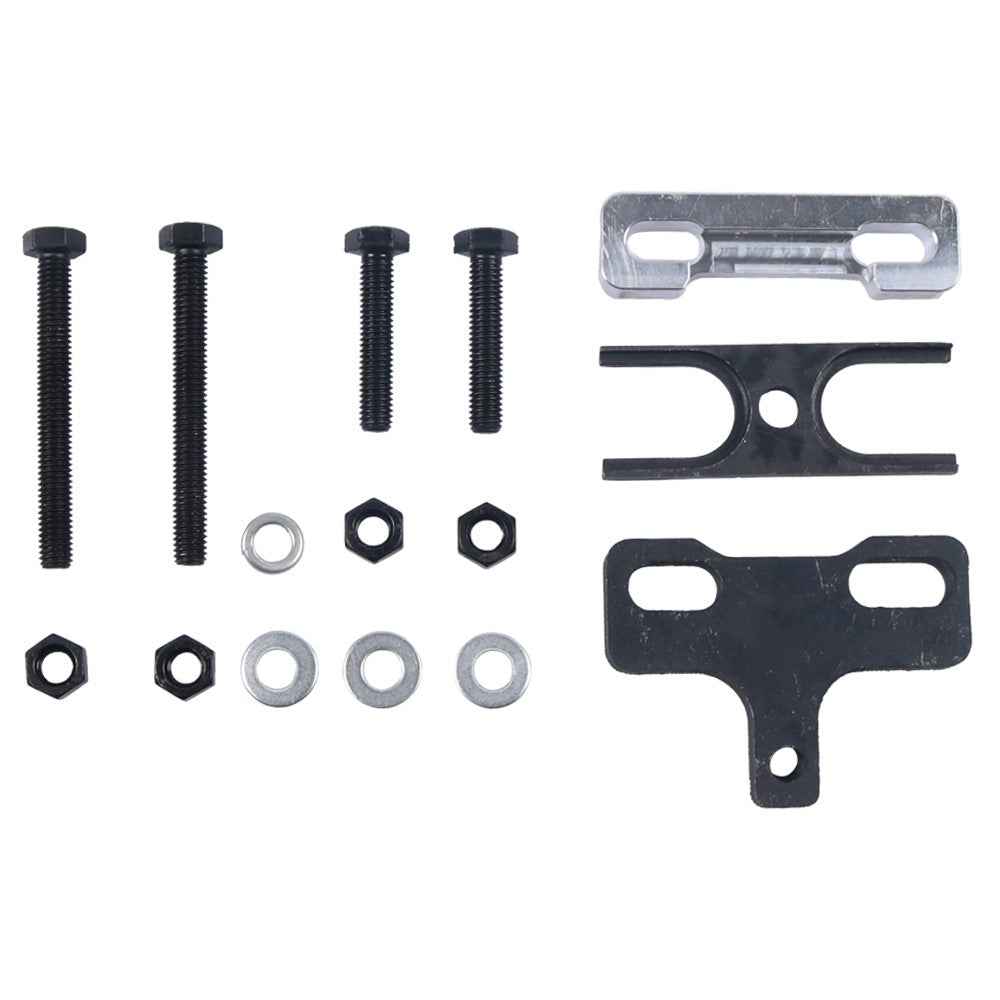

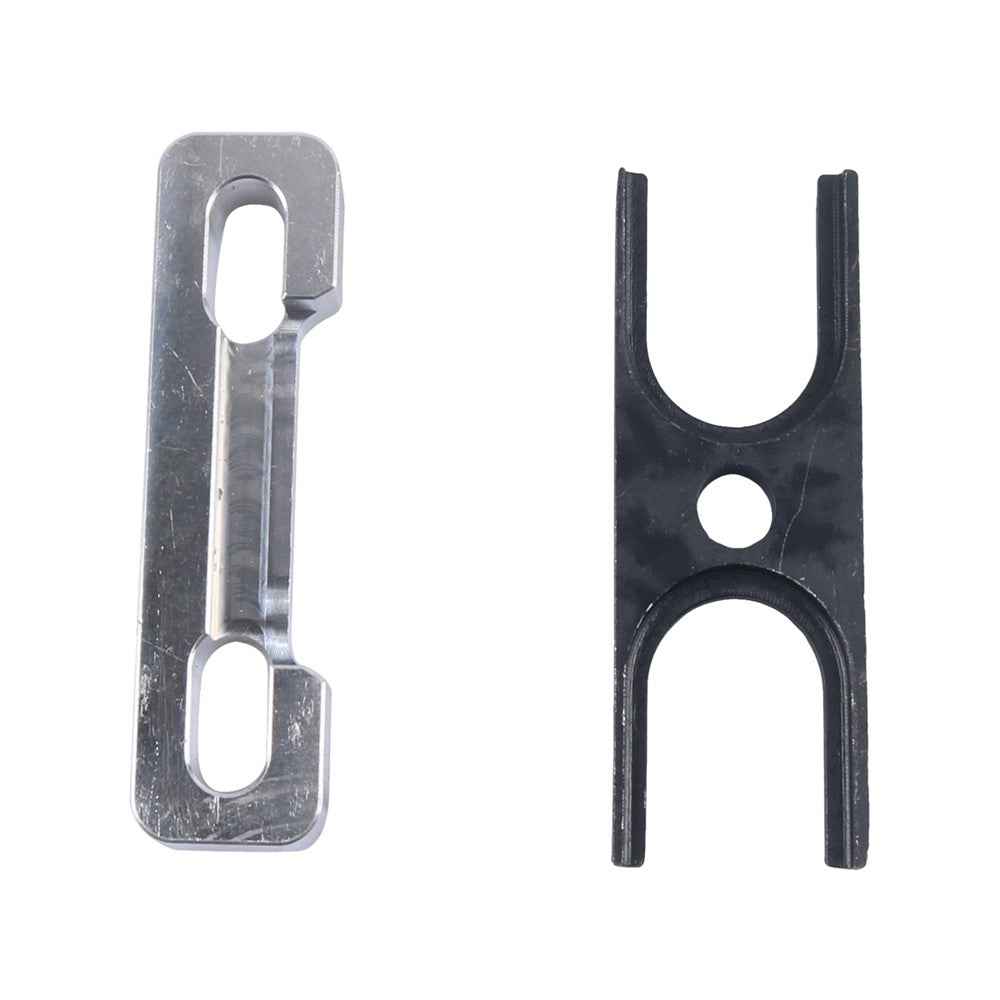

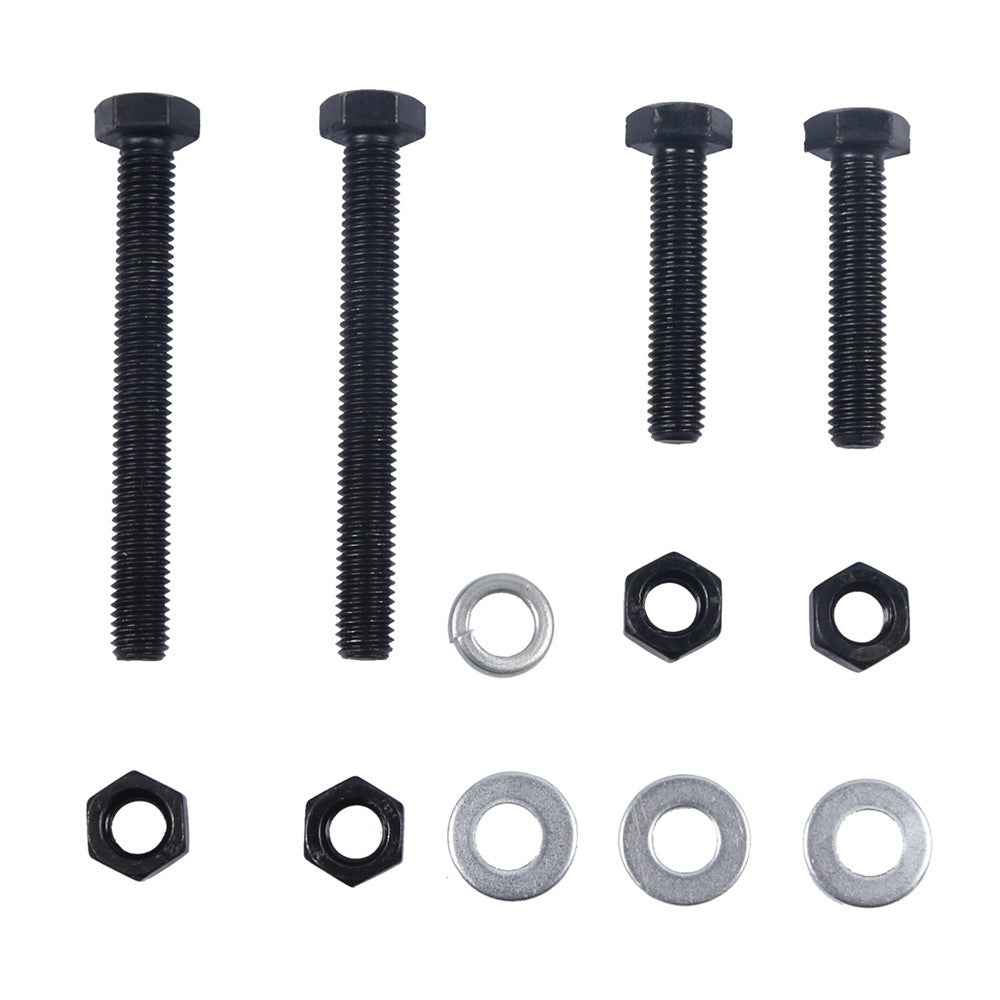

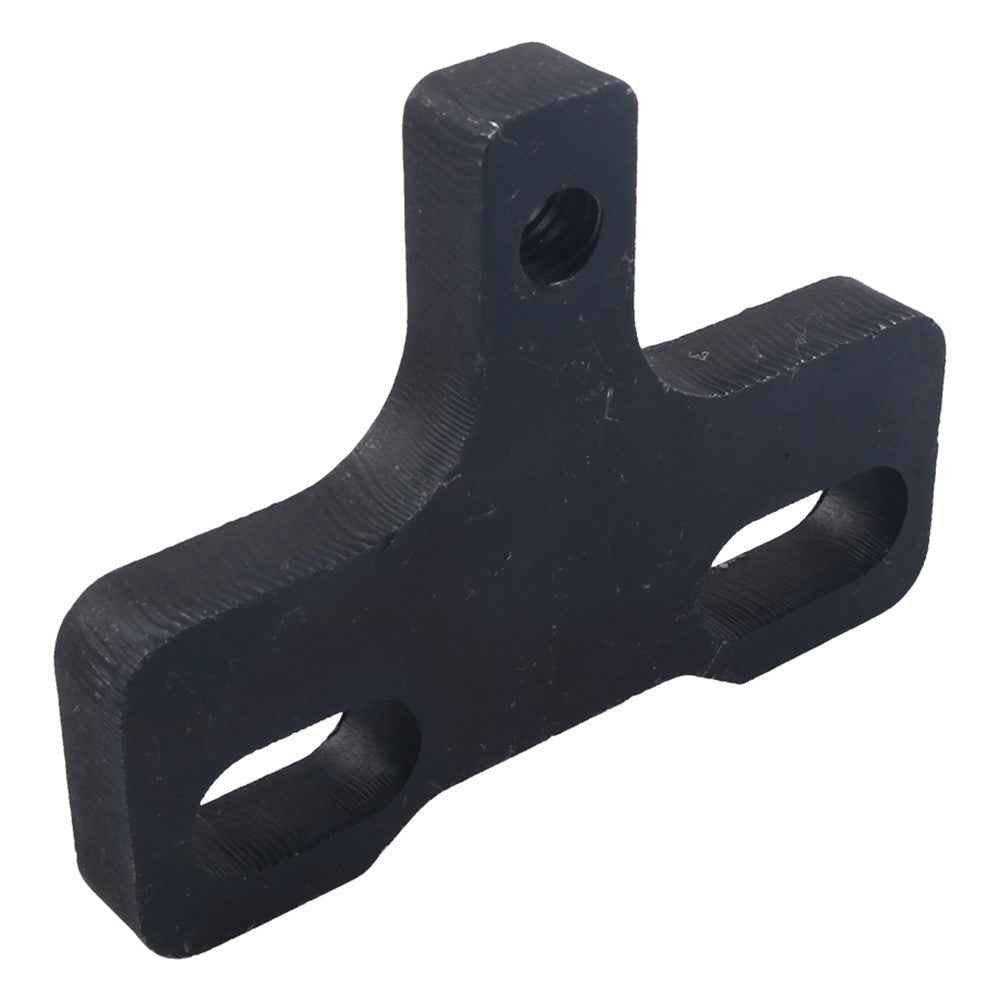

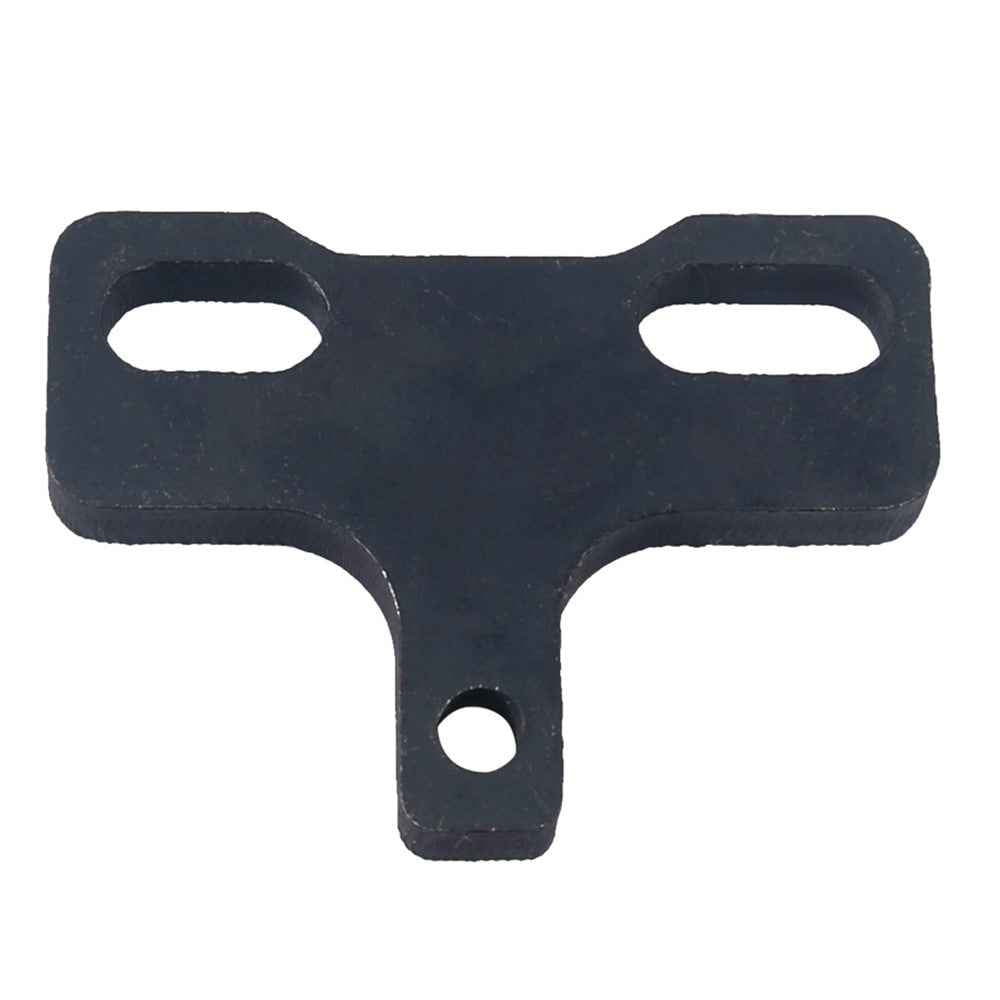

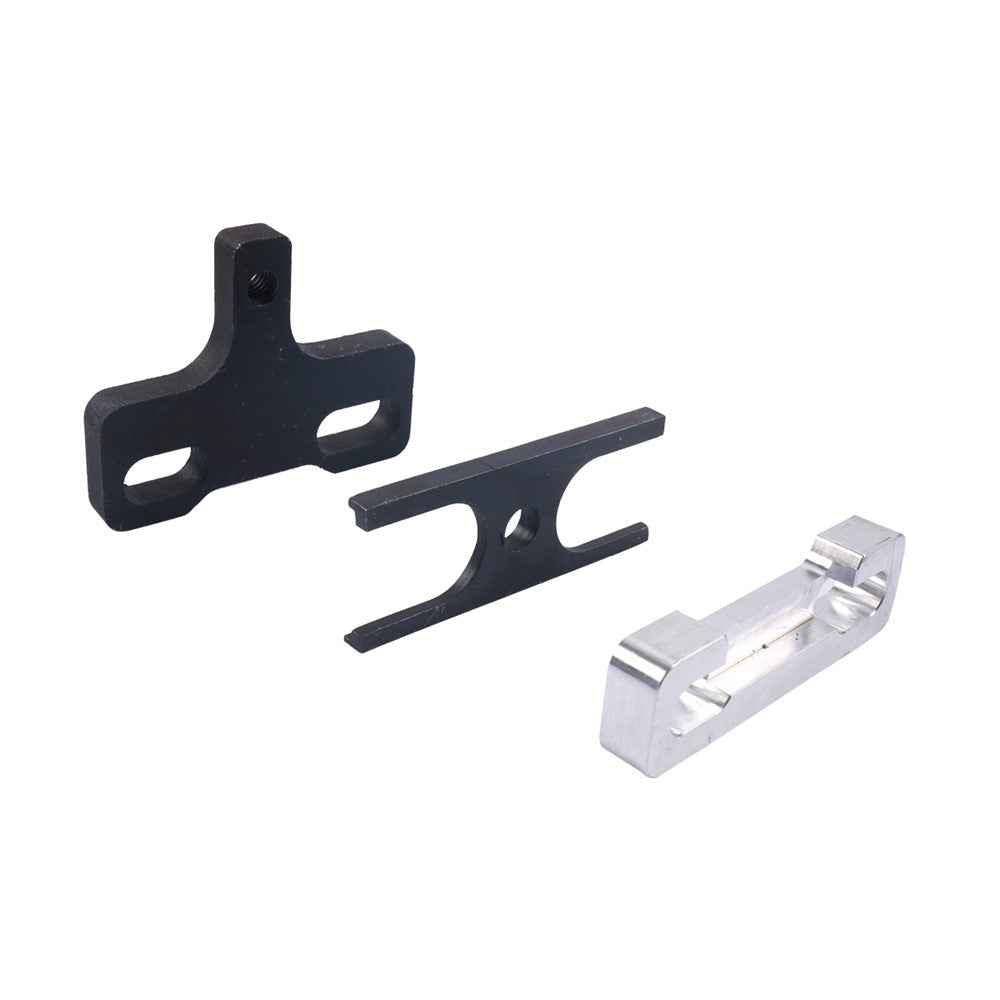

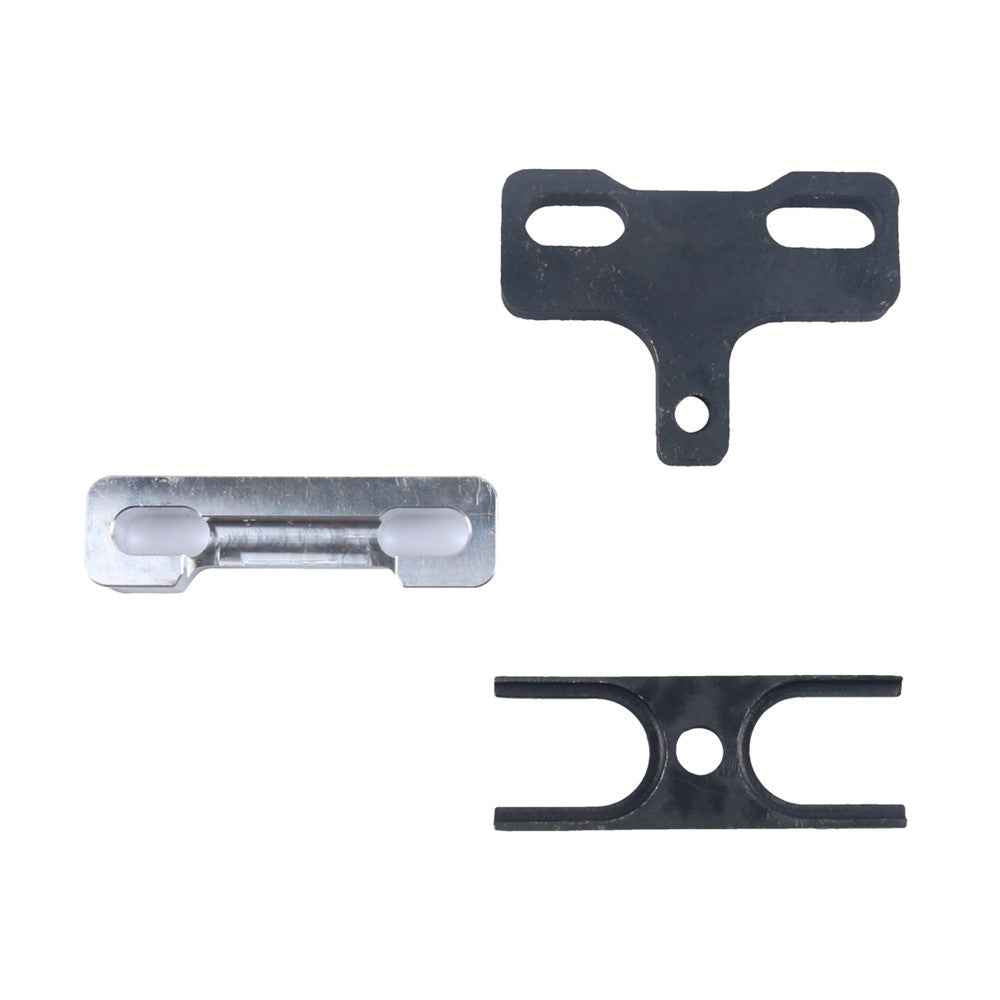

A6113 LS Series Car Valve Spring Compressor Tool Car Accessories

• Made of high-quality aluminum alloy material, the product is not easy to rust and has a long service life
• A great helper to remove old stock valve springs and install new valve springs
• This tool kit is for 4.8, 5.3, 5.7, 6.0, and LS1, LS2, LS3, LSX, LS Tahoe engines and is a must-have when it comes time to install a new set of valve springs

Note:

• When installing, please carefully check the scope of application of the product to prevent incompatibility.

Specification:

• Item number: A6113
• Product material: aluminum alloy
• Installation position: threaded hole of spring compressor for LS valve
• Product function: an auxiliary tool for engine maintenance

Instructions:

• Remove the valve cover and remove the rocker arm and rocker arm guide.
• Put the bottom aluminum plate on the head with the rocker bolts installed and the middle section on the top with the studs, then use the 2 bolts included to mount it to the head to make sure the tool is on the 2 Intermediate positions between the valve springs.
• Hand tightens with ratchet and socket. Do not over-tighten to avoid head damage.
• Put the top on the 2 valve springs and install the included nuts. Make sure there is grease on the studs.

Use suggestions:

• If you are going to use this valve on an engine-mounted cylinder head, you will need a fitting that uses compressed air in the spark plug hole to keep the valve closed before tightening.
• Only use hand tools to slowly tighten the nut, do not hit the nut too hard to avoid overheating the nut and stripping the threads!
• After compressing the spring, you can remove the valve retainer with a magnet to keep it from falling into the head.
• After removing the retainer, you can reverse the nut and slowly release the pressure and remove the spring.
• Install new springs using the same steps. When reinstalling the valve retainer, be sure to hold it in place so that it is properly seated before releasing pressure.
