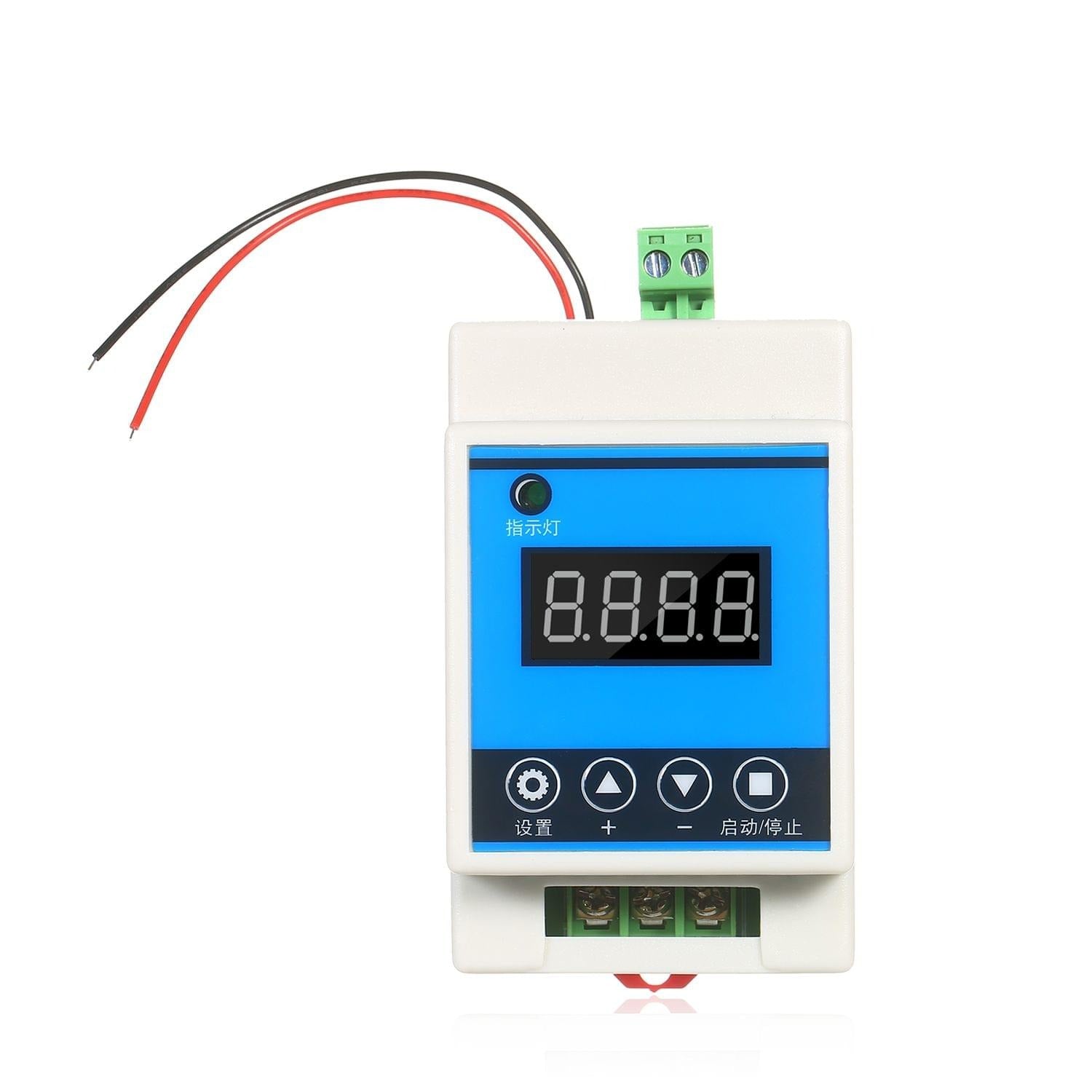

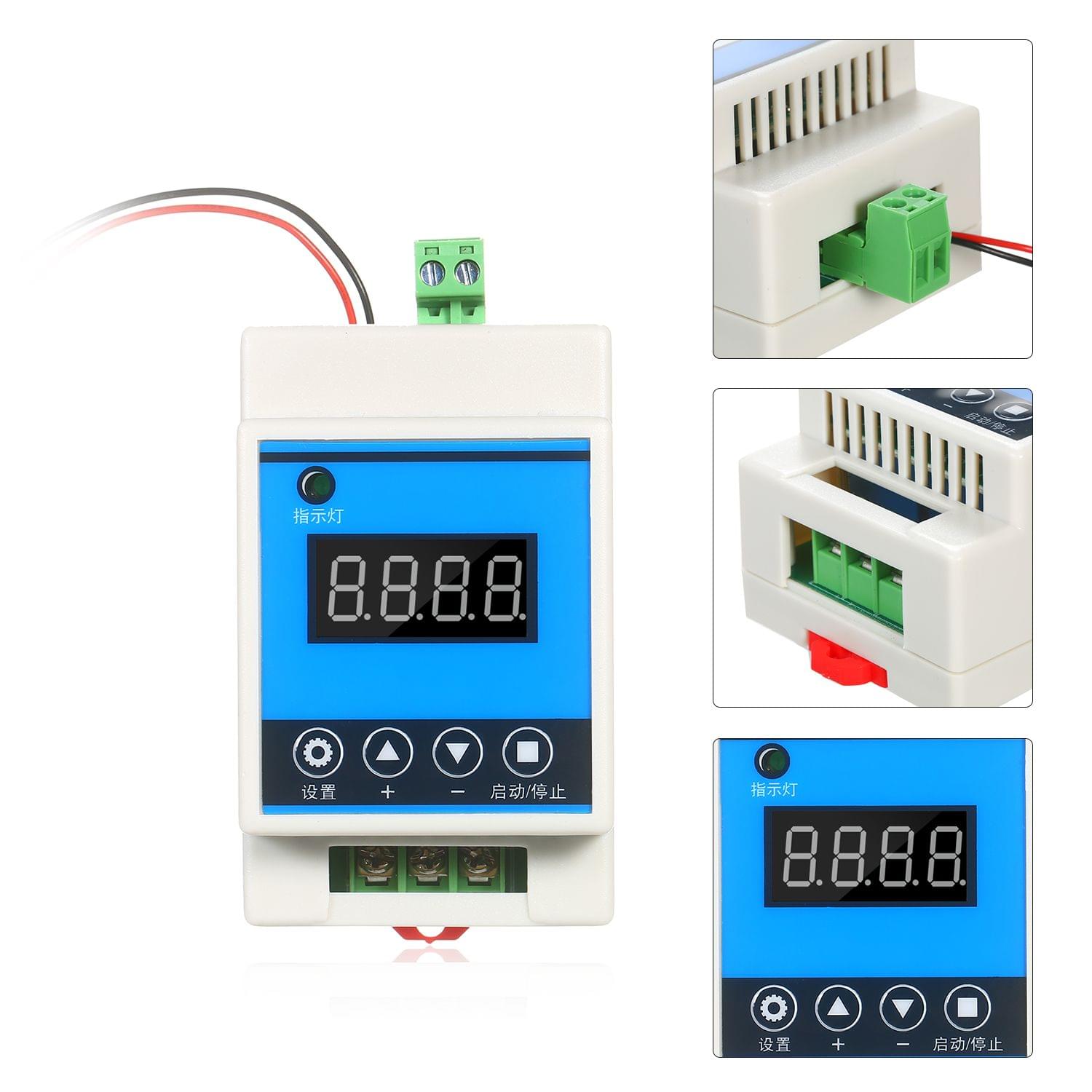

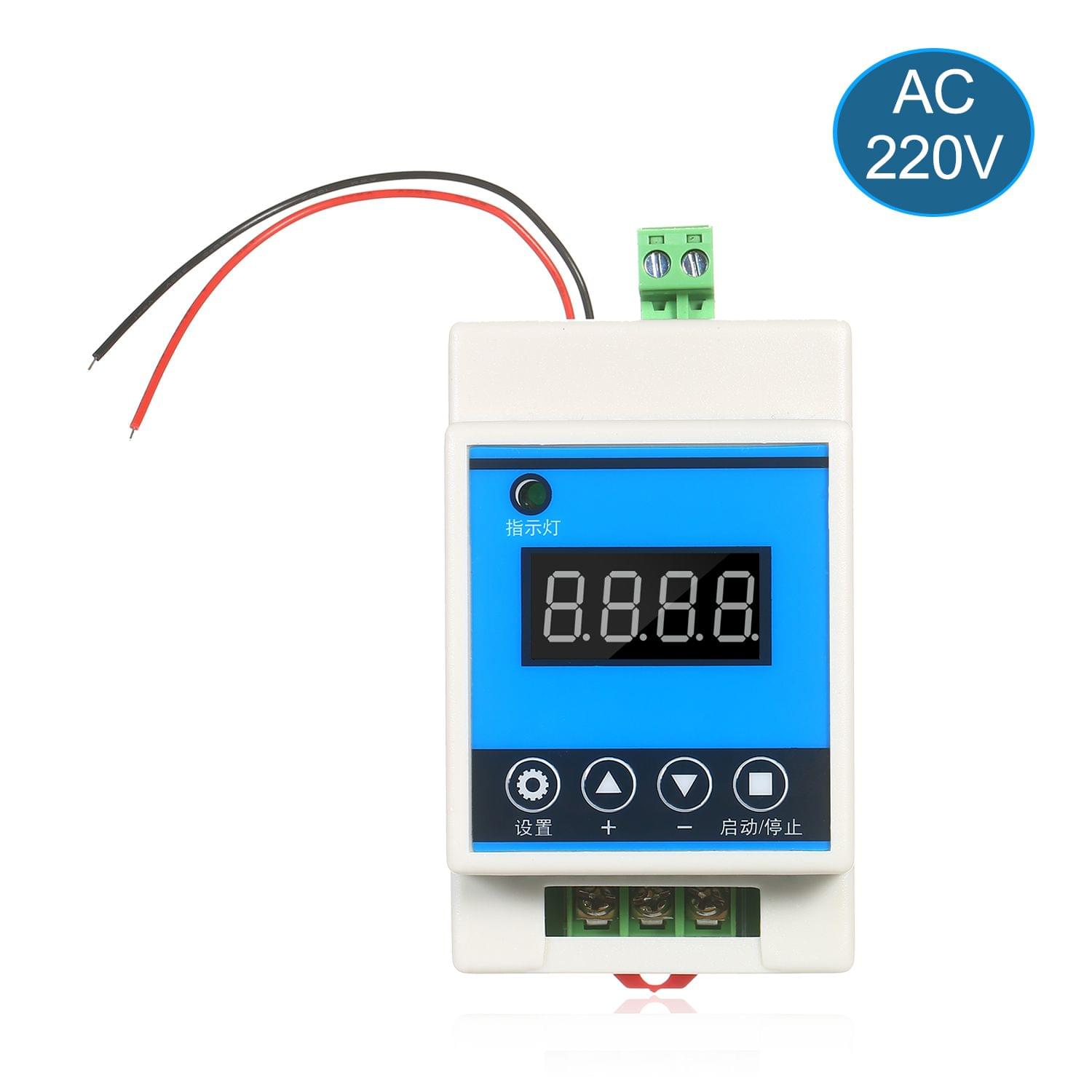

- AC 220V Digital Delay Timer Control Switch Relay Module with - AC 220V AC 220V Digital Delay Timer Control Switch Relay Module with - AC 220V
- Description

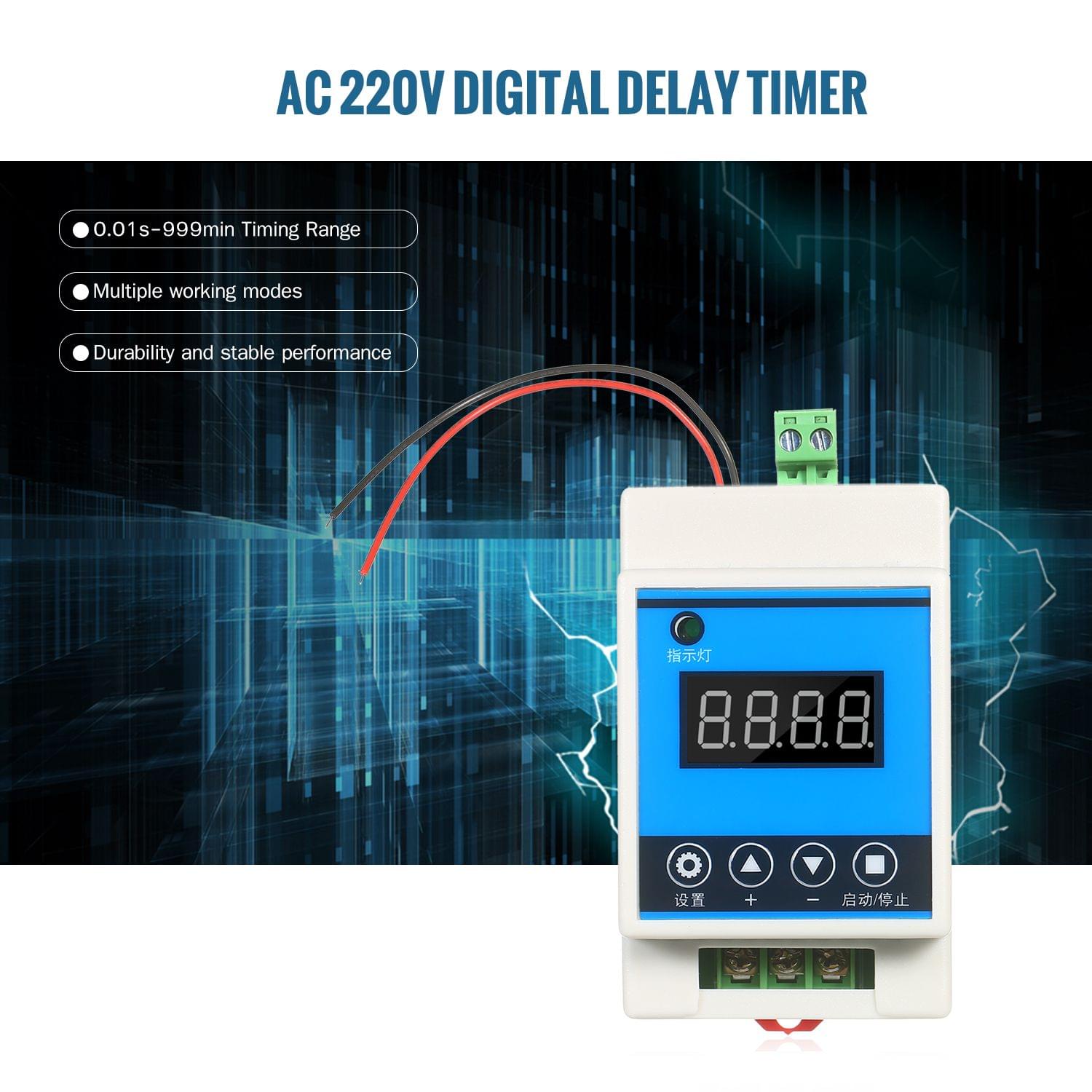

Features:Premium Material: protective shell and selected electronic parts ensure durability and stable performance.Wide Timing Range: its timing adjusting range ranging from 0.01second to 999minutes available for various application.Convenient to Use: it covers multiple working modes meeting users' various demand.Powerful Functions: the timer delay module comes with functions of timing delay and cycle control.Use It in: with time delay switch module user can easily achieve the control of the motor lights pumps solenoid valves etc.About Working Mode:P-11: inching--given signal relay pulls in and stops when signal disappears.P-12: self-lock--given signal relay pulls in and given signal again relay stops.P-13: given signal relay pulls in for A seconds and automatically stops; triggering signal is invalid during delay time.P-14: given signal relay pulls in for A seconds and automatically stops; triggering signal during delay time makes it restart timing.P-15: given signal relay pulls in for A seconds and automatically stops; triggering signal during delay time makes it have superposition timing.P-16: given signal relay pulls in for A seconds and automatically stops; triggering signal during delay time makes it reset.P-17: given signal relay pulls in disconnects input signal and begins timing. After timing of A seconds power off. During delay time giving signal stops timing.P-18: electrified relay pulls in immediately delays for A seconds and then powers off.P-21: given signal it delays for A seconds and then powers off.P-22: after given signal A seconds relay pulls in. It stops when signal disappears.P-23: relay pulls in after signal disappears A seconds. It stops when signal appears.P-24: after given signal A seconds relay pulls in. It stops when signal disappears for more than A seconds.P-25: after given signal A seconds relay pulls in. It stops when signal appears for more than A seconds.P-26: given signal relay pulls in for A seconds and then stops. When signal disappears it pulls in for A seconds and then stops again.P-27: detecting pulse signal relay stops; detecting no or constant pulse signal it delays for A seconds and then pulls in.P-28: electrified relay delays for A seconds and then pulls in until power off.P-31: electrified relay pulls in for A seconds and stops for B seconds. Repeat this cycle until power off.P-32: given signal it starts infinite P-31 loop until signal disappears.P-33: given once signal it starts infinite P-31 loop; give signal again to stop the loop.P-34: electrified relay delays for A seconds and then pulls in. Stop pulling in after B seconds.P-35: given signal relay delays for A seconds and then pulls in. Stop pulling in after B seconds.P-36: after given signal A seconds relay pulls in. Stop pulling in after B seconds. Signal disappears and timing is reset.P-37: given signal relay pulls in for A seconds and then stops. Timing B seconds after stop. Triggering signal is invalid during AB timing period.P-38: given signal more than A times relay pulls in for B seconds and than stops.About Decimal Point:X.XX If the decimal point is in the third last the time range is 0.01-9.99 seconds.XX.X If the decimal point is in the second last the time range is 0.1-99.9 seconds.XXX If there is no decimal point the time range is 1-999 seconds.XXX. If the decimal point is in the end the time range is 1-999 minutes.About Ports:DC+: Positive pole of DC powerDC-: Negative pole of DC powerNO: Normally open interfaceCOM: Common interfaceNC: Normally closed interfaceAbout Button:Press setting at the first time(works after 1s to prevent misoperation) screen display shows P-11 use + - start/stop to adjust the mode.Press setting at the second time screen display shows A001 use + - start/stop to adjust the time A.Press setting at the third time screen display shows B001 use + - start/stop to adjust the time B.Press setting at the fourth time screen display shows ---- meaning standby state.Start/stop button is used to start/stop all functions in standby state.Specifications:Material: Electronic ComponentsType: DC 7-27V AC 220V (Optional)Working Voltage: DC 7-27V or AC 220VOutput(DC 7-27V): within 30A Output(AC 220V): 30A loadTiming Range: 0.01second-999minutesItem Weight: 120g / 4.23ozItem Size: 10.5*5.4*4.3cm / 4.13*2.12*1.69inPackage Weight: 125g / 4.40ozPackage Size: 17*14.5*4.3cm / 6.69*5.70*1.69inNote:Delay timer module only other accessories are not included.Due to manual measurement there may be deviation.Due to lighting the picture and material object may slightly differ in color please in kind prevail.Packing List:1 * Delay Timer Module
