AVR SR7 Automatic Voltage Regulator Stabilizer for Blushless - SR7-2G

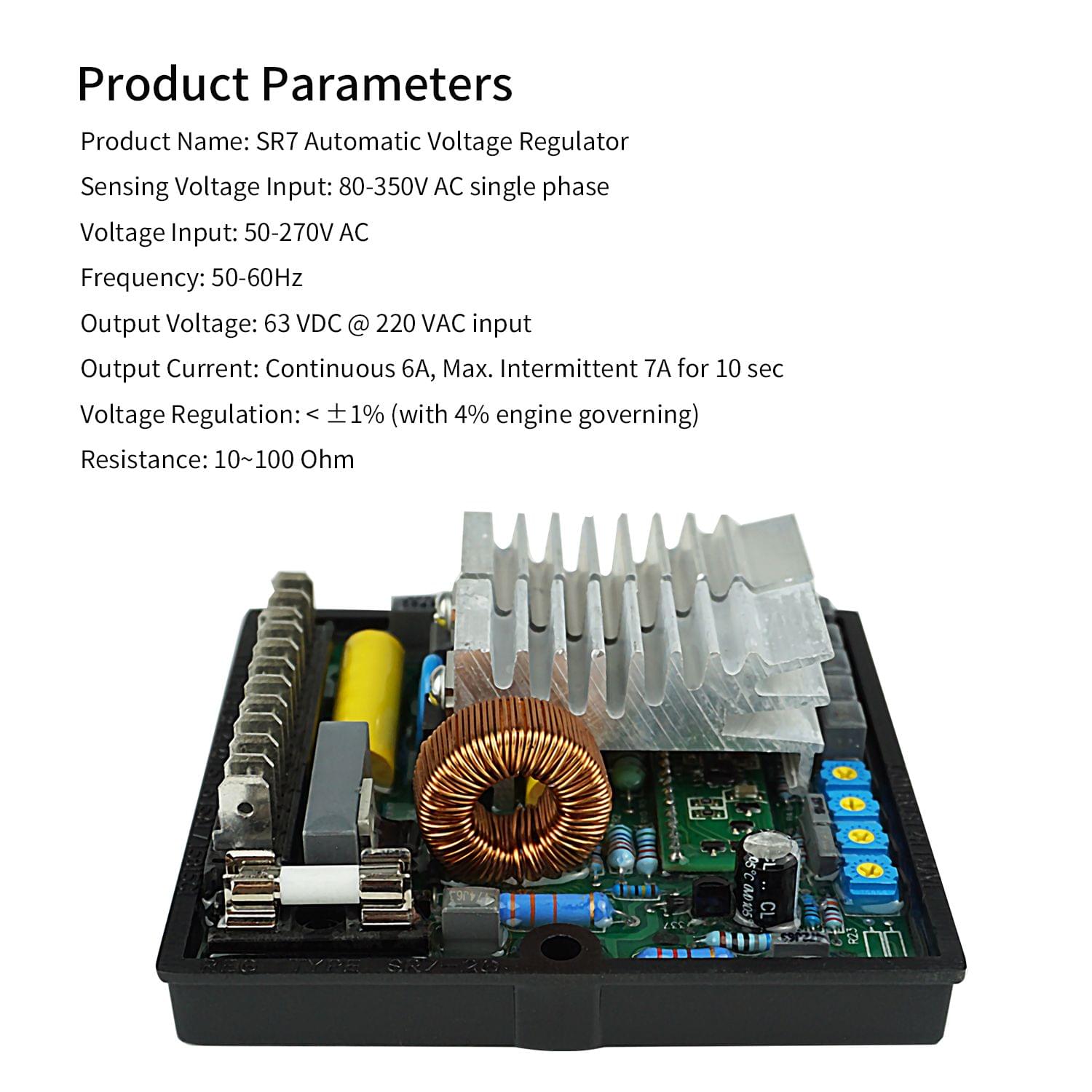

Features:High Performance --- The SR7-2G type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting.Well Protect Machine --- The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.Wide Application --- The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.Product Detail --- Wide Sensing Voltage Range 80~350V AC; Wide Power Input Range 50~270V AC Accepts Power Input from Main Winding or Auxiliary Winding.LED Indicator --- Under Frequency Protection Indication LED; Over Excitation Protection and Indication LED.Specifications:Material: Plastic + Electronic ComponentsModel: SR7-2GDetection and power input: 80-350V AC single phase two linesPower input: voltage 50-270V AC frequency 50/60HZMagnetic field output: Voltage 220V AC input maximum 63V DCCurrent: 6A continuous; 10A in 10 seconds without discontinuityPressure regulation accuracy: 1%RMS (with 6% engine governing)System requirements: Brushless generator within 100KWDC Resistance: 10~100?Package Weight: 300g/10.6ozPackage Size: 12*9.5*5.5cm/4.7*3.7*2.2inPackage List:1 * SR7 Automatic Voltage Regulator1 * Manual
