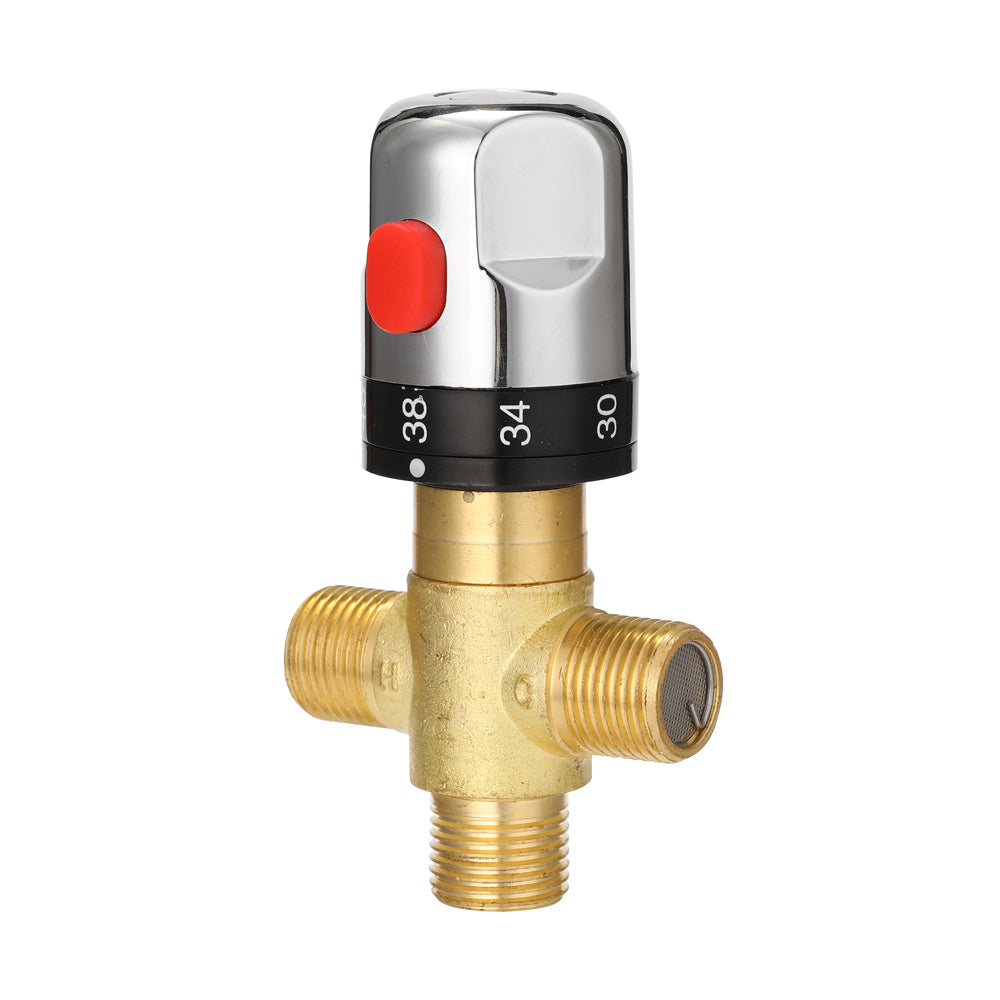

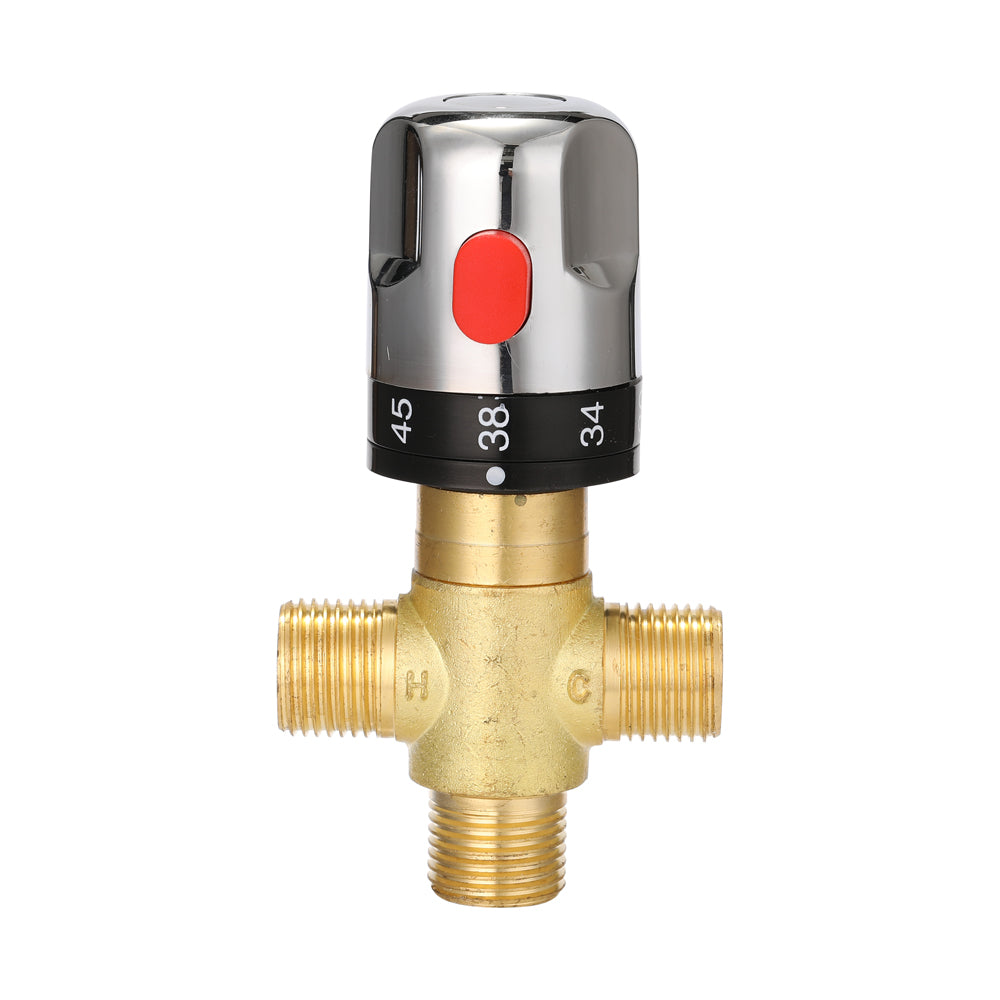

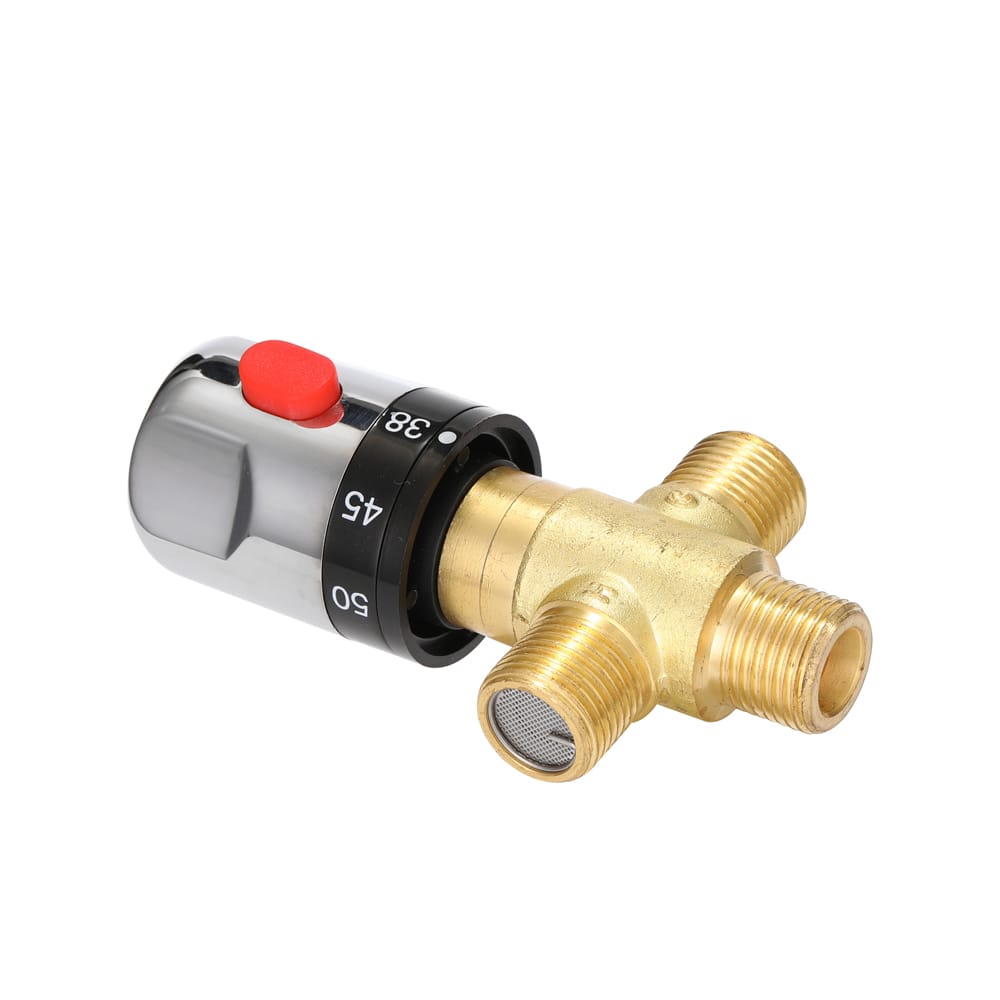

Bathroom Adjustable Thermostatic Mixer Valve Brass Water - 3

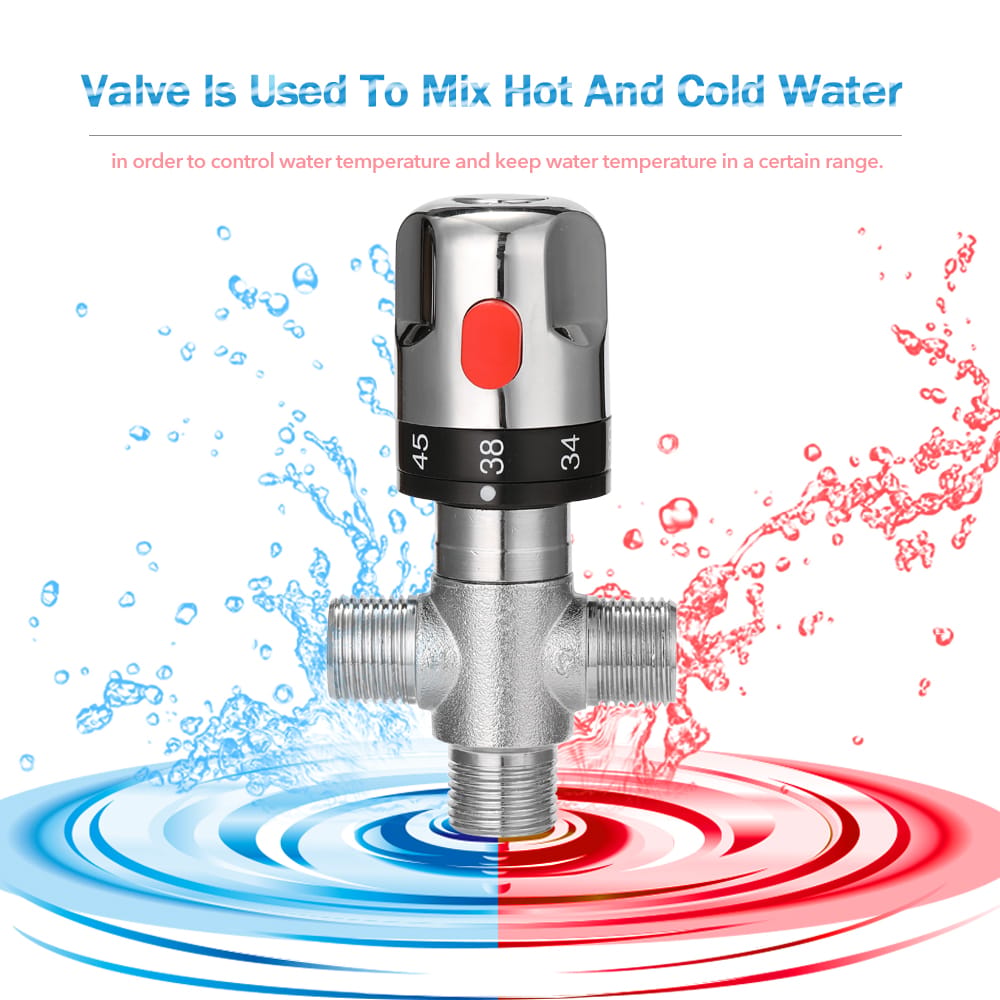

This valve is used to mix hot and cold water in order to control water temperature and keep water temperature in a certain range.

Features:

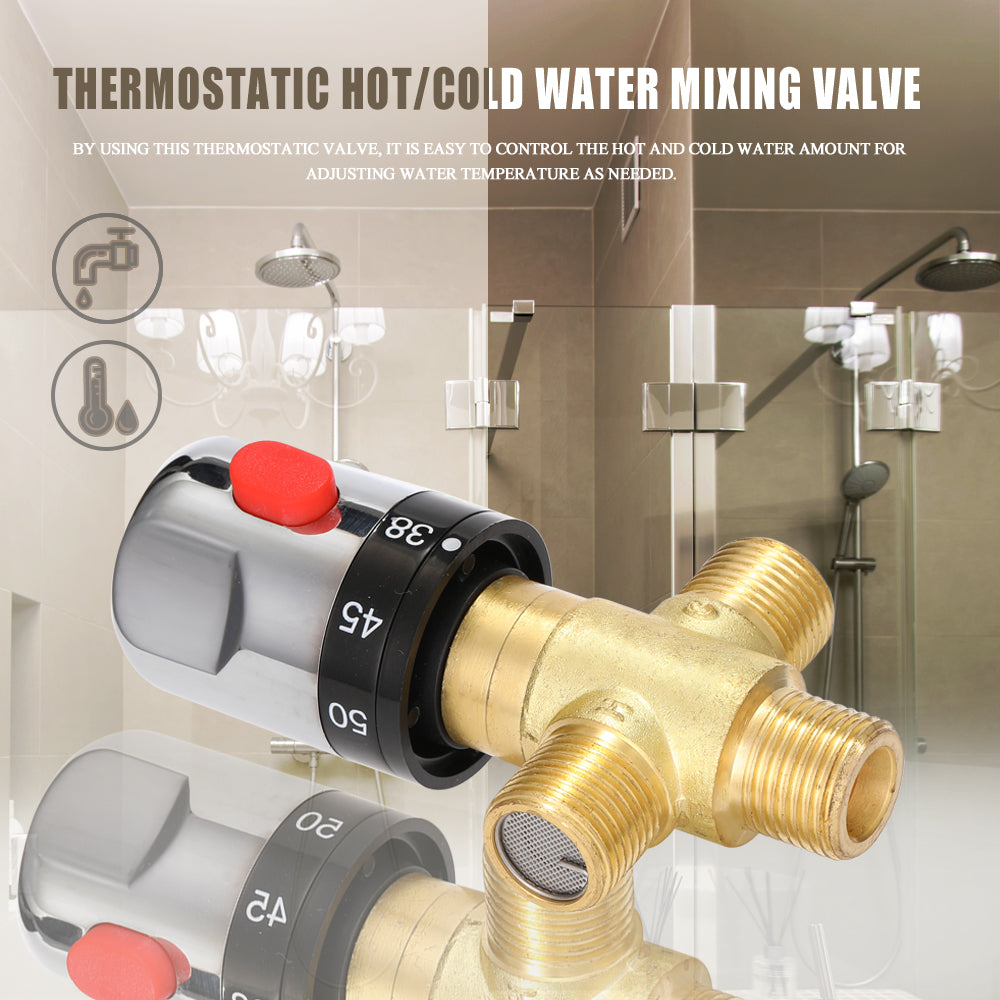

By using this thermostatic valve it is easy to control the hot and cold water amount for adjusting water temperature as needed.

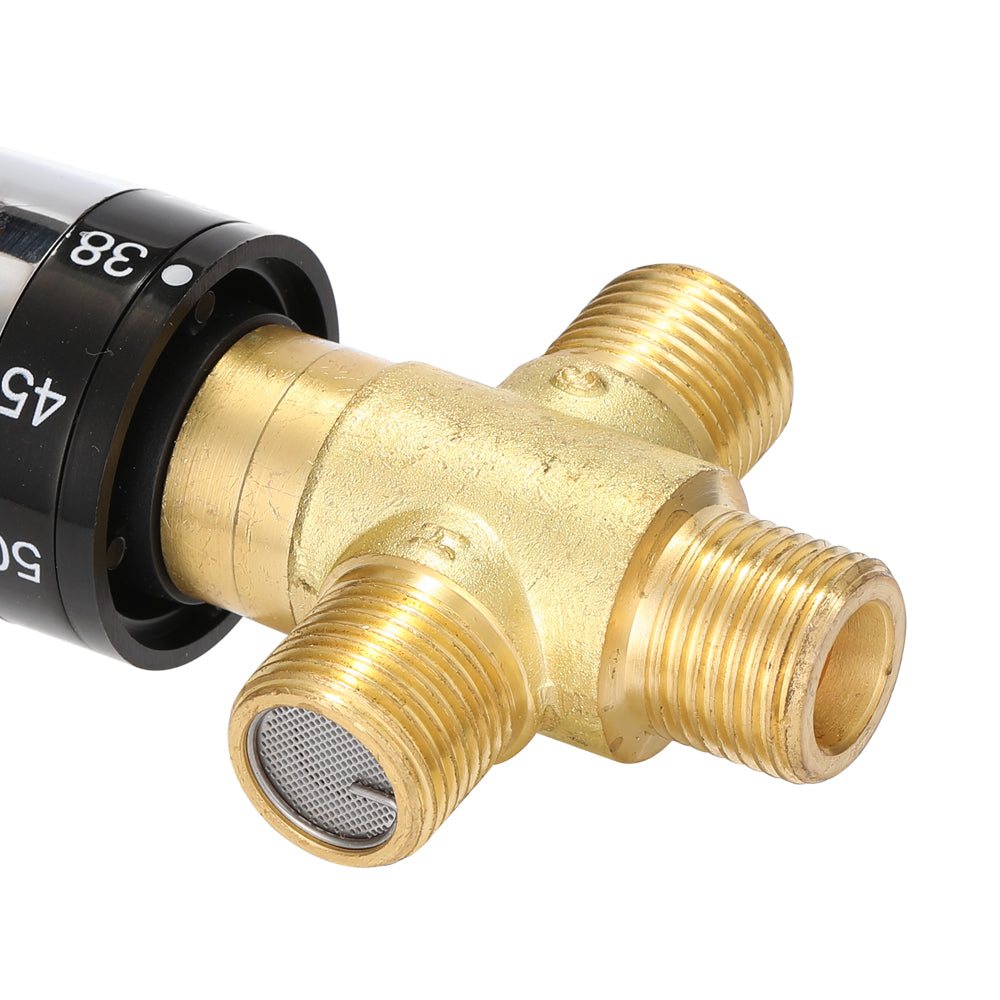

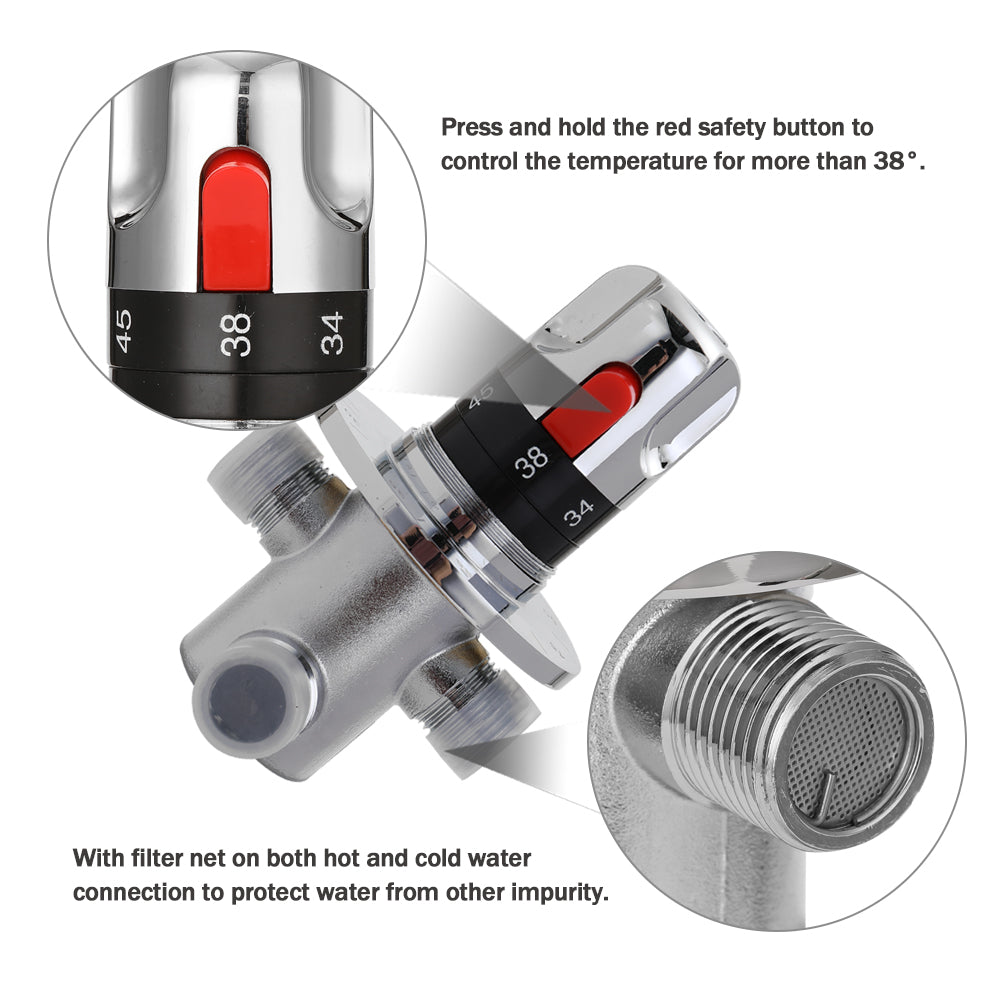

Press and hold the red safety button to control the temperature for more than 38.With filter net on both hot and cold water connection to protect water from other impurity.

Made of solid brass valve element it is durability sturdy and not easy to rust.

Wall-mounted bath thermostatic mixer valve is easy to install and suitable for many water heater.

Built-in temperature control safety device will automatically shut down hot water if there is no cold water which can protect scald.

Specifications:

Operating Pressure: 0.05-1Mpa

Recommended Pressure: 0.1-0.5Mpa

(Need Release Valve When Pressure Is Over 0.5Mpa)

Standard Pressure: Dynamic Pressure 0.30.02Mpa

Cold Water Supplies Temperature: 4C-29C

Hot Water Supplies Temperature: 55C-85C

Recommended Normally Use Temperature: 60-70

Water Temperature Control Range: 20C-50C

Safety Button Temperature: 381:

Length: 115mm / 4.5in

Width: 63mm / 2.5in

Height: 42mm / 1.7in

Package Size: 130 * 75 * 50mm / 5.1 * 3.0 * 2.0in

Item Weight: 296g / 10.4ounce

Package Weight: 330g / 11.6ounce

2:Length: 113mm / 4.4in

Width: 86mm / 3.4in

Height: 42mm / 1.7in

Package Size: 115 * 90 * 45mm / 4.5 * 3.5 * 1.8in

Item Weight: 394g / 13.9ounce

Package Weight: 420g / 14.8ounce

3:Length: 115mm / 4.5in

Width: 63mm / 2.5in

Height: 42mm / 1.7in

Package Size: 125 * 75 * 50mm / 4.9 * 3.0 * 2.0in

Item Weight: 296g / 10.4ounce

Package Weight: 331g / 11.7ounce

Notes:

Please allow 1-30mm error due to manual measurement.

Due to the difference between different monitors the picture may not reflect the actual color of the item.

Package List:

1 * Thermostatic Valve
