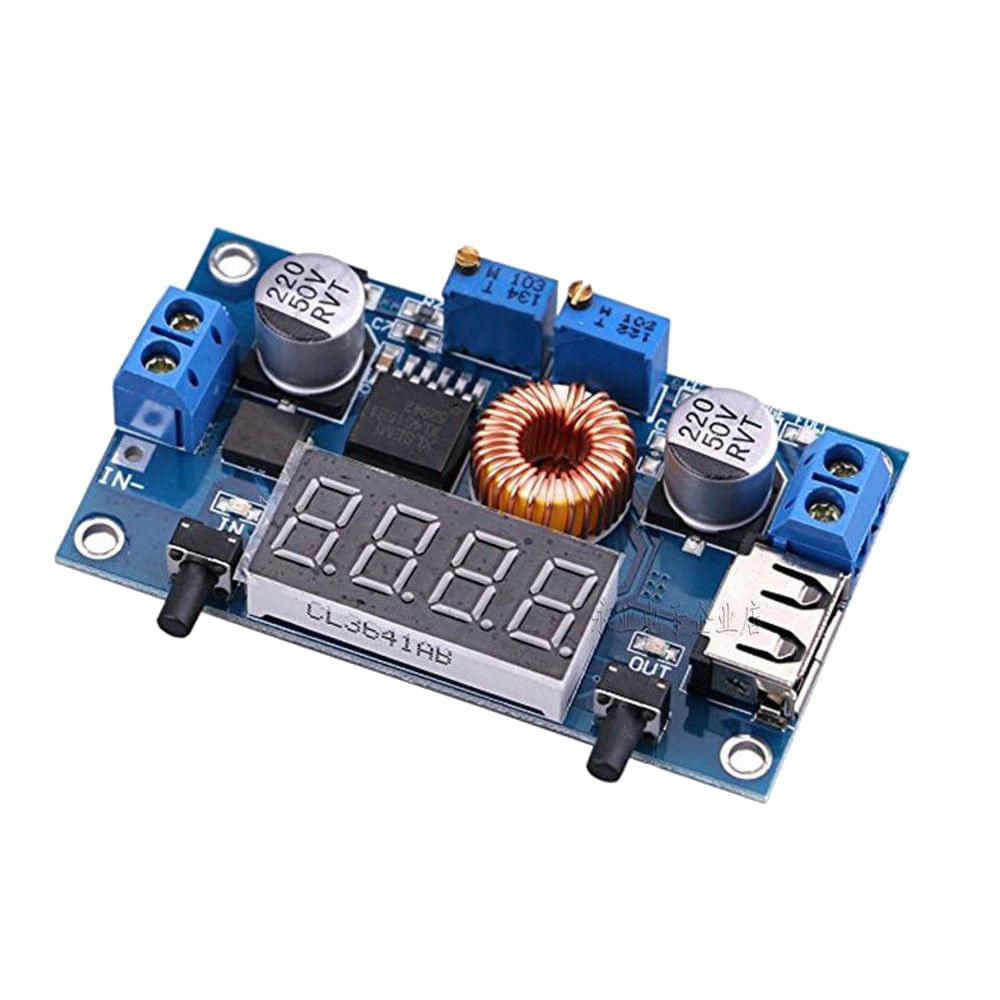

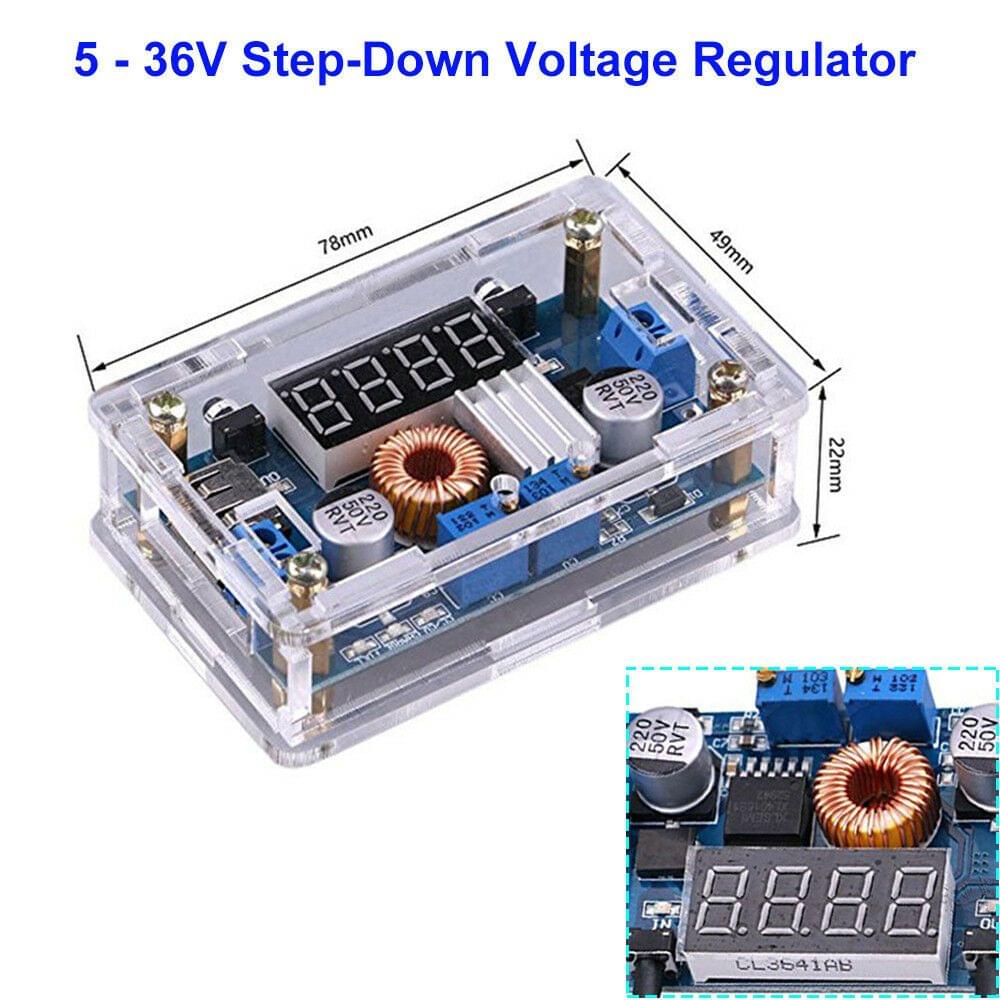

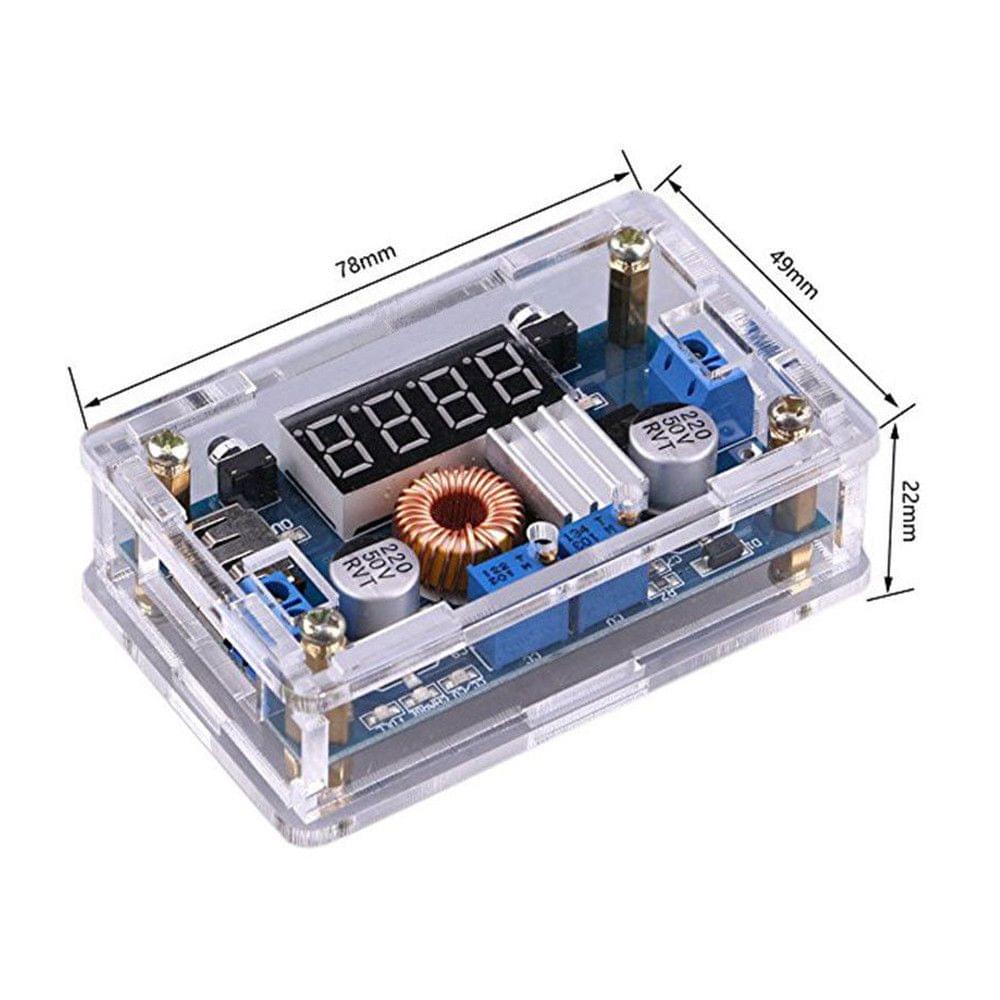

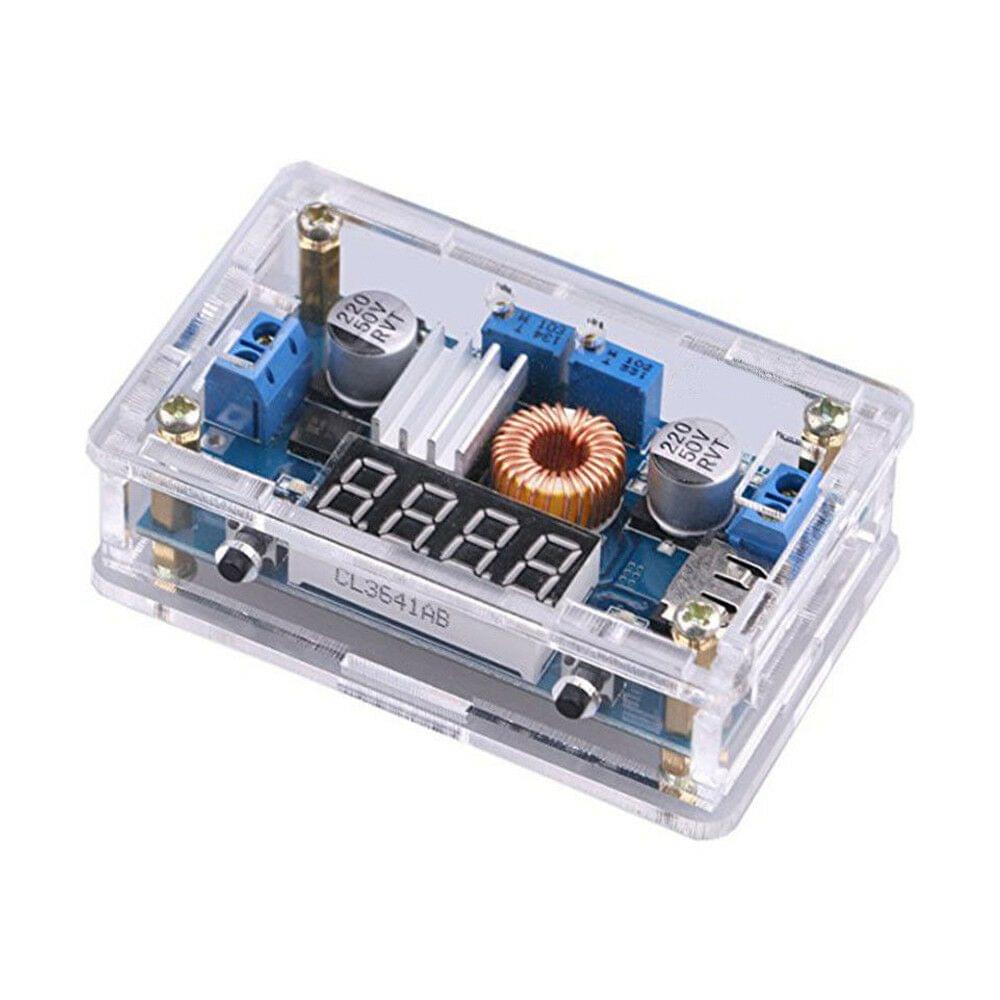

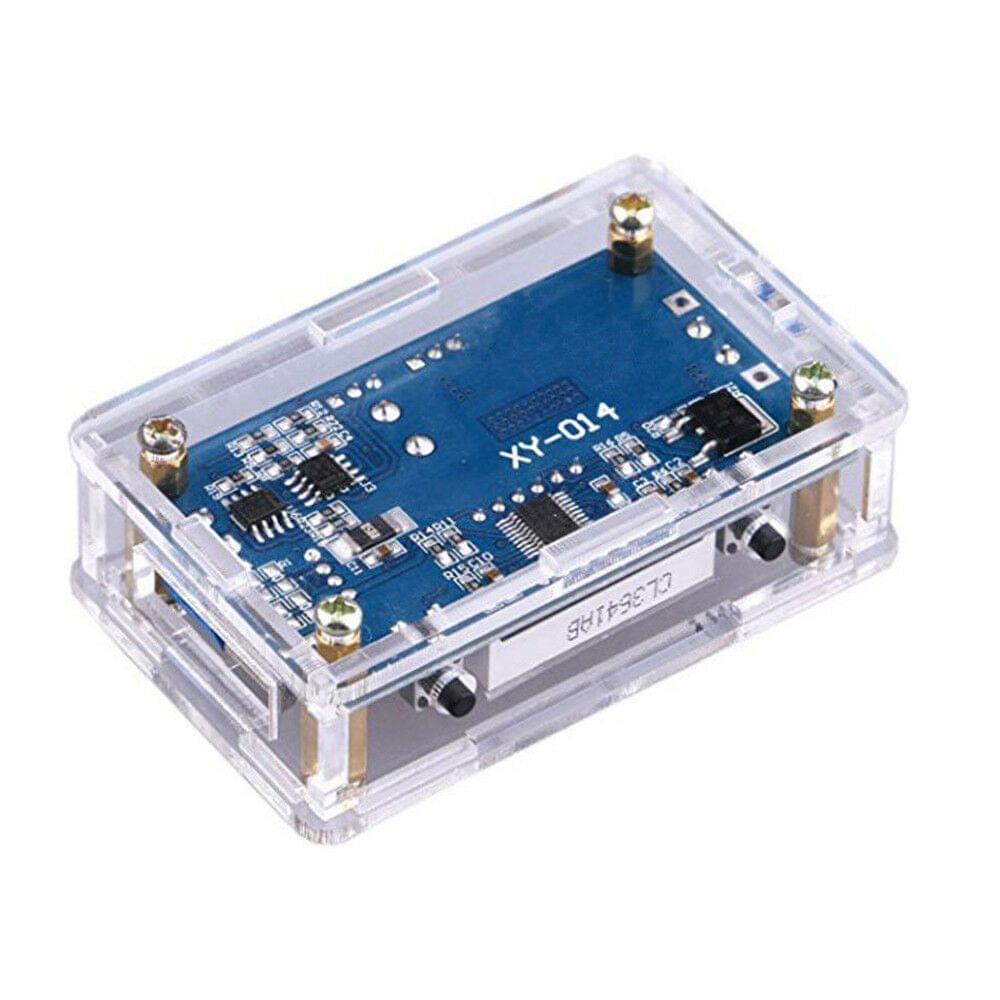

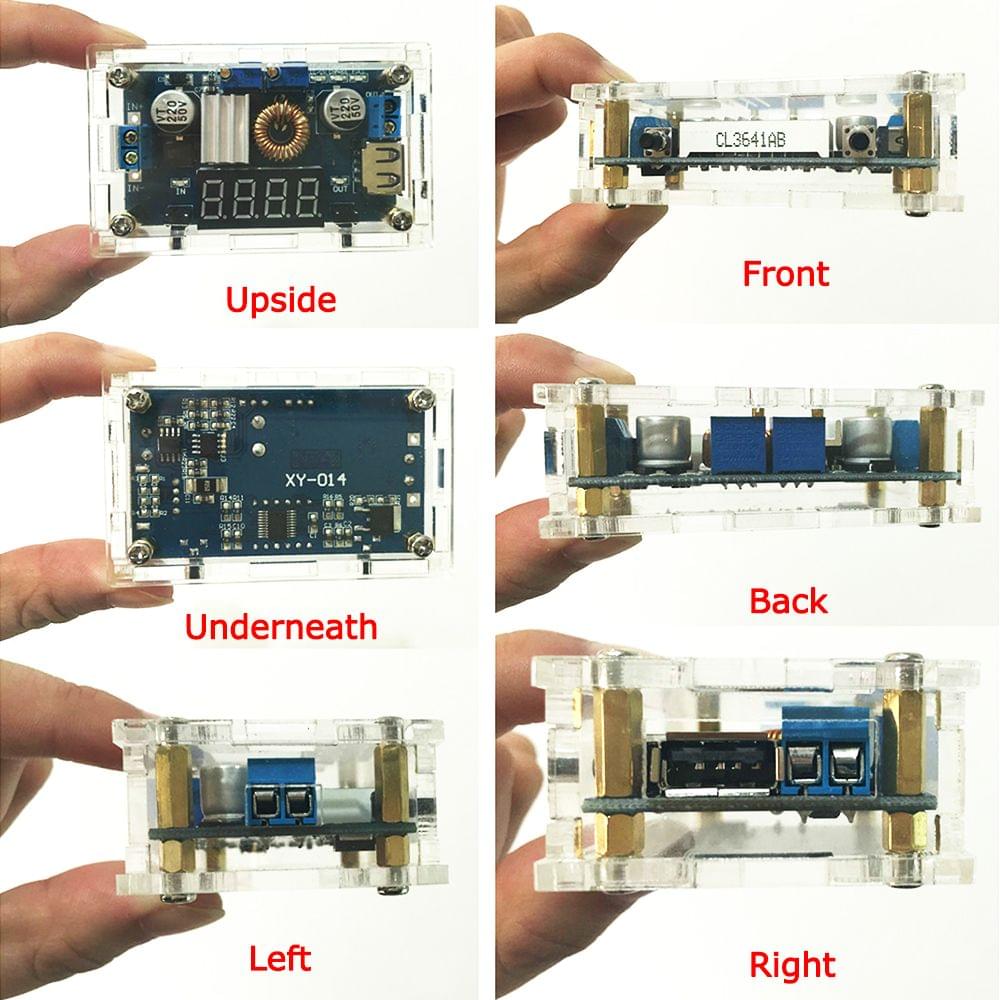

DC Buck Converter DC-DC Step Down Voltage Regulator 5V-36V - 5A DC Buck

Features:Multifunction: Used as a normal buck module with overcurrent protection;used as charger for various voltage values;used as a high power LED constant current drive module.Easy Use: Voltage current power meter mount on the board ccould convenience used without the multimeter and mount USB port charge your digital products easierly.LCD Display: the buck converter is designed with LCD can display input and output voltage output current and output power.Safe Protection: With current limiting protection the module will not burn out even if the output is shorted.Indicator Light: Constant voltage and constant current 2 modes with indicators to indicate which mode the module is currently in.Specifications:Material: PCBInput Voltage:DC5-36VOutput Voltage: DC1.25-32V(can be arbitrary adjustable)Output Current: adjustable 5A Max(please use it within 4.5A)Output Power: 75W Max(please use it within 50W if the pressure difference is big please reduce power)Working Temperature:-40C - +85CWorking Frequency: 180KHzConversion Efficiency: Up to 96%Short Circuit Protection : YesOverheating Protection: Yes (automatically turn off the output after over temperature)Input Reverse Polarity Protection: No(if necessary please in input String into high current diode)Installation: 4pcs 3mm screwsWiring: terminal block or solder terminals V-IN is the input V-OUT is outputItem Size: 67.8*40*13mm / 2.67*1.57*0.51inItem Weight: 75g / 2.65*ozPackage Weight: 79g / 2.79ozPackage Size: 80*50*30mm / 3.15*1.97*1.18inPackage List:1 * DC Converter
