Digital DDS Dual Channel Signal Source Generator Arbitrary

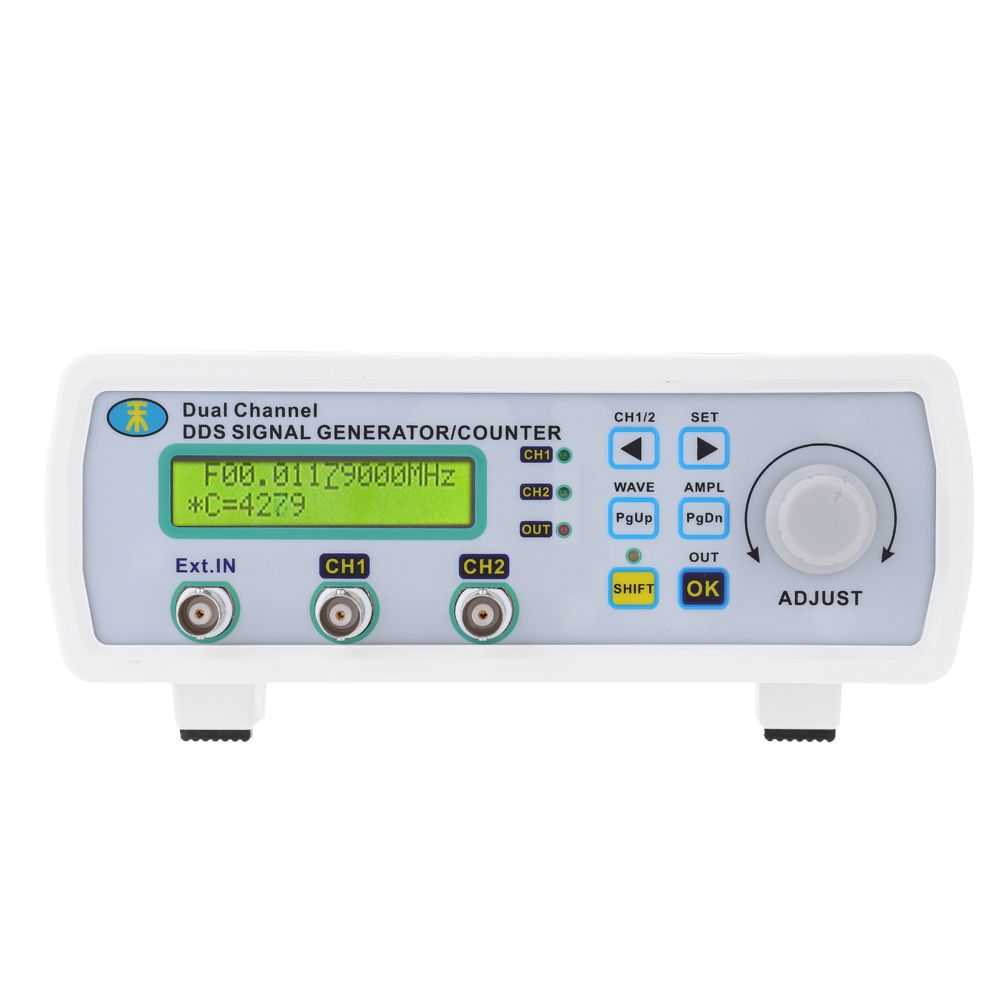

Arbitrary waveform DDS signal generator from MHS-5200A series is a multi-functional signal generator with high accuracy and high performance. It adopts large scale of FPGA integrated circuits high-speed MCU microprocessor and SMT in the inner circuit which can greatly improve the anti-interference and lifetime of the instrument. The LCD display is divided into two lines: the top line shows the current frequency and the following line displays additional parameters or functions. This instrument is of great advantage in generating signal scanning waveform measuring parameters etc. It's aperfect testing or measuring instrument for electronics engineer electronic laboratory teaching and researching.Features:Using DDS direct digital synthesis technology to generate accurate stable low distortion output signal.CH1 and CH2 completely symmetrical two channels each channel can be independently set the parameters.Supports user-defined waveform each arbitrary waveform memory depth is 2048*12bits 200MSa/s sampling rate.Can output arbitrary waveforms and conventional function waveforms(sine/triangle/square/sawtooth wave and TTL signal).All functions are digitally controlled accuracy and stable.Dual-channel output can work in sync phase difference is adjustable.With linear sweep (Max. up to 999s) and logarithmic frequency sweep functions.Signal of both channels has built-in sophisticated -20dB attenuator in order to reach the minimum amplitude resolution 1mV.With 120% ~ + 120% DC bias function.4 TTL output(phase difference is adjustable).Has a frequency measurement period measurement positive and negative pulse width measurement duty cycle measurements and counting function.With USB interface after the connection with PC the PC can be used to control the instrument.Specifications:Material: ABSColor: whiteKey features:Frequency range:Sine wave: normal modes (optional): 0.01Hz~6MHz / 0.01Hz~12MHz / 0.01Hz~20MHz / 0.01Hz~25MHzSquare wave: 0.01Hz~6MHzTriangle wave: 0.01Hz~6MHzSawtooth wave: 0.01Hz~6MHzArbitrary waveform: 0.01Hz~6MHzTTL digital signal wave: 0.01Hz~6MHzOutput modulation: frequency sweepWaveform types: sine/triangle/square/lifting sawtooth wave CMOS digital signal wave and arbitrary waveformWaveform length: 2048PointsSampling rate: 200MSa/sWaveform amplitude resolution: 12 BitsThe Min. frequency resolution: 10mHzFrequency error: +/-5*10^(-6)Frequency stability: +/-1*10^(-6)Amplitude range (peak to peak): 5mVp-p~20Vp-pOutput impedance: 50?(+/-10%)Amplitude resolution: 1mVp-p (-20dB attenuation) 10mVp-p (no attenuation)Offset range: -120%~120% (the ratio of bias voltage and signal amplitude)Bias resolution: 1%Phase range: 0~359Phase resolution: 1Sine wave:Harmonic arrived system: 40dBc(1MHz); 35dBc(1MHz~20MHz)Distortion: 0.8%(20Hz~20KHz)Square wave:Lifting along time: 20nsOvershoot: 10%Duty cycle adjustment range: 0%~99.9%TTL:Lifting along time: 20nsLow level: 0.3VHigh level: 1V~7.5VArbitrary waveform:Quantity: 16Memory depth/group: 1KB/16Scan:Scan mode: linear sweep log sweepScan time: 1s-999sScan range: it is determined by the sweep parameter settingsExternal measurements:Frequency measuring range:GATE-TIME=10S 0.1Hz - 60MHzGATE-TIME=1S 1Hz - 60MHzGATE-TIME=0.1S 10Hz - 60MHzGATE-TIME=0.01S 100Hz - 60MHzInput voltage range: 0.5Vp-p~20Vp-pCounting range: 0~4294967295Counting: manuallyPositive and negative pulse width measurement: 10ns resolution the Max. measurable 10sPeriodic measurement: 20ns resolution the Max. measurable 20sDuty cycle measurement: 0.1% resolution measuring range from 0.1%~99.9%Source selection: 1. Ext. IN Input (AC signal) ; 2. TTL-IN Input (digital signal)Memory:Quantity: 10Location: M0~M9Interface:Interface mode: using USB to serial interfaceCommunication rate: 57600bpsProtocol: using the command line the agreement publicPower supply: DC 5VItem size: 195 * 175 * 70mm / 7.7 * 6.9 * 2.8inItem weight: 542g / 1.2lbPackage size: 240 * 210 * 95mm / 9.4 * 8.3 * 3.7inPackage weight: 986g / 2.2lbPacking List:1 * Signal Source Generator1 * USB Cable1 * Compact Disc1 * TTL Expansion Board2 * BNC Clips Cable
