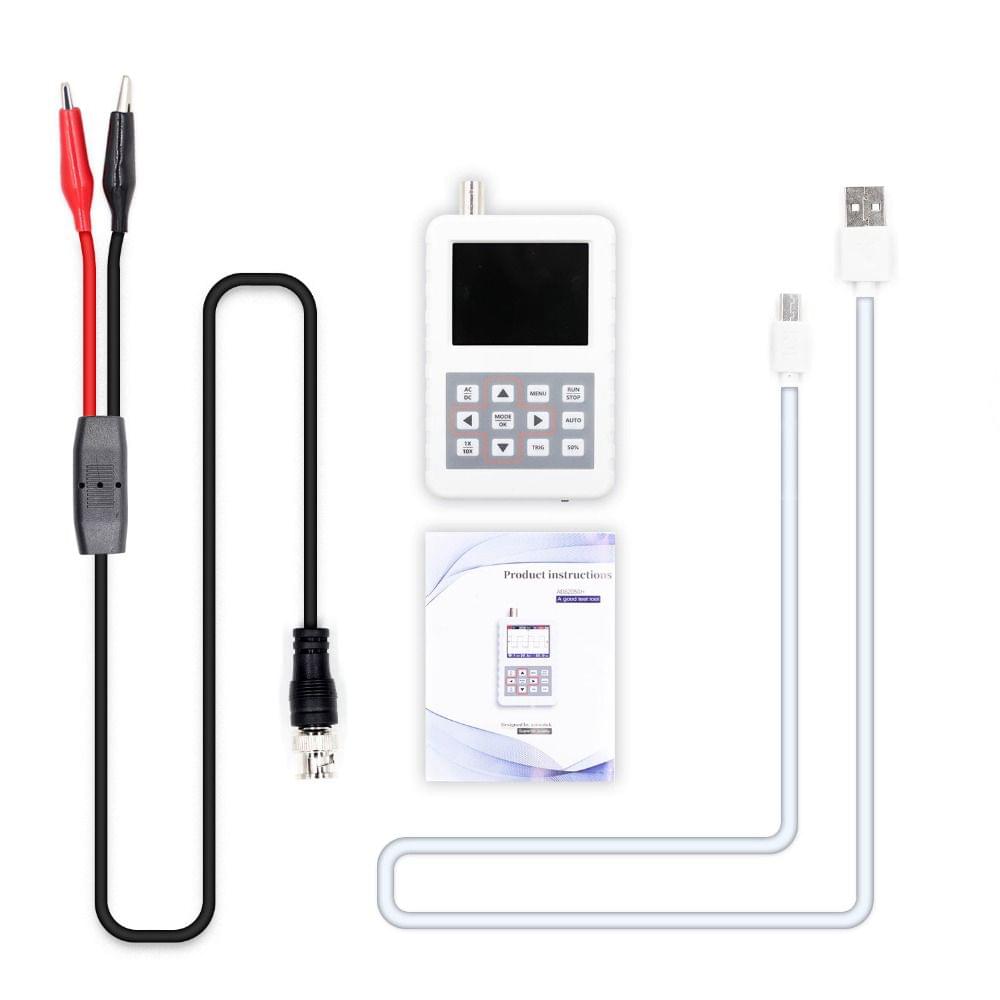

DSO PRO 2.4" Color Display Screen Handheld Portable Digital

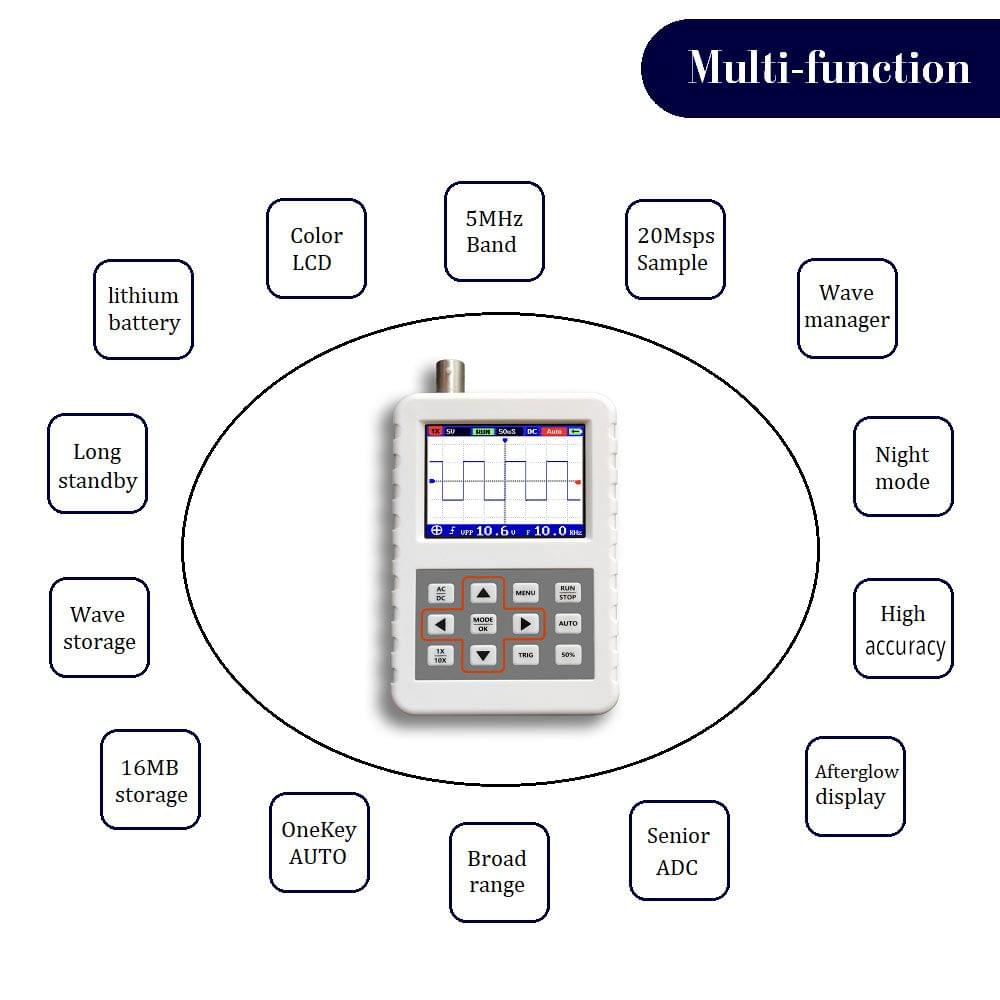

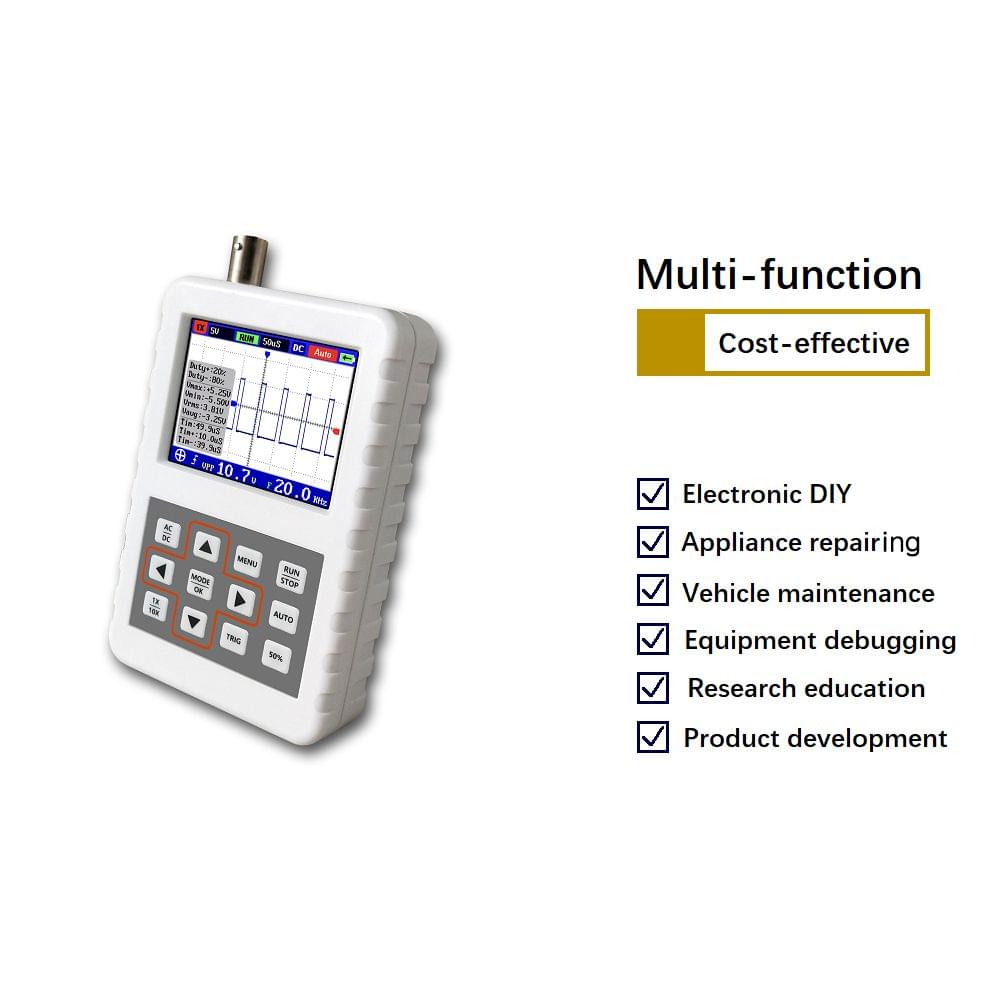

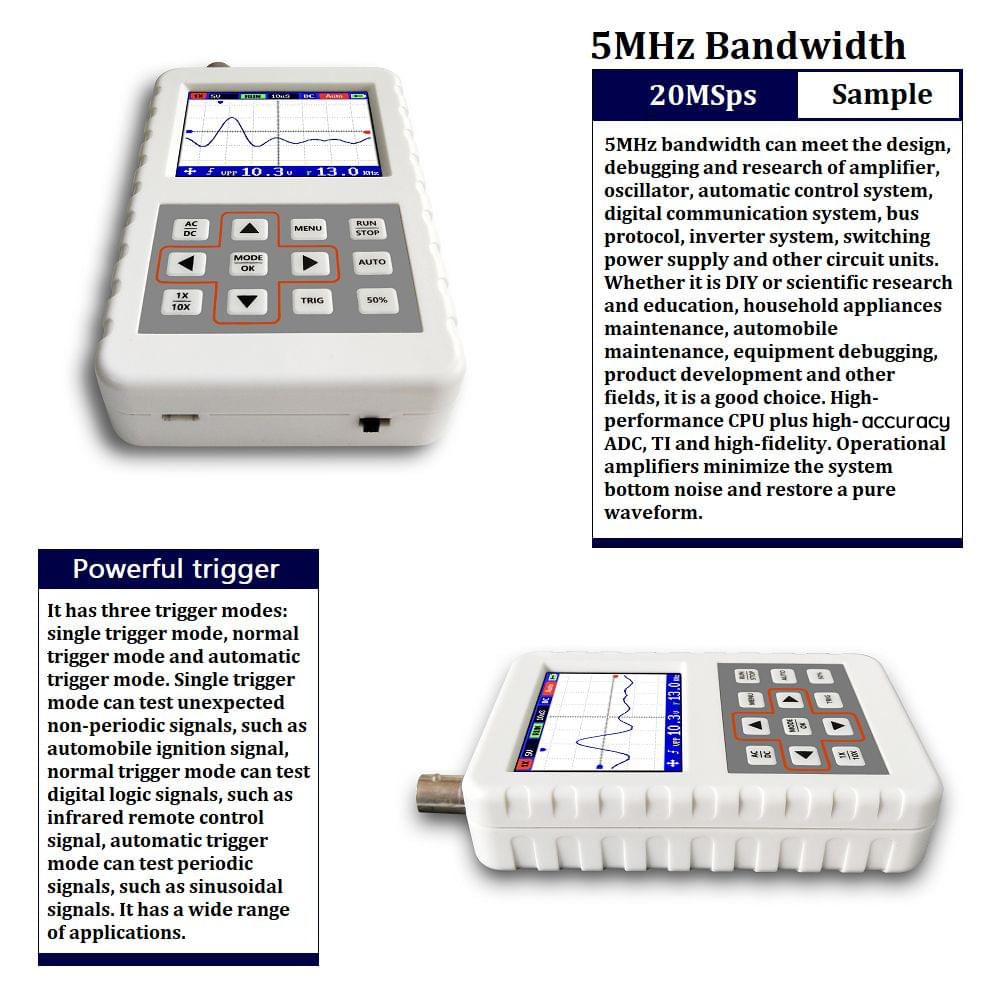

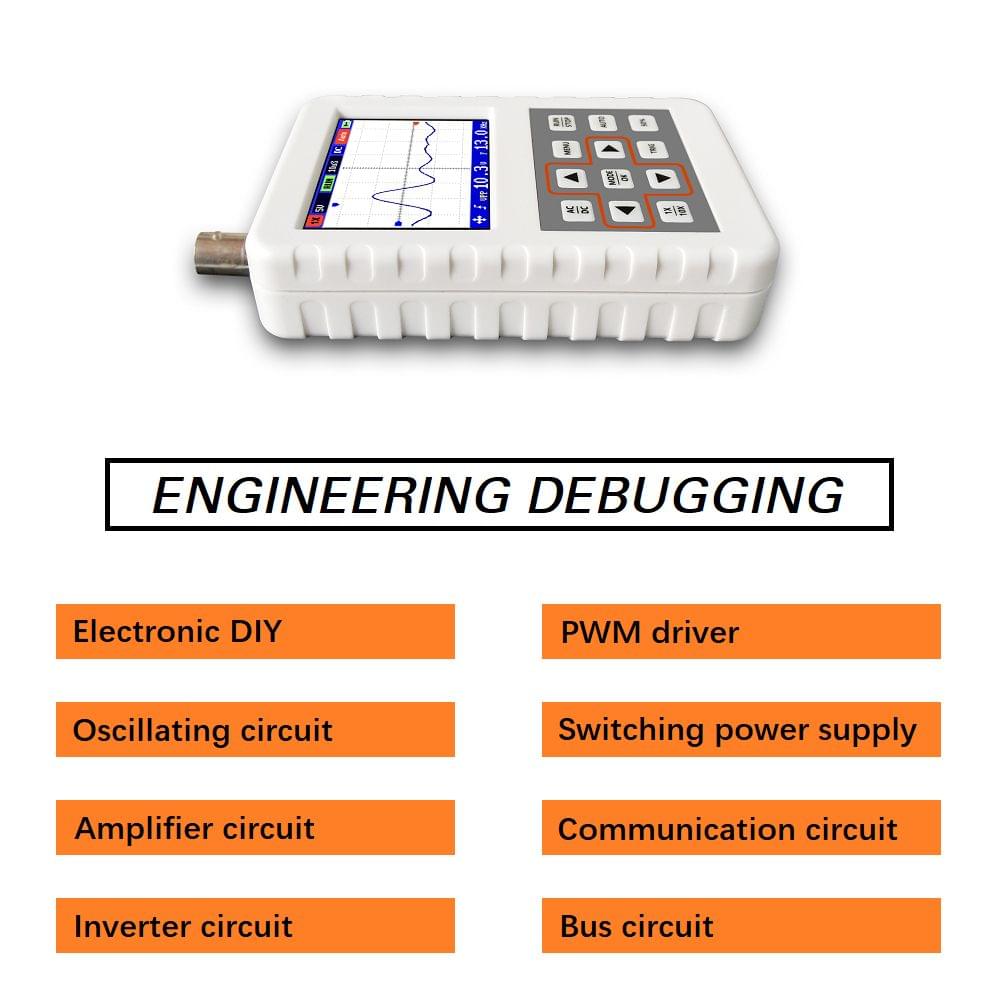

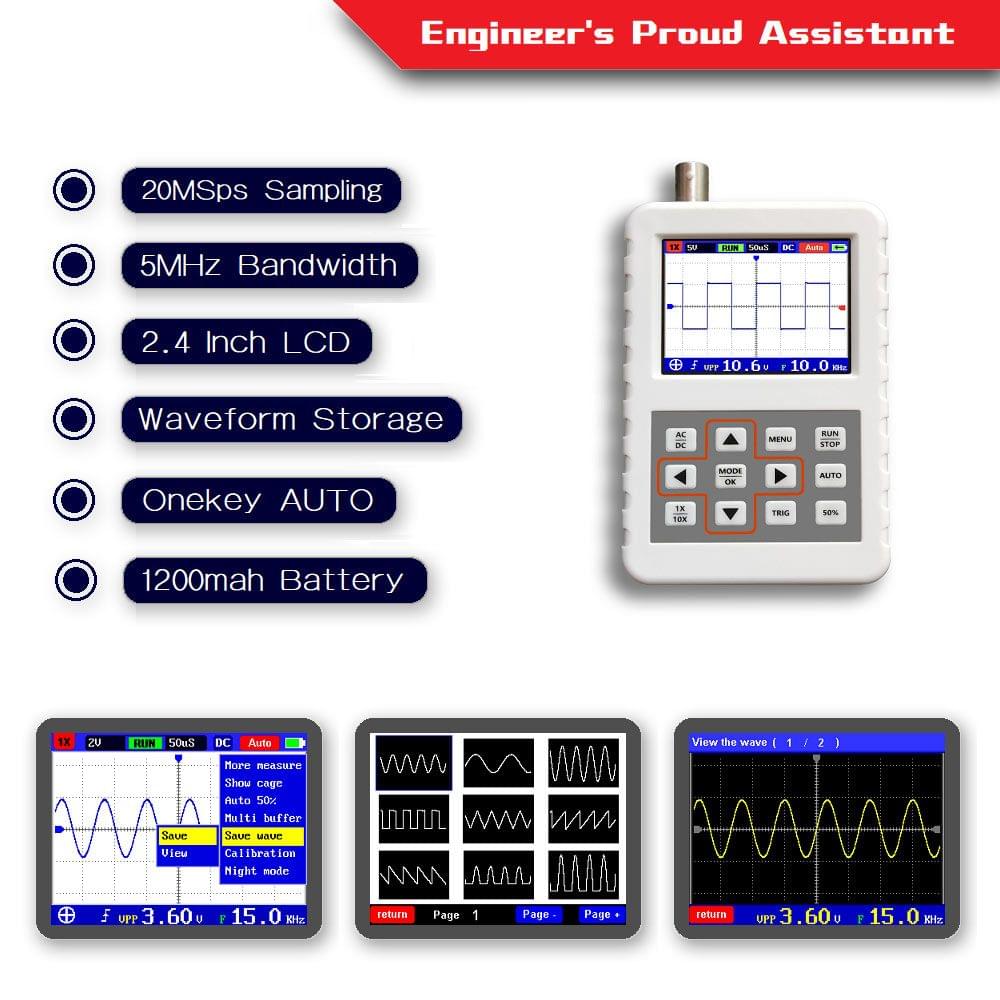

This is a pocket lightweight oscilloscope with 20M sampling rate and 5MHz bandwidth. Whether DIY or scientific research education vehicle maintenance household appliances maintenance and so on are all perfect choices.Features:2.4 inch color display screen makes reading data faster and easier.With 5MHz analog bandwidth and 20MS/s sampling rate.Memory compression technology waveform refresh screen does not flicker.High measurement voltage range 1X can measure 0-40V 10X can measure 40-800V.With complete triggering function (single normal automatic) both the periodic analog signal and the aperiodic digital signal can be used freely.Large time base scanning mode can monitor slow level changes.Equipped with high efficiency one-button AUTO the measured waveforms can be displayed without complicated adjustment.Up to 11 parameters measurement: VPP Vmax Vmin Vavg Vrms Frequent Duty+ Duty- Time+ Time- Time.With afterglow display technology and fast waveform storage.Built-in 16M storage space maximum storage of 500 waveform pictures.Powerful waveform file manager support for thumbnail browsing viewing detail viewing flipping deleting and other functions.At any time the waveform display (pause function) is frozen.Day mode and night mode can be changed according to their own preferences.Compact structure ultra-small size and easy to carry.Specifications:Main material: ABSColor: whiteDigital channel: 1Analog bandwidth: 5MHzMaximum real time sampling rate: 20MS/sVertical sensitivity: 50mV/div ~ 200V/divHorizontal time base range: 50S/div ~ 250nS/divMaximum input voltage: 40V (1X probe) 800V (10X probe)Storage depth: 40KBInput resistance: 1MADC accuracy: 8 bitsCoupling mode: AC/DCTrigger mode: single normal automaticTrigger edge: ascending/descending edgeExternal trigger voltage: 040VDisplay: 2.4 inch 320*240Power supply: 1 * lithium battery 1200mAh (included)Item size: 120 * 70 * 24mm / 4.7 * 2.8 * 0.9inItem weight: 120g / 4.2ouncePackage size: 160 * 100 * 95mm / 6.3 * 3.9 * 3.7inPackage weight: 195g / 6.9ouncePackage list:1 * DSO FNIRSI PRO Oscilloscope Host1 * Probe1 * Micro USB Cable1 * User Manual
