ET828 High Definition Intelligent Graphical Digital

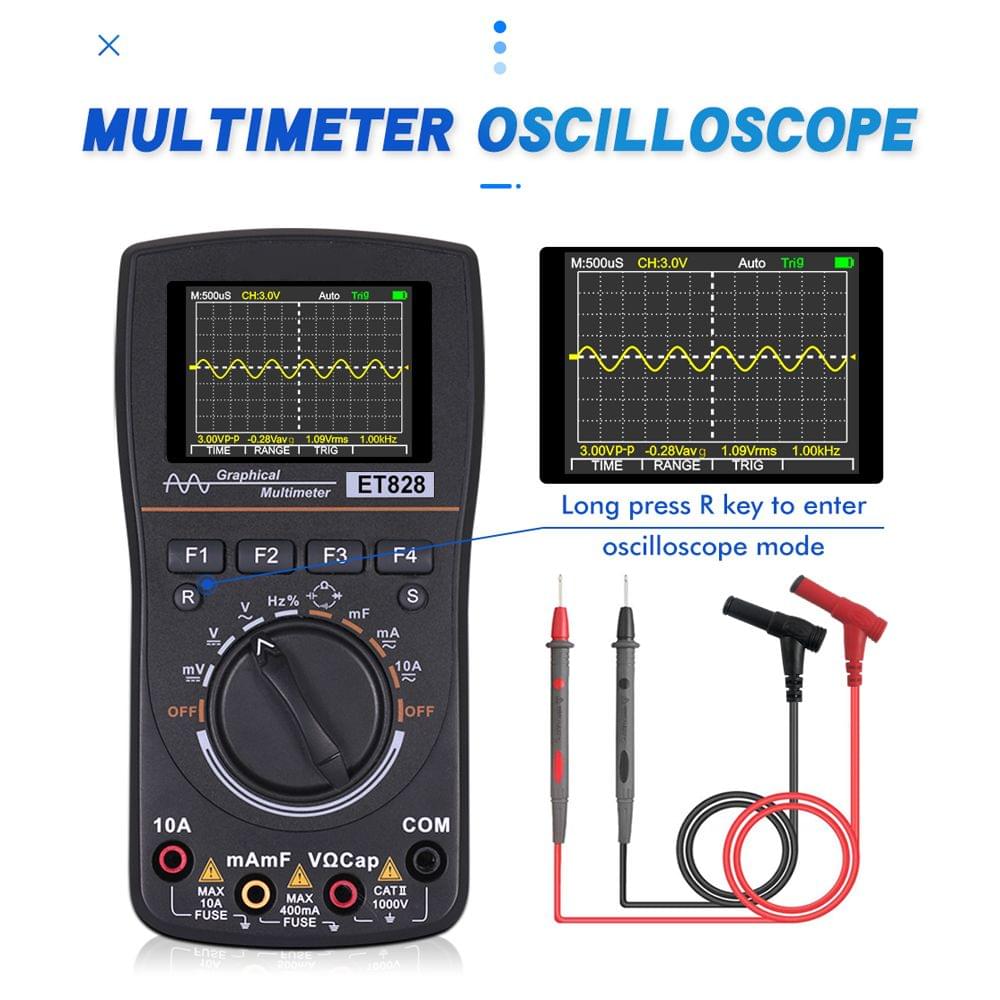

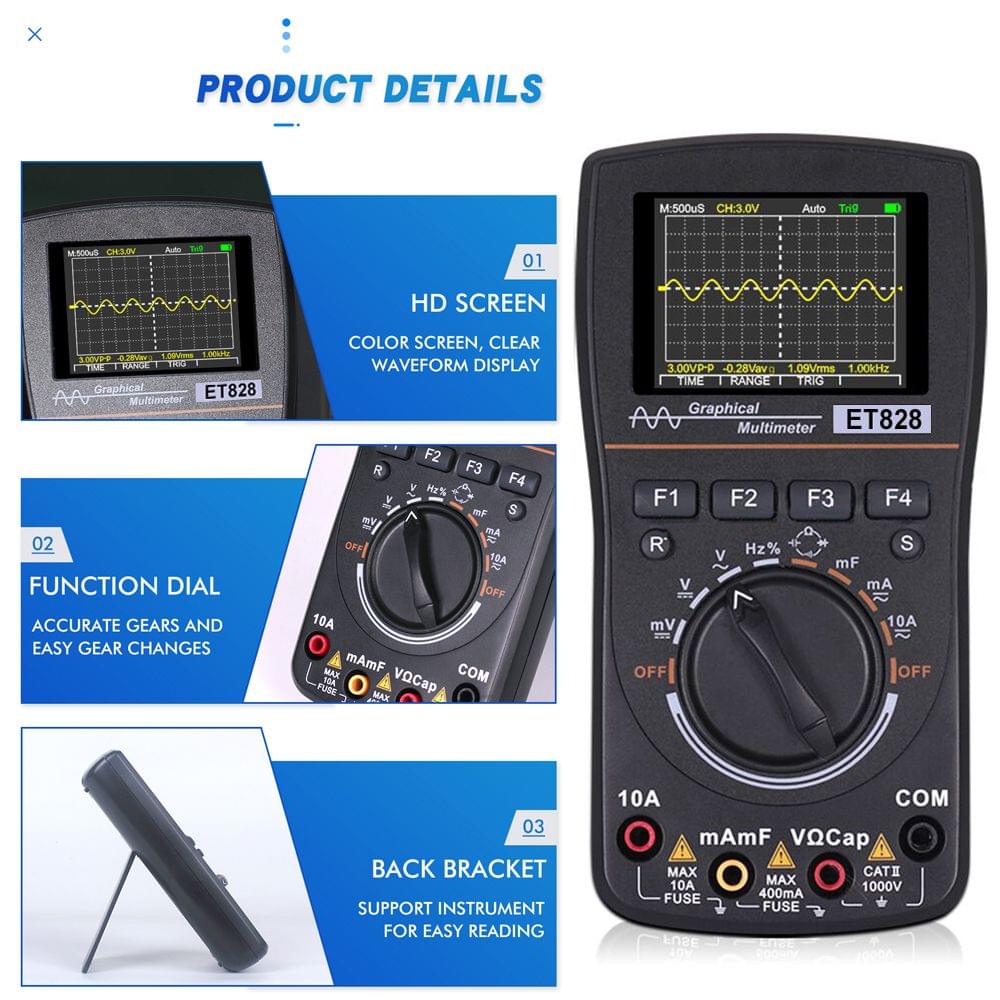

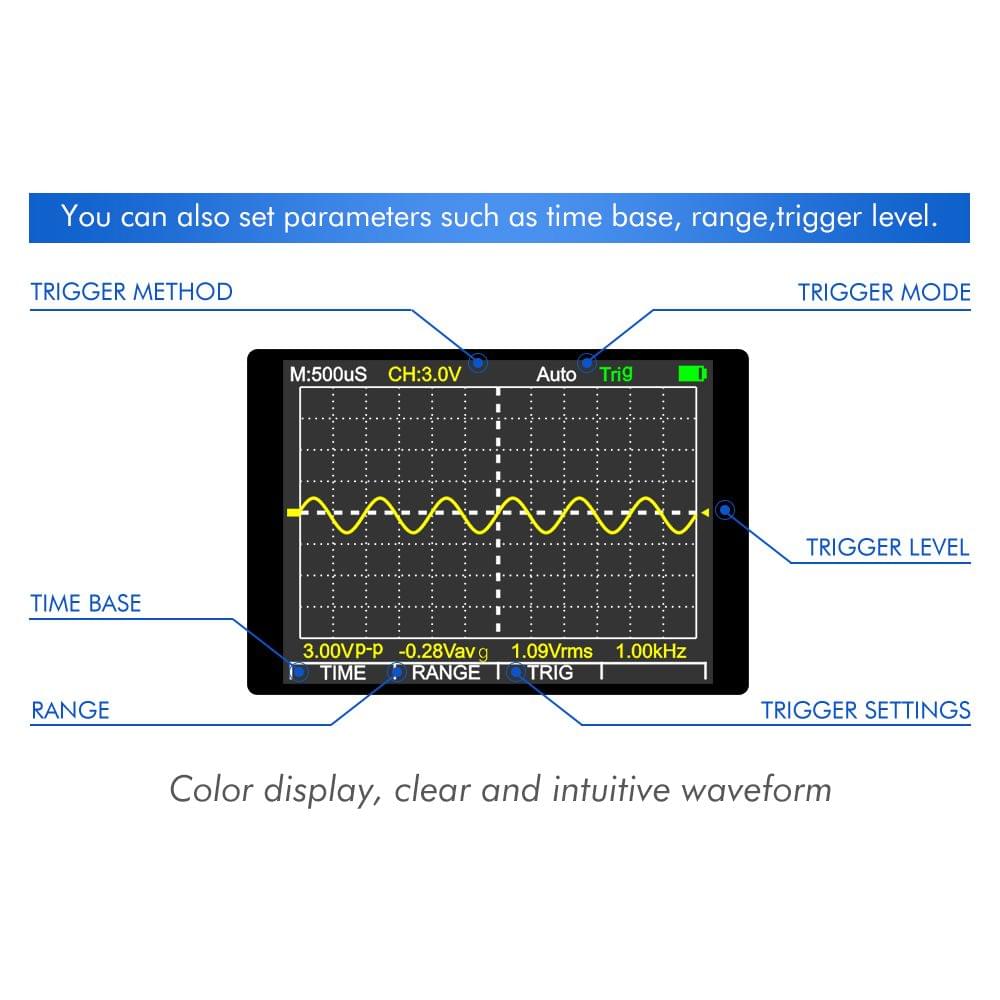

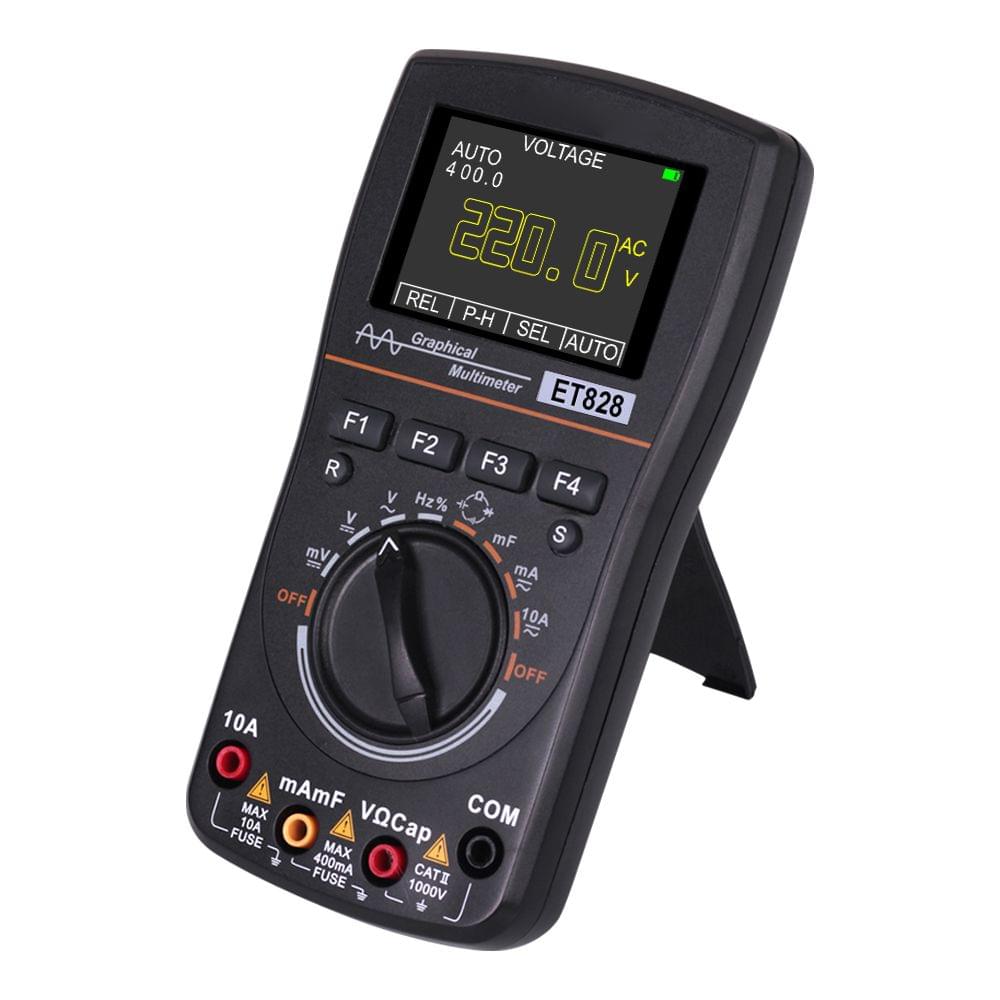

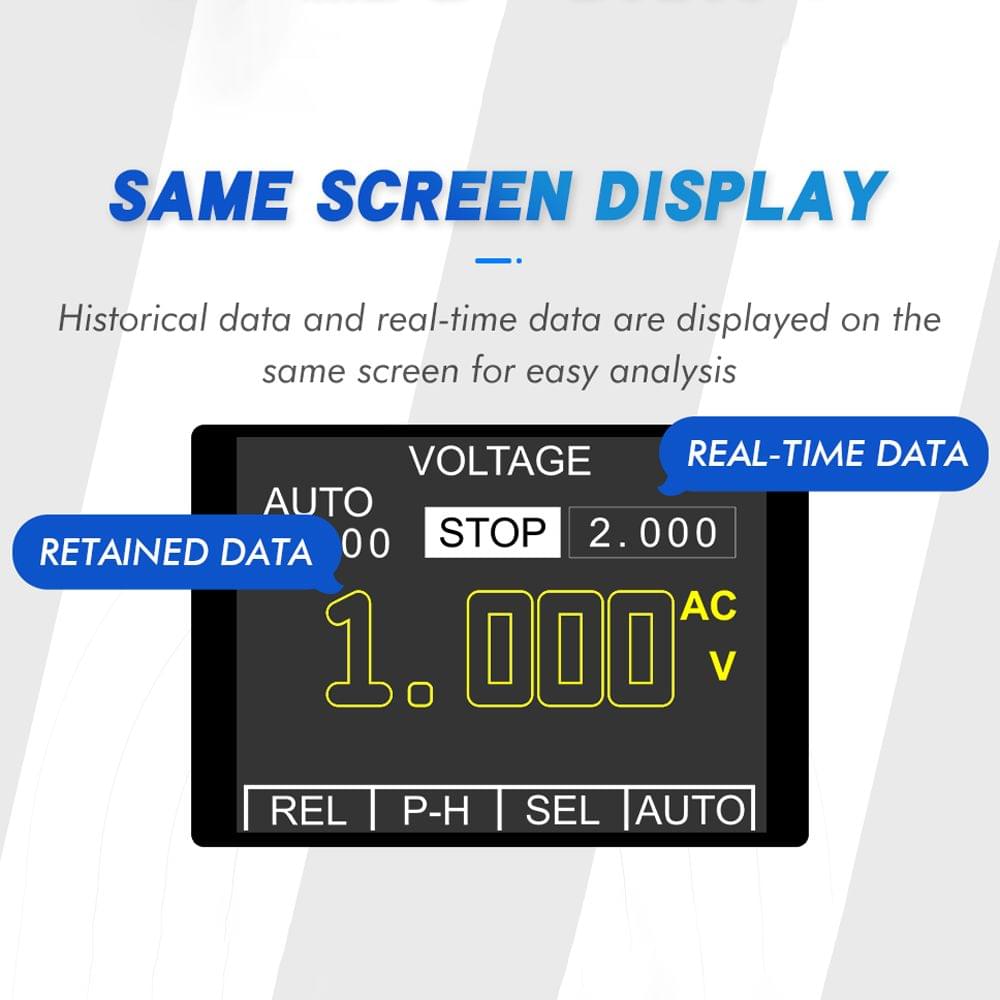

Made of fine quality material practical easy to operate and use wide application range has a long service life.Features:Oscilloscope multimeter 2 in 1 improve your work efficiency.One-button oscilloscope: no need oscilloscope probe measuring waveform directly. Fast and accurate measurement clear waveform display.240*320 high definition color screen: the color display is clearer and the secondary display at the bottom provides more function menus.Multimeter measurement functions: AC/DC voltage AC/DC current resistance capacitance frequency duty cycle diode test continuity test.Storage: mass storage 100 data/10 waveforms.Triple safety: double insurance tube 500mA/250V 10A/250V. Input voltage is greater than 24V beep warning once. Input over range beep warning.Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.Buttons and dial: silicone button sensitive pressing function dial accurate gear.Back bracket: the back bracket is tilted at 60 for easy viewing.Specifications:Material: ABSColor: blackDisplay: 320*240 LCMDisplay area: about 2.4 inchesBacklit: whiteInput resistance: 10M?Battery: 3 * AA battery (not included)Power consumption: about 80mAUse time: low light about 5 hoursStorage: 100 data/10 waveformsUse environment: 0~40? ?75%RHStorage environment: -10~60? ?90%RHBandwidth: ACV/1MHz ACA/5KHzMax. real-time sampling rate: 2.5MspsMultimeter measurement: automatic range + manual rangeOscilloscope function secondary display: VP-P average value effective value frequency time base amplitudeMeasurement mode: normal automaticItem size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3inItem weight: 195g / 6.9ouncePackage size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8inPackage weight: 370g / 13.1ounceMultimeter specification:DC voltage:Range: 400mV/4V/40V/400V/1000VUncertainty: 0.75% rdg+10dgtAC voltage:Range: 400mV/4V/40V/400V/750VUncertainty: 1.0% rdg+10dgtDC current:Range: 40mA/400mA/4A/10AUncertainty: 1.2% rdg+10dgtAC current:Range: 40mA/400mA/4A/10AUncertainty: 1.5% rdg+10dgtResistance:Range: 400.0?~40.00M?Uncertainty: 1.0% rdg+5dgtCapacitance:Range: 0.1nF~100 10.00mFUncertainty: 2.0% rdg+10dgtFrequency:Range: 5Hz~10MHzUncertainty: 1.0% rdg+5dgtDuty cycle:Range: 0.1%~99.9%Uncertainty: 1.0% rdg+5dgtDiode test: voltage is about 5V test current is about 1.5mAContinuity test: judgment resistance about:50? beepFuse specifications: 500mA/250V 10A/250VPacking List:1 * Graphical Multimeter1 * Pair of Test Pens1 * Protective Bag1 * User Manual
