Ethernet Control Module LAN WAN Network WEB Server RJ45 Port - 12v

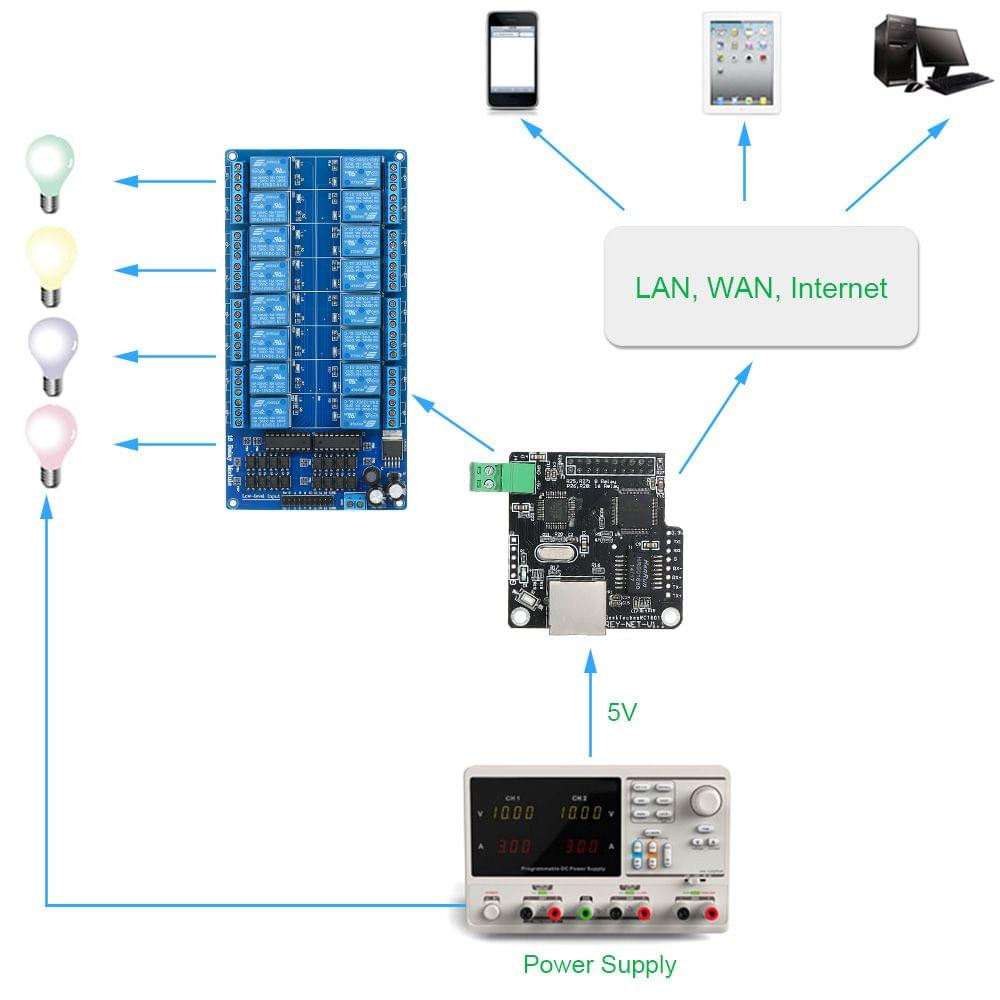

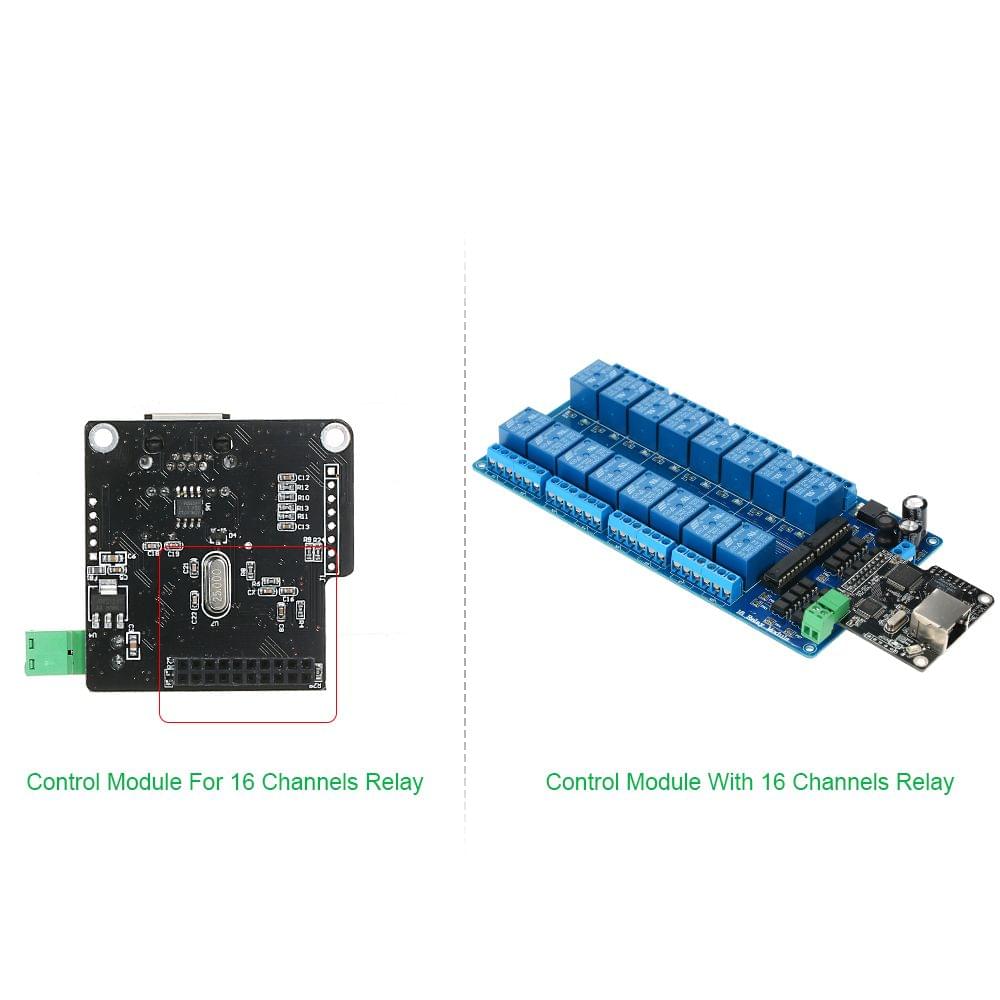

Features:This is an Ethernet Controller board which could be compatible with the 16-channel relay.Using the controller module and the 16-channel relay you could control up to 16 devices remotely on LAN or WAN.The Ethernet controller board has integrated the web server when you are in office you just need to open the page on your computer pad or smart phone and then control your devices like lights air-conditioning or refrigerator at your home.You can feel free to enjoy the remote controlling of your other devices with the Ethernet controller board.RJ45 interface via RJ45 telecommunications connection for network control.Unique dual TCP connect control corresponding with above trait local as TCP server accept client control when connect to remote server as TCP client.Standard interface that can be controlled directly by microcontroller (Arduino 8051 AVR PIC DSP ARM ARM MSP433 TTL logic).Specifications:Type: Ethernet Control ModuleWorking Voltage: AC250V 10A DC30V 12AChannel: 16 ChannelsFeatures: 16 Channel RJ45 Port Control ModuleDefault IP: 192.168.1.4 port: 30000HTTP Comment:http://192.168.1.4/30000/00: Relay-01 OFFhttp://192.168.1.4/30000/01: Relay-01 ONhttp://192.168.1.4/30000/02: Relay-02 OFFhttp://192.168.1.4/30000/03: Relay-02 ONhttp://192.168.1.4/30000/04: Relay-03 OFFhttp://192.168.1.4/30000/05: Relay-03 ONhttp://192.168.1.4/30000/30: Relay-16 OFFhttp://192.168.1.4/30000/31: Relay-16 ONhttp://192.168.1.4/30000/41: Enterhttp://192.168.1.4/30000/40: Exithttp://192.168.1.4/30000/42: Next Pagehttp://192.168.1.4/30000/43: Next PageAssembled Product Size: 22.1*9*2.9cm / 8.7 * 3.5 * 1.1inPackage Weight: 258g/11.07ozNotes:Due to the light and screen difference the item's color may be slightly different from the pictures.Please allow 1-3cm differences due to manual measurement.Package List:1 * Ethernet Control Module with 16-Channel relay
