Handheld LCD Digital Transistor Tester SMD Resistance Diode

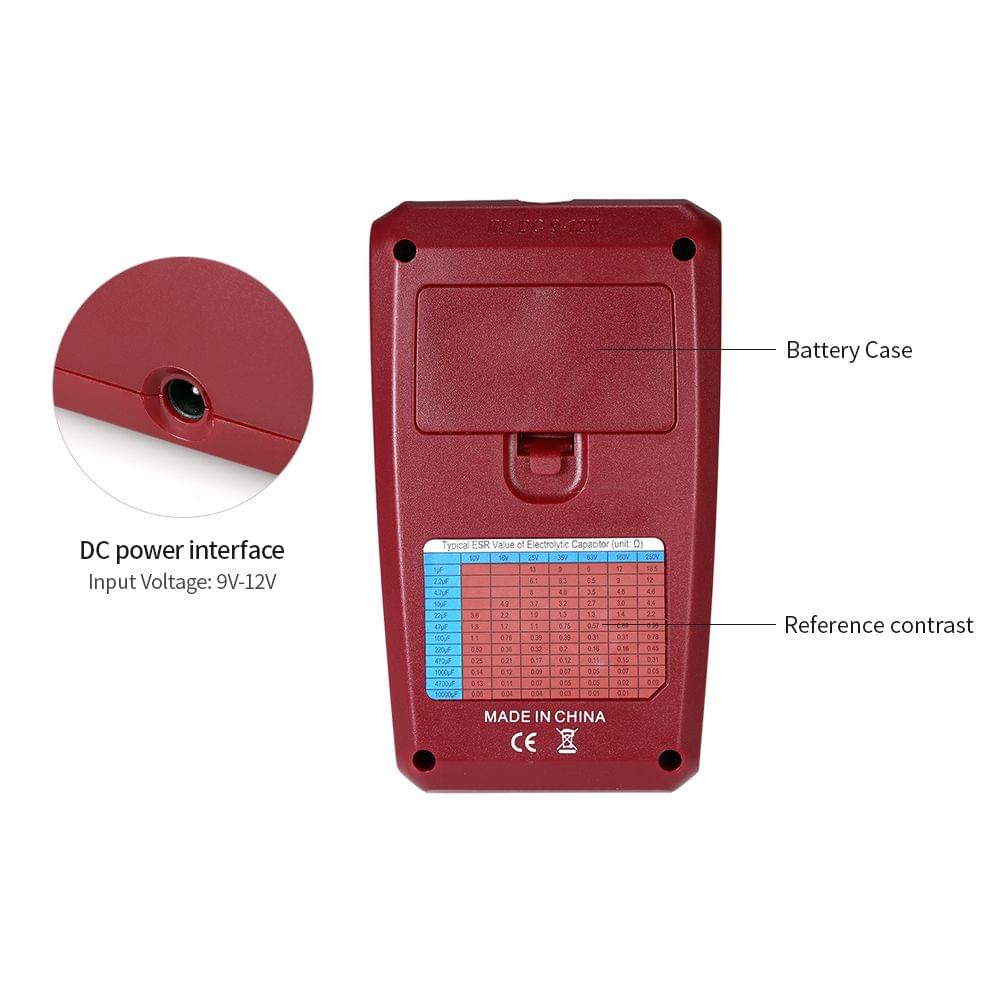

This transistor tester is design for automatic detection of NPN and PNP bipolar transistors N-channel and P-channel MOSFETs JFETs diodes double diodes Thyristors and bidirectional thyristor.Features:LCD display with backlight for easy reading.Handheld design for easy operation.Automatic detection of NPN and PNP bipolar transistors N-Channel and P-Channel MOSFETs JFETs diodes double diodes Thyristors and bidirectional thyristor.Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.With a typical ESR value convenient to judge the detected capacitor's quality.It can detect SMD bipolar transistors and MOS transistors protection diodes.Can measure the gate threshold voltage and the gate capacity value of MOSFET.Resistance measurement resolution is 0.01 ohms 50M ohms can be measured.It can measure capacitance of 25pF~100mF resolution 1pF.Includes auto power off function to extend the service life.Specifications:Material: ABSInput Voltage: 9V-12VCurrent: Approx. 20mAResistance Measurement: 0M?~50M?Resistance Resolution: 0.01?Capacitance Measurement: 25pF~100mFCapacitance Resolution: 1pFInductance Measurement: 0.01mH-20HInductance Resolution: 0.01mHESR Resolution: 0.01?Power Supply: 1 * 9V Battery(Not Included)Item Size: 13.5 * 7.8 * 4.2cm / 5.3 * 3.1 * 1.7inItem Weight: 138g / 4.9ozPackage Size: 17.3 * 10 * 6cm / 6.8 * 3.9 * 2.4inPackage Weight: 220g / 7.8ozNote:Before measuring capacitance the capacitor must be discharged otherwise the meter will be damaged.Package List:1 * Transistor Tester1 * User Manual (English)
