High Precision FG8038(ICL8038) Function Signal Generator DIY - DIY Kit

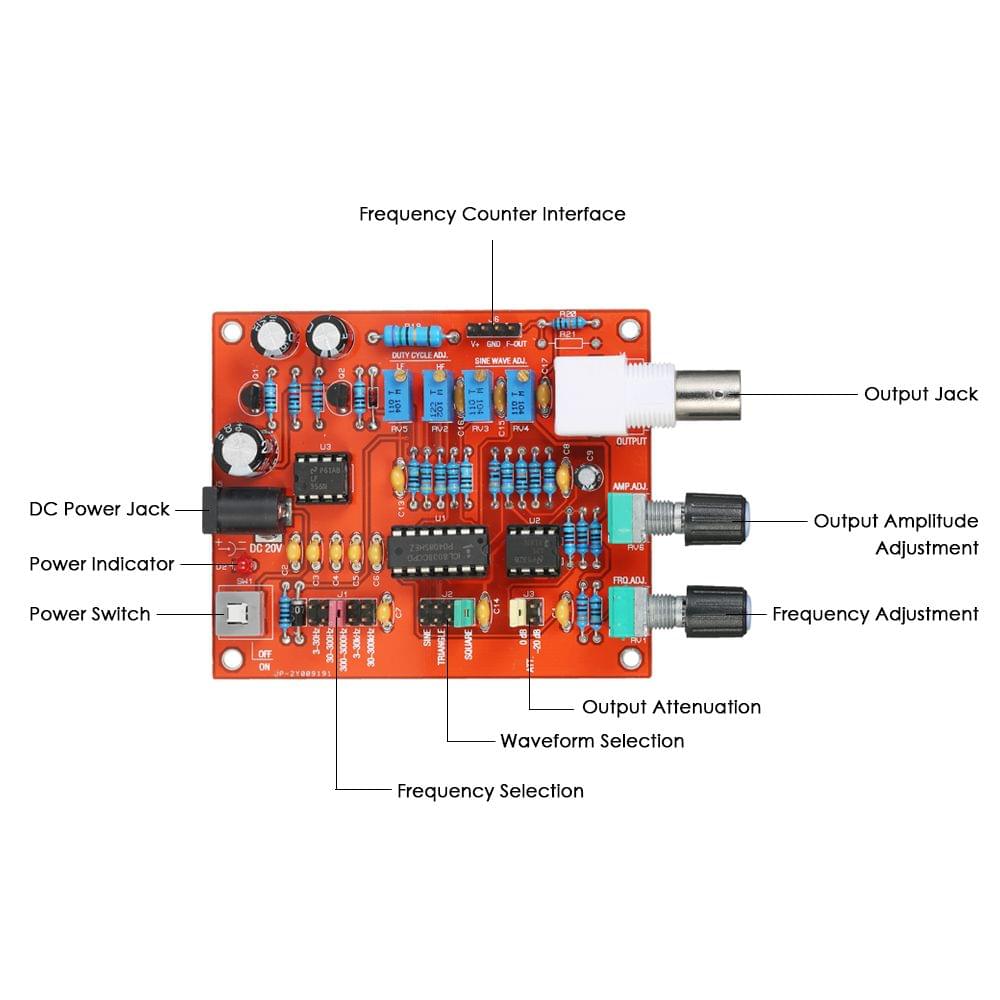

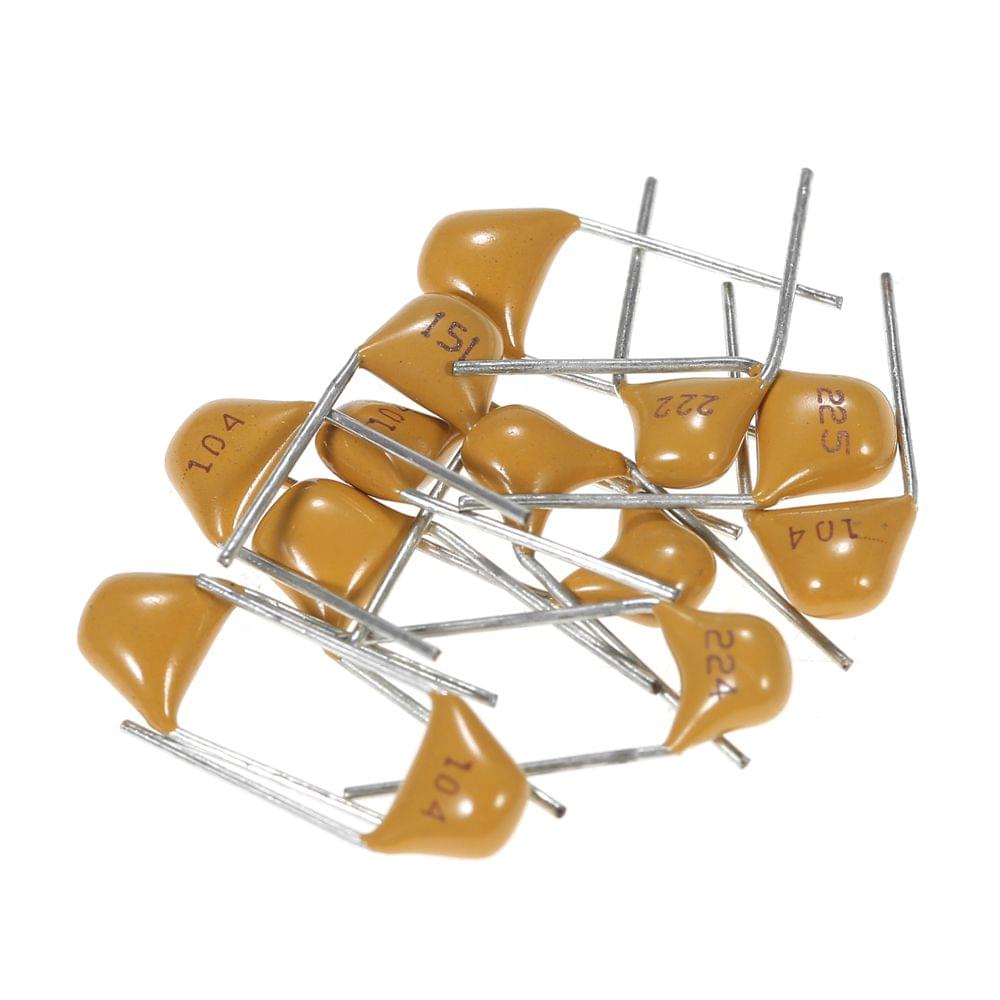

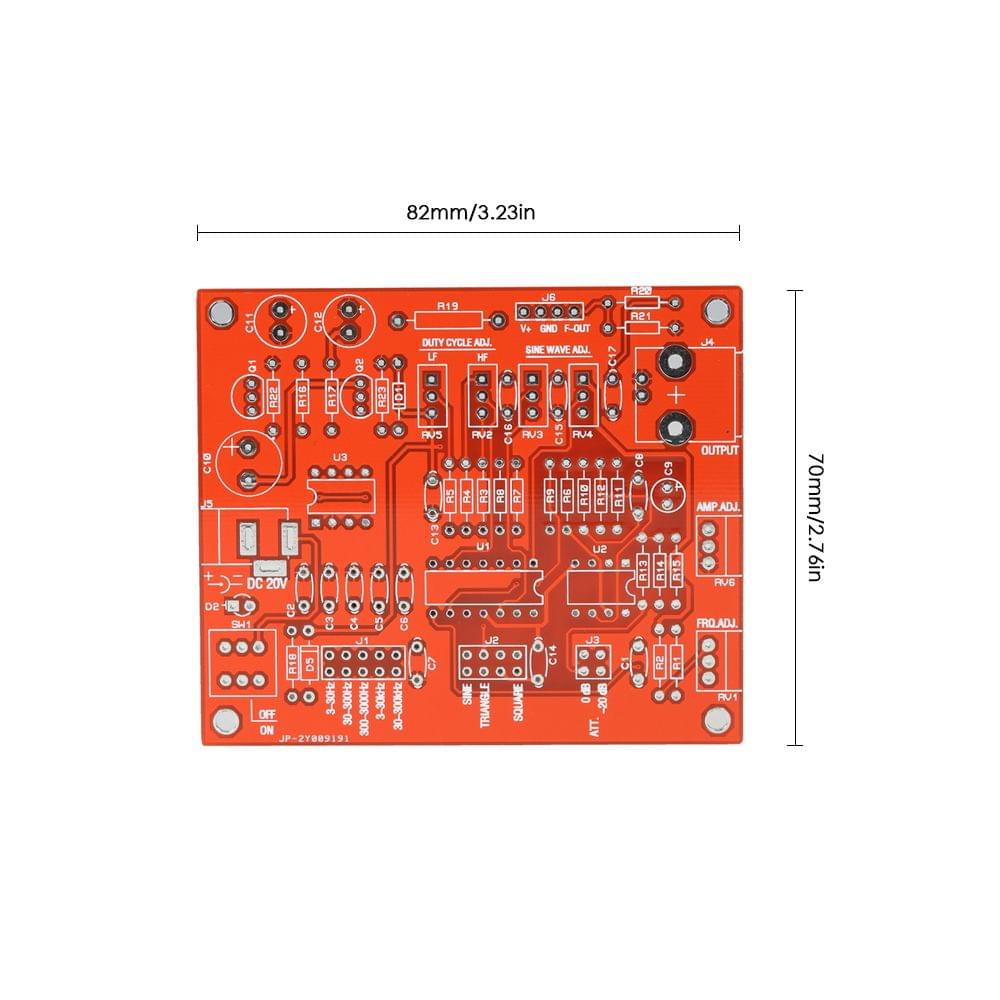

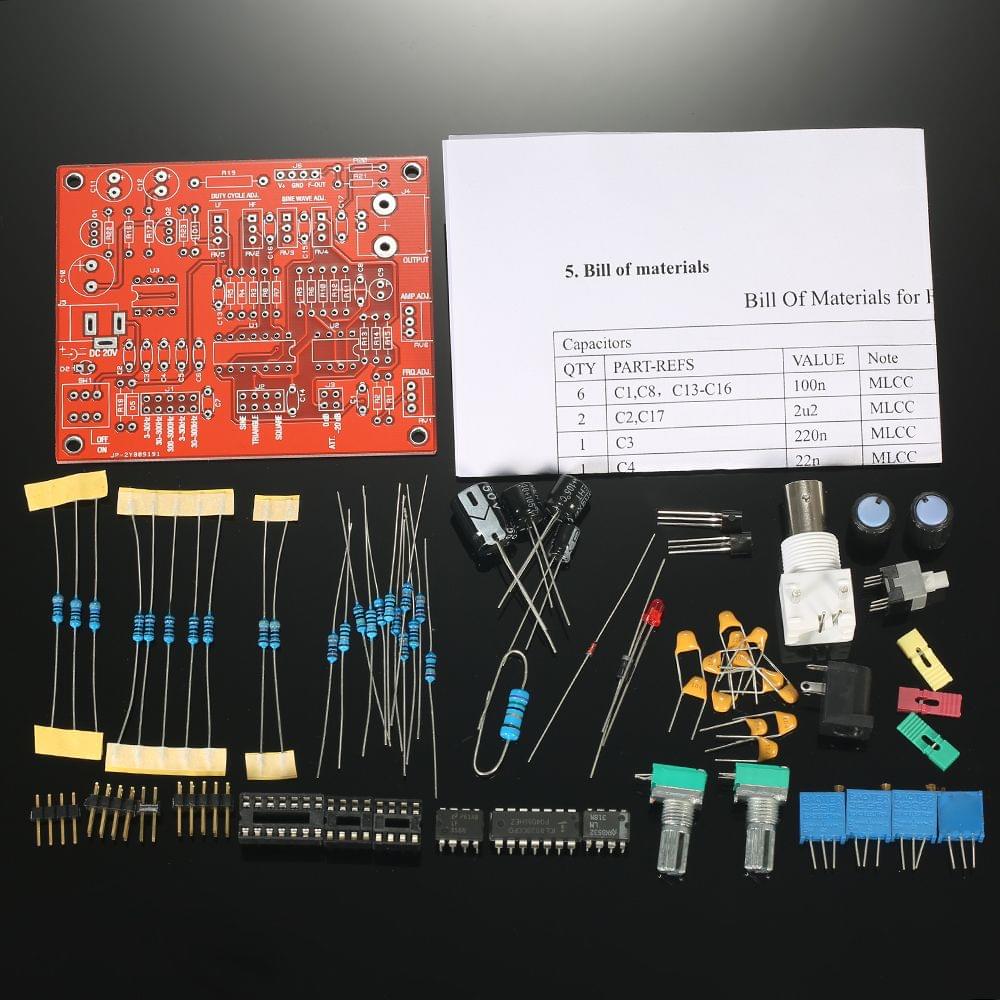

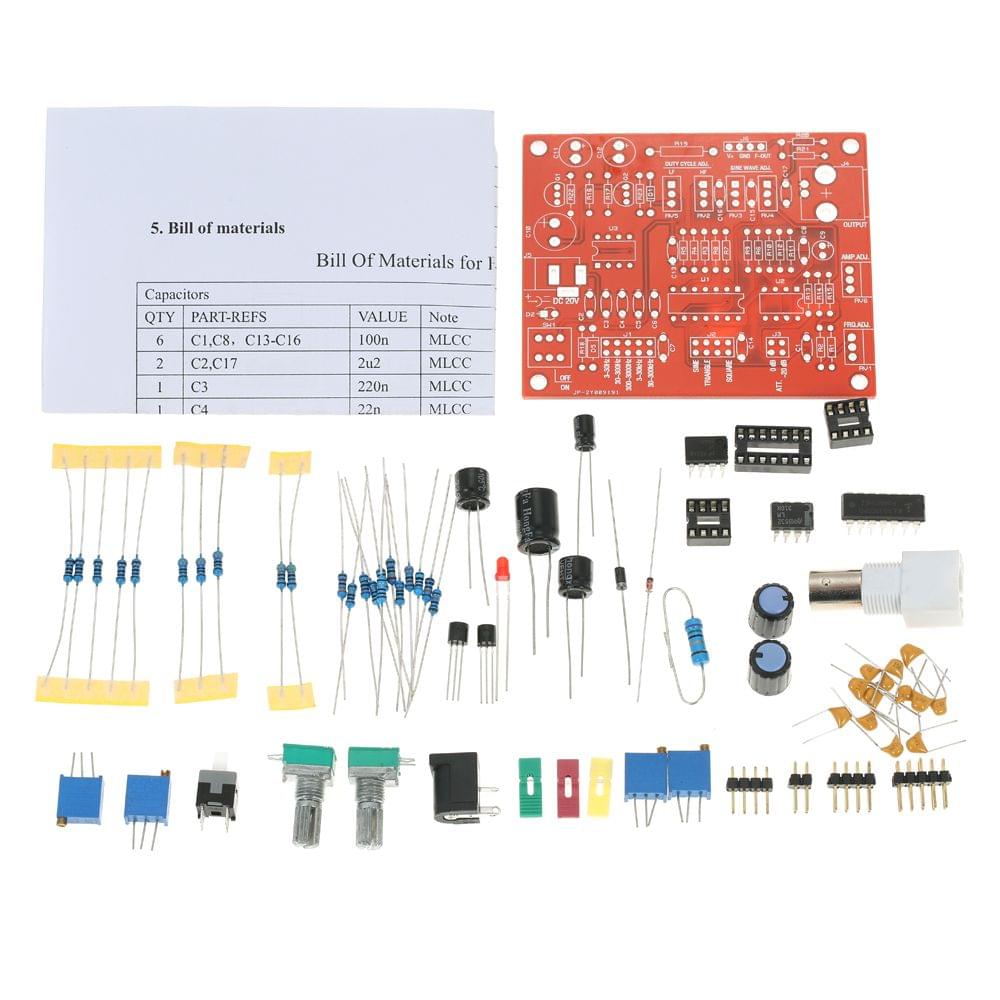

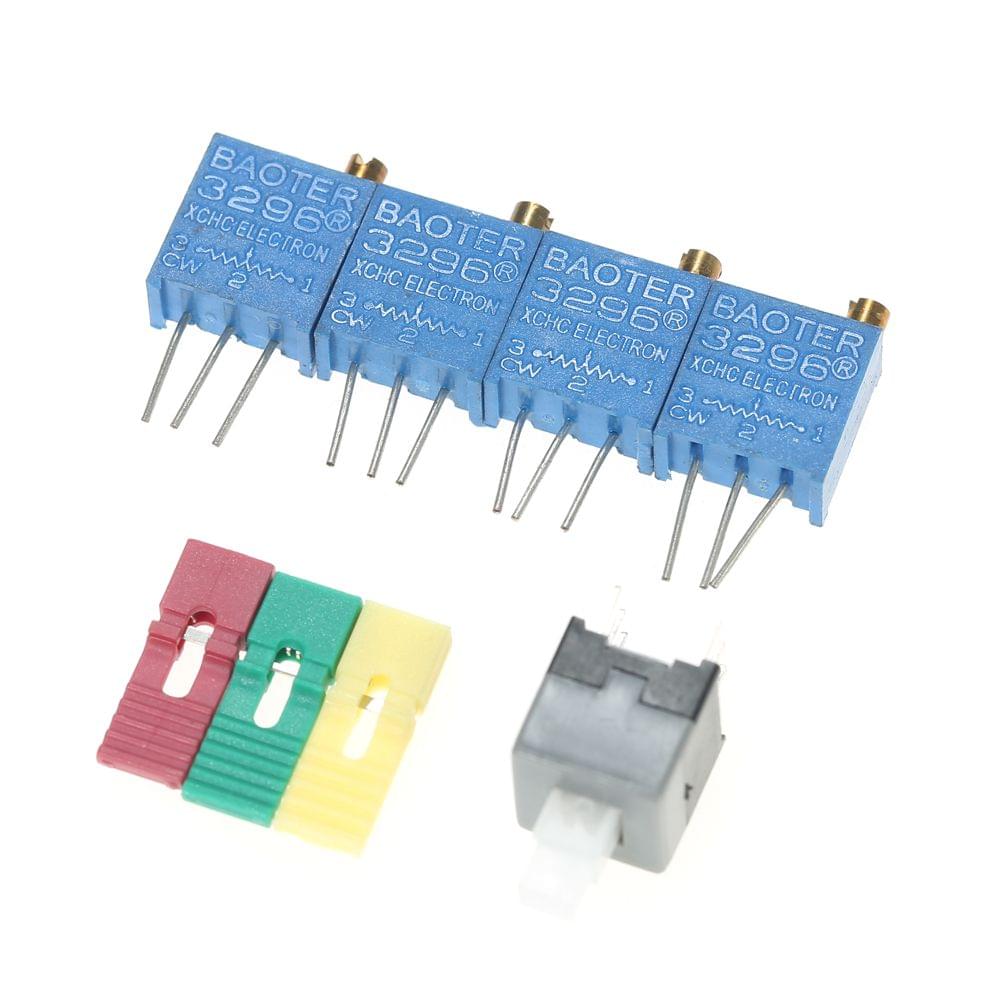

This signal generator DIY kit is professional product to generate sine/triangle/square wave. It's a DIY kit for you to weld and install. DIY kit is used with oscilloscope to measure signal generator waveform.Features:High resolution can generate sine/triangle/square waves.Frequency range: 3Hz-300kHz.Adjustable frequency and amplitude with 2 green potentiometers.DC power supply: single power DC 20V.All are plug-in components easy to install.Applications:Frequency excitation/waveform generation liquid gas flow measurement.Sensing applications-approximation sports defect detection.Linear loss linear decay.Test equipment medical equipment.Scanning clock generator.Specifications:Color: RedMaterial: FR-4 Epoxy BoardType: DIY Kit / Assembled Finished Product (Optional)Voltage Supply: Single Power DC 20V (Attention: The power must float to the ground)Waveforms: Square Sine Triangle WavesOutput Impedance: 600 + 5% OhmOutput Interface: BNCFrequency: 3Hz-300kHz 5 Levels(continuously adjustable)Output Amplitude(output open): 0?6Vp-p continuously adjustable.Output Attenuation: 0dB -20dBSine Wave Distortion: 1%Triangle Wave Linearity: 0.1%Square Wave Edge Times: rise time about 400nS fall time about 300nSCurrent Consumption: 40mAFrequency Counter Interface: YesPCB Board Size: 82 * 70 * 1.5mm / 3.23 * 2.76 * 0.06inPackage Size: Approx. 12 * 8 * 3cm / 4.72 * 3.15 * 1.18inPackage Weight: 67g / 2.37ozPackage List:1 * Signal Generator DIY Kit1 * User Manual(English)
