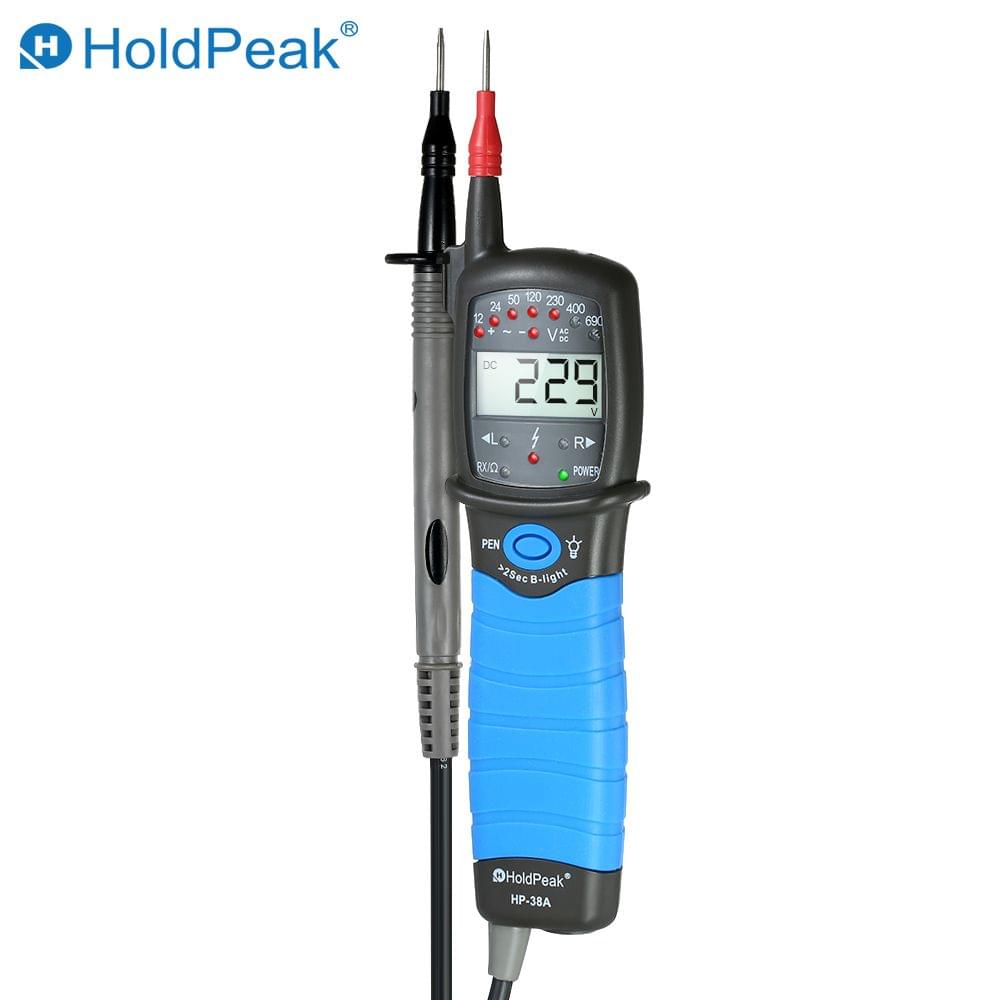

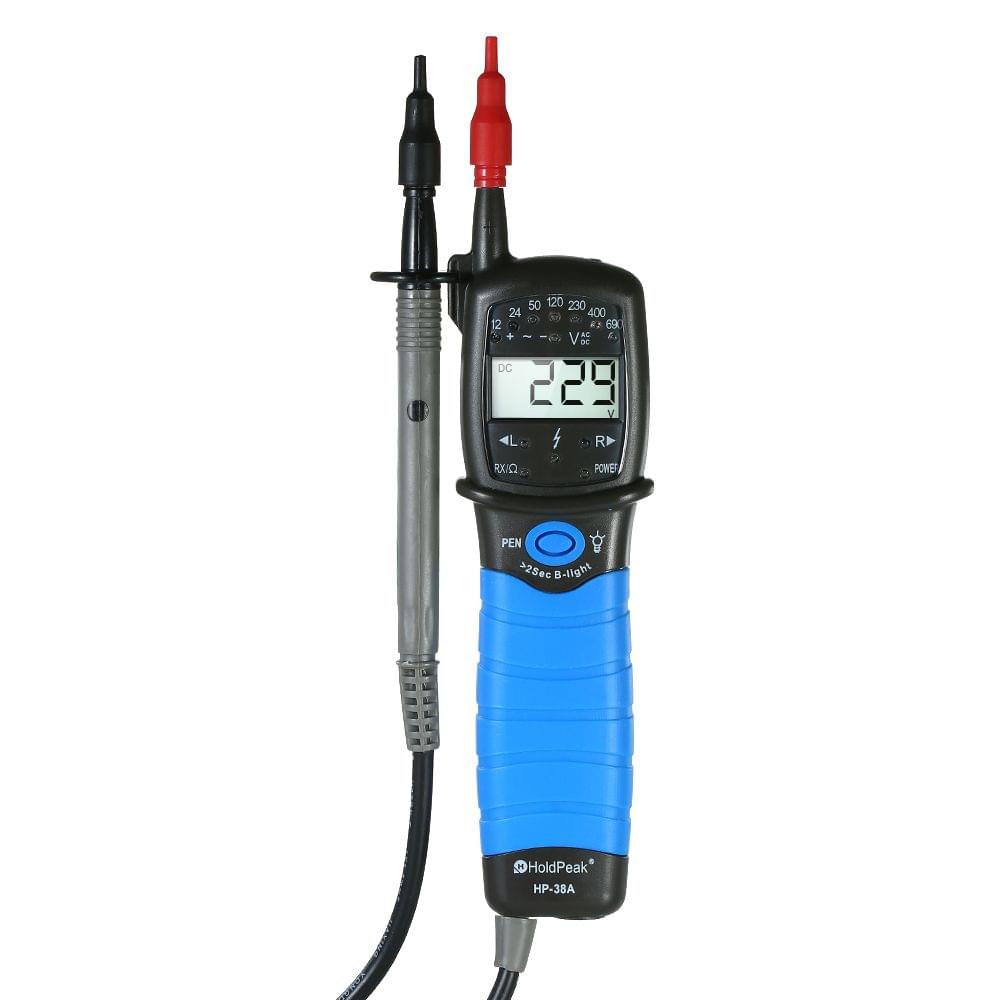

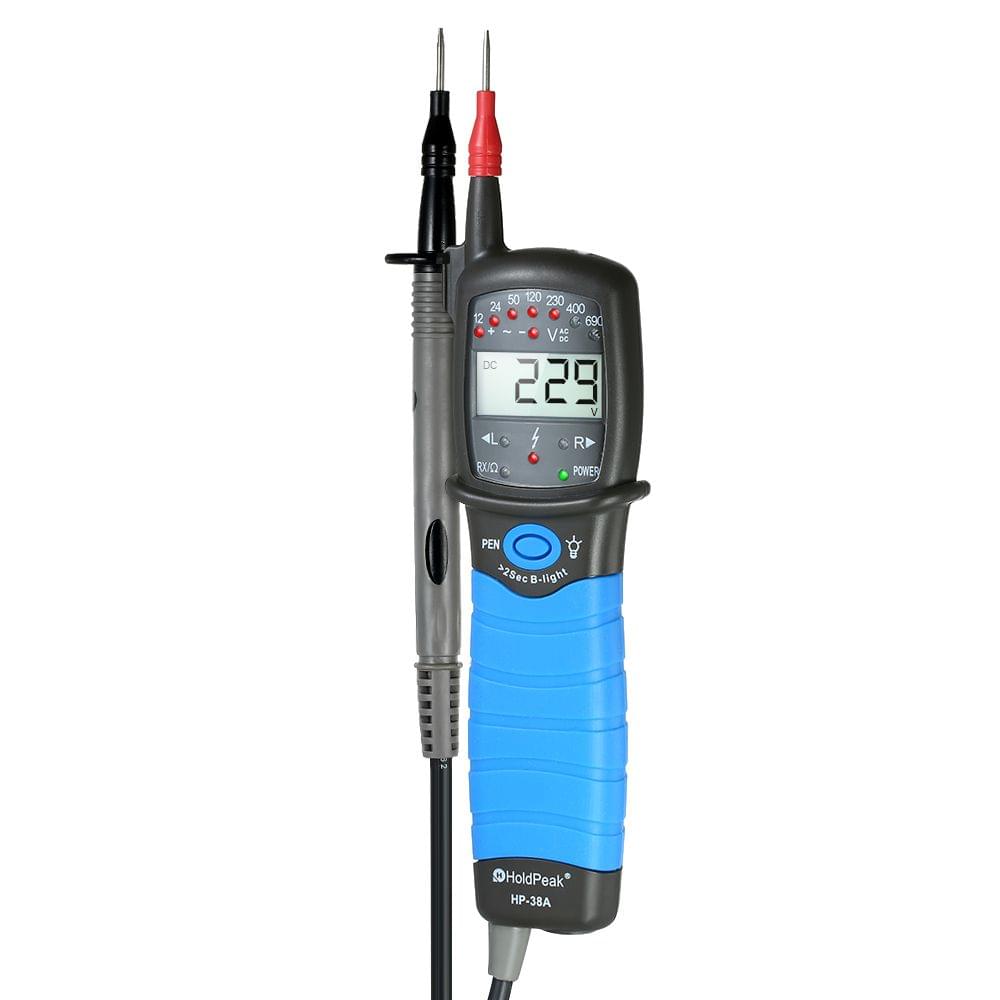

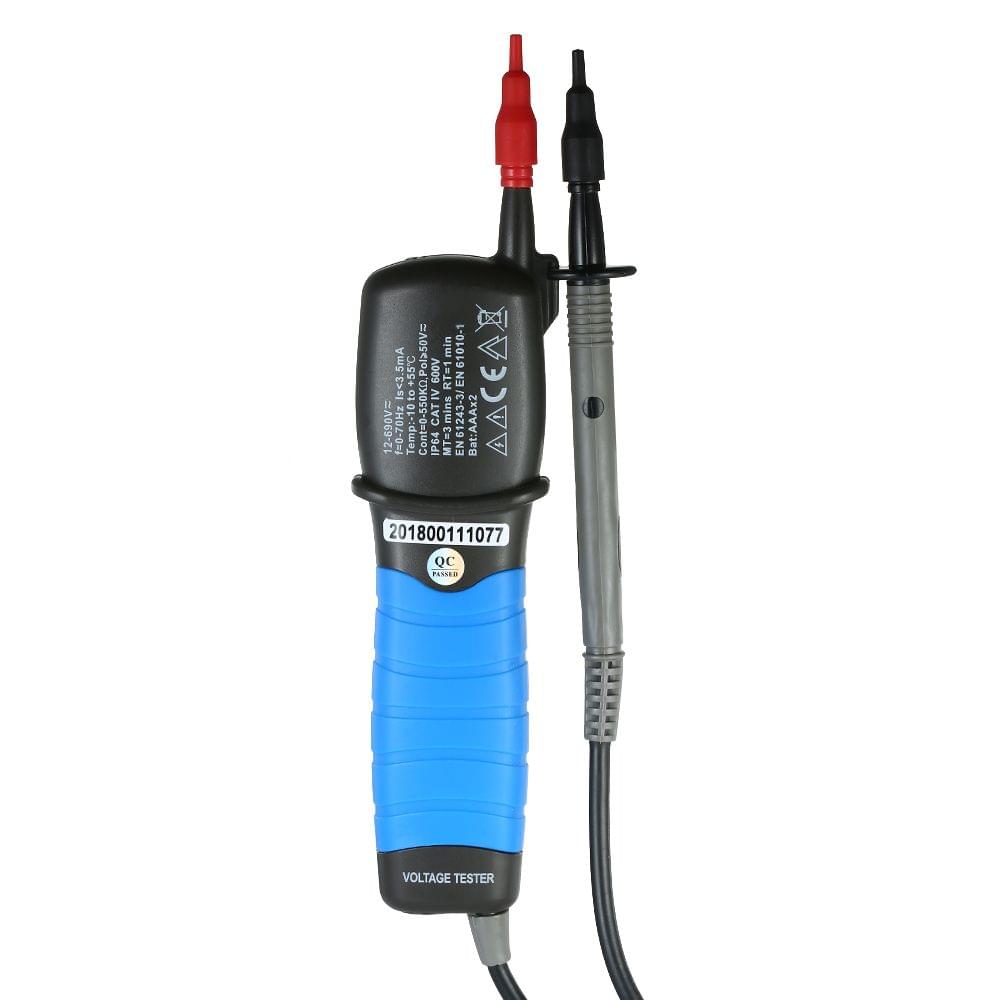

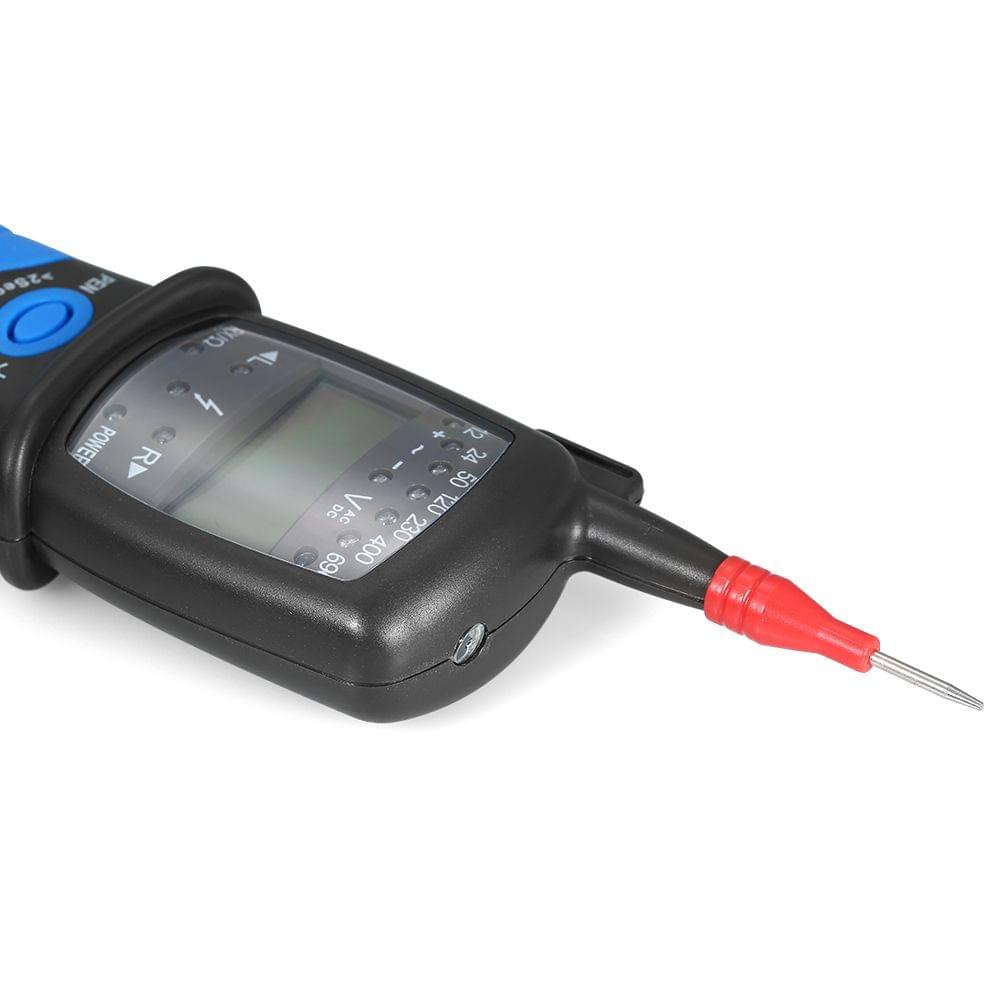

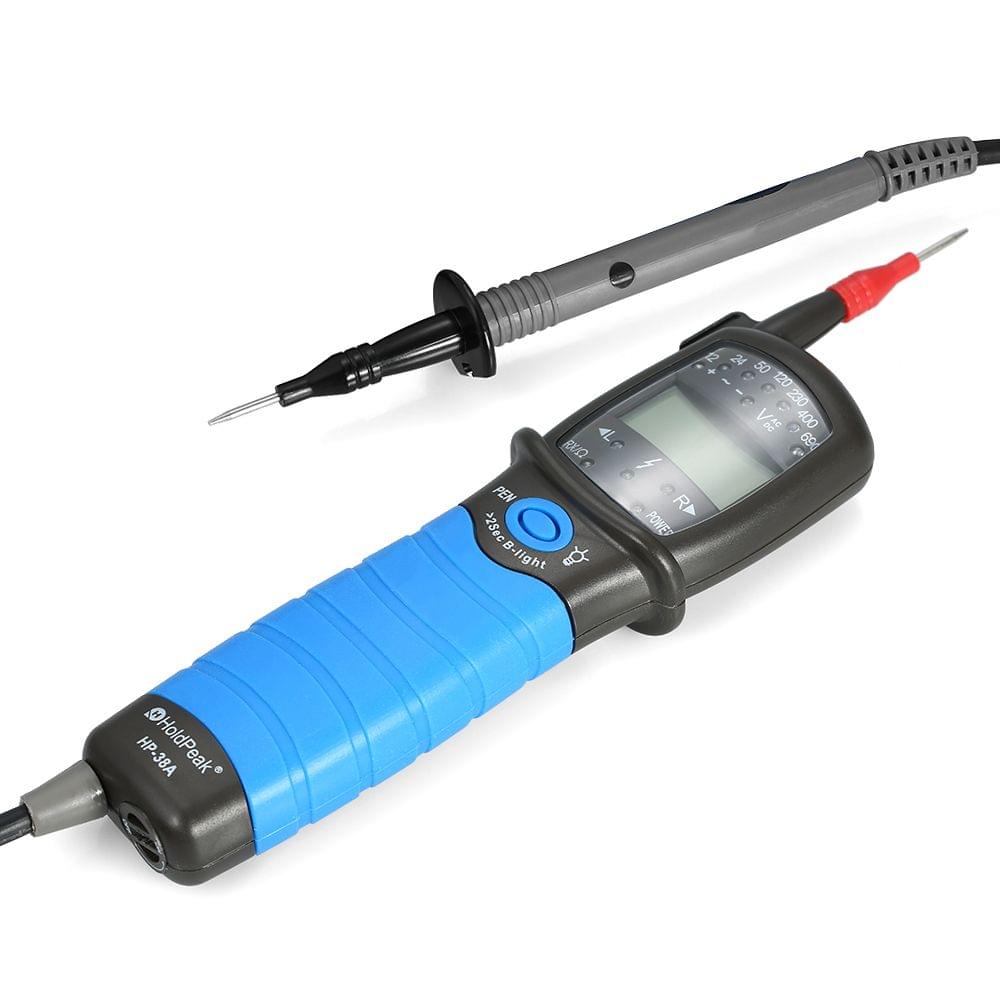

- HoldPeak Contact Auto-range LCD AC/DC Voltage Tester HoldPeak Contact Auto-range LCD AC/DC Voltage Tester
- Description
This LCD Voltage Tester can be used to measure the AC/DC voltage conveniently.Features:Can measure 12-690V AC/DC voltage.Contact auto-range voltage tester portable to use.Can be used for voltage indication high voltage indication and reference condition.Digital LCD display with backlight for easy reading.Includes RCD test continuity test phase rotation test polarity detection and self-inspection.Low battery indication and data hold function.With silent mode and pen light.Comes with test probes for convenient measurement.Specifications:Brand Name: HoldPeakColor: Grey + BlueMaterial: ABS*LED Indication Voltage Test:Voltage Range: 12-690V AC/DCNominal Voltage Europe: 12/24/50/120/230/400/690VTolerance(Threshold Voltage)Light on at more than: 75V(50V LED) 185V(24V LED) 37.55V(50V LED) 75%5% of nominal voltage(120/230/400/690V LED)*LCD Display Voltage Test:Range/Resolution: 7-690V/1V(Auto-range)Accuracy(235C): (3%+3) or 5VOver Range Indication: All Voltage LED light upResponse Time: 1s at 90% of each voltage*High Voltage Indication:Voltage Range 50-690V AC/DC*Phase Rotation Test:System: Three-phase 4-Wire system ACFrequency: 50Hz~60HzPhase Range: 1205 degree*Continuity Test:Detection Range: 0-550K?(2O0K)Test Current: Approx. 1.5uA(battery 3V 0Q)*Reference Condition:Battery: 2 * 1 5V(IEC LR03 1 5Vx2)Temperature: -10~55C Operation -20~6OC(Storage No condensation)Humidity: Max 85% RHAltitude: up to 2000mOperating Temperature: -10~55C / 14~131FOperating Humidity: 85% RHStorage Temperature: -20~60C / -4~140FStorage Humidity: 85% RHPower Supply: 2 * 1.5V IEC LR03 Batteries (Not Included)Item Size: Approx. 25 * 5.5 * 2cm / 9.84 * 2.17 * 0.79inItem Weight: Approx. 186g / 6.56oz(with test pobes)Package Size: Approx. 27 * 8.9 * 4.3cm / 10.63 * 3.50 * 1.69inPackage Weight: Approx. 241g / 8.50ozPackage List:1 * Voltage Tester with Test Probes1 * User Manual(English)
