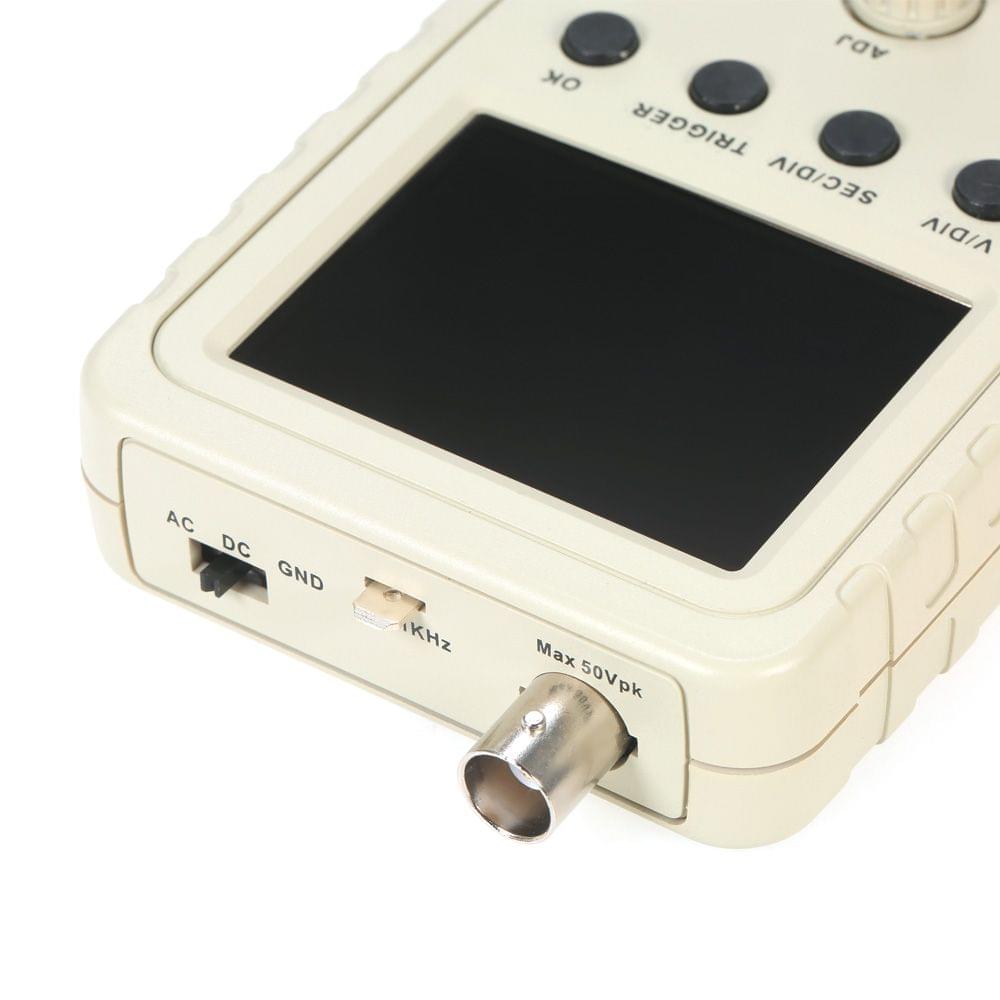

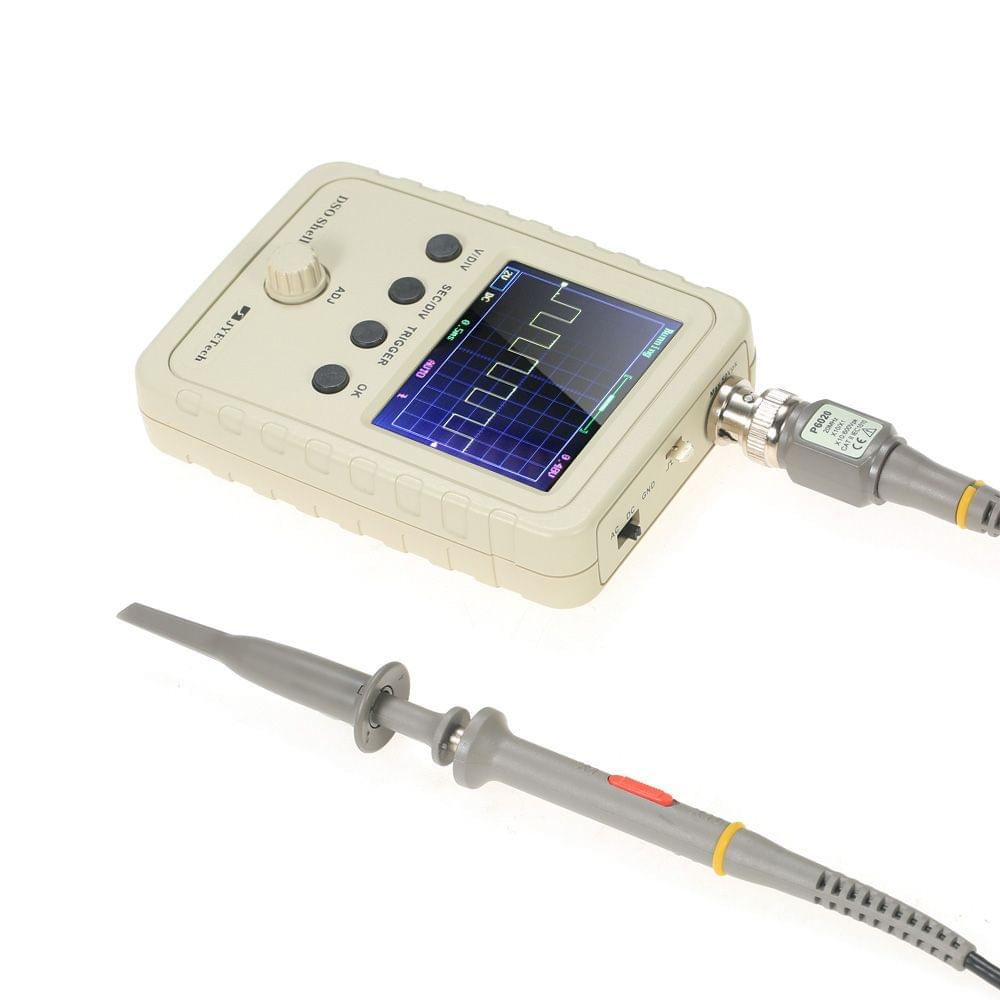

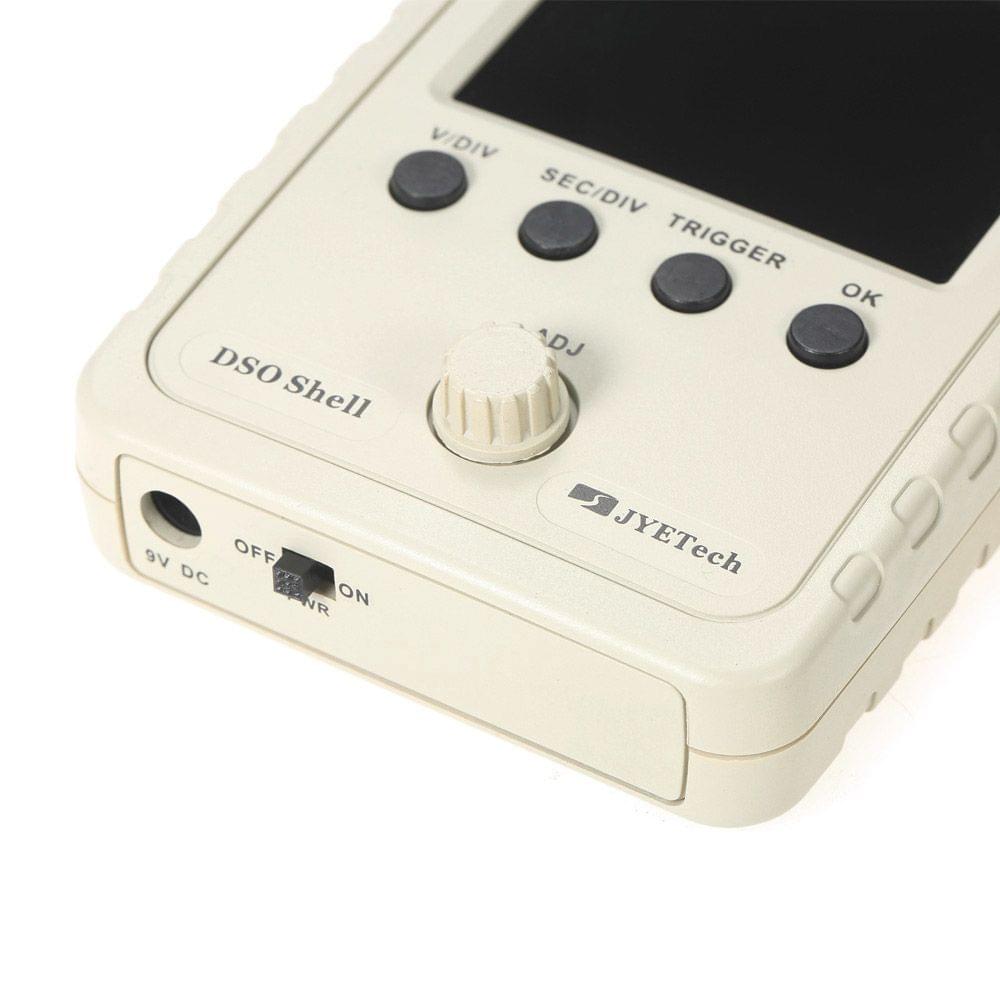

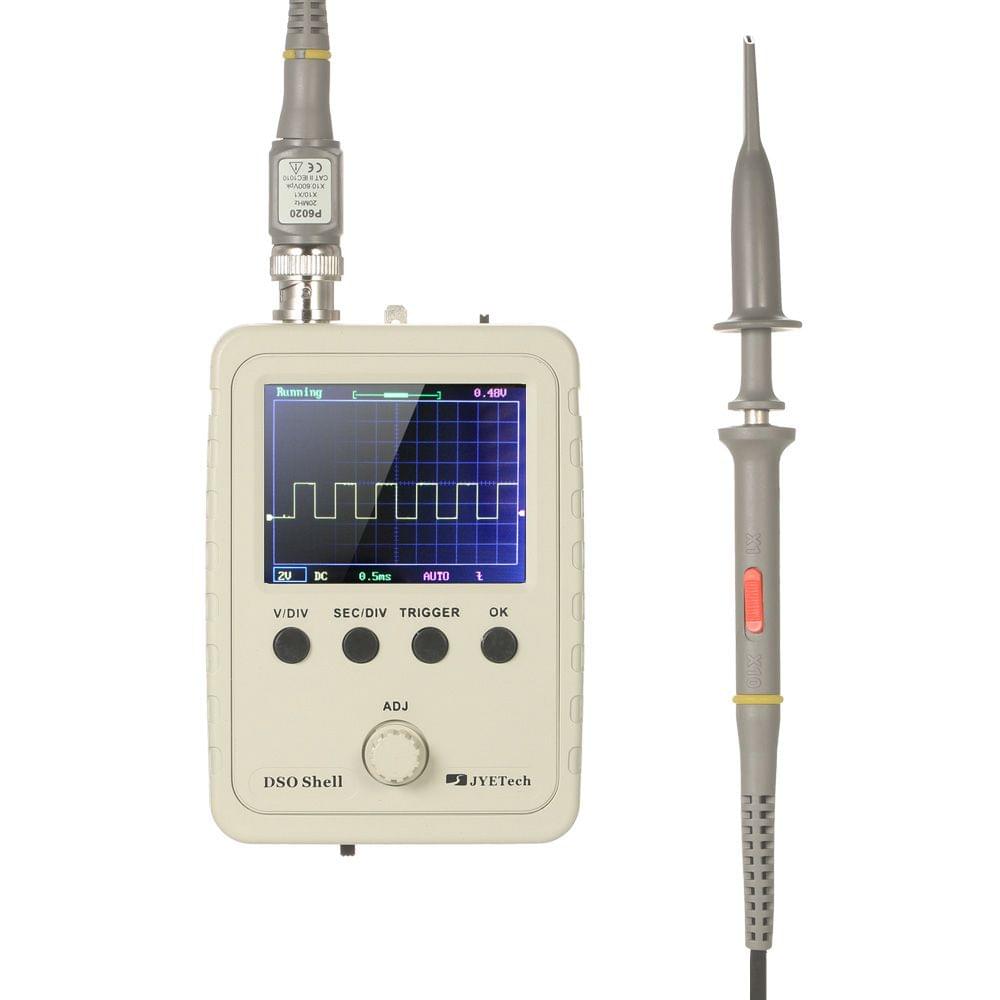

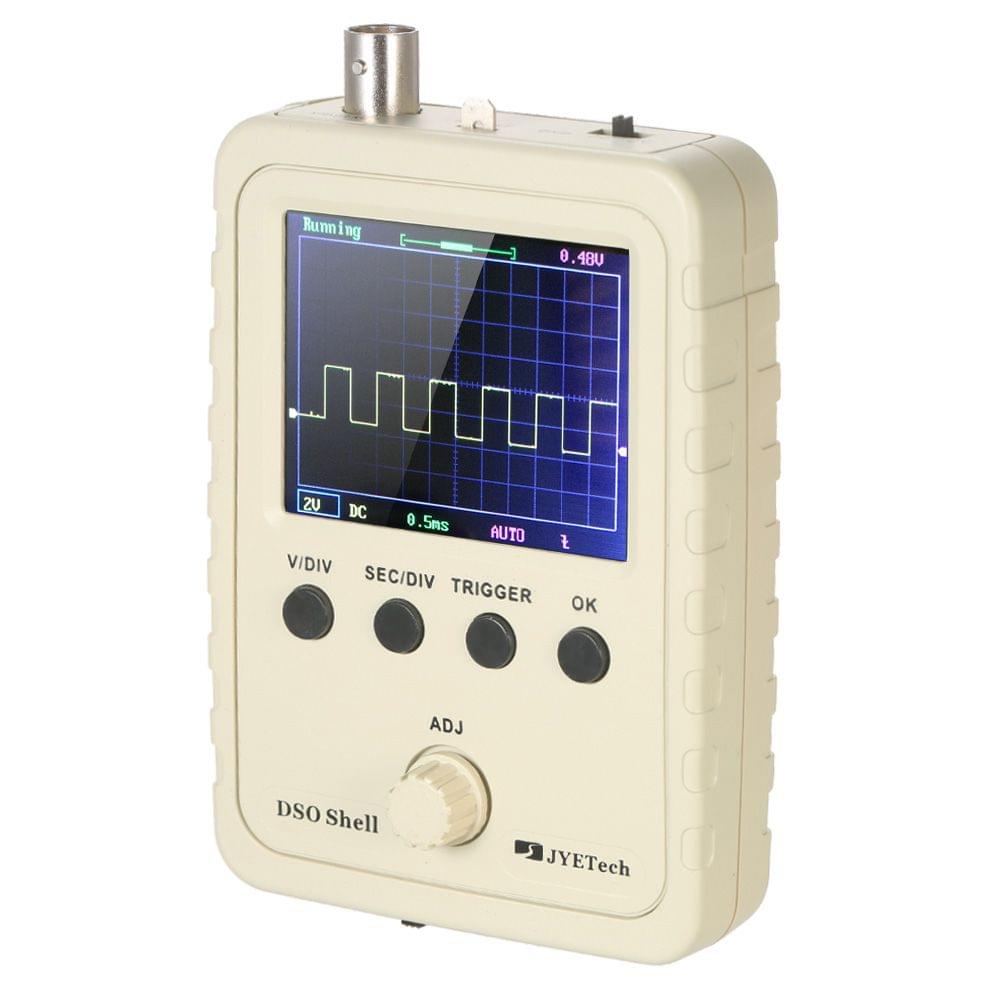

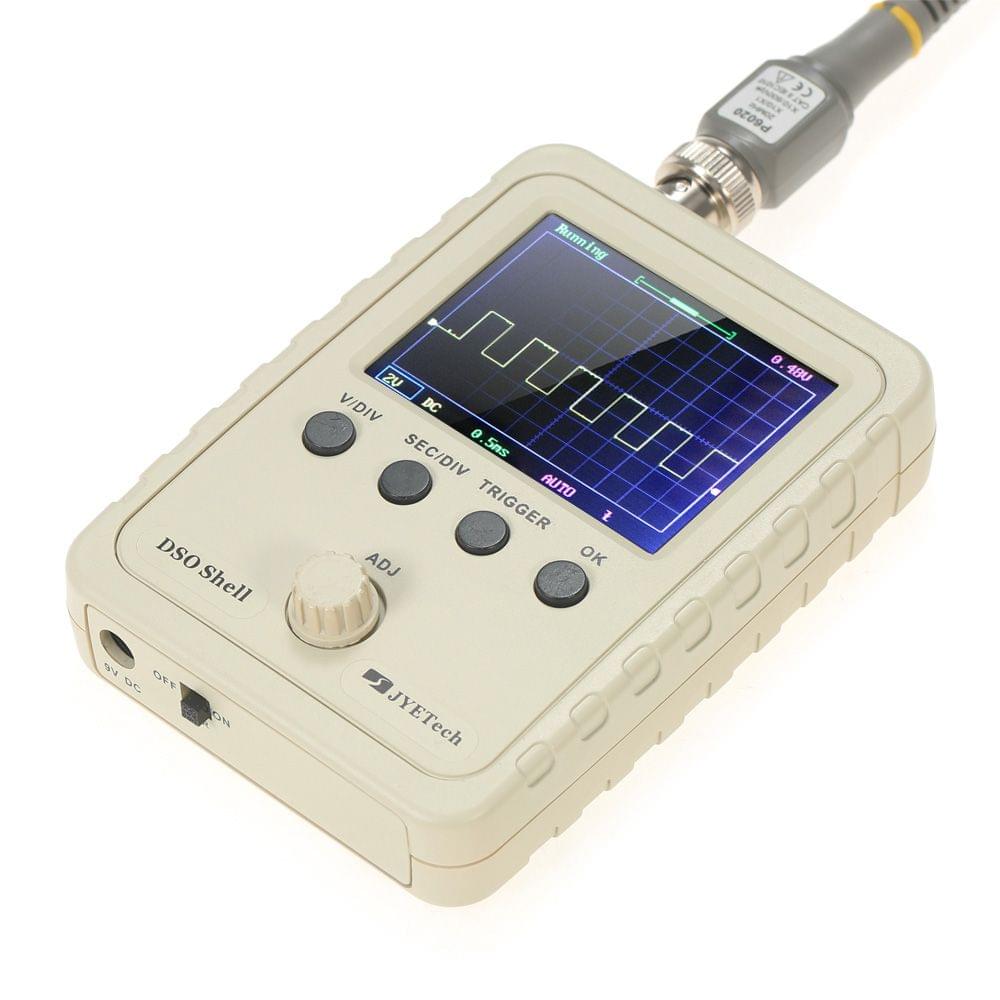

JYE Tech DSO Shell(DSO150) 2.4" TFT Handheld Pocket-size - Finished Product

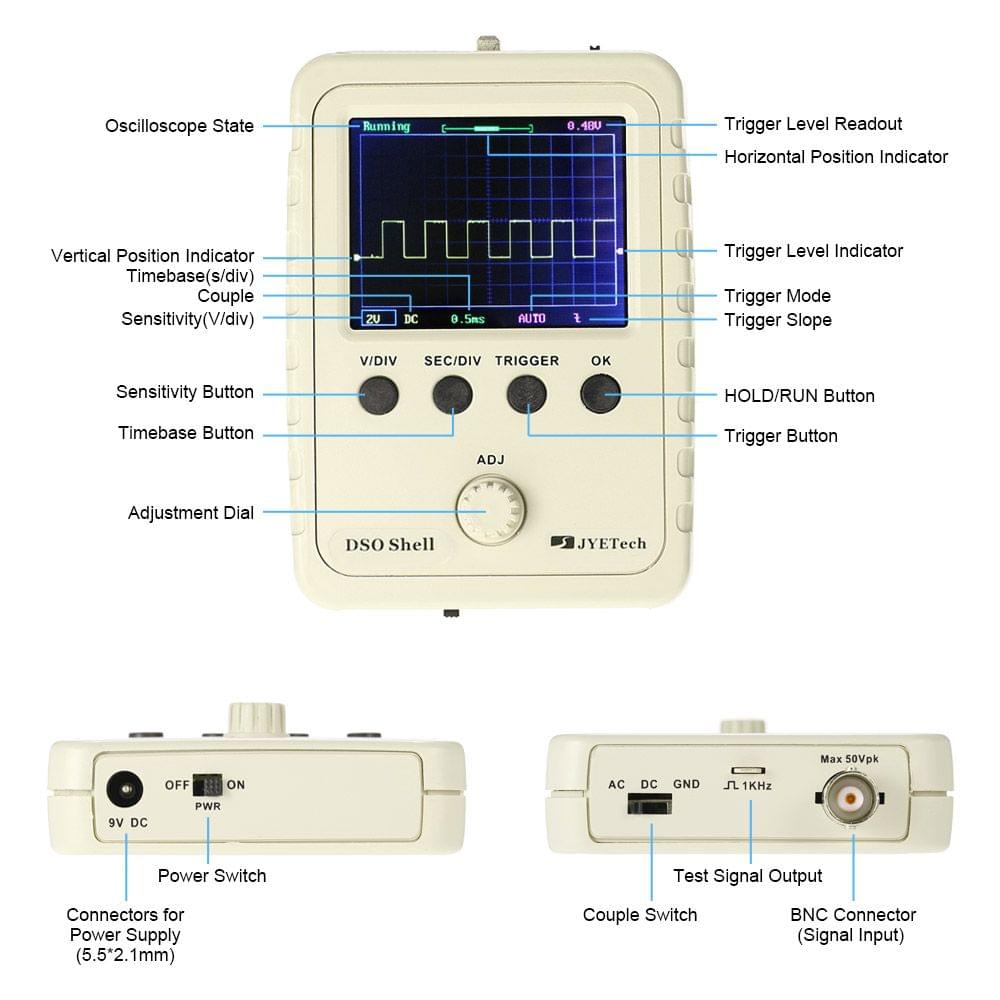

This digital oscilloscope has similar bandwidth as DSO138 but contains significant improvements in structure mechanism and operation. It features high sensibility light and portable size 2.4-inch TFT screen and protective case. It can display waveform parameters such as frequency period pulse width duty ratio MAX./MIN./AVG./Peak-Peak/virtual values.Features:2.4-inch color TFT LCD with 320*240 resolution displays parameters clearly.High sensitivity: 5mV/div - 20V/div; higher and wider than DSO138.With Auto/Normal/Single trigger modes easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous waveform before trigger(negative delay).Can freeze waveform display at any time(HOLD function).Waveform storage function: will not lose the waveform after power off.Short-circuit and open-circuit detection: can help the user find out the soldering error.TFT controller recognition function.Rotary encoder makes parameter adjustment much quicker and easier.Specifications:Type: DIY Kit / Finished Product(Optional)Number of Channel: 1Analog Bandwidth: 0-200KHzSensitivity Range: 5mV/Div - 20V/DivMaximum Input Voltage: 50Vpk (1X probe)Input Impedance: 1M ohms/20pFResolution: 12 bitsRecord Length: 1024 pointsCoupling Modes: DC / AC / GNDMaximum Real-time Sampling Rate: 1MSa/sTime Base Range: 10us/Div - 500s/DivTrigger Modes: Auto Normal and SingleTrigger Position: Center of BufferDisplay: 2.4 Color TFT LCD with 320*240 ResolutionSupply Voltage: DC 9V(8-10V Acceptable)Current Consumption: ~120mA @ 9VProduct Size: 115 * 75 * 22mm / 4.53 * 2.95 * 0.87inProduct Weight: 89g / 3.14oz*Package Size:DIY Kit: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45inFinished Product: 17 * 11 * 3cm / 6.7 * 4.33 * 1.2inPackage Weight: 179-200g / 6.33-7.06ozNote:1. DSO Shell runs on 9V(do not use power voltage higher than 10V!). Otherwise it may damage the ICs inside.2. Allowed maximum signal input voltage is 50Vpk(100Vpp) with the clip probe.3. Due to different light and monitors there may be slight color difference pls in kind prevail.Package List:1 * Digital Oscilloscope1 * Probe1 * User Manual(English)
