KKmoon 2031H Digital Oscilloscope Handheld Oscilloscope Mini

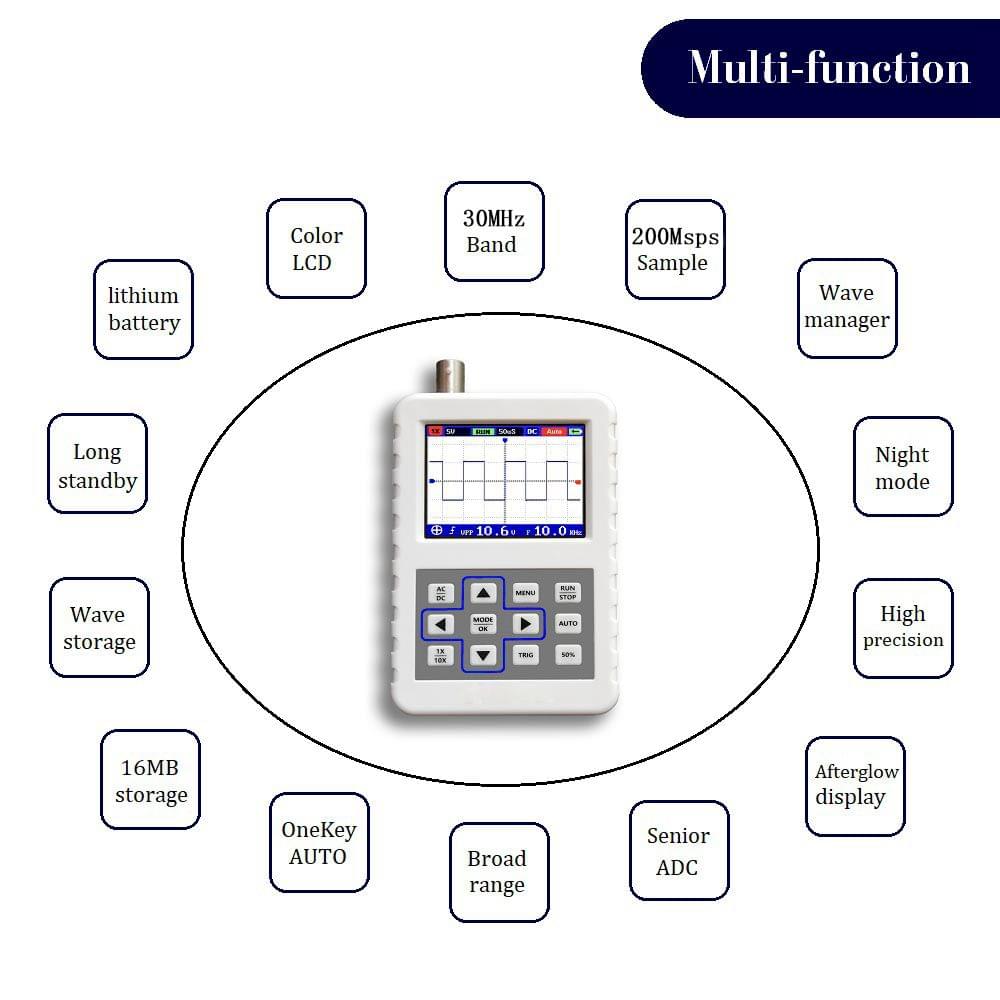

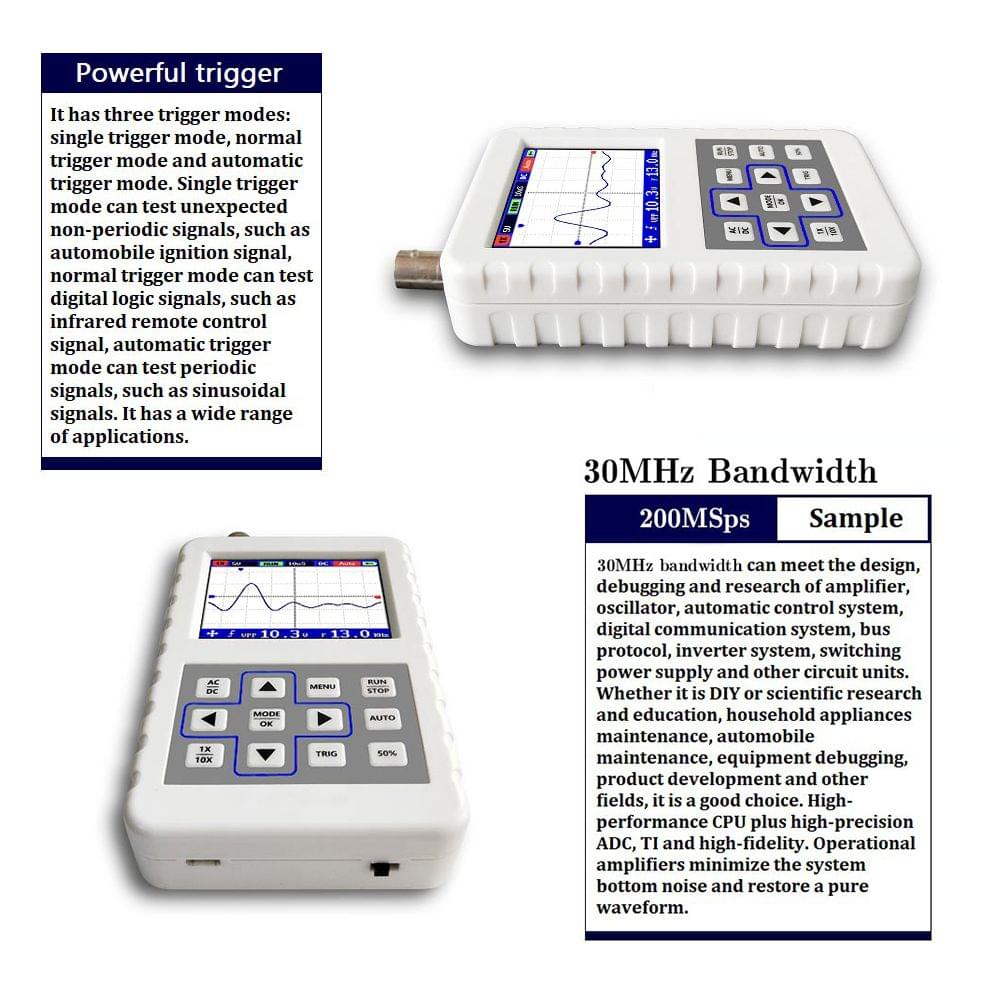

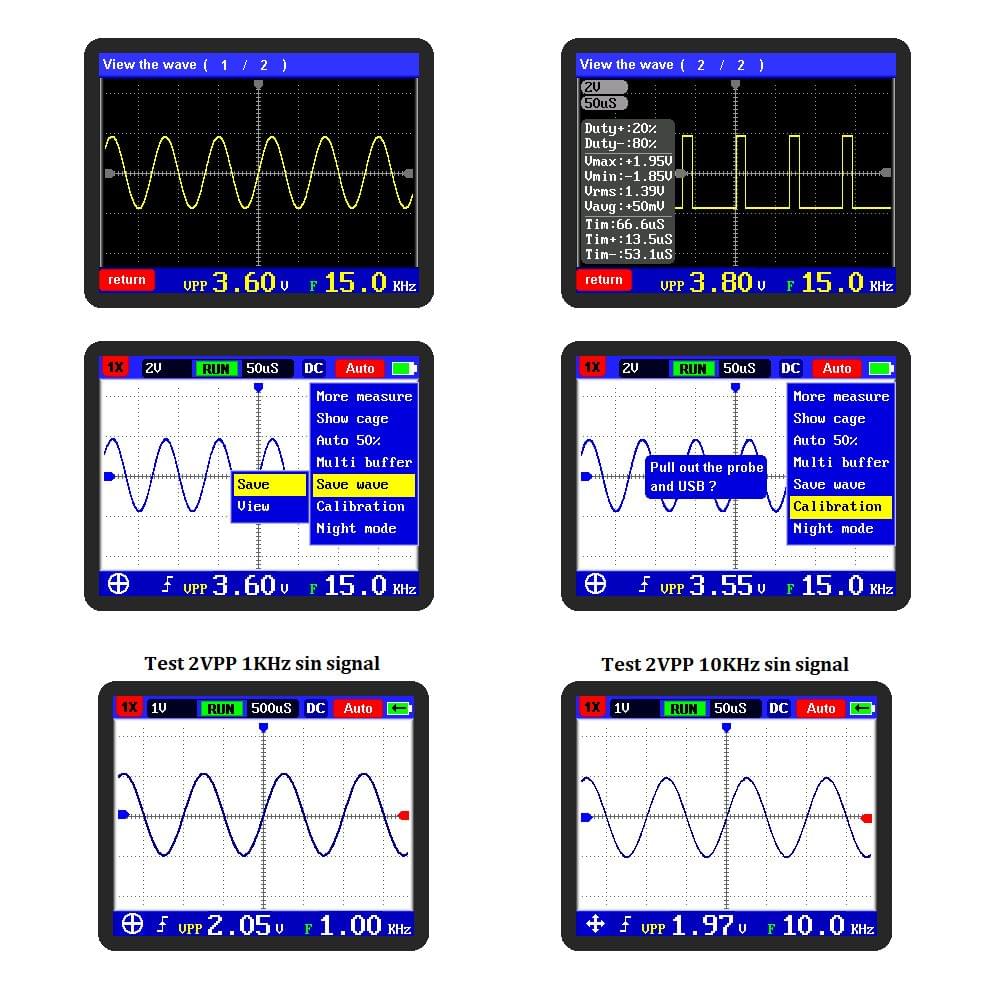

2031H is a full function high utility high performance and cost-effective handheld oscilloscope for the maintenance industry and the RD industry. The oscilloscope has a real-time sampling rate of up to 200MS/s and a 30MHz analog bandwidth. With complete triggering function (single normal automatic) both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO the measured waveform can be displayed without complicated adjustment. Display the High Definition LCD screen equipped with 2.4 inch 320*240 resolution. Extremely convenient and fast waveform storage function built-in 16MB storage space the maximum storage of 500 waveform pictures. Powerful waveform file manager support thumbnail browsing viewing details view flip delete and other functions. Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time. Day mode and night mode can be changed according to their own preferences.Features:Memory compression technology waveform refresh screen does not flicker.Afterglow display technology.2.4 inch color display screen.30MHz analog bandwidth @ 200MS/s sampling rate.Fast waveform storage.Built-in 16M storage space the maximum storage of 500 waveform pictures.Powerful waveform file manager support thumbnail browsing viewing details view flip delete and other functions.High measurement voltage range 1X can measure 0~40 V 10X can measure 40~800V.Up to 11 parameters measurement: VPP Vmax Vmin Vavg Vrms Frequent Duty+ Duty- Time+ Time- Time.At any time the waveform display (pause function) is frozen.Equipped with high efficiency one button AUTO.Complete triggering function (single normal automatic).Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time.Day mode and night mode.Ultra small volume easy to carry.Specifications:Material: ABSAnalog Band Width: 30MHzMaximum Real Time Sampling Rate: 200MS/sVertical Sensitivity: 50mV/div ~ 200V/divHorizontal Time Base Range: 50S/div ~ 250nS/divMaximum Input Voltage: 40V (1X probe) 800V (10X probe)Storage Depth: 40KBInput Resistance: 1MADC Precision: 8bitsCoupling Mode: AC/DCTrigger Mode: Single normal automaticTrigger Edge: Ascending/descending edgeExternal Trigger Voltage: 0~40VDisplay: 2.4 inch @ 320 * 240Power Supply: 3.7V 1200mAh lithium batteryOscilloprobe Bandwidth: 80MhzOscilloprobe Max. Input Voltage: 600V (DC+ACp-p)Oscilloprobe Input Resistance: 10M?Oscilloprobe Attenuation Ratio: X1 X10 2?Oscilloprobe Length: 1.2m / 3.94inItem Size: 107 * 70 * 24mm / 4.21 * 2.76 * 0.94inItem Weight: 120g / 4.23ozPackage Weight: 265g / 9.35ozPackage Size: 20 * 11 * 3.8cm / 7.87 * 4.33 * 1.50inPackage List:1 * 2031H Oscilloscope Host1 * Crocodile Clip Probe1 * Micro USB Data Line1 * P6100 Oscilloscope Probe1 * User Manual (English)
