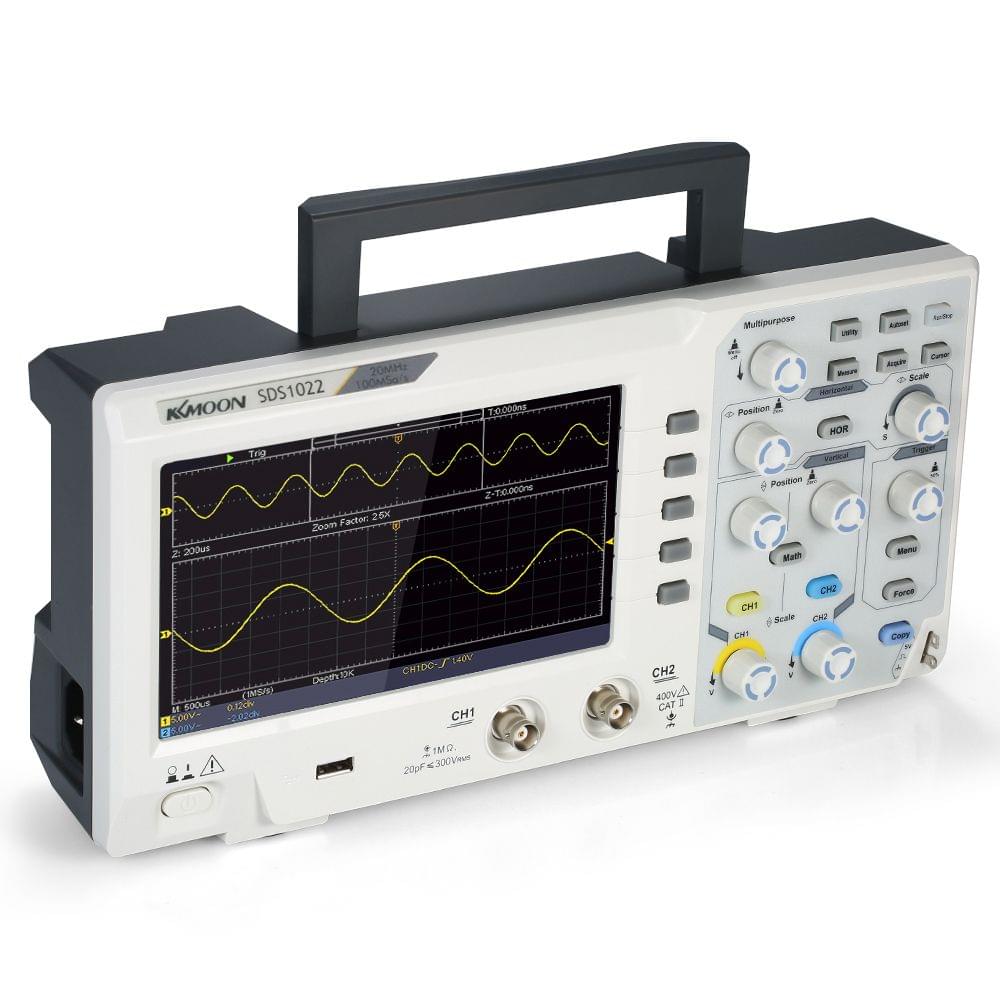

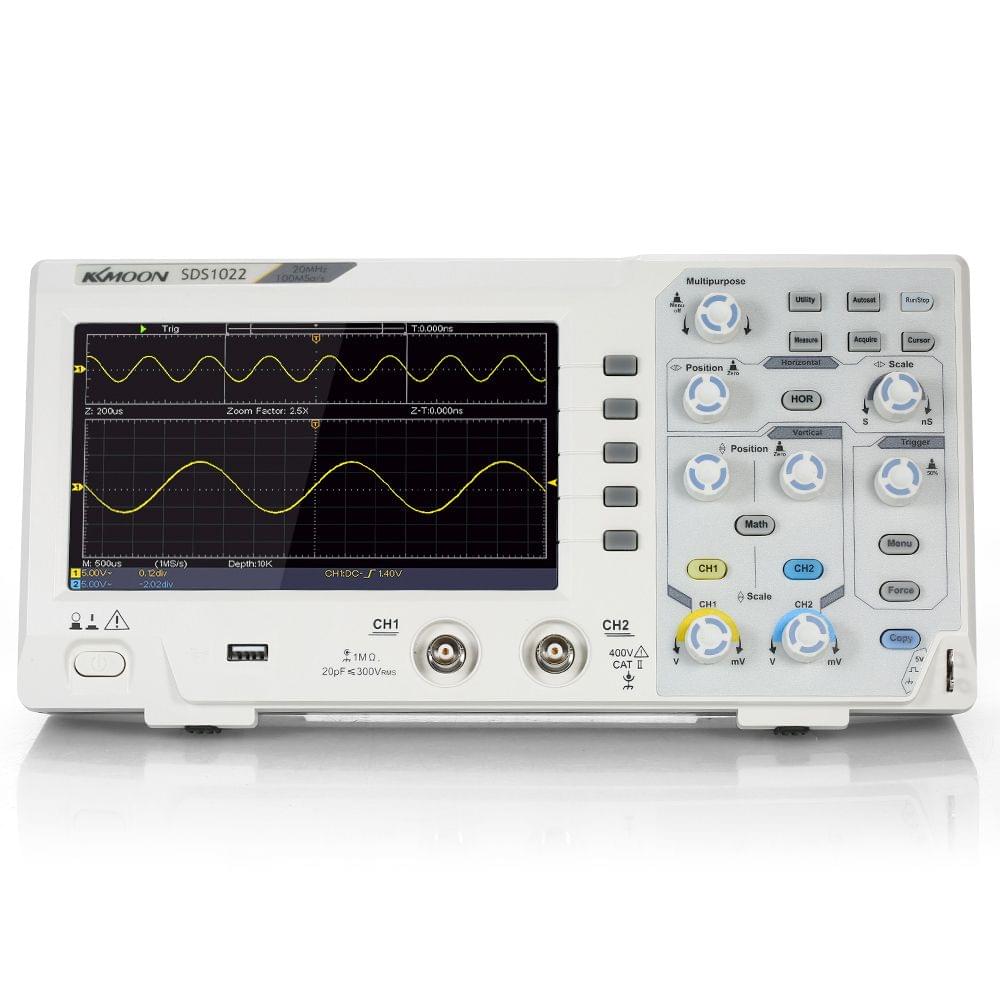

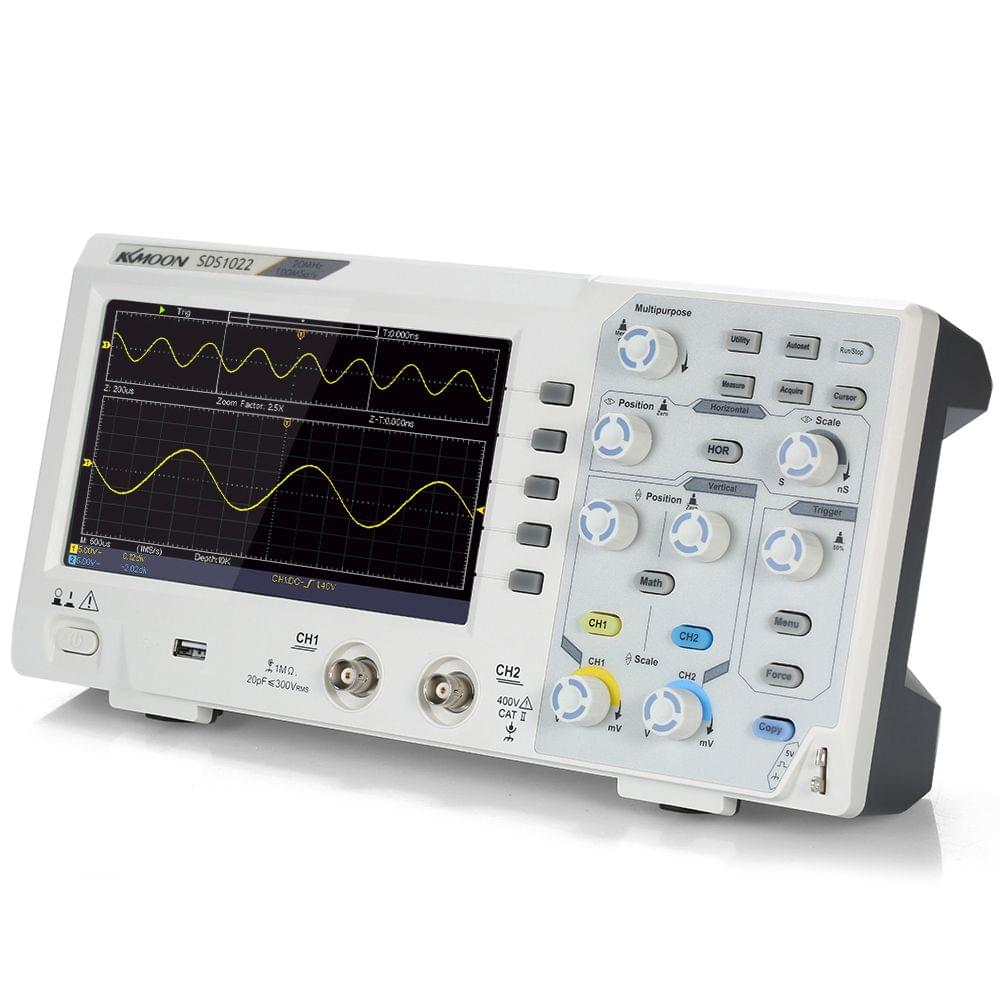

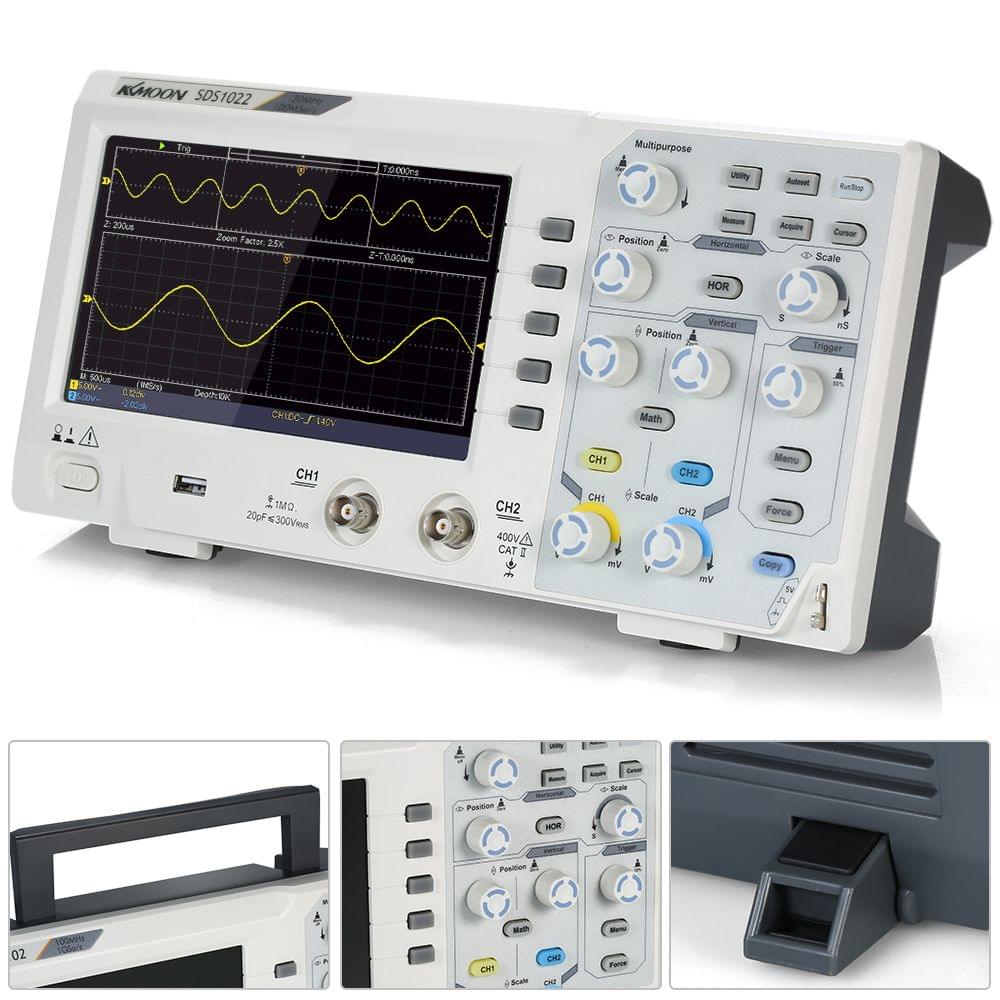

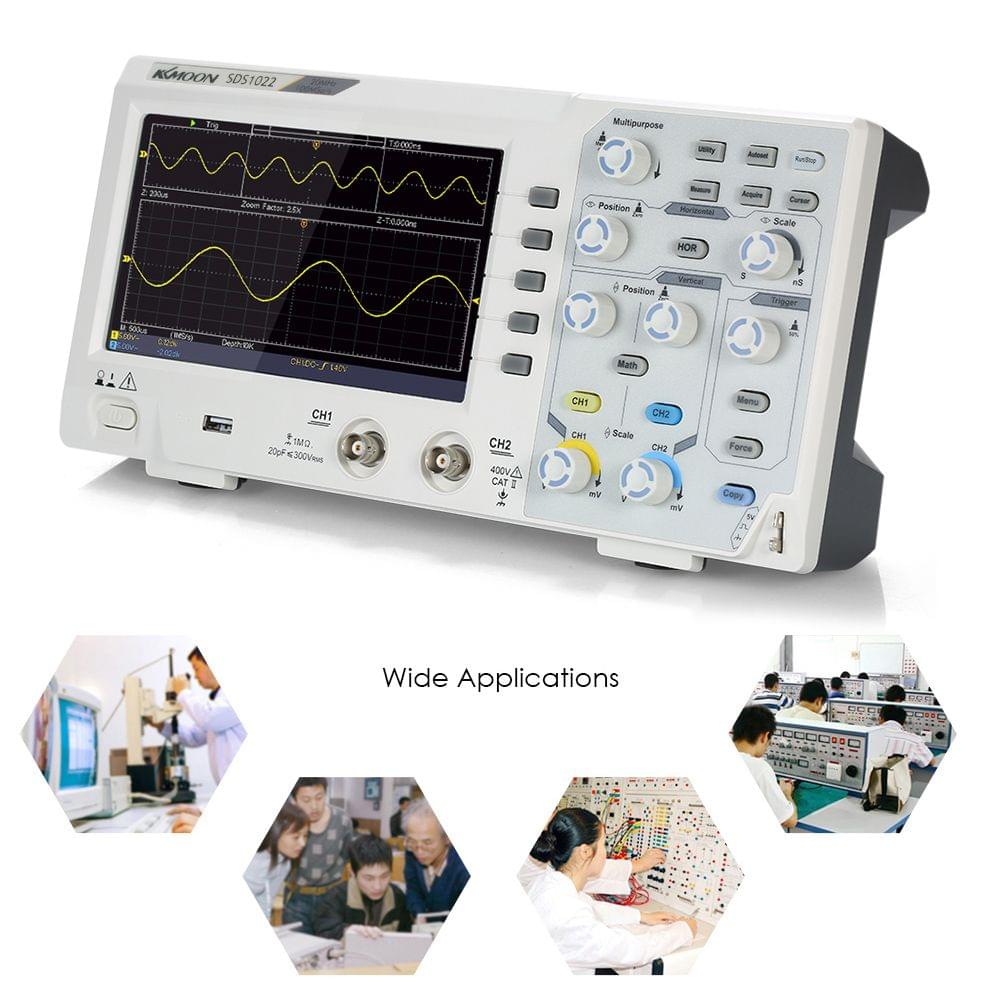

KKmoon SDS1022 Oscilloscope Oscillometer Digital Storage - EU Plug

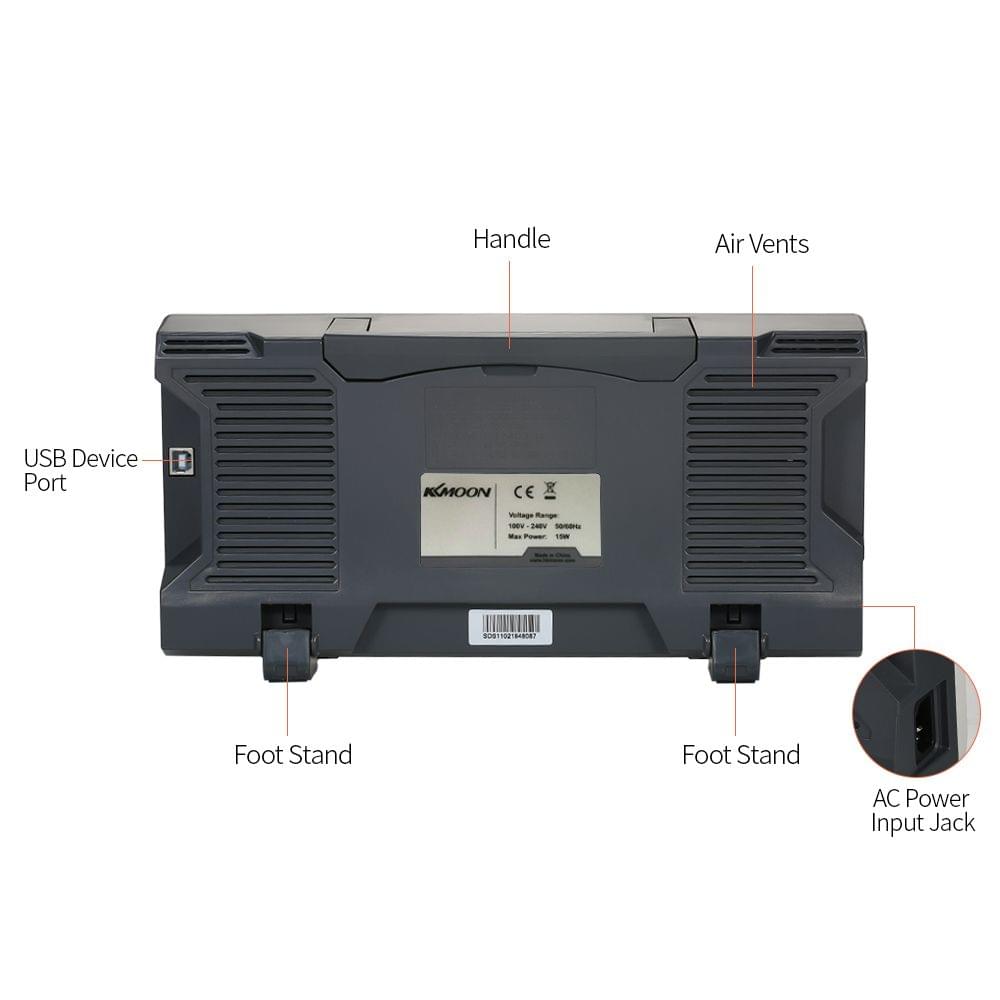

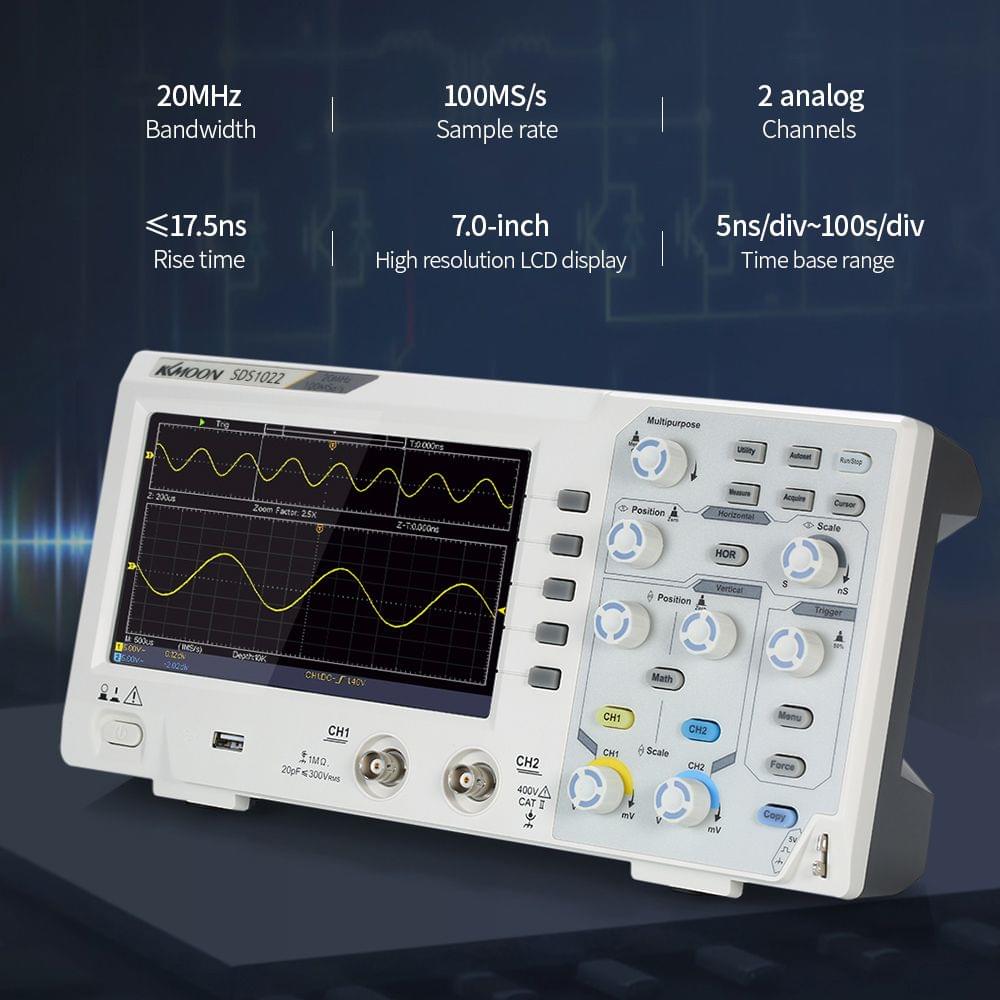

With stable performance and high precision this dual channels oscilloscope features of 20Mhz bandwidth 100MS/s sample rate 5ns/div~100s/div time base range 16 waveforms storage including edge and video trigger types support for SCPI and LabVIEW and has 7-inch high resolution LCD screen to display waveform and data clearly and intuitively.Features:Main Parameters: 2 channels digital oscilloscope with 20MHz bandwidth 100MS/s sample rate 5ns/div~100s/div time base range 17.5ns rise time.7.0-inch High Resolution LCD Display: 7 TFT colored LCD screen with 800*480pixels that clearly display waveform parameters such as frequency period pulse width duty ratio.Multiple Automatic Measurements: provide several kinds of automatic measurement including period frequency mean PK-PK RMS max. min. top base amplitude overshoot preshoot rise time fall time pulse width duty cycle pulse count delay A-B cycle RMS cursor RMS screen duty phase area cycle area etc.Communication with PC: it supports communications with PC through USB. You can use the oscilloscope communication software to store analyze display the data and remote control.Self-calibration: can make the oscilloscope reach the optimum condition rapidly to obtain the most accurate measurement value under the ambient temperature.User-friendly Compact Structures: foldable handle for conveniently carrying around foot stool for adjusting the tilt angle air vents for heat dissipation control area with knobs and buttons for easily operation.Specifications: Functions Specifications of SDS1022 Bandwidth 20MHz Sample Rate 100MS/s Horizontal Scale(s/div) 5ns/div - 100s/div step by 1-2-5 Rise Time (at input typical) 17.5ns Channel 2 Display 7 color LCD 800 480 pixels Input Impedance 1M? 2% in parallel with 20pF 5pF Channel Isolation 50Hz:100:1 10MHz:40:1 Max Input Voltage 400V (PK-PK) (DC+AC PK-PK) DC Gain Accuracy 3% Record Length 10k DC Accuracy (average) Average16: (3% reading+0.05div) for ?V Probe Attenuation Factor 1X 10X 100X 1000X LF Respond (AC -3dB) 10Hz (at input AC coupling -3dB) Sample Rate / Relay Time Accuracy 100ppm Interpolation sin (x) / x Interval(?T) Accuracy (full bandwidth) Single: (1 interval time + 100ppm reading + 0.6ns) Average?16: (1 interval time + 100ppm reading + 0.4ns) Input Coupling DC AC and GND Vertical Resolution (A/D) 8 bits (2 channels simultaneously ) Vertical Sensitivity 5mV/div - 5V/div (at input) Trigger Type Edge Video Trigger Mode Auto Normal and Single Trigger Level 5 divisions from screen center Line / Field Frequency (video) NTSC PAL and SECAM standard Cursor Measurement ?V and ?T between cursors Automatic Measurement Vpp Vavg RMS Frequency Period Vmax Vmin Vtop Vbase Width Overshoot Pre-shoot Rise time Fall time +Width -Width +Duty -Duty Delay AB Delay AB Waveform Math + - invert FFT Waveform Storage 16 waveforms Lissajous Figure Bandwidth full bandwidth Lissajous Figure Phase Difference 3 degrees Communication Interface USB host USB device Frequency Counter available Power Consumption ?15W Fuse 2A T class 250V Power Supply 220V (EU/UK plug) 110V (US plug) 50/60Hz CAT II Plug Type EU / UK / US (Optional) Item Size 300 * 76 * 153mm / 11.81 * 2.99 * 6.02in Net Weight 1403g / 3.09lb Package Weight 1601g / 3.53lb Package Size 37 * 18 * 11.5cm / 14.57 * 7.09 * 4.53in Package List:1 * Oscilloscope2 * Probe1 * Powerline1 * CD1 * USB Cable1 * Package of Accessory1 * Quick Guide (English)Note:Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product.
