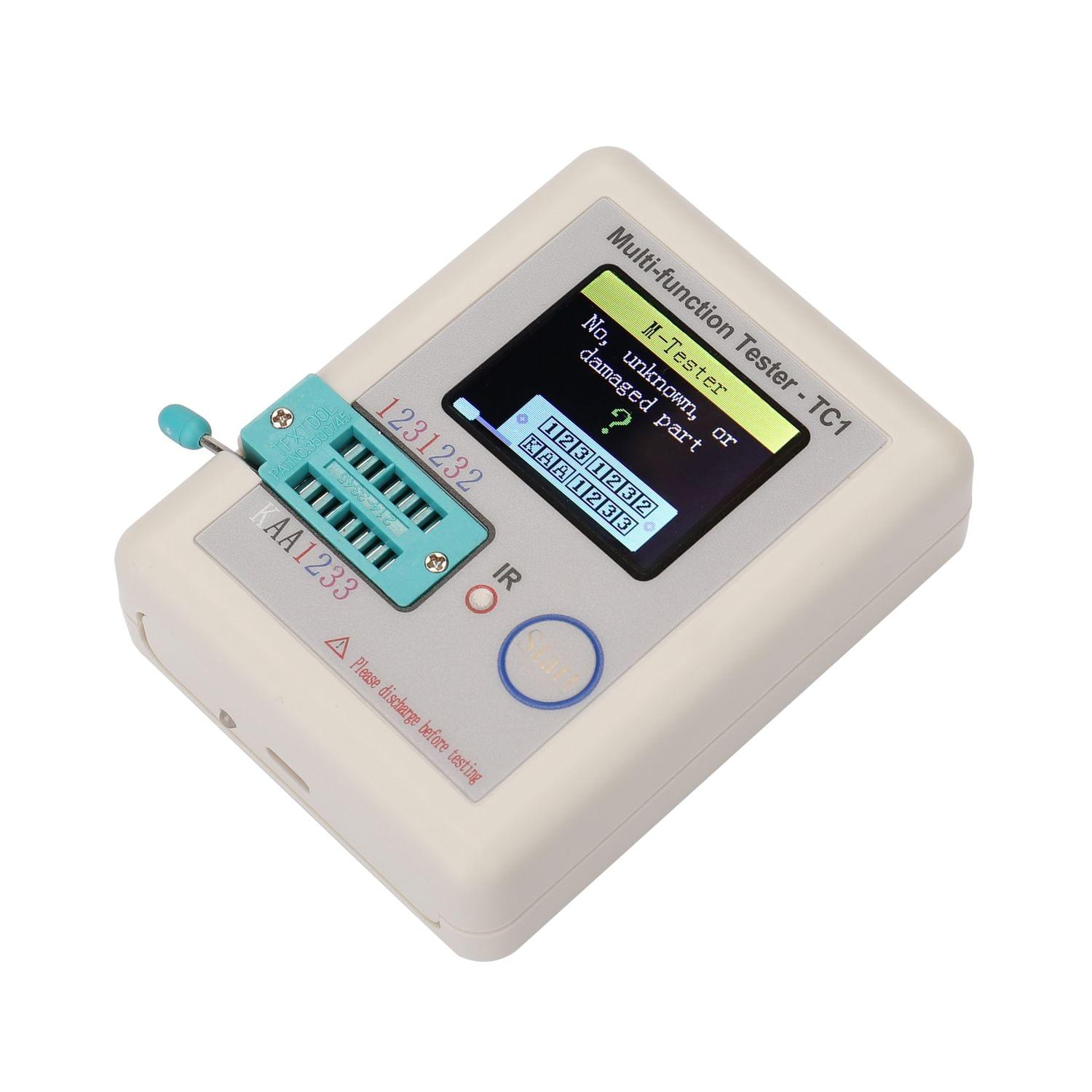

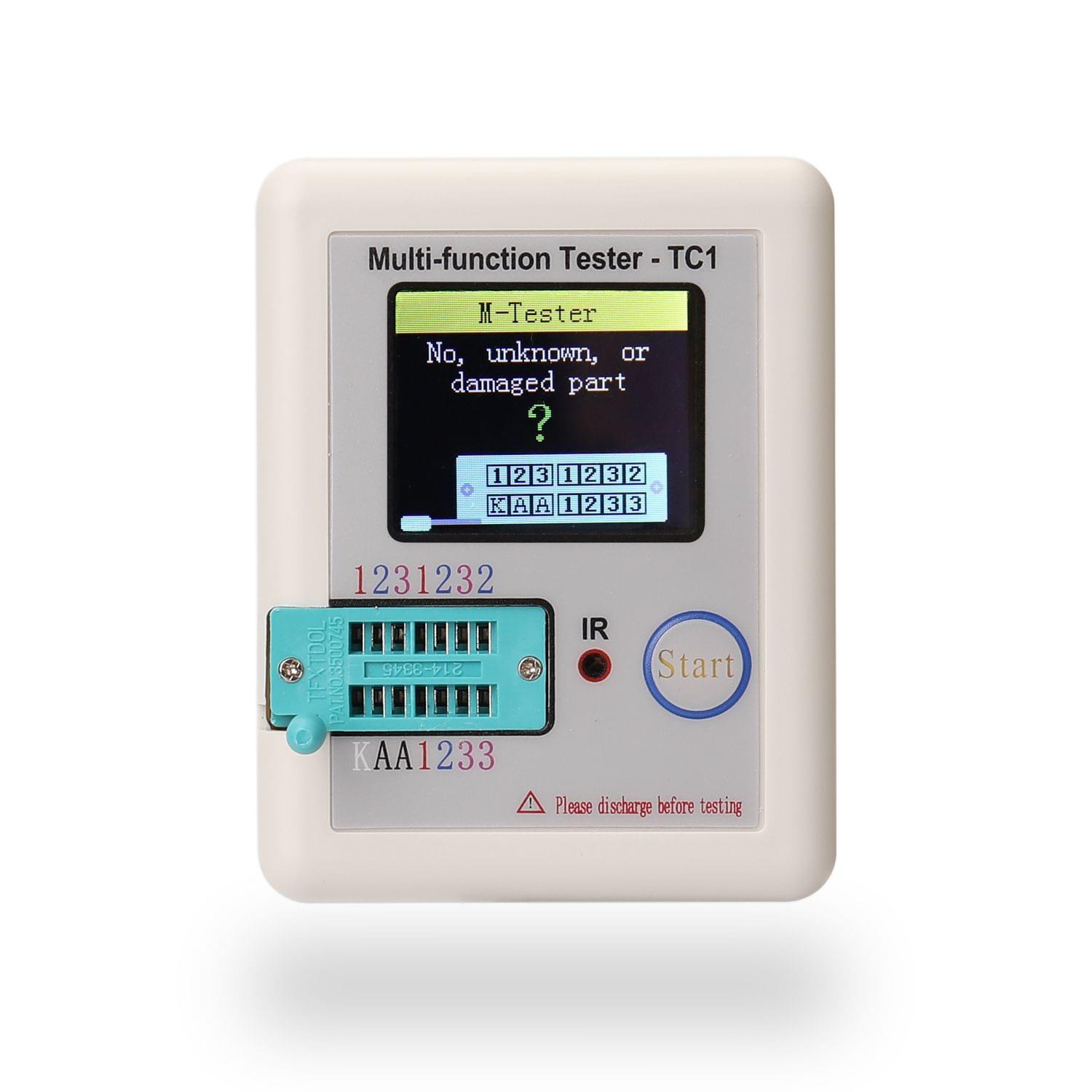

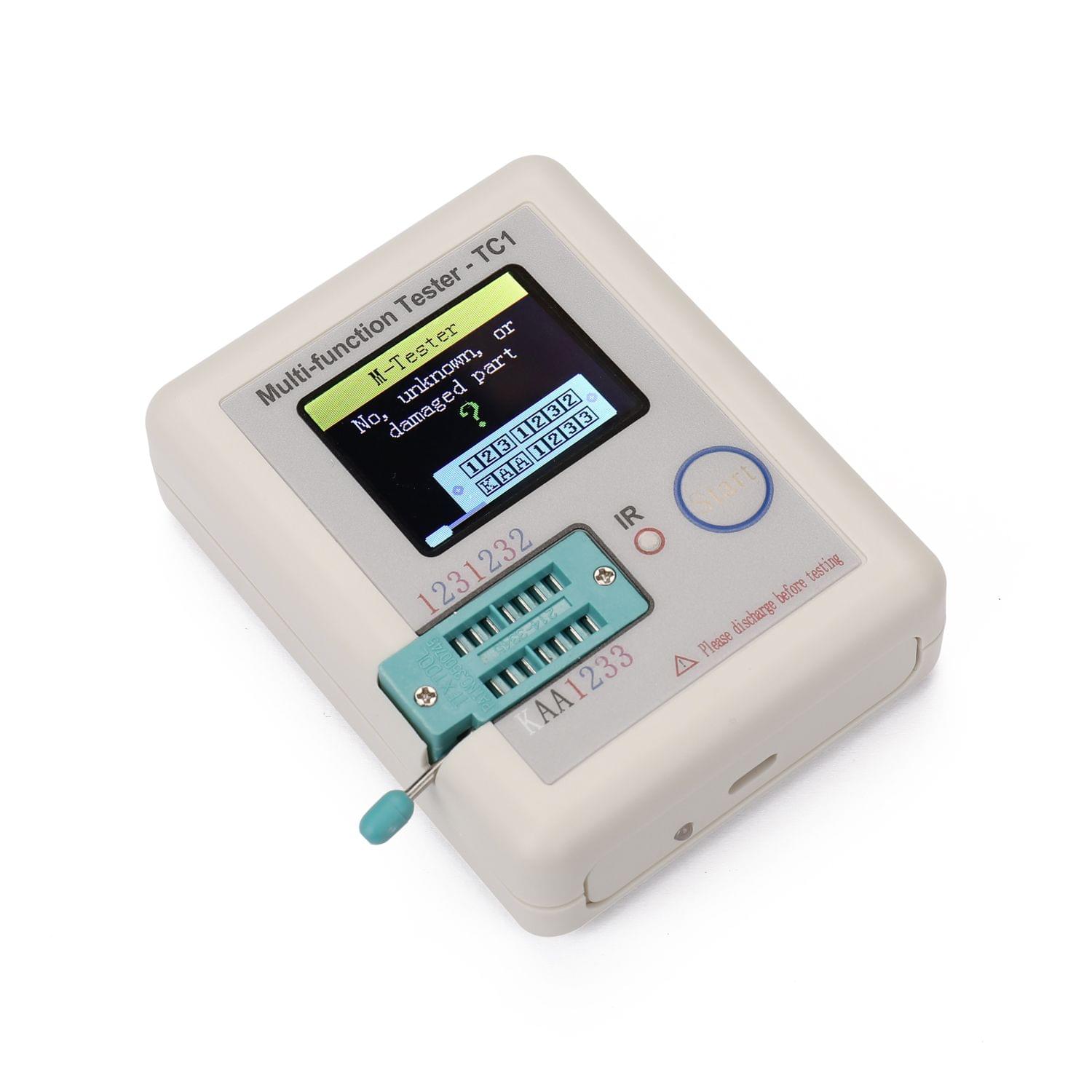

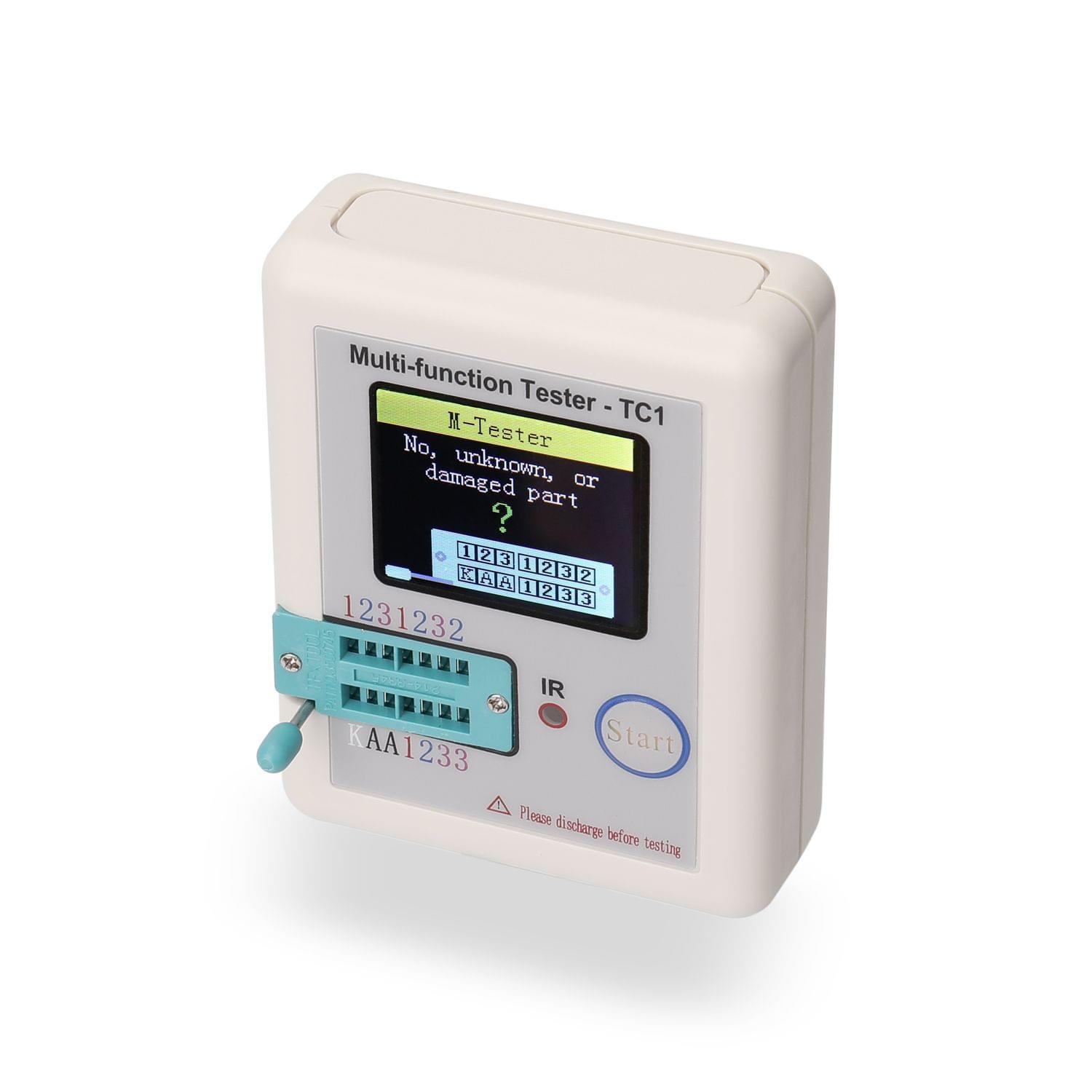

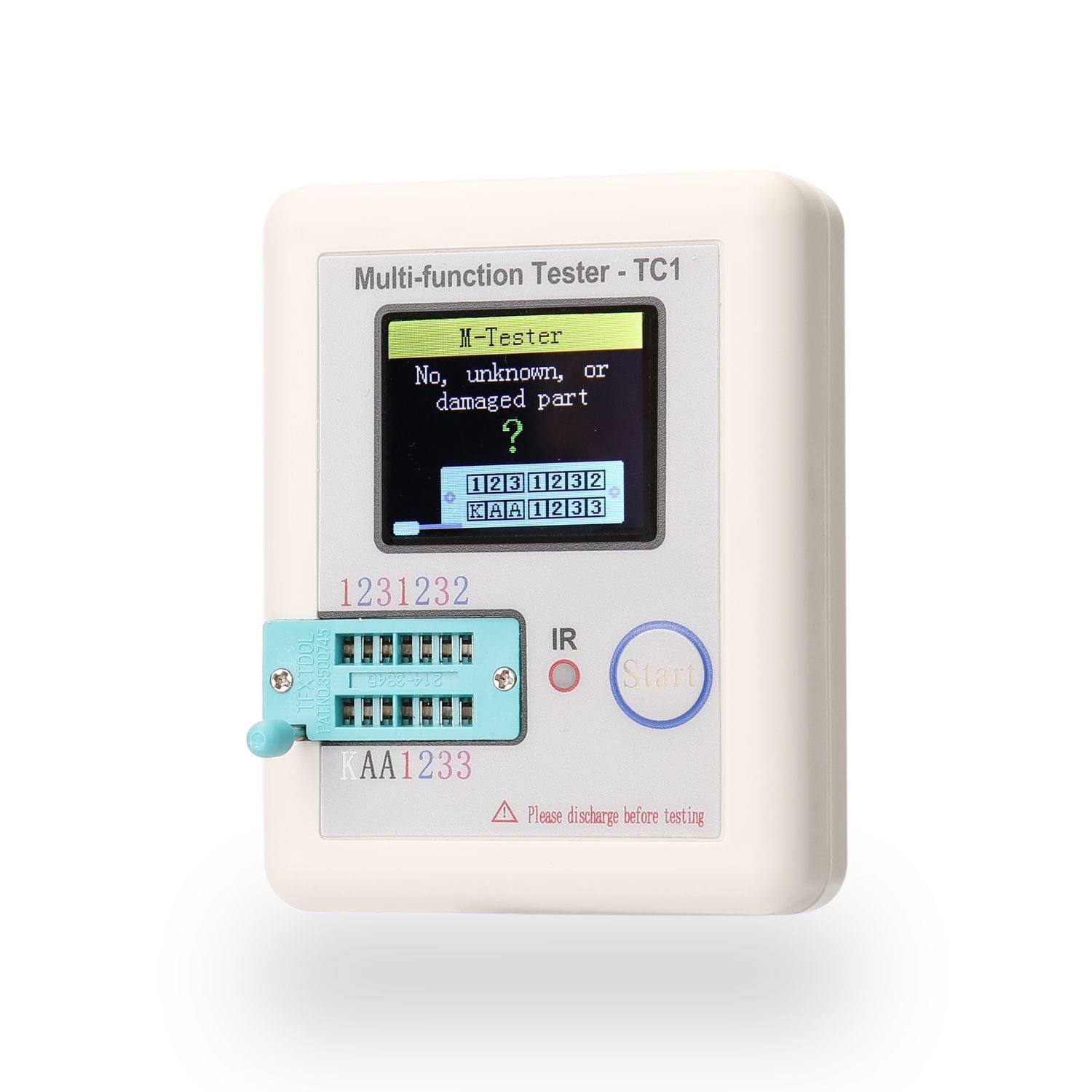

LCR-TC1 Full Color Screen Graphic Display Multifunctional

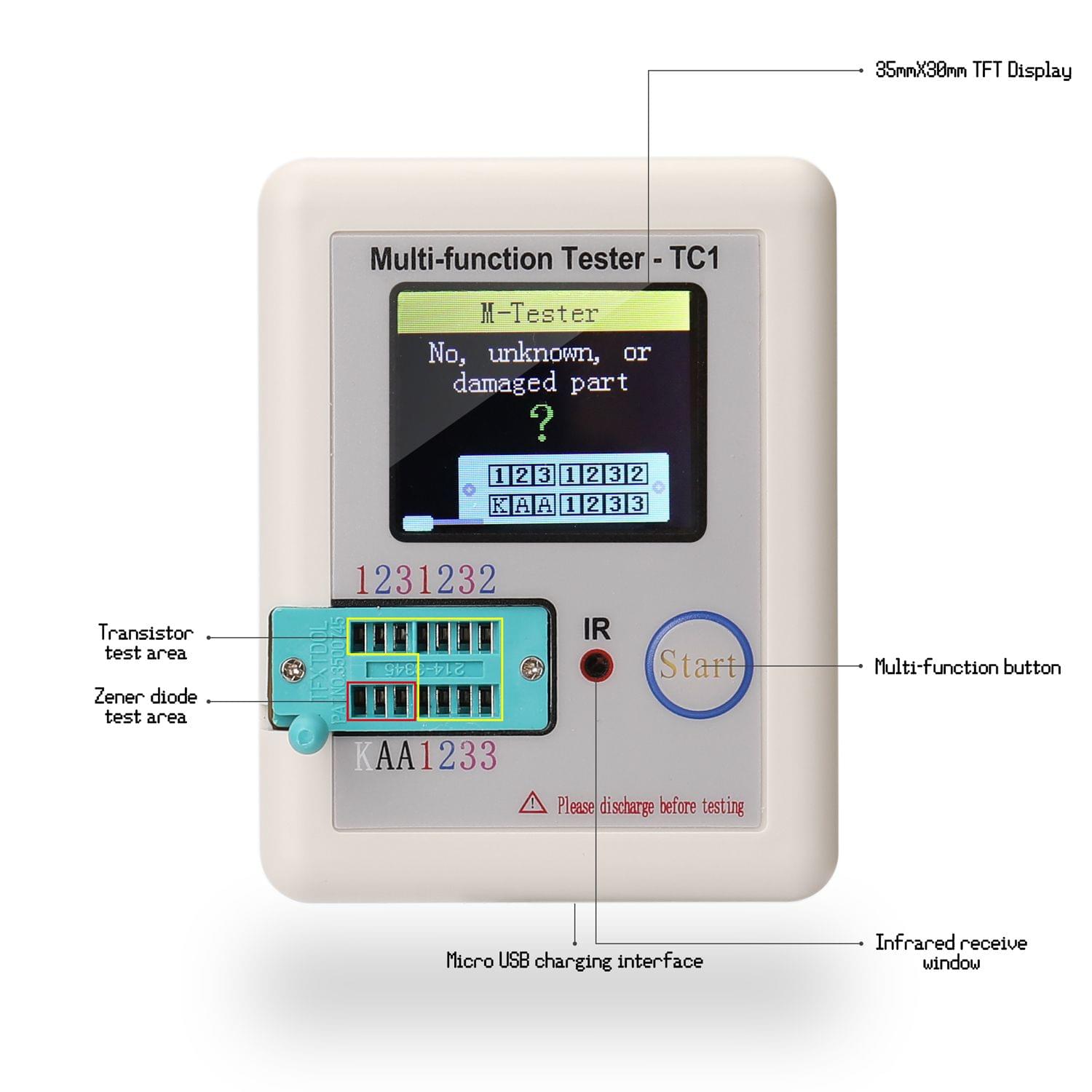

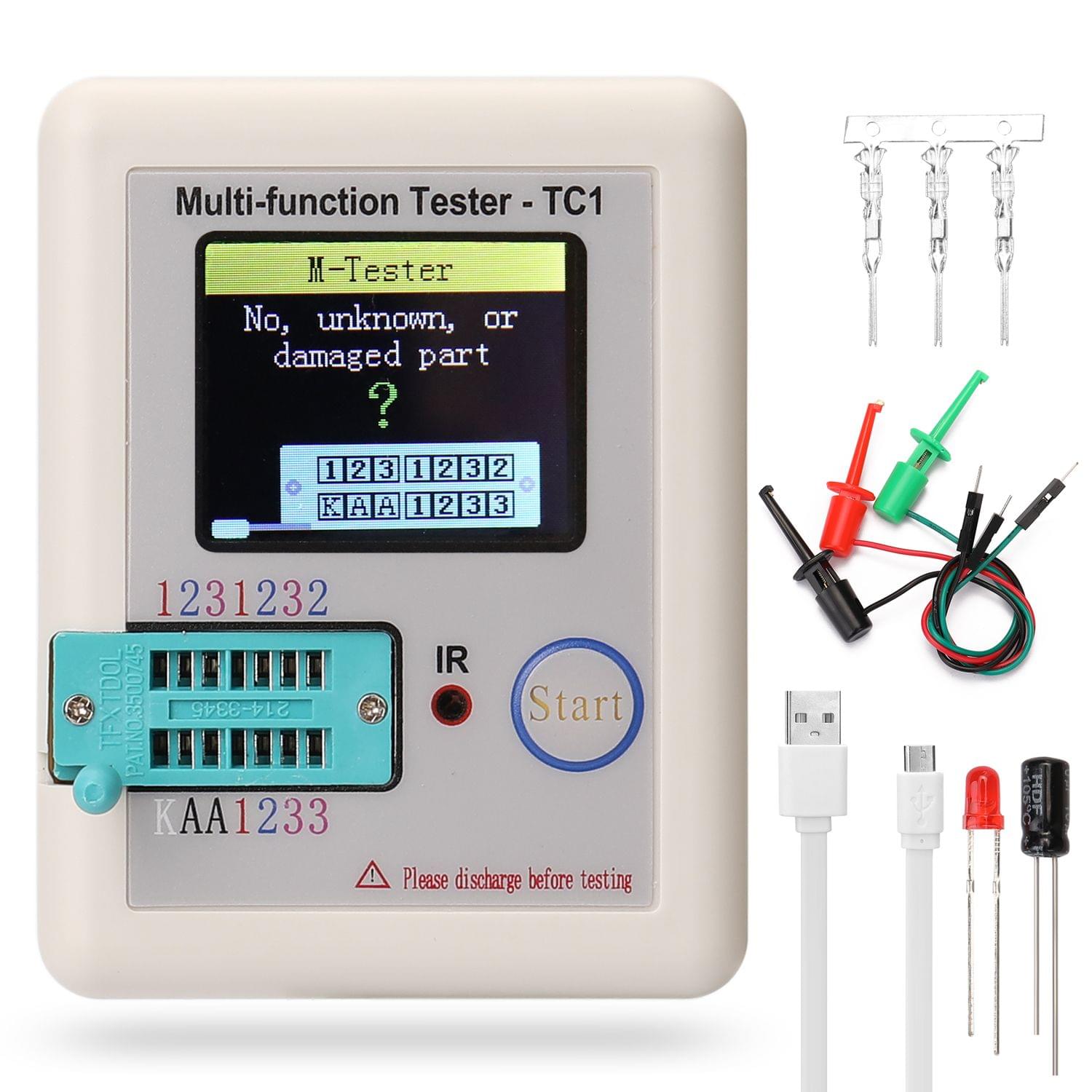

Made of fine quality material practical easy to operate and use has a long service life.Features:Automatic measurement of NPN and PNP transistors N-channel and P-channel field effect transistors diodes (including dual diodes) resistance (including potentiometers) inductance capacitance thyristors batteries (0.1-4.5V) and other components.Automatic measurement of voltage stabilizing diode (0.01-30V).With automatic calibration function.Infrared waveform display infrared receiving indication.The measurement results are displayed by TFT graphics one-key operation automatic shutdown (the shutdown duration can be set) built-in large-capacity rechargeable lithium battery lithium battery voltage detection support for Chinese and English bilingual.Specifications:Material: ABSColor: white+greyBattery: 1 * lithium battery 350mAh (included)Display: 35 * 30mm TFT screenDiode range: ?4.5VZener diode: transistor detect area: 0.01-4.5V zener diode detect area: 0.01-30VTriac range: IGT ? 6mACapacitance: 25pF-100mFResistor: 0.01-50M?Inductance: 0.01mH-20HBattery: 0.1-4.5VItem size: 88 * 80 * 28mm / 3.46 * 3.15 * 1.10in Item weight: 111.5g / 3.93ouncePackage size: 145 * 120 * 27mm / 5.71 * 4.72 * 1.06inPackage weight: 114g / 4.02ounceNote:Before testing please discharge the electronic components to protect the detector.When the voltage and the inside battery is under 3V please charge it before usage.Please use 5V battery or USB interface to charge.You can click the right link to see the user manual:https://www.dropbox.com/sh/yiqlv8zq0unqzez/AAACXV2LDICMcBvQTi3Jkqb-a?dl=0Packing List:1 * Transistor Tester1 * Electronic Component Set?Send Randomly)3 * Test Hook?Send Randomly)
