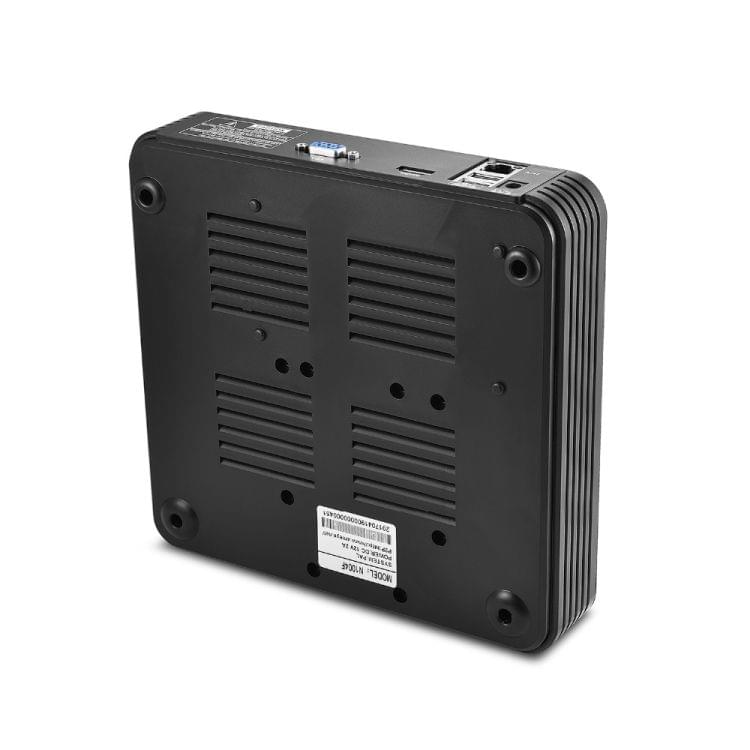

Network Interface:RJ45 10/100M Video Input Interface:RJ45 Wireless Security:WEP Network Protocol:SMTP,PPPoE,HTTP,FTP,DHCP Supported Operating Systems:Microsoft Windows 7,Microsoft Windows XP Audio Compression Format:G711A Audio Input:No IP Mode:Static IP address,Dynamic IP address Backup Type:Hard Drive,USB Flash Divers Audio Output:None Technology:Network Alarm Action:FTP Photo Video Resolution:1080P Supported Mobile Systems:for iPhone OS,Android Hard drive Interface Type:SATA Video Output:1VGA + 1HDMI e-Cloud(P2P):Yes Two-way Audio:No POE:None Compression Format:H.264 Video Standard:NTSC,PAL Resolution:Full HD1080P ONVIF:Yes ( ONVIF 2.0 ) Input For 8Channel NVR:8*1080P/12*960P Playback:2*1080P/4*960 For 4CH ; 2*1080P/4*960P/4*720P For 8CH Output:1*1080P HDMI /1*VGA Dimention:21cm(L)*20cm(W)*4cm(H) Features : 1.H.264 High profile compression algorithm ideal for standalone NVR 2.Realtime live display up to 4/8 cameras 3.Pentaplex function:live,recording,playback,backup & remote access; 4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission 5.Smart video detection:motion detection,video blind,video loss 6.Smart camera settings:privacy masking,camera lock,color setting,and tittle display 7.Easy backup methods: USB devices,remote network and client software backup 8.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload 9.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function 10.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function 11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK. 12.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs. 13.Enable strong multi-way synchronization with max 1/4 channel playback, realize the zero-delay between playback channels 14. Support Standard Onvif 2.0 protocal 15.Real P2P : Cloud : XMEYE.NET ; APP :XMEYE

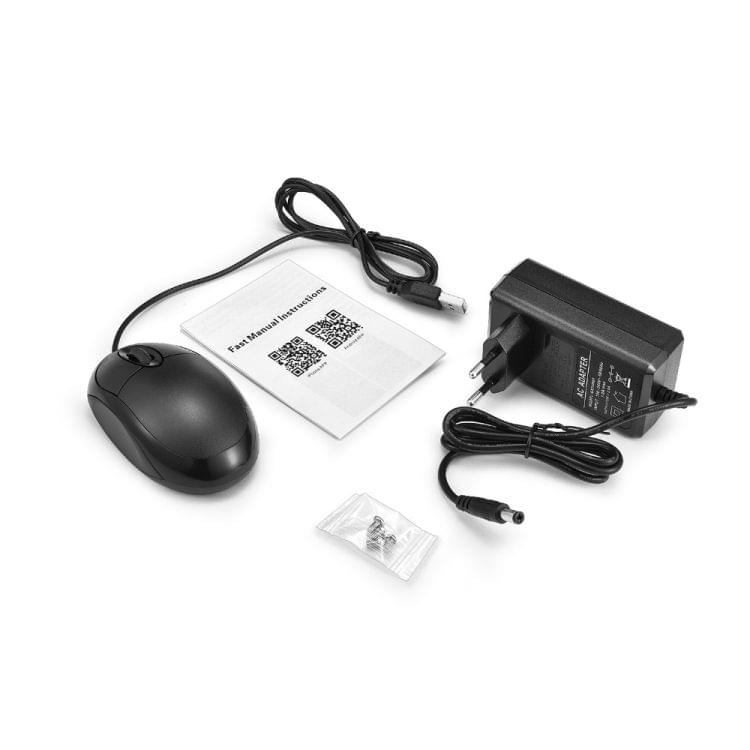

Package Included: 4CH/8CH NVR x 1 Mouse x 1 Power Supply for NVR x 1 Users Manual x 1
