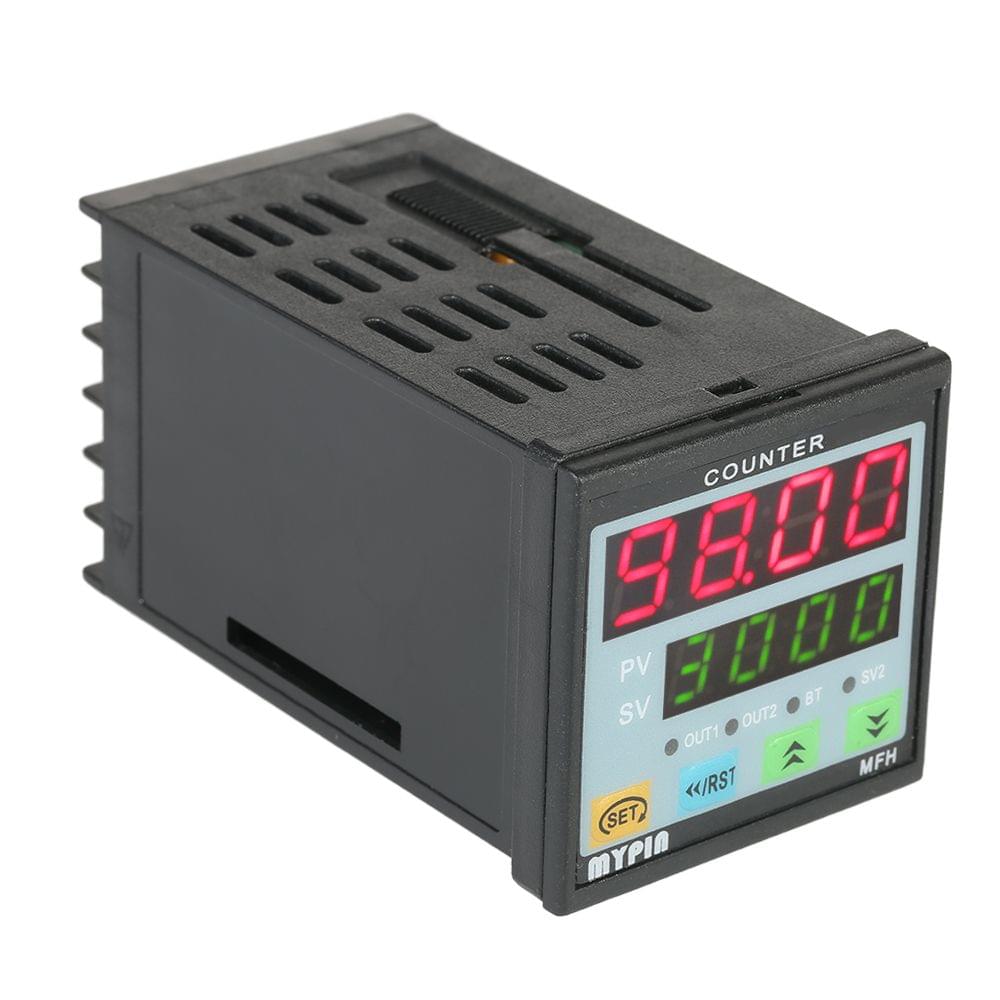

MYPIN Multi-functional Intelligent 90-260V AC/DC Preset 4

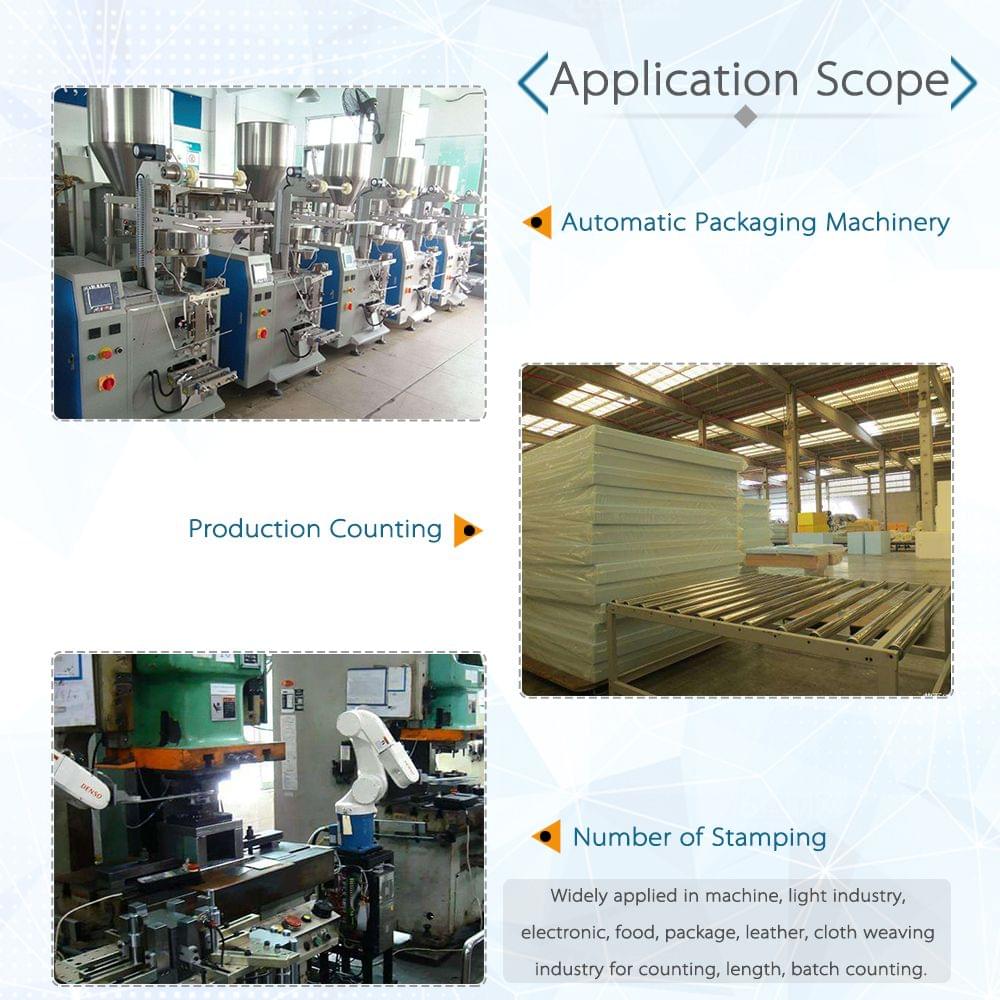

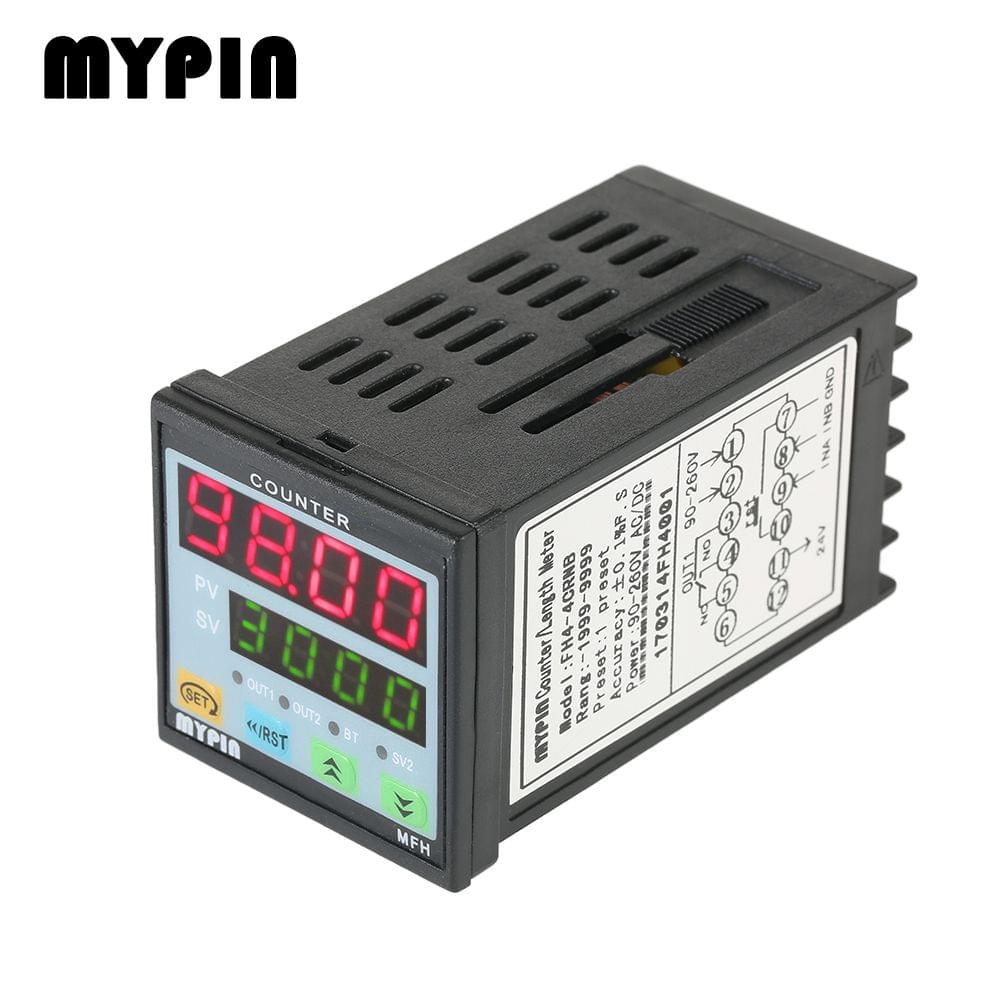

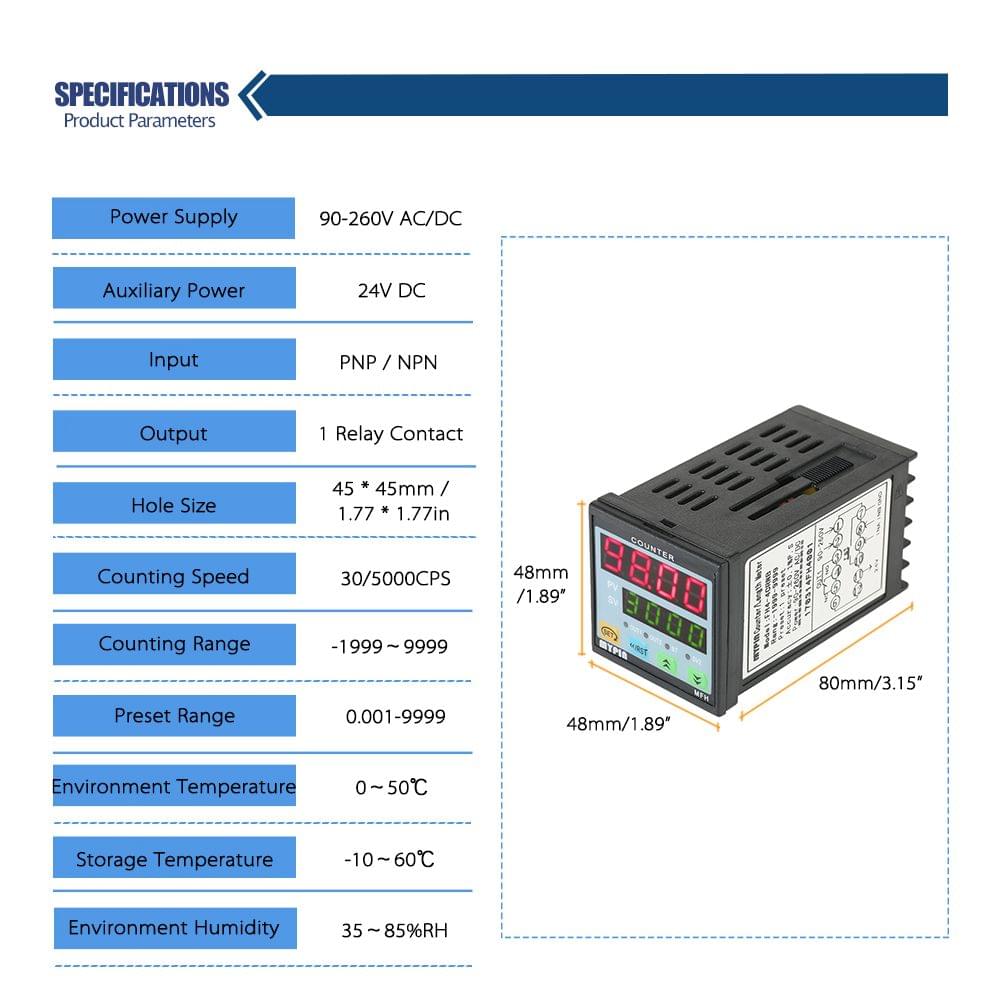

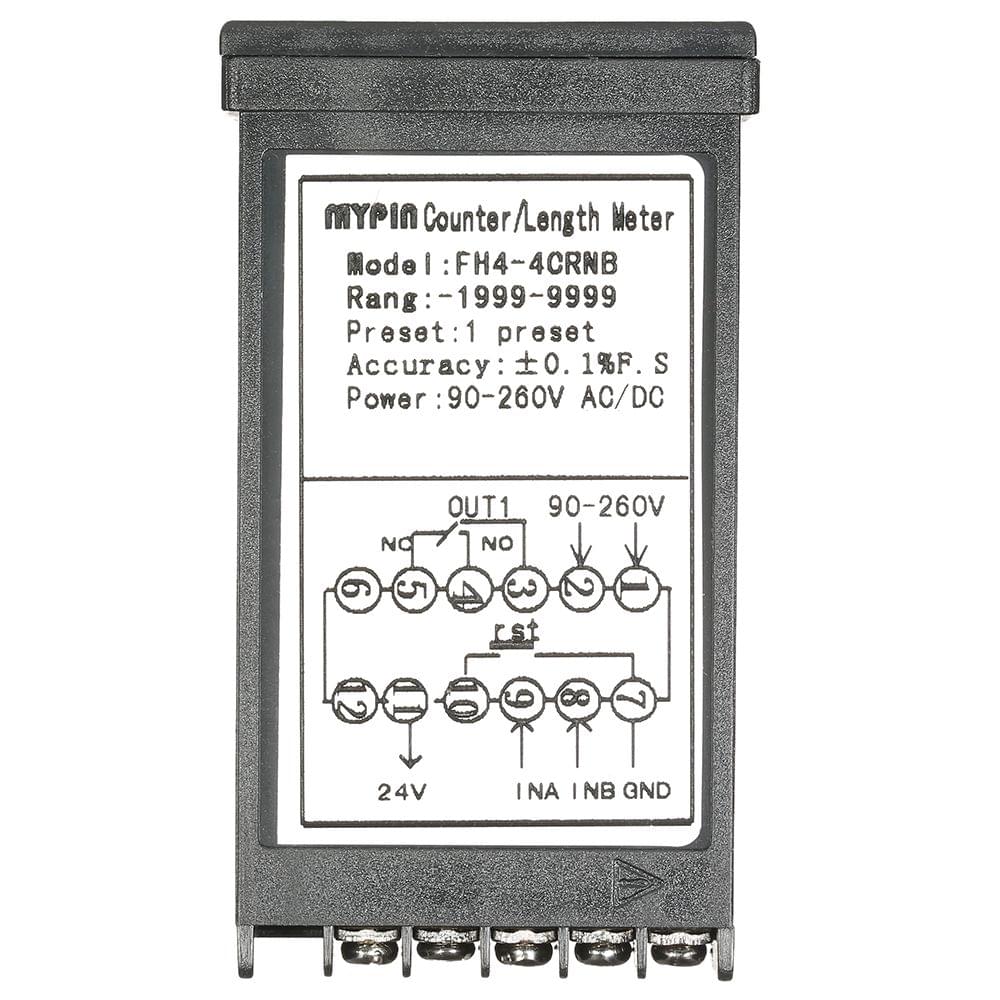

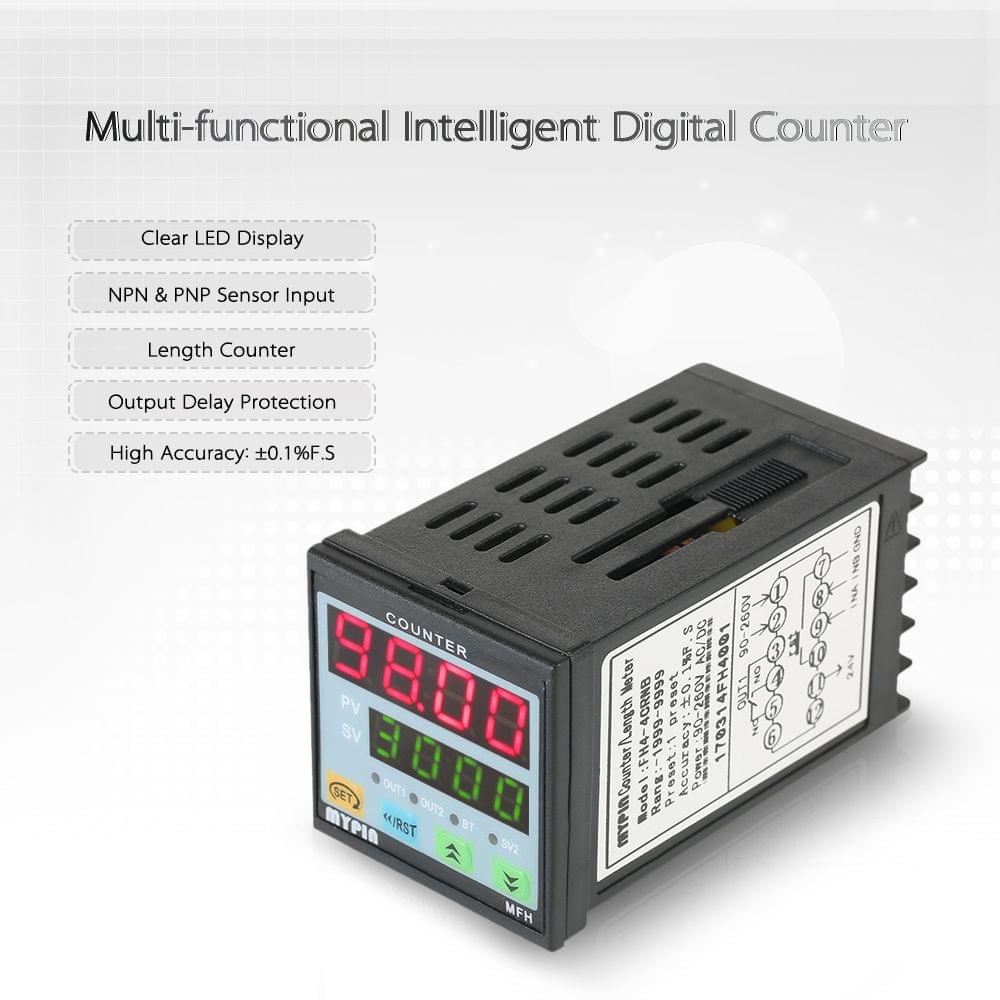

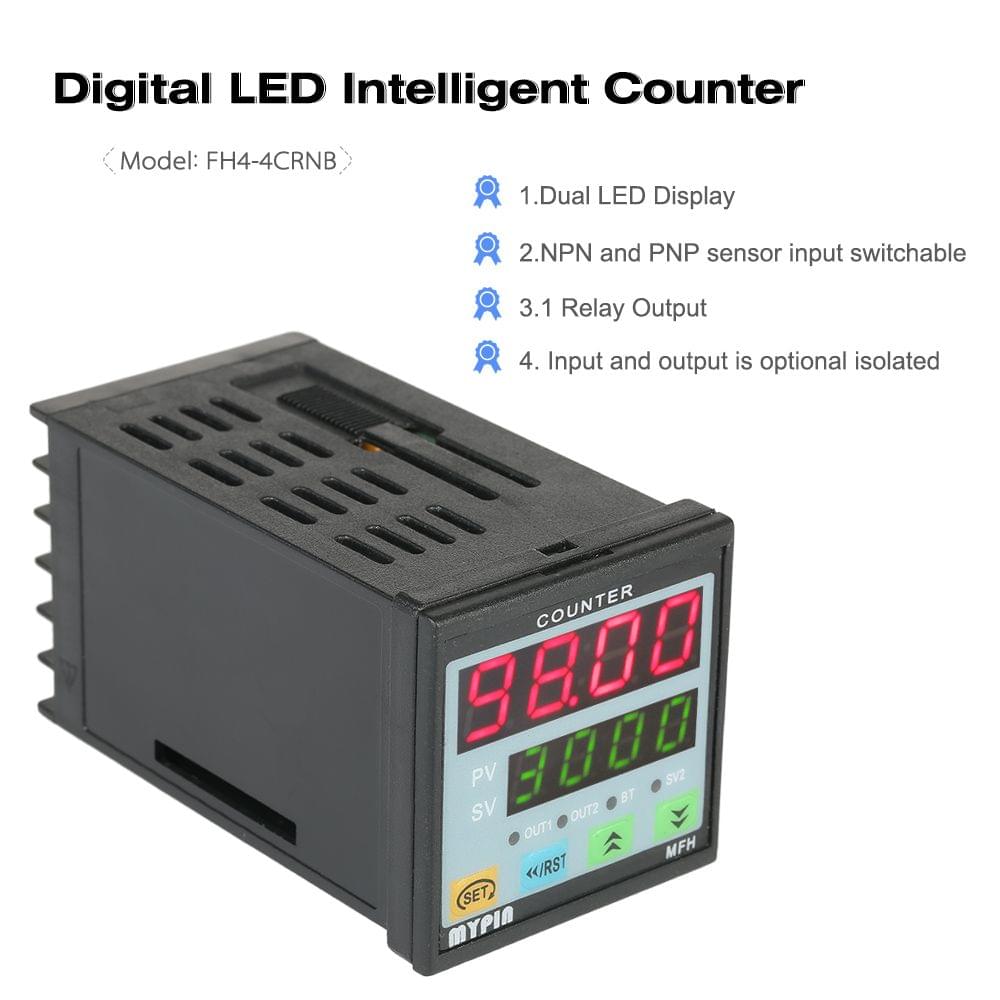

This is a dual display digital counter that can be used as a industrial counter to count the quantity of objects in a single batch and the number of batches and also can be used as length counter. It is widely applied in machine light industry electronic food package leather cloth weaving industry for counting length batch counting.Features:A counter to count the quantity of objects in a single batch and the number of batches and also can be used as length meter.Can be connected with encoder length counting wheel proximity switch photoelectric switch optical sensor laser sensor capacitive switch etc.NPN and PNP sensor input switchable. 4 kinds of input mode 6 kinds of output mode for option.Input and output is optional isolated.Can set alarm value for relay output.Dual 4 digits LED Display.Widely applied in chemical machine light industry etc.Specifications:Color: BlackMaterial: ABS Engineering PlasticsBrand: MYPINModel: FH4-4CRNBApplication Range: Machine light industry electronic food package leather cloth weaving industry.Function: Counting measuring length automatic control alarm automatic loop alarm etc.Input: Pulse Signal: Square Wave and Sine Wave: 5H30V 0L2V up edge activeInput Impedance: 10K?Counting Speed: 30/5000CPSCounting Range: -1999?9999Preset Range: 0.001-9999Accuracy: 0.1%F.SOutput: 1 Relay Contact OutputPower Supply: 90-260V AC/DCAuxiliary Power: 24V DCEnvironment Temperature: 0?50?Storage Temperature: -10?60?Environment Humidity: 35?85%RHParameter Time: 10 yearsInsulation Resistance: 10M?Power Consumption: 5WContact Edge: Up edge activeHole Size: 45 * 45mm / 1.77 * 1.77inItem Size: 48 * 48 * 80mm / 1.89 * 1.89 * 3.15inItem Weight: 106.1g / 3.74ozPackage Size: 10 * 6.5 * 5.5cm / 3.94 * 2.56 * 2.16inPackage Weight: 135.6g / 4.78ozPackage List:1 * Counter2 * Bracket1 * User Manual(English)
