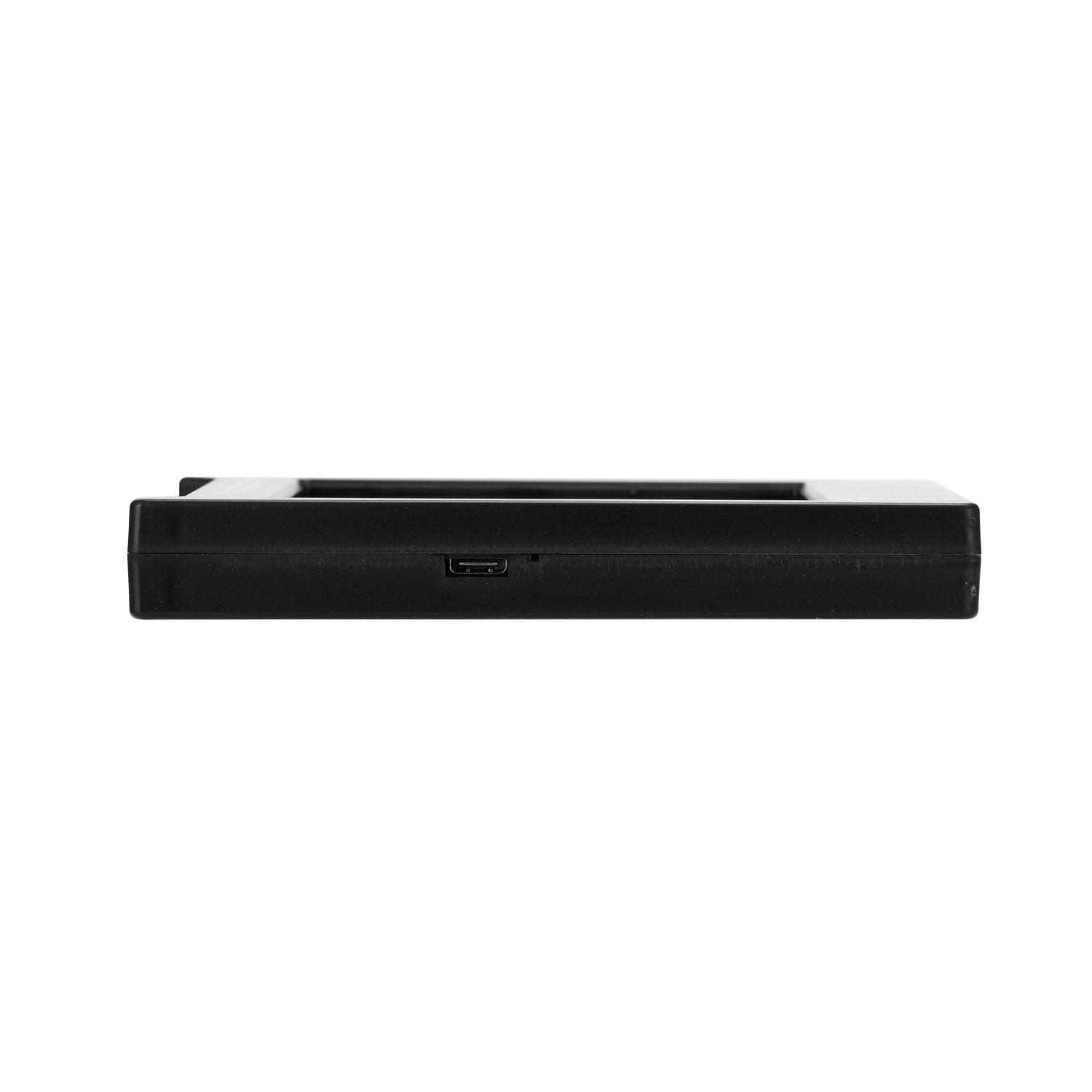

NanoVNA-H Portable Handheld Vector Network Analyzer

This is a DIY product with vector network measurement function. It includes a 3.95-inch touching screen TX/RX measurement can determine the complete S11 and S21 parameters if you need to get S12 and S22 you need to manually replace the transceiver port wiring.Features:The PC control software can export Touchstone (snp) files which can be used for various radio design and simulation software.The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz.The metal shield is designed to reduce the external interference and improve the measurement accuracy.The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.The extended 300M-900MHz band provides better than 60dB of dynamics and the 0.9G-1.5GHz band is better than 40dB of dynamics.Small and portable easy to use this project aims to provide an RF gadget but useful instrument for enthusiast.With a touching screen pick you can easily perform a variety of operations.Support for connecting mobile phones using Type C-Type C data cable (included).Built-in rechargeable lithium battery for easier use.The screen supports DC dimming which can be seen more clearly outdoors and more comfortable indoors.Stm32f303cct6 is used uart1 interface is reserved and the customer can execute DIY.Specifications:Material: metalColor: blackMeasurement frequency: 10KHz~1.5GHzRF output: 0dbm (2dbm)Measurement range: 70dB (50KHz-300MHz) 60dB (300M-900MHz) 40dB (0.9G-1.5GHz)There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.Port SWR: 1.1Display: 3.95 inch TFT (320*480)USB interface: USB type-CCommunication mode: CDC (serial)Power: USB 5V 200mABattery: 1 * lithium battery 1950mAh (included)Maximum charging current: 1ANumber of scanning points: 101 (fixed)Display tracking: 4 Marking: 4 Setting save: 5Frequency tolerance: 2.5ppmFrequency stability: 0.5ppmABS casing size: 133 * 75 * 18mm / 5.2 * 3.0 * 0.7in (excluding protrusions)Package size: 240 * 140 * 30mm / 9.4 * 5.5 * 1.2inPackage weight: 364.4g / 12.9ouncePacking List:1 * NanoVNA Host1 * USB Type-C Data Cable2 * 150mm SMA Male to Male RG316 RF Cable1 * SMA Male Calibration Kit-Open1 * SMA Male Calibration Kit-Short1 * SMA Male Calibration Kit-Load1 * SMA Female to Female Connector1 * Type-C to Type-C Cable
