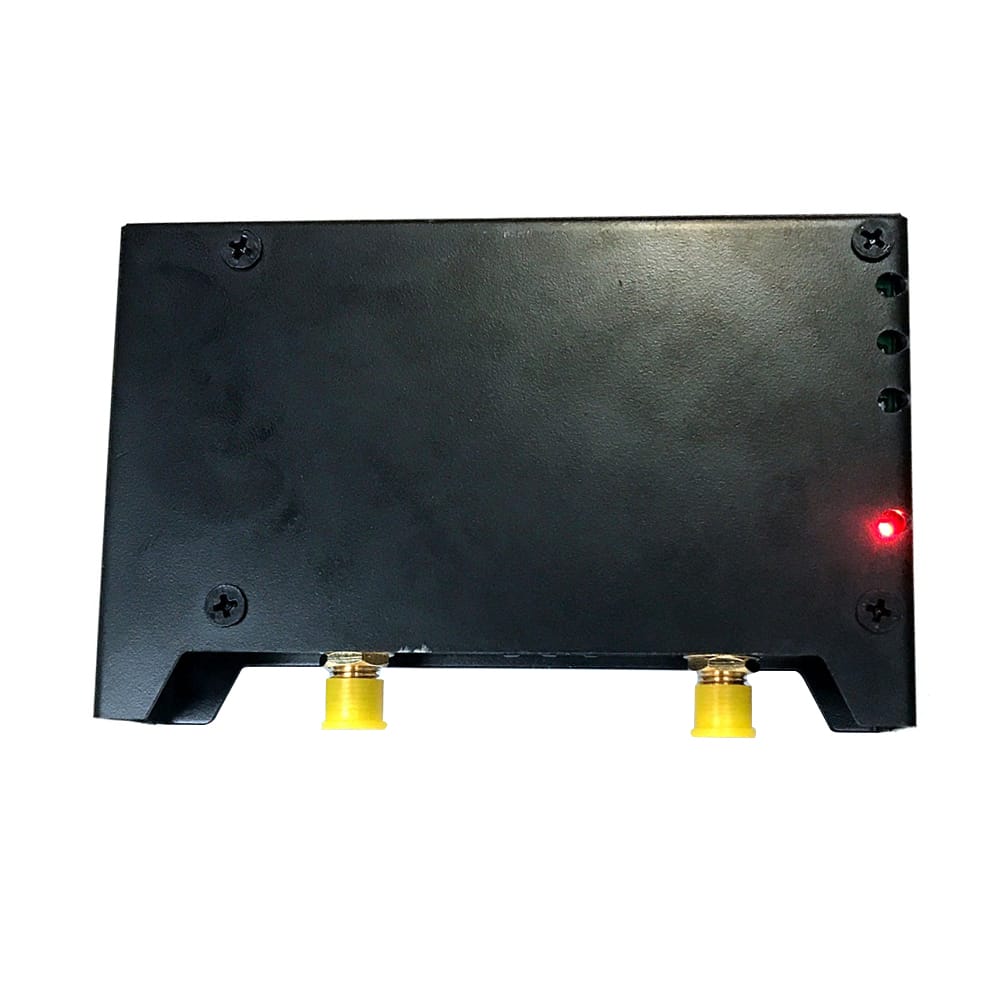

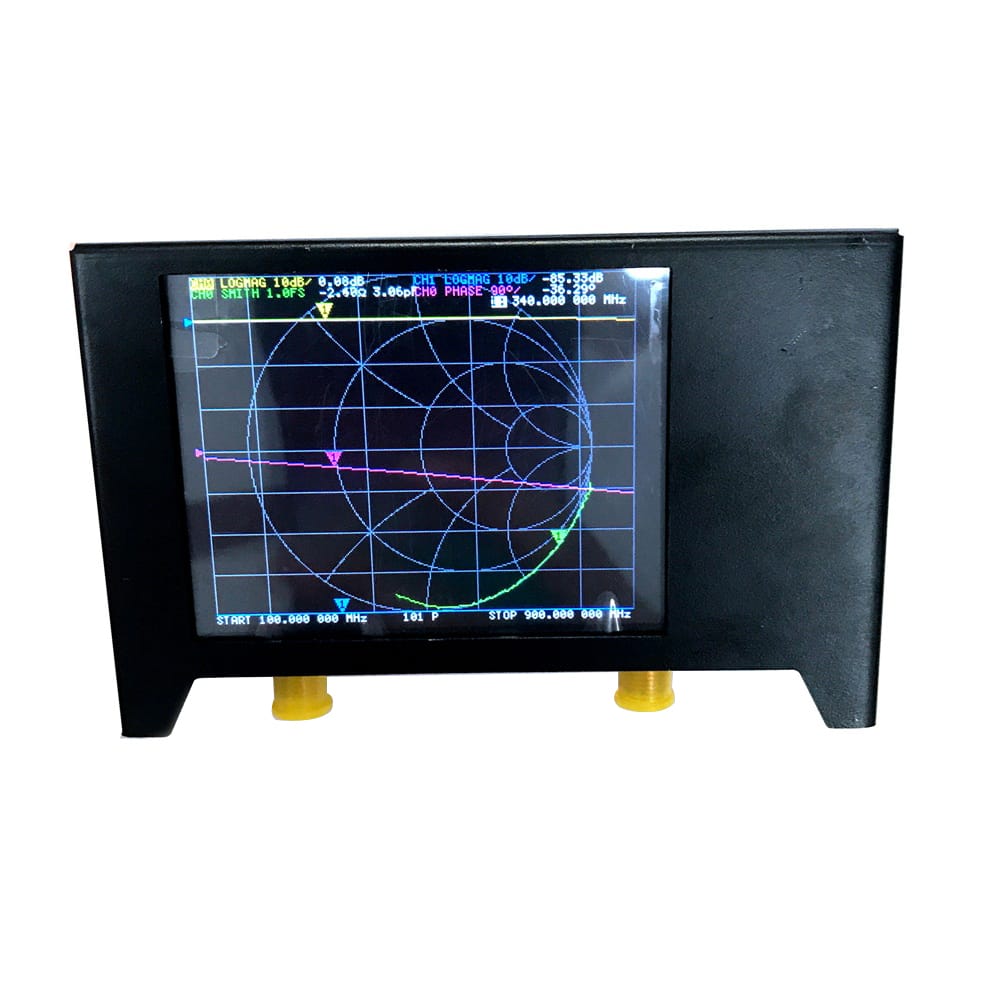

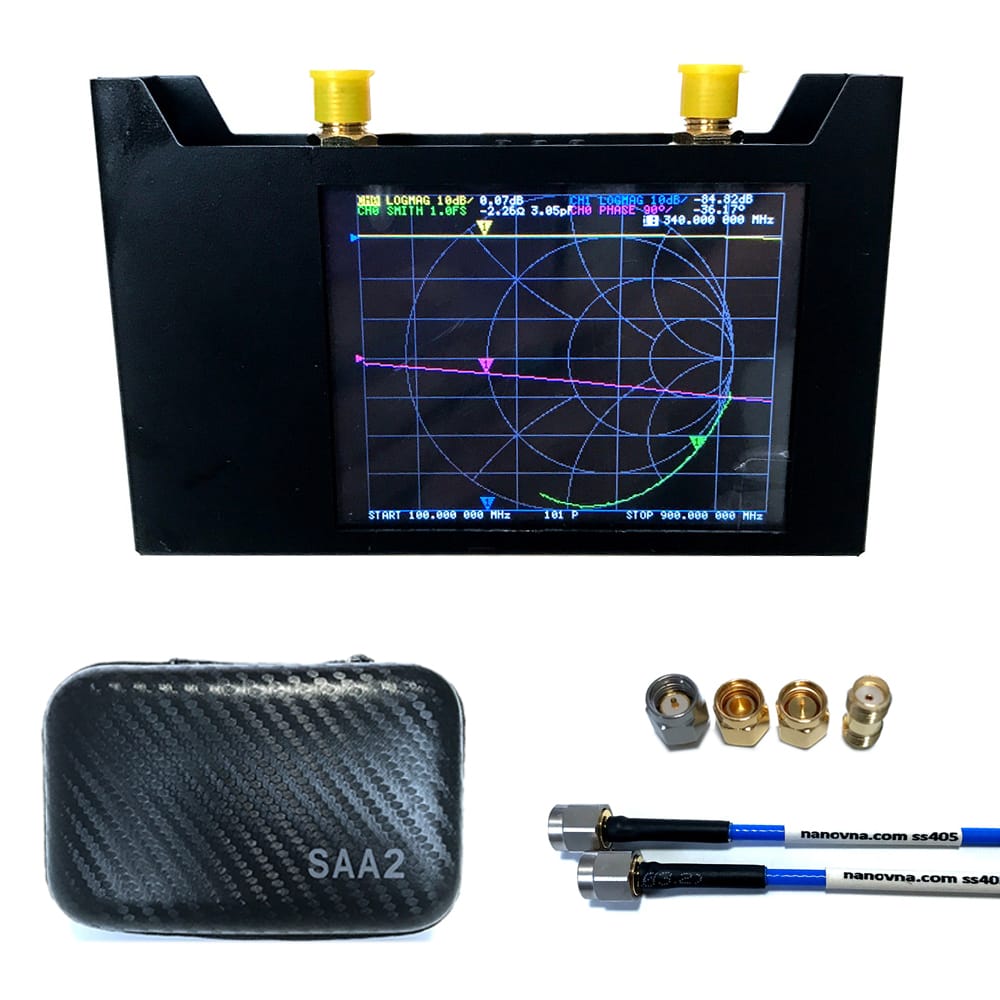

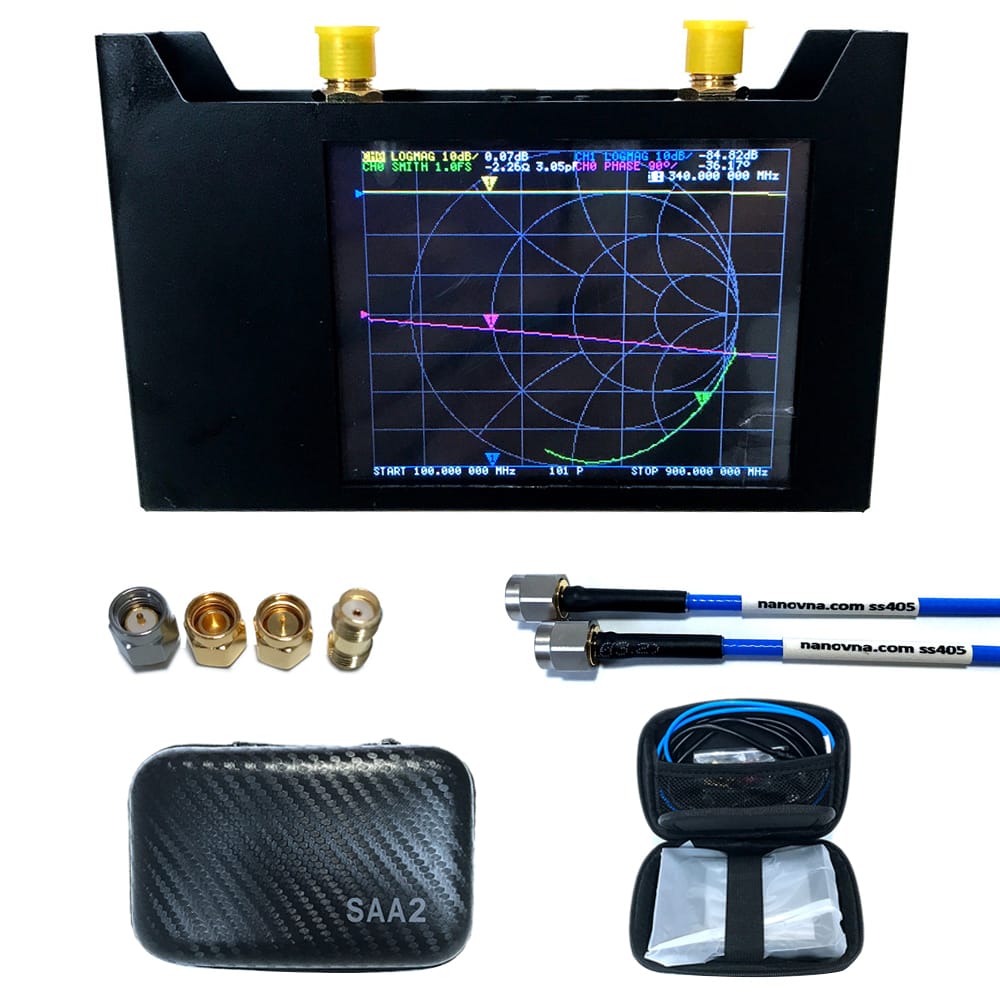

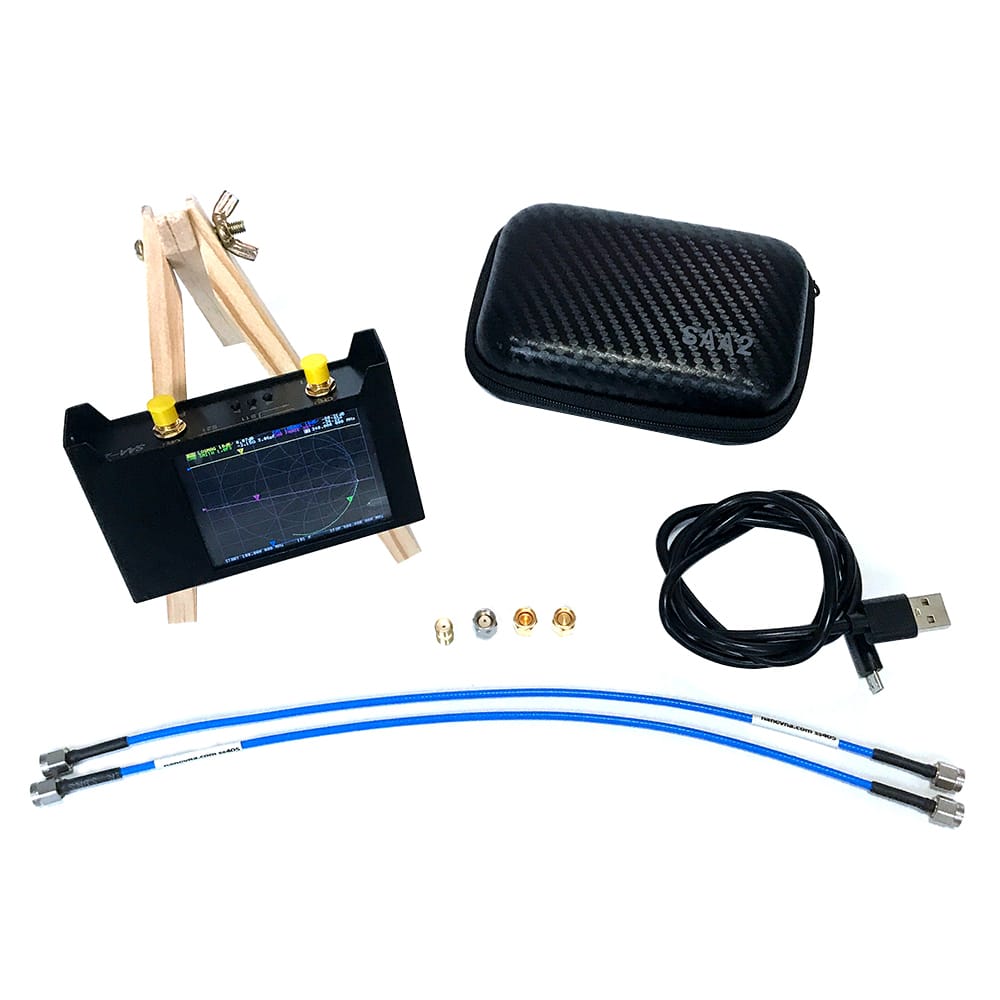

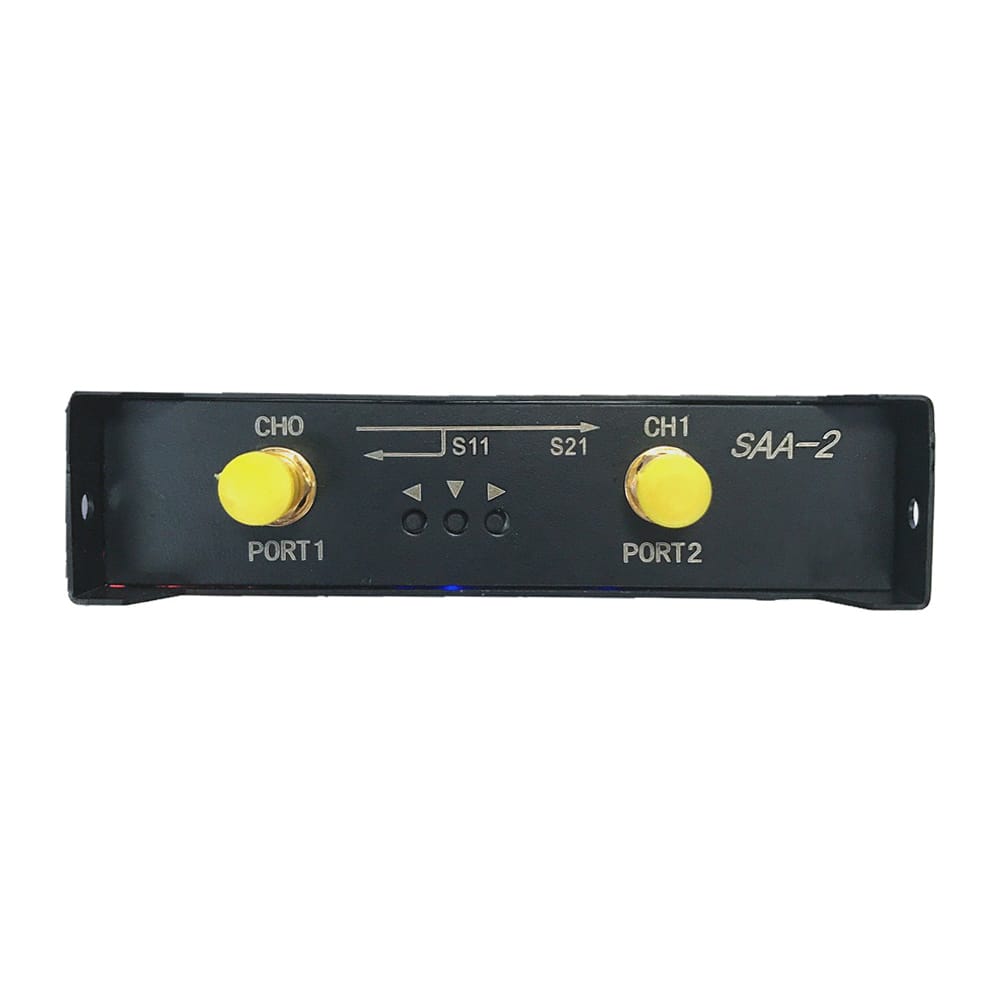

- NanoVNA SAA2 V2 3GHz Vector Network Analyzer Antenna NanoVNA SAA2 V2 3GHz Vector Network Analyzer Antenna
- Description
The S-A-A-2 3GHz vector network analyzer provides perfect vector network measurement capabilities. Simple and practical computer control software you can export touchstone (snp) files to various radio design and simulation software through computer software.Features:Easy to carry and convenient to use.Developed and produced according to lgpl license agreement and based on owocomm design.Does not load the initial calibration data at startup and does not automatically enter the calibration data after the user changes the frequency.After each start and frequency change calibration data must be recalibrated or collected.USB power supply.Specifications:Material: LasticsColor: BlackFrequency Range: 50KHz-3GHzSystem Dynamic Range (calibration): 70dB (up to 1.5GHz) 60dB (up to 3GHz)S11 Noise Floor (calibration): -50dB (up to 1.5GHz) -40dB (up to 3GHz)Scan Speed: 100 points/secondDisplay: 2.8 inches 320x240USB Interface: Micro USBPower Supply: USBMaximum Charge Current: 1ABattery: Lithium Ion 1950mahBattery Connector: JST-XH 2.54mmMaximum Scan Point (on device screen): 201Maximum Scan Point (USB): 1024Port Return Loss 2 (1.5GHz): 20dB typPort Return Loss 2 (3GHz): 13dB minVNA-QT Software Compatible System: Compatible with Linux Win (7+) Mac OS plannedPackage Weight: 365g / 12.87ouncesPackage Size: 160 * 110 * 55mm / 6.3 * 4.33 * 2.17inPacking List:1 * S-A-A-2 Host (built-in 1950mah battery)1 * USB Data Cable2 * 300mm SMA Male to SS405 Male RF Cable1 * SMA Simple Calibration Set OPEN1 * SMA Simple Calibration Set SHORT1 * SMA Simple Calibration Set LOAD1 * SMA Female to Female Connector1 * EVA Storage Bag1 * Plectrum
