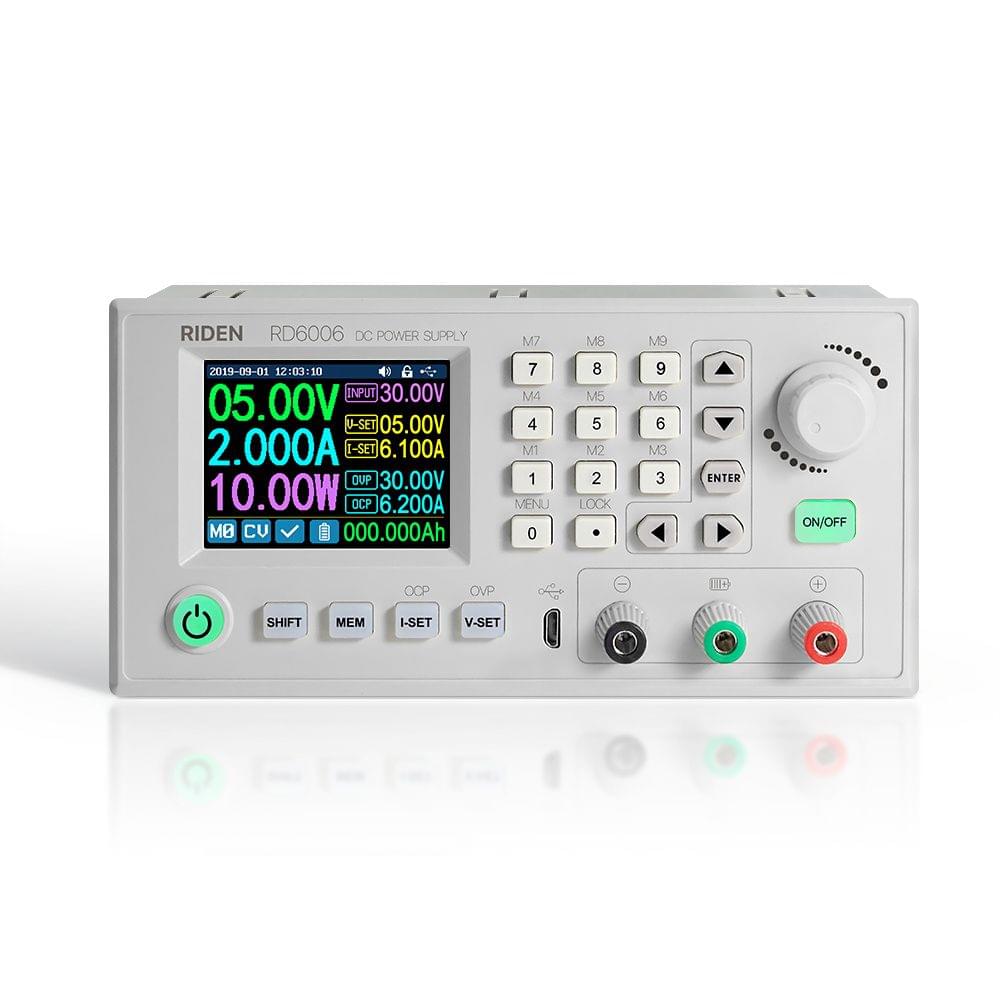

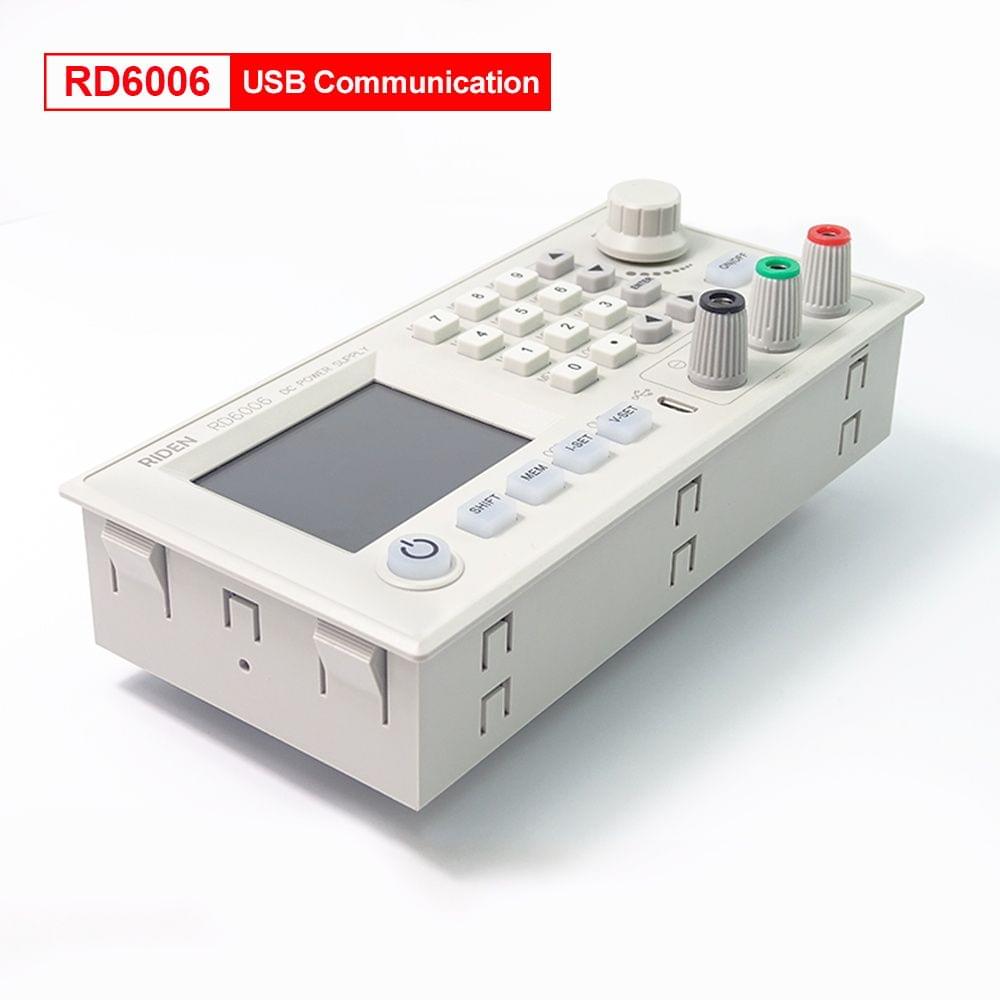

RD6006 USB DC-DC Voltage Current Step-down Power Supply - 1

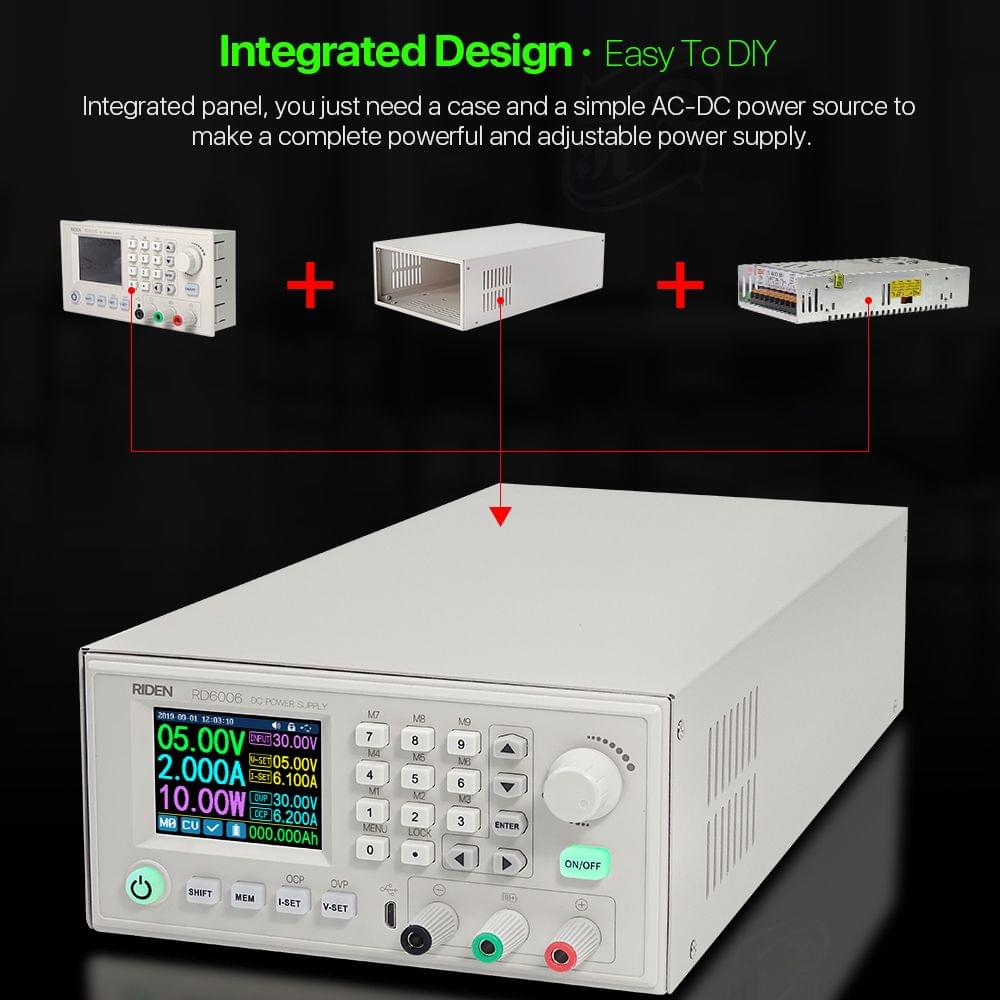

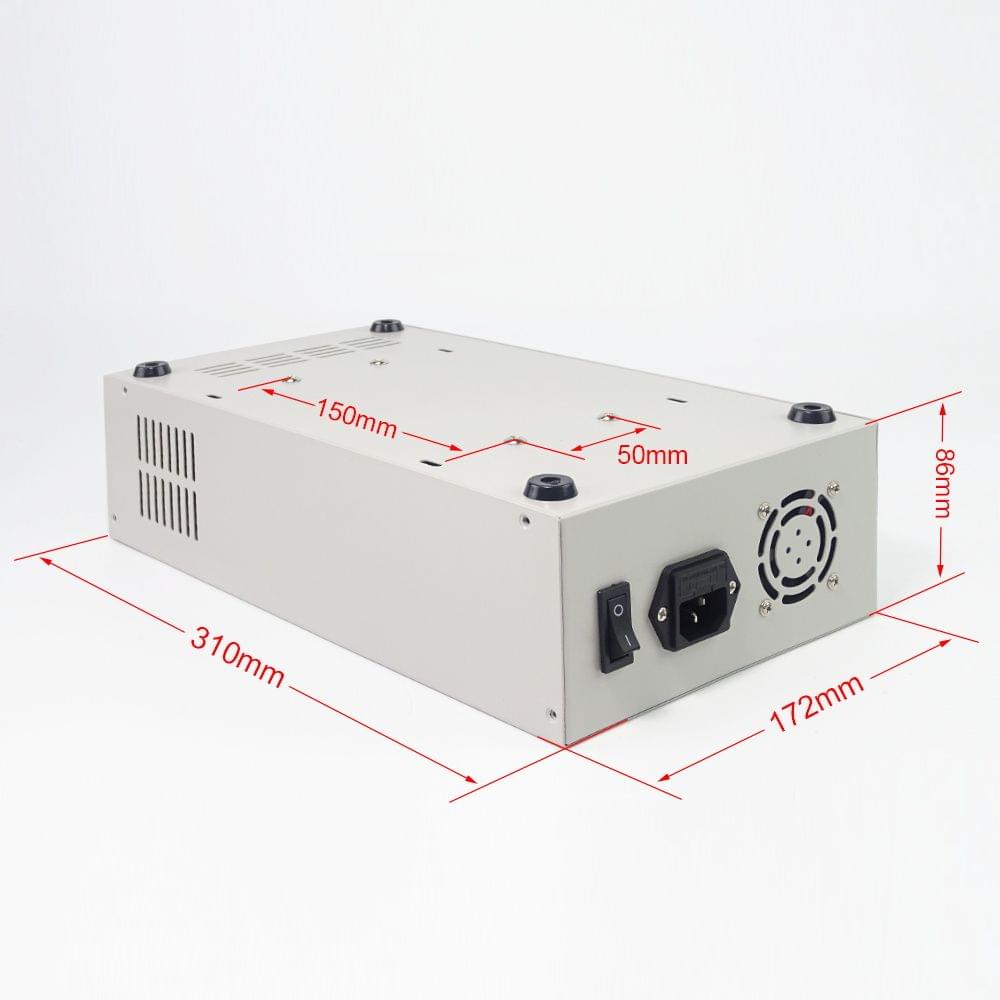

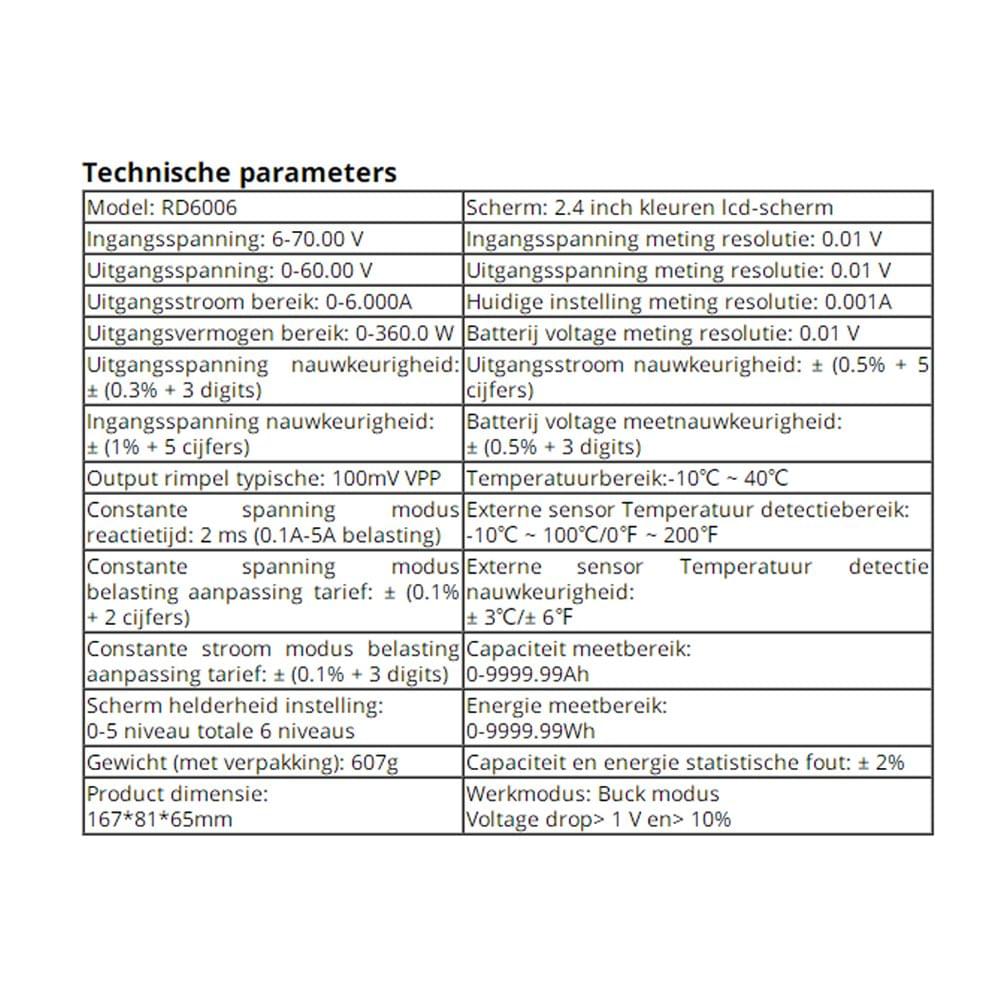

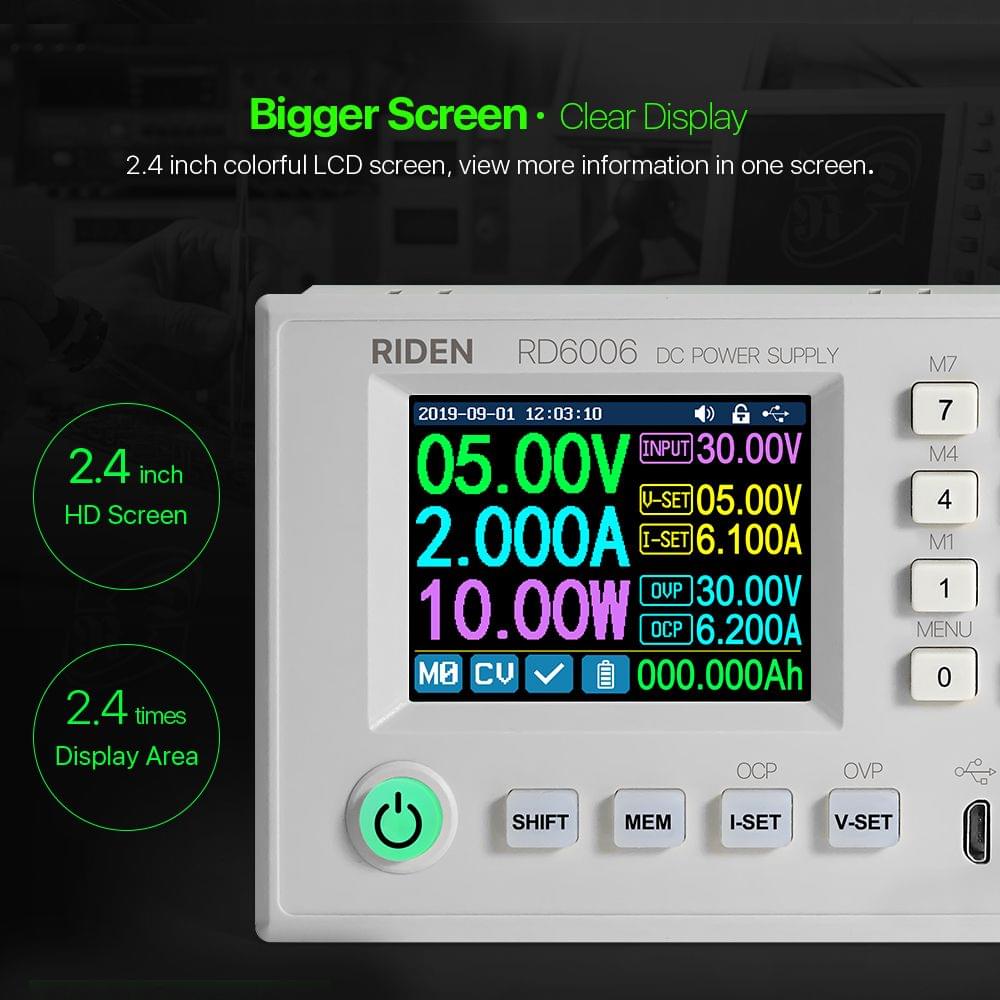

Made of fine quality material practical easy to operate and use wide application range has a long service life.Features:There are two versions of the RD6006: RD6006 and RD6006-W RD6006-W has WIFI board and RD6006 does not. The RD6006-W can be connected to the APP and software using the WIFI board or it can be connected to PC solftware using a USB micro cable. The RD6006 does not have a WIFI board. It can support PC software only through a USB micro cable connection APP is not supported.For PC software only Win 7 and higher are currently supported. For APP it only supports android 5.0 and higher.For the S06A housing this is just a housing and does not contain any power supply but it is suitable for RD6006 RD6006-W and AC-DC 400W 60V switch power supplies.Integrated panel you only need one housing and a simple AC-DC power source to make a complete powerful and adjustable power supply.Specifications:Material: ABSColor: whiteType: RD6006 RD6006W S06A housing (optional)Display screen: 2.4 inch color LCD displayInput voltage range: 6-70.00VInput voltage measurement resolution: 0.01VOutput voltage range: 0-60.00VOutput voltage measurement resolution: 0.01VOutput current range: 0-6.000ACurrent setting measurement resolution: 0.001AOutput power range: 0-360.0WBattery voltage measurement resolution: 0.01VOutput voltage accuracy: (0.3%+3 digits)Output current accuracy: (0.5%+5 digits)Input voltage accuracy: (1%+5 digits)Battery voltage measurement accuracy: (0.5%+3 digits)Output ripple typical: 100mV VPPConstant voltage mode response time: 2ms?0.1A-5A load?External sensor temperature detection range: -10?~100?/0?~200?External sensor temperature detection accuracy: 3?/ 6?Constant voltage mode load adjustment rate : (0.1%+2 digits)Constant current mode load adjustment rate: (0.1%+3 digits)Capacity measurement range: 0-9999.99AhScreen brightness setting: 0-5 level total 6 levelsEnergy measurement range: 0-9999.99WhCapacity and energy statistical error: 2?Working mode: buck mode voltage drop 1V and 10%Working temperature range: -10?~40?Power supply size: 167 * 81 * 65mm / 6.6 * 3.2 * 2.6inPackage size:Power supply: 242 * 114 * 94mm / 9.5 * 4.5 * 3.7inHousing: 365 * 260 * 130mm / 14.4 * 10.2 * 5.1inPackage weight:Power supply: 610g / 1.3lbHousing: 1430g / 3.2lbAll RD6006 instruction and housing installation instruction download link:1. RD6006(W) operation instructon PC software instruction APP instruction APP and PC software download link:A: Main download llink: https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5vB: Back up download link: http://www.ruidengkeji.com/rddata/RD6006/RD6006.rar2. APP Google download: search RdPower to download3. RD6006 and S06AS housing assemble instruction: https://drive.google.com/open?id=1Bb6Mq3Mp7AGkd6yxwzPqwtv54dozZ4zR4. RD6006/RD6006W operation instruction video: https://youtu.be/fn6ROhGrLtINote:RD6006 and RD6006W do not contain a housing.Packing List: (optional)1 * RD6006 Digital Control Power Supplyor1 * RD6006W Digital Control Power Supplyor1 * S06A Housing
