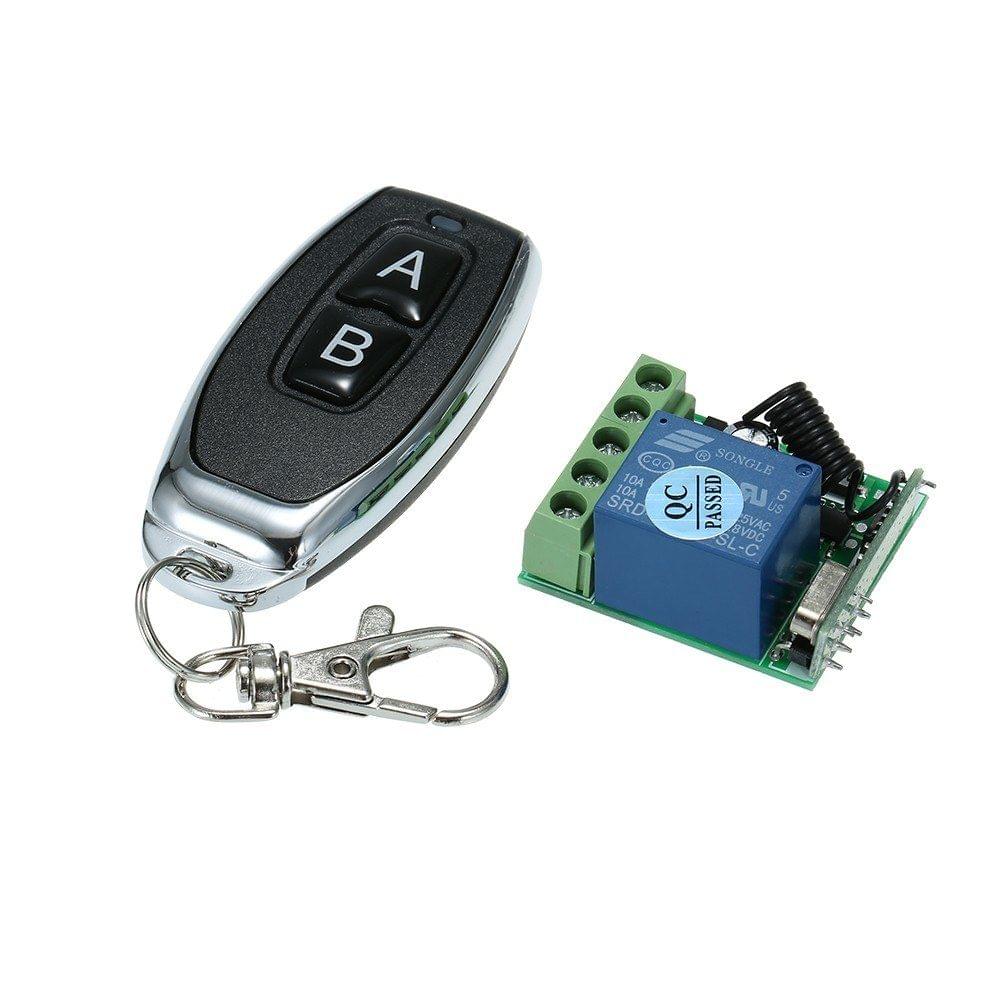

Universal Wireless Remote Control Switch

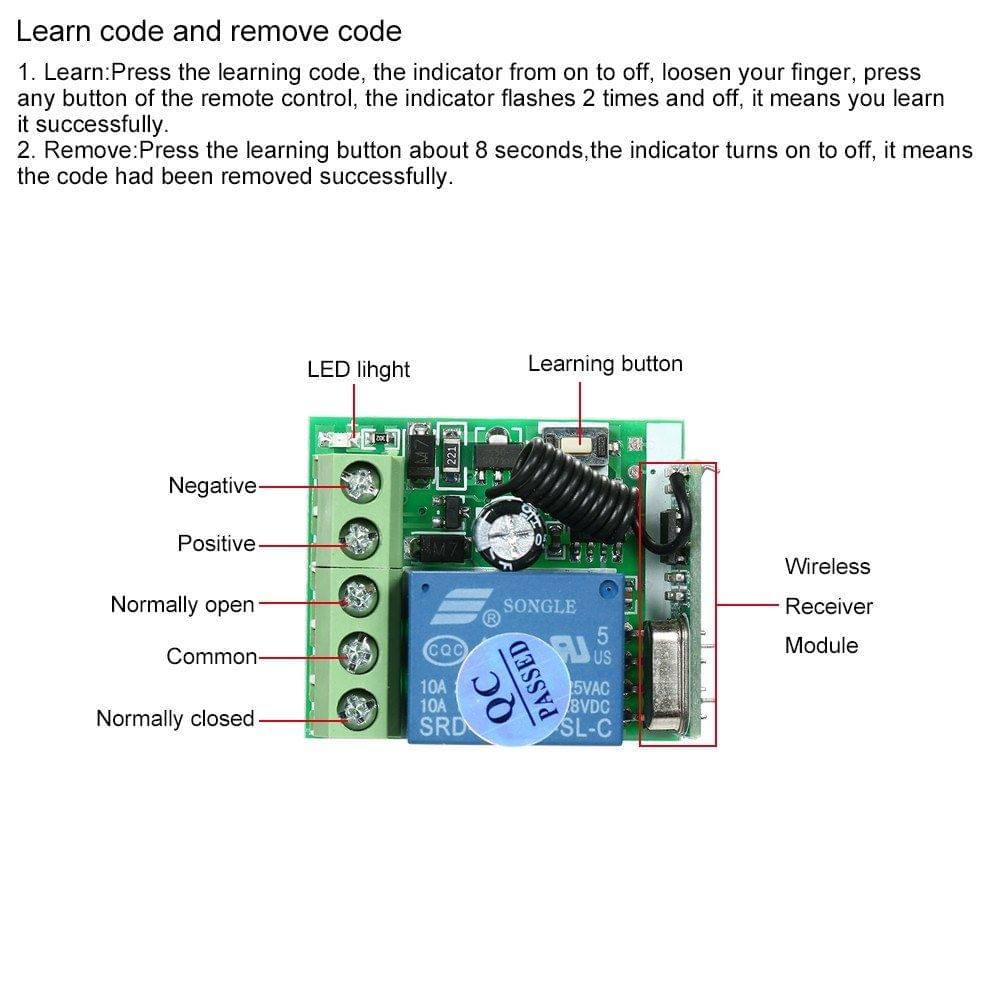

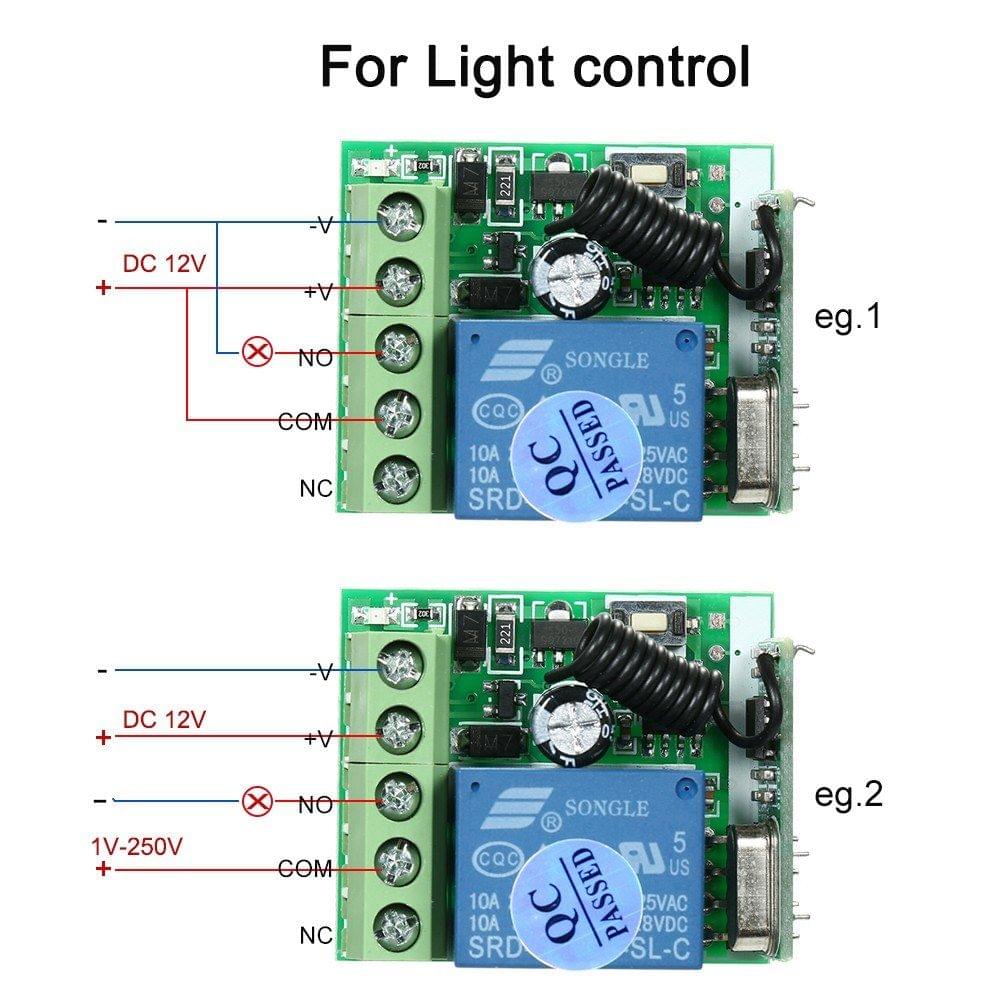

Features: *Very convenient to use, simple wiring diagram connection way.  *Support remote control up to 19 pieces. It can connect to the electronic control lock, light, electric curtain, etc. So that it can remote unlock the door, close the light, open or close the curtain, etc.  *Super small body, and it occupies less space. The receiver board size is only about 3.5*3*3cm. *The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need. *Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.) Specifications: Input Power: DC10V-14V Standby Current: <5MA RF Frequency: 433MHz RF working mode: superheterodyne reception Receive sensitivity: -108dbm Transmitting distance: 100m （open area） Decoding mode: MCU software decoding  Remote control storage: up to 19 PCS Working mode: Momentary, Toggle, Latching  Wiring type: fixed terminal Output Terminal: NO , NC , COM Remote Control battery: 1*12V 23A (included) Supporting Remote Control Type: learning code (1527 chip) ; fixed code  Receiver Board Size: Approx. 3.5*3*3cm/1.37*1.18*1.18in Fuse Box Size: 4*3.7*2.7cm/1.57*1.45*1.06in Package Size: Approx. 11*8*3cm/4.33*3.15*1.18in Package Weight: Approx. 58g/2.01oz           Package List: 1* Receiver Board 1* Fuse Box  1* Remote Control
