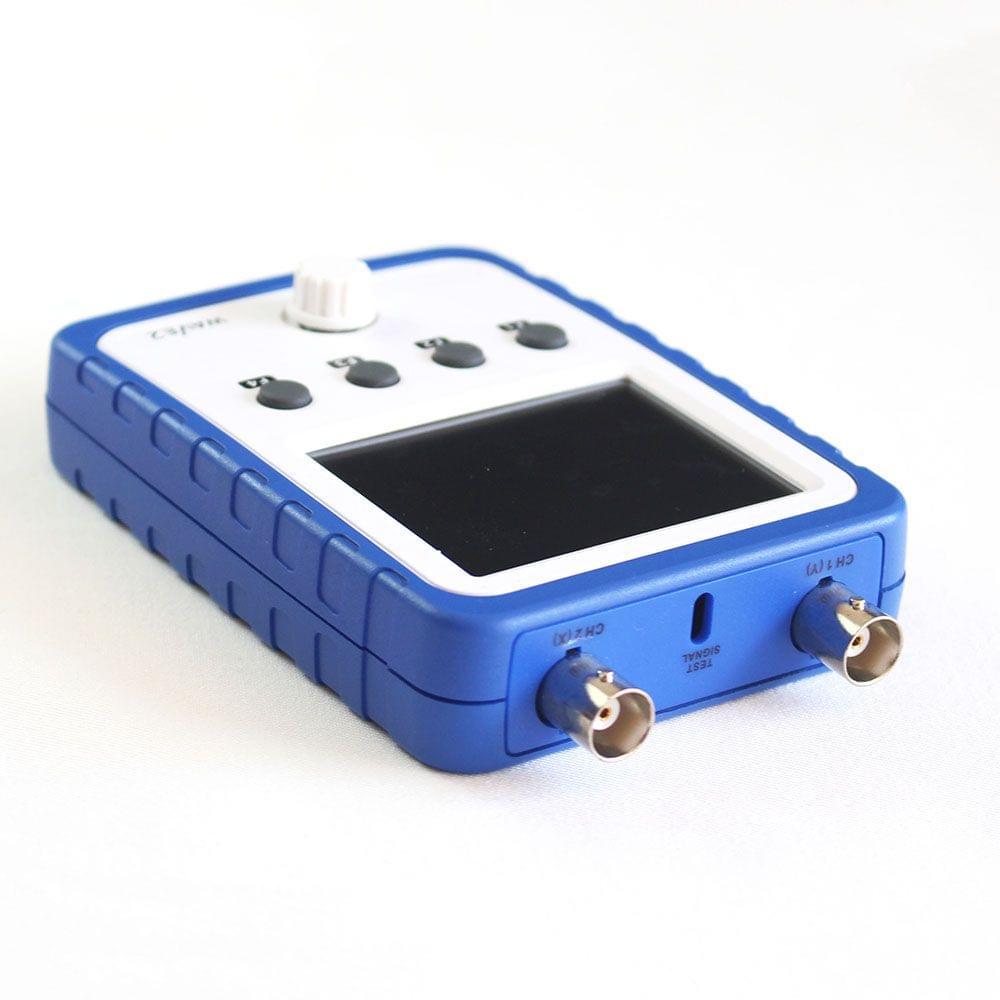

WAVE2 2.4" Handheld Pocket-size Digital Oscilloscope Touch

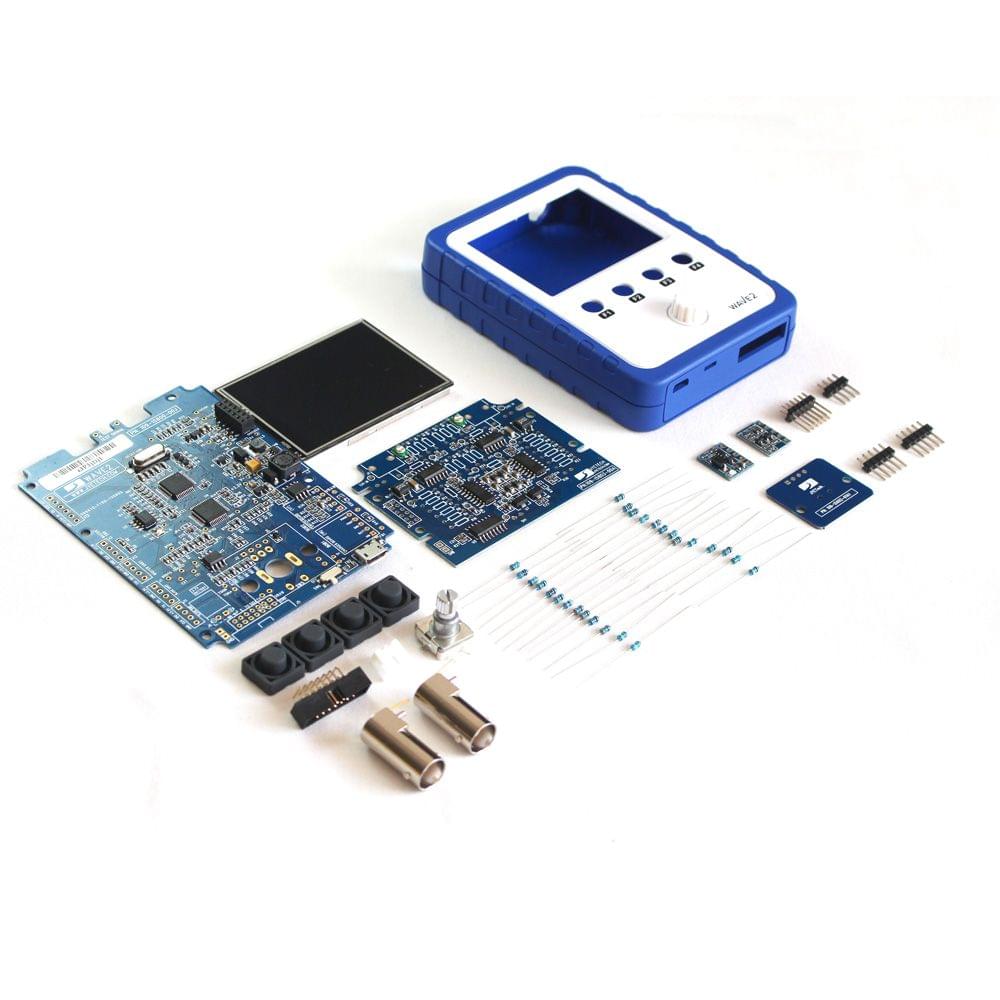

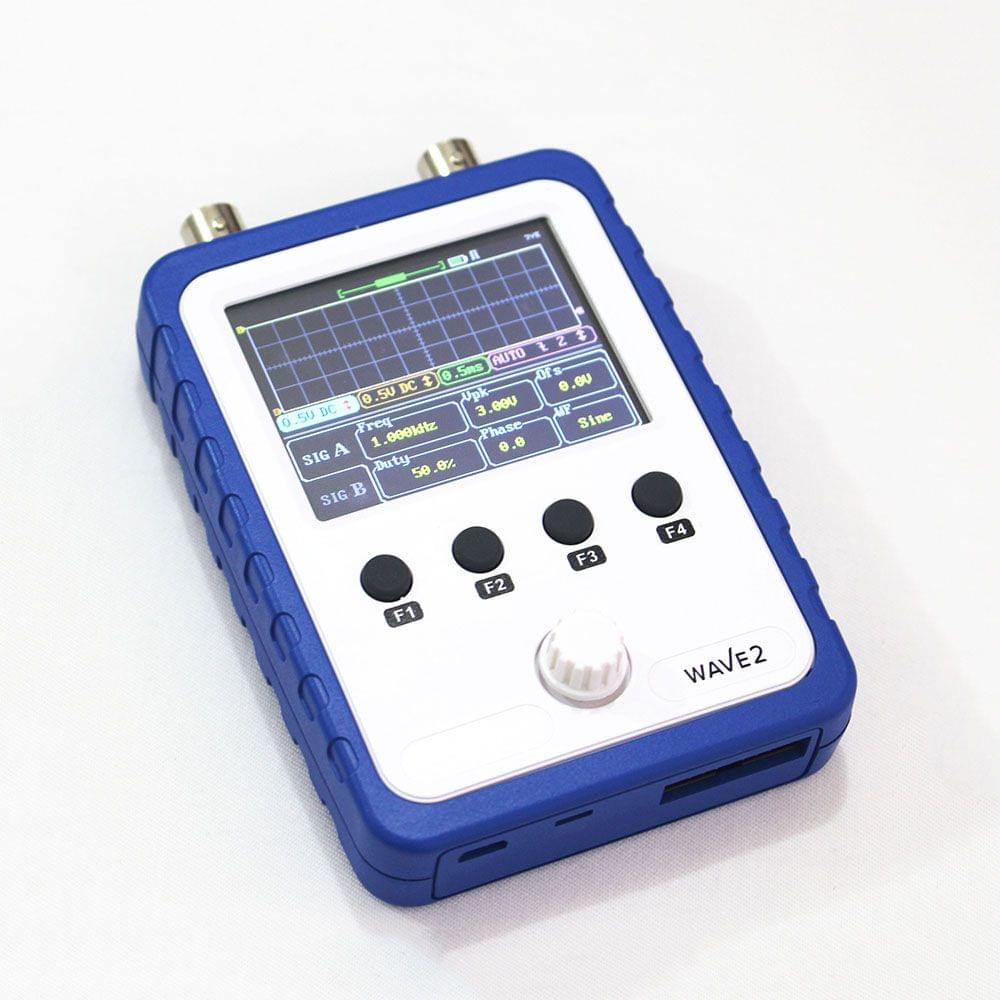

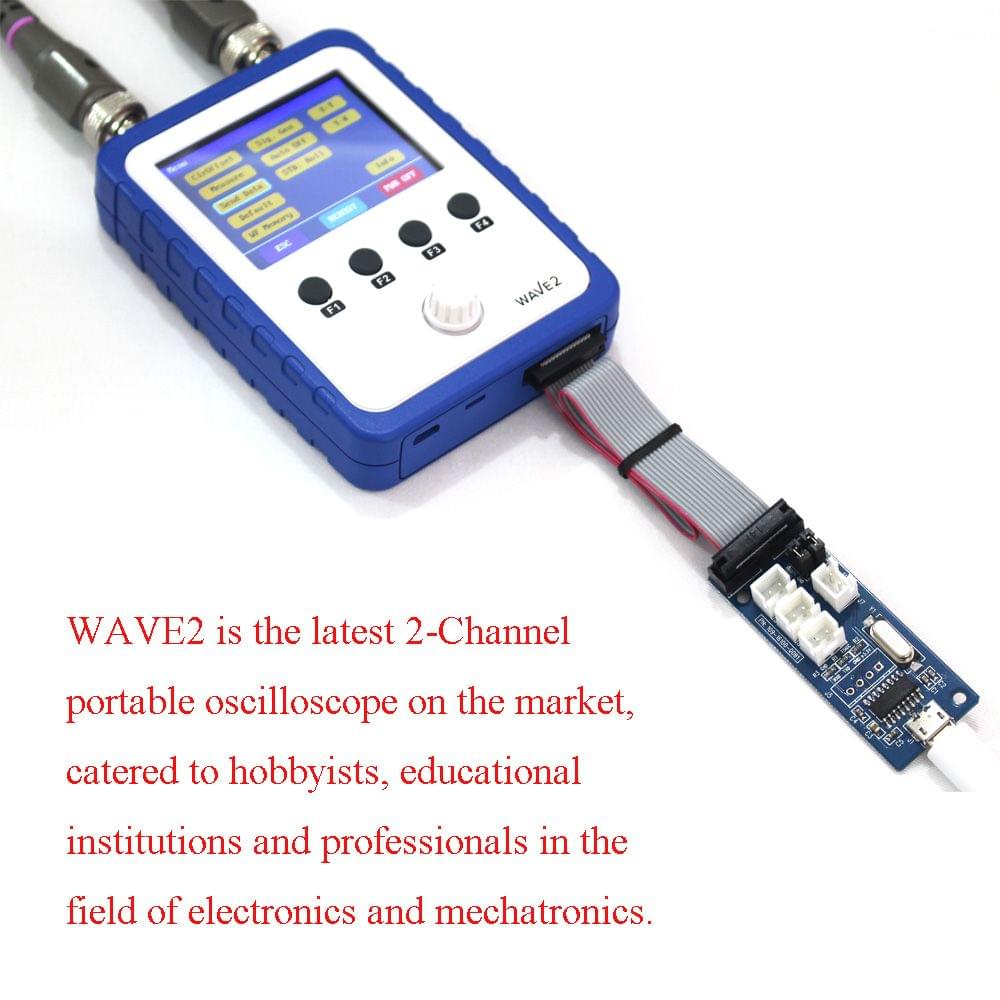

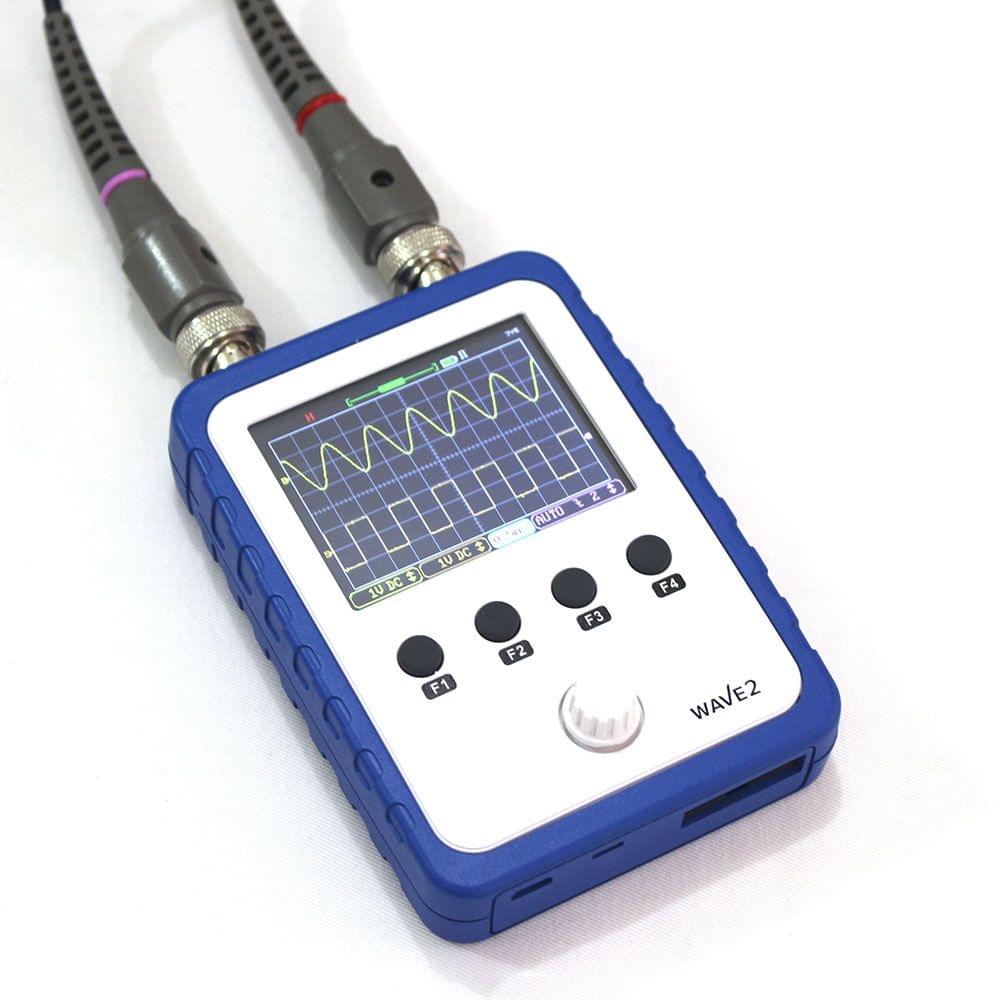

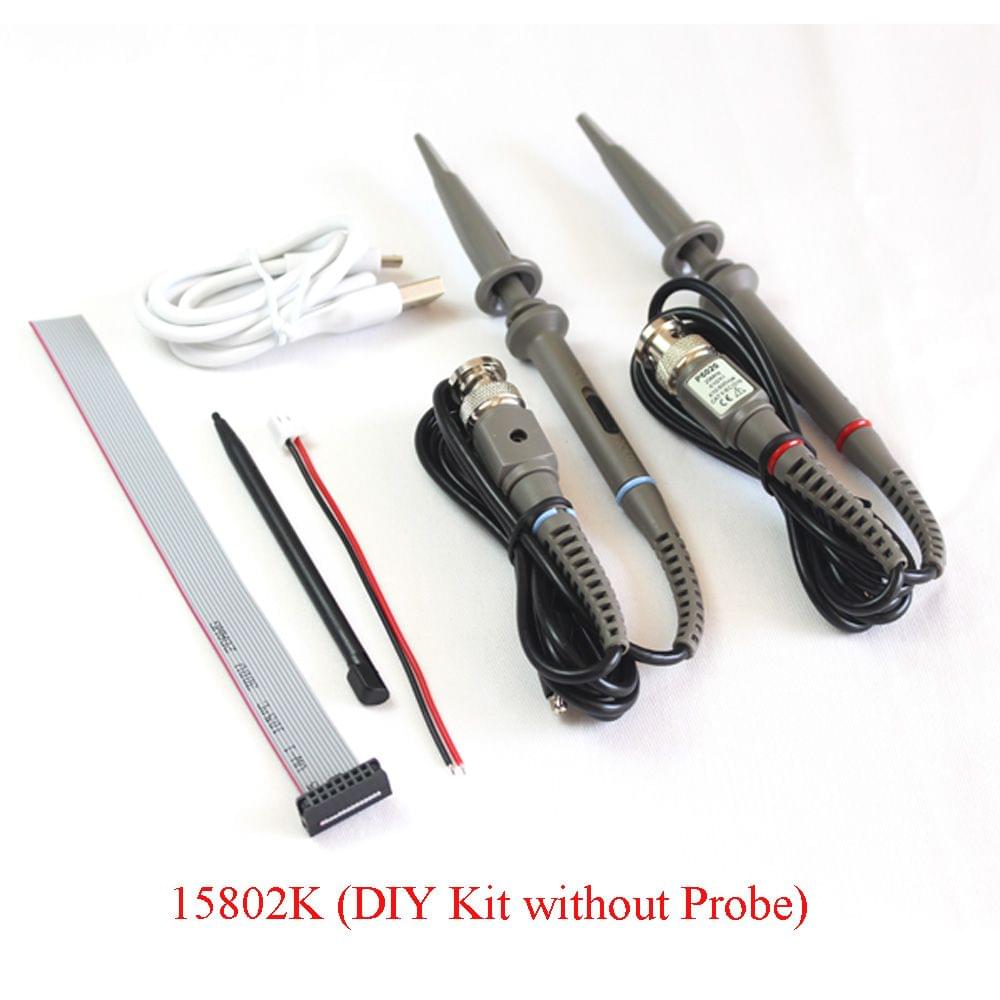

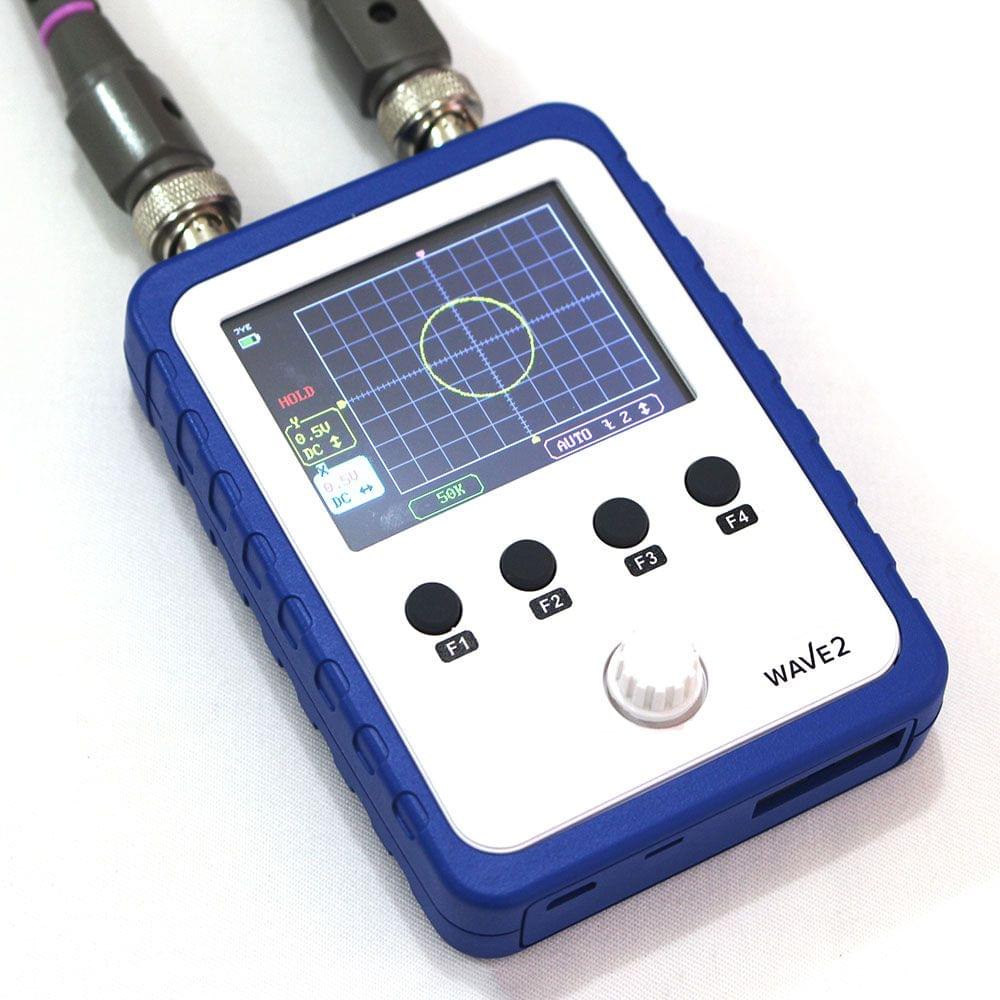

WAVE2 is the latest 2-Channel portable oscilloscope on the market catered to hobbyists educational institutions and professionals in the field of electronics and mechatronics. Featuring a bright and easy-to-use color touch screen display with access to many features only advance oscilloscopes offer such as built-in function generator and X-Y plotting. With an optional battery it is portable enough to be taken wherever the jobs that need to be done is. Its an exciting project for any DIY-er or can be purchased fully assembled for those who are looking to start using it right away. It comes with everything you need out of the box with a micro-USB cable and two high-quality BNC probes. Enjoy and start creating!Features:Latest 2-Channel portable oscilloscope on the market catered to hobbyists.2.4-inch color LCD with 320*240 touch displays parameters clearly.0 200KHz bandwidth and 1MS / s Max. real-time sampling rate.Vertical sensitivity is 5mV/DIV 20V/DIV (using x1 probe) high accuracy low noise.Built-in function generator and X-Y plotting.Improvements in power supply and mechanical structure it can run on USB or a single cell 3.7V Li-ion battery.Specification:Type: 15801K (DIY Kit with Probe) / 15802K (DIY Kit without Probe) / 15801 (Assembled Kit) (Optional)No. of Channels: 2Bandwidth: 0 200KHz per channelSensitivity Range: 5mV/DIV 20V/DIV (using x1 probe)Maximum Input Voltage: 50Vpk (using x1 probe)Maximum Real Time Sampling Rate: 1MS/sTime Base Range: 10us/DIV 500s/DIVX-Y Display Feature: YesFunction Generator Capability: Built-in 0 20KHz (sine) dual channel DDS function generatorDisplay Resolution: 320 x 240 Color displayDisplay Size: 2.4Touch Display Capability: YesBattery powered and portable (battery not included in DIY Kit)Important Notes:Before beginning to work on the WAVE2 DIY kit please make sure you have all the tools ready and some soldering experience. Handle soldering iron and all components with care and keep out of reach from children.General:2.4 320x240 color displayTouch panel operationY-X mode availableBuilt-in 2-channel DDS function generatorLight weight and portableVertical:Number of Channel: 2Analog Bandwidth: DC 200KHzSensitivity: 5mV/Div - 20V/Div (with x1 probe)Sensitivity Error: 5%Resolution: 12-bitInput Impedance: 1M ohm / 25pFMaximum Input Voltage: 50VpkCoupling: DC ACHorizontal:Max Real-time Sampling Rate: 1Msps (per channel)Timebase: 10us/Div - 500s/DivRecord Length: 1024 pointsTriggerTrigger Modes: Auto Normal SingleTrigger Types: Rising/falling edgeTrigger Position: 1/2 of buffer sizeTrigger Source: Ch1 Ch2 ExternalMaximum External Trigger Voltage: 15VFunction Generator:Number of channel: 2Waveform Type: Sine Square Saw-tooth StairFrequency Range: DC 20KHz (Sine)Amplitude Range: 0 3V (peak value)Offset: 0V or +3.3VDuty Cycle: 0 100%Phase: -360 360 degreePower Supply:Powered on 3.7V Li-ion battery or USBCurrent Consumption: ~300mA @ 3.7 5VInternal battery chargerAutomatic power off on batteryBattery running time: Appr. 3hrs (when fully charged)Other Features:Y-X display modeOn-screen measurement displaySave / recall up to 4 capturesSerial output of captured dataSerial Port Format: LVTTL 115200bps 8N1Built-in 1KHz/3.3V test signaPackage List:1 * WAVE2 Oscilloscope DIY kit1 * 117 Board and 118 Board2 * BNC x1/x10 Selectable Probes1 * Assembly Guide (English)1 * Quick Reference Guide (English)
