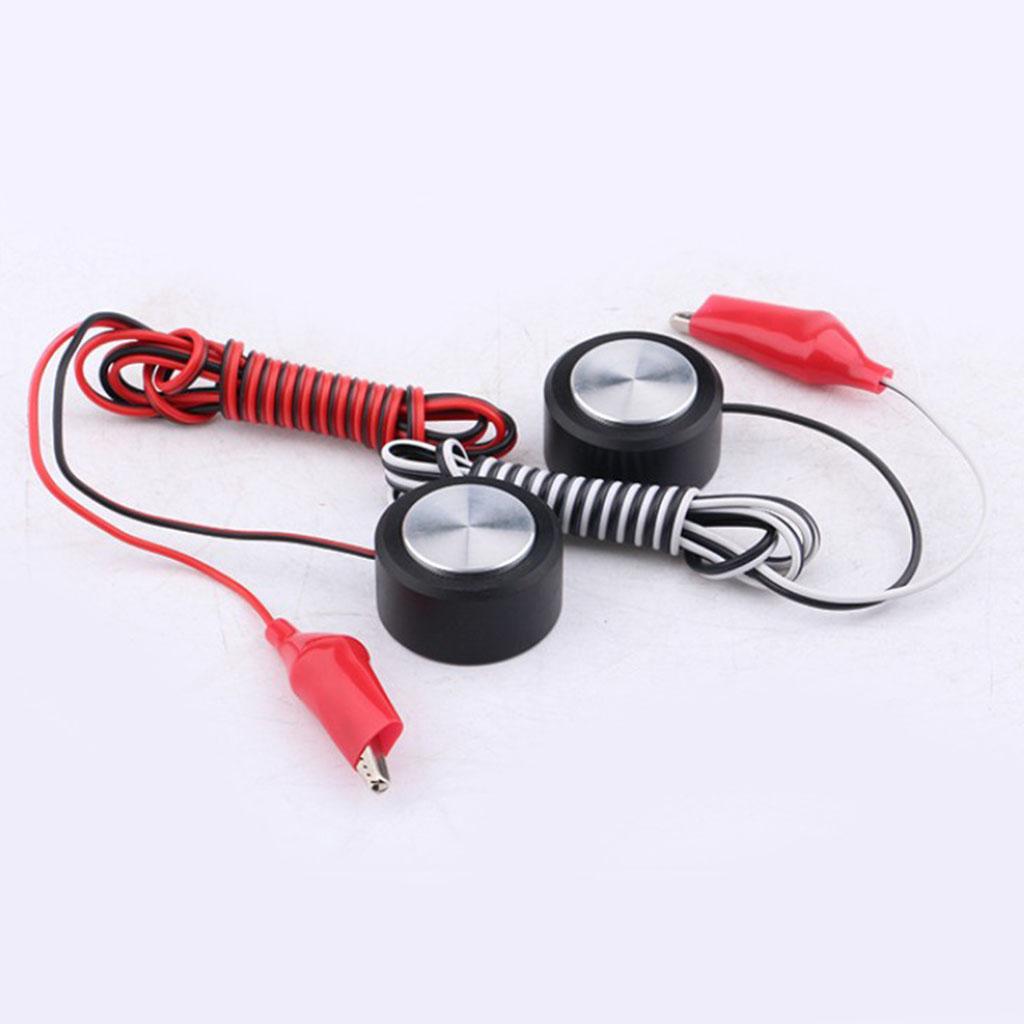

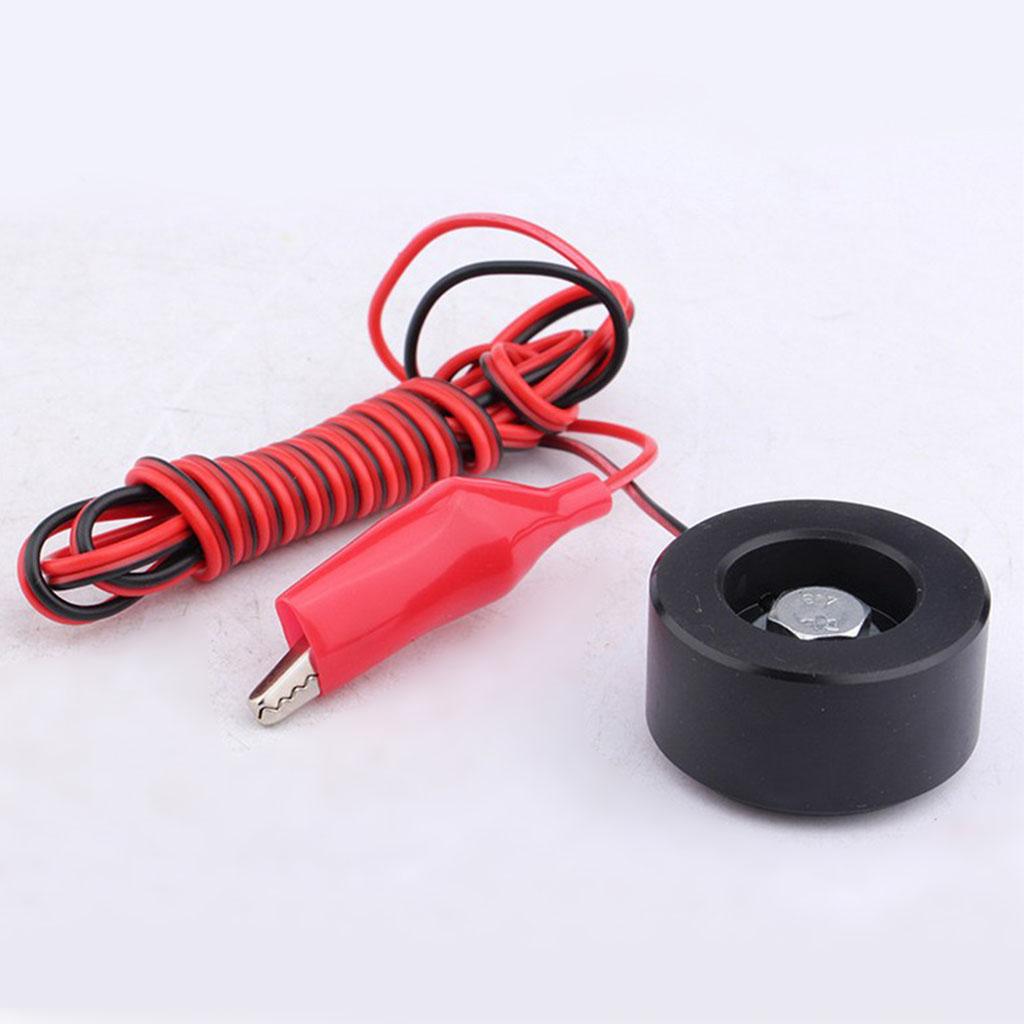

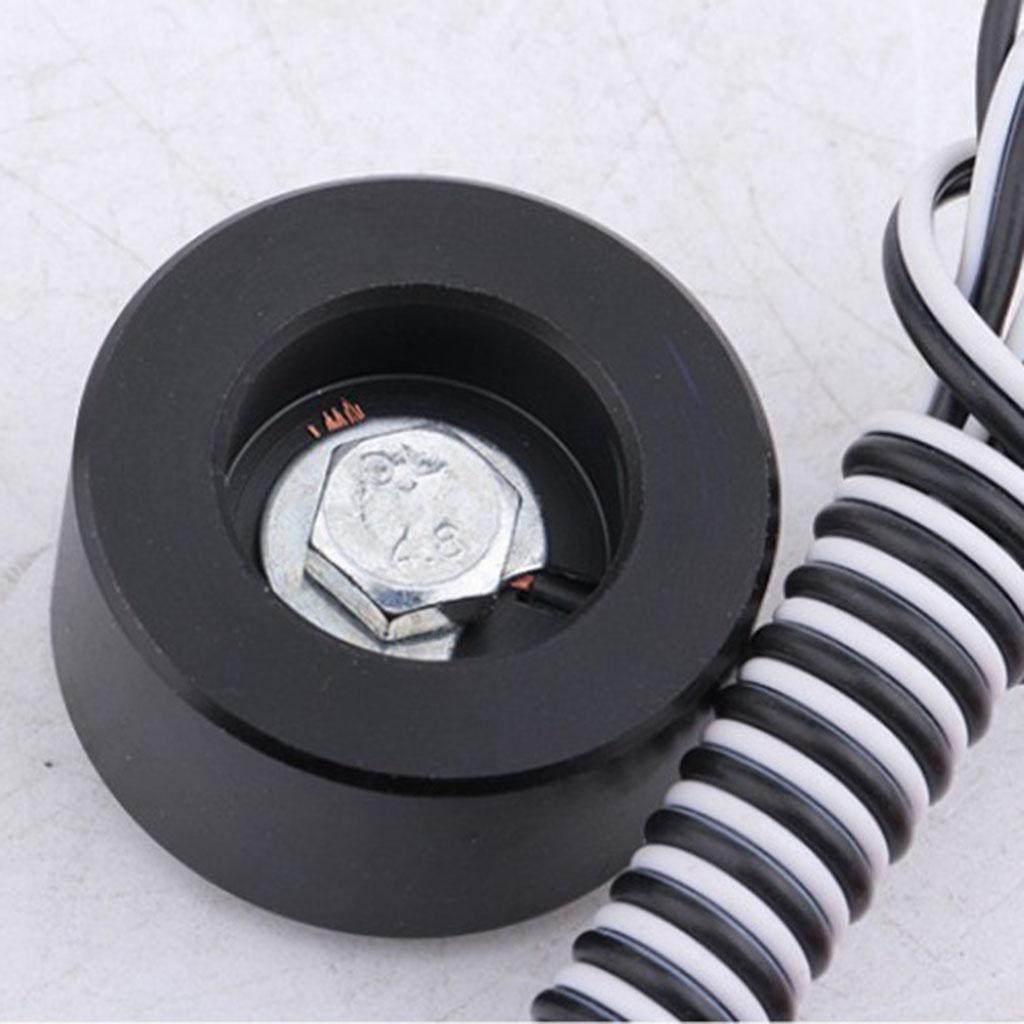

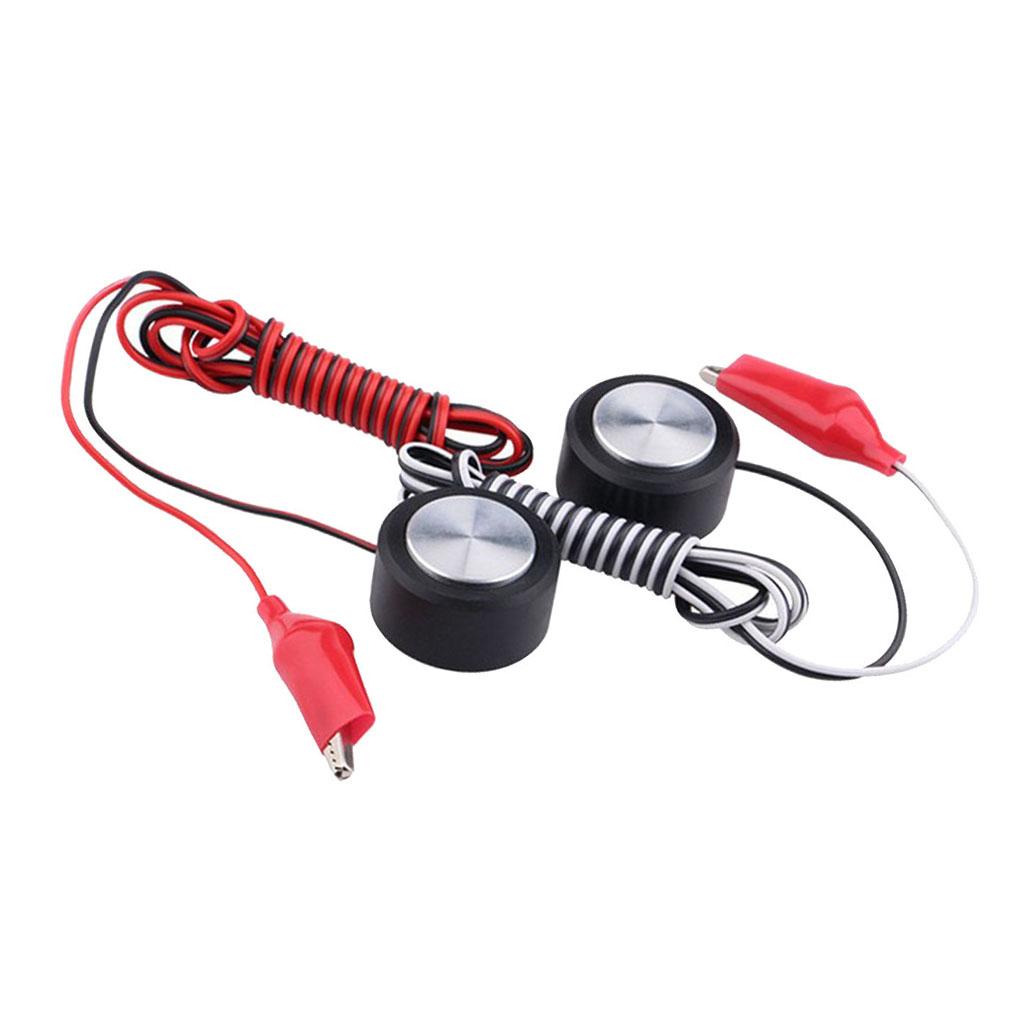

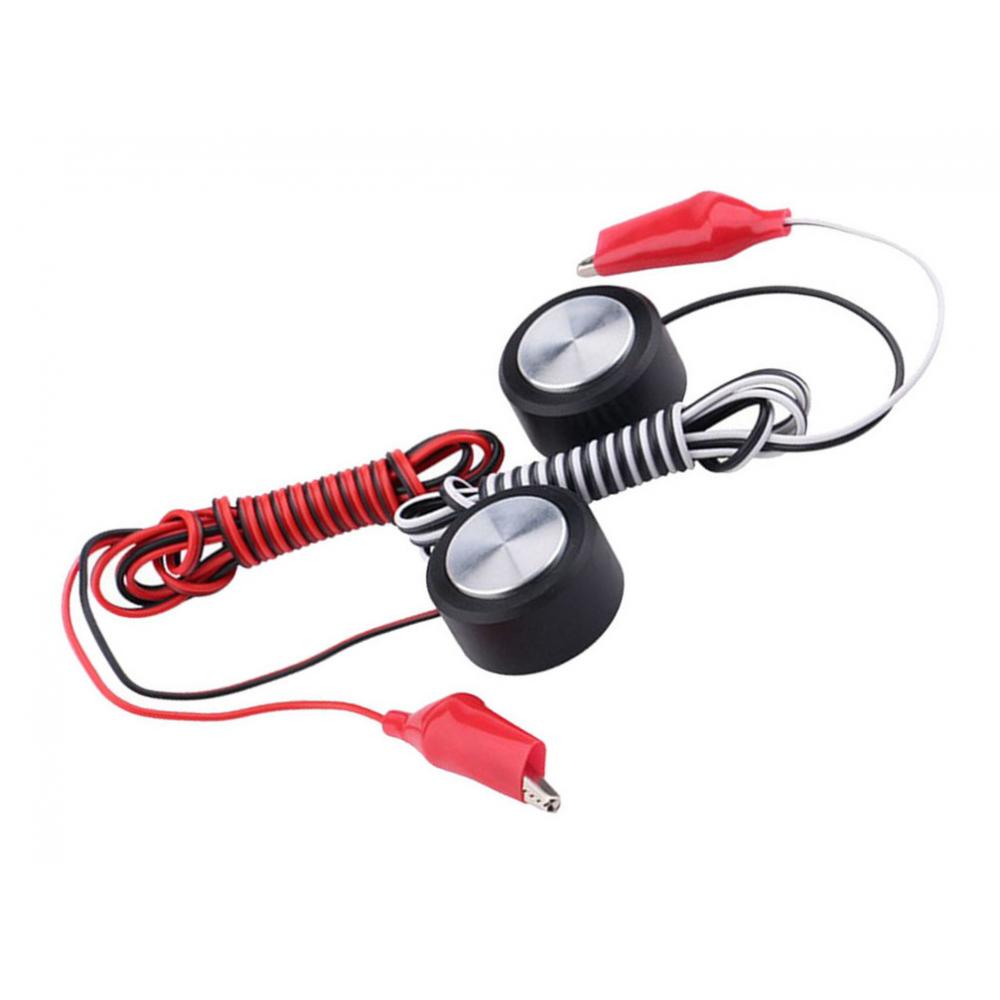

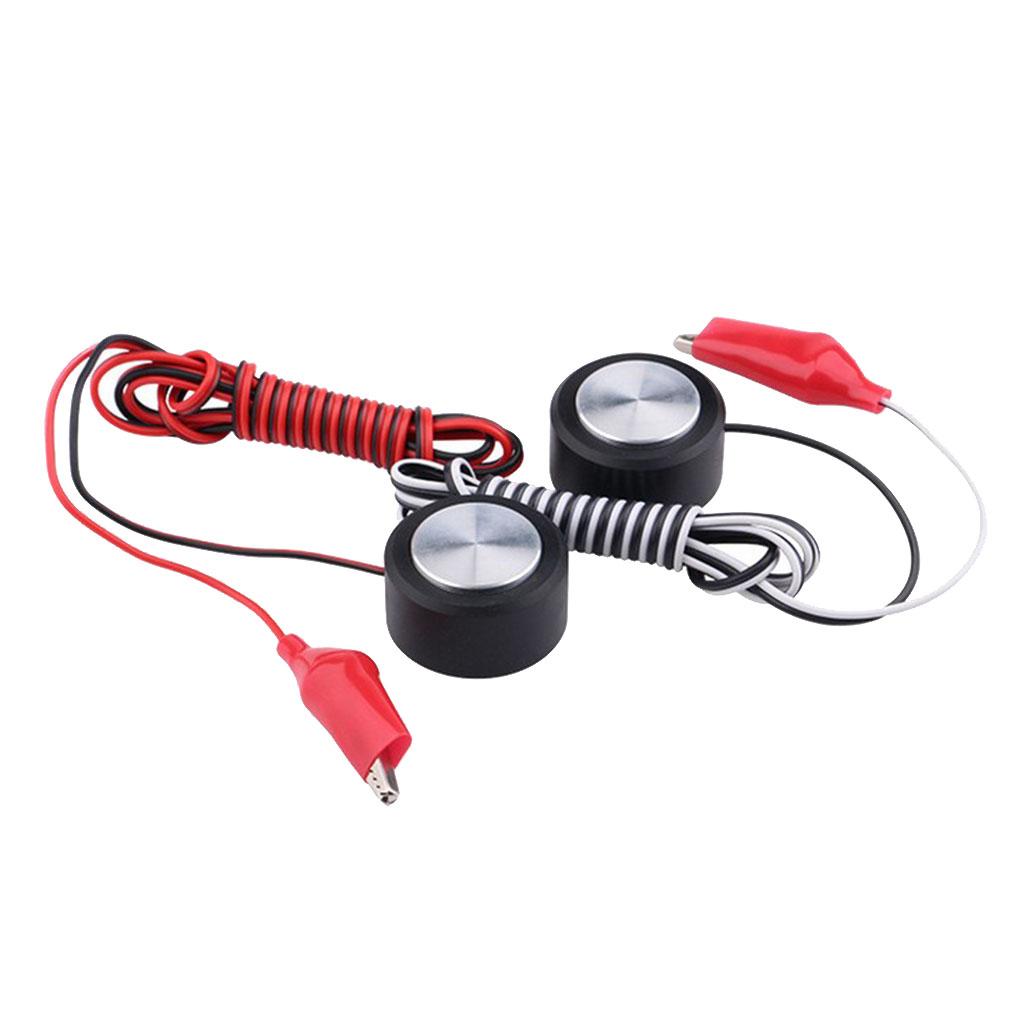

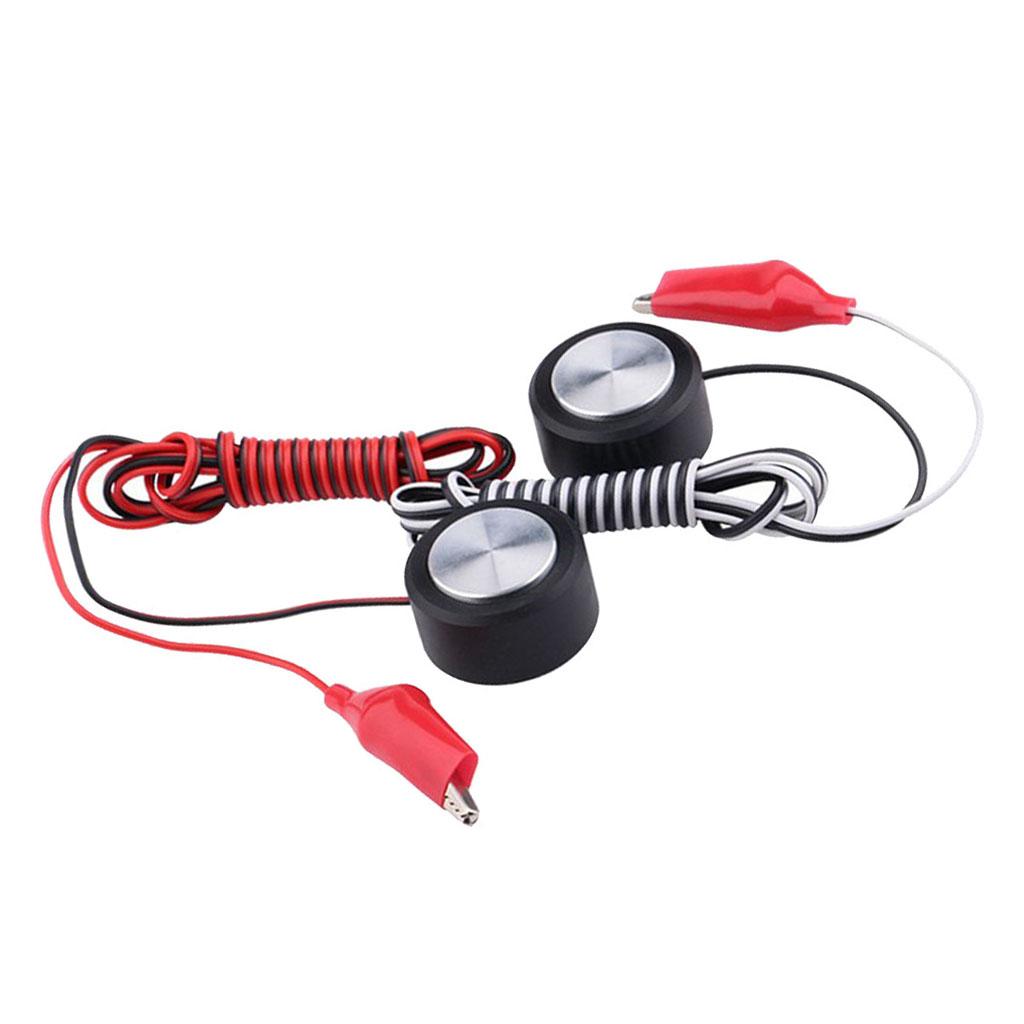

Z Axis Router Mill Touch Plate Tool Setting Milling CNC with Alligator Clips

Description:

The red wire is connected to the control card to the signal

The black wire is connected to the control card G

Wires on the knife on the dashboard tool interface, connecting Alligator Clips and the ground of the control panel. (Alligator clips can be attached to the spindle, but make sure the spindle and Board ground connection). When access to the tool, tool process is complete.

Easy to install and use. High precision, smooths surface, exquisite design.

Practical and useful tool for engraving machine.

Specification:

Materil: Steel

Size: approx. 35x18mm/1.38x0.71inch

Package Includes:

1 x CNC Z-Axis Tool Setting Touch Plate

Note:

When you connect the tool after you start device (do not start the spindle motor). Don't be too quick to Alligator Clip on the spindle, first with Alligator Clip point knife, see if z-axis tool moves. Sure no problem then clip on the spindle, realizing the auto cutter.
