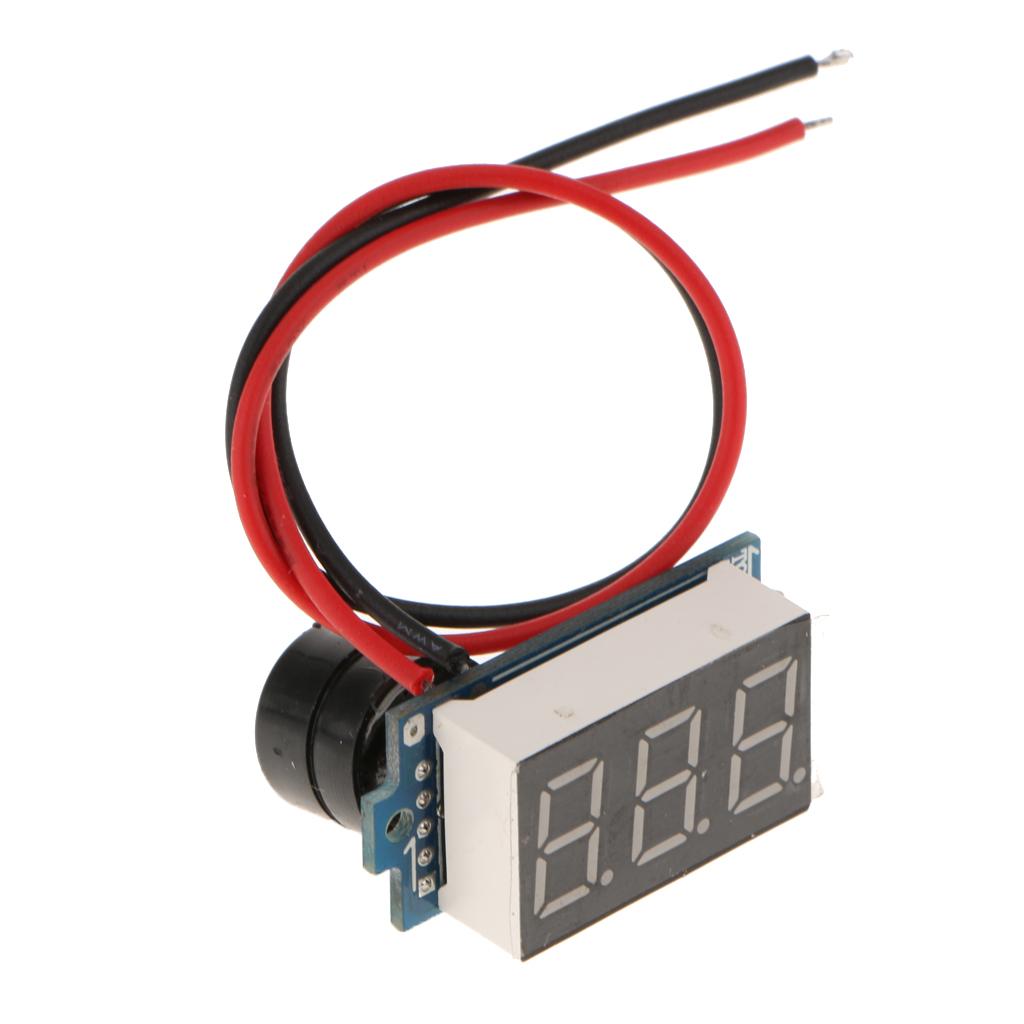

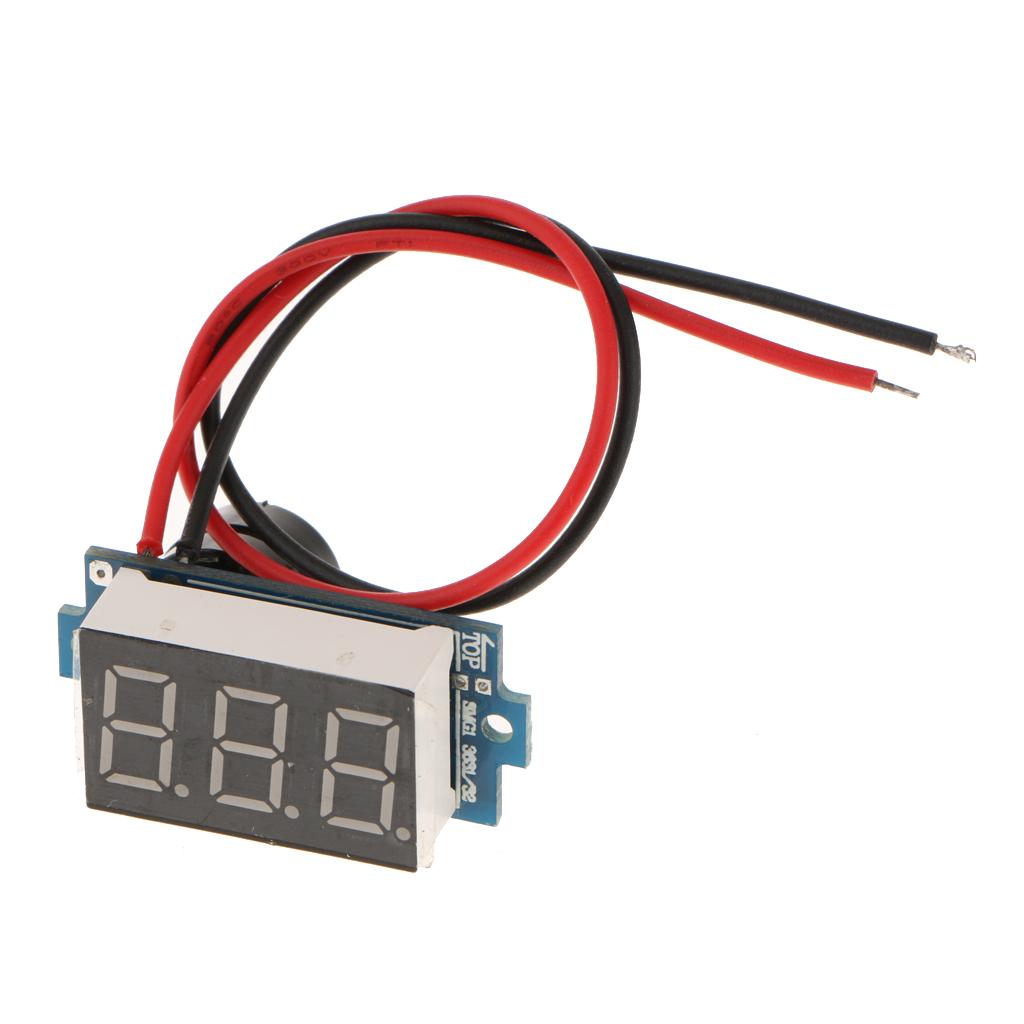

0. 36 DC 3.5-30V Mini Digital LED Voltmeter Voltage Tester Upper and lower limit flashing + buzzer + red"

Description:

The voltage meter is displayed with a 0.36-inch digital tube.
It has an ultra-small size and is similar in size to a 5-point coin manufactured by fully automatic SMD process, with lean process and accurate voltage display. Display and measurement effects defeat the general digital meter.
The voltmeter wiring is simple, the power supply and the measurement input are combined into one, only two wires need to be connected, and the reverse protection is provided, and the reverse connection is not burned.
Measuring range of this voltmeter is 3.5-30v, the resolution is 0.1v, and the actual error will be slightly greater than 0.1v.
This voltmeter needs external power supply, without which the voltmeter will not work. working power supply has a wide range of voltage up to 3.5-30v.

Specification:

Material: electronic components
Measuring Range: DC 3.5-30V
Display: three 0.36inch digital tube
Display color : Red Green Blue optional
Measurement rate: 500mS / times.
Measurement Accuracy: 1%
Operation Temperature: -10℃-+65℃
Dimensions Length 32x Width 14x Thickness 10mm
Opening size 23x14mm
Mounting hole distance 28mm
Screw size M2.0x12 self-tapping screws (customer-supplied)
Lead length 15cm
Net weight 5g
Gross weight 8g (including packaging)
Power supply No power supply, use the measured voltage directly as the power supply.

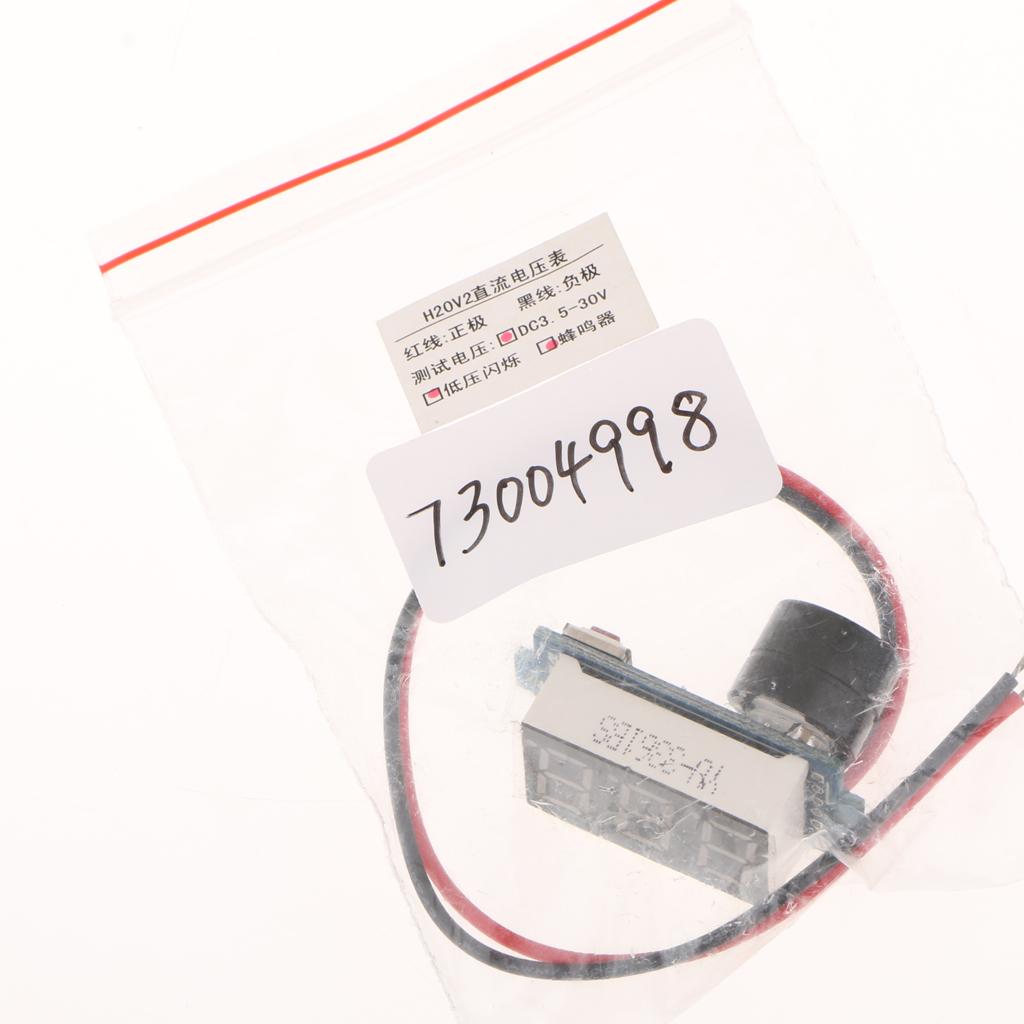

Package Includes:

1 Piece Digital Voltmeter

Note:

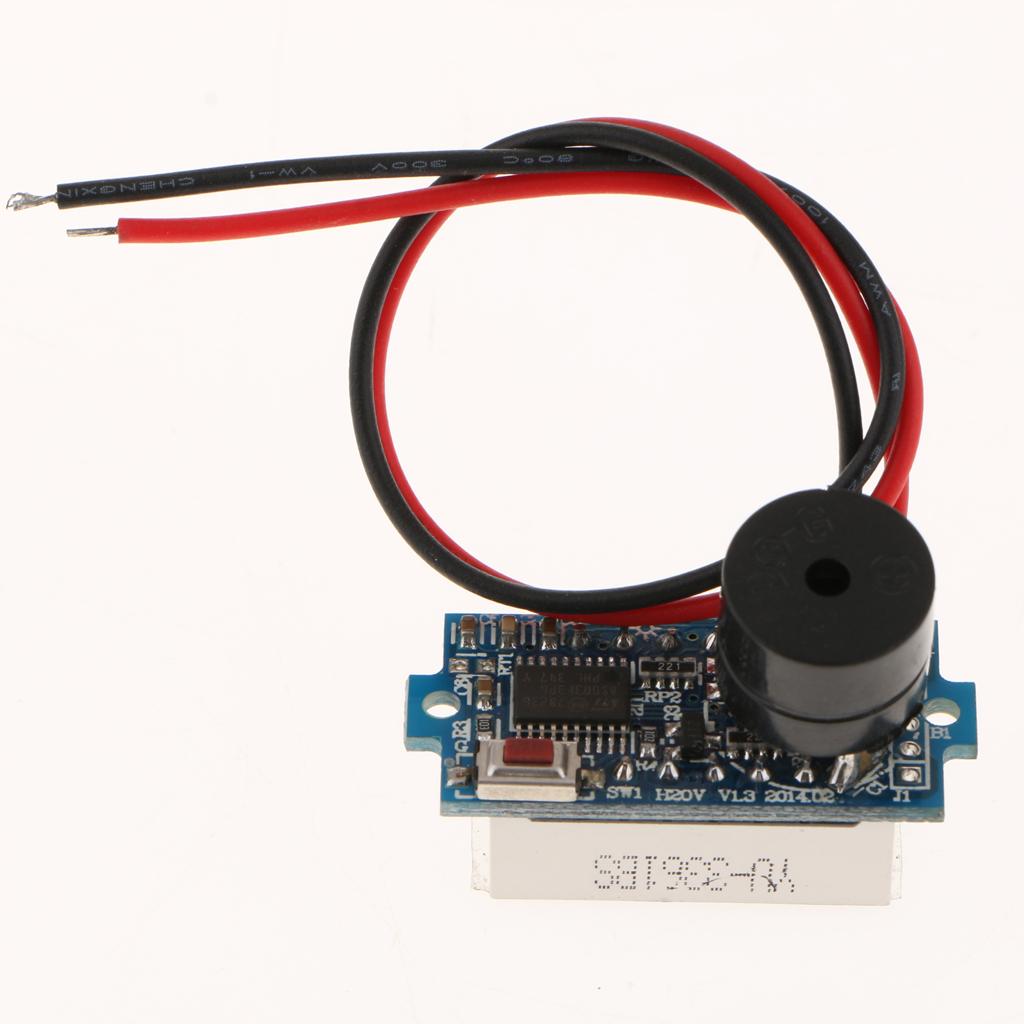

Alarm value adjustment method: There is a red button on the back of the board. Press the button for 3 seconds to display 1-U, release the button, press 1 second to display 2-L, release the button, press again for 1 second to display 3-H, loose Press the button again, press 1 second to display 4-S again; press 1 button for 1 second to display the trimming voltage value, then press and hold again, the voltage value will be fine-tuned upwards, stop and press again, fine-tune downward After the adjustment is completed, the digital save will automatically save and exit; when the 2-L is displayed, the lower limit alarm value can be adjusted; when 3-H is displayed, the upper limit alarm value can be adjusted; when 4-S is displayed, the sound alarm time can be adjusted, the sound The alarm is forwarded in 1 second; in any state, short press the button for half a second, to turn off the audible alarm, short press again for half a second, two times to restart the audible alarm.
