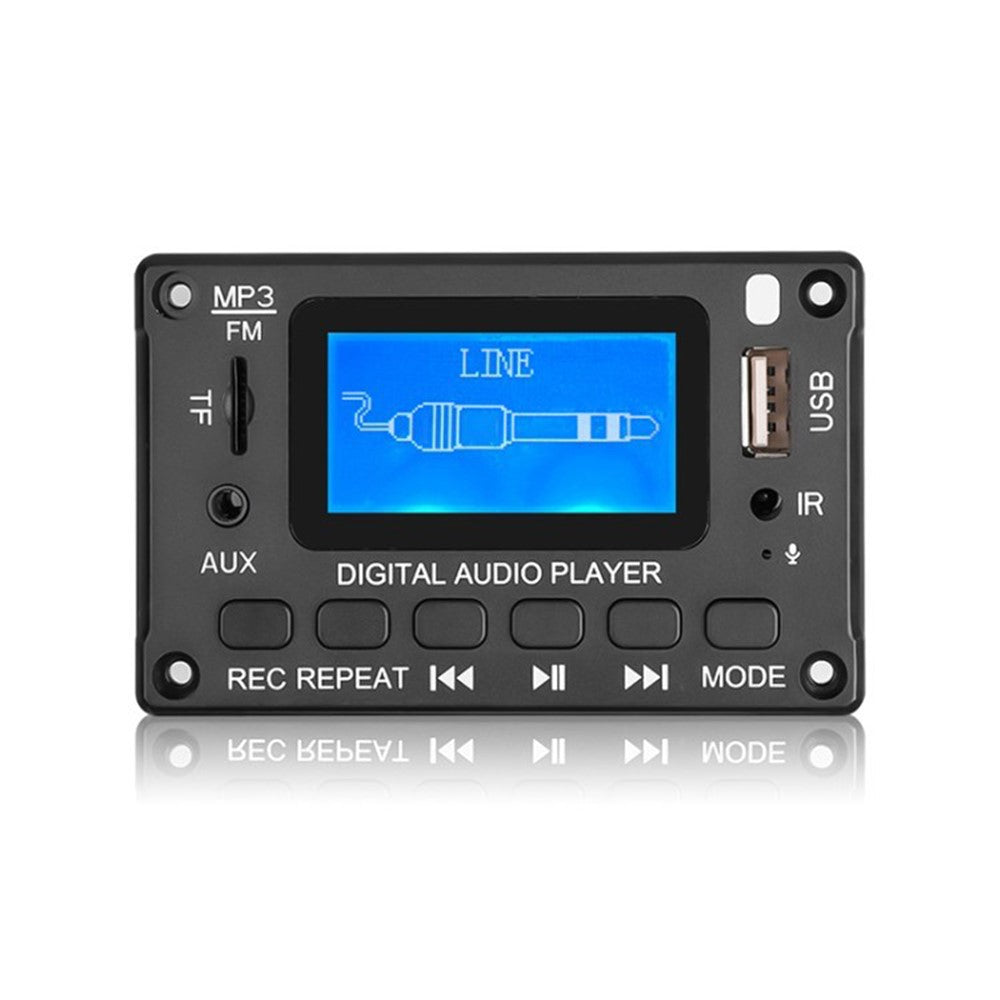

JQ D005BT Car Bluetooth-compatible Music Player Amplifier Auto FM Radio Module 2x40W MP3 Decoder Board BT Power Amplifier Board

• Bluetooth-compatible 5.0 connection, hands-free calling

• Recording in TF mode or USB mode

• Power-off memory function

• With power amplifier and decoding function

• MP3/USB/TF/LINE IN/FM/Bluetooth-compatible remote control

Specification:

• Power: 2*40W, Stereo

• Main control IC: AC6921

• Bluetooth-compatible: 5.0

• Radio frequency: 87.5-107.5 MHZ

• Music format: MP3/WMA/WAV/FLAC/APE lossless format

• Function: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote connection/DC 5V or 12V

• Panel size: 91*57mm, with screw holes, board depth 20mm

• AUX interface: audio input interface

• LCD screen: lyrics display

• TF card slot: connect TF memory card (32GB, maximum)

• USB interface: connect U disk (32GB, maximum)

• IR: Infrared receiver module

• MIC: calls and recordings

• REPEAT: Loop function

• PREV/VOL-: Short press to select the previous song; long press to decrease the volume

• PLAY/PAUSE: Short press to switch between pause and play; long press to turn on FM radio

• NEXT/VOL+: Short press to select the next song; long press to increase the volume

• MODE: USB/TF/FM/AUX/Bluetooth-compatible switch

• REC: record and play the recorded file; when recording, connect a storage device, such as a U disk or TF card
