WCA102 WiFi Wireless Camera for 12-36V Car, Bus HD 1080P Infrared Night Vision Rear View Camera

• Clear picture: FHD 1080P resolution, high-quality video image
• Ultra strong signal: Stable transmission distance up to 100ft, smooth video image never freezing
• Perfect night vision: 8 Infrared LEDs, you can see clearly at dark night
• Multi-function: taking photos, video recording, sharing with friends, etc.
• Wide angle: 150° the perfect angle
• IP67 Waterproof: no need to worry. about bad weather and truck washing
• Full aluminum housing: efficient heat dissipation design, durable
• Shockproof, not afraid of bumpy roads

Specifications:

• Shell material: ABS + iron
• Wireless camera built-in 802.11
• Video transmitter transmission: 100m open air
• Sensor chip: GC2053
• Lens material: metal four glass white light
• Lens angle: horizontal angle 120 ° vertical angle 90 ° diagonal 170 °
• Signal format: AHD
• Resolution: 1920(H)*1080(H)
• TV standard: PAL / NTSC
• Waterproof rate: Ip67
• Minimum Illumination: 0.5Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON) Pin Lens:f=2.8mm / f=2.0
• Lens angle: 150°
• Infrared Light: 8pcs
• Vertical synchronization Frequency: 50Hz / 60Hz
• Video output: 1.0vp-p, 75Ohm
• Power supply: DC12V-36V
• Current consumption: ≤ 300mA
• Electronic shutter: 1/60-1/10,000 seconds
• Gamma consumption: 0.45
• S/N ratio: better than 48dB
• Scanning system: 2:1 interlaced scanning
• Operating temperature: -20°C ~ 70°C ,RH95% MAX
• Storage temperature: -40°C~85°C ,RH95% MAX
• Power interface: DC head
• Video interface: no / WIFI signal wireless transmission
• Power cord: 3m
• Mirror/positive image: Mirror
• System: default P system
• Reference line: scale-adjustable

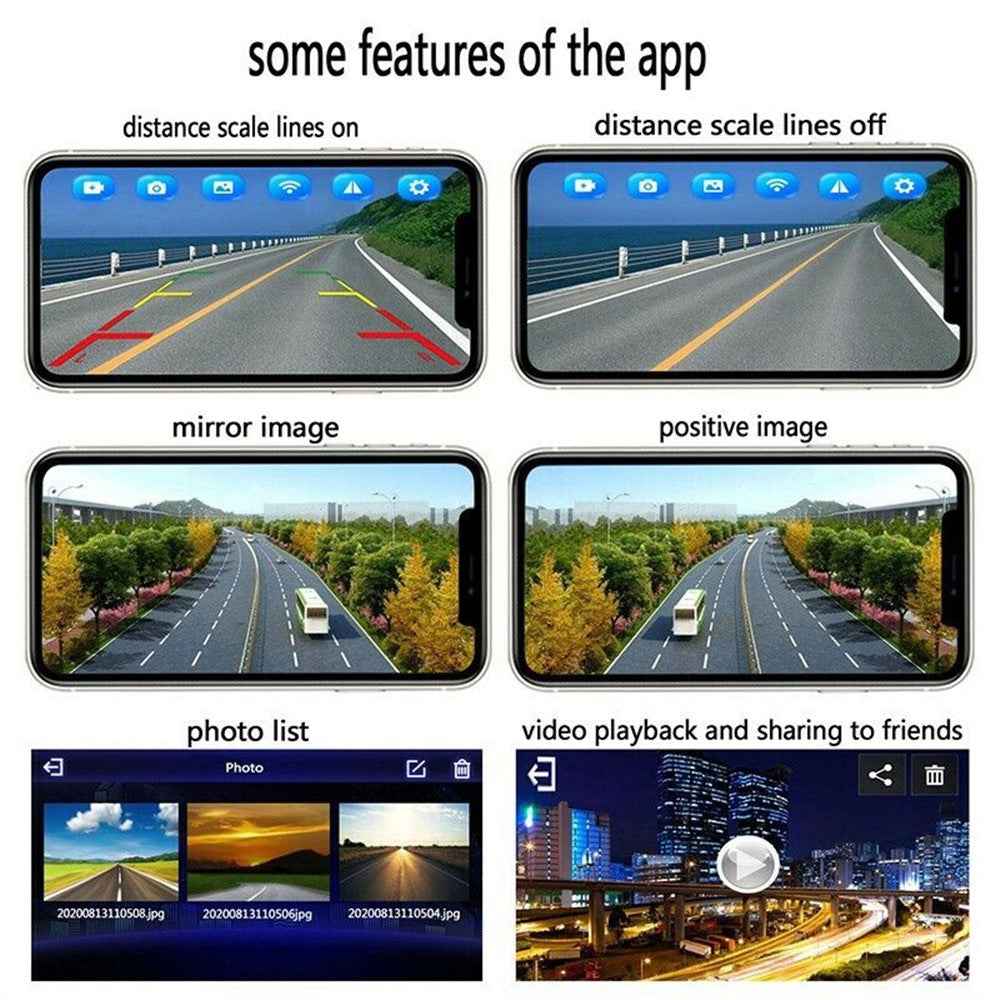

• Compatibility: IOS or Android system
