433Mhz DC 5-18V Universal Receiver Module RF Remote Control Switch Relay

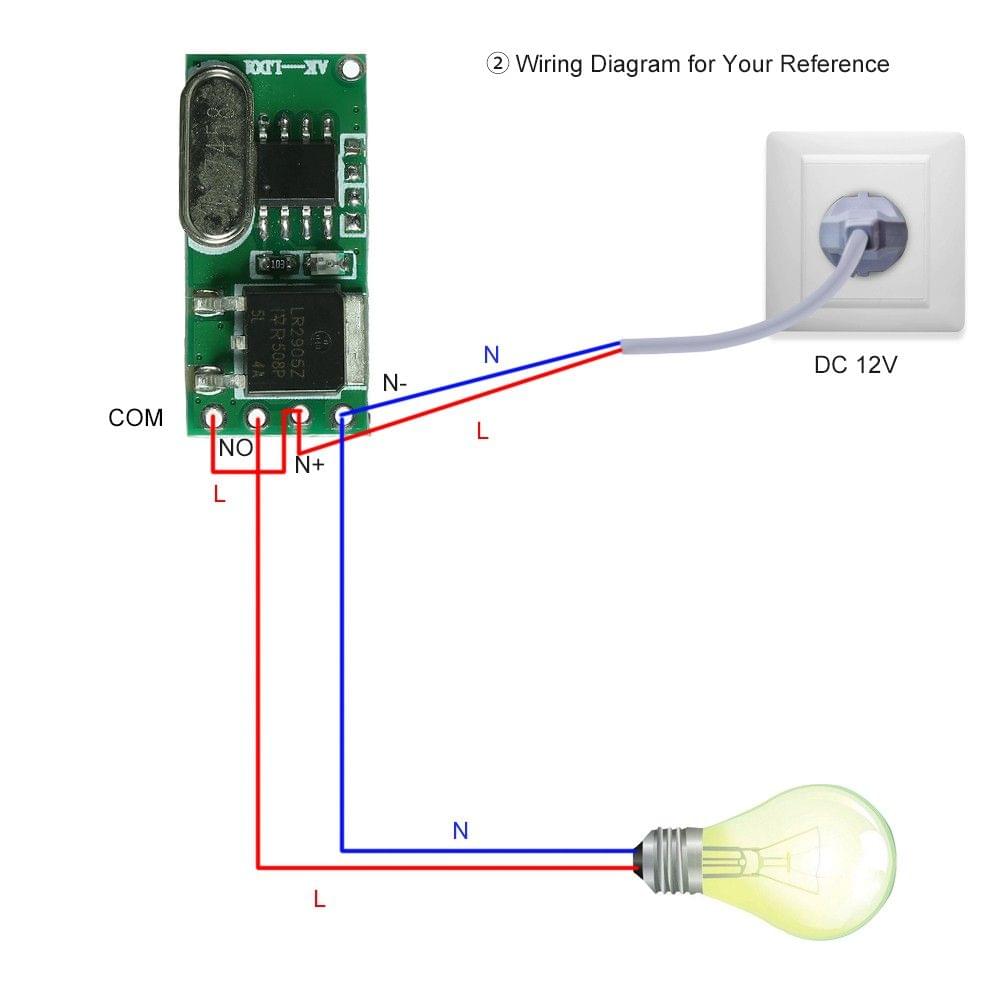

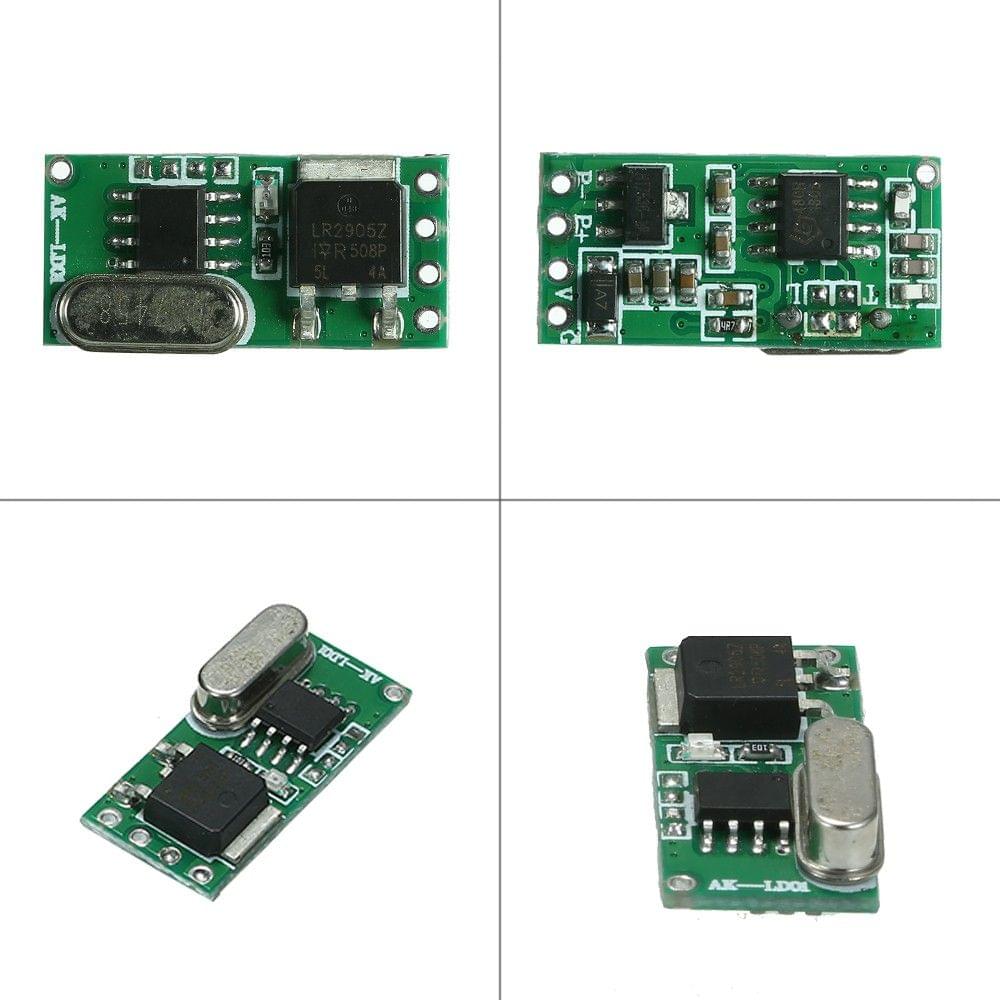

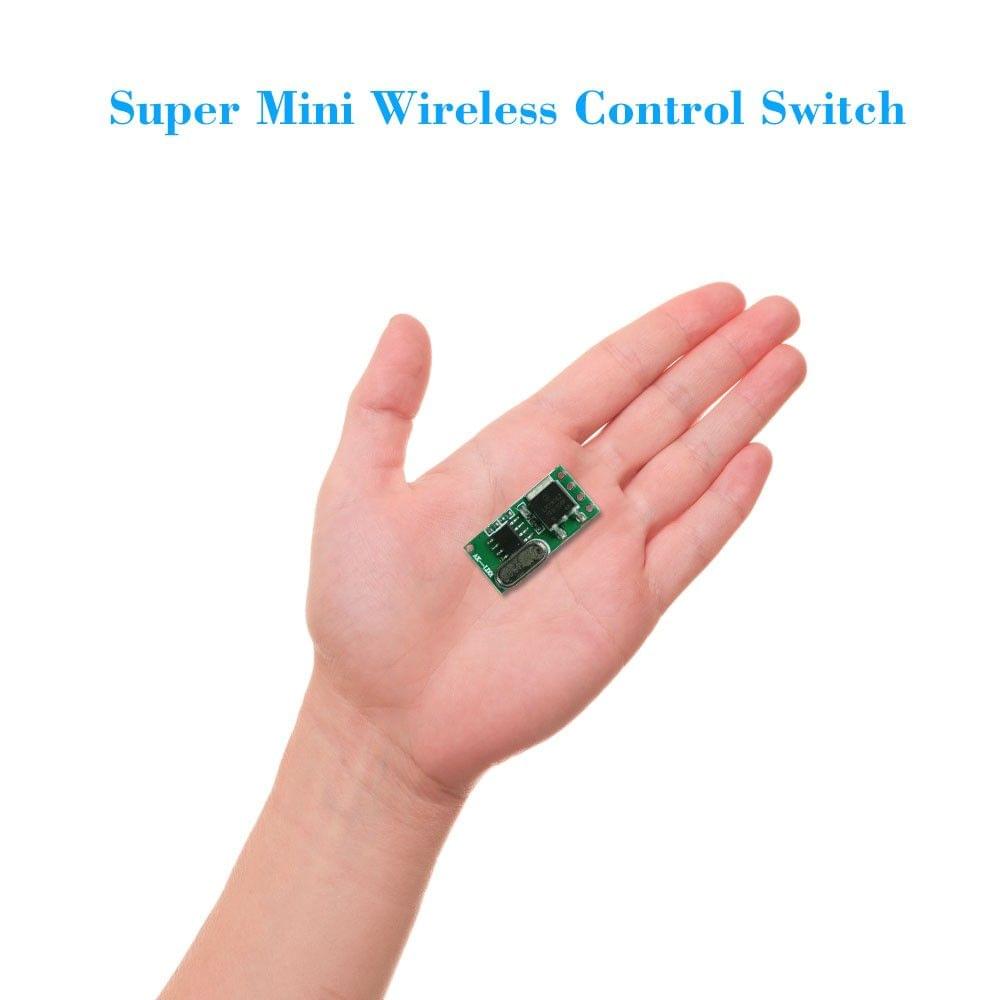

Features: *Very convenient to use,simple wiring, direct use of remote control. *Widely used in our daily life. It can connect to the access control system, garage door, light, electric curtain, household appliances, motor control, security system, etc. *Ultra low power consumption, stable performance. Super small size, taking up very little space. The tiny receiver board size is only about 2.3*1*0.4cm. *Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.) *Remote control distance: Open environment of about 50-100 meters,(can penetrate wall remote control). Receiver Specifications: Channels: 1 Power Supply: DC 5V to18V Working Current: ≤30mA RF Frequency: 433MHz Output Power: DC/AC Optional Coded System: Learning Code (1527 Chip) ; Fixed Code(2260) Receive sensitivity: -106dBm Working mode:Inching/self-locking/interlock function(adjustable) Receiver Board Size: Approx. 2.3*1*0.4cm Remote Control Specifications: Frequency: 433MHz Range: 50-100 meters(open area) Battery: 1*12V 23A (included) Quantity: 1PCS Package Information: Package Size: Approx.14.5*10*2cm/5.71*3.94*0.79in Package Weight: Approx.26g/0.92oz Package List: 1* Receiver Board 1* Remote Controller
