AC220V Coil Power Relay Set LY2NJ 8-Pin 10A Relay Module - 1pc

Features:

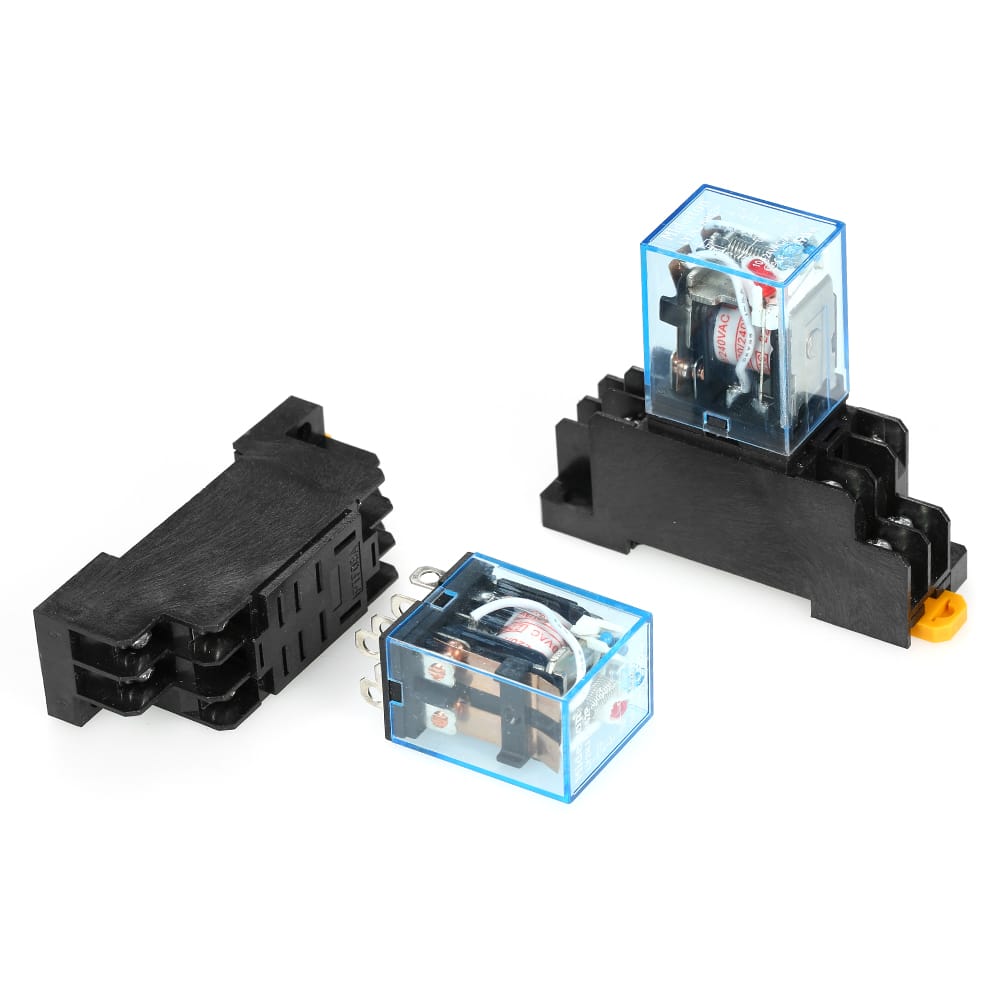

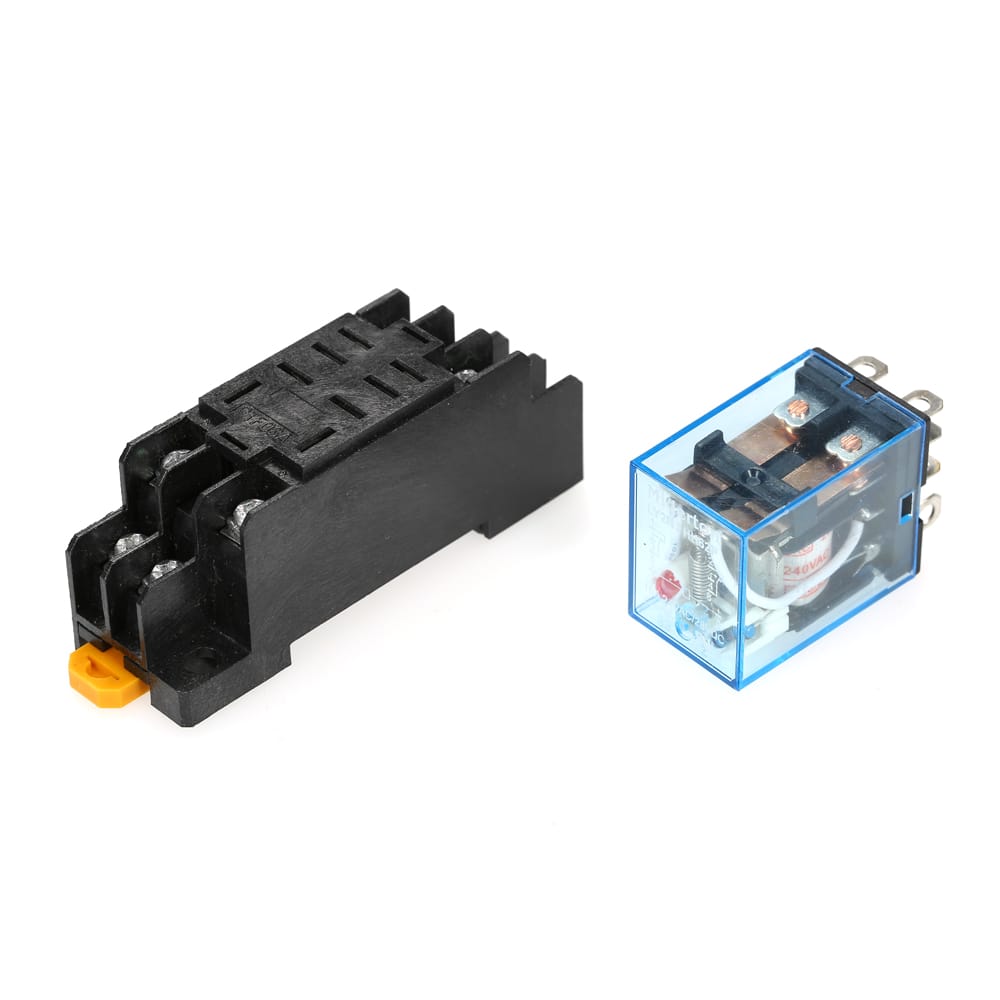

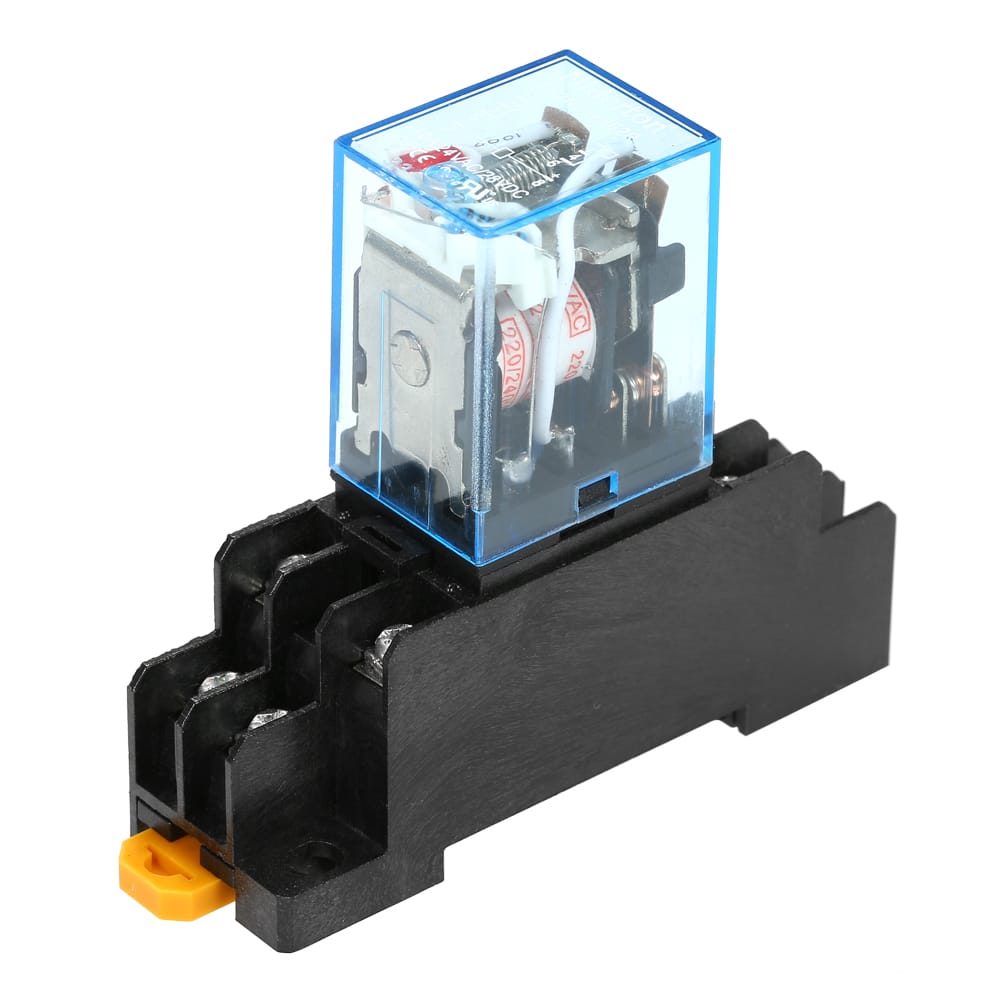

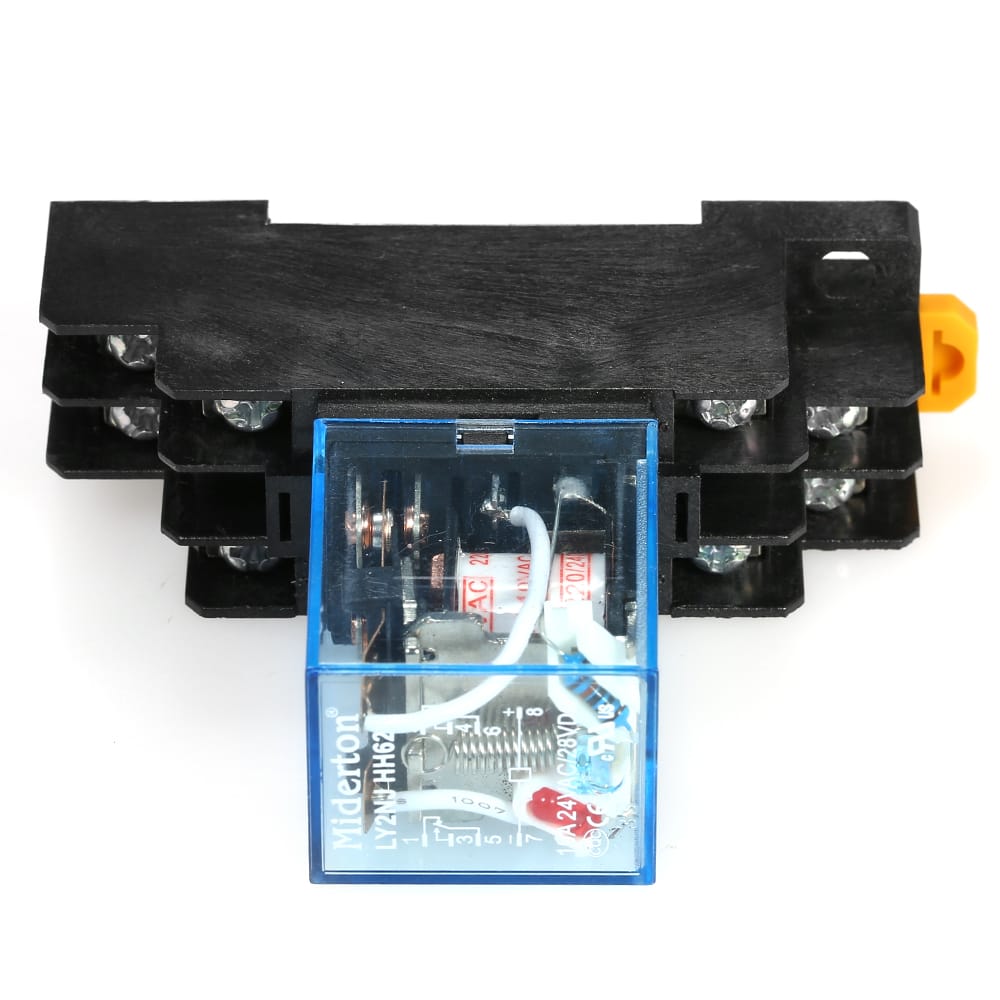

Includes LY2NJ relay and socket base.

Contact structure: 8 pins 2 normally open 2 normally closed.

Great for electronic enthusiasts' DIY projects.

Specifications:

Quantity: 1pc

Model: LY2NJ(8 Pins)

Coil Voltage: AC220V

Coil Power: DC(W): 0.9 AC(VA): 1.2

Contact Structure: 8 pins 2 normally open 2 normally closed

Contact Capacity: 10A 250VAC

Pull-in Voltage: 80%(V)

Release Voltage: DC: 10%(V) AC: 30%

Contact Resistance: 50(m?)

Insulation Resistance: 100(m?)

Terminals Form: Socket

Action Time: 20ms or less

Reset Time: 20ms or less

Operating Frequency:

Mechanical: 18 000 times/hour

Electrical: 18 000 times/hour

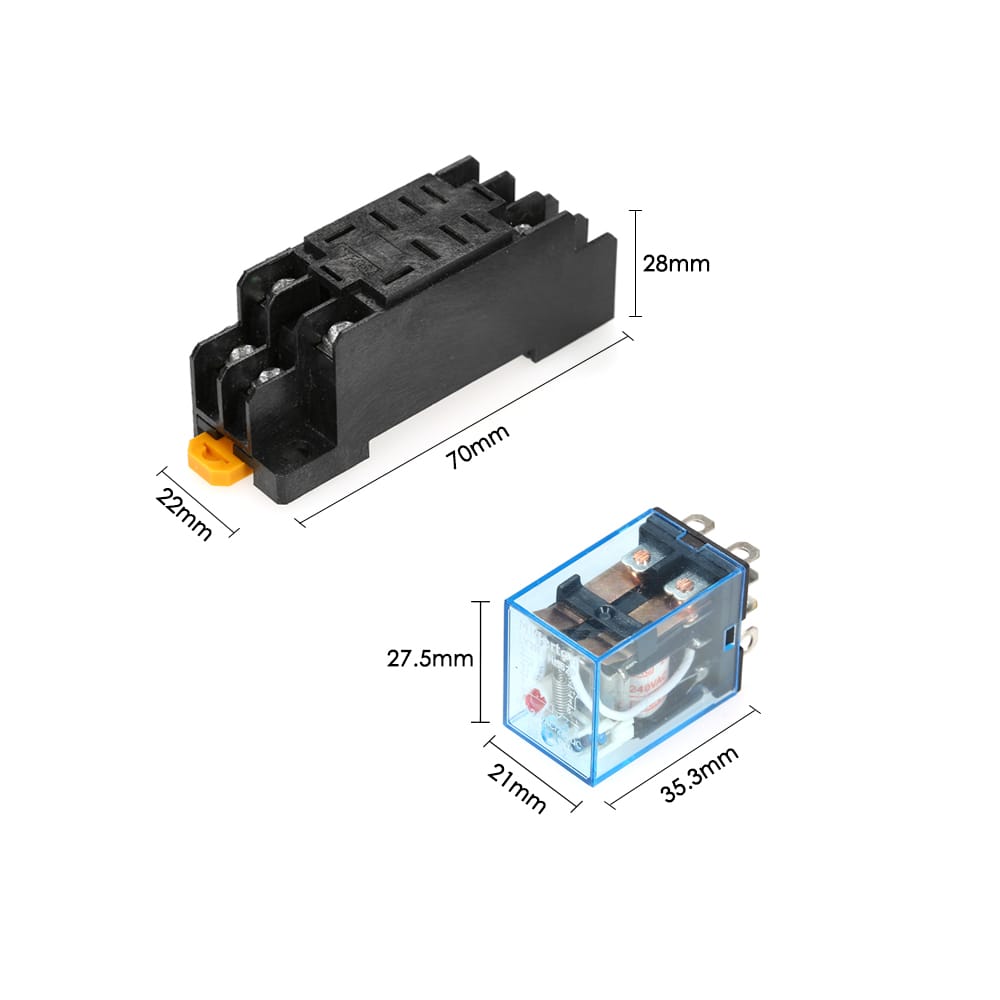

Size: 70 * 22 * 28mm; 27.5 * 21 * 35.3mm

Package Size: 10 * 15 * 2cm

Package Weight: 65g

Package List:

1 * Coil Power Relay LY2NJ

1 * Socket Base
