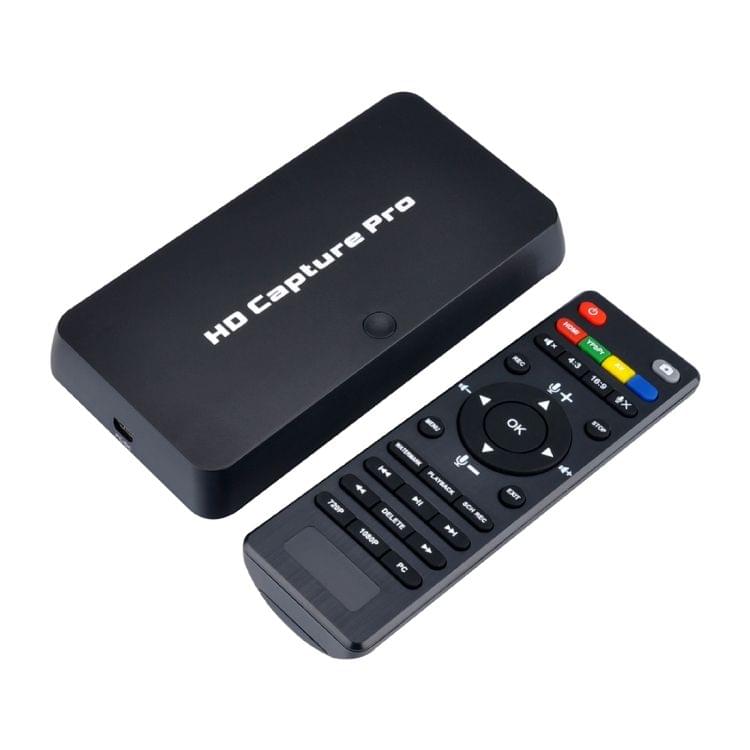

EZCAP295 HD Capture Pro USB HDMI 1080P Video Capture Device Stream Box (Black)

About The Product
1. Capture HD video up to 1080P from HDMI, Component and Composite. With HDMI output to connect big displayer. Personal recording settings: Schedule recording, Snapshot, recording bitrate, recording resolution, Splite/un-splite recording, watermark, Mute/volume adjust, MicroPhone Mute/adjust, Aspect Ratio...
2. With Playback function, allow you playback the recorded video directly, and delete the files you want. Works with OBS on your computer for live video streaming.

Features

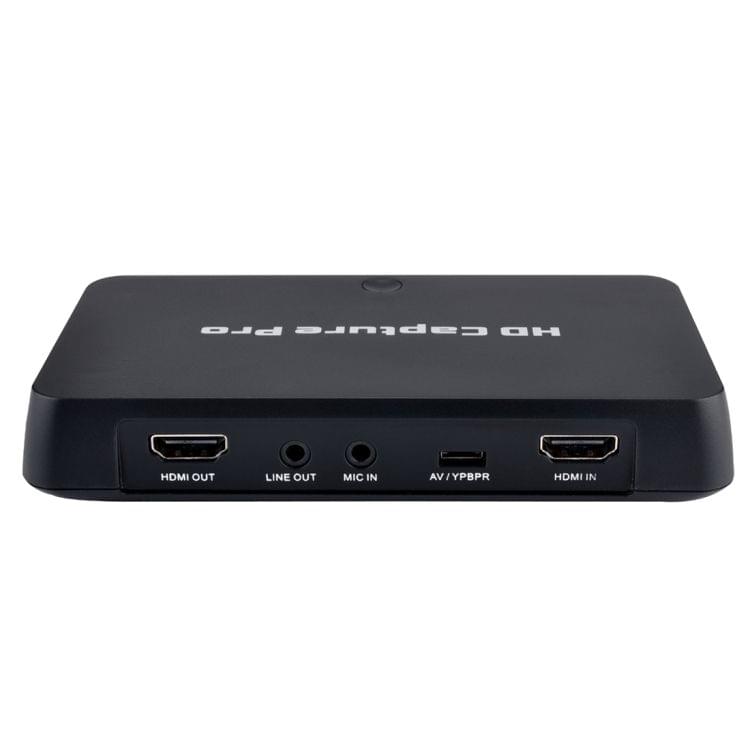

1. Video Input:
- Digital: HDMI
- Analog: Component Video, Composite Video
2. Audio Input:
- Digital: HDMI
- Analog: RCA L/R, 3.5mm Micro phone in
3. Video Output: Digital: HDMI
4. Audio Output:
- Digital: HDMI
- Analog: 3.5mm Stereo Line Out
5. Applicable Connection: WiiU, Xbox 360, Xbox One, PS4, PS3, HD Camera, Set-Top Box, Medical devicea?|
6. Codec: Hardware H.264 encoder
7. Storage Media:
- USB Flash Drive, USB Portable Hard Disk
- Max Capacity: 2T
- Note: The exFAT format is not supported
8. Resolution:
- Input: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
- Capture / Output: 1280 x 720p(60p), 1920 x 1080 (30p), 1366 x 768 (60p)
9. Record Format: Video: MP4, Audio: AAC Stereo
10. Record Quality: Max: 16Mbps@1080P 30fps. Can choice recording bitrate: 4M/10M/16M
11. Record File: Splite: 1.95GB/Per File, Un-Splite depends storage, named with system time.
12. Record place: Max: around 120MB / Minute, around 7GB / Hour
13. User Interface:
- On-board Hot Button for one-click recording
- LED indicator for working status
