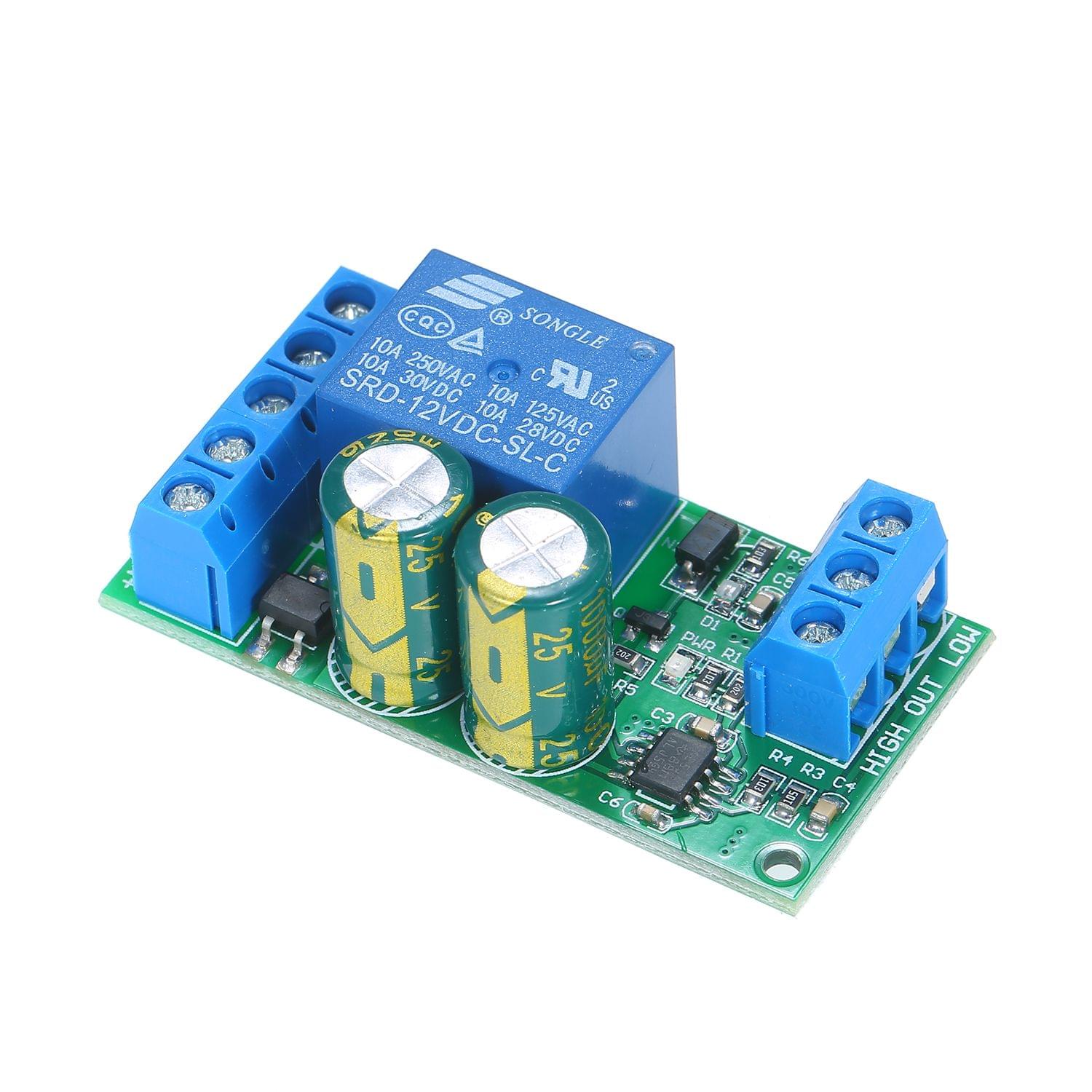

LC25A01 Water Level Automatic Controller Module Aquarium - LC25A01

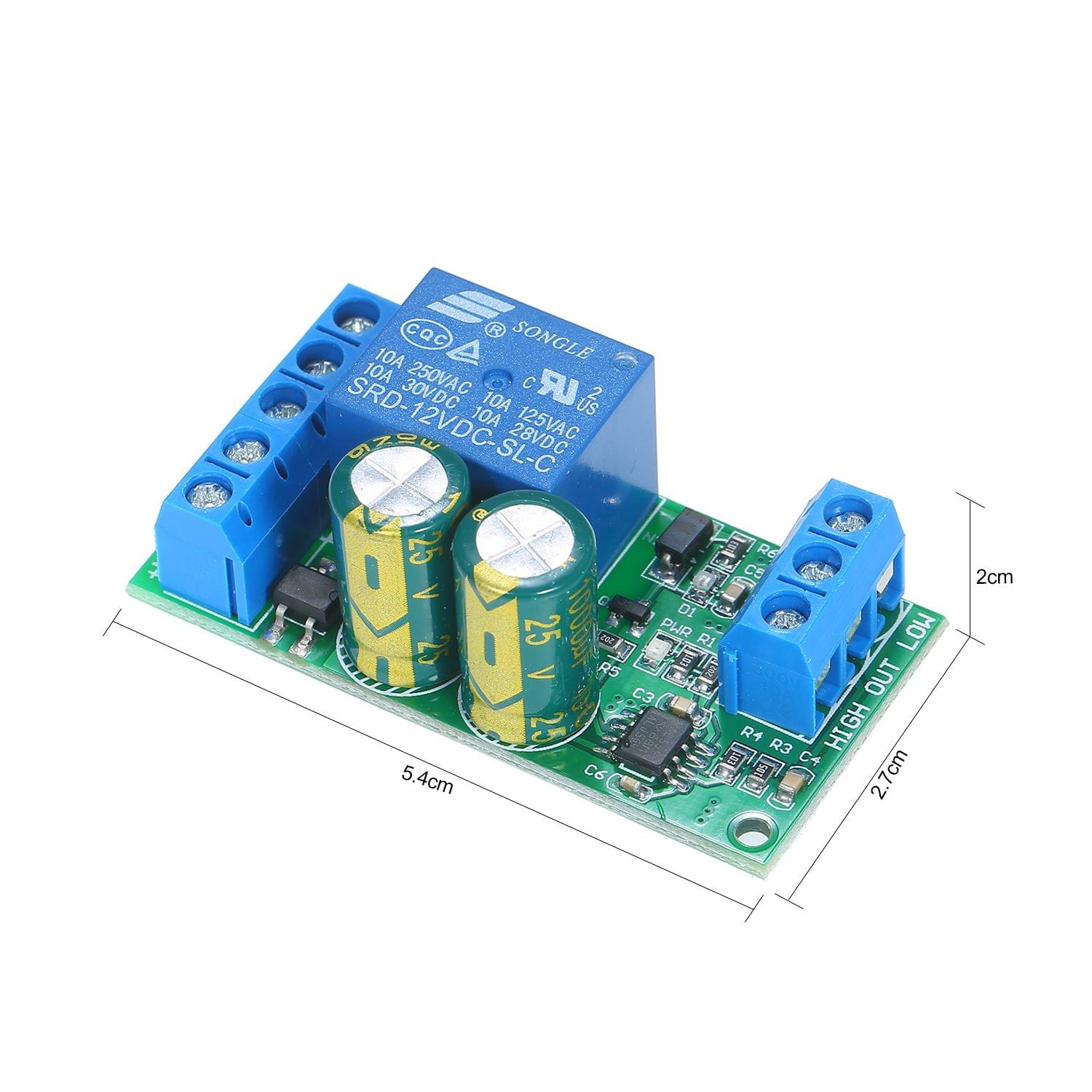

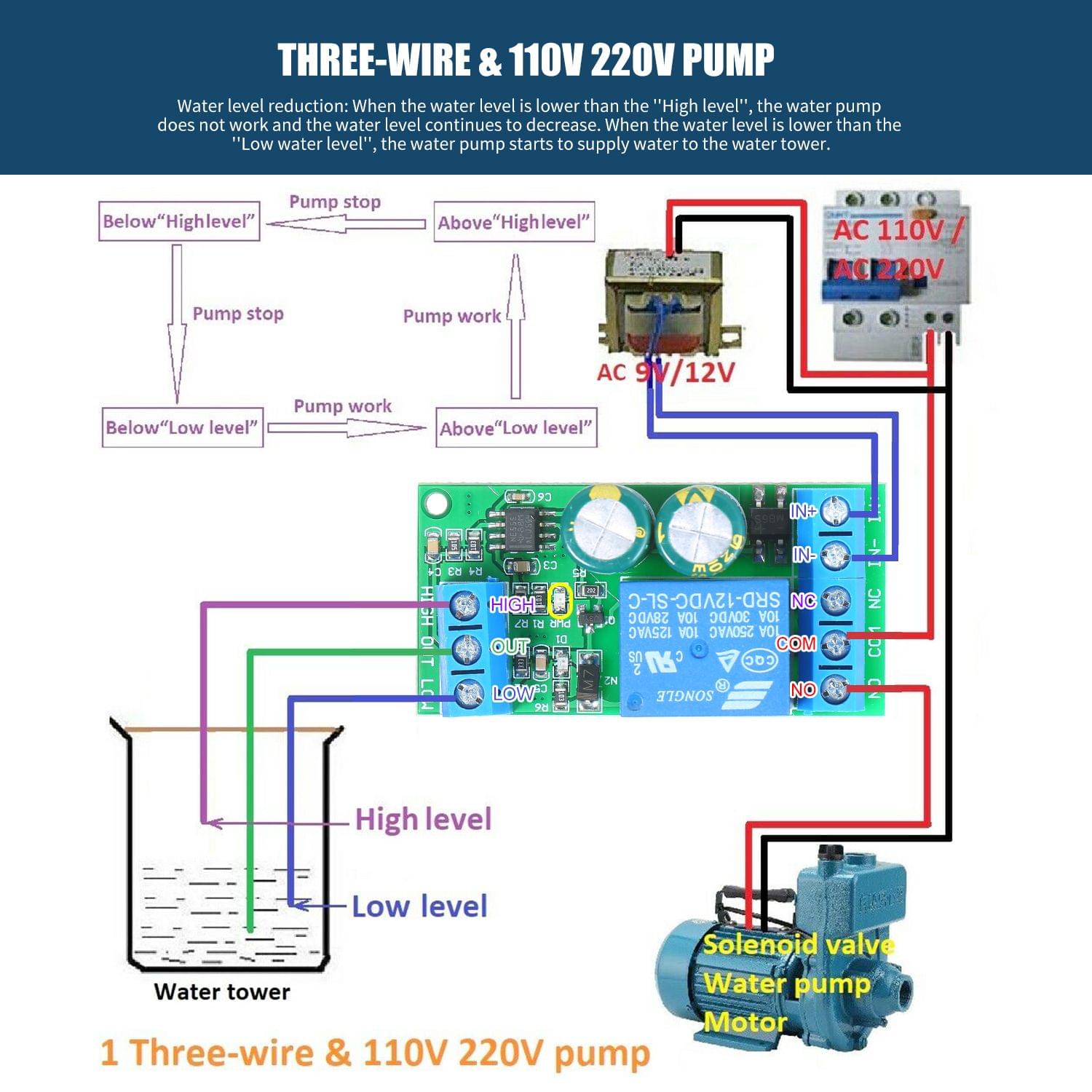

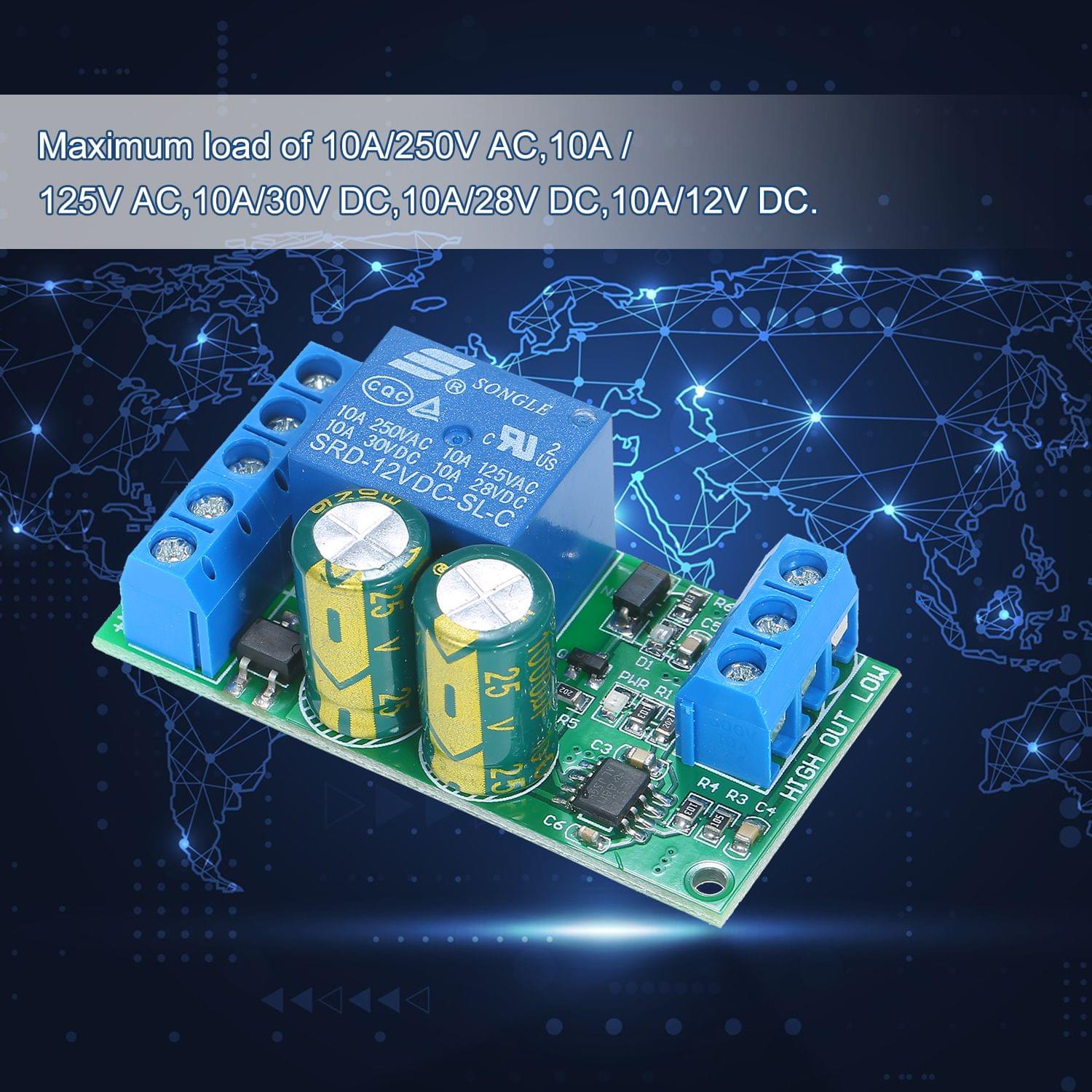

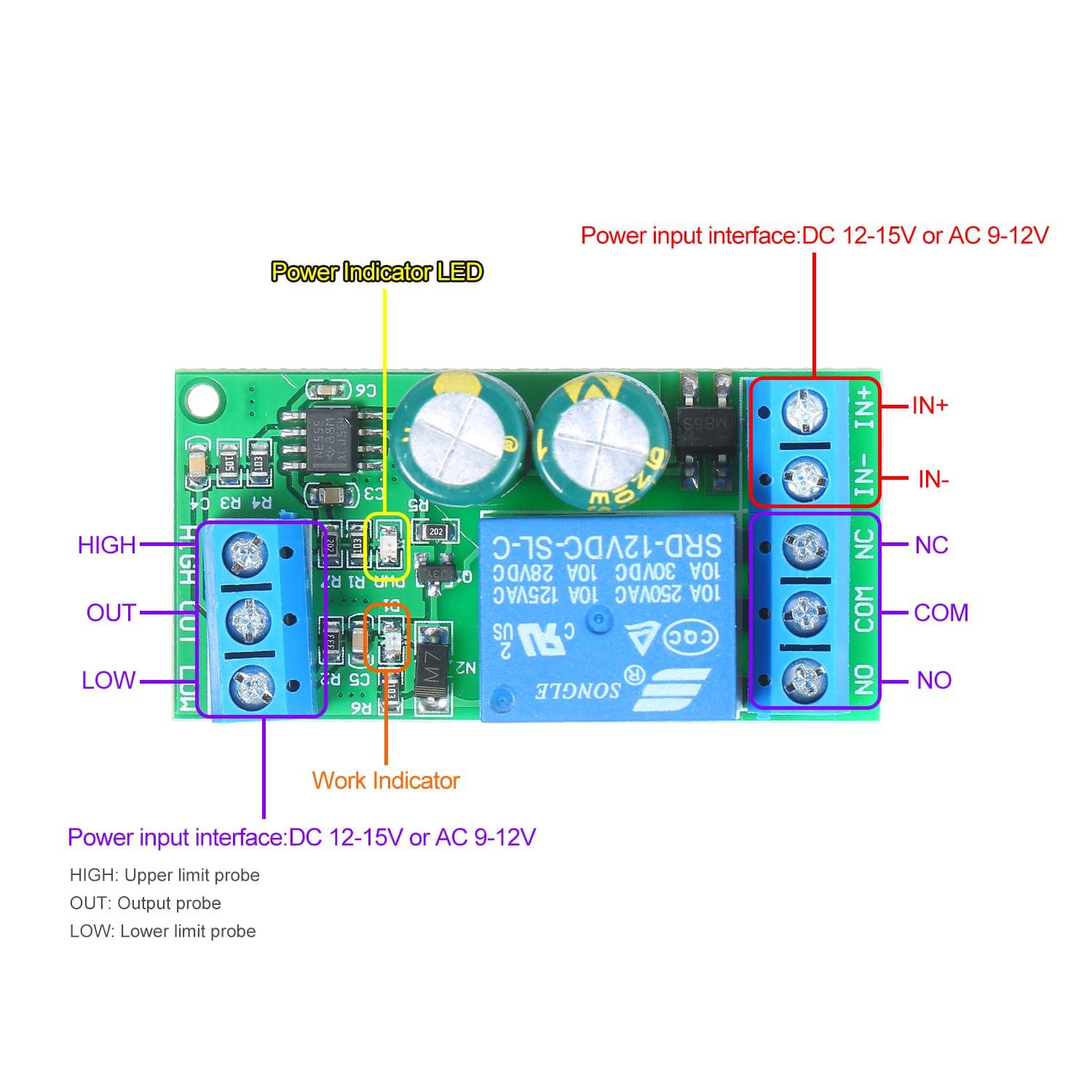

The water level controller module is convenient for the drainage control of your home.Features:Making the aquarium/water tower automatically open the pump when lack of water automatically stop the pump(solenoid valve) when full of water.Working Principle: When the water level is lower than the Low level the water pump starts to supply water to the water tower; when the water level is higher than the High level the water pump stops supplying water.Maximum load of 10A / 250V AC 10A / 125V AC 10A / 30V DC 10A / 28V DC 10A / 12V DC.With compact size high switching capacity simple wiring high stability and strong anti-interference function.Can be applied for domestic water tower aquarium water changer conducting liquid autocontrol system auto feederwaterer solenoid valve water pump drainage control etc.Note:*This product does not require purchasing a separate probe which can be replaced with a household wire.*For safety use an AC/DC power supply with good isolation.Specifications:Model: LC25A01Material: FR4Working voltage: DC 12-15V(AC 9-12V)Standby current 10MAWorking current 40MAMaximum load: 10A / 250VAC 10A / 125VAC 10A / 30VDC 10A / 28VDC 10A / 12VDCItem Size: 5.4*2.7*2cm / 2.12*1.06*0.78inPackage Size: 6*3*3cm / 2.36*1.18*1.18inItem Weight: 24g / 0.84ozPackage Weight: 26g / 0.91ozPacking List:1 * Controller Module
