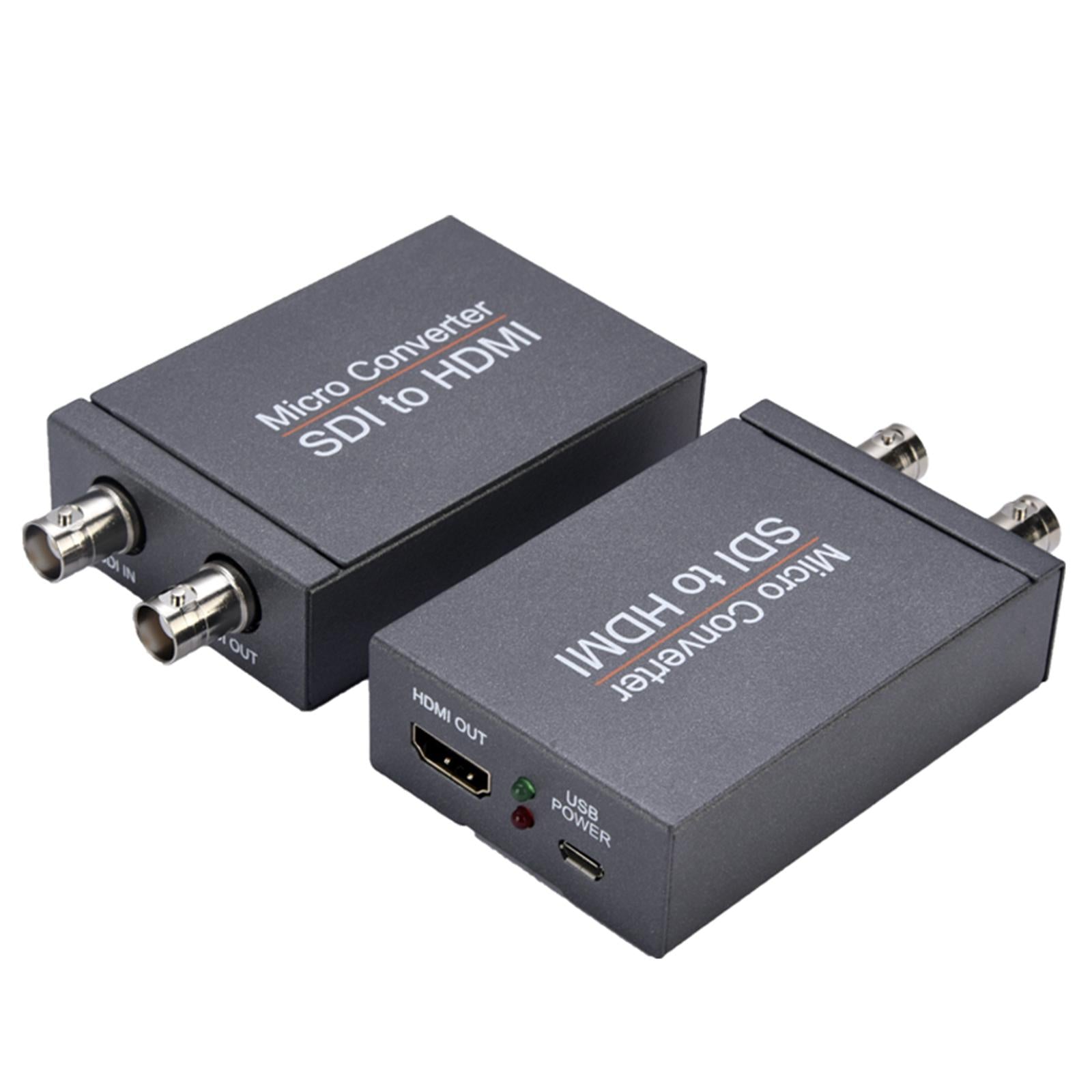

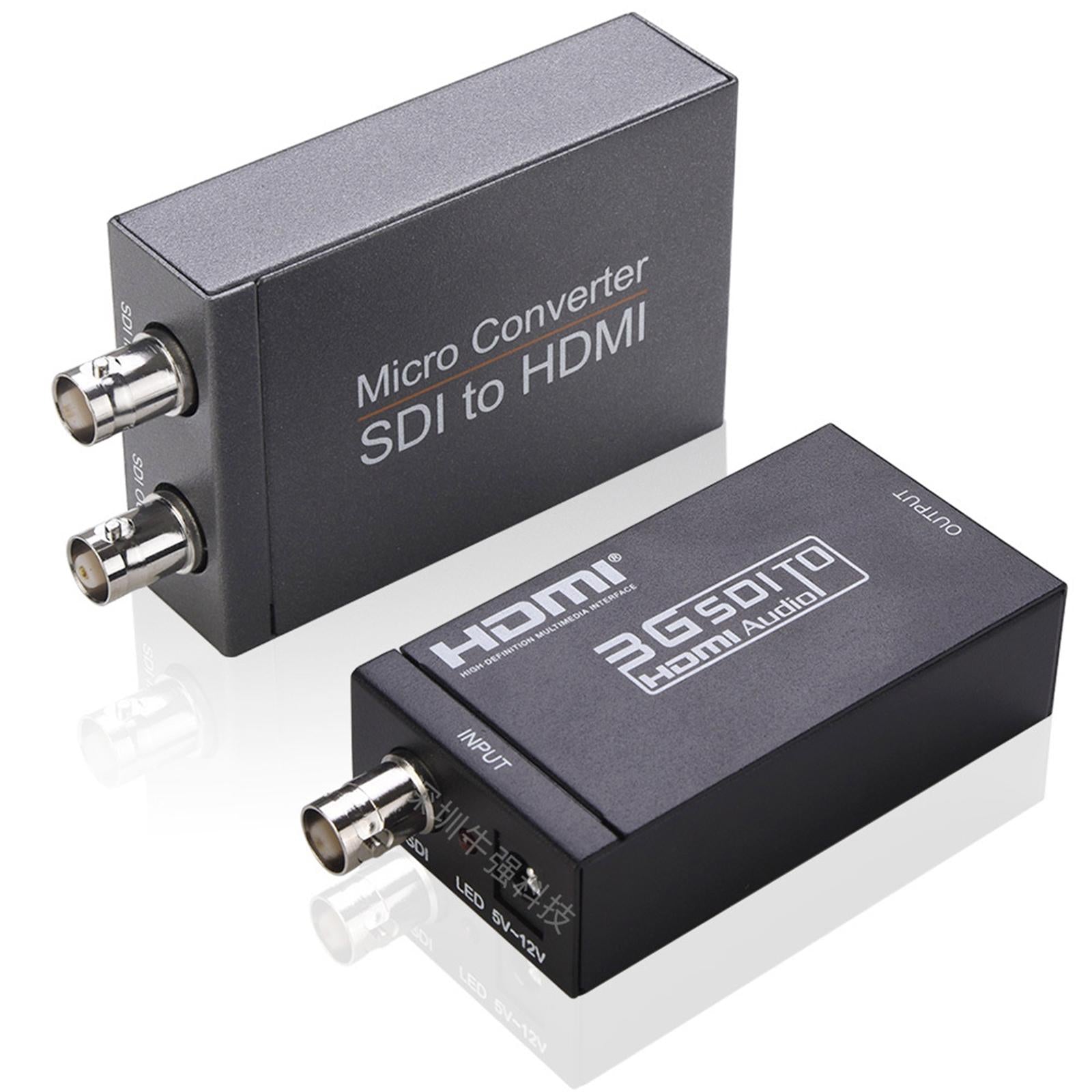

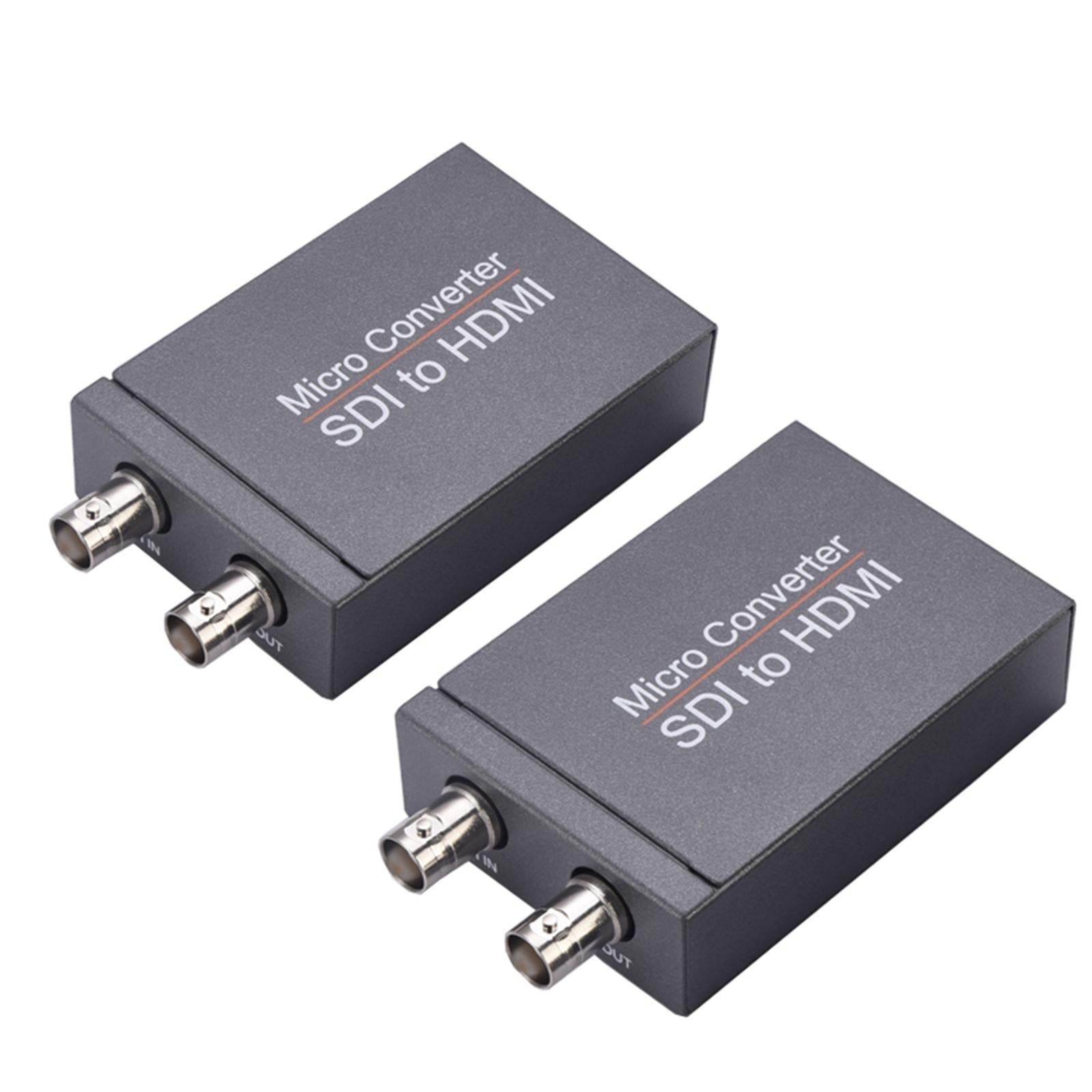

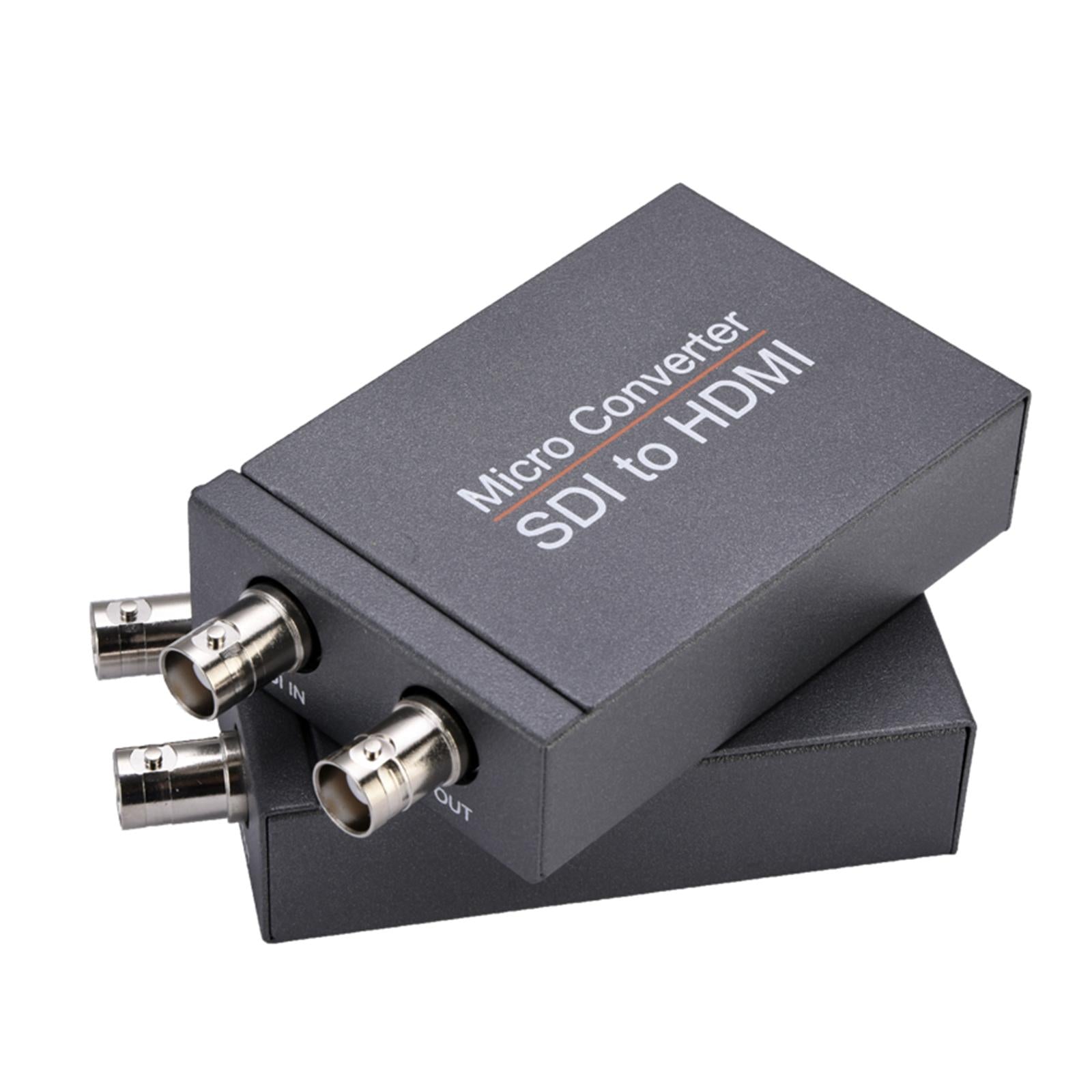

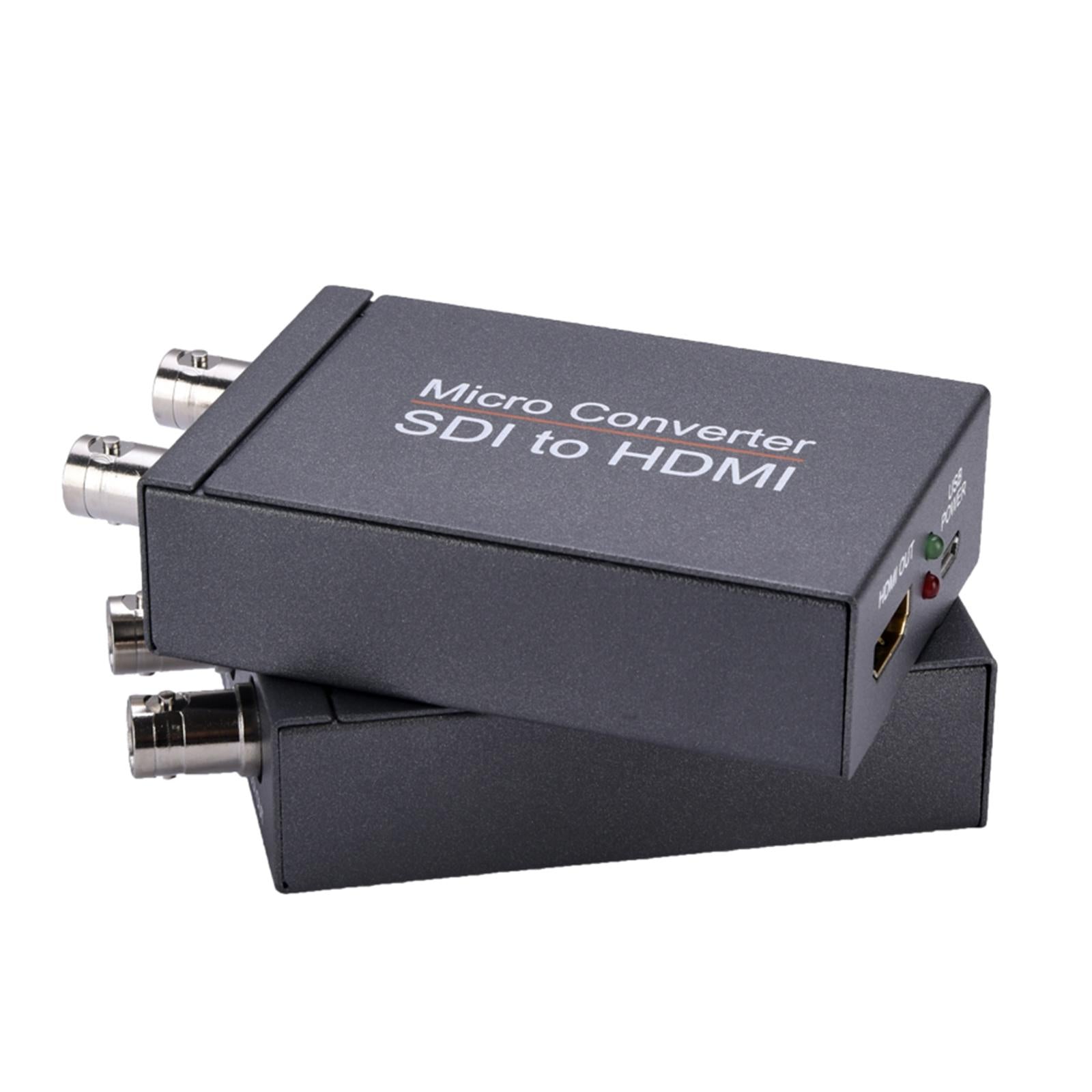

1080P SDI to HDMI Converter 1 HDMI Output Supplies for Camera TV Camcorder

Description:

Our Micro SDI to HD Multimedia Interface converter allows HD-SDI and 3G-SDI signals to be shown on HD Multimedia Interface displays while ensuring high bit rates of 2.970 Gbit/s.

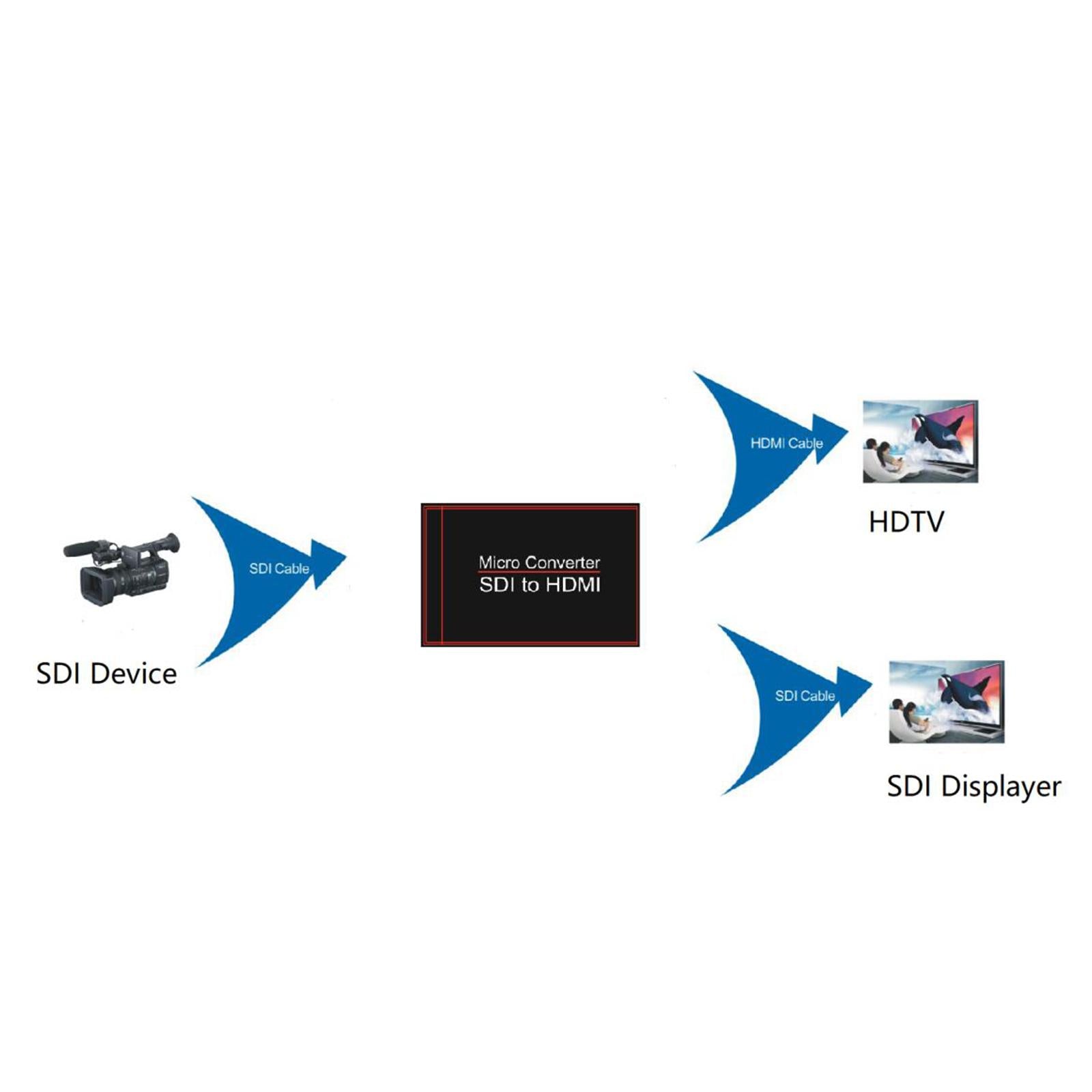

Function: Easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HD Multimedia Interface displays thanks to the built in HD Multimedia Interface converter.
Operation at 2.970Gbit/s, 1.485Gbit/s.
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.
In/Output Resolution: 720p\1080i\1080p. Connect with other units to extend your signal over long distances.

Specification:

Material: Iron
Size: Approx. 9.7x5.5x2.3cm/ 3.8x2.2x0.9 inch
Input Port:1 x BNC (HD-SDI/3G-SDI)

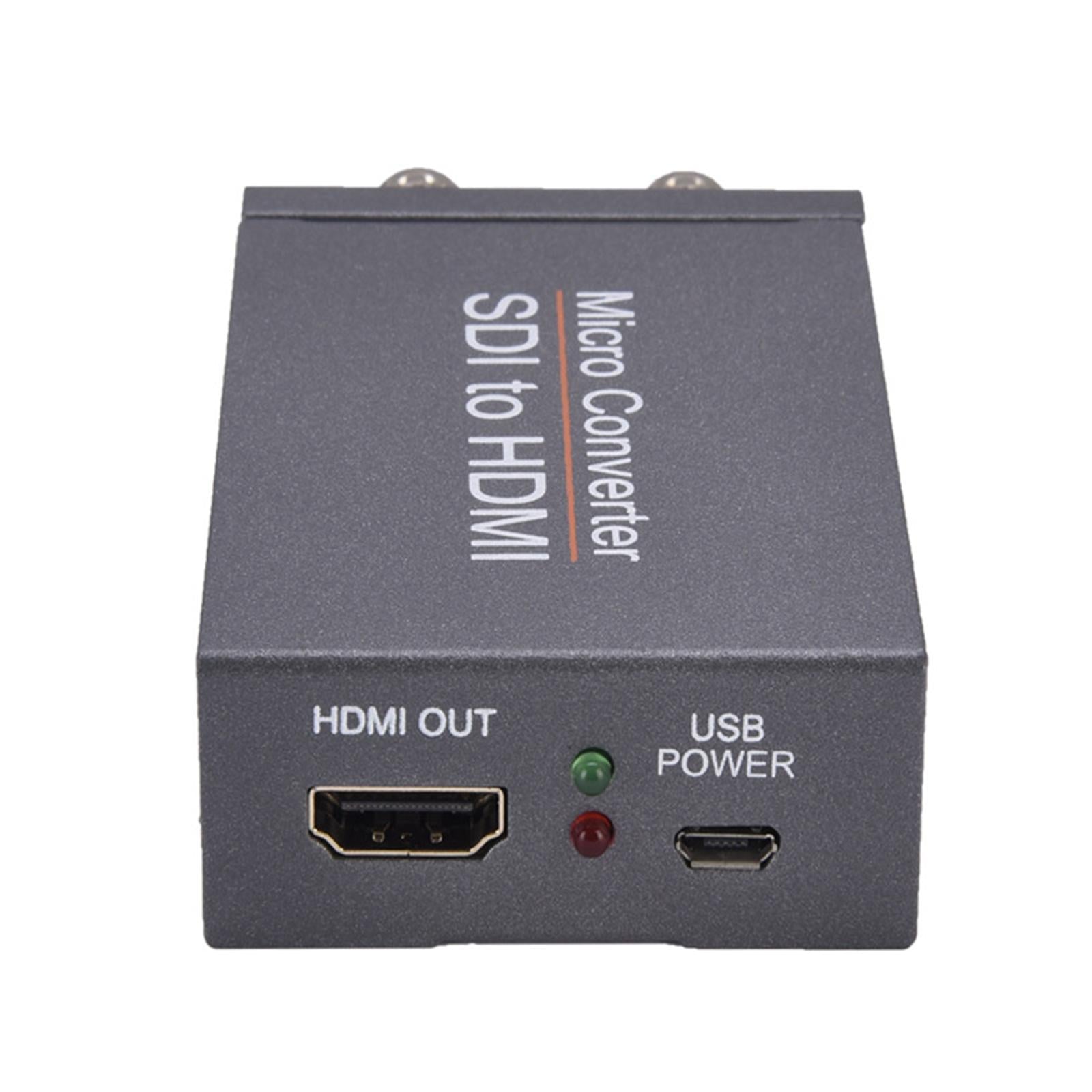

Output Port: 1x HD Multimedia Interface
SDI Transmission Rates: 2.970 Gbit/s
Power Supply: DC 5V
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity : 20 ~ 90% RH (Non-condensing)
Power Consumption: (Max)5W

Package Includes:

1 Piece SDI to HD Multimedia Interface Converter
1 Piece USB Power Supply Cable
1 Piece Operation Manual

Note:

1. Please allow 1-3mm error due to manual measurement.
2. Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
