12V 20 Amp Circuit Breaker Tiny Electric for Trolling Motors Car Marine 20A

Description:

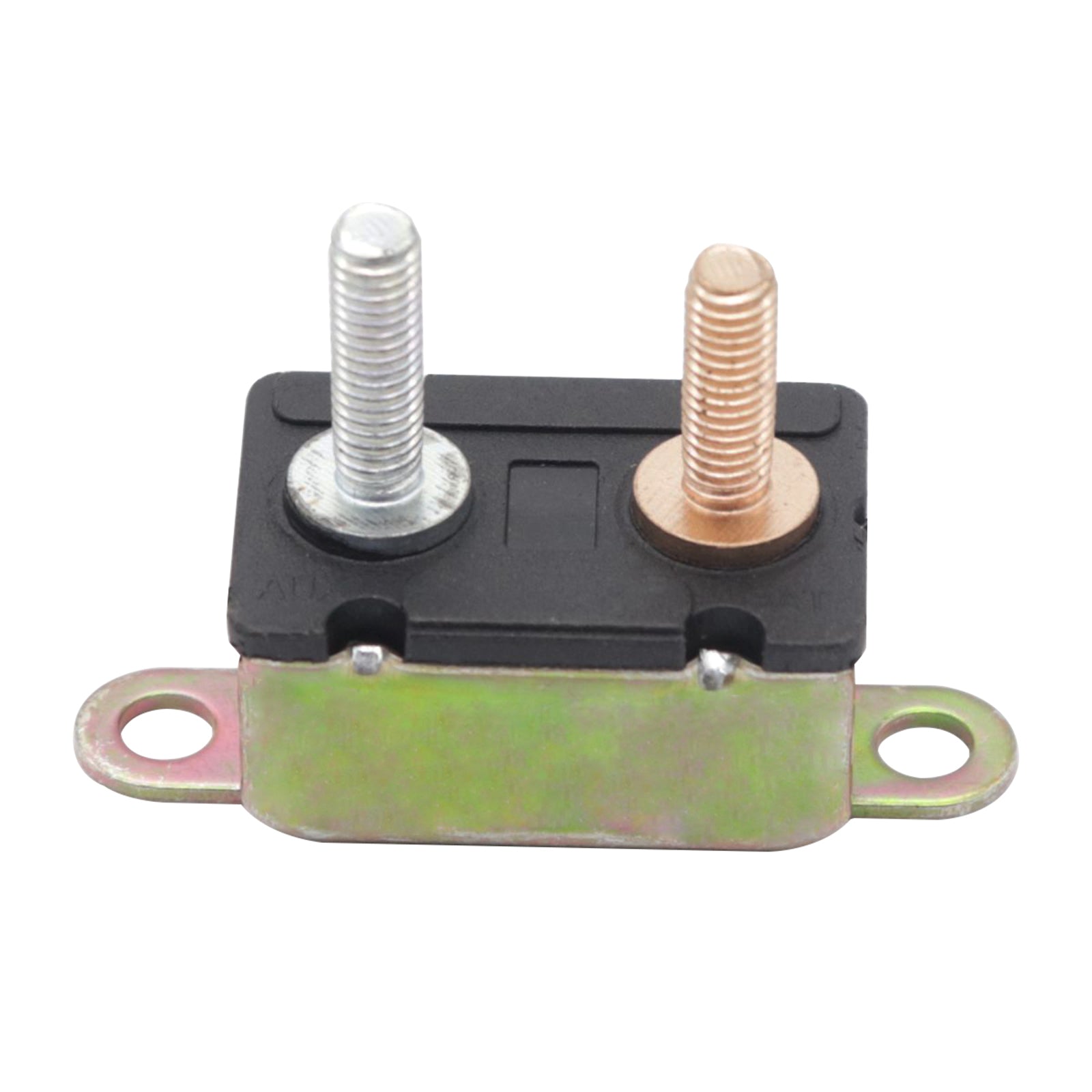

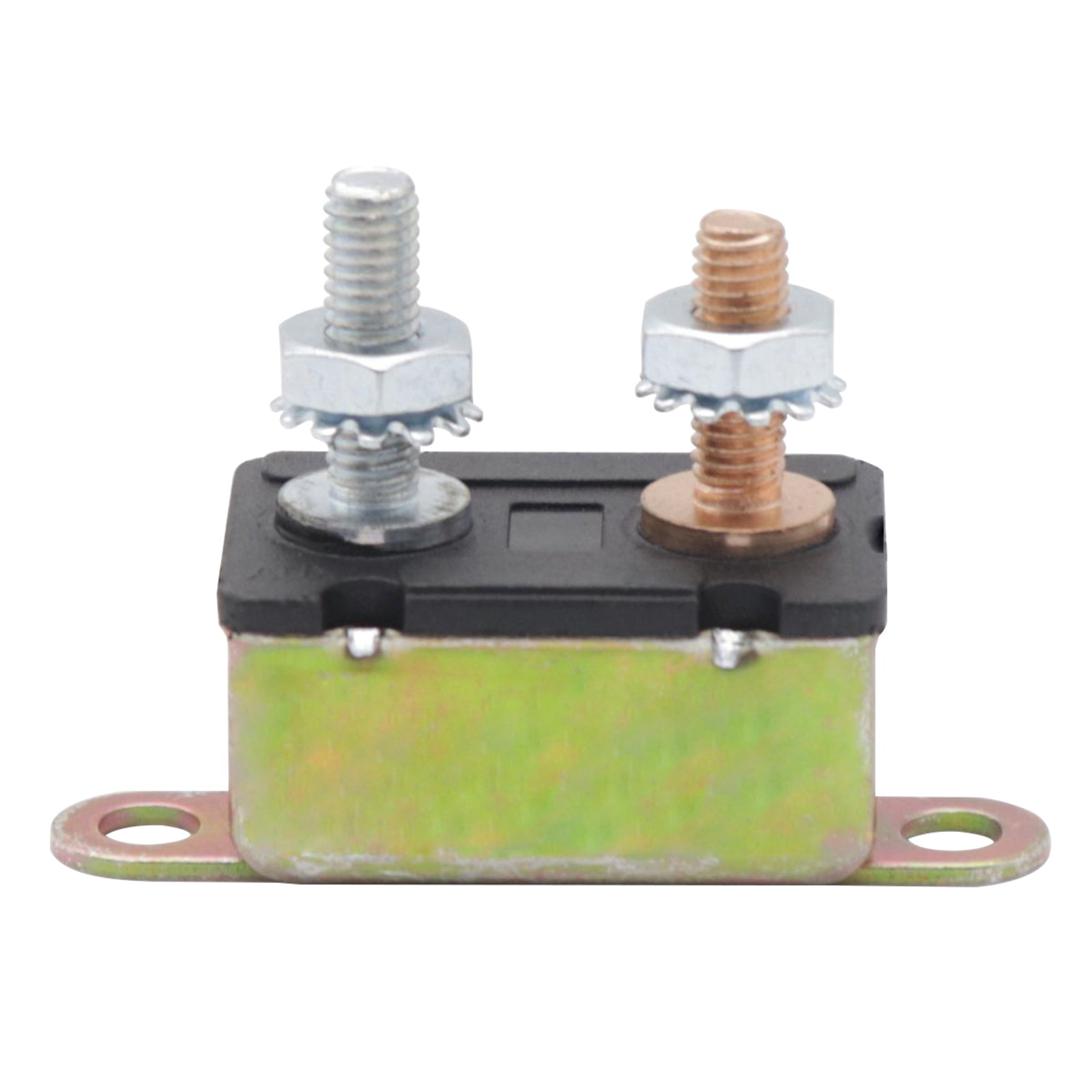

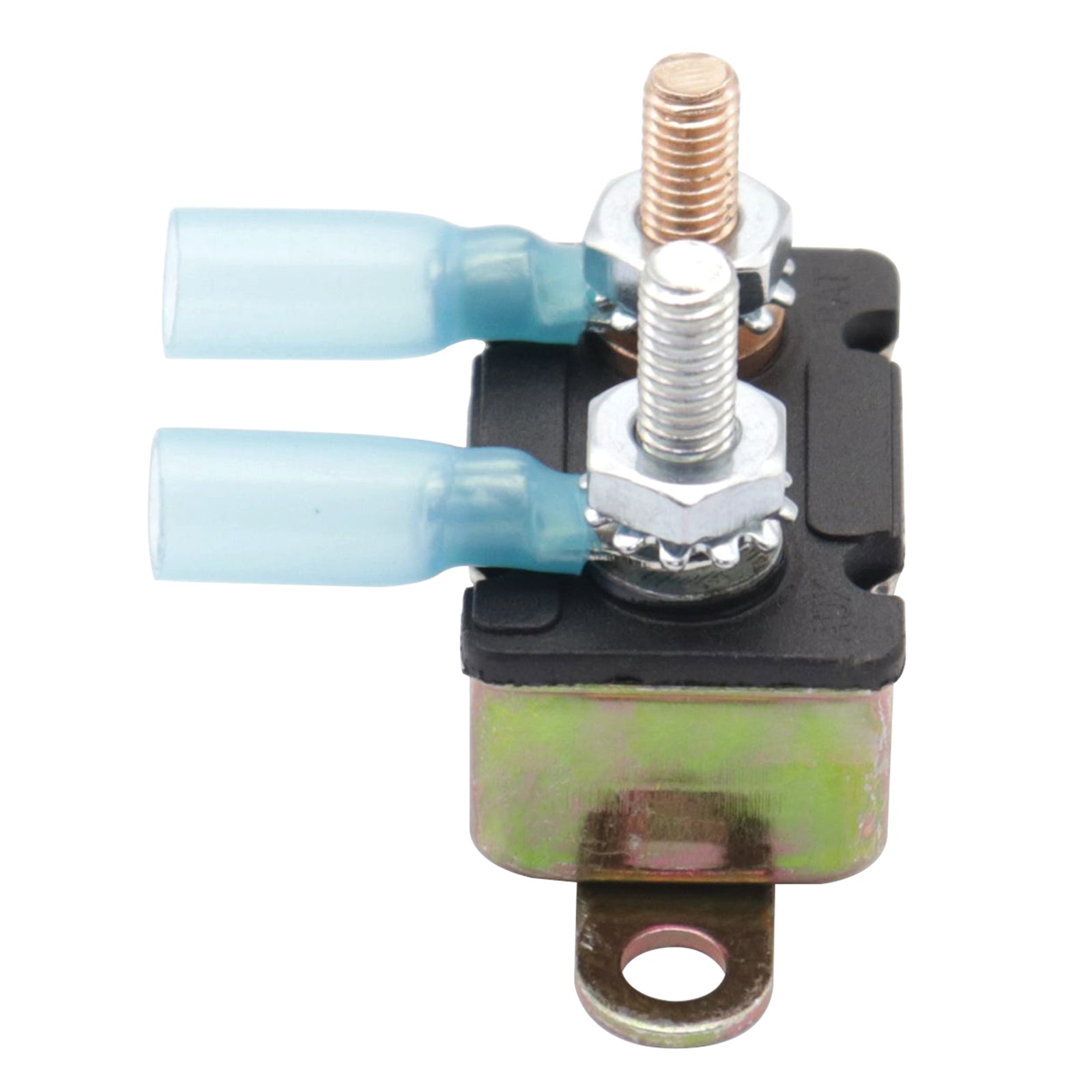

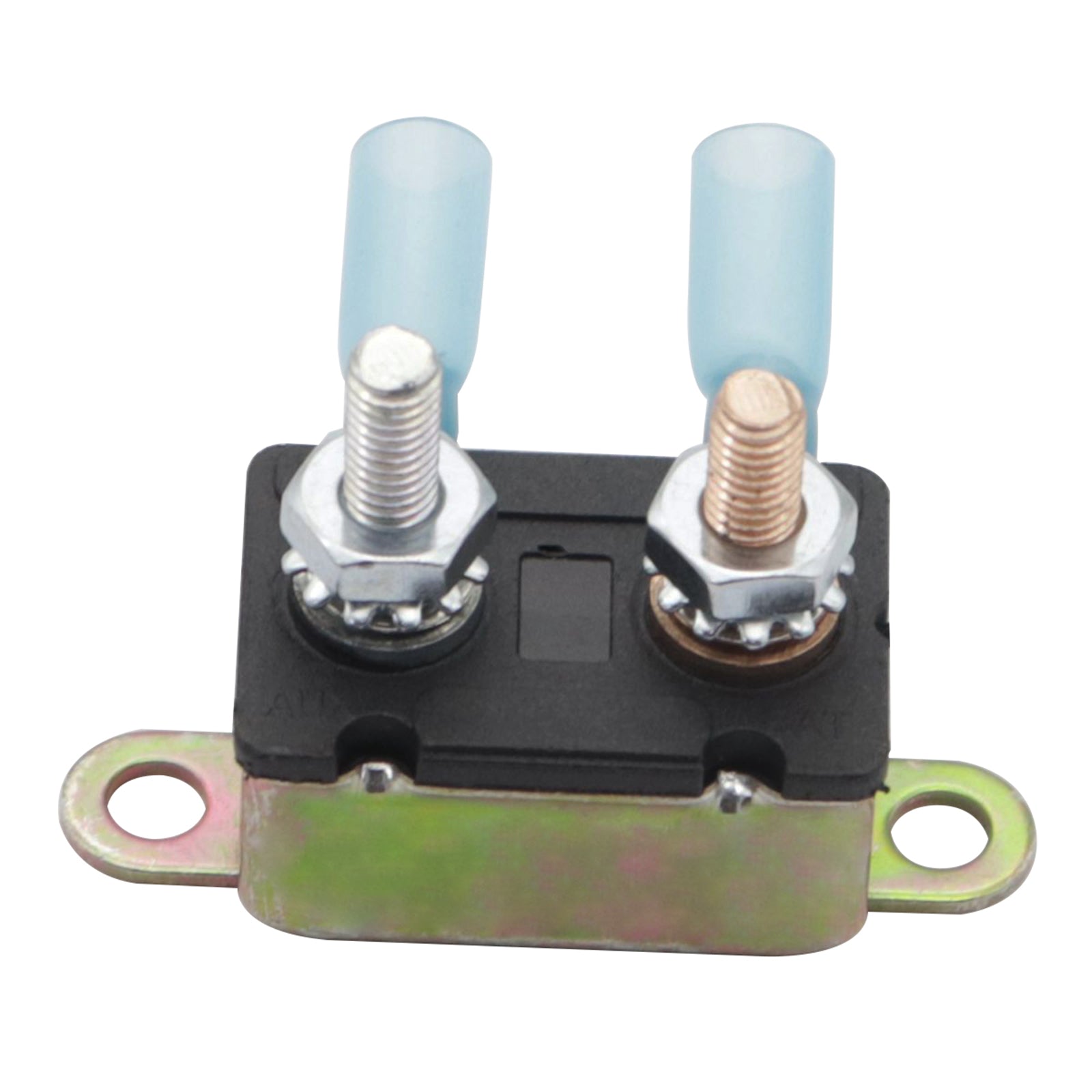

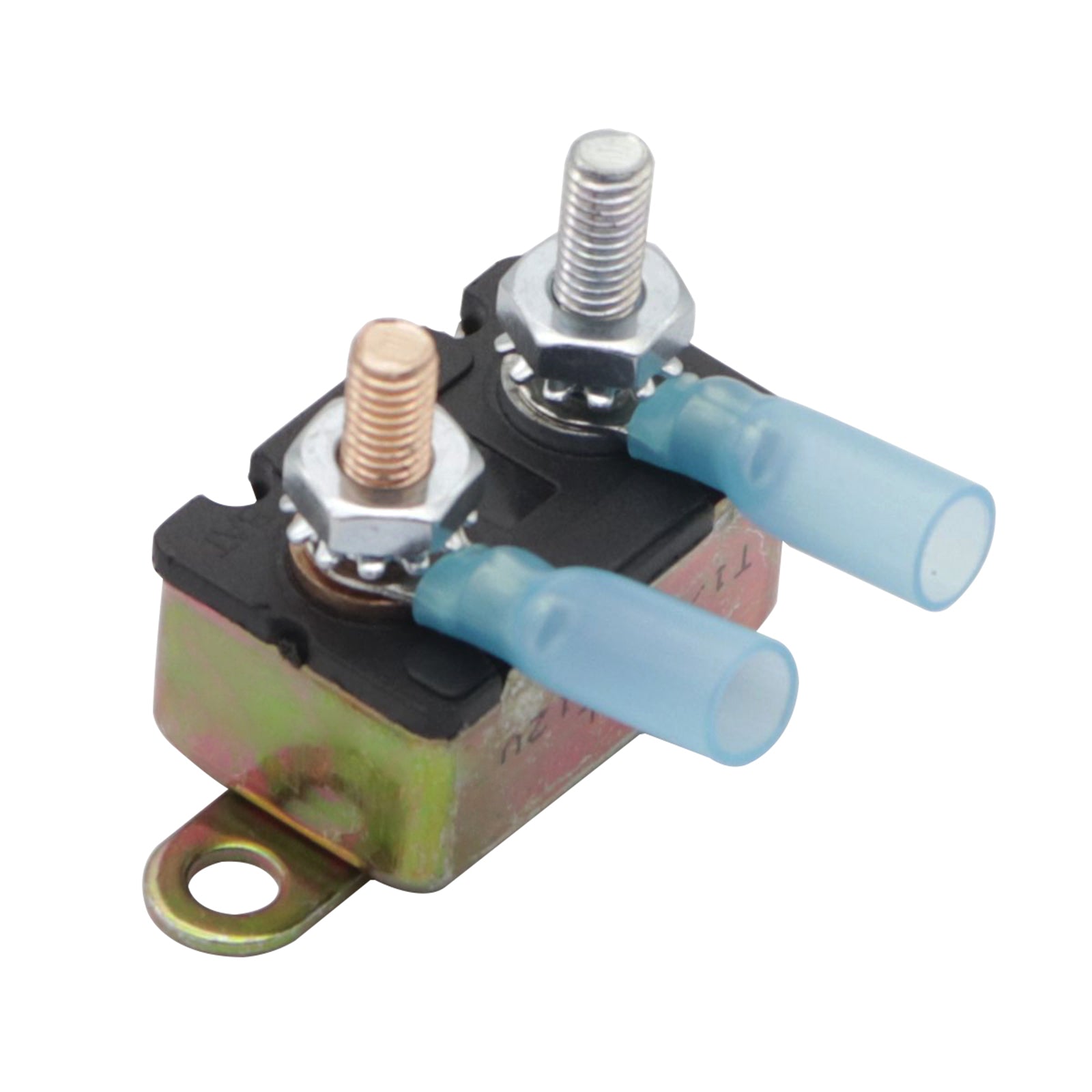

Car Audio Inline Circuit Breaker Fuse 12V DC 20A 30A 40A 50A For Choose.
Overcurrent circuit breaker with bi-metal structures, when the circuit is overload, can achieve Fast power off protection function.
Splash and dust proof at IP67 grade. Housing is thermal plastic UL rated 94V0.

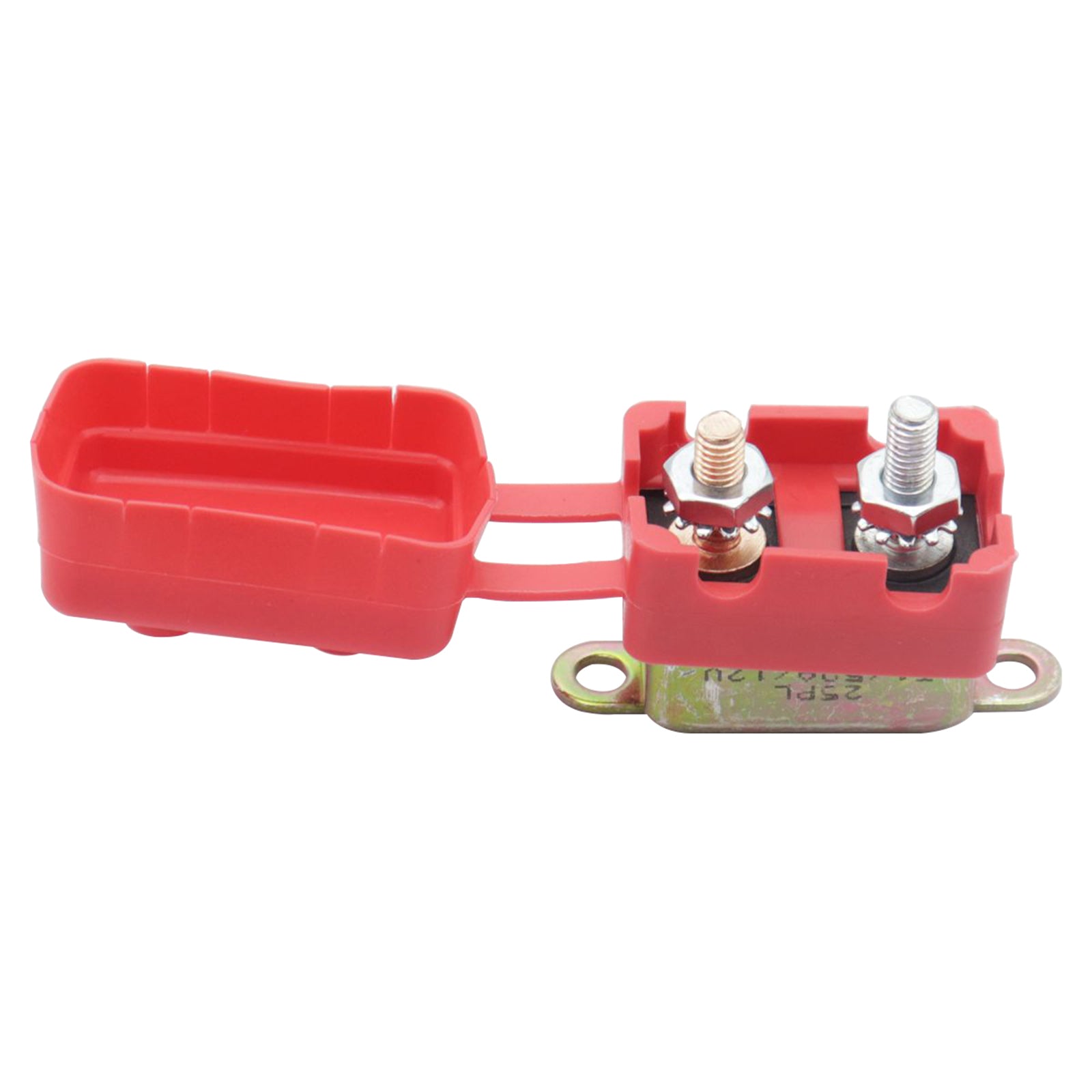

Rubber protective cover protect terminal from moisture, dust and accidental shorting.
Suitable for: Battery chargers, trucks, buses, electric cars, car engines, etc.

Specification:

Voltage: 12V
Interrupt Rating: 2.5KA@12VDC
Terminal: #10-32 thread with quick connector
Torque Rating: 30in-lb (3.4Nm) max
Operating Temp: -40°C to 85°C (-40°F to 185°F)
Storage Temp: -34°C to 125°C (-40°F to 260°F)
Auto Reset Time: 5-60 seconds

Size Chart:

40x21x40mm / 1.57x0.83x1.57inch

Package Includes:

1 Piece Circuit Breaker

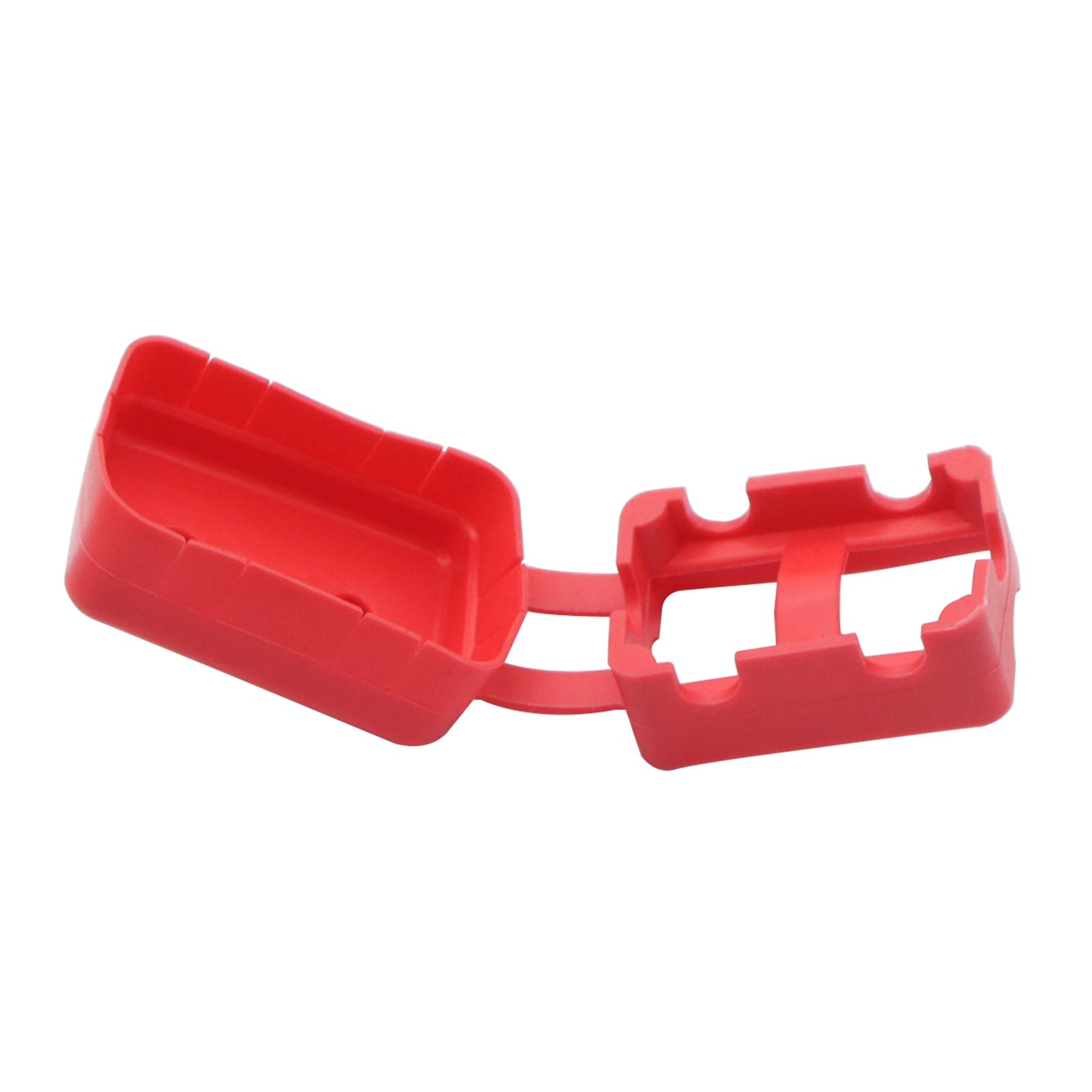

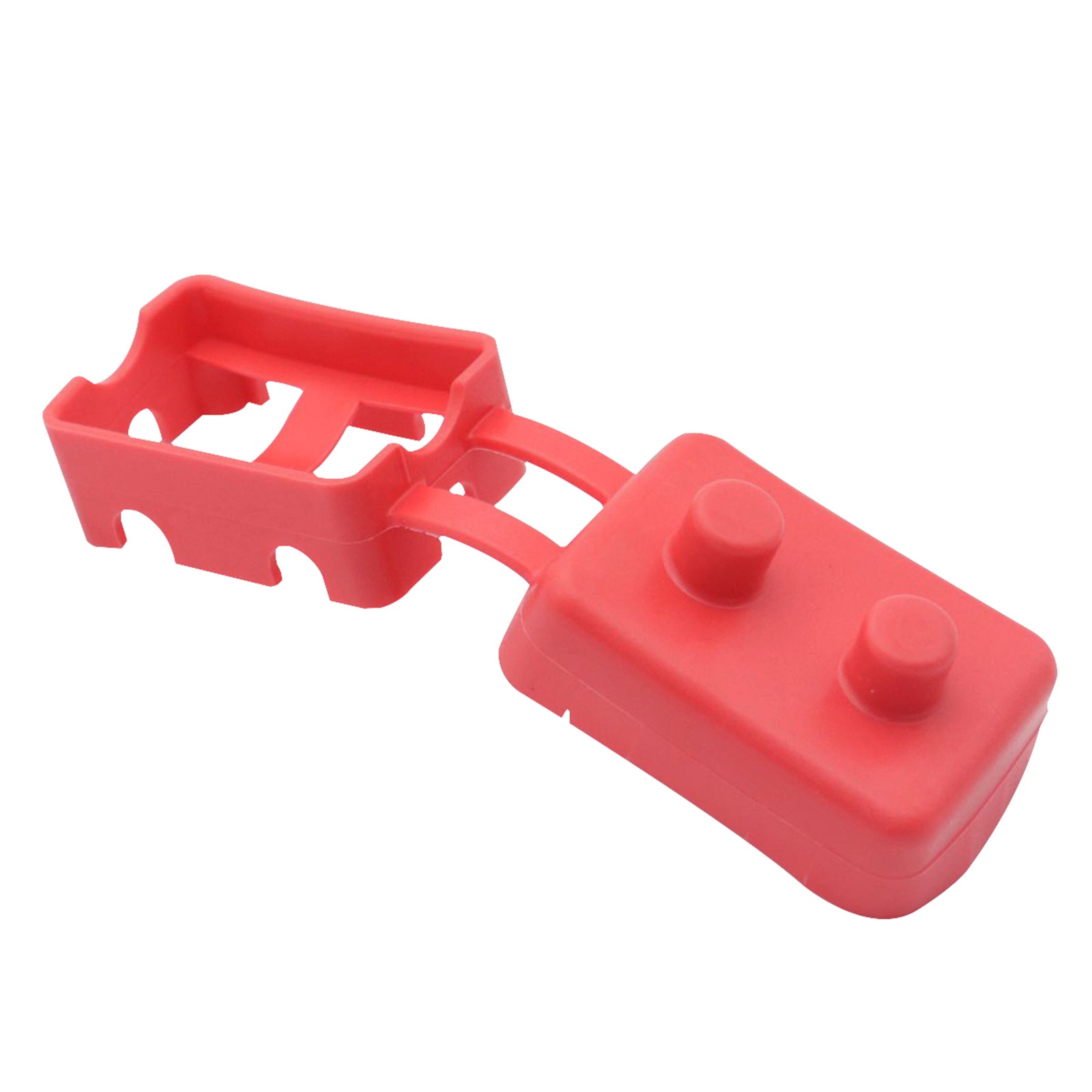

1 Piece Red Cover
2 Pieces Bolt Studs
2 Pieces Terminal Blocks
