Manual Reset Circuit Breaker 50Amp 12V 24V for Buses Car Engines Vehicle 30 Amp

Description:

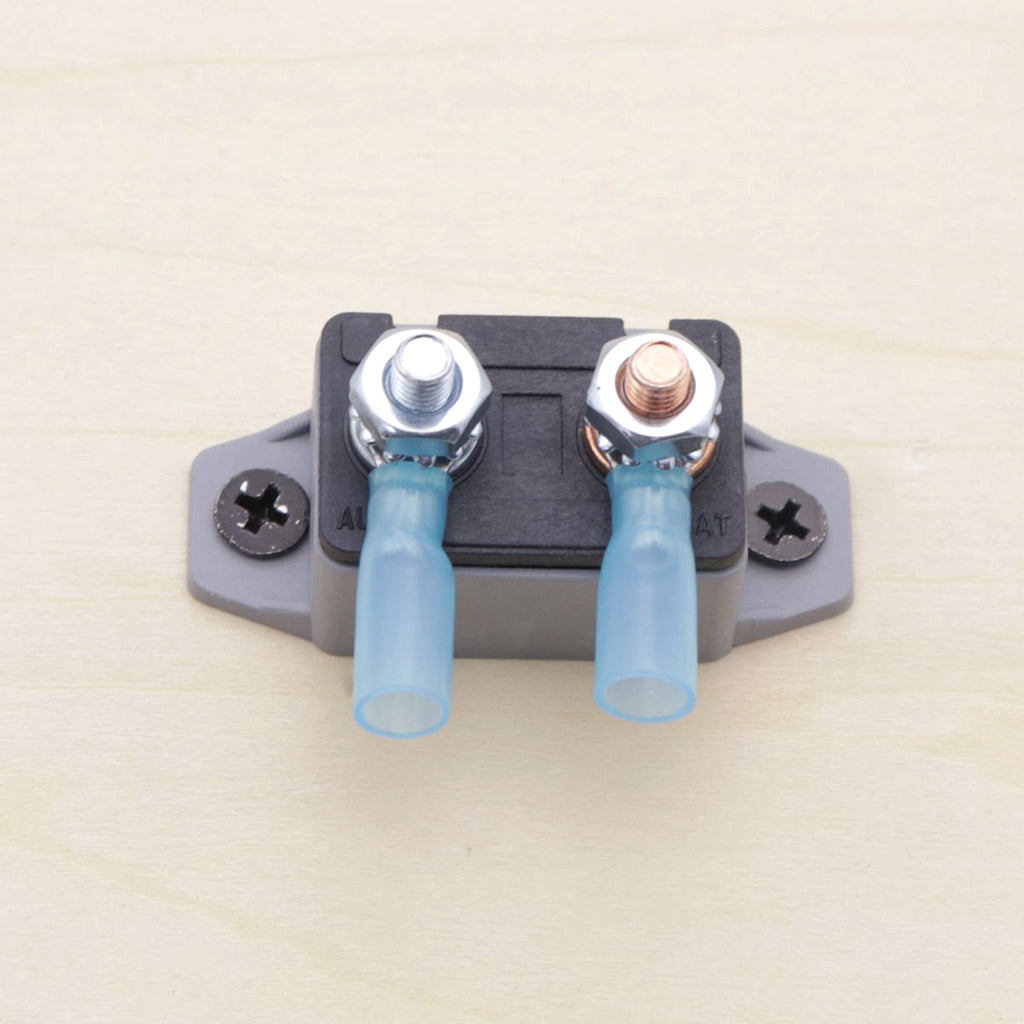

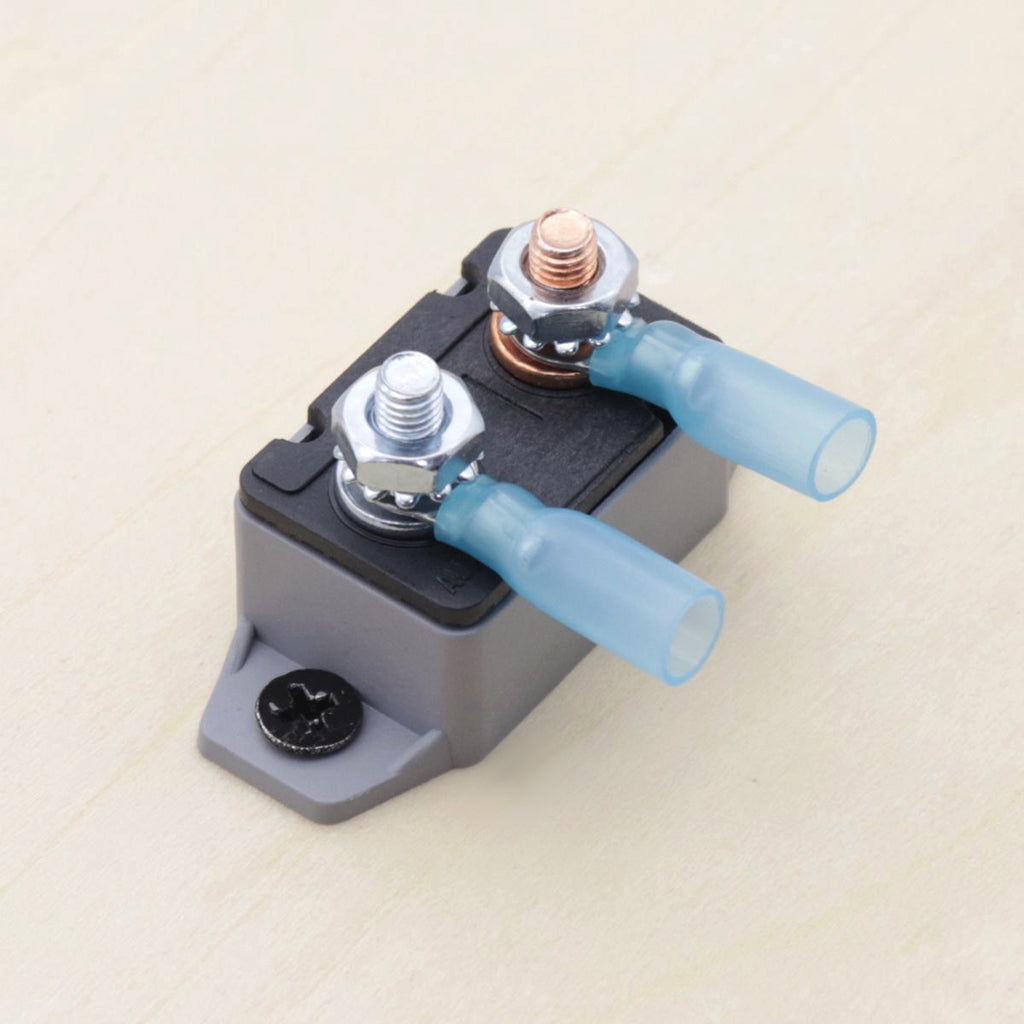

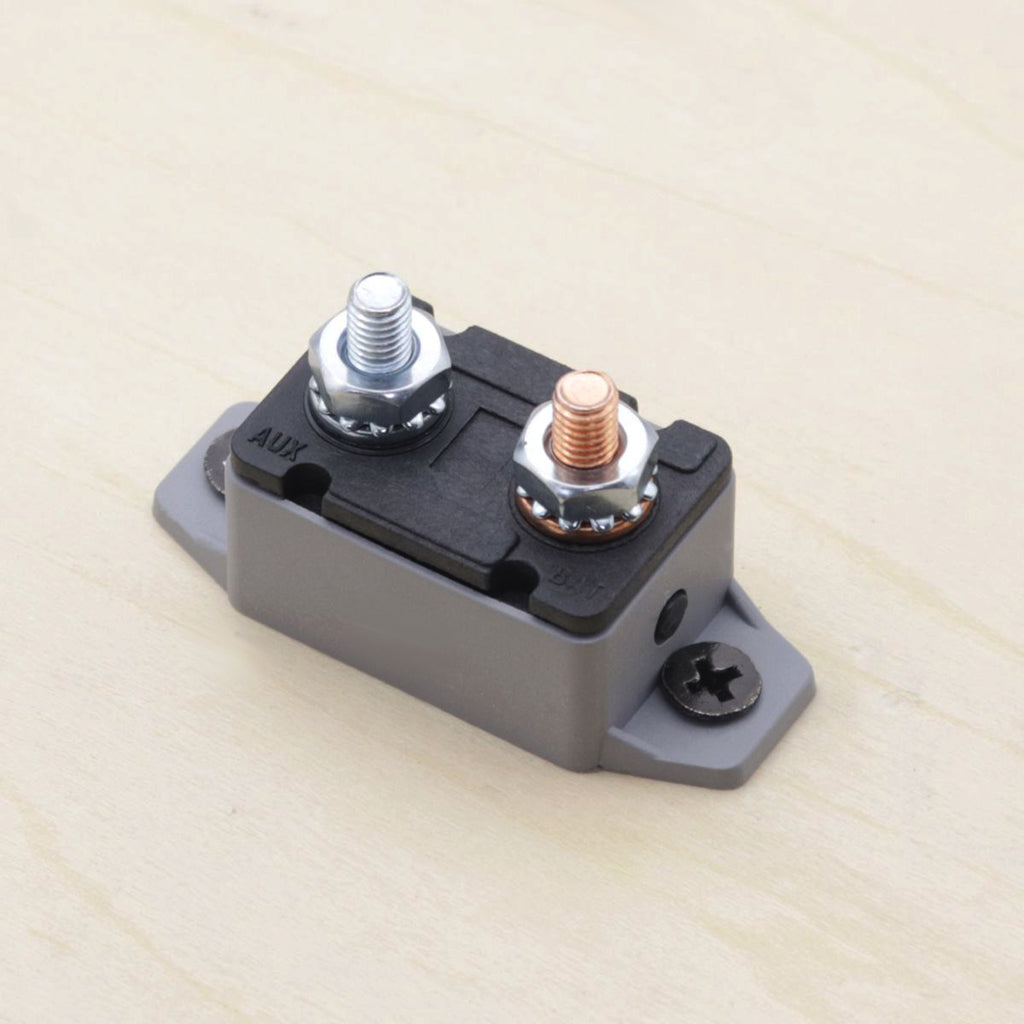

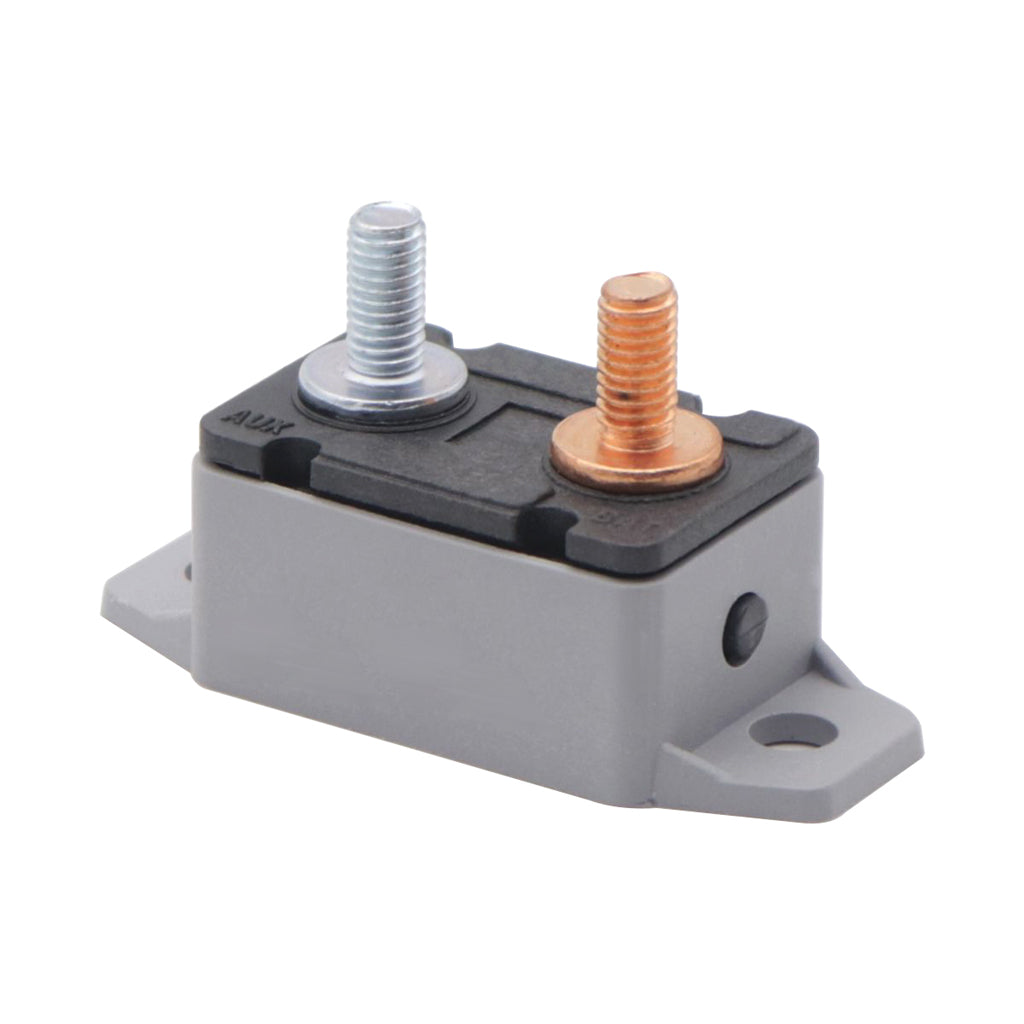

12v/24v manual reset circuit breaker.
Safe and practical to use: Never worry about fuse burn-out, power protected when circuit is overloaded / shorting by this overcurrent circuit breaker.

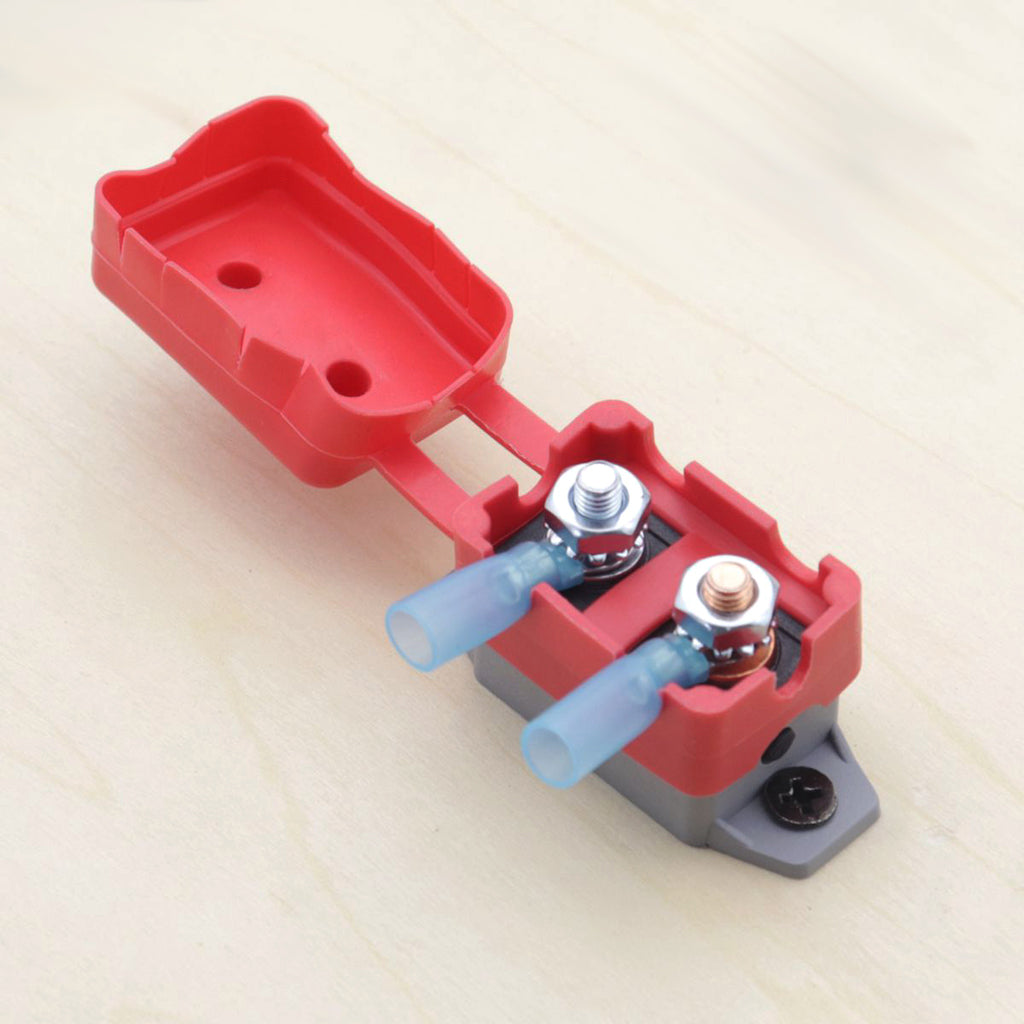

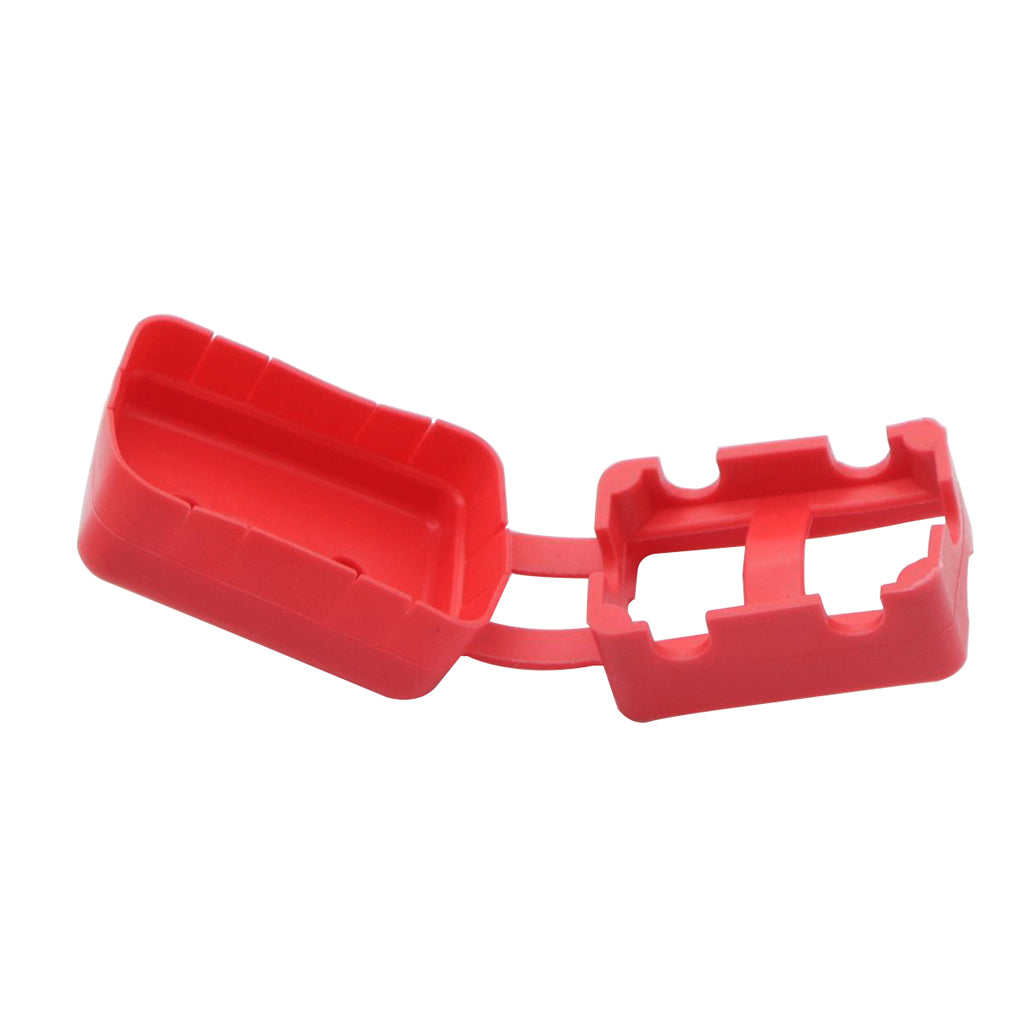

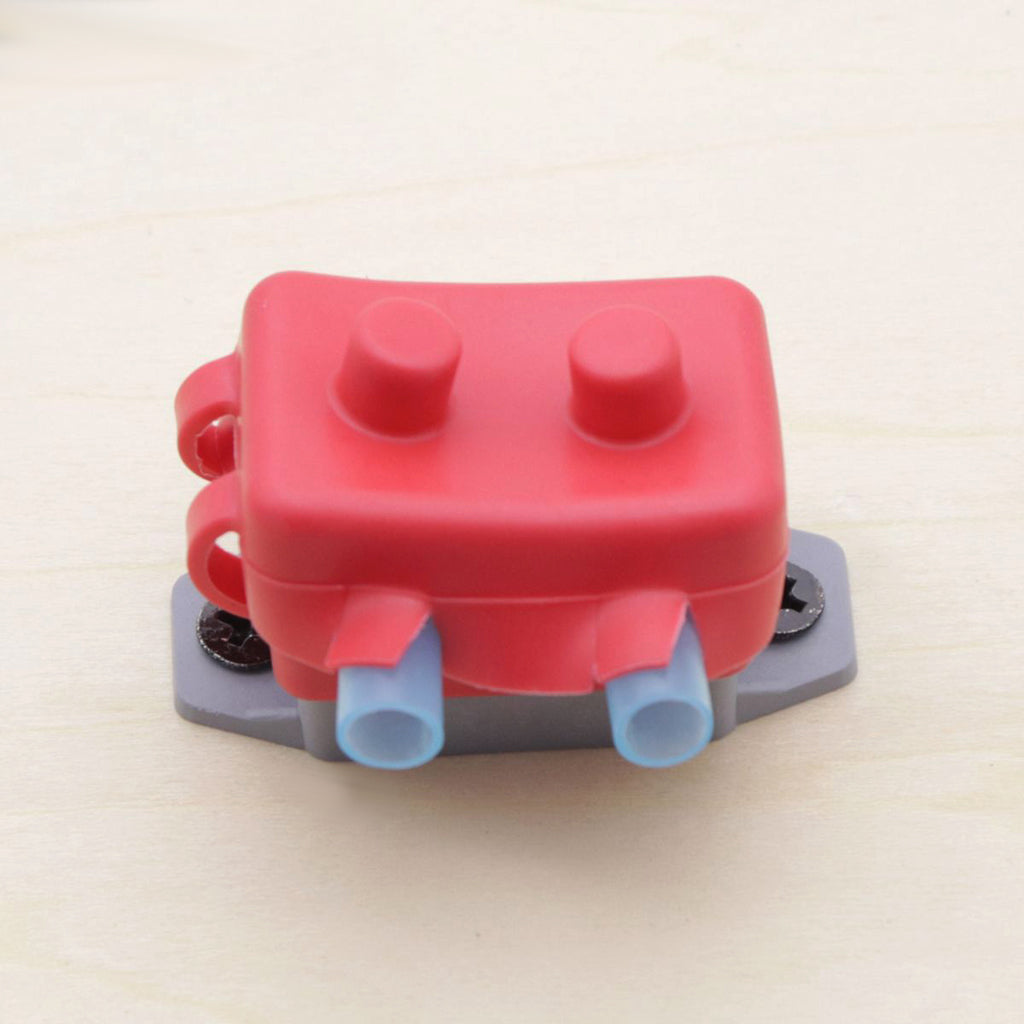

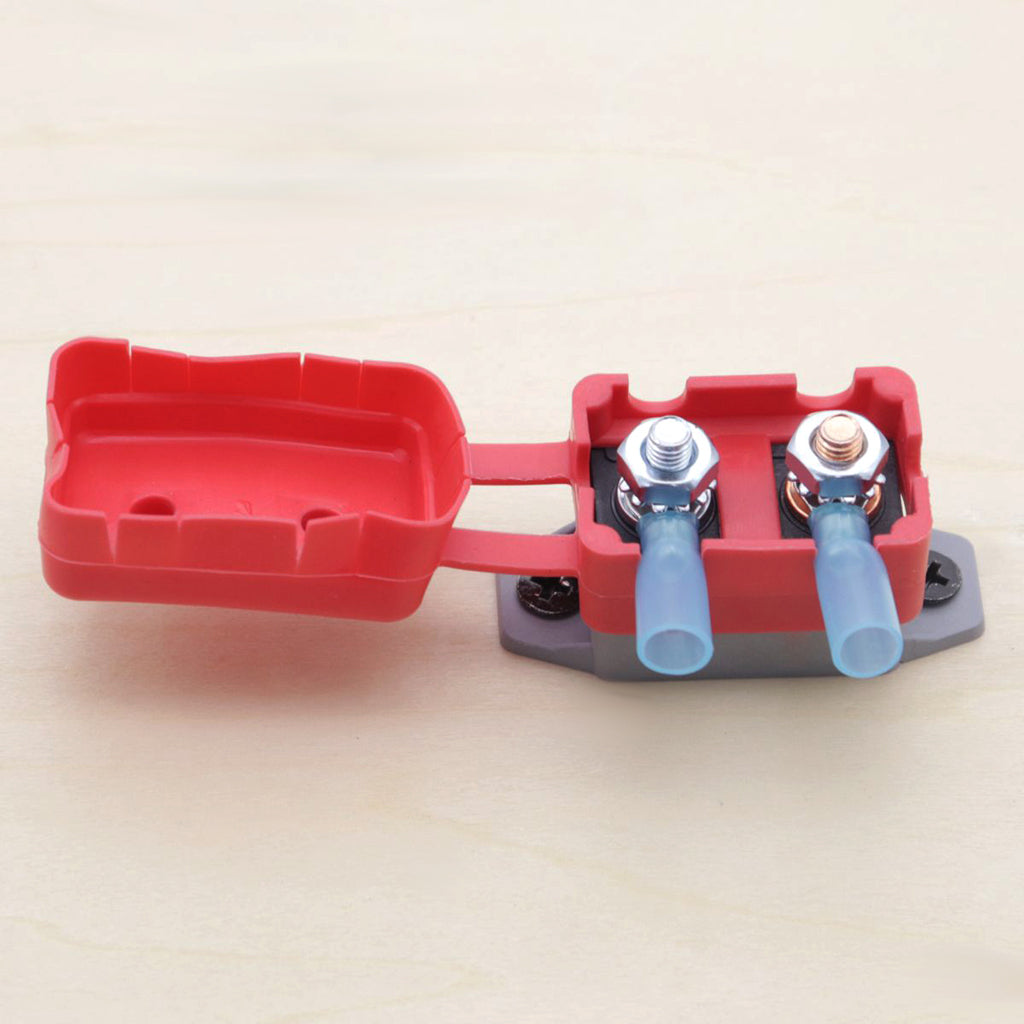

Flexible Red Protective cover protect terminals from moisture, dust and accidental shorting.
Multi Amps circuit breaker available.Easy to Mount with 2 Pieces Self-tapping Screws.
Widely applications: suitable for automotive, electromechanical equipment, vehicle, marine, off-road and other vehicles, yachts and ships, truck applications, battery chargers, car engines electrical control etc.

Specification:

Material: Metal
Rated voltage: 24V (compatible with 12V)
Rated current: 50A
Interruption capacity: 2.5 KA/12Vdc
Reset method: manual reset
Installation method: screw fixed
Waterproof Rate: IP66
Mounting Hole Spacing: 39.6 mm / 1.56 inch
Bolt length: 9.4 mm / 0.37 inch
Spacing of Bolts: 17.5 mm / 0.69 inch
Material: Aluminum

Size Chart:

40x21x40mm

Package Includes:

1 Piece Manual Circuit Breaker
1 Piece Red Sheath
2 Pieces Self-tapping Screws
2 Pieces Terminal Block

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
