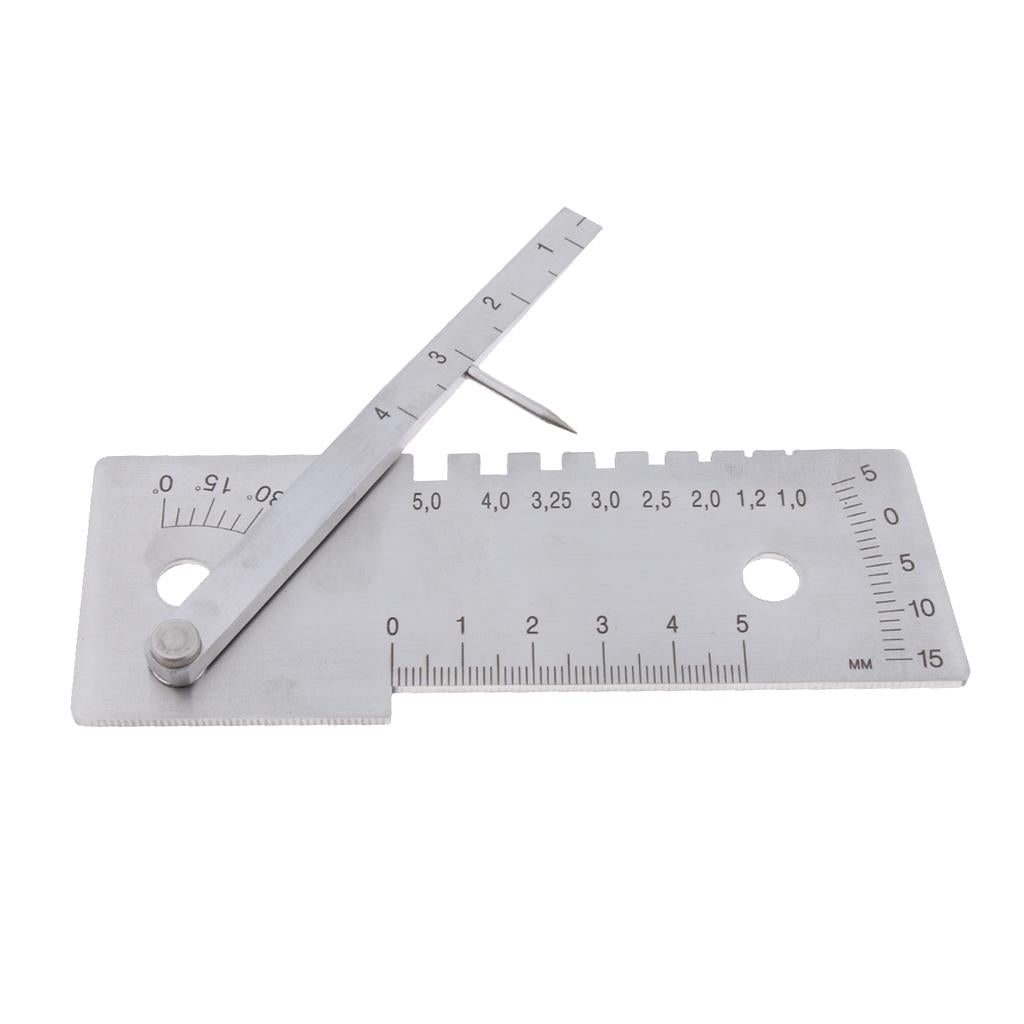

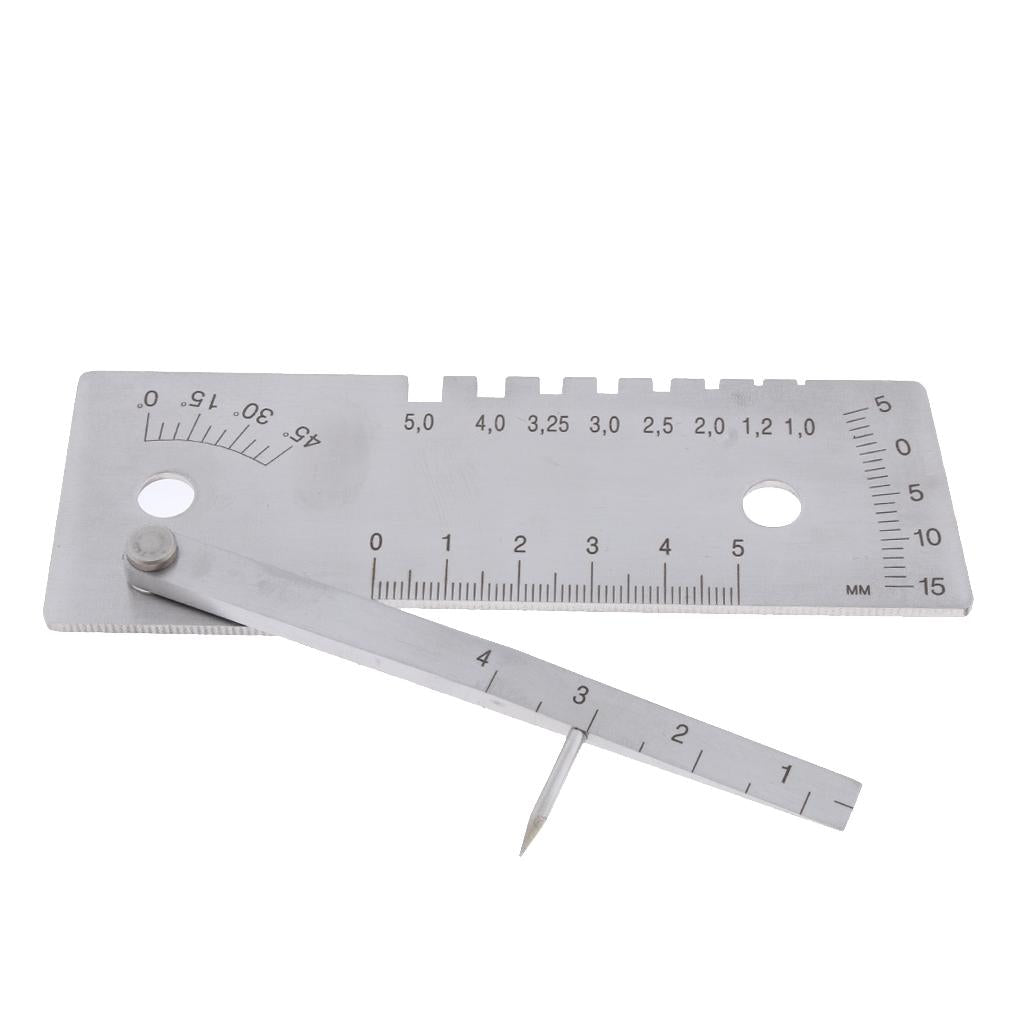

Universal Welding Tools Multi-function Weld Seam Gauge Stainless Steel Inspection Ruler

Description:

Uniserval welding inspection gauge
Measuring range: 0-50mm/2inch
Made of stainless steel , durable, heavy duty
To control the cutting elements of a weld, electrodes and weld elements in enterprises and organizations that produce welding
Apply to the pattern is applied during the visual control of the measuring geometry of the weld

Specification:

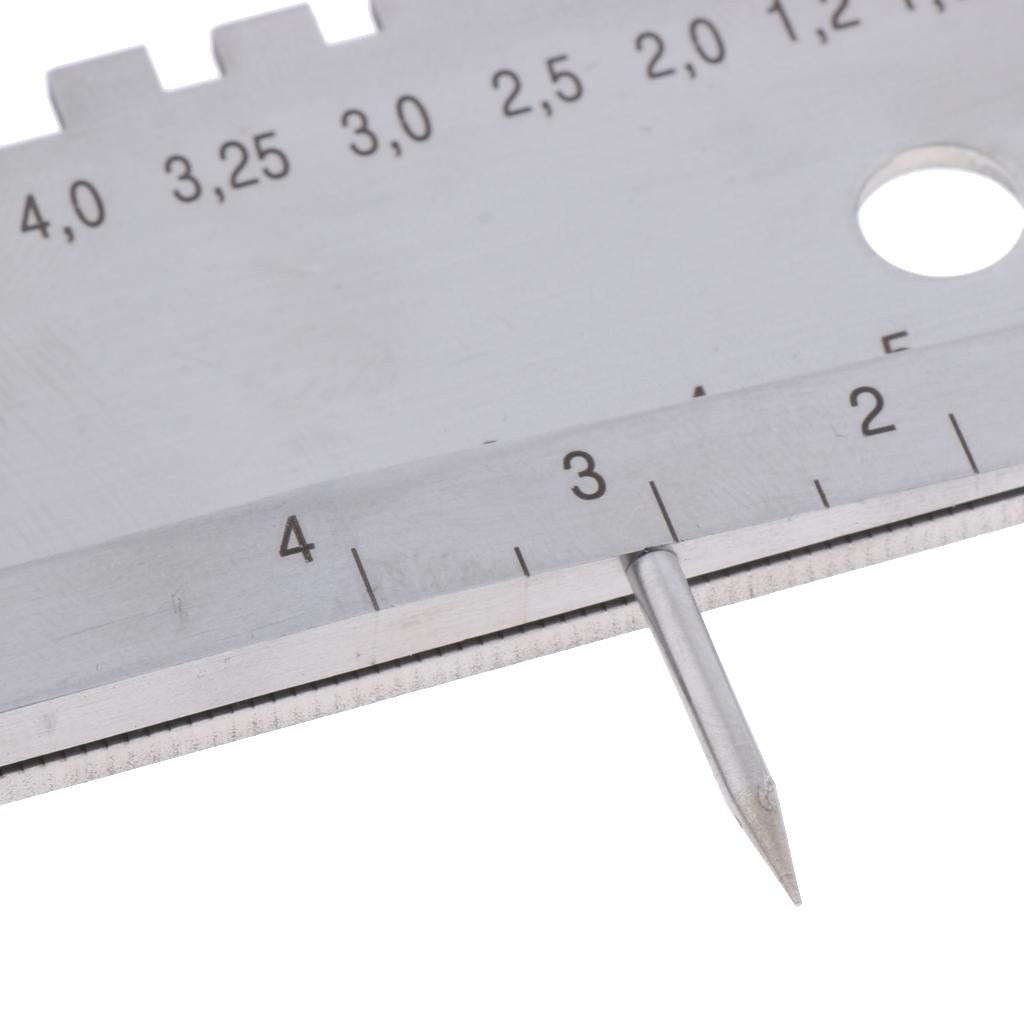

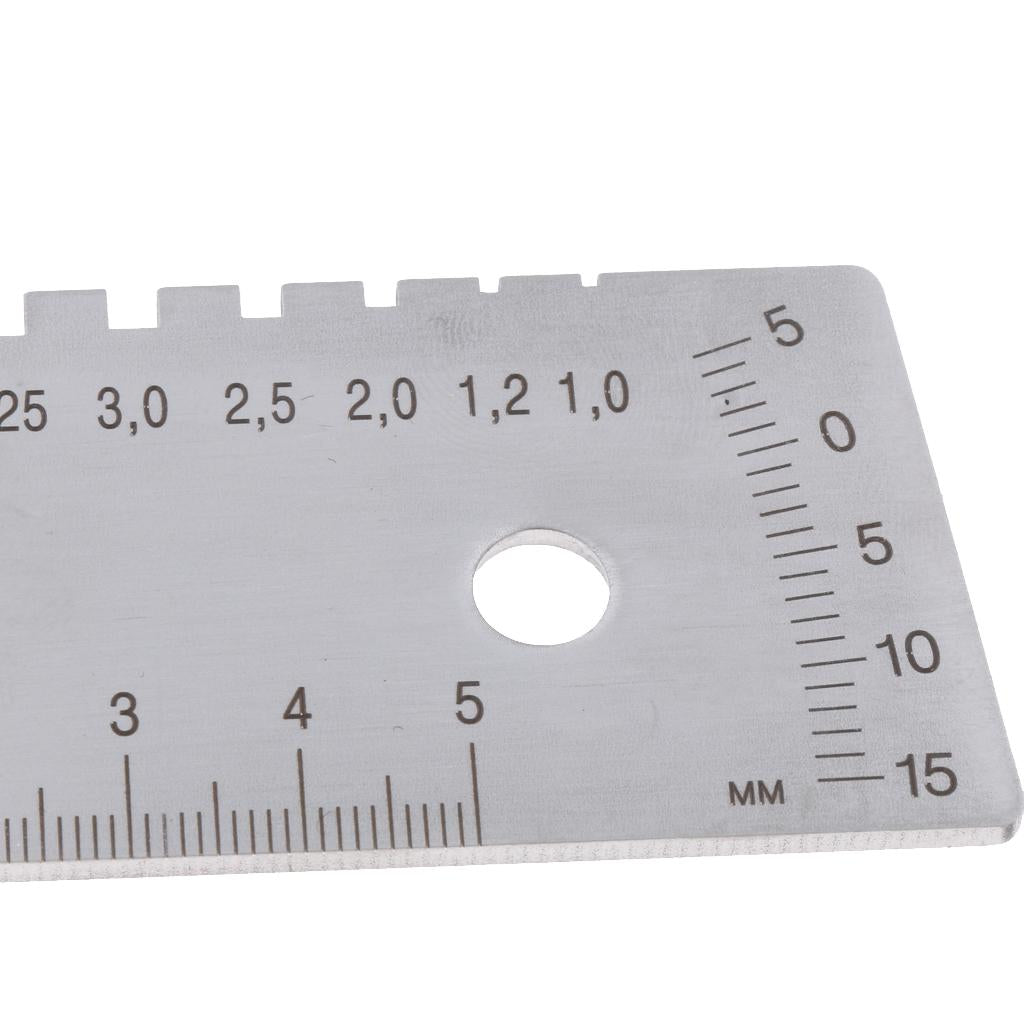

Measuring range of depth of defects (dents, nicks), the depth of the seam cutting to the root layer, the excess edge, 0-15mm
Range of measuring the height of the weld reinforcement,0-5mm
The range of measurement values and the blunting of the joint width, 0-50mm
Measurement range of the gap,0.5 - 4mm
Measuring range of angles the bevel edge, deg.0 - 45
Nominal values of the diameters of the electrodes, the measured pattern,1, 1.2, 2, 2.5, 3, 3.25, 4, 5mm

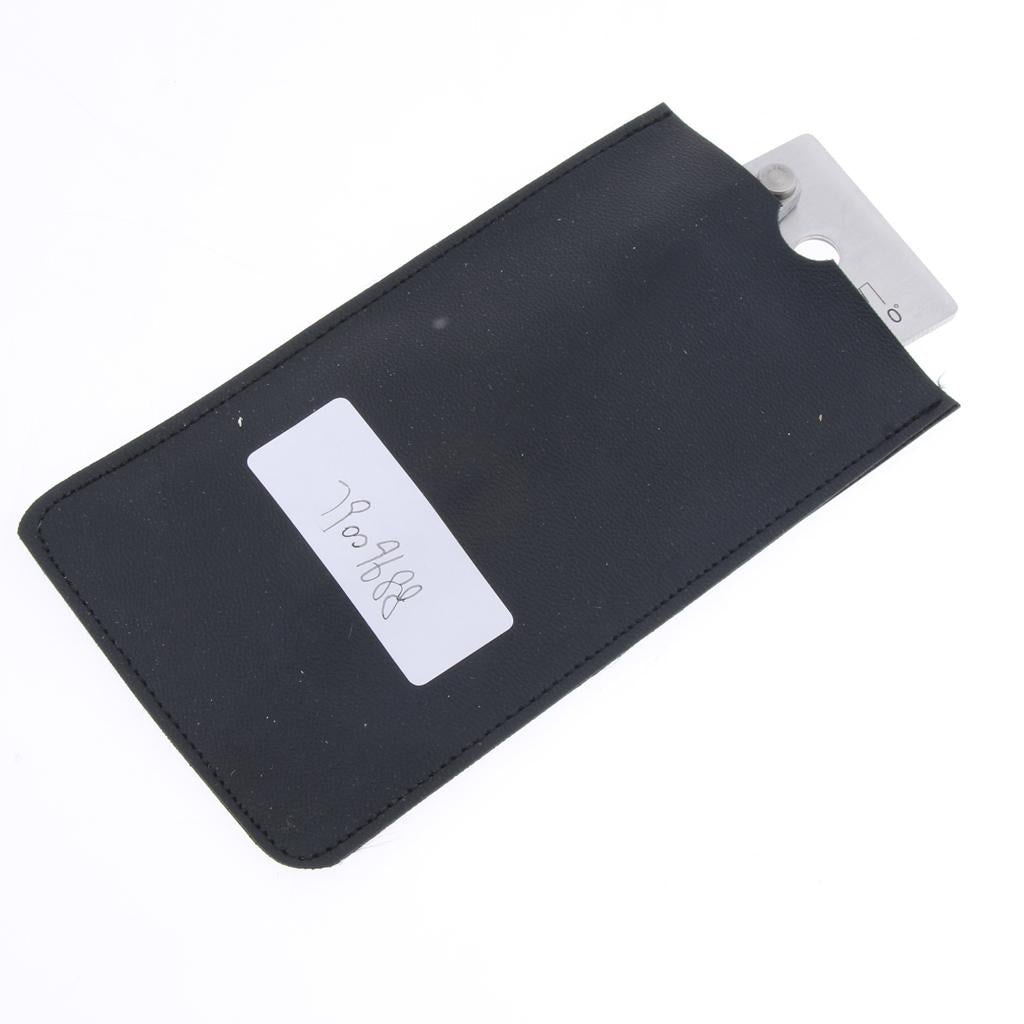

Package Includes:

1 Piece Welding Gauge
