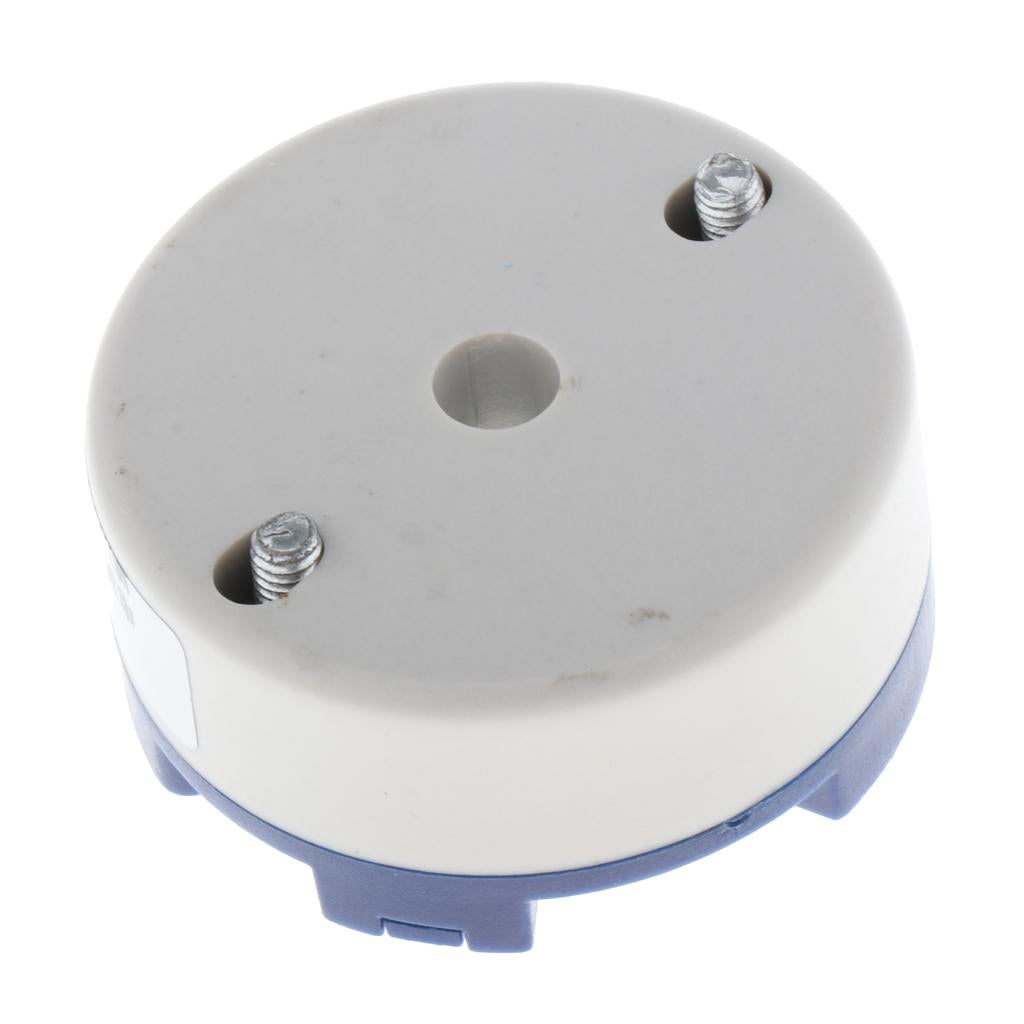

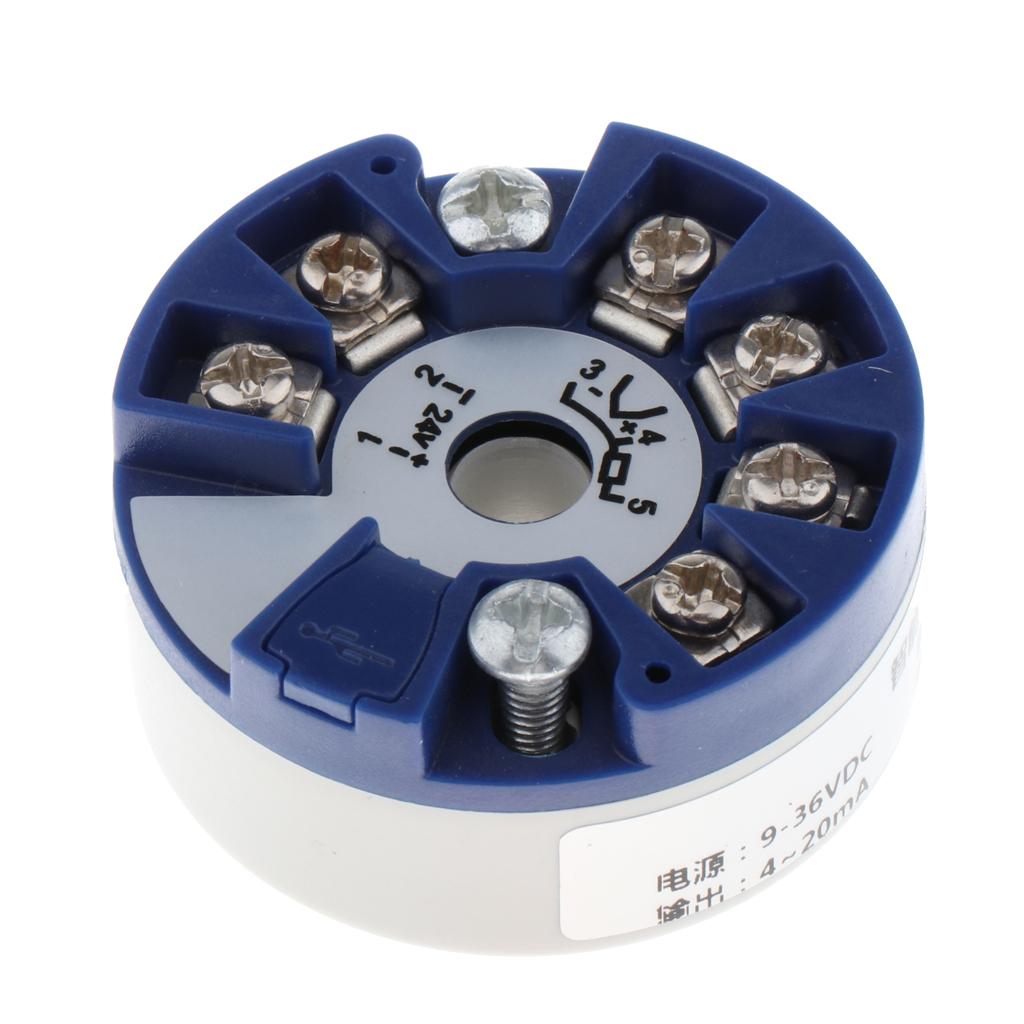

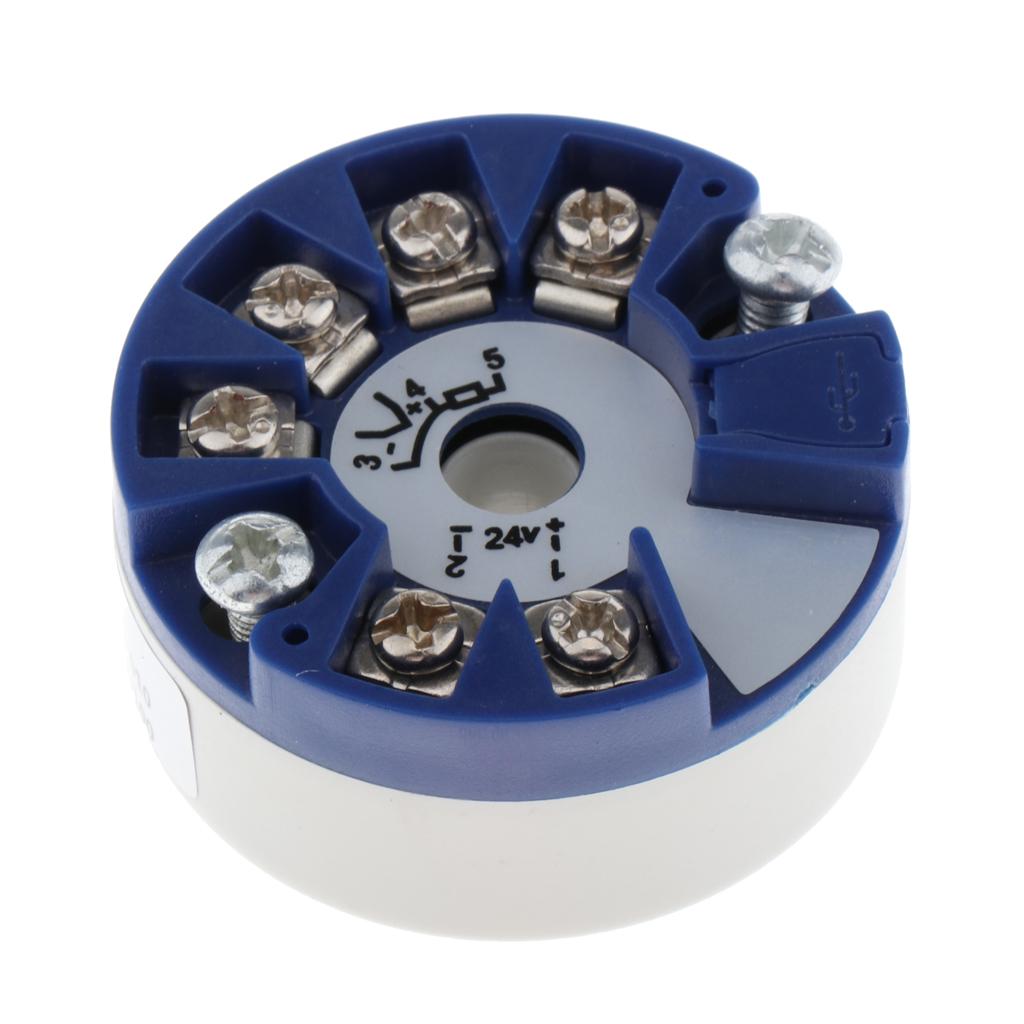

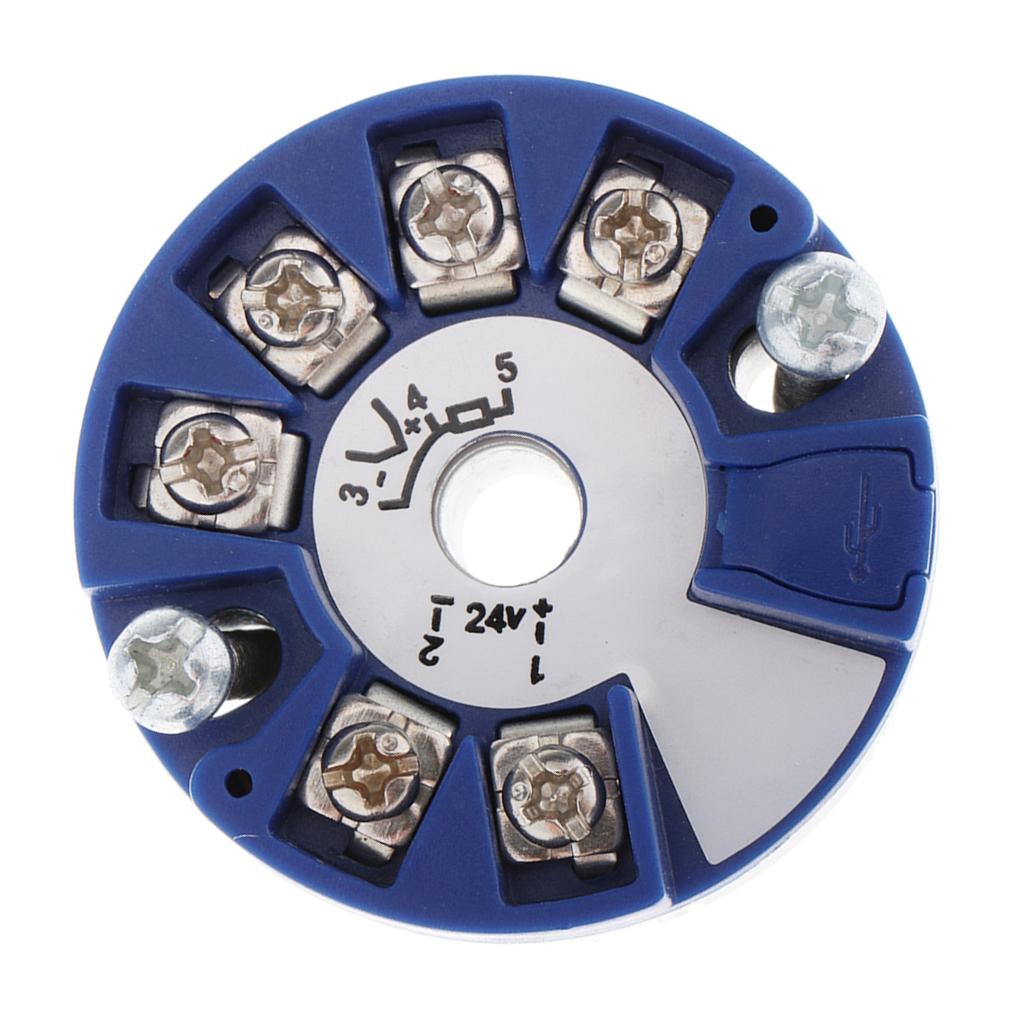

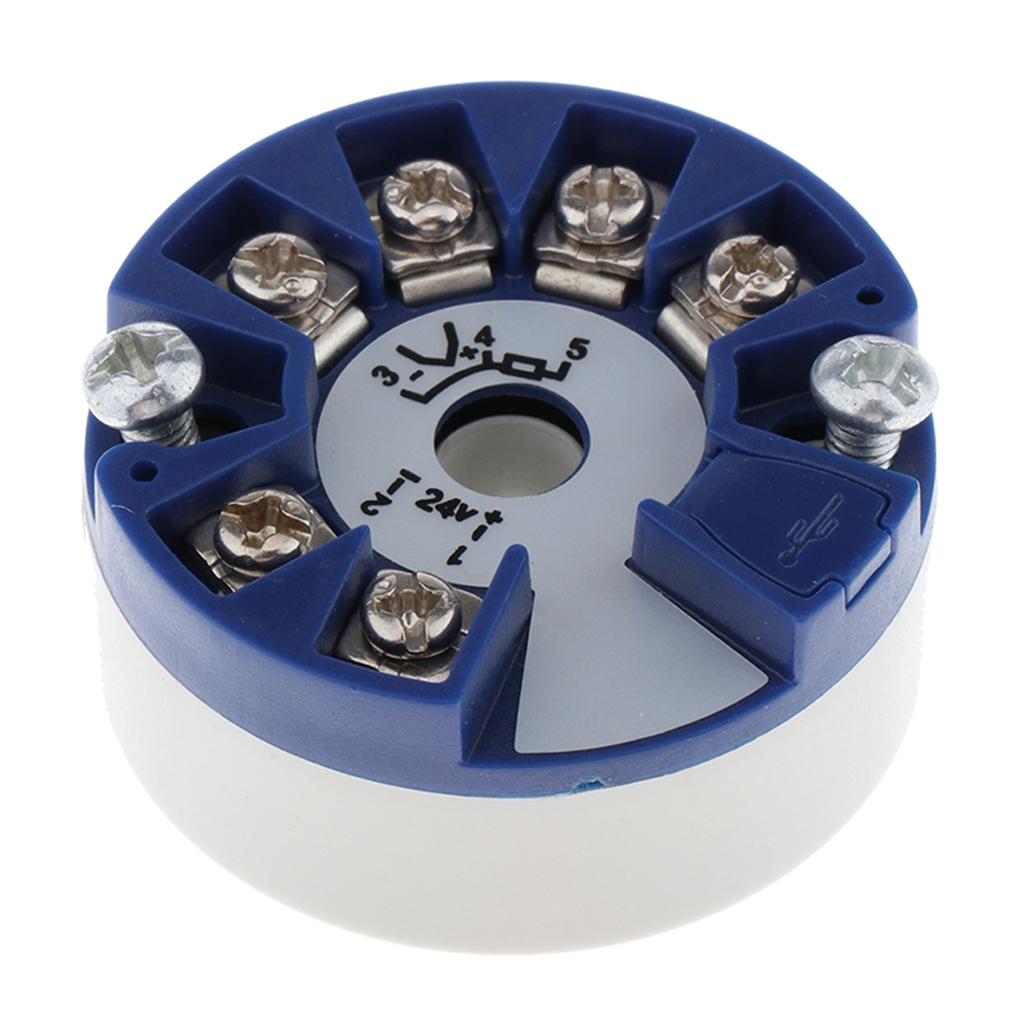

4-20mA High Precision RTD Intelligent Temperature Transmitter Module 9-36VDC

Description:

PT100 Temperature Sensor Transmitter, more stable and stronger anti-interference function
Input voltage: 9-36V DC; Output Current: 4-20mA
Widely used for Integrated Thermal Resistance/Thermocouple, PLC Module and Temperature Control Instrument
Input type: K,S,R,B,T,E thermocouple, Pt100,Cu50 thermal resistance(Through the upper computer software intelligent setting)
Material: Plastic

Specification:

Standard accuracy: +-0.2%(notes: Higher precision can be customized)
Cold end compensation error: +-2℃
Thermal resistance lead compensation: +-0.1%(0-10ohm)
Load change effect: +-0.1%(Allowable load range)
Power change effect: +-0.1%(12 to 30V)
Working Temperature: -20 to +70℃
Level of protection: IP00/IP54(The sensor protection level determined)
Electromagnetic compatibility: meet IEC61000，EN61000 requirements

Size Chart:

Size: Approx. 4.2x4.2x2cm / 1.65x1.65x0.79inch

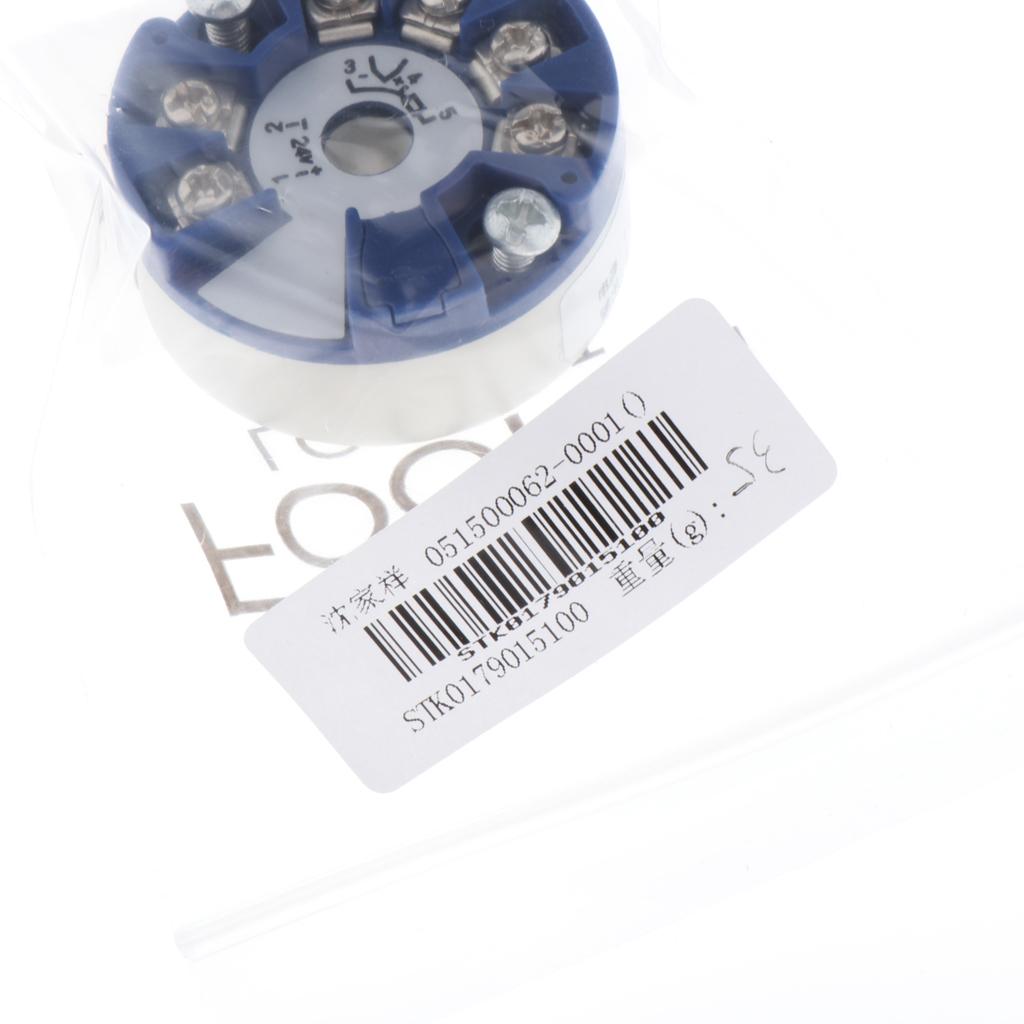

Package Includes:

1 Piece Temperature Transmitter Module
