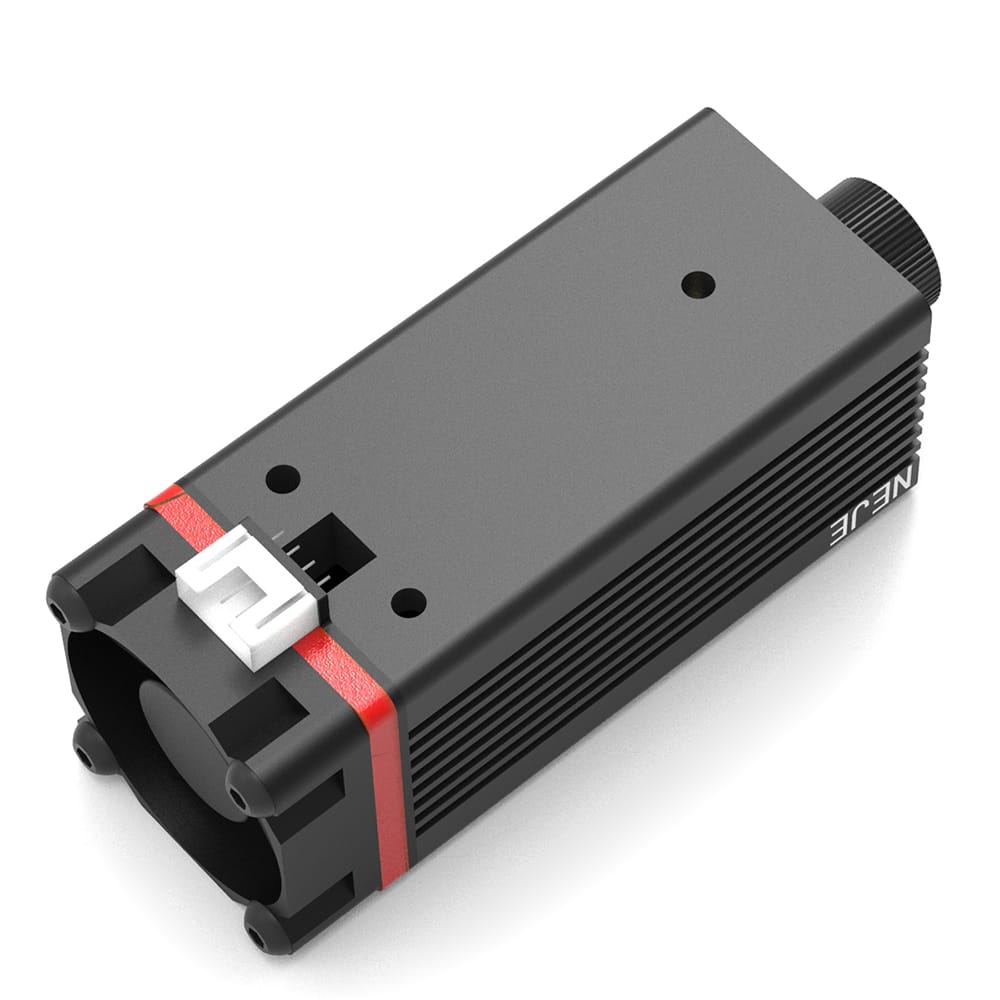

6000mW 450nm Blue Light Laser Head for Master Series DIY - 6000mW

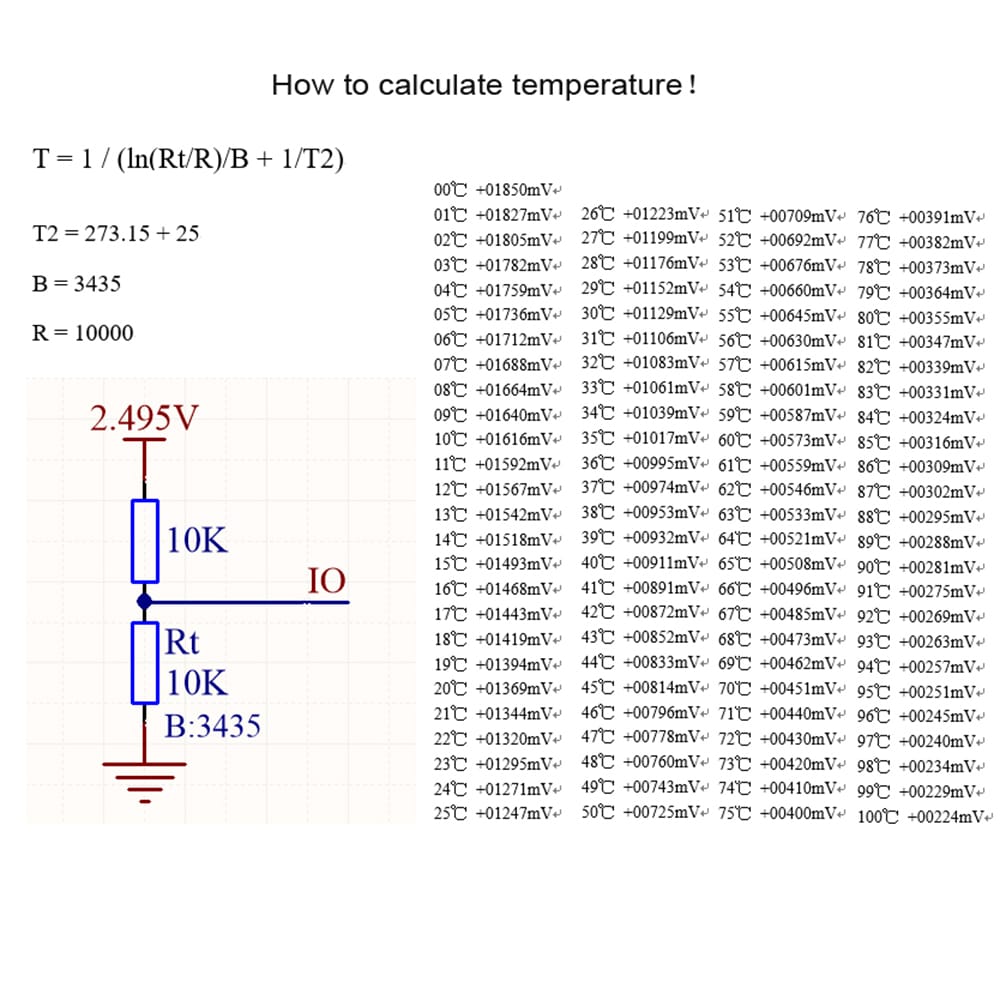

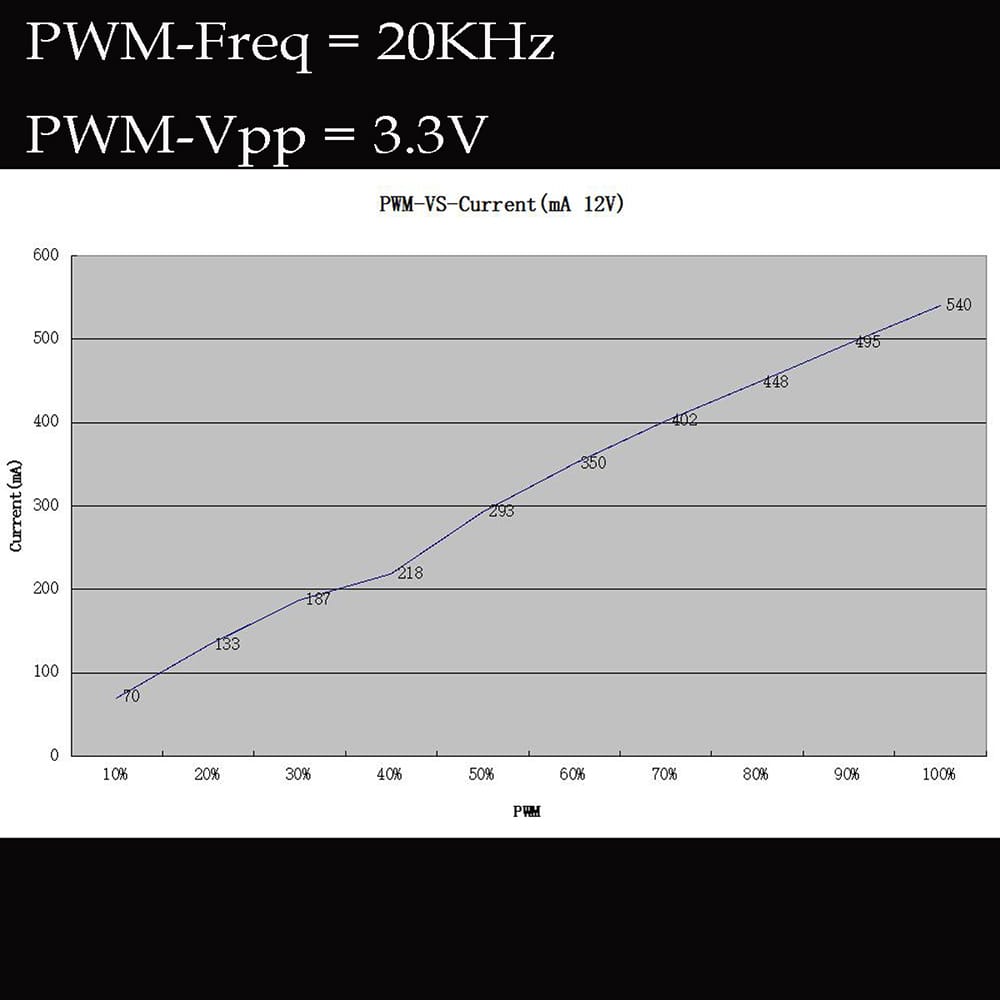

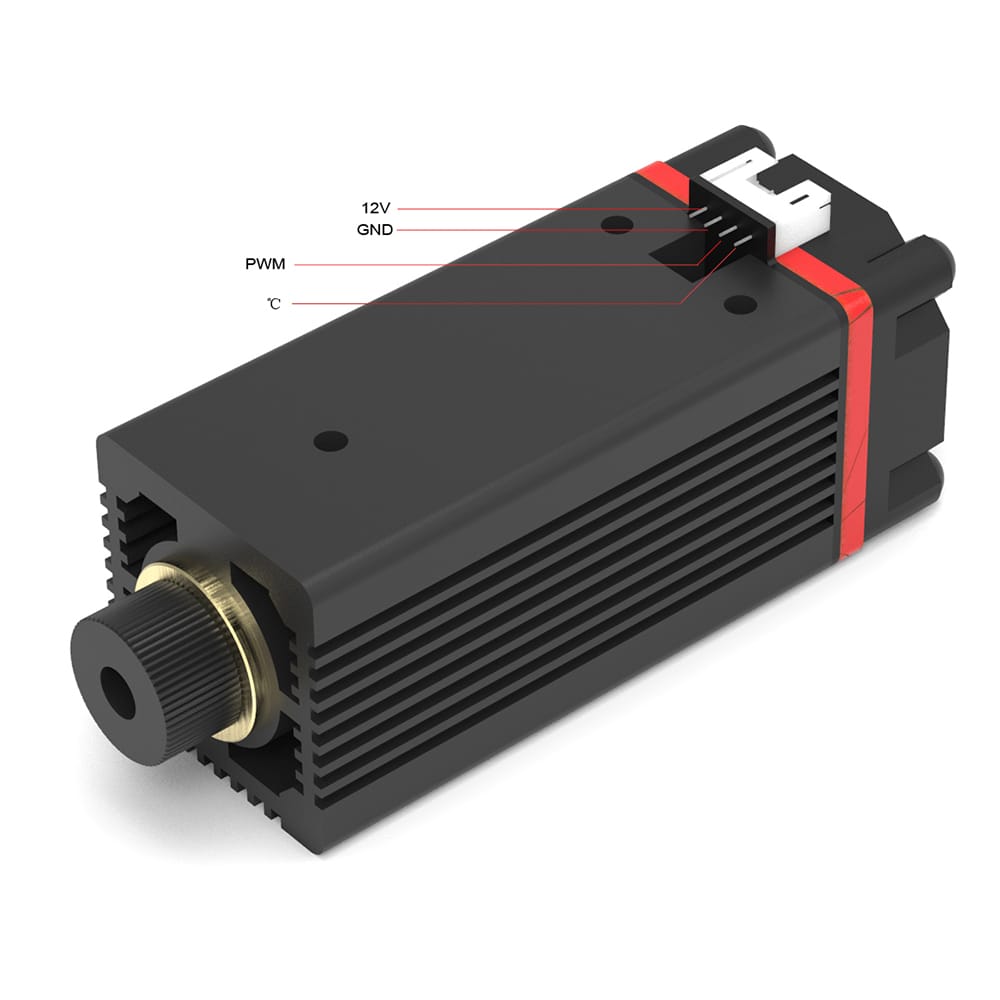

This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.Features:Professional laser head with high speed high precision and high stability.Bright blue light easy for locating when engraving.Adjustable laser head easy to adjust ensure engraving with good quality and high efficiency.Laser head is more durable and stable after high temperature and long time aging.Suitable for Master series DIY engraving machine easy to install.Main applications: deep engraving drawing simple cutting etc.Especially good at depth engraving(0.5-1.5mm wood) Can cut 1mm High-Speed Engraving unable to engrave metal and glass. Supported engraving materials: Wood gray paper leather bamboo blackening plastics rubber pcb paint metal etc.Can not work on the stainless steel alloy glass and some reflective materials.Specifications:Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)Material: Copper + AluminumLight Color: BluePower: 6000mWWave Length: 450nmInput power: approx. 12V 550mA (without fan power)Output optical power: 2.2WPWM: 50KHz-20KHz / 3.3V-12VTemperature Sensor: yesBest focus range: 0mm-50mm( Recommend 0-10mm)Max cutting thickness: 3mm(Light diameter:0.15mm)Minimum Focus Diameter: 0.01mm ( Recommend Focus Range10mm)Drive Position: Built-inIs the Power Adjustable: PWM can be adjustedDrive Protection: Surge protection overvoltage protectionLine Length: 300mmLine Length Material: Sports siliconeControl Line Installation Method: PluggableInterface Specification: 4pin PH2.0 (red: 12V black: GND yellow: PWM green: temperature signal)Radiator Size: 30 * 60mmFan Size: 30 * 10mmFan Speed: 10 000 rpmControllable Temperature: Less than 60 degrees CelsiusFocus Range: 10 ~ 100mm (best focus: 50mm from the light exit)Item Size: Approx.80 * 30 * 30mm / 3.15 * 1.18 * 1.18inItem Weight: Approx.128g / 4.52ozPackage Size: Approx.20 * 15 * 3cm / 7.88 * 5.91 * 1.18inPackage Weight: Approx.134g / 4.73ozPackage List:1 * Module1 * Wrench2 * Screw2 * Gasket
