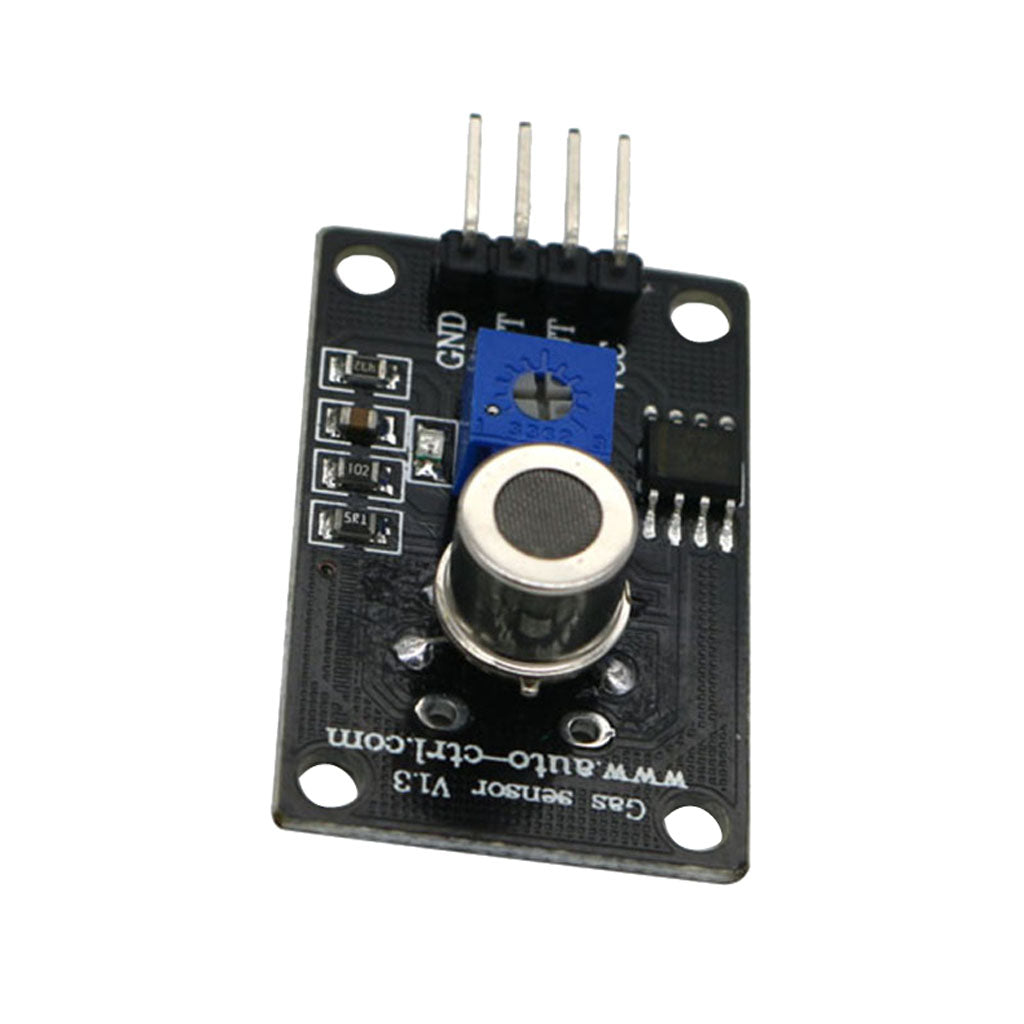

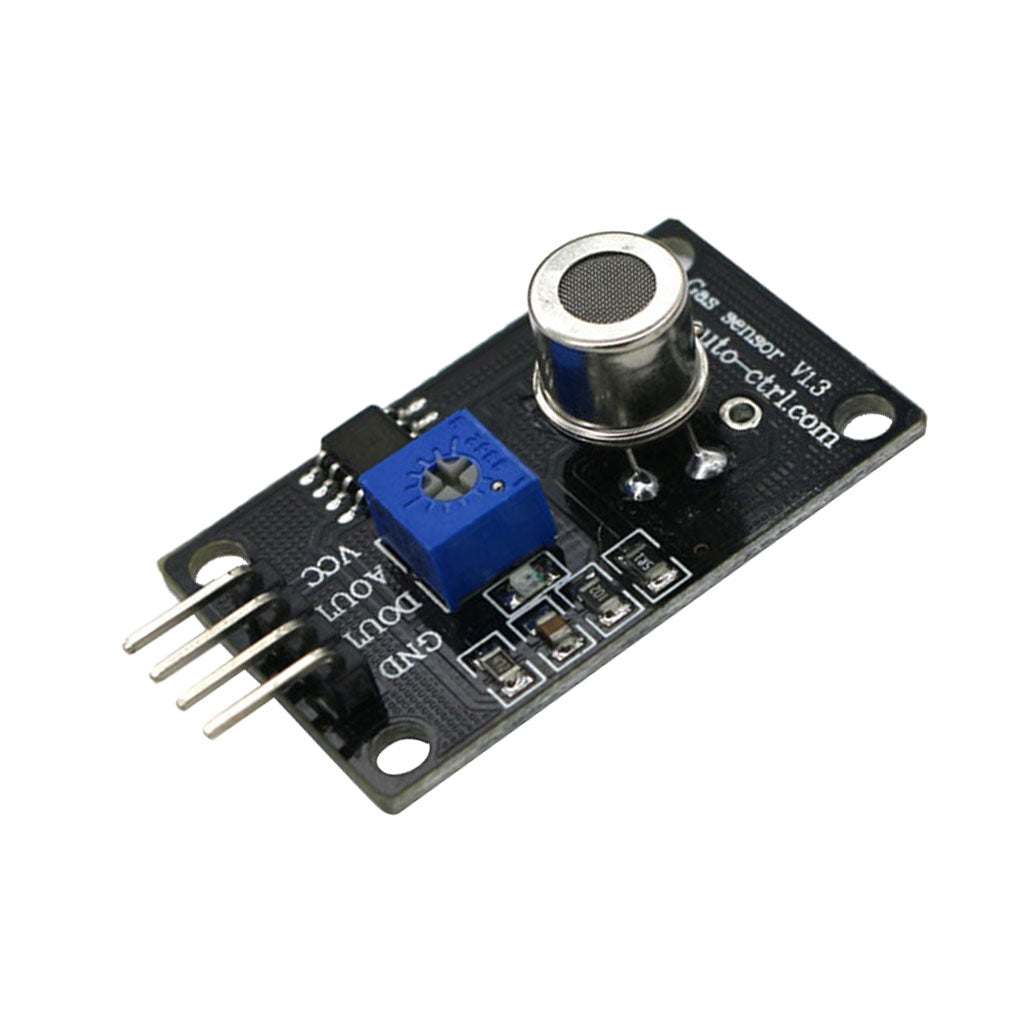

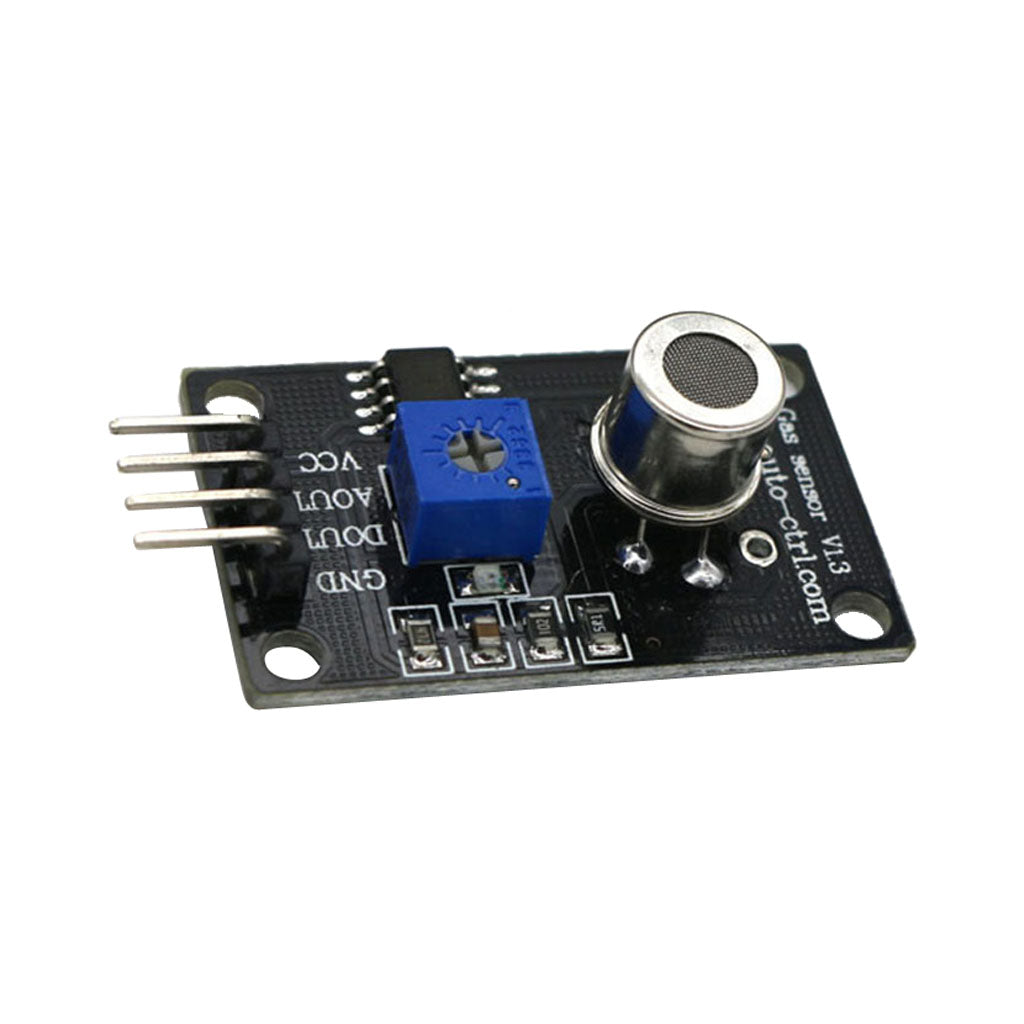

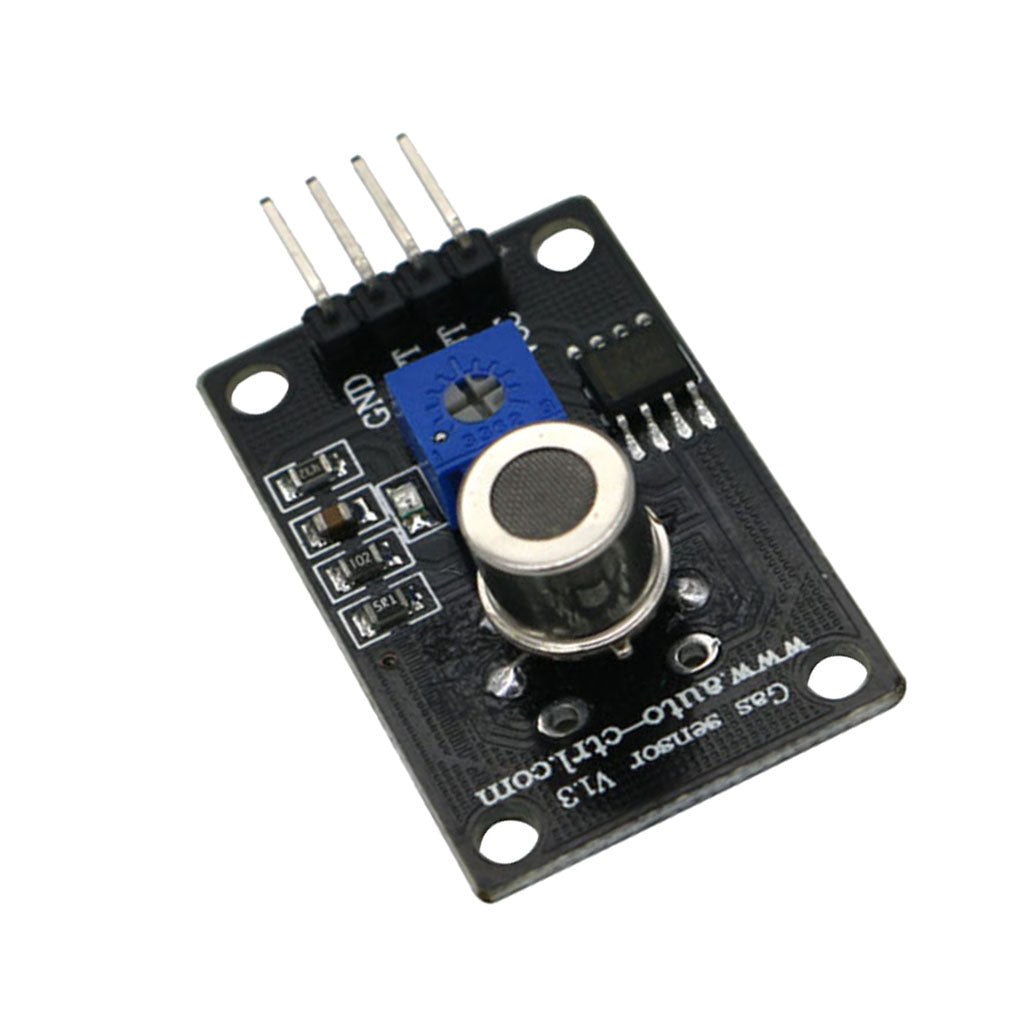

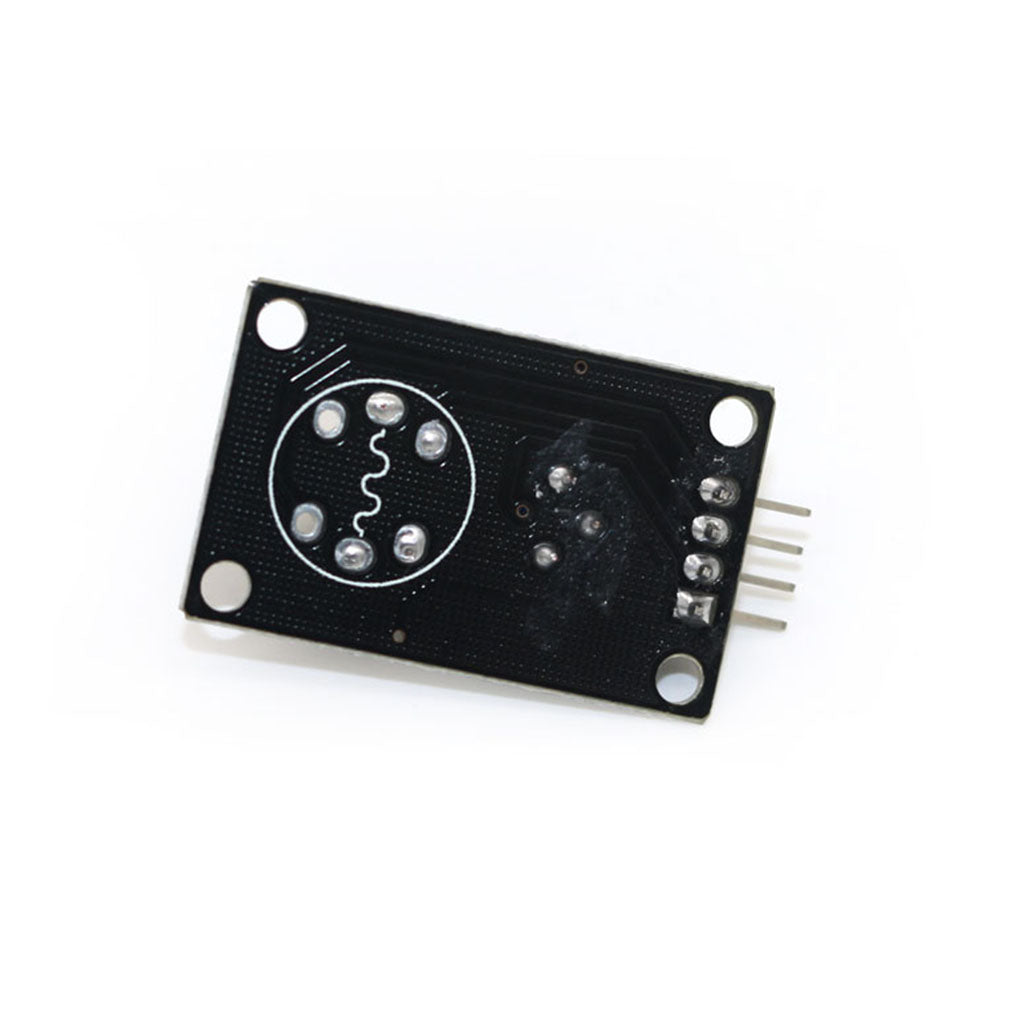

HCHO VOCs Sensor Gas Detection Sensor Module Detectors 0-1000ppm-MS1100

Description:

The heating voltage: 5V + 2% (AC.DC)
Working current: 100mA (max)
The circuit voltage:<DC12V
The load resistance: 1K (adjustable)
The detection concentration range :0-1000ppm (different gases different scope)
Clean air voltage:<1V
Sensitivity: >3%
Response time:<5S (preheat 30-50 minutes)
Response time: >10S
The component power consumption: ≤ 430mW
Working temperature: -10 ~ 60°C (nominal temperature 20°C)
Humidity: 90% RH (nominal humidity 65% RH)
Main chip: op amp, MS2600 probe
Working voltage: DC 5V

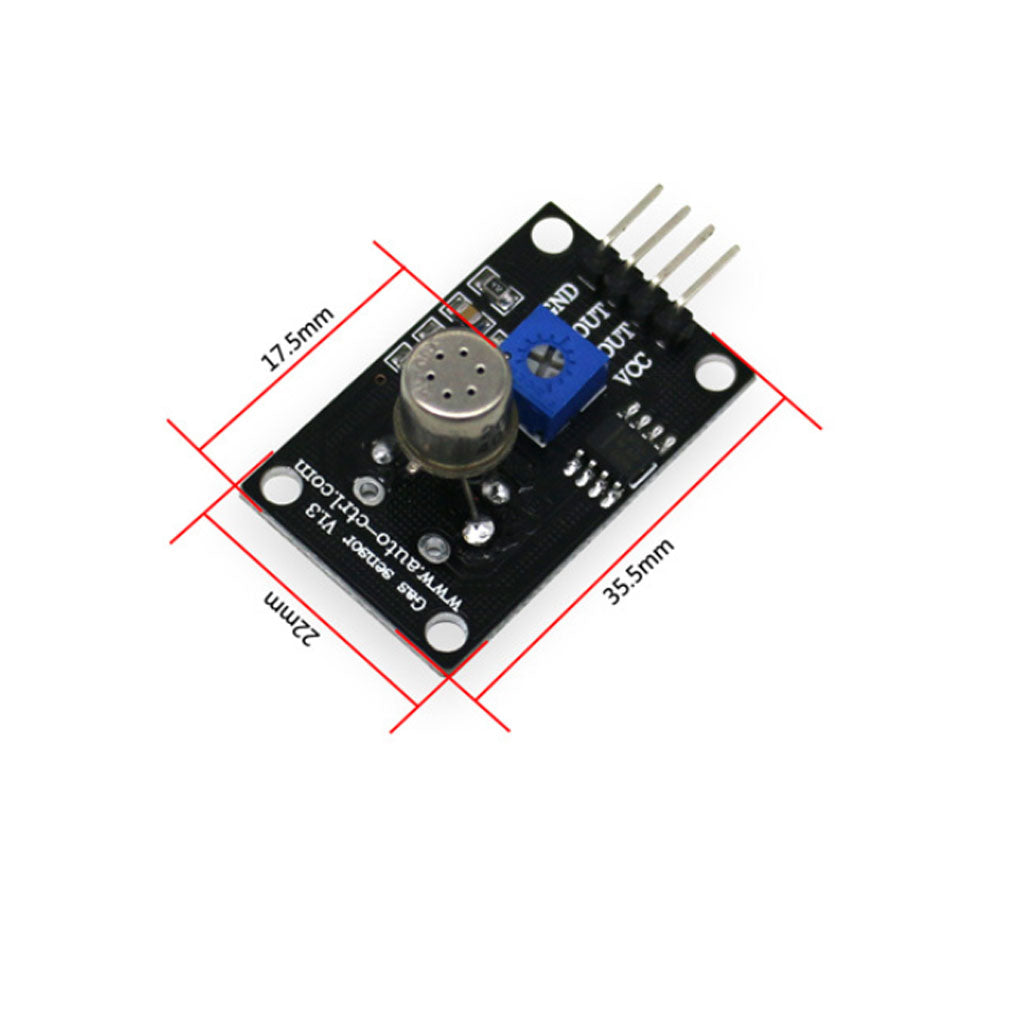

Size: 35 x 15mm/1.4 x 0.8 x 0.6inch
Weight Size: 6g

Specification:

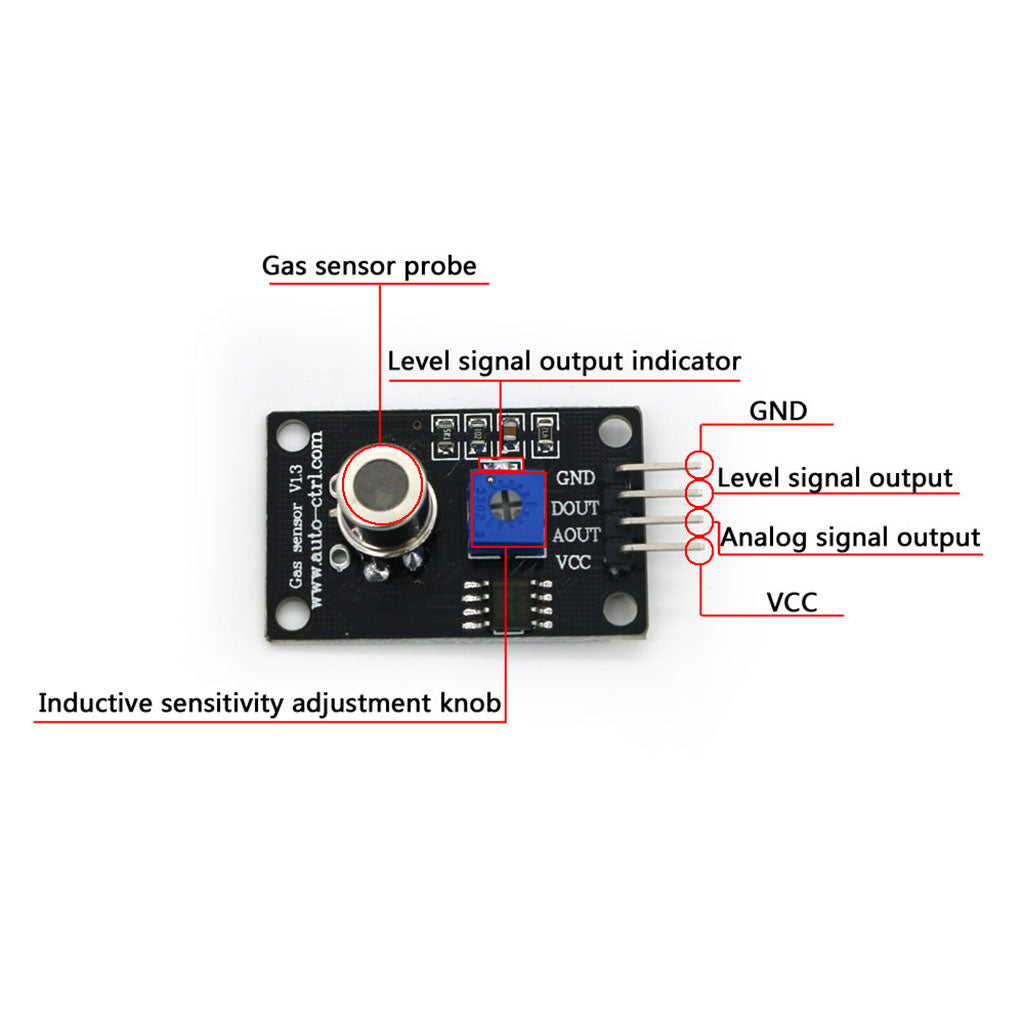

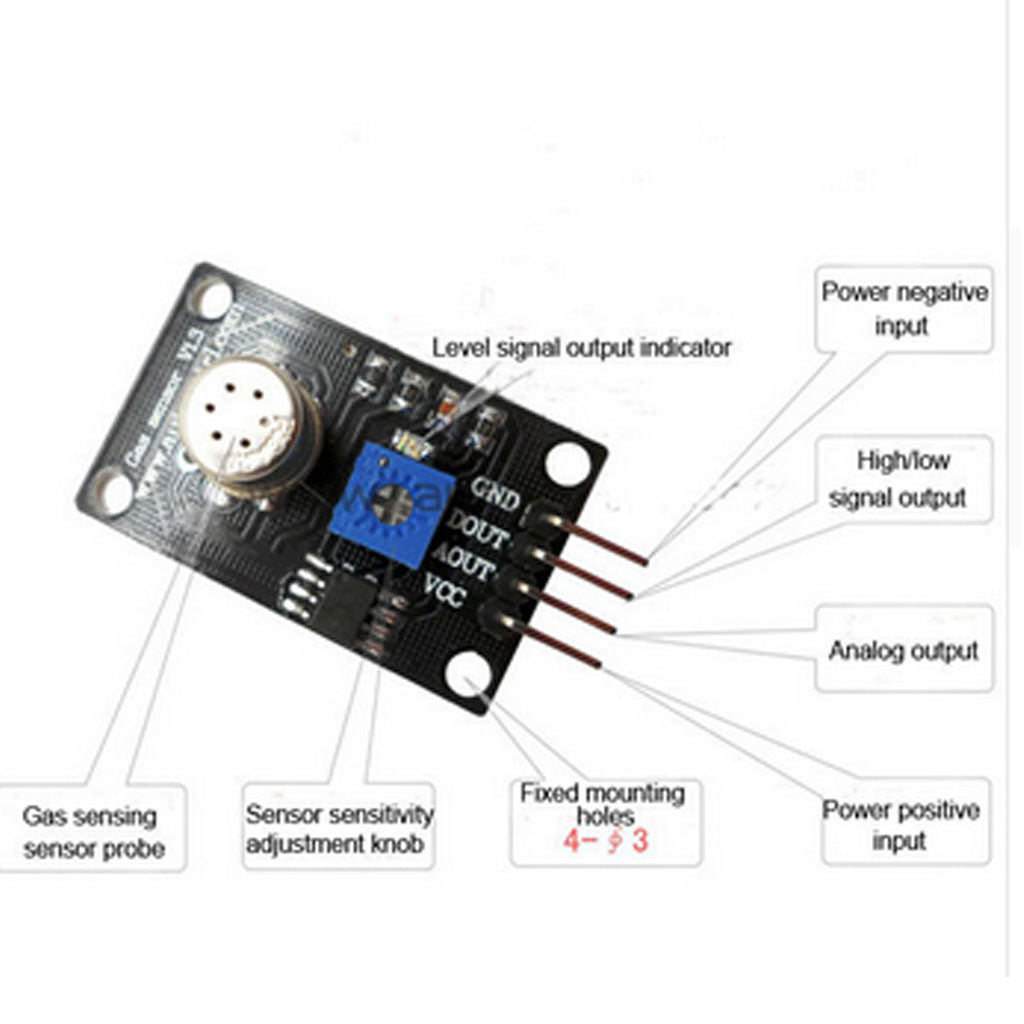

With the analog signal and the output signal at the same level.
The analog signal output range 0-5V, analog signals can be directly connected to the AD acquisition.
The digital level signal output valid signal is low, led lights, can be directly connected microcontroller IO port.
The sensor sensitivity can be adjusted, you can set sensor thresholds, with gas output low, can be directly connected to the microcontroller.
, toluene, xylene and other volatile gases have high sensitivity, can be used for the qualitative detection of air quality.
With a long service life and reliable stability.
response and recovery features, easy installation.

Package Includes:

1 Piece VOCs Gas Detection Module
