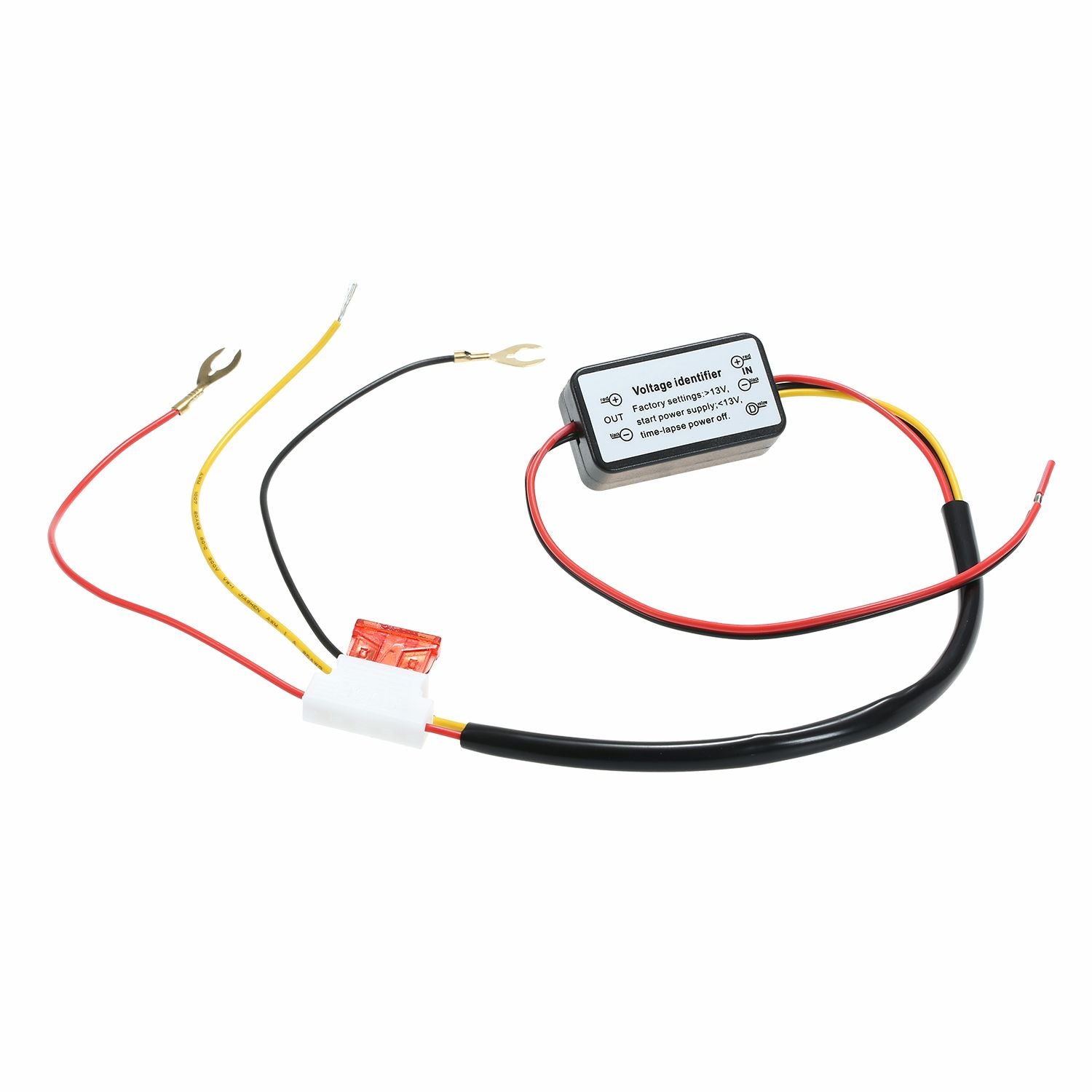

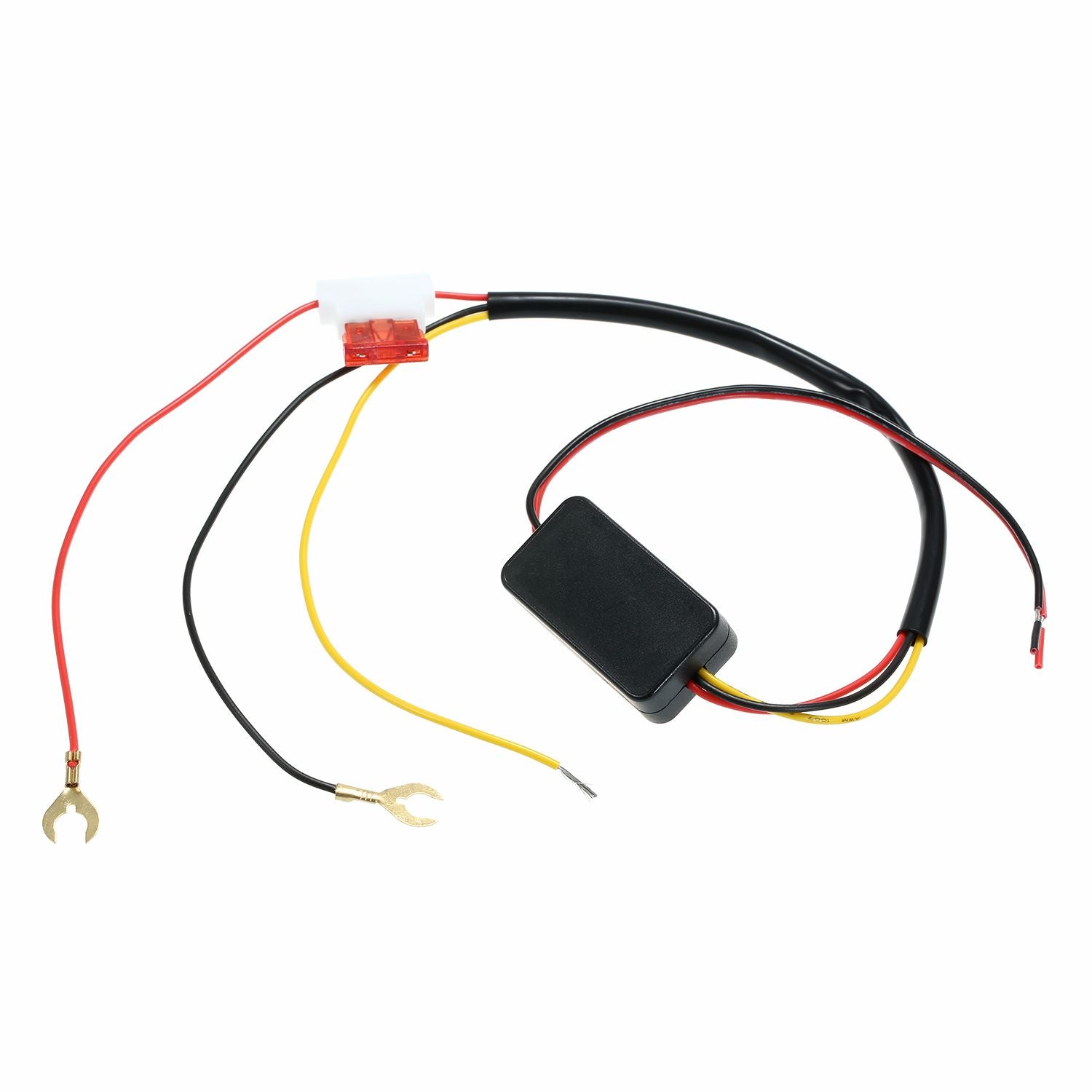

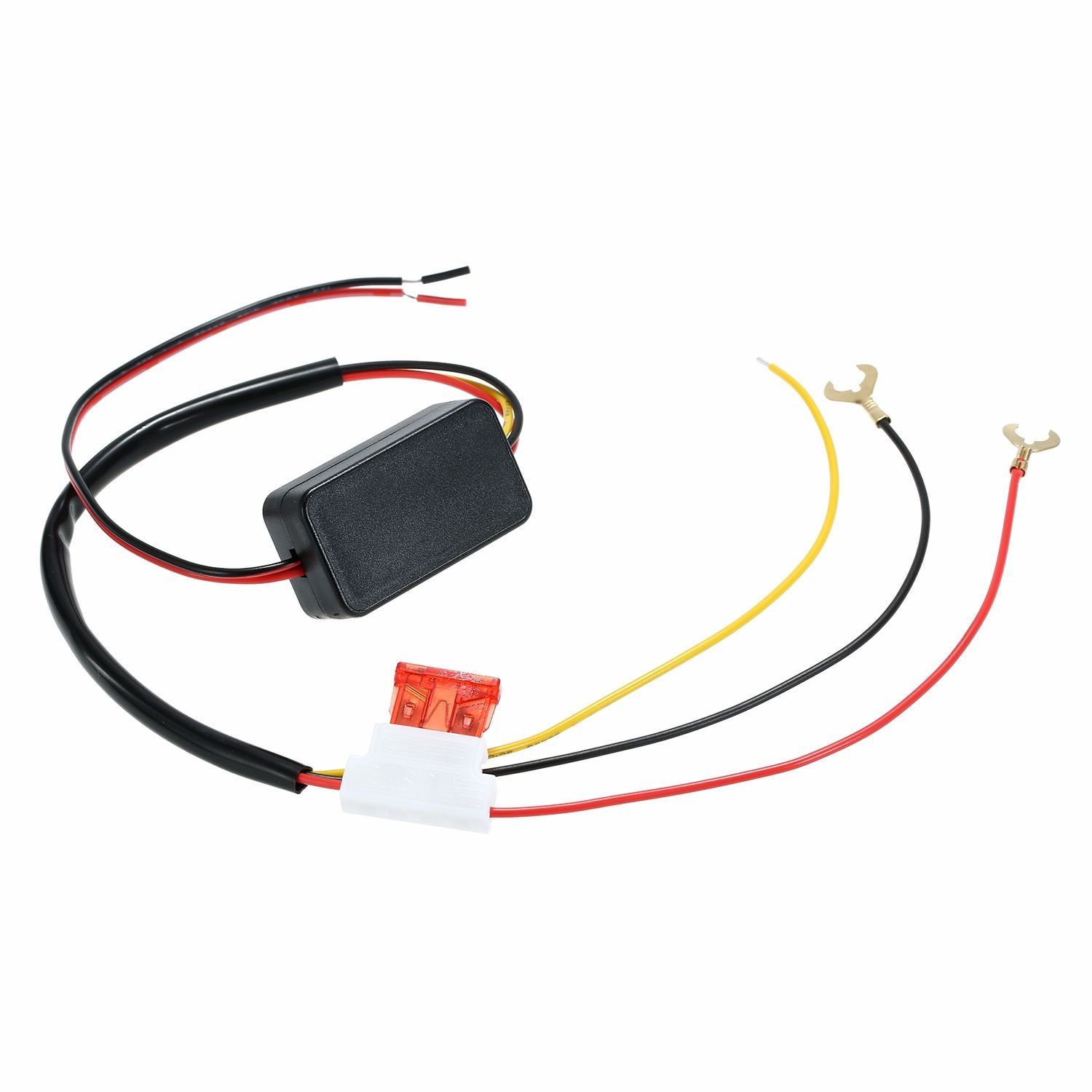

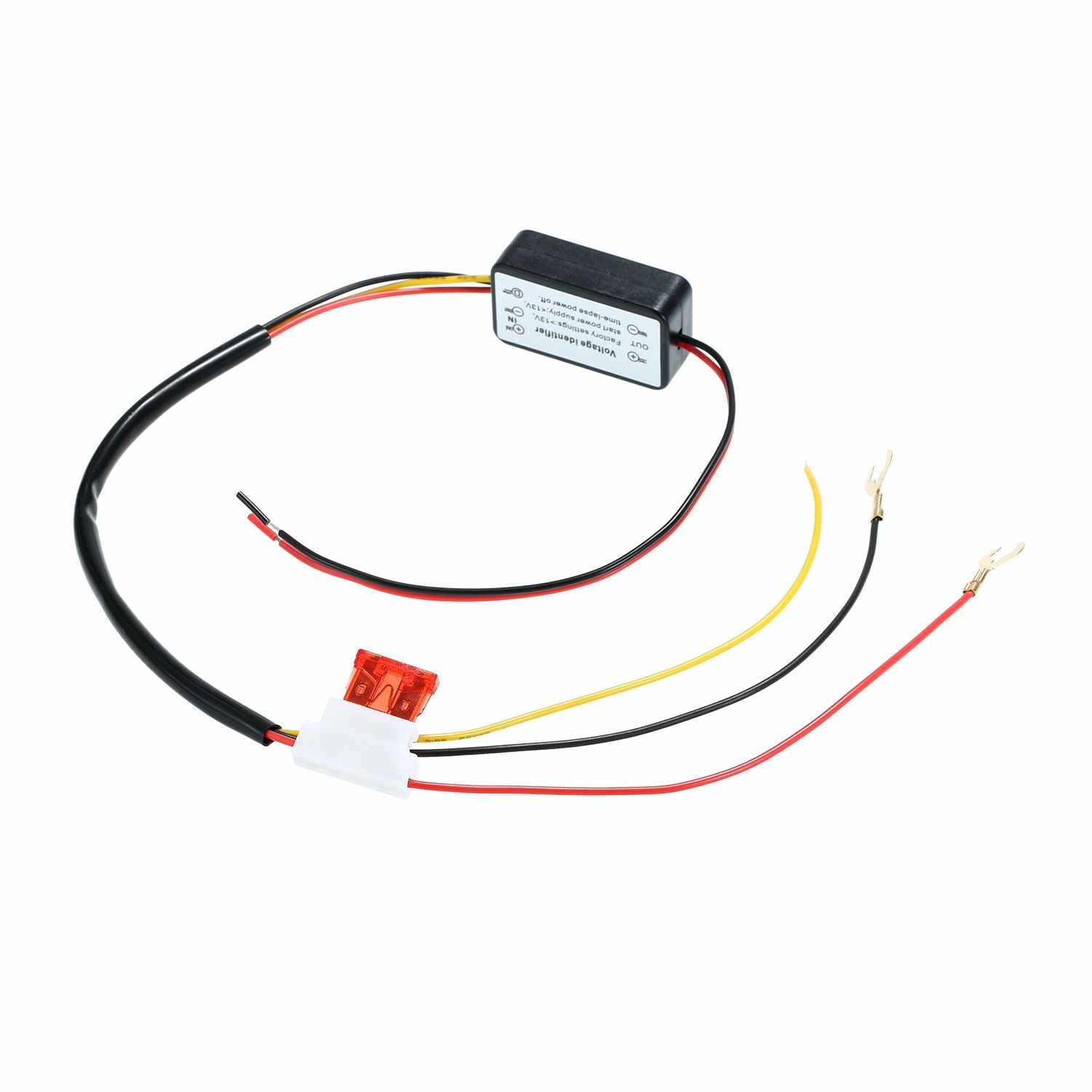

Car LED Daytime Running Light Automatic ON/OFF Switch

Features:

Mini size light weight and water-resistant.

Suitable for all vehicle models.

This Auto Car LED Daytime Running Light Controller can be used to control your car light intelligently.

Time-lapse power off function.

Simple installation with no need to change any electric line.

When you start the car engine LED daytime running light will automatically turn on. When you turn off the car engine LED daytime running light will delay off 12 seconds.

Specifications:

Name: Automatic ON/OFF Switch Controller

Working Voltage: 12V

Working Current: 5A

Material: ABS

Product size: shown as picture

Package size: 13 * 10 * 2cm / 5.12 * 3.94 * 0.79in

Package weight: Approx. 30g / 0.96oz

Connection:

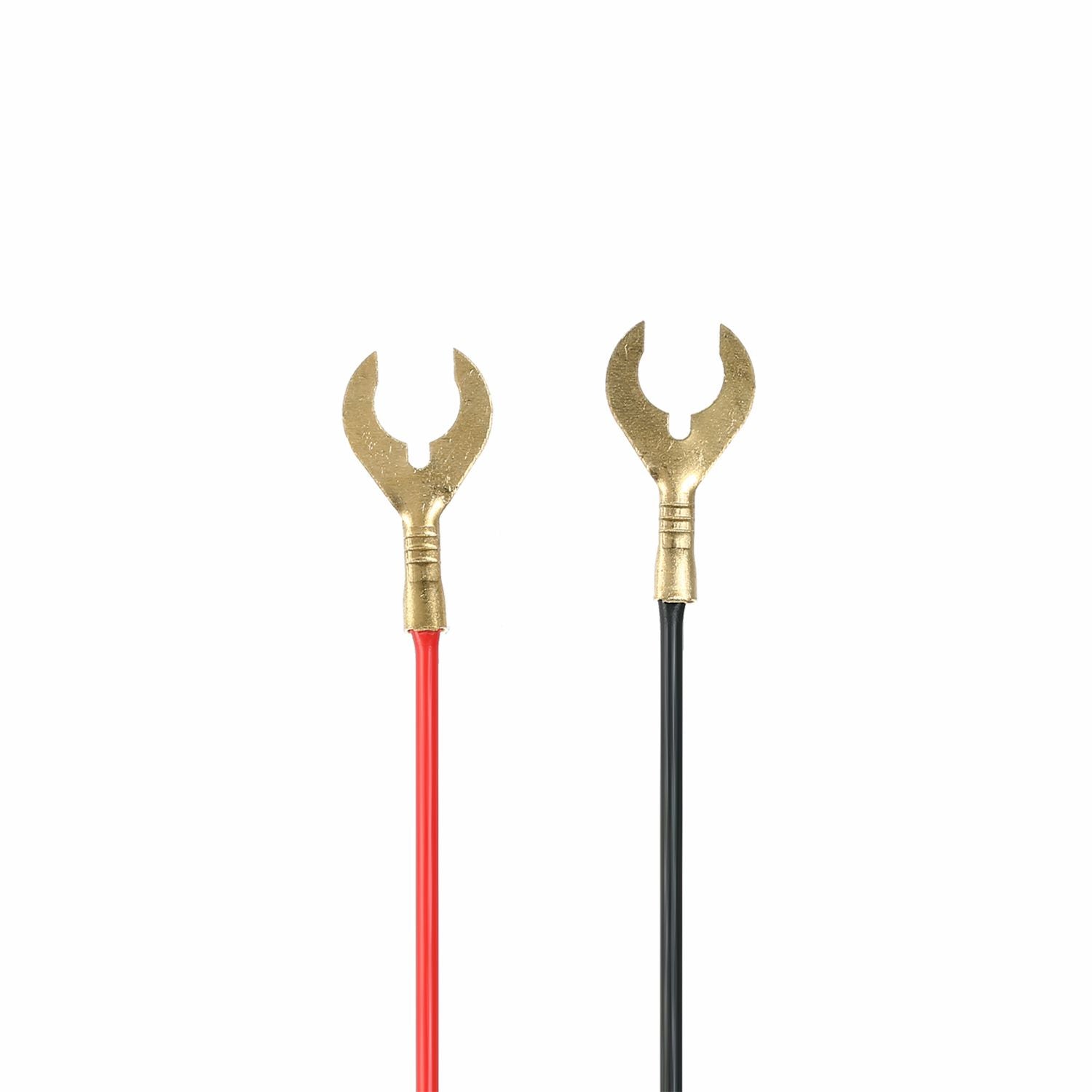

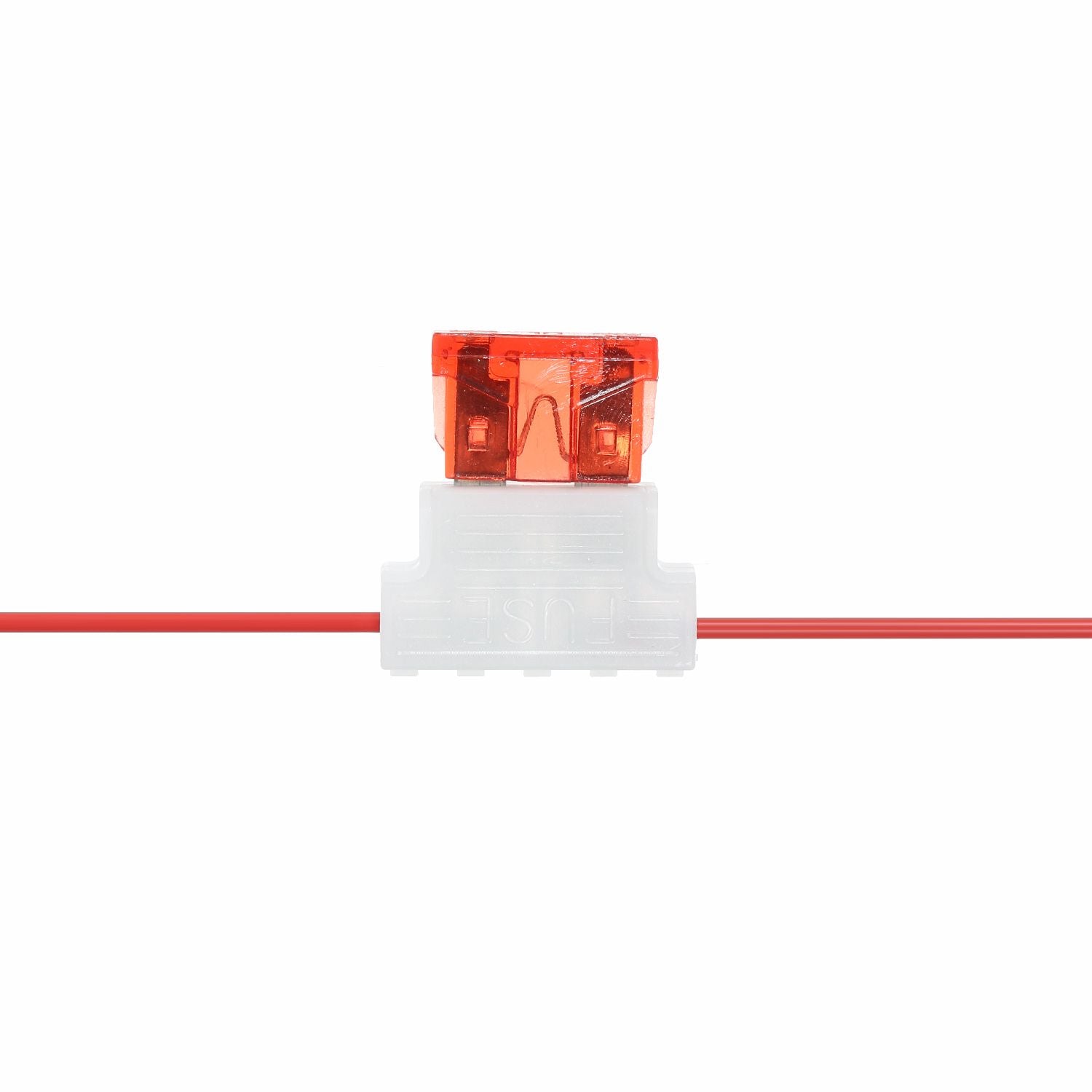

1. The red and black wire (the end with a fuse) are connected directly to the car battery + - .
2. The red wire goes to positive pole of the LED daytime running lights the black wire of the output end is to goes to the negative pole of the daytime running lights.
3. The white wire is to connect to the headlights (or dashboard lights) when headlights or dashboard lights are turned on the brightness of the LED daytime running lights will be halved.

Package List:

1 * Daytime Running Lights Controller
