10/100M Singlemode 25KM Simplex SC Fiber Optic to Ethernet Converter EU

Description:

10/100Mbps LAN Network to SC Fiber Optic Converter, Single Mode 25KM Extend Distance, Transmitter and Receiver Set

Overview：

1 electrical port and 1 single-fiber SC optical port to achieve photoelectric signal conversion between twisted pair and optical fiber.

Only a single core fiber can complete the signal transmission of one way, and double the fiber to increase the data transmission capacity of the fiber by a factor of two.

Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standard.

Has 10M/100M self-adaptive ability.

The electrical port can adapt the direct line/cross line connection mode.

Specification:

Model: HTB-3100 A/B

Support the connection of MDI/MDI-X auto crossover

Supports full-duplex/half-duplex mode of operation.

Support IEEE802.3X full-duplex flow control and half-duplex back pressure flow control.

Support to prevent broadcast storm function;

Support for 1916 Byte jumbo frames (optional).

Built-in protection circuit can greatly reduce the damage caused by induction.

Twisted pair cables are up to 100 meters long; single mode fibers are up to 100 kilometers long.

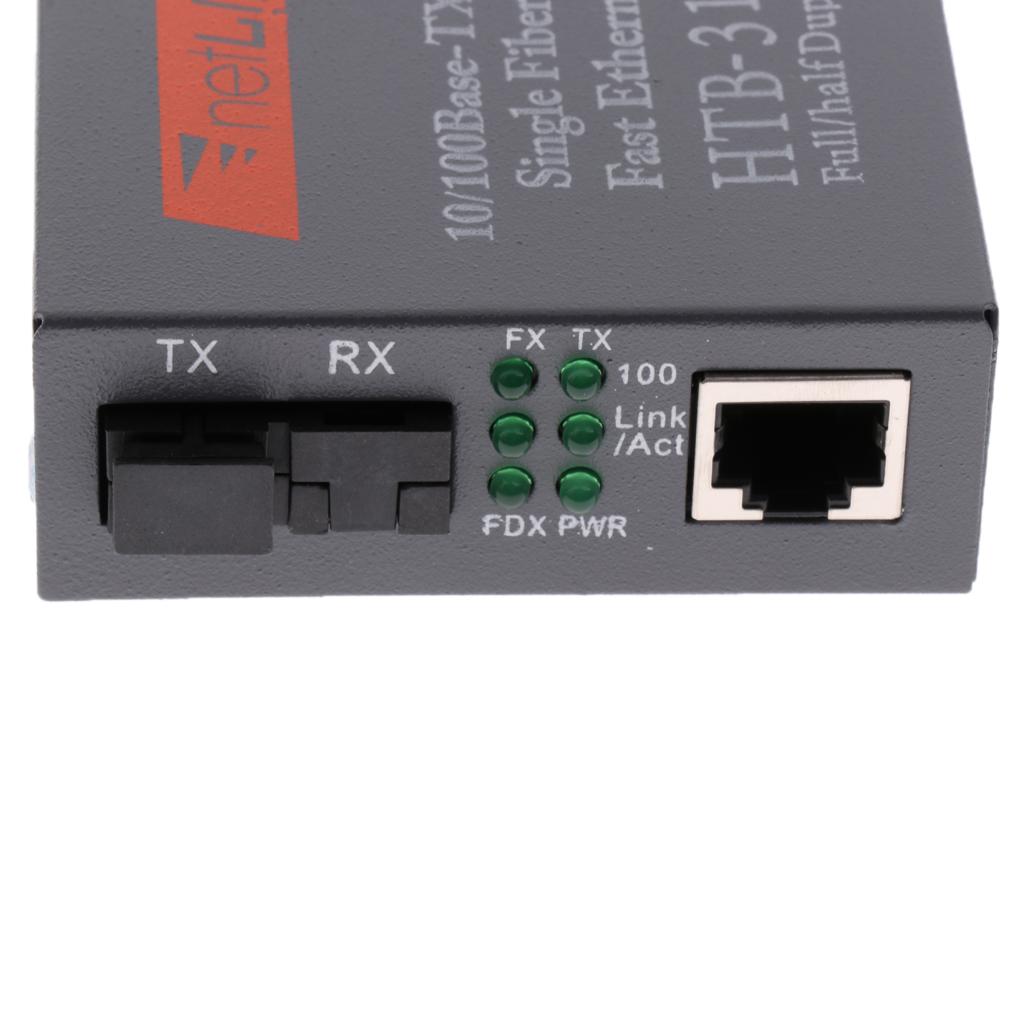

There are 6 LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; it is easy to monitor the working status of the transceiver and determine the cause of the fault.

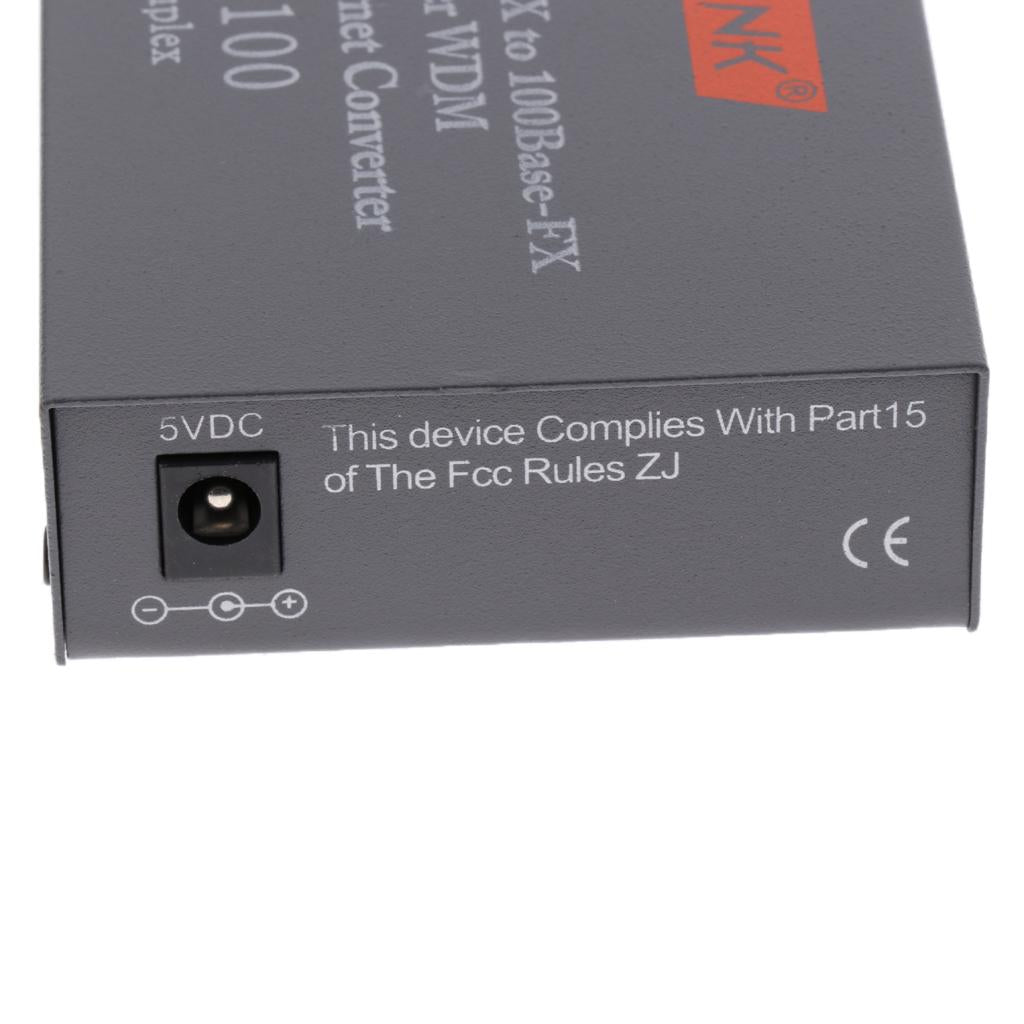

There are two types of external, built-in power: AC100 ~ 265V / DC5V switching power supply.

Package Includes:

2 x Ethernet to fiber converter (A and B)

2 x Power supply （EU）

1 x Instruction manual
