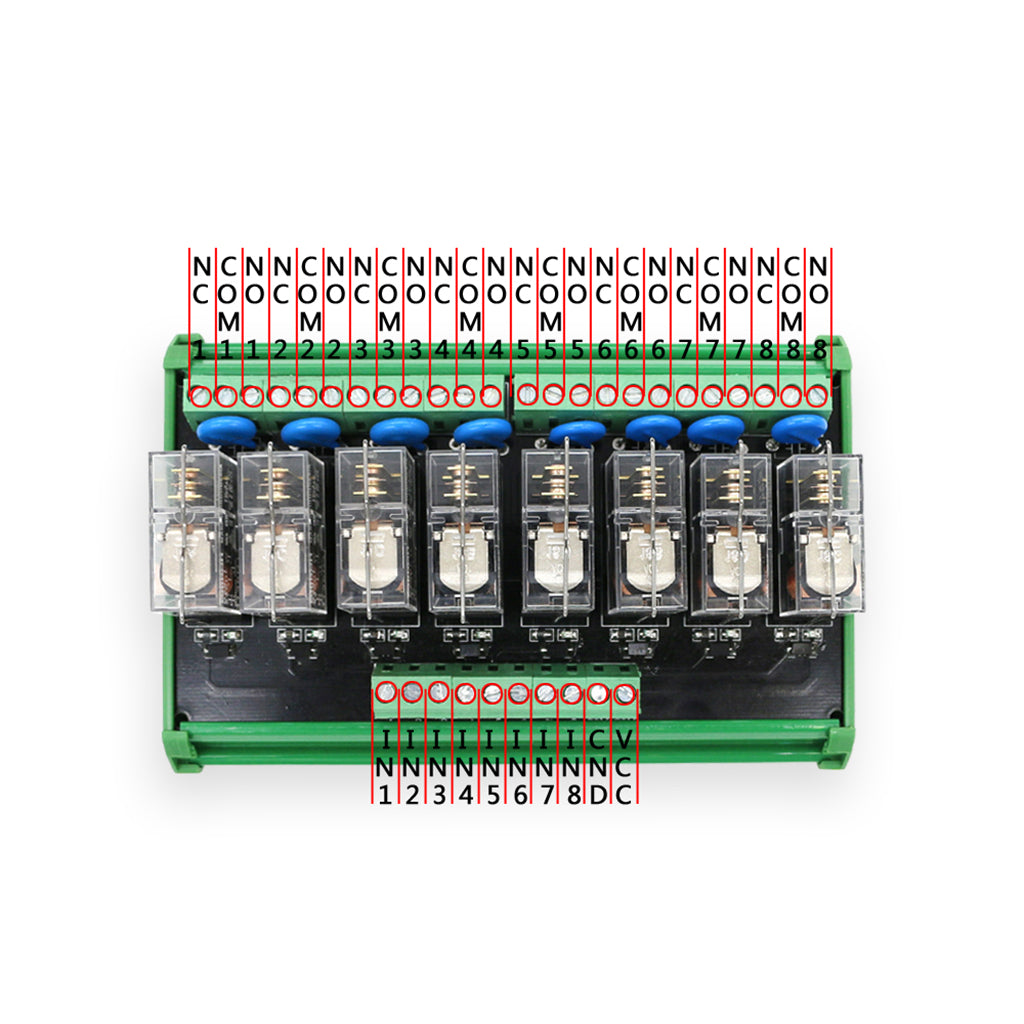

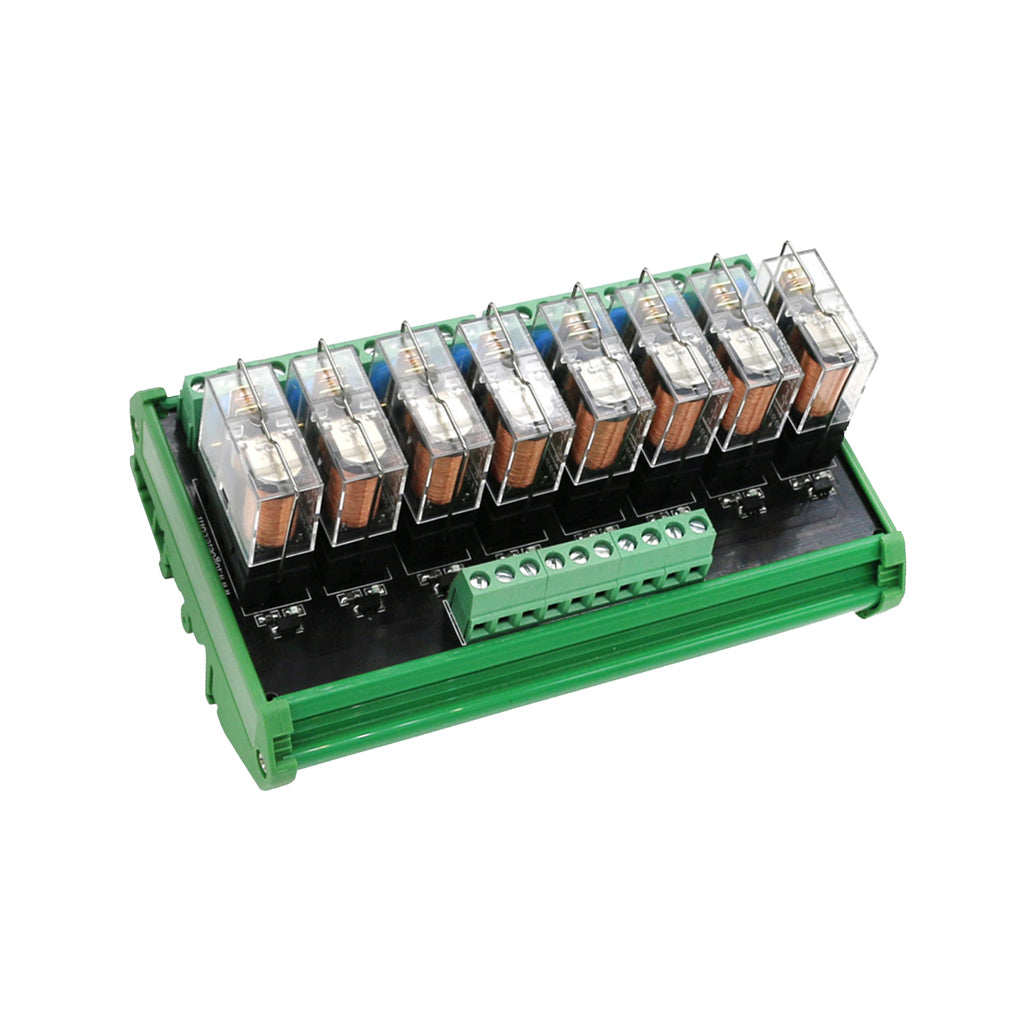

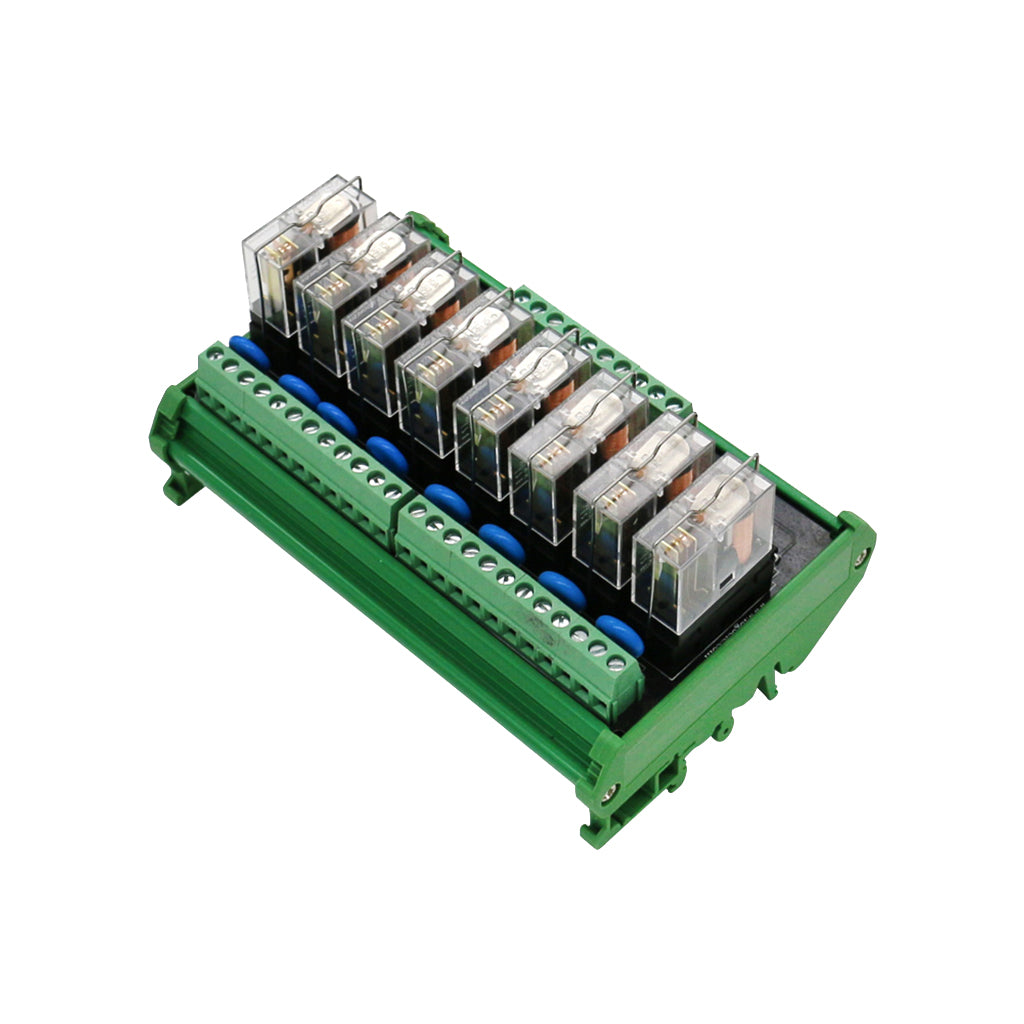

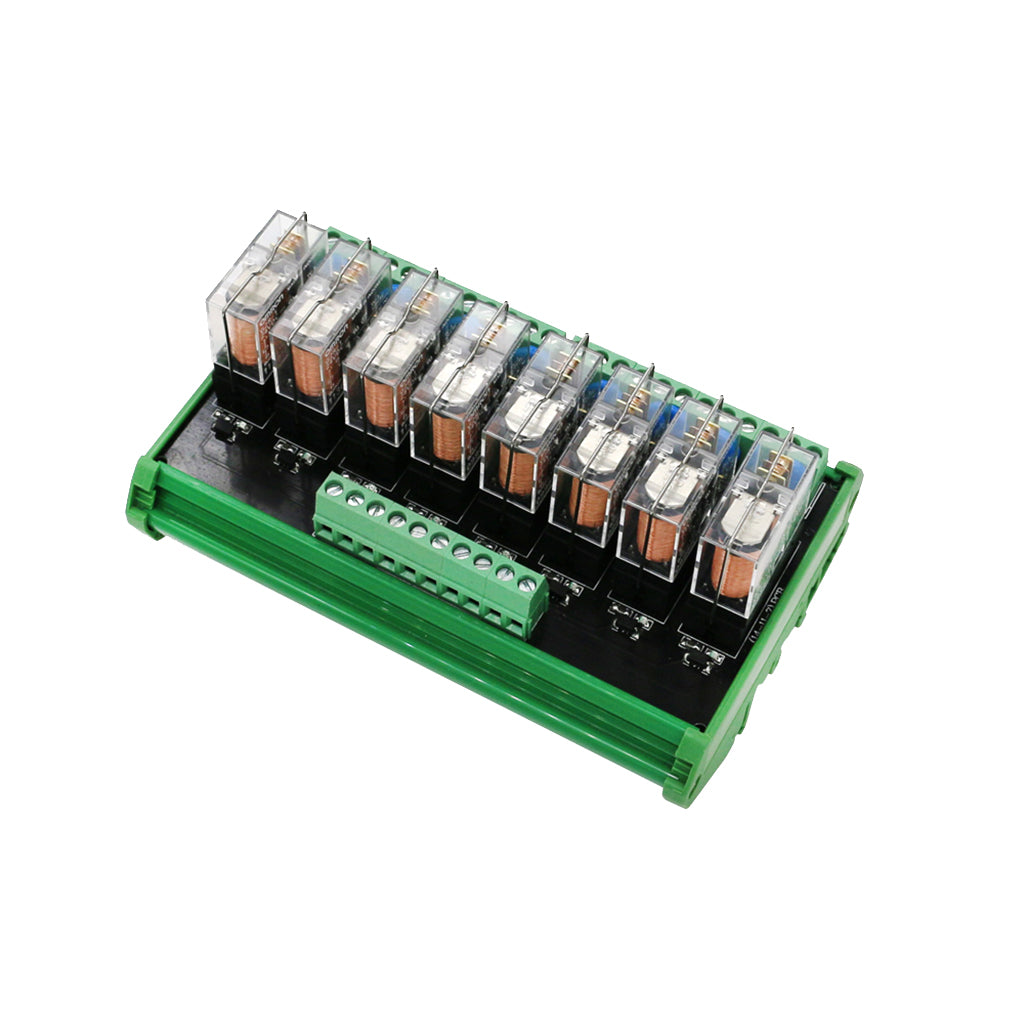

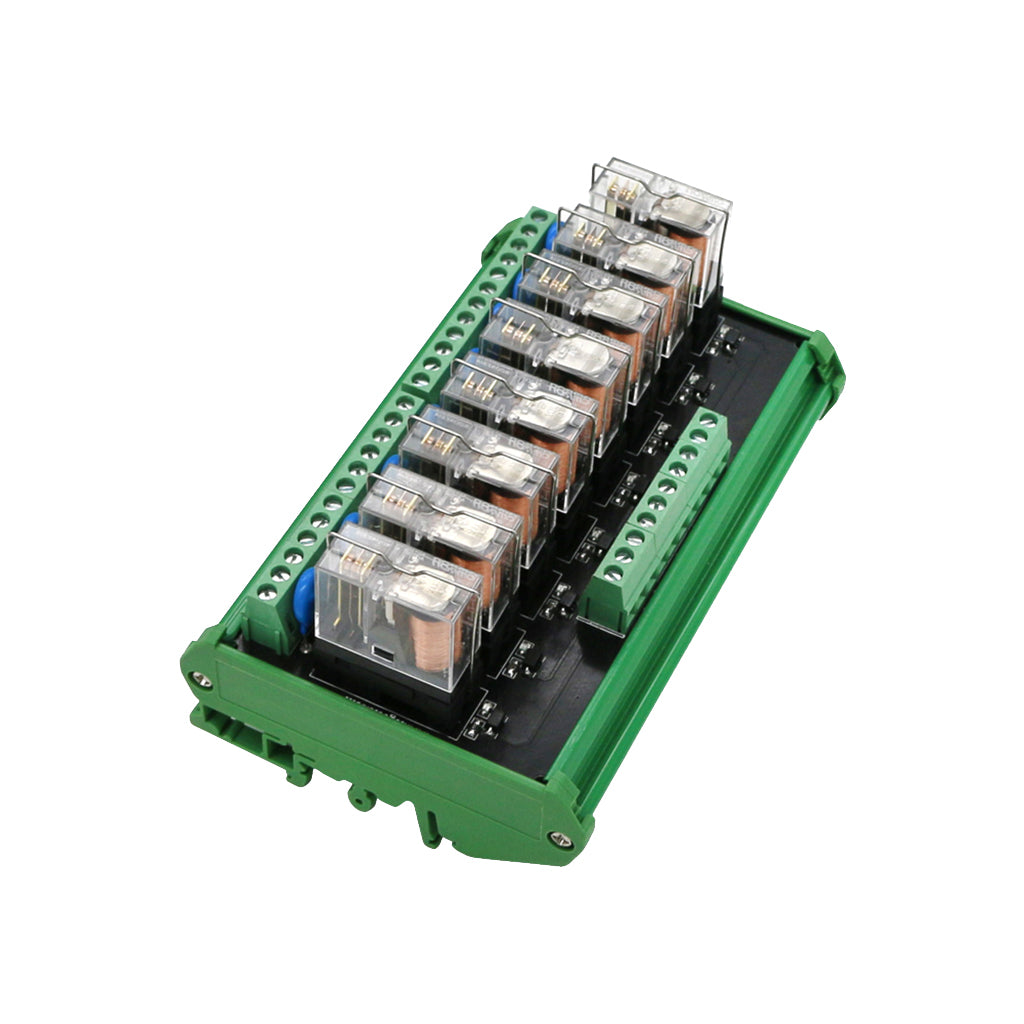

8 Channel Relay Module Signal NPN Driver Board 12V

Description:

Automatic SMT placement machine technology, high-end atmosphere.
With anti-surge performance, protection relays and prolong life.
Protection circuit action, when the power polarity wrong, components can not easily be burned.
When the action for each channel indicator lights, relays removable, easy to replace.
Coil voltage DC 12V are available from stock, the input signal points NPN, rated current 10A.

Specification:

Input Signal: NPN
Coil Voltage: DC 12V
Rated Current: 10A
Output Signal: 8NO 8NC
Size(L x W x H): Approx. 135 x 90 x 72mm

Package Includes:

1 Piece 8 Channel Relay Module
