CF10-12-16-18-20-KR 16-22-26-30-35Cam Follower Roller Bearing H

Description:

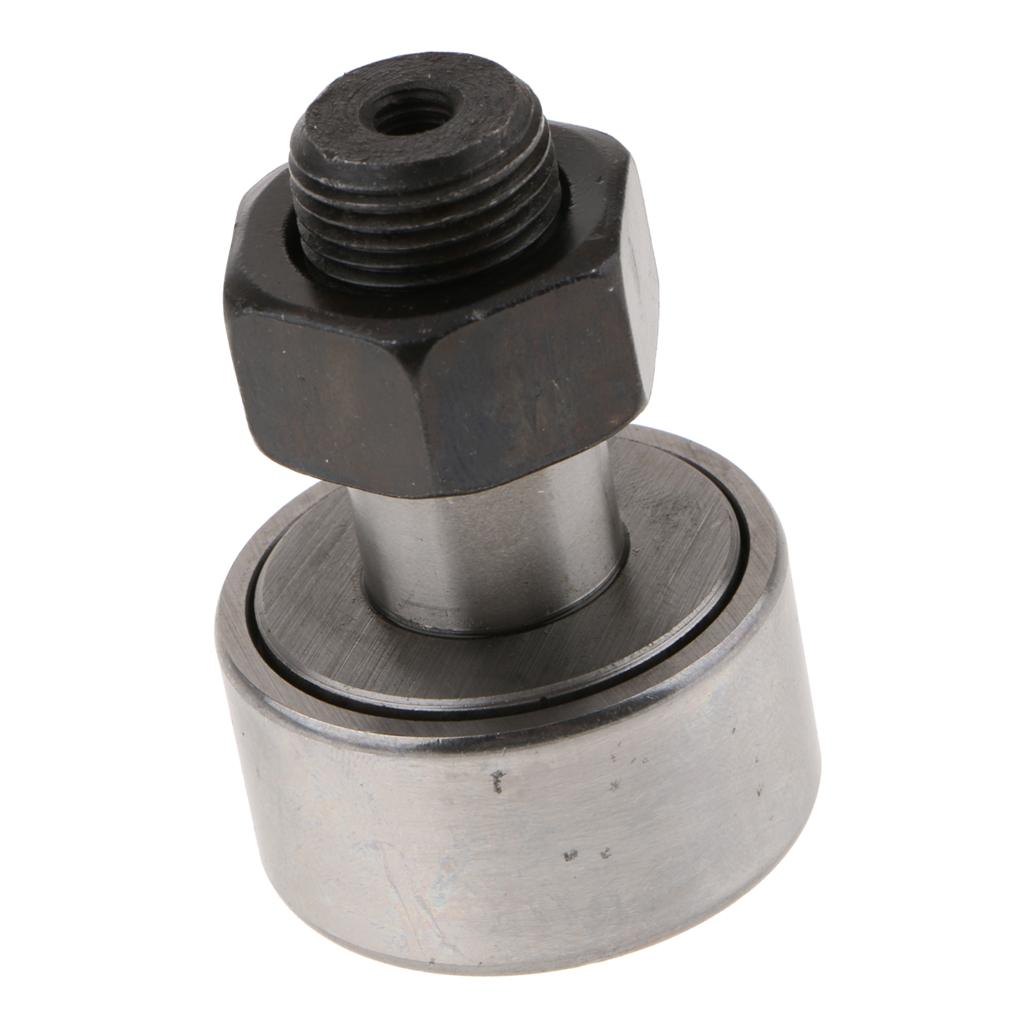

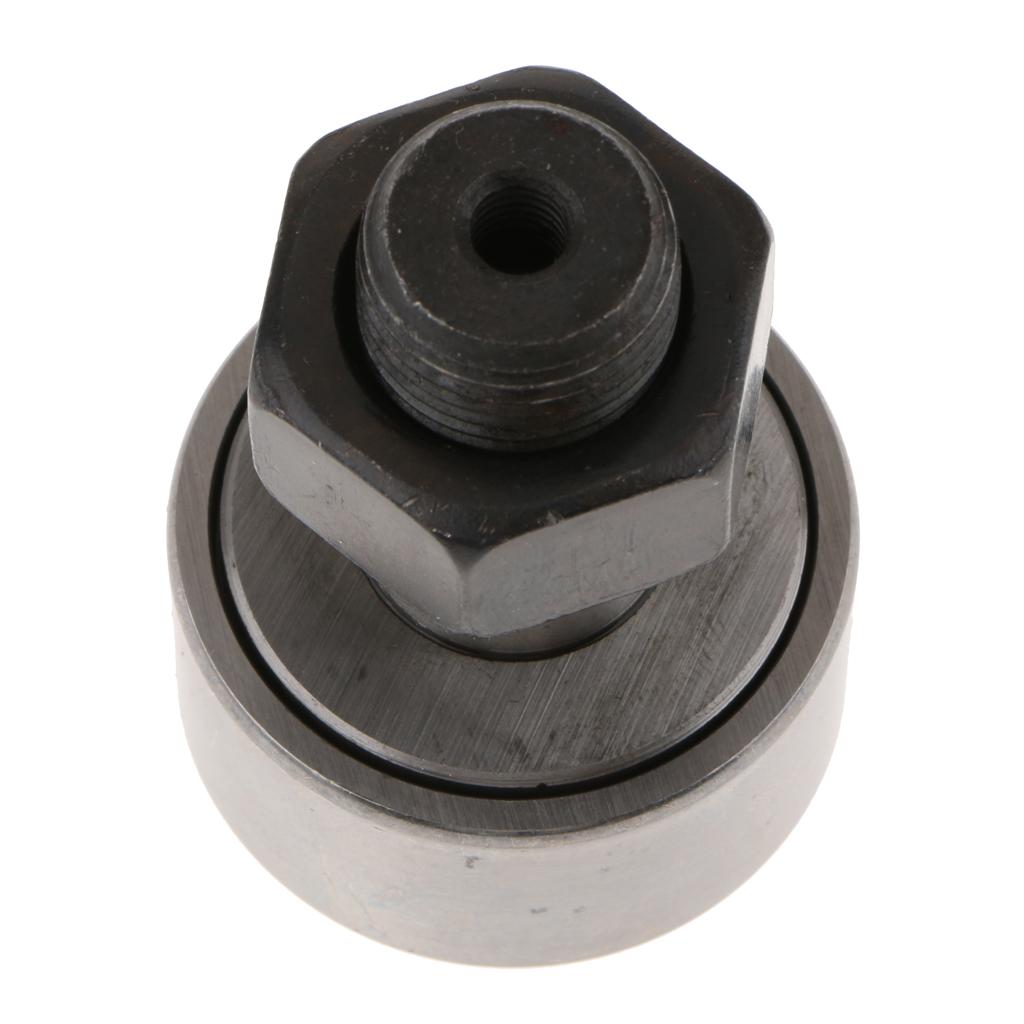

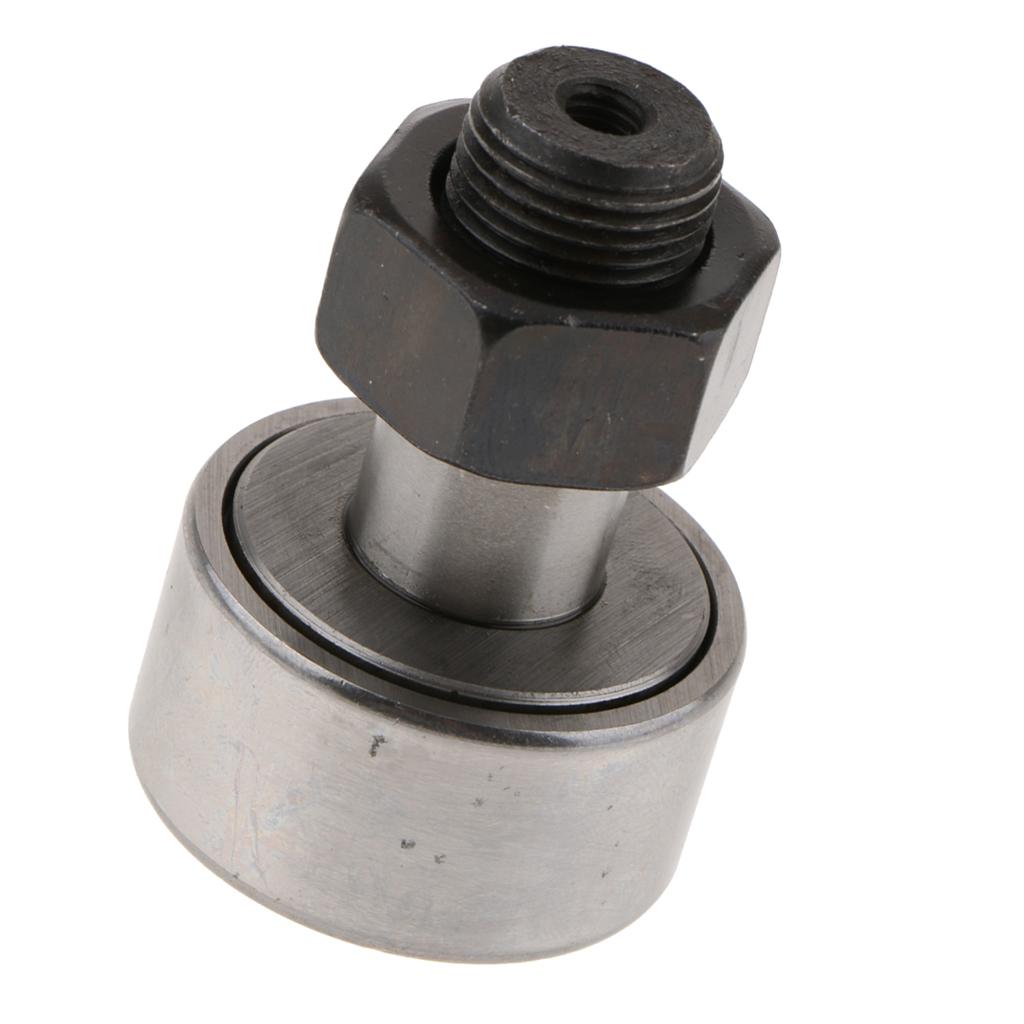

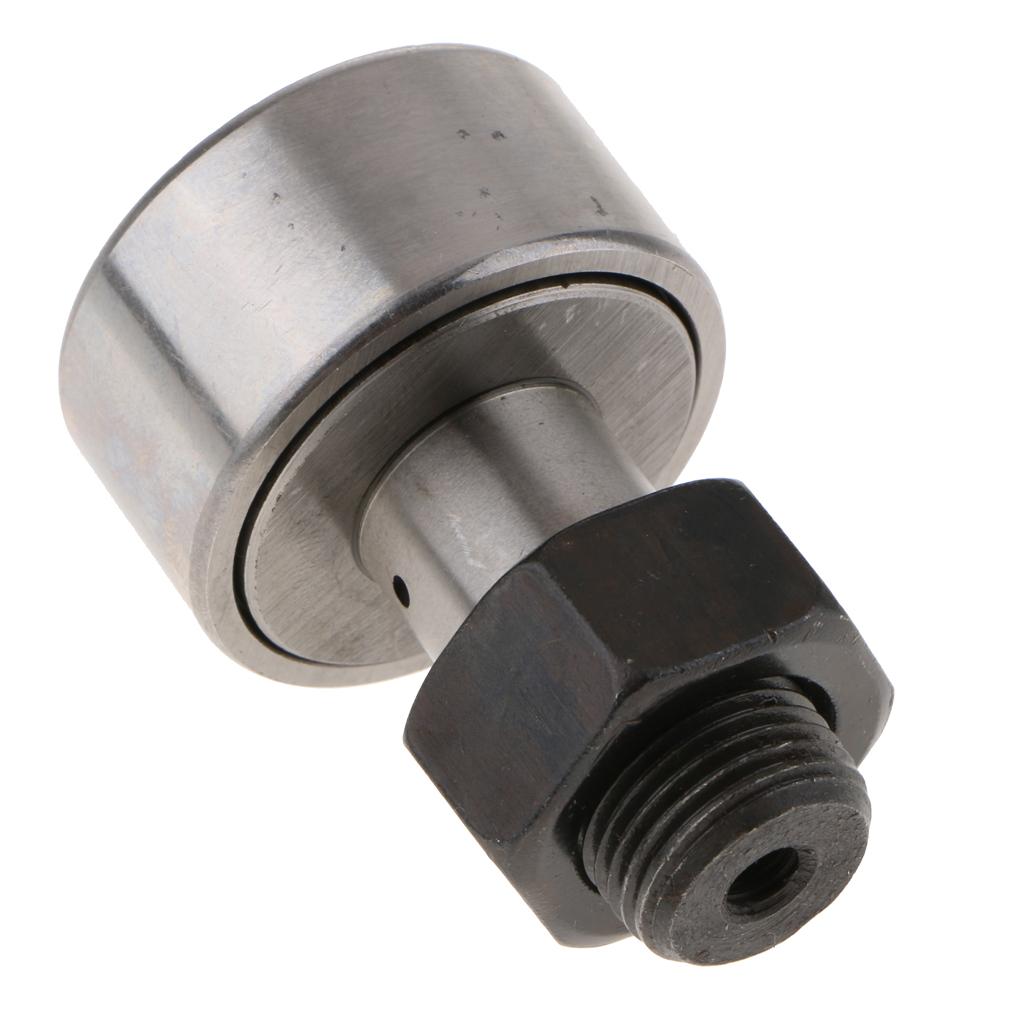

Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications.

Stud-type design with a hexagonal socket for through-hole or threaded mounting.

Full complement of rollers for higher radial load capacity than caged rollers.

Nylon lip seals help retain lubricant and prevent contamination.

Black oxide- treated bearing steel for durability and corrosion resistance.

Specification:

Material: Bearing Steel

Size:

A CF5/KR13 - Length:22mm,Outer Diameter:13mm,Thread Lenghth:5mm

B CF6/KR16 - Length:28mm,Outer Diameter:16mm,Thread Lenghth:6mm

C CF10/KR22 - Length:35mm,Outer Diameter:22mm,Thread Lenghth:10mm

D CF10-1/KR26 - Length:38mm,Outer Diameter:26mm,Thread Lenghth:10mm

E CF12/KR30 - Length:40mm,Outer Diameter:30mm,Thread Lenghth:12mm

F CF12-1/KR32 - Length:38mm,Outer Diameter:32mm,Thread Lenghth:12mm

G CF16/KR35 - Length:51mm,Outer Diameter:35mm,Thread Lenghth:16mm

H CF18KR40 - Length:56mm,Outer Diameter:40mm,Thread Lenghth:18mm

I CF20-1/KR47 - Length:65mm,Outer Diameter:47mm,Thread Lenghth:20mm

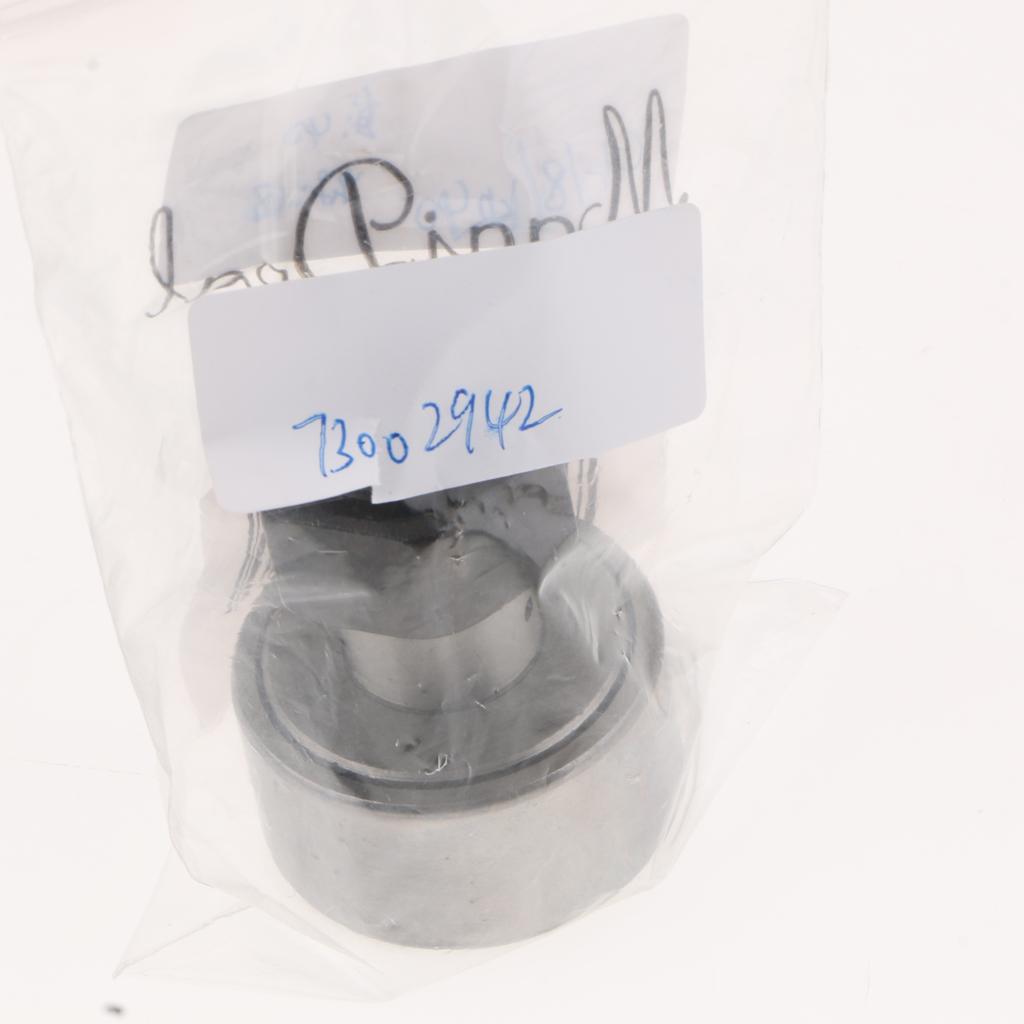

Package Includes:

1 Piece Cam Roller Bearing
