DC24V Single-way Access Control Switch Electronic Control Lock Switch 433MHZ

Description:

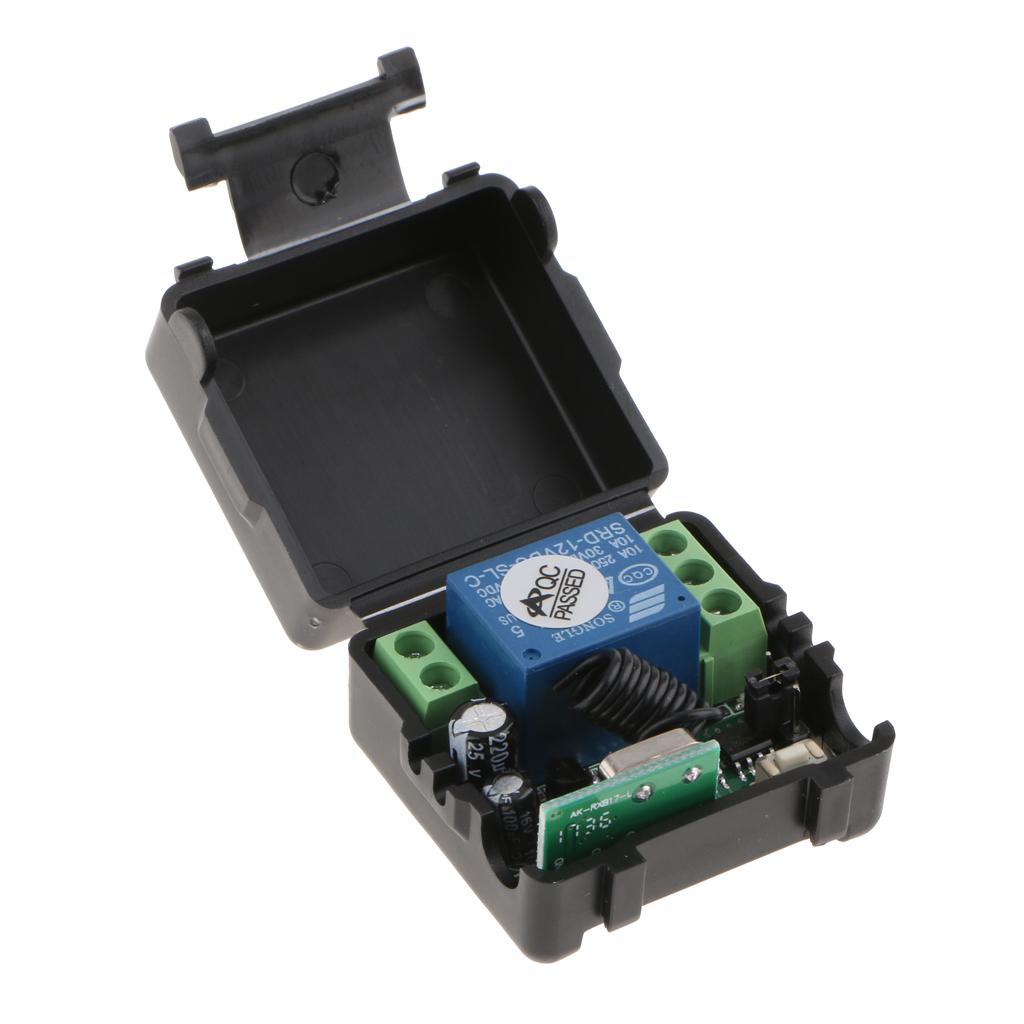

This is a 433MHZ single-way access control switch all way wireless remote control switch receiving board.
Working voltage: DC12V.
Output mode: relay normally open and normally closed passive contact (switch output).
t is used for remote control of door control, remote control of electric lock, remote control of garage door, remote control of wireless doorbell, remote control of car rear end box, anti-theft alarm, remote control of electric remote control, etc.
High receiving sensitivity, receiving plate relay contact independent output, using fixed code wireless coding technology.

Specification:

Material: Electronic Element
Quiescent Current: ≤10MA
Contact capacity: ≤7A
Remote Control Distance: 20~100 meters
The working frequency: 315M
Boundary Dimension: 36x 32x 20mm/ 1.42x 1.26x 0.79inch
Shell Size: 40x 40x 26mm/ 1.57x 1.57x 1.02inch
Learning Method: after the controller is powered on, the indicator light is always on, and then the indicator light will go off automatically after pressing the learning button for 2-3 seconds. Release the learning button, press any key of the remote control, and the indicator light will flash 5 times quickly, indicating successful learning.
Clear Method: keep pressing the learning key for 8 seconds and the indicator light will be off until the recovery is long and clear successfully

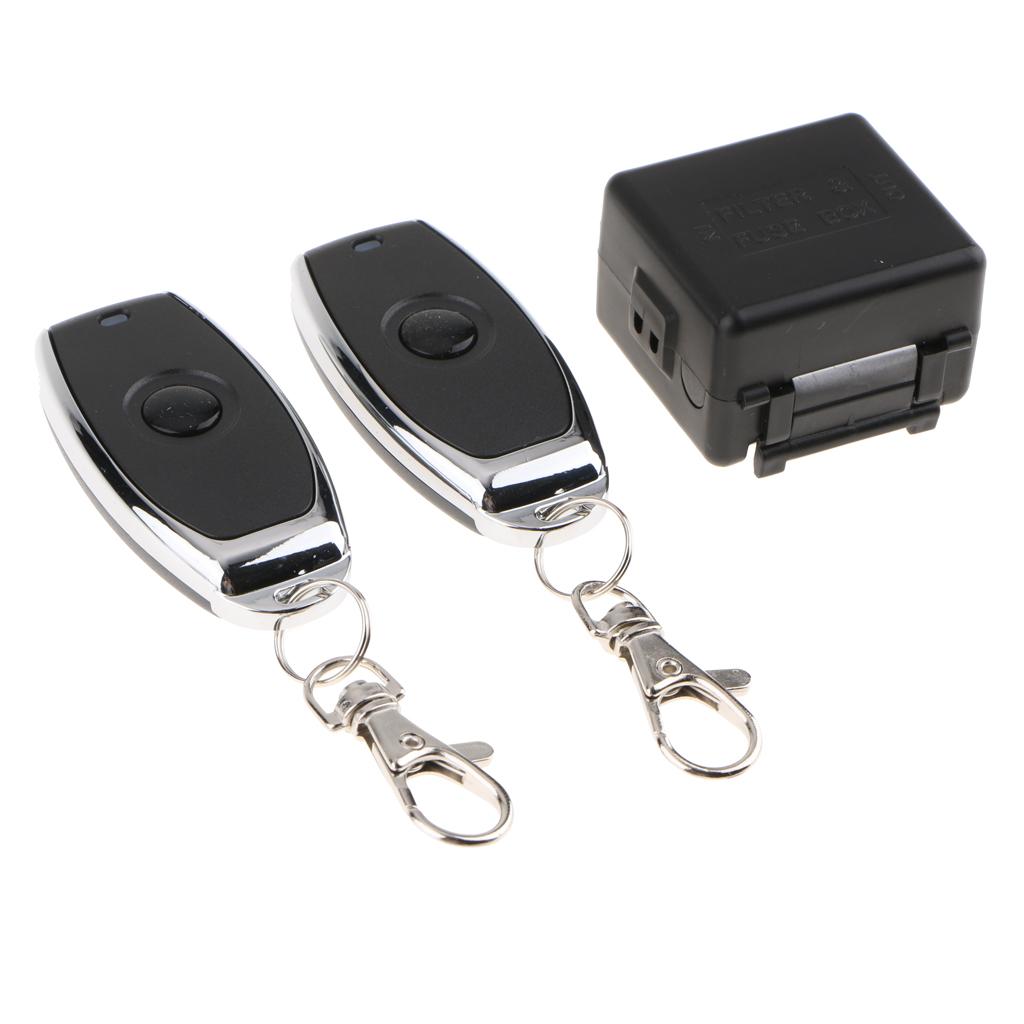

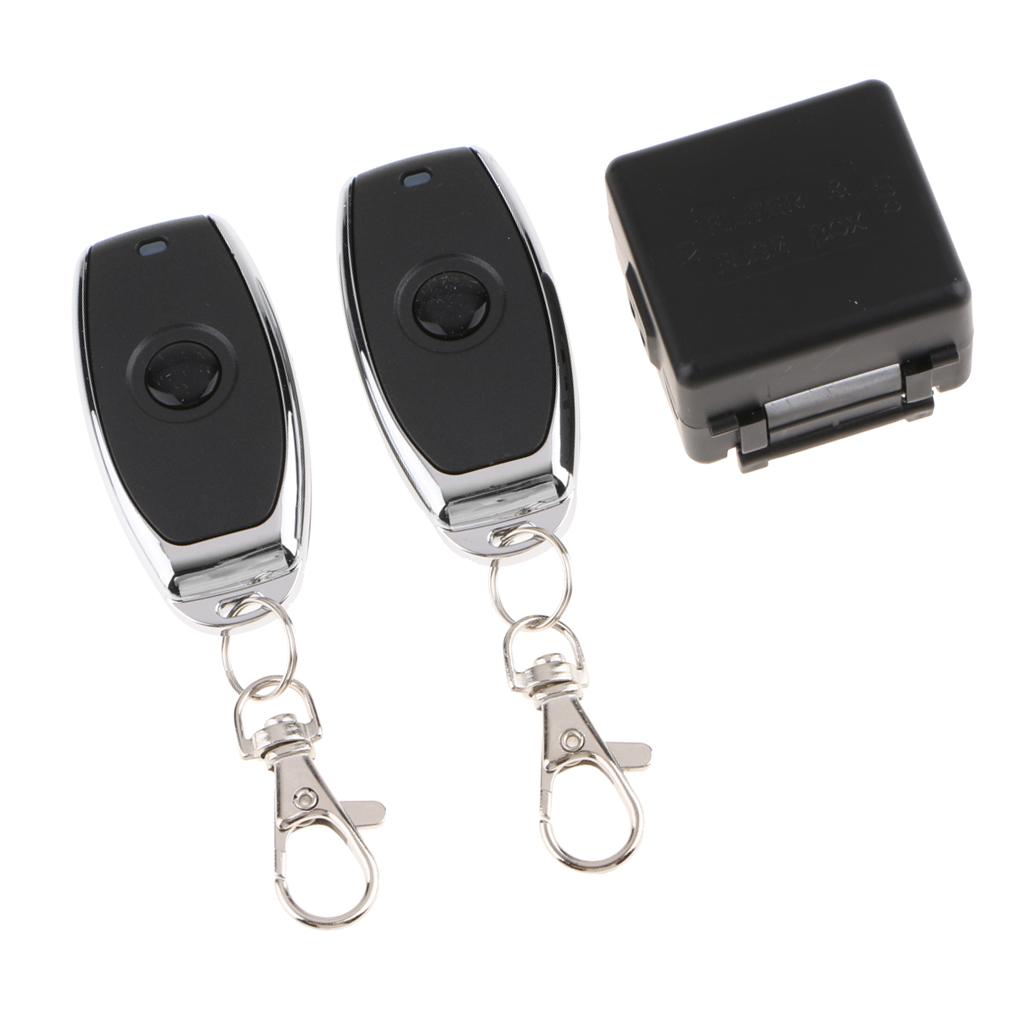

Set Description: each set of a remote control, a receiver (including the case), if you need other appearance of the remote control or add the remote control to contact the customer service to take another shot
ejector

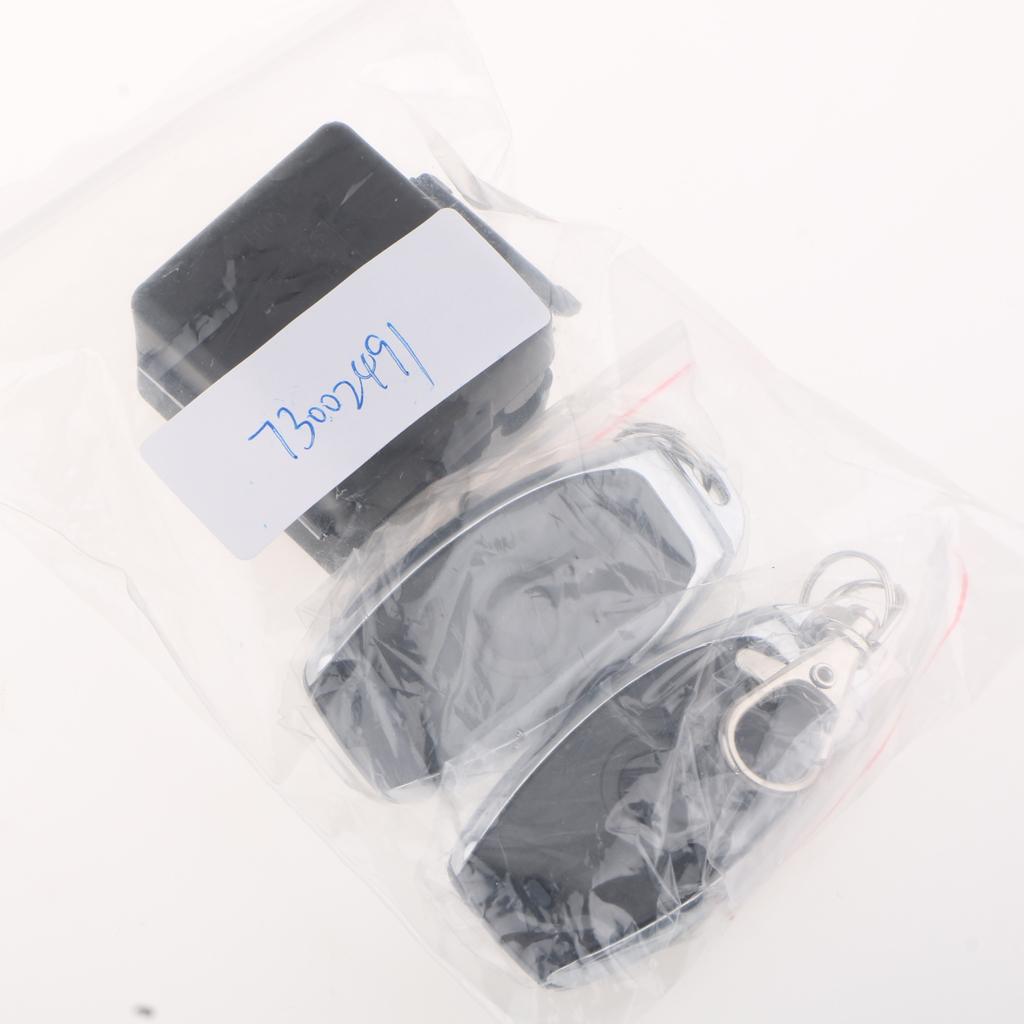

Package Includes:

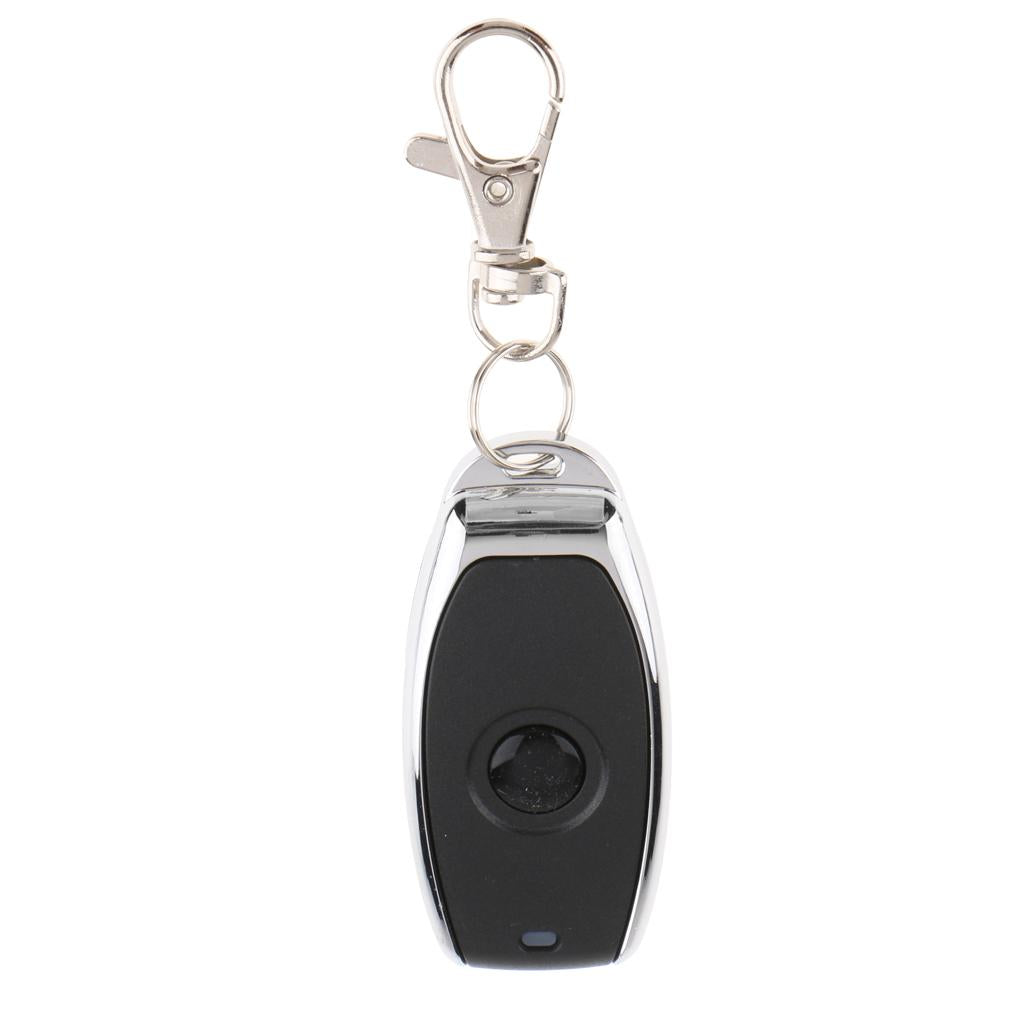

2 Piece ejector
1 Piece acceptor
