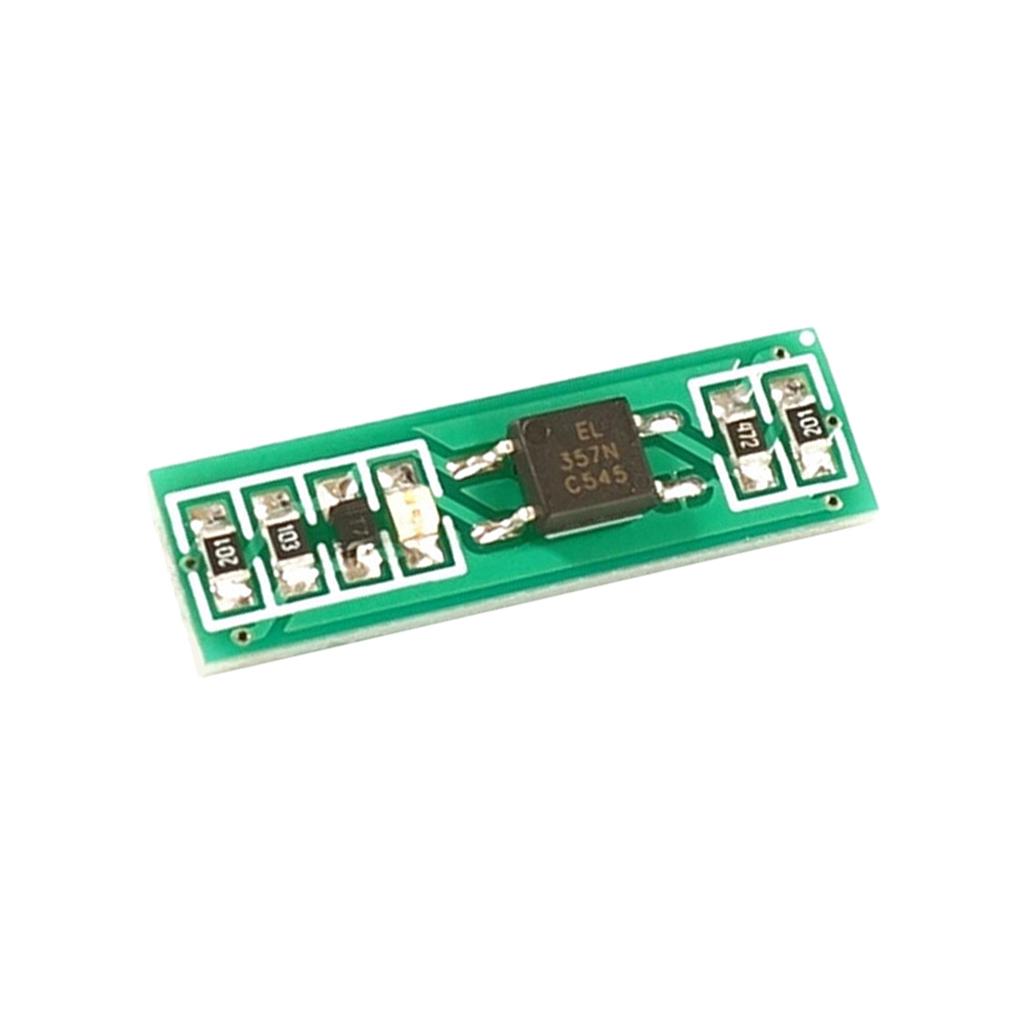

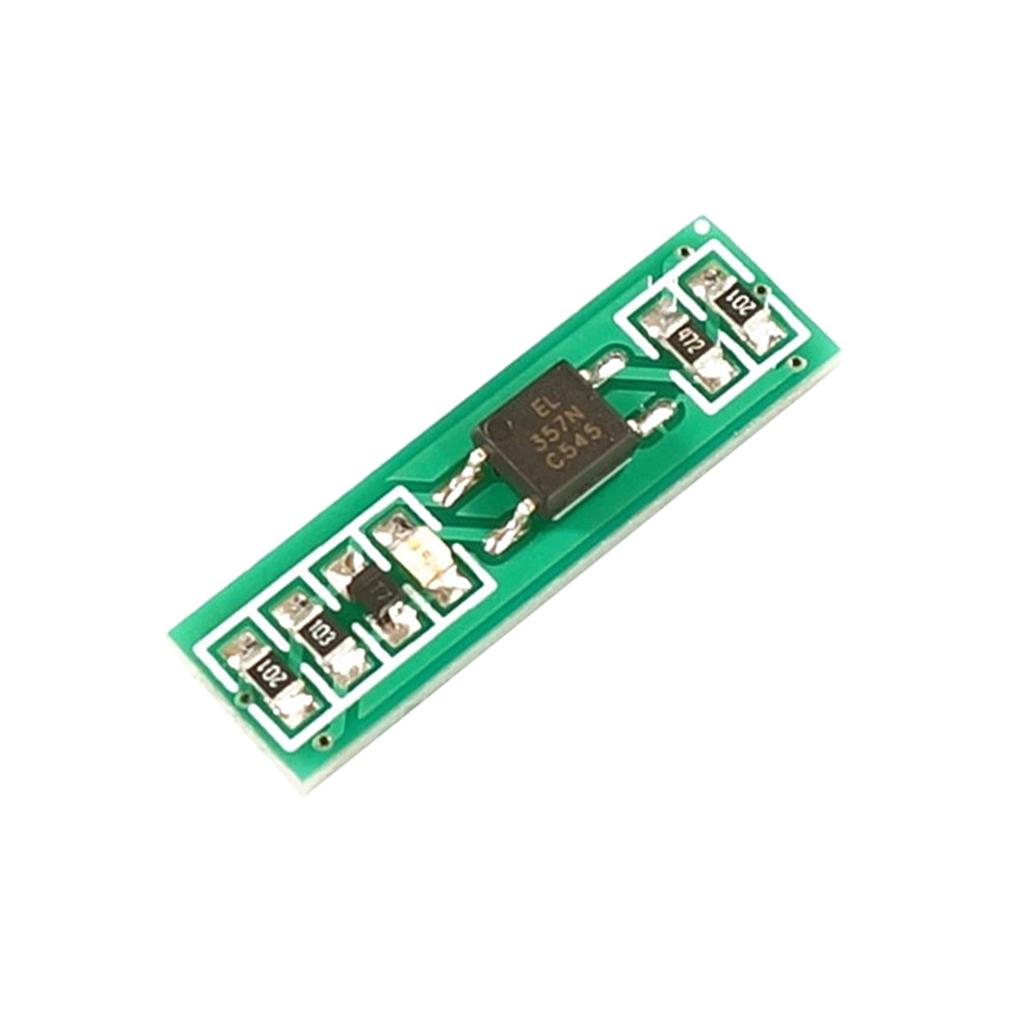

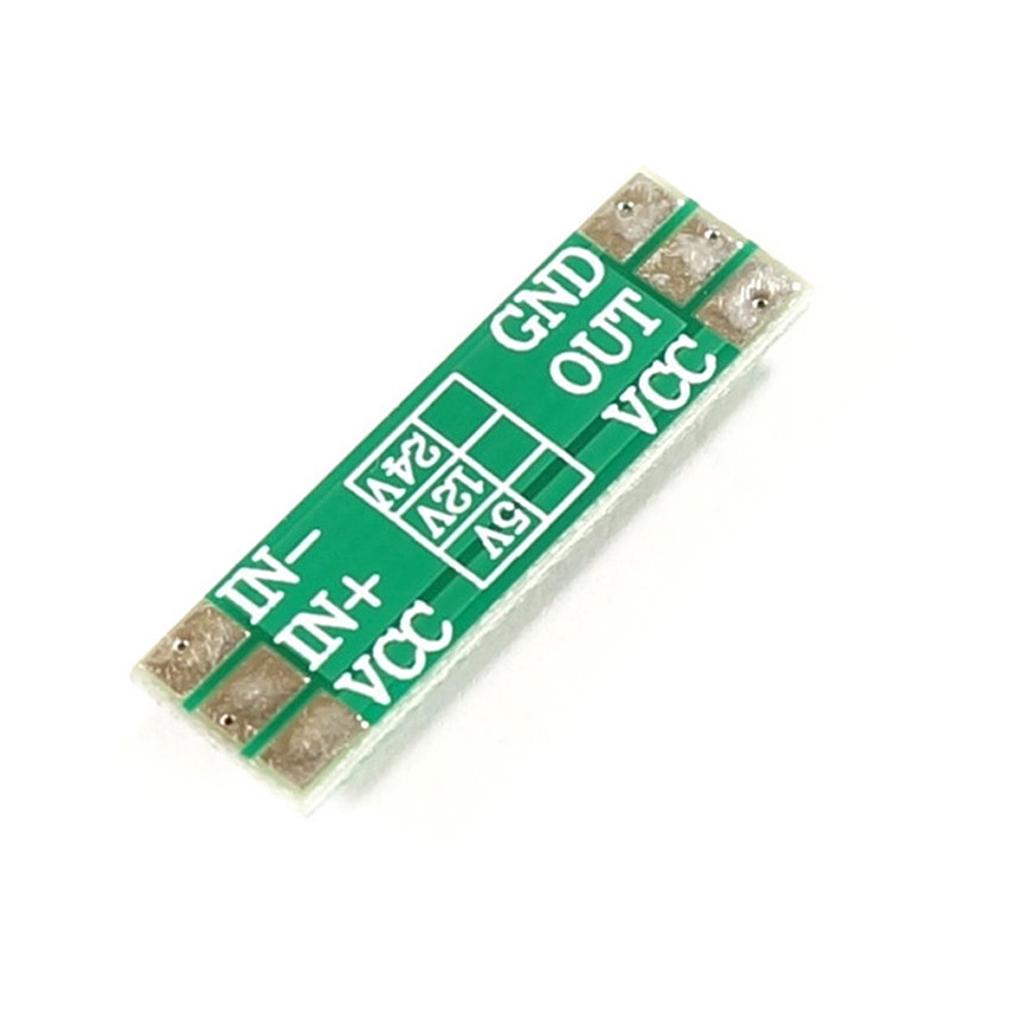

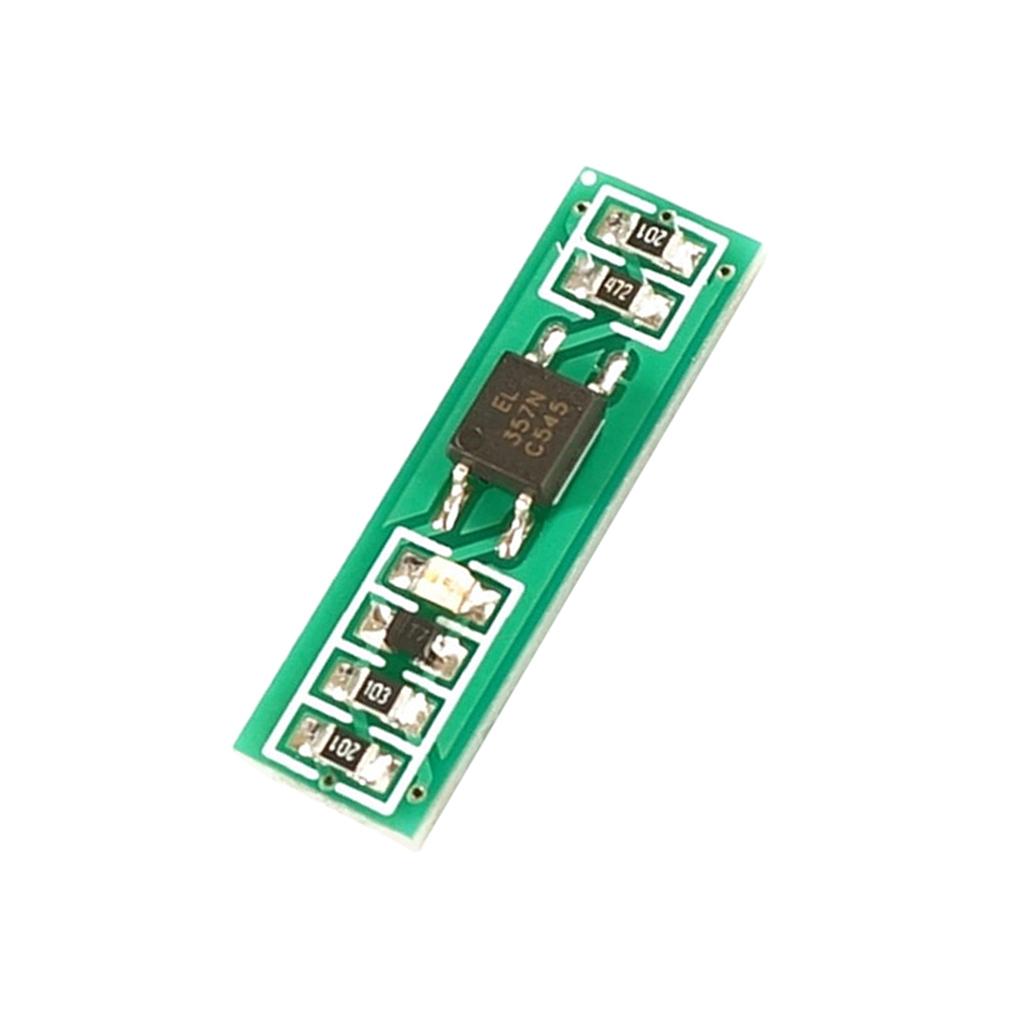

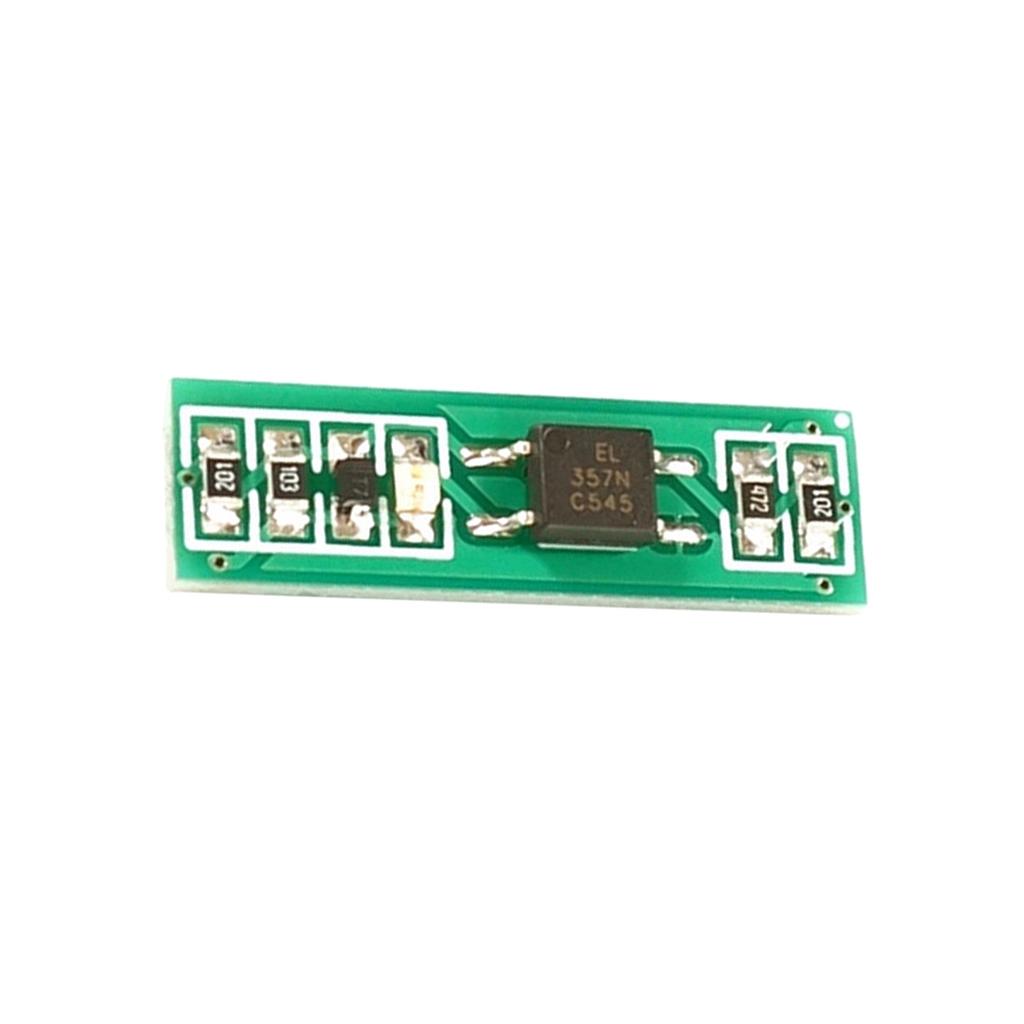

EL357N-C 12V Optocoupler Isolation Module Signal Level Convert NPN 5V

Description:

A mini optocoupler isolation, signal level conversion module.
24V side can be connected with long wire button, the output side connected to MCU IO pin.
Suitable for general level conversion, such as 24V.
With input signal indicator light.

Specification:

Size: 7.4 x 25mm/0.3 x 1inch
Optocoupler: EL357N
Working frequency: <2K Hz
Signal Output: PNP
Input signal voltage: 12V
Output signal voltage: 3V-32V DC
Operating temperature: -40℃~85℃
Input reverse connection protection diode: Yes
When input without signal, output high level
When input with signal, output low leve

Package Includes:

1 Piece Optocoupler Isolation Module
